IMPORTANT
Ifyouhaveanyproblemswiththisproduct(missingordamagedparts,assemblyissues,etc.),
PLEASEDONOTRETURNTOTHERETAILER/STORE
fromwhereyoupurchasedtheproduct.
PleasecallourToll‐FreeCustomerServiceHotlineat:1‐800‐416‐3511
Between9:00AMand5:00PMEasternTime,MondaythroughFriday
Orvisitourwebsiteat:www.hanover‐products.com


Toexpediteanyfuturewarrantyclaims,pleaseretaintheInstructionSheet,Warranty
Cardandreceiptforfutureuse.
For additionalon‐linesupportonassembly,troubleshootingandcare&maintenanceofyouroutdoor
furniture,pleasevisitourwebsiteat:www.hanover‐products.com.
6/1/2015(a)

1
ASSEMBLY INSTRUCTIONS
WARNING
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
An LP-cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from
the appliance and immediately call
your gas supplier or fire department.
WARNING:
USE FACTORY APPROVED
REPLACEMENT PARTS AND
ACCESSORIES ONLY. USE
OF UNAPPROVED PART OR
ACCESSORIES CAN VOID
THE WARRANTY ON THIS
PRODUCTAND RESULT IN
AHAZARDOUS CONDITION.
PLEASE CONTACT US FOR
INFORMATION REGARDING
REPLACEMNT
HOSES,THERMOCOUPLES,
ELECTRODES,IGNITION
MODULES,LAVAROCKS,LO
GS, FIRE ICE, ETC.
WARNING:
Improper installation, adjustment alteration,
service or maintenance can cause injury or
property damage. Read the installation,
operating and maintenance instructions
thoroughly before installing or servicing this
equipment.
FOR USE WITH 20LB (9KG) PROPANE
CYLINDER WITH TYPE 1 CONNECTION OR FOR
USE WITH NATURAL GAS AFTER CONVERSION
KIT IS INSTALLED (MUST BE PROFESSIONALLY
INSTALLED) ALSO THE LP REGULATOR MUST
BE SUPPLIED BY THE MANUFACTURER.
Jan-01-2015
Installer: Leave these instructions with consumer.
Consumer: Keep these instructions for future reference.
WARNING: For Outdoor Use Only
Questions, Problems, Missing Parts? Before returning to
your retailer, call our customer service department in the
US and Canada at 1-800-416-3511, Monday-Friday, 9 a.m.–
5 p.m.Eastern Time.
Thi
s app
li
ance can pro
d
uce car
b
on
monoxide which has no odor.
Using it in an enclosed space can kill
you.
Never use this appliance in an enclosed
space such as a camper, tent, car or
home.
DANGER CARBON MONOXIDE HAZARD
CSA Model99010
A
RL00200

3
IMPORTANT SAFETY INFORMATION
The installation must conform with local codes or, in the absence of local codes, with the
National Fuel Gas Code, ANSI Z223.1/NFPA 54; International Fuel Gas Code. ; Natural
Gas and Propane Installation Code, CSAB149.1; or Propane Storage and Handling Code,
B149.2, as applicable.
The appliance must be isolated from the gas supply piping system by closing its
equipment shutoff valve during any pressure testing of the gas supply system at test
pressure equal to or less than 1/2 psi (3.5kPa).
The appliance area must be kept clear and free from combustible materials, gasoline and
other flammable vapors and liquids.
Do not use this appliance if any part has been under water. Immediately call a qualified
service technician to inspect the appliance and to replace any part of the control system
and any gas control which has been under water.
Children and adults should be alerted to the hazards of high surface temperatures
and kept at a safe distance to avoid burns or clothing ignition.
Young children should be carefully supervised when they are anywhere near the
appliance.
Clothing or other flammable material should not be hung from the appliance, or
placed on or near the appliance.
Any screen or guard removed for servicing an appliance must be replaced prior to
operating the appliance.
Installation and repair should be done by a qualified service person. The appliance
should be inspected before use and at least annually by a professional service
person. More frequent cleaning may be required as necessary. It is imperative that
the control compartments, burners and circulating air passageways of the
appliance be kept clean.
Do NOT burn solid fuels in this gas fireplace.
CAUTION: The propane gas pressure regulator provided with this appliance must be
used. This regulator is set for an outlet pressure of 11 inches water column.
This outdoor gas appliance is not intended to be installed in or on recreational vehicles
and/or boats.
Before each use of this gas appliance, open the LP (Liquid Propane) Tank Drawer and
inspect the LP Hose. If there is evidence of excessive abrasion or wear, or the hose is cut,
it must be replaced prior to the gas appliance being put into operation. Use only the
replacement hose assembly specified in this manual. Inspect the burner before each use
of the appliance. The burner must be replaced prior to the appliance being put into
operation if it is evident that the burner is damaged. Use only the burner listed in these
instructions.
Keep the fuel supply hose away from any heated surfaces.

4
IMPORTANT SAFETY INFORMATION ABOUT
PROPANE (LP) GAS
A self contained LP-gas cylinder for use with this appliance must have a
capacity of 20 lbs. and must be equipped with a Type 1 connector and an OPD
(overfill protection device). See Figure 1.
The LP-gas supply cylinder to be used must be constructed and marked in
accordance with the specification for LP-gas cylinders of the U.S. Department
of Transportation (DOT) or the National Standard of Canada, CAN/CSA-B339,
Cylinder, Sphere and Tubes for the Transportation of Dangerous Goods.
The cylinder supply system must be arranged for vapor withdrawal.
The cylinder used must include a collar to protect the cylinder valve.
This appliance shall be used only outdoors in a well-ventilated space and
shall not be used in a building, garage or any other enclosed space.
When this appliance is not is use, the gas must be turned off at the supply
cylinder.
Storage of this appliance indoors is permissible only if the cylinder is
disconnected and removed from the appliance.
Cylinders must be stored outdoors in a well-ventilated area out of the
reach of children. Disconnected cylinders must have threaded valve plugs
tightly installed and must not be stored in a building, garage or any other
enclosed areas.
CSA (Canadian Standards Association) certified to ANSI Z21.97•CSA 2.41-2012
“Outdoor Decorative Gas Appliances”
Figure 1
SPECIFICATIONS
INPUT 40,000 Btu/hr 30,000 Btu/hr Low fire
Propane Regulator Pressure 11 inches water column
Clearances to combustible
surfaces Sides 24in./61cm Top: 72 in. / 183 cm

5
PARTS IDENTIFICATION LIST
PART DESCRIPTION PART# QTY
A CONTROL KNOB FP1245 1
B GAS VALVE FP0307 1
C THERMOCOUPLE FP0004 1
D LP REGULATOR
HOSE 65-FP-0181 1
E ELECTRODE 65-FP-0128 1
F ORIFICE ELBOW FP0310 1
G IGNITION
MODULE FP0006 1
H PROPANE
ORIFICE ZCF0021 1
I “AAA”
BATTERY(1.5V) HW0705 1
J LAVA ROCK SET FP0002 1
K FOOTCAP FC0743 4
L 1/4" X 15 MM BOLT HW0034 8
M 1/4" X 20 MM BOLT HW0036 4
O 1/4" X 40 MM BOLT HW0086 4
P HEX BOLT DRIVER HW0006 1
Q BOLT COVER HW0105 18
R WASHERS-1 HW0004 14
S WASHERS-2 HW0712 4
T NUTS HW0717 2
U HEX BOLT
DRIVER HW0008 1

6
V TABLE RIM 1
W BACK PANEL 1
X LEFT SIDE PANEL 1
Y
RIGHT SIDE
PANEL 1
Z DOOR PANEL 1
AA LP SUPPORT 1
BB TILE-1 4
CC TILE-2 4
DD MIDDLE SUPPORT 1
EE TABLE COVER 1
FF BOTTOM/ TOP
CONNECTOR 1

7
INSTALLATION
1. Identify parts packed in carton against the parts list. Remove all protective materials and
set parts on a flat, non-abrasive surface.

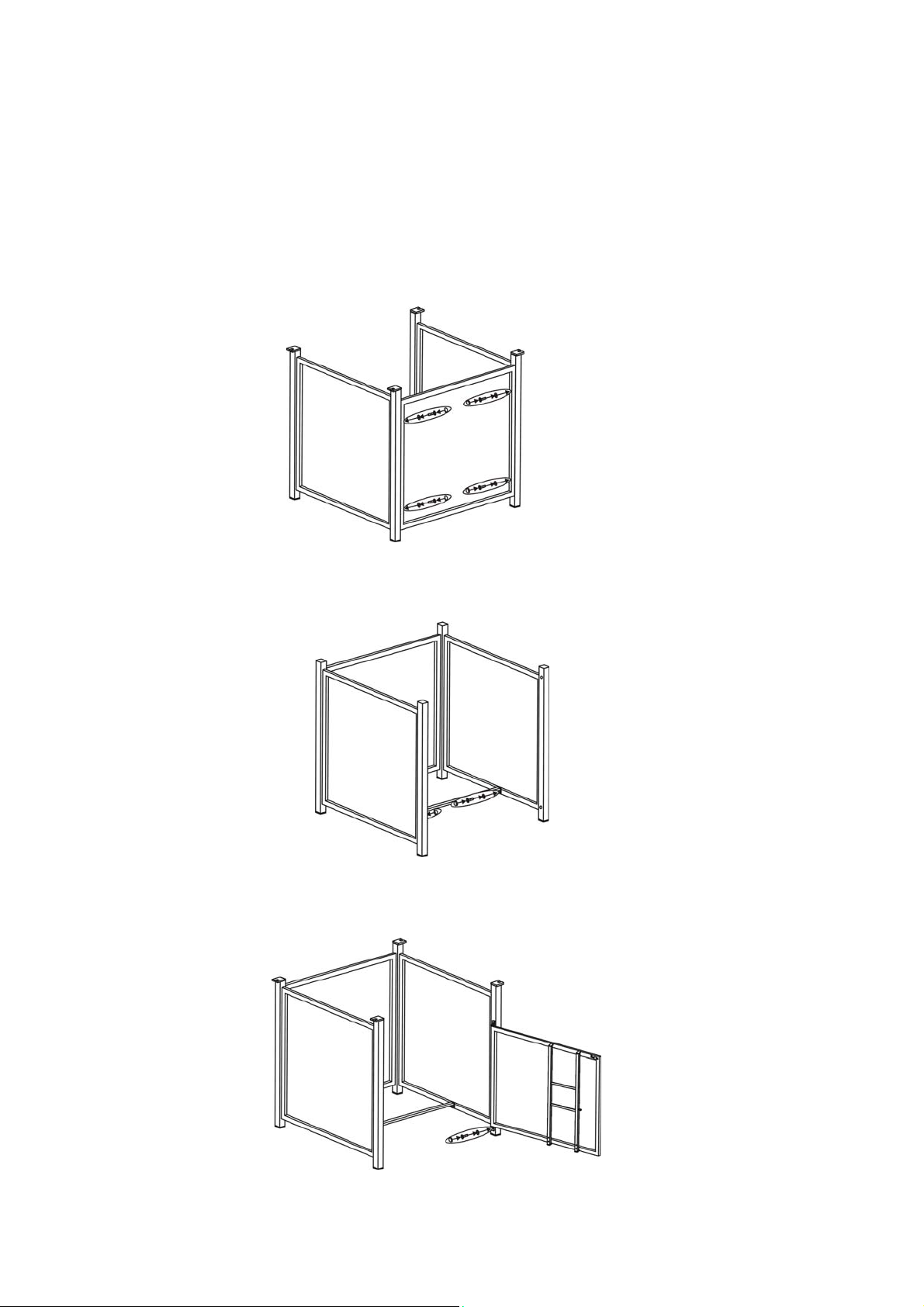

2. Attach the back panel to side panels by using four 1/4"x40 mm bolts and washers as
shown in Figure 2. Guide bolts through holes in back panel, into pre-drilled holes in the
side panels. Hand tighten only.
Figure 2
3. Attach the middle support to the side panels by using two 1/4"x15 mm bolts and
washers as shown in Figure 3. Guide bolts through the holes in the middle support, into
pre-drilled holes in the side panels. Hand tighten only.
Figure 3
4. Attach the "L" connector to right side panel by using a 1/4"x15 mm bolt and washer as
shown in Figure 4. Guide bolt through hole in "L" connector, into pre-drilled hole in the
right side panel. Do not over tighten.
Figure 4

8

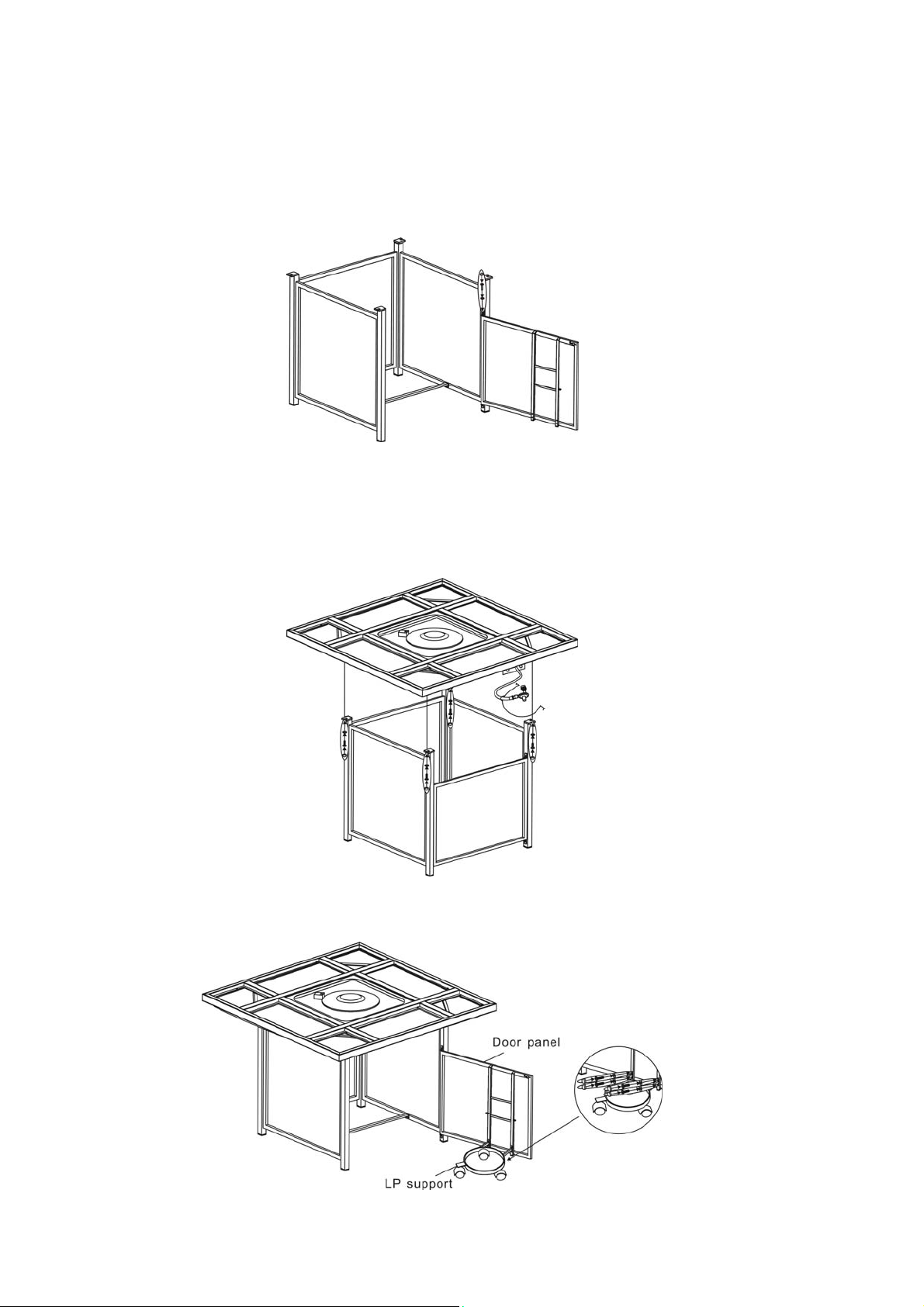

5. Put the door onto the "L" connector (pre-assembled), guide the pin on the lower "L"
connector into the hole under the door. Then guide the pin on the upper "L" connector
into the hole in the upper portion of the door. Use a 1/4"x15 mm bolt and washer to
secure the "L" connector to the right side panel as shown in Figure 5. Do not over
tighten.
Figure 5
6. With the help of another person, carefully place the table top onto the table base.
After making any necessary adjustments to the alignment of the table top and the
assembled base, use four 1/4"x15 mm bolts and washers as shown in Figure 6. Guide
the bolts through the holes under the table top, into the pre-drilled holes in the side
panels. Do not tighten completely.
Figure 6
7. Attach the LP support to door panel by using four 1/4"x15 mm bolts and washers as
shown in Figure 7. Do not over tighten.
Figure 7

9
8. Place gas tank onto the LP support as shown in Figure 8.
Figure 8
9. Attach the metal ring (as shown in Figure 9) pre-fitted with gas hose which is
connected to the table top, into the hole of the door panel, then use hex bolt driver to
screw 1/4"x5mm nut, the gas tank has fixed as shown in Figure 10. Connect the
regulator as shown in Figure10. Screw the black handle clock-wise to tighten. Turn the
handle counterclockwise to remove. The hose must point down. Check that the valve is
turned all the way clockwise to the "OFF" position.
Figure 10
Figure 9

10
10. After making any necessary adjustments to the parts, use the hex bolt driver to tighten
all bolts. Note: each bolt must be tightened a few revolutions at a time. Repeat until all
bolts are tight. Do not over tighten. Over tightening may strip bolts. Cover all bolts with
covers.
11. Note the clear bumpers spaced evenly throughout the inside of the table top. Carefully
place tiles inside table rim, resting on the clear bumpers as shown in Figure 11
Figure 11
12. Pour the lava rocks into the burner completely covering the burner. See Figure 12
Ignition Well
13. Remove the cardboard cover from the ignition well as shown in Figure 13. Remove
any lava rock or fire ice on top of ignition well.
Cardboard Cover
Figure 12
Figure 13

11
14. Open the tank valve. Apply a solution of soapy water to the tank-regulator connection
and to the valve-hose connection to check for leaks as shown in Figure 14 If soap
bubbles continue to form, the connection has a leak. If a leak is found, close the tank
valve and tighten all connections.
NOTE: NEVER USE A FLAME TO CHECK FOR LEAKS.
BATTERIES
Make sure the control knob is in the "OFF" position.
Unscrew the push button cap on the ignition module
located on the control panel to access the battery
compartment. The ignition module requires one Alkaline
AAA size battery (1.5V). The negative (-) end goes in first.
See Figure 15 Dispose of battery safely. May explode or
leak if charged or disposed of in fire. Make sure of the
polarity. Mercury and cadmium free.
Checking the tank-regulator for leaks
Figure 14
Figure 15

12
LIGHTING INSTRUCTIONS
Warning: If these instructions are not followed exactly, a fire or explosion may result in
causing property damage, personal injury or loss of life.
1. Make sure the control knob is in the "OFF" position. See Figure 16 Open the tank valve
all the way.
2.Push in the igniter button. You will hear a slight clicking sound. With the igniter button
pushed in, push and turn the control knob to the “ON” position. The fire should light within
a few seconds. Once the flame is lit, release the igniter button and continue to hold the
control knob in for 10 to 15 seconds. Release the control knob. The control knob should
pop back out and then remain lit.
Note: If the fire does not light, turn the knob to the “OFF” position and wait five (5) minutes
before trying again.
3. To turn down the flame, push the control knob in slightly and turn to Medium (medium
or Low (small flame).
4. To shut down the fire pit, turn the control knob to the “OFF” position and turn off the tank
valve.
MAINTENANCE
The flames should look like those in Figure 17 To clean the burner,
use a soft brush after the burner has cooled completely. Never
use a vacuum cleaner on the burner. It is recommended that the
fire pit be stored indoors during the winter if it will be subjected to
freezing temperatures. The LP cylinder must be disconnected and
removed from the appliance before the appliance can be stored
indoors.
Figure 17
IGNITER BUTTON CONTROL KNOB
Figure 16

13
TROUBLESHOOTING GUIDE
PROBLEM CAUSE REMEDY
No Propane Gas at Burner
Check that gas tank valve is
open. Turn control knob to “ON”
and push control knob in. Make
sure tank has propane gas.
No Spark at Electrode
Check that AAA battery is
installed with negative (-) end
first and has a charge. Check
that the wire is connected to the
ignition module. Check that the
electrode is not cracked or
broken.
Burner won’t light
Lack of oxygen Remove excess lava rocks or
fire ices from around the ignition
well.
Thermocouple not in flame
Check that the tip of the
thermocouple is even with the
top of the ignition well. Remove
any lava rocks from the igntion
well.
Thermocouple connection
at the main control valve is
loose
Tighten the thermocouple nut at
the back of the valve.
Burner won’t stay
lit after lighting
No Lava Rocks on Burner Cover the burner with lava rocks
per the instructions
