Harbor Freight Tools 179cc Assembly instructions

Visit our website at: http://www.harborfreight.com
Email our technical support at: [email protected]
or engine technical support at: [email protected] ITEM 69086
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright©2011 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
When unpacking, make sure that the product is intact and undamaged.
If any engine parts are missing or broken,
please call 1‑800‑520‑0882 (engine parts) or
1‑800‑444‑3353 (other parts) as soon as possible.
Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating,
inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual
near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and
the receipt in a safe and dry place for future reference.
Owner’s Manual & Safety Instructions
179cc
Compact Vibrator Plate
Using an engine indoors
CAN KILL YOU IN MINUTES.
Engine exhaust contains carbon monoxide.
This is a poison you cannot see or smell.
NEVER use inside
a home or garage,
EVEN IF doors and
windows are open.
Only use OUTSIDE
and far away from
windows, doors,
and vents.

Page 2 For engine technical questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
Item 69086
Table of Contents
Safety ......................................................... 2
Specifications ............................................. 6
Setup .......................................................... 6
Operation.................................................... 8
Maintenance.............................................. 12
Parts Lists and Diagrams .......................... 18
Warranties ................................................. 22
WARNING SYMBOLS AND DEFINITIONS
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
IMPORTANT SAFETY INFORMATION
Read all instructions.
Failure to follow all instructions listed below may result in fire, serious injury, and/or DEATH.
The warnings and precautions discussed in this manual cannot cover all possible conditions and situations that may
occur. It must be understood by the operator that common sense and caution are factors which cannot be built into
this product, but must be supplied by the operator.
SAVE THESE INSTRUCTIONS.
Setup Precautions
1. Gasoline fuel and fumes are flammable
and potentially explosive. Use proper fuel
storage and handling procedures. Do not store
fuel or other flammable materials nearby.
2. Have multiple ABC class fire
extinguishers nearby.
3. Operation of this equipment may create sparks
that can start fires around dry vegetation.
A spark arrestor may be required. The operator
should contact local fire agencies for laws or
regulations relating to fire prevention requirements.
4. Set up and use only on a flat, level,
well-ventilated surface.
5. Wear ANSI-approved safety goggles,
heavy-duty work gloves, and dust
mask/respirator during set up.
6. Use only lubricants and fuel recommended
in the engine manual or in the
Specifications chart of this manual.
SAFETY OPERATION MAINTENANCESETUP

Page 3
For engine technical questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
Item 69086
Operation Precautions
1. CARBON MONOXIDE HAZARD
Using an engine indoors CAN KILL
YOU IN MINUTES.
Engine exhaust contains carbon
monoxide. This is a poison you cannot
see or smell.
NEVER use inside a home or garage,
EVEN IF doors and windows are open.
Only use OUTSIDE and far away from windows,
doors, and vents.
2. Keep children away from the equipment,
especially while it is operating.
3. Keep hands and feet away from the Compactor
Base (53). Grip the Upper Handle (32) of
the Vibrator Plate firmly with both hands.
Never place tools under the Vibrator Plate.
4. Keep all spectators at least six feet from
the Vibrator Plate during operation.
5. Only use a suitable means of transport and
lifting devices with sufficient weight bearing
capacity when transporting the Vibrator Plate.
6. Only use sturdy loading ramps with sufficient
weight bearing capacity. Secure the Vibrator
Plate on transport vehicles to prevent the
tool from rolling, slipping, and tilting.
7. Keep a safe distance away from the edges
and banks of ditches and use care to prevent
the Vibrator Plate from toppling over.
8. Ascend slopes carefully in a direct path.
9. Pull backwards up steep slopes
to prevent the Vibrator Plate from
toppling over onto the operator.
10. When performing compacting work in the
vicinity of buildings or above pipelines, make
sure to check the affect of the vibrations on
the buildings and pipelines. If necessary,
immediately stop the compacting work.
11. Park the Vibrator Plate on a firm and level surface.
12. Industrial applications must
follow OSHA requirements.
13. Do not leave the equipment unattended when it is
running. Turn off the equipment (and remove safety
keys, if available) before leaving the work area.
14. Wear ANSI-approved safety glasses,
hearing protection, and NIOSH-approved
dust mask/respirator under a full face shield
along with steel-toed work boots during use.
15. People with pacemakers should consult their
physician(s) before use. Electromagnetic
fields in close proximity to a heart pacemaker
could cause pacemaker interference or
pacemaker failure. Caution is necessary when
near the engine’s magneto or recoil starter.
16. Use only accessories that are recommended
by Harbor Freight Tools for your model.
Accessories that may be suitable for one
piece of equipment may become hazardous
when used on another piece of equipment.
17. Do not operate in explosive atmospheres,
such as in the presence of flammable
liquids, gases, or dust. Gasoline‑powered
engines may ignite the dust or fumes.
18. Stay alert, watch what you are doing
and use common sense when operating
this piece of equipment. Do not use this
piece of equipment while tired or under the
influence of drugs, alcohol or medication.
19. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the equipment in unexpected situations.
20. Use this equipment with both hands only.
Using equipment with only one hand
can easily result in loss of control.
21. Dress properly. Do not wear loose clothing or
jewelry. Keep hair, clothing and gloves away
from moving parts. Loose clothes, jewelry or
long hair can be caught in moving parts.
22. Parts, especially exhaust system components,
get very hot during use. Stay clear of hot parts.
23. Do not cover the engine or
equipment during operation.
24. Keep the equipment, engine, and
surrounding area clean at all times.
SAFETYOPERATIONMAINTENANCE SETUP

Page 4 For engine technical questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
Item 69086
Operation Precautions (cont.)
25. Use the equipment, accessories, etc., in
accordance with these instructions and in the
manner intended for the particular type of
equipment, taking into account the working
conditions and the work to be performed. Use of
the equipment for operations different from those
intended could result in a hazardous situation.
26. Do not operate the equipment with known
leaks in the engine’s fuel system.
27. This product contains or, when used,
produces a chemical known to the State of
California to cause cancer and birth defects
or other reproductive harm. (California
Health & Safety Code § 25249.5, et seq.)
28. When spills of fuel or oil occur, they must
be cleaned up immediately. Dispose of fluids
and cleaning materials as per any local, state, or
federal codes and regulations. Store oil rags in
a bottom‑ventilated, covered, metal container.
29. Keep hands and feet away from moving parts.
Do not reach over or across
equipment while operating.
30. Before use, check for misalignment or
binding of moving parts, breakage of parts,
and any other condition that may affect
the equipment’s operation. If damaged, have the
equipment serviced before using. Many accidents
are caused by poorly maintained equipment.
31. Use the correct equipment for the application.
Do not modify the equipment and do not use the
equipment for a purpose for which it is not intended.
Vibration Hazard:
This tool vibrates during use. Repeated or long‑term
exposure to vibration may cause temporary or permanent
physical injury, particularly to the hands, arms and
shoulders. To reduce the risk of vibration‑related injury:
1. Anyone using vibrating tools regularly or for an
extended period should first be examined by a
doctor and then have regular medical check-ups
to ensure medical problems are not being
caused or worsened from use. Pregnant women
or people who have impaired blood circulation to the
hand, past hand injuries, nervous system disorders,
diabetes, or Raynaud’s Disease should not use this
tool. If you feel any symptoms related to vibration
(such as tingling, numbness, and white or blue
fingers), seek medical advice as soon as possible.
2. Do not smoke during use. Nicotine reduces
the blood supply to the hands and fingers,
increasing the risk of vibration‑related injury.
3. Wear suitable gloves to reduce the
vibration effects on the user.
4. Use tools with the lowest vibration when there
is a choice between different processes.
5. Include vibration-free periods each day of work.
6. Grip tool as lightly as possible (while still keeping
safe control of it). Let the tool do the work.
7. To reduce vibration, maintain the tool as
explained in this manual. If any abnormal
vibration occurs, stop use immediately.
SAFETY OPERATION MAINTENANCESETUP

Page 5
For engine technical questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
Item 69086
Maintenance Precautions
1. Before service, maintenance, or cleaning:
a. Turn the engine switch to its “OFF” position.
b. Allow the engine to completely cool.
c. Then, remove the spark plug wire(s)
from the spark plug(s).
2. Keep all safety guards in place and in
proper working order. Safety guards include
muffler, air cleaner, mechanical guards,
and heat shields, among other guards.
3. Do not alter or adjust any part of the
equipment or its engine that is sealed by the
manufacturer or distributor. Only a qualified
service technician may adjust parts that may
increase or decrease governed engine speed.
4. Wear ANSI-approved safety goggles,
heavy-duty work gloves, and dust
mask/respirator during service.
5. Maintain labels and nameplates on
the equipment. These carry important
information. If unreadable or missing, contact
Harbor Freight Tools for a replacement.
6. Have the equipment serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the
equipment is maintained. Do not attempt any service
or maintenance procedures not explained in this
manual or any procedures that you are uncertain
about your ability to perform safely or correctly.
7. Store equipment out of the reach of children.
8. Follow scheduled engine and
equipment maintenance.
Refueling:
1. Do not smoke, or allow sparks, flames,
or other sources of ignition around the
equipment, especially when refueling.
2. Do not refill the fuel tank while the
engine is running or hot.
3. Do not fill fuel tank to the top.
Leave a little room for the fuel to expand as needed.
4. Refuel in a well-ventilated area only.
SAVE THESE INSTRUCTIONS.
SAFETYOPERATIONMAINTENANCE SETUP

Page 6 For engine technical questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
Item 69086
Specifications
Operating Speed 0‑82 FPM
Maximum Shock Force 3,000 lb
Vibration Frequency 5,500 Vibrations Per Minute
Maximum Performance 350 m2/hr
Engine Type 179cc
Plate Size 16-1/2″ x 22″
Weight 176 lbs.
Note: Additional specifications found in the TECHNICAL ENGINE SPECIFICATIONS chart in this manual.
The emission control system for this Vibrator’s Engine is
warranted for standards set by the U.S. Environmental
Protection Agency and by the California Air Resources
Board (also known as CARB). For warranty
information, refer to the last pages of this manual.
At high altitudes, the engine’s carburetor,
governor (if so equipped), and any other parts that
control the fuel‑air ratio will need to be adjusted by
a qualified mechanic to allow efficient high‑altitude
use and to prevent damage to the engine and
any other devices used with this product.
Setup
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Power Switch of the equipment off, wait for the engine to cool, and unplug the
spark plug wire(s) before assembling or making any adjustments to the tool.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL FIRES:
Operate only with proper spark arrestor installed. Operation of this equipment may create sparks
that can start fires around dry vegetation. A spark arrestor may be required. The operator should
contact local fire agencies for laws or regulations relating to fire prevention requirements.
Note: For additional information regarding the parts listed in the following pages,
refer to Parts Lists and Diagrams on page 18.
Handle Setup
1. Loosen the Knob Handle (31) on each
side of the Upper Handle (32).
2. Swing the Upper Handle until it points
straight out from the Lower Handle (29).
3. Tighten both Knob Handles (31) securely.
Knob
Handles (31)
Upper
Handle (32)
Lower
Handle (29)
SAFETY OPERATION MAINTENANCESETUP

Page 7
For engine technical questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
Item 69086

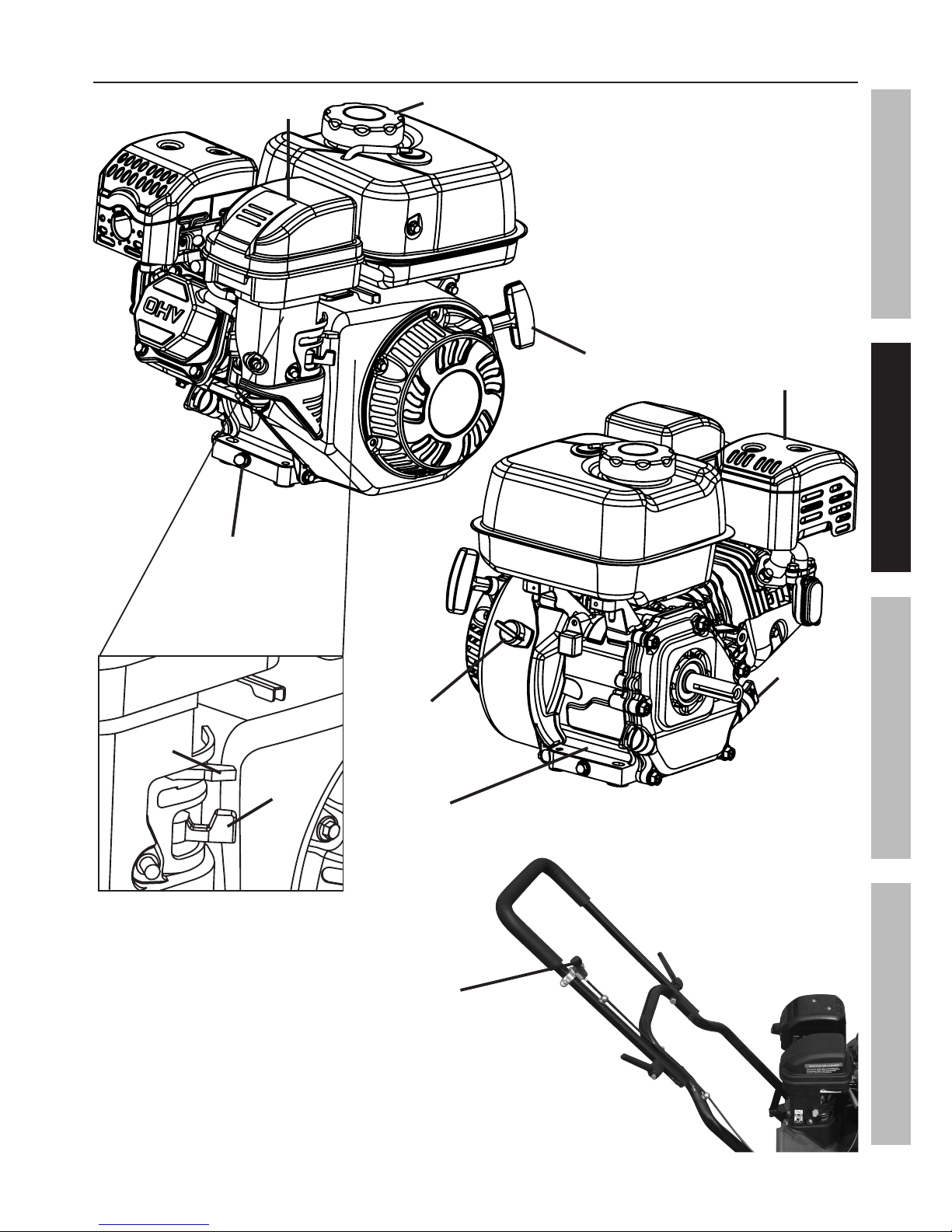

Engine Controls
Muffler
Dipstick
Serial
Number
Location
(Write on front
cover of manual.)
Engine
Switch
Starter
Handle
Oil Drain Plug
Air Filter
Fuel Valve
Choke
Fuel Cap
Speed
Control
Lever
SAFETYOPERATIONMAINTENANCE SETUP

Page 8 For engine technical questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
Item 69086

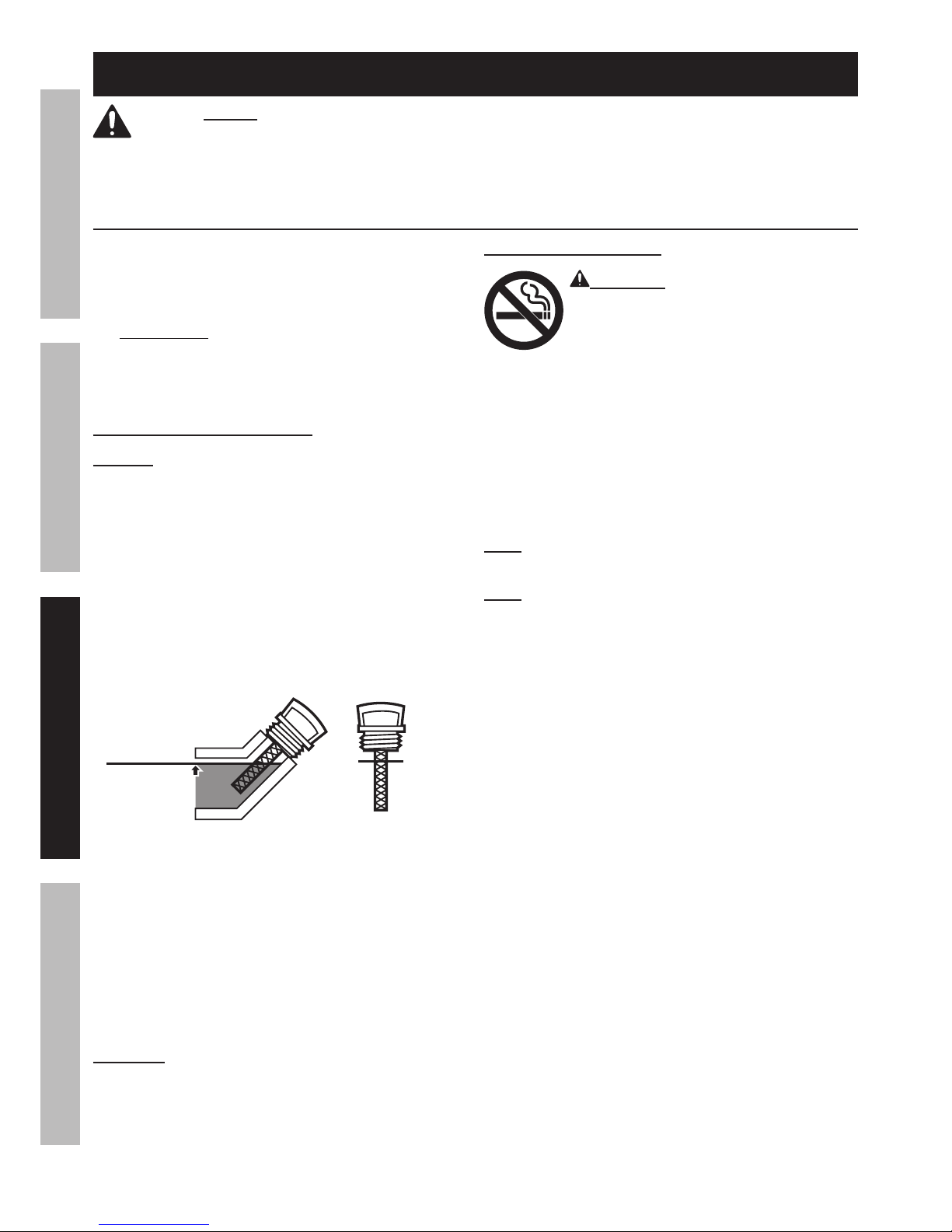

Operation
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual
including all text under subheadings therein before set up or use of this product.
Pre-Start Checks
1. Inspect engine and equipment looking for
damaged, loose, and missing parts before set
up and starting. If any problems are found,
do not use equipment until fixed properly.
2. IMPORTANT: CHECK HARDWARE TIGHTNESS
BEFORE EVERY USE. The strong vibrations created
during use will cause some hardware to loosen.
3. Firmly attach the Upper Handle (32) BEFORE use.
Checking and Filling Engine Oil
NOTICE: Your Warranty is VOID if the engine’s
crankcase is not properly filled with oil before
each use. Before each use, check the oil level.
Do not run the engine with low or no engine oil.
Running the engine with no or low engine oil
WILL permanently damage the engine.
1. Make sure the engine is stopped and is level.
2. Close the Fuel Valve.
3. Clean the top of the Dipstick and the area around it.
Remove the Dipstick by threading it counterclockwise,
and wipe it off with a clean lint free rag.
4.
Full level
Full level
Reinsert the Dipstick without threading it in and
remove it to check the oil level. The oil level
should be up to the full level as shown above.
5. If the oil level is at or below the low mark add the
appropriate type of oil until the oil level is at the
proper level. SAE 10W‑30 oil is recommended
for general use. (The SAE Viscosity Grade chart
on page 13 in the Service section shows other
viscosities to use in different average temperatures.)
6. Thread the dipstick back in clockwise.
CAUTION! Do not run the engine with too little oil.
The engine will be permanently damaged.
Checking and Filling Fuel
WARNING! TO PREVENT SERIOUS
INJURY FROM FIRE:
Fill the fuel tank in a well‑ventilated area
away from ignition sources. If the engine is
hot from use, shut the engine off and wait
for it to cool before adding fuel.
Do not smoke.
1. Clean the Fuel Cap and the area around it.
2. Unscrew and remove the Fuel Cap.
3. If needed, fill the Fuel Tank to about 1 inch
under the fill neck of the Fuel Tank with
87 octane or higher unleaded gasoline.
Note: Do not use gasoline containing more than
10% ethanol (E10). Do not use E85 ethanol.
Note: Do not use gasoline that has been stored in a
metal fuel container or a dirty fuel container. It can
cause particles to enter the carburetor, affecting
engine performance and/or causing damage.
4. Then replace the Fuel Cap.
5. Wipe up any spilled fuel and allow excess
to evaporate before starting engine.
To prevent FIRE, do not start the engine
while the smell of fuel hangs in the air.
SAFETY OPERATION MAINTENANCESETUP

Page 9
For engine technical questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
Item 69086
Starting the Engine
Before Starting the Engine
Before starting the engine:
a. Follow the Set Up Instructions in the equipment manual to prepare the equipment.
b. Inspect the equipment and engine.
c. Fill the engine with the proper amount and type of both fuel and oil.
d. Read the Equipment Operation section in the equipment manual.
1. To start a cold engine, move the Choke to the
CHOKE position.
To restart a warm engine, leave the Choke in the
RUN position.
2. Open the Fuel Valve.
3. Slide the Speed Control Lever (54) to
1/3 away from the SLOW position.
4. Turn the Engine Switch on.
CHOKE RUN
1
2
3
Speed
Control
Lever
ON
OFF
OI
ON
4
SAFETYOPERATIONMAINTENANCE SETUP

Page 10 For engine technical questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
Item 69086
5. Grip the Starter Handle of the Engine loosely and pull
it slowly several times to allow the gasoline to flow into
the Engine’s carburetor. Then pull the Starter Handle
gently until resistance is felt. Allow Cable to retract fully
and then pull it quickly. Repeat until the engine starts.
Note: Do not let the Starter Handle snap back against
the engine. Hold it as it recoils so it doesn't hit the engine.
6. Allow the Engine to run for several seconds.
Then, if the Choke lever is in the CHOKE position,
move the Choke Lever very slowly to its RUN position.
NOTE: Moving the Choke Lever too fast could stall the engine.
IMPORTANT: Allow the engine to run at no load for five minutes with
no load after each start‑up so that the engine can stabilize.
7. Grip the Upper Handle (32) firmly with both hands.
8. Depending on the desired speed at which the Vibrator Plate will vibrate,
adjust the Speed Control Lever (54) between its “LOW” to “HIGH” position.
9. Slowly push or pull the Vibrator Plate while guiding the tool in the desired direction.
10. Keep a safe distance away from the edges and banks of ditches and use
care to prevent the Vibrator Plate from toppling over.
11. Ascend slopes carefully in a direct path. Pull backwards up steep slopes to
prevent the Vibrator Plate from toppling over onto the operator.
12. Break-in Period:
a. Breaking‑in the engine will help to ensure proper equipment and engine operation.
b. The operational break‑in period will last about 3 hours of use.
Do not operate the engine at its maximum speed during this period.
c. The maintenance break‑in period will last about 20 hours of use. Change the engine oil after this period.
Under normal operating conditions subsequent maintenance follows the schedule
explained in the MAINTENANCE AND SERVICING section.
5
CHOKE RUN
6
8
Speed
Control
Lever
SAFETY OPERATION MAINTENANCESETUP

Page 11
For engine technical questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
Item 69086
Stopping the Engine
To stop the engine in an emergency,
turn the Engine Switch off.
Under normal conditions, use the following procedure:
1. Slide the Speed Control Lever (54) to SLOW.
2. Turn the Engine Switch off.
3. Close the Fuel Valve.
4. Park the Vibrator Plate on a firm and level surface after use.
5. The Knob Handles (31) can be loosened and the
Upper Handle (32) folded down to aid in storage.
OI
OFF
1
Speed
Control
Lever
OI
OFF
2
3
SAFETYOPERATIONMAINTENANCE SETUP

Page 12 For engine technical questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
Item 69086
Maintenance
Technical Specifications
Engine Type Single Cylinder 4 stroke OHV
Bore x Stroke 65mm x 54mm
Displacement 179cc
Compression Ratio 8.5:1
Rotation viewed from PTO
(power takeoff ‑ the output shaft) Counterclockwise
Fuel Type 87+ octane unleaded gasoline
Capacity 1 Gallon
Engine Oil Type SAE 10W‑30 above 32° F
5W‑30 at 32° F or below
Capacity 0.5 Quarts
Spark Plug Type Torch & LG
Gap 0.028 - 0.031″
Valve
Clearance
Intake 0.10 ‑ 0.15 mm
Exhaust 0.15 ‑ 0.20 mm
Speed Idle 1,800 ±50 RPM
WARNING
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL STARTING:
Turn the Power Switch of the equipment to its “OFF” position, wait for the engine to cool, and disconnect
the spark plug cap before performing any inspection, maintenance, or cleaning procedures.
TO PREVENT SERIOUS INJURY FROM EQUIPMENT FAILURE:
Do not use damaged equipment. If abnormal noise, vibration, or excess
smoking occurs, have the problem corrected before further use.
Follow all service instructions in this manual. The engine may fail critically if not serviced properly.
Many maintenance procedures, including any not detailed in this manual, will need to be performed
by a qualified technician for safety. If you have any doubts about your ability to safely service the
equipment or engine, have a qualified technician service the equipment instead.
Maintenance and Lubrication Schedule
Note: This maintenance schedule is a general guide only. If performance decreases or if equipment
operates unusually, check systems immediately. The maintenance needs of each engine will differ
depending on factors such as duty cycle, temperature, air quality, fuel quality, and other factors.
Note: The following procedures are in addition to the regular checks and maintenance
explained as part of the regular operation of the engine and equipment.
Procedure Before
Each Use
Every 2 weeks
or 10 hr. of use
Monthly or
20 hr. of use
Every 6 mo. or
100 hr. of use
Yearly or
300 hr. of use
Every
2 Years
1. Brush off outside of engine
2. Check and tighten all hardware
3. Check engine oil level
and deposit cup
Clean/replace air cleaner *
Change engine oil
Check and clean spark plug
1. Check/adjust idle speed
and valve clearance
2. Clean fuel tank, strainer
and carburetor
3. Clean carbon build‑up from
combustion chamber
** **
Check/replace fuel line **
*Service more frequently when used in dusty areas.
**These items should be serviced by a qualified technician.
SAFETY OPERATION MAINTENANCESETUP

Page 13
For engine technical questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
Item 69086
Checking and Filling Fuel
WARNING! TO PREVENT SERIOUS
INJURY FROM FIRE:
Fill the fuel tank in a well‑ventilated area
away from ignition sources. If the engine is
hot from use, shut the engine off and wait
for it to cool before adding fuel.
Do not smoke.
1. Clean the Fuel Cap and the area around it.
2. Unscrew and remove the Fuel Cap.
3. If needed, fill the Fuel Tank to about 1 inch
under the fill neck of the Fuel Tank with
87 octane or higher unleaded gasoline.
Note: Do not use gasoline containing more than
10% ethanol (E10). Do not use E85 ethanol.
Note: Do not use gasoline that has been stored in a
metal fuel container or a dirty fuel container. It can
cause particles to enter the carburetor, affecting
engine performance and/or causing damage.
4. Then replace the Fuel Cap.
5. Wipe up any spilled fuel and allow excess
to evaporate before starting engine.
To prevent FIRE, do not start the engine
while the smell of fuel hangs in the air.
Engine Oil Change
CAUTION! Oil is very hot during operation and can
cause burns. Wait for engine to cool before changing oil.
1. Make sure the engine is stopped and is level.
2. Close the Fuel Valve.
3. Place a drain pan (not included) underneath
the crankcase’s drain plug.
4. Remove the drain plug and, if possible, tilt the
crankcase slightly to help drain the oil out.
Recycle used oil.
5. Replace the drain plug and tighten it.
6. Clean the top of the Dipstick and the area around it.
Remove the Dipstick by threading it counterclockwise,
and wipe it off with a clean lint free rag.
7.
Full level
Full level
Add the appropriate type of oil until the oil level is at
the full level. SAE 10W‑30 oil is recommended for
general use.
The SAE Viscosity Grade chart shows other
viscosities to use in different average temperatures.
10W-30
30
5W-30
‑20 0 20 40 60 80 100°F
SAE Viscosity Grades
Average outdoor temperature
8. Thread the dipstick back in clockwise.
CAUTION! Do not run the engine with too little oil.
The engine will be permanently damaged.
SAFETYOPERATIONMAINTENANCE SETUP

Page 14 For engine technical questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
Item 69086
Air Filter Element Maintenance
1. Remove the air filter cover and the
air filter elements and check for dirt.
Clean or replace as described below.
2. Cleaning:
• For “paper” filter elements:
To prevent injury from dust and debris,
wear ANSI‑approved safety goggles,
NIOSH‑approved dust mask/respirator, and
heavy‑duty work gloves. In a well‑ventilated
area away from bystanders, use pressurized
air to blow dust out of the air filter. If this
does not get the filter clean, replace it.
• For foam filter elements:
Wash the element in warm water and
mild detergent several times. Rinse.
Squeeze out excess water and allow it to dry
completely. Soak the filter in lightweight oil
briefly, then squeeze out the excess oil.
3. Install the new filter or the cleaned filter.
Secure the Air Cleaner Cover before use.
Spark Plug Maintenance
1.
Spark
Plug
Cap
Disconnect spark plug cap from end of plug.
Clean out debris from around spark plug.
2. Using a spark plug wrench, remove the spark plug.
3. Inspect the spark plug:
If the electrode is oily, clean it using a clean, dry
rag. If the electrode has deposits on it, polish it
using emery paper. If the white insulator is cracked
or chipped, the spark plug needs to be replaced.
NOTICE: Use only the spark plug listed on
the Technical Specifications chart. Using an
incorrect spark plug may damage the engine.
4. When installing a new spark plug, adjust the
plug’s gap to the specification on the Technical
Specifications chart. Do not pry against the
electrode, the spark plug can be damaged.
5. Install the new spark plug or the cleaned spark plug
into the engine. Gasket‑style: Finger‑tighten until the
gasket contacts the cylinder head, then tighten about
1/2‑2/3 turn more.
Non‑gasket‑style: Finger‑tighten until the plug
contacts the head, then tighten about 1/16 turn more.
NOTICE: Tighten the spark plug properly.
If loose, the spark plug will cause the engine
to overheat. If overtightened, the threads
in the engine block will be damaged.
6. Apply dielectric spark plug boot protector
(not included) to the end of the spark
plug and reattach the wire securely.
Belt Tension Adjustment
1. Turn off engine.
2. Loosen, but do not remove, the four Nuts (21) that
hold the Engine (16) to the Connecting Plates (23).
3. Slide the Engine (16), away from the Driver
Pulley (47), until the belts are properly tensioned.
4. Tighten the four Nuts (21) that hold the
Engine (16) to the Connecting Plates (23).
Belt Replacement
1. Turn off engine.
2. Loosen, but do not remove, the four Nuts (21) that
hold the Engine (16) to the Connecting Plates (23).
3. Using Nut (43) and Bolt (42), slide the
Engine (16) towards the Driver Pulley (47)
until Belts (20) can be removed.
4. Remove the old Belts, then install new ones.
5. Check the alignment of the two pulleys
(side by side ‑ in the same level/surface).
6. Using Nut (43) and Bolt (42), slide Engine (16) away
from Driver Pulley (47) until Belt is properly tensioned.
7. Re‑tighten the four Nuts (21) that hold the
Engine (16) to the Connecting Plates (23).
SAFETY OPERATION MAINTENANCESETUP

Page 15
For engine technical questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
Item 69086
Storage
When the equipment is to remain idle for longer than
20 days, prepare the engine for storage as follows:
1. CLEANING:
Wait for engine to cool, then clean engine with
dry cloth. NOTICE: Do not clean using water.
The water will gradually enter the engine
and cause rust damage.
Apply a thin coat of rust preventive
oil to all metal parts.
2. FUEL:
WARNING! TO PREVENT SERIOUS
INJURY FROM FIRE:
Drain the fuel tank in a well‑ventilated area
away from ignition sources. If the engine is
hot from use, shut the engine off and wait
for it to cool before draining fuel.
Do not smoke.
a. Place a funnel leading to a proper gasoline
container below the carburetor.
b.
Drain Plug
Sediment Cup
(some engines)
Remove the drain bolt from the bottom of the
carburetor bowl and allow the fuel to drain.
c. Remove the small sediment cup next to the bowl
and allow the fuel to drain from there as well.
d. Open the fuel valve. After all fuel has drained,
reinstall the drain bolt and sediment cup
(if equipped). Tighten securely.
3. LUBRICATION:
a. Change engine oil.
b. Clean out area around spark plug.
Remove spark plug and pour one tablespoon of
engine oil into cylinder through spark plug hole.
c. Replace spark plug, but leave spark
plug cap disconnected.
d. Pull Starter Handle to distribute oil in cylinder.
Stop after one or two revolutions when you
feel the piston start the compression stroke
(when you start to feel resistance).
4. BATTERY:
Disconnect battery cables (if equipped).
Recharge batteries monthly while in storage.
5. STORAGE AREA:
Cover and store in a dry, level, well‑ventilated
area out of reach of children. Storage area should
also be away from ignition sources, such as
water heaters, clothes dryers, and furnaces.
6. AFTER STORAGE:
Before starting the engine after storage, keep in mind
that untreated gasoline will deteriorate quickly.
Drain the fuel tank and change to fresh fuel if
untreated gasoline has been sitting for a month,
if treated gasoline has been sitting beyond
the fuel stabilizer’s recommended time
period, or if the engine does not start.
SAFETYOPERATIONMAINTENANCE SETUP

Page 16 For engine technical questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
Item 69086
Troubleshooting
Problem Possible Causes Probable Solutions
Engine will not start FUEL RELATED:
1. No fuel in tank or fuel valve closed.
2. Choke not in CHOKE position, cold engine.
3. Gasoline with more than 10% ethanol
used. (E15, E20, E85, etc.)
4. Low quality or deteriorated, old gasoline.
5. Carburetor not primed.
6. Dirty fuel passageways.
7. Carburetor needle stuck.
Fuel can be smelled in the air.
8. Too much fuel in chamber. This can be
caused by the carburetor needle sticking.
9. Clogged Fuel Filter.
FUEL RELATED:
1. Fill fuel tank and open fuel valve.
2. Move Choke to CHOKE position.
3. Clean out ethanol rich gasoline from fuel
system. Replace components damaged
by ethanol. Use fresh 87+ octane
unleaded gasoline only.
Do not use gasoline with more than
10% ethanol (E15, E20, E85, etc.).
4. Use fresh 87+ octane unleaded gasoline.
Do not use gasoline with more than
10% ethanol (E15, E20, E85, etc.).
5. Pull on Starter Handle to prime.
6. Clean out passageways using
fuel additive. Heavy deposits
may require further cleaning.
7. Gently tap side of carburetor float
chamber with screwdriver handle.
8. Turn Choke to RUN position.
Remove spark plug and pull the start
handle several times to air out the
chamber. Reinstall spark plug and
set Choke to CHOKE position.
9. Replace Fuel Filter.
IGNITION (SPARK) RELATED:
1. Spark plug cap not connected securely.
2. Spark plug electrode wet or dirty.
3. Incorrect spark plug gap.
4. Spark plug cap broken.
5. Circuit breaker tripped
(electric start models only).
6. Incorrect spark timing or
faulty ignition system.
IGNITION (SPARK) RELATED:
1. Connect spark plug cap properly.
2. Clean spark plug.
3. Correct spark plug gap.
4. Replace spark plug cap.
5. Reset circuit breaker. Check wiring and
starter motor if breaker continues to trip.
6. Have qualified technician diagnose/
repair ignition system.
COMPRESSION RELATED:
1. Cylinder not lubricated.
Problem after long storage periods.
2. Loose or broken spark plug. (Hissing
noise will occur when trying to start.)
3. Loose cylinder head or
damaged head gasket. (Hissing noise
will occur when trying to start.)
4. Engine valves or tappets
mis‑adjusted or stuck.
COMPRESSION RELATED:
1. Pour tablespoon of oil into spark plug hole.
Crank engine a few times
and try to start again.
2. Tighten spark plug. If that does not work,
replace spark plug. If problem persists,
may have head gasket problem, see #3.
3. Tighten head. If that does not remedy
problem, replace head gasket.
4. Have qualified technician diagnose/
repair ignition system.
Engine stops when
under heavy load
1. Dirty air filter
2. Engine running cold.
1. Clean or replace element.
2. Allow engine to warm up prior
to operating equipment.
Follow all safety precautions whenever diagnosing or servicing the equipment or engine.
SAFETY OPERATION MAINTENANCESETUP

Page 17
For engine technical questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
Item 69086
Problem Possible Causes Probable Solutions
Engine misfires 1. Spark plug cap loose.
2. Incorrect spark plug gap or
damaged spark plug.
3. Defective spark plug cap.
4. Old or low quality gasoline.
5. Incorrect compression.
1. Check wire connections.
2. Re‑gap or replace spark plug.
3. Replace spark plug cap.
4. Use only fresh 87+ octane
unleaded gasoline.
Do not use gasoline with more than
10% ethanol (E15, E20, E85, etc.).
5. Diagnose and repair compression.
(Use Engine will not start:
COMPRESSION RELATED section.)
Engine stops
suddenly
1. Low oil shutdown.
2. Fuel tank empty or full of impure or low
quality gasoline.
3. Defective fuel tank cap creating
vacuum, preventing proper fuel flow.
4. Faulty magneto.
5. Disconnected or improperly
connected spark plug cap.
1. Fill engine oil to proper level. Check
engine oil before EVERY use.
2. Fill fuel tank with fresh 87+ octane
unleaded gasoline.
Do not use gasoline with more than
10% ethanol (E15, E20, E85, etc.).
3. Test/replace fuel tank cap.
4. Have qualified technician service magneto.
5. Secure spark plug cap.
Engine knocks 1. Old or low quality gasoline.
2. Engine overloaded.
3. Incorrect spark timing, deposit
buildup, worn engine, or other
mechanical problems.
1. Fill fuel tank with fresh 87+ octane
unleaded gasoline.
Do not use gasoline with more than
10% ethanol (E15, E20, E85, etc.).
2. Do not exceed equipment’s load rating.
3. Have qualified technician
diagnose and service engine.
Engine backfires 1. Impure or low quality gasoline.
2. Engine too cold.
3. Intake valve stuck or overheated engine.
4. Incorrect timing.
1. Fill fuel tank with fresh 87+ octane
unleaded gasoline.
Do not use gasoline with more than
10% ethanol (E15, E20, E85, etc.).
2. Use cold weather fuel and oil
additives to prevent backfiring.
3. Have qualified technician
diagnose and service engine.
4. Check engine timing.
Equipment does
not operate with
engine running
1. Engine idling.
2. Broken or loose belt.
1. This is normal operation.
Increase engine speed to start operation.
2. Inspect belt and replace if broken or worn.
Tension belt properly.
Follow all safety precautions whenever diagnosing or servicing the equipment or engine.
SAFETYOPERATIONMAINTENANCE SETUP

Page 18 For engine technical questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
Item 69086
Part Description Qty.
1 Shaft Circlip 1
2 Hole Circlip 1
3 Ball Bearing (6006) 2
4 Drive Pulley 1
5 Cover 1
6 Friction Block 6
7 Spring 1
8 Flap Wheel 1
9 Flat Washer (Ø8) 1
10 Spring Washer (Ø8) 17
11 Bolt 1
12 Bolt (M10x20) 4
13 Spring Washer (Ø10) 6
14 Flat Washer (Ø10) 6
15 Pulley Cover 1
16 179cc Engine
(details in Parts List and Diagram A) 1
17 Screw (M4x10) 1
18 Throttle Hoop 1
19 Flat Key (M5x30) 1
20 Cone Belt 2
21 Nut (M8) 4
22 Flat Washer (Ø8) 16
23 Connecting Plate 2
24 Single Threaded Rubber Shaft 2
25 Nut (M10) 2
26 Bolt (M12x16) 2
27 Rubber Sleeve 2
28 Screw 3
29 Lower Handle 1
30 Circular Stem 2
Part Description Qty.
31 Knob Handle 2
32 Upper Handle 1
33 Bolt (M10x60) 2
34 Rivet (M8x50) 2
35 Flat Washer (Ø12) 13
36 Self‑Locking Nut (M12) 10
37 Engine Pull Spring 1
38 Bolt (M8x25) 12
39 Grease Port 2
40 Bearing Cover (1) 1
41 Bearing (6308) 2
42 Bolt (M10x60) 1
43 Nut (M10) 1
44 Oil Seal 1
45 Bearing Cover (2) 1
46 Base Cover 1
47 Driver Pulley 1
48 Stopper Plate 1
49 Spring Washer (Ø12) 15
50 Bolt (M12x25) 1
51 Double Threaded Rubber Shaft 4
52 Flat Washer (Ø12) 4
53 Compactor Base 1
54 Speed Control Lever 1
55 Nut (M5) 1
56 Flexible Shaft 1
57 Inner Hex Screw (M12x4) 6
58 Bearing Housing 1
59 Eccentric Shaft 1
60 Flat Key (M10x30) 1
Parts Lists and Diagrams
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Main Parts List
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.
SAFETY OPERATION MAINTENANCESETUP

Page 19
For engine technical questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
Item 69086
Main Assembly Diagram
SAFETYOPERATIONMAINTENANCE SETUP

Page 20 For engine technical questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
Item 69086
Parts List A - Engine (16)
Part Description Qty
1A Gasket, Cylinder Head 1
2A Cylinder Head Cover 1
3A Cylinder Head Gasket 1
4A Tube, Breather 1
5A Bolt 4
6A Stud 1
7A Stud 1
8A Stud 2
9A Pin 2
10A Bolt, Cylinder Head 4
11A Plug, Spark 1
12A Cylinder Head 1
13A Crankcase 1
14A Sensor, Engine Oil 1
15A Gear Assy, Governor 1
16A Arm, Governor 1
17A Bolt, Drain Plug 2
18A Washer 2
19A Bearing 1
20A Seal, Oil 1
21A Washer 1
22A Pin 1
23A Bolt 2
24A Guide, Seal 1
25A Cover, Crankcase 1
26A Bearing 1
27A Seal, Oil 1
28A Gasket, Crankcase 1
29A Pin 2
30A Dipstick 1
31A Engine Oil Plug 1
32A Bolt 6
33A Crankshaft Assy. 1
34A Key 1
35A Clip, Piston Pin 2
36A Piston 1
37A Pin, Piston 1
38A Rod, Connecting 1
39A Ring, Primary 1
Part Description Qty
40A Ring, Secondary 1
41A Ring Set, Oil 1
42A Camshaft Assy. 1
43A Valve, Exhaust 1
44A Valve, Intake 1
45A Seat, Valve Spring 1
46A Retainer, Exhaust Valve 1
47A Rotator, Valve 1
48A Guide, Seal 1
49A Tappet, Valve 2
50A Lifter, Valve 2
51A Lifter Stopper Plate 1
52A Bolt, Valve Adjusting 2
53A Rocker, Valve 2
54A Nut, Valve Adjusting 2
55A Nut, Valve Lock 2
56A Spring, Valve 2
57A Starter Assy, Recoil 1
58A Bolt 3
59A Shroud 1
60A Shroud, Cylinder Body 1
61A Shield, Lower 1
62A Protector, Oil 1
63A Stop Engine Switch 1
64A Bolt 2
65A Bolt 1
66A Collar 1
67A Bolt 1
68A Bolt 4
69A Carburetor Assy. 1
70A Gasket, Air Cleaner 1
71A Gasket, Carburetor 1
72A Plate, Carb. Insulator 1
73A Gasket, Carb. Insulator 1
74A Nut 2
75A Cleaner, Air 1
76A Gasket, Exhaust Outlet 1
77A Nut 2
78A Muffler Assy. 1
Part Description Qty
79A Bolt 2
80A Intake Muffler Gasket 1
81A Intake Muffler Valve 1
82A Tank, Fuel 1
83A Strainer, Fuel 1
84A Cover, Fuel Tank 1
85A Fuel Tank Outlet 1
86A Clamp 4
87A Tube, Fuel 1
88A Bolt 1
89A Nut 2
90A Valve, One Way 1
91A Hose, Fuel Vapor 1
92A Clamp 2
93A Collector, Fuel Vapor 1
94A Clamp 1
95A Air Cleaner Hose 1
96A Clamp 1
97A Bolt 2
98A Vapor Collector Cover 1
99A Jacket, Rubber 1
100A Clip 1
101A Sleeve 1
102A Nut, Flywheel 1
103A Pulley, Starter 1
104A Impeller 1
105A Flywheel 1
106A Bolt 2
107A Coil, Ignition 1
108A Control Assy, Throttle 1
109A Spring, Governor 1
110A Rod, Governor 1
111A Throttle Return Spring 1
112A Governor Support 1
113A Bolt 2
114A Bolt, Governor Support 1
115A Nut 1
SAFETY OPERATION MAINTENANCESETUP
