Harbor Freight Tools CENTRAL PNEUMATIC 39170 Quick reference guide

39170
ASSEMBLY & OPERATING INSTRUCTIONS
STEEL BLASTER CABINET
FLOOR MODEL
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web Site at www.harborfreight.com
Copyright © 1998 by Harbor Freight Tools®. All rights reserved. No portion of this manual or
any artwork contained herein may be reproduced in any shape or form without the express
written consent of Harbor FreightTools.
For technical questions and replacement parts please call 1-800-444-3353.
®
Brought to You by Augusta Flint

THANKYOU for choosing a HARBOR FREIGHTTOOLS product. For future reference, please complete the
owner’s record below:
Model PurchaseDate
SAVETHE RECEIPT, WARRANTY ANDTHESE INSTRUCTIONS. It is important that you read the entire
manual to become familiar with the unit BEFORE you begin assembly.
Technical Specifications
Tool Name: Steel Blaster Cabinet
SKU: 39170
Construction: Heavy Duty 12 and 18 gauge steel
Capacity 40 Lb.
Arm Hole Openings: 7 inch
Work Area: 33-1/4" x 22- 1/8" x 21-1/2"
Overall Dimensions 36-3/4" x 45-1/2" x 10-3/4"
AirRequirement: 5 HP compressor with minimum 12 CFM at 40 to 80 PSI.
NetWeight: 105-1/2 Lbs.
Included with the Cabinet are: Gun with 1/4” Ceramic Nozzle, 3/8 Hose Diameter and sandblasting gloves. Also
Fluorescent Light System (15 DCVolt) and 2-1/2”diameter Dust Port (dust removal system not included).
Accessories also include: 2 Air Jets to fit nozzle sizes 3/16", 13/64", 15/64", 17/64" and a 3-MM Hex Wrench.
Warning: The warnings, cautions and instructions discussed in this instruction manual
cannot cover all possible conditions and situations that may occur. It must
be understood by the operator that COMMON SENSE AND CAUTION ARE
FACTORS WHICH CANNOT BE BUILT INTO THIS PRODUCT, BUT
MUST BE SUPPLIED BYTHE OPERATOR.
The Operator
PLEASE REMEMBER:
Do not operate the product if under the influence of alcohol or drugs. Read warning labels on prescriptions to
determine if your judgment/reflexes might be impaired.
Do not wear loose clothing or jewelry as they can be caught in moving parts.
Protective gloves and non-skid footwear is recommended.
Wear restrictive hair covering to contain long hair.
Use eye and ear protection. Always wear ANSI approved impact safety goggles.
Maintain proper footing and balance at all times.
Do not abuse the power cord. Do not yank on cord to disconnect it from outlet. Keep the cord away from heat,
oil and sharp edges.
#39170 Page 2Rev01/01
Brought to You by Augusta Flint

WorkArea
TO AVOID RISK OF PERSONAL INJURY, EQUIPMENT DAMAGE, FIRE AND SHOCK, MAKE SUREYOUR
WORK AREA IS:
Free of damp, wet or rainy conditions.
Free of flammable gasses or liquids.
Free of children (never let them handle tools or machinery).
Well-lit.
Cleanand uncluttered.
Well-ventilated.
Before Operating
Before using any tool, any part that appears damaged should be carefully checked to determine that it will
operate properly and perform its intended function.
Before operating your Blaster Cabinet check for damaged parts. You should also make sure all clamps, locks
and bolts are tight.
Give the Blaster Cabinet a test run. If it makes an unfamiliar noise or vibrates irregularly, turn it off, unplug it
and have the problem corrected by a qualified technician.
Make certain to turn off and unplug the Blaster Cabinet when doing any maintenance. This piece of equipment
shouldalways be turned off andunplugged when not in use.
Wear leather gloves and long sleeves when unloading or moving cabinet.
NOTE: Performance of this tool may vary depending on variations in local line voltage.
Extension cord usage may also affect tool performance.
Groundage/VoltageWarning
Common household current is 110-120 volts. As long as the outlet used with the Light Kit is rated from 110-
120V there will be no complications using it with household receptacles. Plug the tool into a 110-120V properly
grounded outlet protected by a 15-amp, dual element time delay or circuit breaker.
NEVER try to plug a 110-120V tool into a 220-240V circuit or serious complications and possible injury to the
operator may occur. The plugs have different shapes to prevent this.
This tool has a three-prong plug. The third (round) prong is the ground. Cutting off the ground will result in a
safety hazard and void the warranty.
If the outlet you are planning to use is the two-prong type, do not remove or alter the grounding prong in any
manner. Use an adapter and always connect the grounding lug to a known grounding source. It is
recommendedthatyouhaveaqualifiedelectricianreplacethetwo-prong outlet with a properly grounded three-
prongoutlet.
#39170 Page 3
Brought to You by Augusta Flint

Extension Cords
Your tool has a three-prong plug, therefore you must use a three-prong extension cord. Only use rounded jacket
extension cords listed by the Underwriters Laboratories (UL). Improper use of extension cords may cause
inefficient operation of your tool which can result in overheating. Be sure your extension cord is rated to allow
sufficient current flow to the motor.
If you are using the tool outdoors, use an extension cord rated for outdoor use (signified by “WA” on the jacket).
The extension cord must have a minimum wire size depending on the amperage of the tool and the length of the
extension cord. This size is determined by its AWG (AmericanWire Gauge) rating. The smaller the gauge, the
greater the cable’s capacity. The amount of cords used does not matter: Total length determines the minimum
AWG rating. Every cord must meet the AWG rating. Use the chart below to determine what AWG rating is
requiredforyour situation. Cord length is ratedinfeet. Harbor FreightTools can supply UL listed and outdoor
rated cords in multiple AWG ratings if needed.
AWG RATING CHART
CORD LENGTH 25’ 50’ 75’ 100’ 125’ 150’ 175’ 200’
AMPS AWG AWG AWG AWG AWG AWG AWG AWG
0-10.0 18 18 16 16 14 14 12 12
10.1-13.0 16 16 14 14 14 12 12 12
13.1-15 14 14 12 12 12 12 12 —-
15-18 14 12 12 12 12 12 —- —-
DONOT MODIFY YOUR PLUG IN ANY WAY. IFYOU HAVE ANY DOUBT, CALL AQUALIFIED ELECTRICIAN.
Assembly
Your Blast Cabinet comes unassembled. It is important that your read the entire manual to become familiar
with the unit BEFORE you use the Cabinet. Before assembling your Blast Cabinet, be sure that you have all
parts described in the Parts List on page 7.
Step1) If Sand Input Pipe (52) is not secured in place, fasten it into place using the appropriate
screws, washers and nuts. The Input Pipe is to be placed inside of the Funnel (58) with the
long end facing down toward the narrow end of the Funnel. Place the Net (53) on your work
bench or table. Peel off paper backing from 1" wide adhesive foam gasket and apply this to
the lip of the Net. Trim the Gasket as necessary. Punch holes in the gasket for the bolts to fit
through.
Step2) Lay out the cabinet wherever it is easiest to work on. Attach Legs (62) to the cabinet (see
diagram 1) by inserting bolts (M6x12) through washer, leg and washer and nut. Use lock
washers and tighten. Repeat until all four legs are attached. Each leg comes with a Molding
(63) which is attached to the bottom of the leg. Push each molding into place on the foot of
eachleg.
Step 3) Now that the legs are attached, stand the cabinet upright. Place the Net (53) onto the Funnel
(58). Using 4 M6x20 bolts, attach the Funnel with Net to the Cabinet. Insert the bolts through
the washers, through the holes in the Funnel, the Net and into the cabinet. Tighten down all
nuts and bolts.
Step4) Insert M6 x 12 Bolts through washers (you will need 8 of each) and into the leg and through the
shelf (59). Tighten bolts until assembly is secure and solid.
#39170 Page 4
Brought to You by Augusta Flint

Attaching the Fluorescent Light
Make certain power is off and Blast Cabinet is unplugged prior to any installation. See main Assembly Diagram
(page8) and Light Assembly Diagram forattaching Light.
Step1) Connect the Clamps (47) to the Back Board of the Cabinet. Insert the Fluorescent Light into
theclamps.
Step 2) The wiring for the Light (23) will go through the upper left side of the Cabinet (see Assembly
diagram). The red and black wires are then connected to theTransformer (22). Plug should be
attachedtotheswitchbox/Transformer.
Step 3) Attach theTransformer (22) to the Cabinet with 2 screws.
Replacing the Bulb
Disconnect and unplug the Light and attached wiring from the Transformer/Switch box. Pull the Light out of
the Clamps and remove from the Cabinet. Replace with a new bulb.
Operation
#39170 Page 5
Light-Figure 1
Light-Circuit Diagram
Red + Red
Black-G Black
Brought to You by Augusta Flint

Close and latch the door at all times prior to operating the cabinet.
Clean up all spills;sand particles are very slippery.
When using your Blasting Cabinet, a 5 HP compressor is recommended. A fine grade of abrasive is
recommendedto prevent clogging.
Step 1) Select the appropriate nozzle for your needs. The Sand Input Hose (50) feeds from the Sand
Input Pipe (52-Assembly step 1) and is attached to the front of the Gun (48). The Air Input (49)
is attached to the base of the Gun. This part of the Gun is fitted with 1/4" threads which will fit
most air hoses. At the front right side of the Cabinet is the opening Grommet (42), for the air
input hose from your compressor. Connect your hose to the bottom handle of the Gun with
either a quick connect fitting or by use of a hose clamp, and a barb fitting on the Gun.
Step 2) Set the compressor’s pressure regulator to 40-80 PSI. Do not set the regulator above the
Maximum PSI.
Step 3) Open the door and place the material you are working with in the center of the Cabinet. Close
latchesSECURELY.
Step4) Place your hands into the Rubber Gloves (46) inside the Cabinet. Make certain your fingers
are in the proper positions and that you can easily move your hands and grip things.
Step 5) Grip the Gun with one hand. Point the Nozzle at the bottom of the Cabinet and operate the gun
for a moment to make certain everything is working correctly. If leaking is detected,
disconnect the air hose and have it repaired before using.
Step6) Hold the material you are working with in your other hand. Position your fingers so that the
Rubber Glove is not in the way of the area you are blasting. You may have to reposition your
fingers many different times during the blasting to ensure that you have blasted every area of
yourmaterial.
Step7) Press the trigger of the Gun to begin blasting. Aim the nozzle directly at the surface of the
material. Bring the nozzle to within 2 inches of the material if necessary. Move the gun in a
side-to-side or circular motion, always making sure that your fingers are not in the way.
WARNING: Do not aim the nozzle at your fingers, the Rubber Gloves or the Light.
Step8) To check on the progress of your blasting, remove your hand from the gun first and pull your
hand from the glove. Remove your other hand. Once gun is OFF, open the door and inspect
your material. If necessary to continue blasting, follow previous steps as necessary.
Step9) Once completed, remove your hands from the gloves and shut off the compressor. Open the
doorandremove your material.
Note: Your Blaster Cabinet has fitting for your shop vacuum in order to remove any dust created by
blasting. When using the vacuum, a paper filter should be placed over the standard filter.
IF THERE IS ANY QUESTION ABOUT ACONDITION BEING SAFE OR UNSAFE, DO NOT OPERATE THE TOOL.
#39170 Page 6
REV 02/05
Brought to You by Augusta Flint

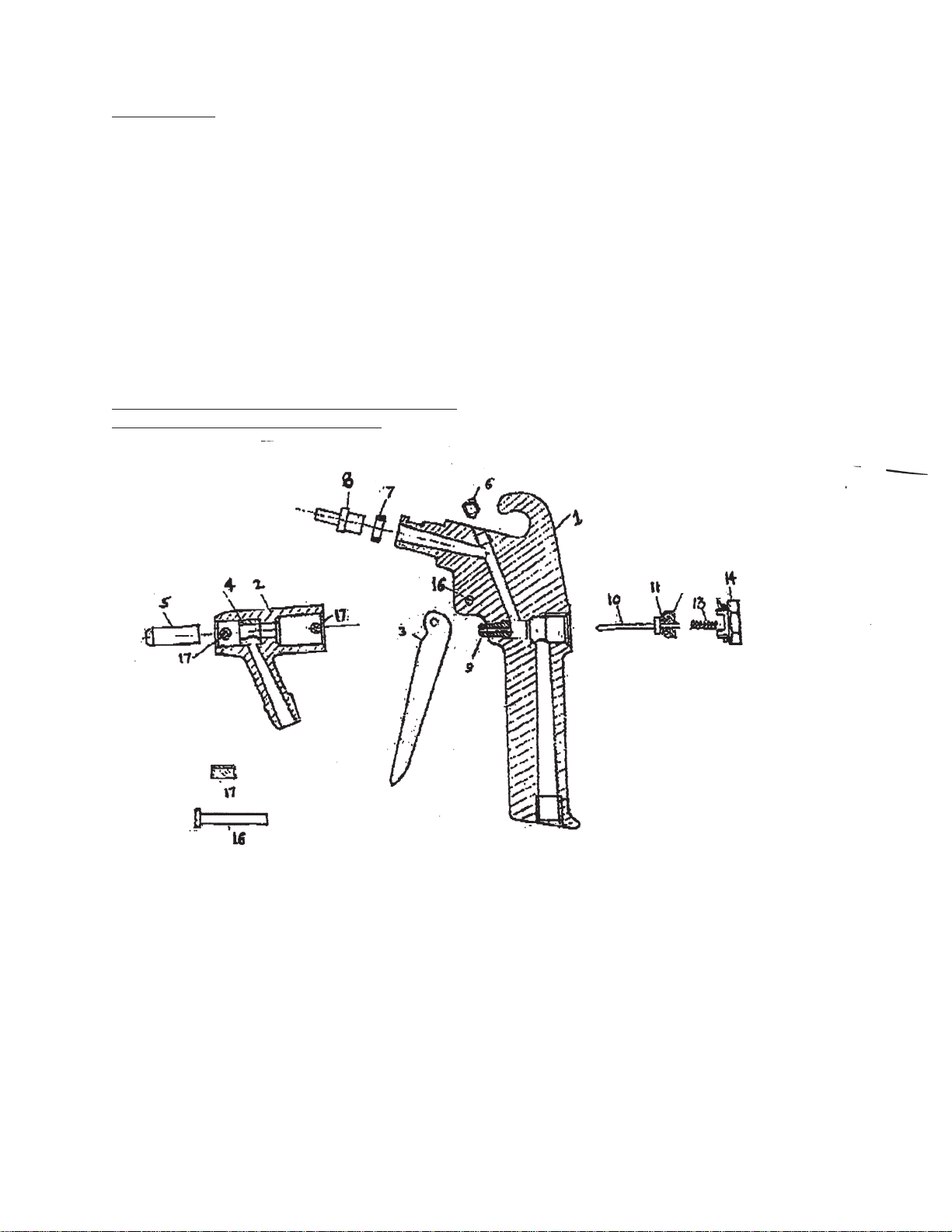

Replacing Nozzles
Note: When replacing a Nozzle (5A), always make sure the Air Jet (8) in place is com-
patible with the desired Nozzle.
The smaller of the two Air Jets should be used with the two smaller Nozzles (3/16” and
13/64”). The larger Air Jet should be used with the two larger Nozzles (15/64”and 17/
64”).
Instructions for changing Nozzles and Air Jets:
1. After selecting the appropriate Nozzle, use the Hex KeyWrench
to loosen the front Hex Set Screw on the Gun (48).
2. Remove the installed Nozzle, and
insert the new Nozzle, round end
first, into the Gun assembly.
Tighten the Hex Set Screw.
3. To replace the Air Jet, use
the Hex KeyWrench to loosen the rear Hex
Set Screw on the Gun. Pull away this
section of the Gun to reveal the Air Jet.
4. Remove the installed Air Jet, and install the correct size
replacement Air Jet (wide, round end first). Replace the
removed section of the Gun and tighten the rear Hex Set Screw.
FrontHexSetScrew RearHexSetScrew
#39170 Page 7
Gun(#48)
Brought to You by Augusta Flint

Unpacking
UNPACKAND CHECK CONTENTS
When unpacking your Steel Cabinet Blaster, check to make sure the following parts are included. If any parts
aremissing or broken,please call HARBOR FREIGHTTOOLSat1-800-444-3353.

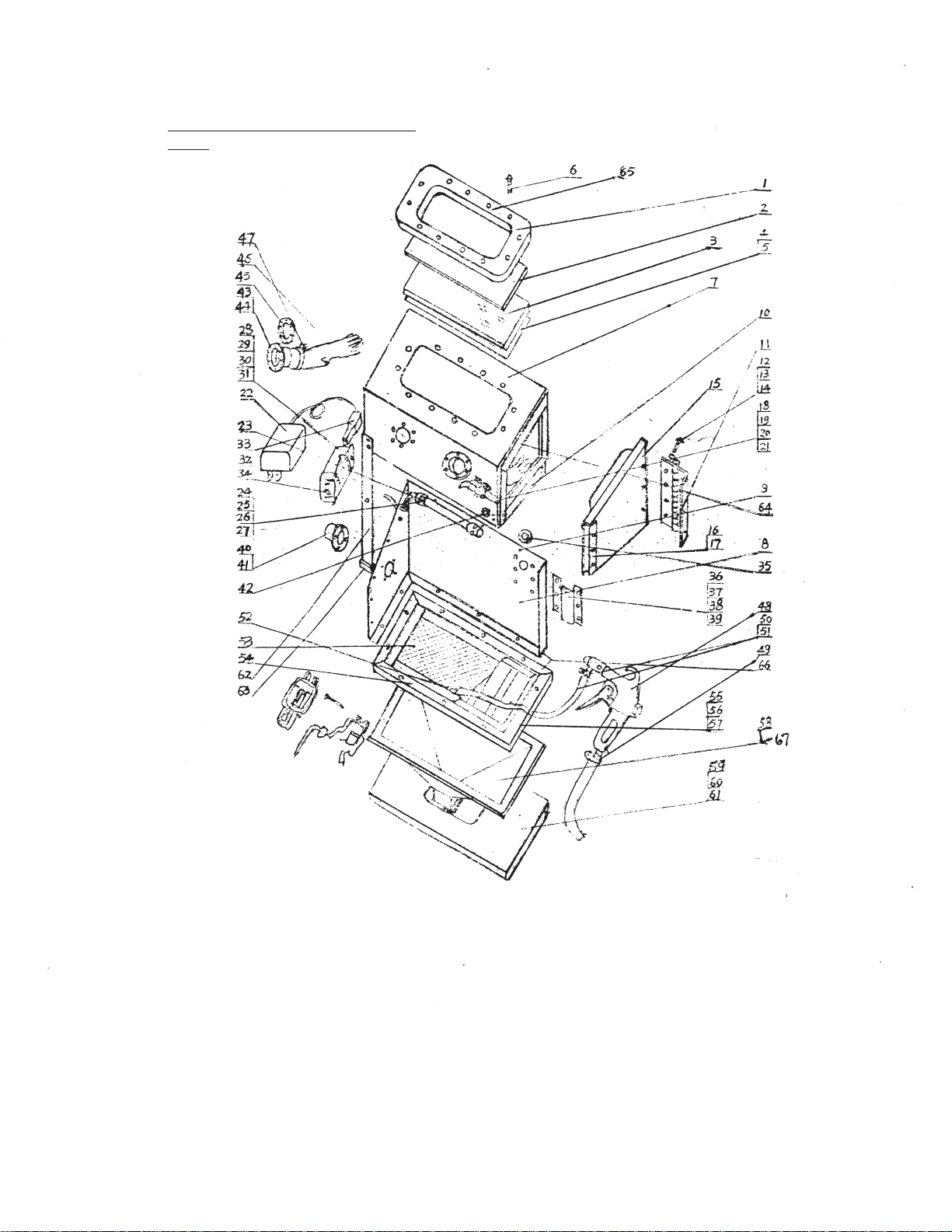

Parts List
Part # Description Quantity Part # Description Quantity
1 Frame 1 34 Self-Tapping 2
2 Organic Glass 1 35 Hose Protecting Ring 1
3 Glass Board 1 36 Wind-Input Cover 1
4 Protecting Film 1 37 Screw 6
5 Two sided tape 1 38 Nut 6
6 Screw 12 39 Washer 12
7 Steel Board 1 40 Flange 1
8 SideBoard 1 41 Self-tapping 4
9 Rivet 24 42 Grommet 1
10 Right Side Board 1 43 Flange 2
11 Hinge 1 44 Self-Tapping 12
12 Screw 4 45 Washer 2
13 Nut 4 46 Glove 2
14 Washer 8 47 Clamp 2
15 Door 1 48 Gun 1
16 Liner 1 49 Air-Input 1
17 Screw 10 50 Sand-InputHose 1
18 Lock 1 51 Clamp 1
19 Screw 2 52 Sand-Input Pipe 1
20 Nut 2 53 Net 1
21 Washer 2 54 Shelf for Net/ Board 1
22 Transformer 1 55 Screw 10
23 Light 1 56 Nut 10
24 Light Stand 2 57 Washer 20
25 Screw 2 58 Funnel 1
26 Nut 2 59 Shelf 1
27 Washer 2 60 Screw 24
28 Switch 1 61 Nut withWasher 24
29 Plug 1 62 Leg 4
30 Self-Tapping 2 63 Molding 4
31 Washer 2 64 Airtight Liner 1
32 Switch 1 65 AirtightStrip 1
33 Plug 1 66 Airtight Liner 1
67 Airtight Liner 1
#39170 Page 8
REV 02/05
Brought to You by Augusta Flint

Parts Diagram-Floor Blast Cabinet
39170
#39170 Page 9
Brought to You by Augusta Flint

#39170 Page 10
Gun-Assembly Diagram - Part numbers shown
below have an A suffix (example: 1A)
12 15
Gun Parts List
Part # Description Quantity Part # Description Quantity
1A Body 1 10A Valve Stem 1
2A SuctionHead 1 11A SealRing 1
3A Trigger 1 12A Clamp 1
4A RingGasket 1 13A Spring 1
5A Nozzle 4 14A Nut 1
6A Screw 1 15A Seal Ring 1
7A RubberPlate 1 16A Spike 1
8A Air jet 2 17A Screw 1
9A Valve Base 1
Brought to You by Augusta Flint
