Harbor Freight Tools Central Hydraulics 65330 Installation manual

20 TON SHOP PRESS
WITH OIL FILTER CRUSHER
65330
SET UP AND OPERATING INSTRUCTIONS
Distributed exclusively by Harbor Freight Tools®.
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright©2008 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork
contained herein may be reproduced in any shape or form without the express written consent of
Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for
assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.

SKU 65330 For technical questions, please call 1-800-444-3353. Page 2
SAVE THIS MANUAL
Keep this manual for the safety warn-
ings and precautions, assembly, operating,
inspection, maintenance and cleaning pro-
cedures. Write the product’s serial number
in the back of the manual (or month and
year of purchase if product has no num-
ber). Keep this manual and the receipt in
a safe and dry place for future reference.
SAFETY ALERT SYMBOL AND
SIGNAL WORDS
In this manual, on the labeling,
and all other information provid-
ed with this product:
This is the safety alert
symbol. It is used to alert
you to potential personal
injury hazards. Obey all
safety messages that
follow this symbol to avoid
possible injury or death.
DANGER indicates
a hazardous
situation which, if not
avoided, will result in death or
serious injury.
WARNING
indicates a
hazardous situation which, if
not avoided, could result in
death or serious injury.
CAUTION, used
with the safety
alert symbol, indicates a
hazardous situation which, if
not avoided, could result in
minor or moderate injury.
NOTICE is used to
address practices
not related to personal injury.
CAUTION, without
the safety alert
symbol, is used to address
practices not related to
personal injury.
IMPORTANT SAFETY
INSTRUCTIONS
INSTRUCTIONS PERTAINING TO A
RISK OF INJURY TO PERSONS
WARNING – When using shop equipment,
basic precautions should always be
followed, including the following:
Work area
Do not install this Shop Press on anya.
asphalt or wood surface. Make sure
the Press is rmly secured to a dry,
oil/grease free, at, level, concrete
surface capable of supporting the
weight of the Press, the workpiece
being pressed, and any additional
tools and equipment. Do not install
the Press on expansion seams or on
cracked, defective concrete.
Keep the work area clean and wellb.
lighted. Cluttered benches and dark
areas increase the risks of injury to
persons.
Do not operate the Shop Press in ex-c.
plosive atmospheres, such as in the
presence of ammable liquids, gases,
or dust. The Press is able to create
sparks resulting in the ignition of the
dust or fumes.

SKU 65330 For technical questions, please call 1-800-444-3353. Page 3
Keep bystanders, children, and visi-d.
tors away while operating the Shop
Press. Distractions are able to result
in the loss of control of the tool.
Personal safety
Never exceed the recommendeda. 110
to 120 PSI working pressure and 20
ton pressing capacity for this Shop
Press. This Press will do the job bet-
ter and safer at the PSI and pressing
capacity for which it was designed.
Make sure to read and understand allb.
instructions and safety precautions as
outlined in the manufacturer’s service
manual for the workpiece you are
pressing. Always use the manufac-
turer’s recommended pressing points,
minimum/maximum pressing force
required, etc., for the workpiece you
are pressing.
Prior to using the Shop Press, makec.
sure tool trays, stands, and all other
tools and equipment are removed
from the Working Bed.
Always keep your hands and ngers d.
safety away from the Press Head
and Filter Crushing Head during the
pressing process.
Never attempt to remove a workpiecee.
stuck in the moving parts of the Shop
Press while it is connected to its air
supply source.
Once contact between the Pressf.
Head or Filter Crushing Head and the
workpiece has been made, step away
as far as possible and continue to
slowly apply pressure until the proce-
dure is completed.
Never leave a compressed workpieceg.
unattended. Whenever a workpiece
is compressed, there is a very large
amount of force that has been stored
in the workpiece which must be con-
trolled until the Press Head or Filter
Crushing Head is relaxed.
Always release a load from the Shoph.
Press, and disconnect the unit from
its air supply source before perform-
ing any services or maintenance on
the unit.
Stay alert. Watch what you are doingi.
and use common sense when operat-
ing the Shop Press. Do not use the
Press while tired or under the inu-
ence of drugs, alcohol, or medication.
A moment of inattention while oper-
ating the Press increases the risk of
injury to persons.
Dress properly. Do not wear loosej.
clothing or jewelry. Contain long hair.
Keep hair, clothing, and gloves away
from moving parts. Loose clothes,
jewelry, or long hair increases the risk
of injury to persons as a result of be-
ing caught in moving parts.
Avoid unintentional starting. Be surek.
the Lever on the Valve Body of the
Air/Hydraulic Jack is off before con-
necting to the air supply.
Remove adjusting keys and wrench-l.
es before connecting to the air sup-
ply. A wrench or a key that is left
attached to a moving part of the Shop
Press increases the risk of personal
injury.
Do not overreach. Keep proper foot-m.
ing and balance at all times. Proper
footing and balance enables better

SKU 65330 For technical questions, please call 1-800-444-3353. Page 4
control of the tool in unexpected situ-
ations.
n. Use safety equipment. A
dust mask, non-skid safety
shoes and a hard hat must
be used for the applicable
conditions. Wear heavy-duty work
gloves during use.
o. Always wear eye protec-
tion. Wear ANSI-approved
safety goggles.
p. Always wear hearing
protection when using the
Shop Press. Prolonged
exposure to high intensity
noise is able to cause hearing loss.
WARNING!q. The brass components
of this product contain lead, a chemi-
cal known to the State of California
to cause birth defects (or other repro-
ductive harm). California Health &
Safety Code 25249.5, et seq.)
Tool use and care
WARNING! If you detect anythinga.
that may indicate imminent structural
failure to the Shop Press, discontinue
using the Press immediately. Dis-
connect the Press from its air supply
source, and have the Press repaired
before further use.
Avoid off-center loads. If the Ramb.
seems unusually hard to press, im-
mediately stop the operation. Dis-
connect the Shop Press from its
air supply source, and adjust the
workpiece to eliminate or diminish an
off-center load. Do not operate the
Press if the workpiece tilts or binds
during the down movement of the
Ram.
Use clamps or another practical wayc.
to secure and support the workpiece
to Arbor Plates and Press Apron.
Holding the work by hand or against
the body is unstable and is able to
lead to loss of control.
Do not force the Shop Press.d. Use the
correct equipment for the application.
The correct equipment will do the job
better and safer at the rate for which
the equipment is designed.
Do not use the Shop Press if the Le-e.
ver on the Valve Body of the Air/Hy-
draulic Jack does not turn the Press
on or off. Any equipment that cannot
be controlled is dangerous and must
be repaired.
Disconnect the Shop Press from thef.
air source before making any adjust-
ments, changing accessories, or stor-
ing the Press. Such preventive safety
measures reduce the risk of starting
the Press unintentionally. Turn off
and detach the air supply, safely dis-
charge any residual air pressure, and
release the Lever on the Valve Body
of the Air/Hydraulic Jack before leav-
ing the work area.
Keep the Air/Hydraulic Jack properlyg.
lled with hydraulic oil. For instruc-
tions, refer to the Air/Hydraulic Jack
owner’s manual (included).
Keep the Shop Press out of reach ofh.
children and other untrained persons.
A Shop Press is dangerous in the
hands of untrained users.
Maintain the Shop Press with care. Ai.
properly maintained Shop Press re-
duces the risk of binding and is easier
to control.

SKU 65330 For technical questions, please call 1-800-444-3353. Page 5
Check for misalignment or binding ofj.
moving parts, breakage of parts, and
any other condition that affects the
Shop Press’ operation. If damaged,
have the Press serviced before using.
Many accidents are caused by poorly
maintained equipment. There is a risk
of bursting if the equipment is dam-
aged.
Use only accessories that are iden-k.
tied by the manufacturer for the
specic Shop Press model. Use of an
accessory not intended for use with
the specic model increases the risk
of injury to persons.
Only use with accessories rated tol.
handle the forces exerted by this
Shop Press during operation. Other
accessories not designed for the
forces generated may break and
forcefully launch pieces.
Attach all accessories properly to them.
Shop Press before connecting the
air supply. A loose accessory may
detach or break during operation.
Install an in-line shutoff valve to allown.
immediate control over the air supply
in an emergency, even if a hose is
ruptured.
Service
Equipment service must be per-a.
formed only by qualied repair per-
sonnel.
When servicing the Shop Press, useb.
only identical replacement parts. Use
only authorized parts.
Use only the lubricants supplied withc.
the Shop Press or specied by the
manufacturer.
Air source
a. Never connect to an air
source that is capable of
exceeding 120 PSI. Over
pressurizing the tool may
cause bursting, abnormal operation,
breakage of the tool or serious injury
to persons. Use only clean, dry,
regulated compressed air at the rated
pressure or within the rated pressure
range as marked on the tool. Always
verify prior to using the tool that the
air source has been adjusted to the
rated air pressure or within the rated
air-pressure range.
Never use oxygen, carbon dioxide,b.
combustible gases or any bottled gas
as an air source for the tool. Such
gases are capable of explosion and
serious injury to persons.
SYMBOL DEFINITIONS
Symbol Property or statement
noNo-load speed
.../min Revolutions or reciprocation per
minute
PSI Pounds per square inch of pressure
ft-lb Foot-pounds of torque
BPM Blows per minute
CFM Cubic Feet per Minute ow
SCFM Cubic Feet per Minute ow at
standard conditions
NPT National pipe thread, tapered
NPS National pipe thread, straight
Chart continued in next column.

SKU 65330 For technical questions, please call 1-800-444-3353. Page 6
Symbol Property or statement
WARNING marking concerning Risk
of Eye Injury. Wear ANSI-approved
eye protection.
WARNING marking concerning Risk
of Hearing Loss. Wear hearing
protection.
WARNING marking concerning Risk
of Respiratory Injury. Wear NIOSH-
approved dust mask/respirator.
WARNING marking concerning Risk
of Explosion.
SAVE THESE INSTRUCTIONS
PRODUCT SPECIFICATIONS
*Exceeding maximum air pressure limit may cause
damage/injury.
UNPACKING
When unpacking, check to make sure
that the item is intact and undamaged. If
any parts are missing or broken, please
call Harbor Freight Tools at the number
shown throughout the manual as soon as
possible. Note: Two or more able bodied
people will be needed to set up this heavy
piece of equipment.
ASSEMBLY INSTRUCTIONS
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set
up or use of this product.

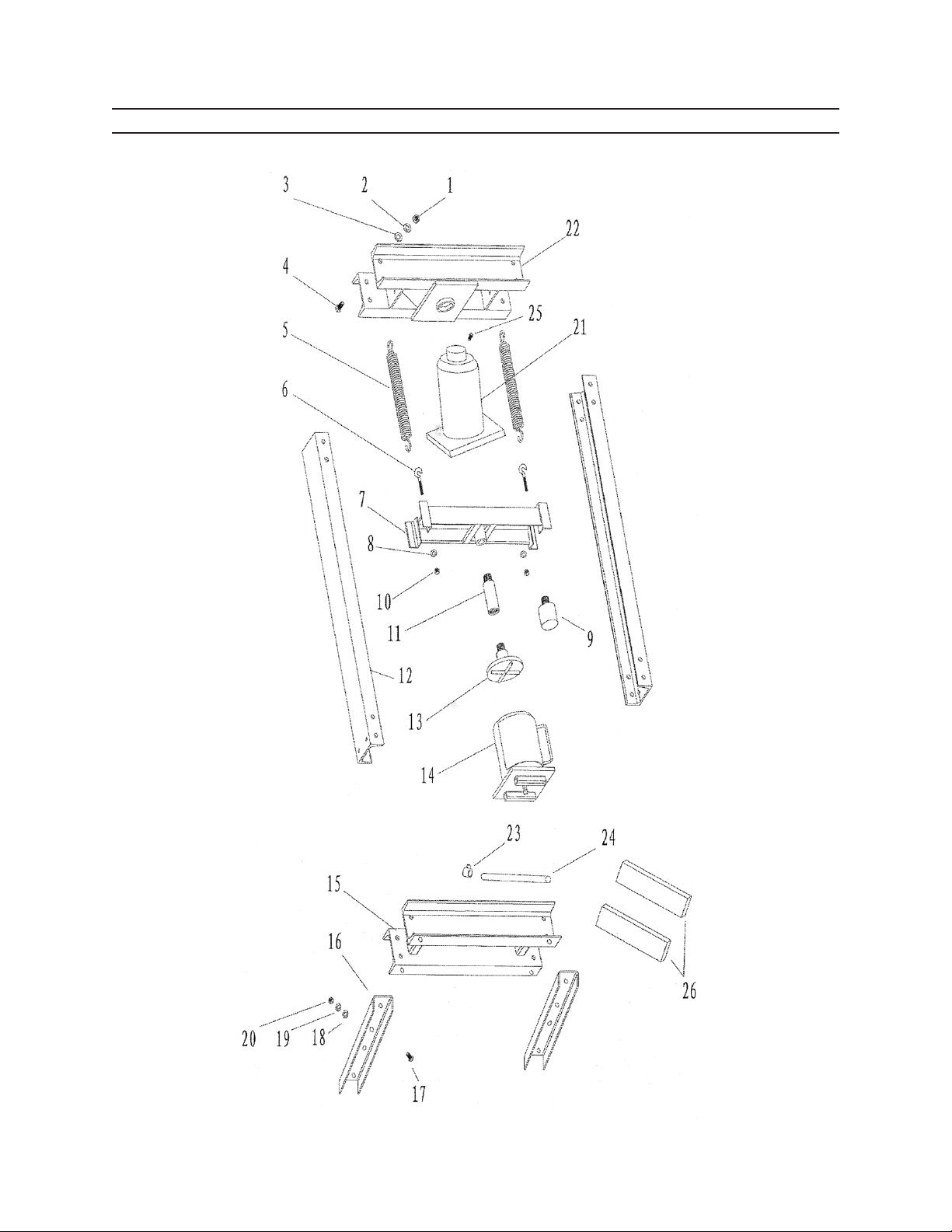

Note: For additional information regarding
the parts listed in the following pages,
refer to the Assembly Diagram near
the end of this manual.
Attach the two Legs (16) to the Work-1.
ing Bed (15) using four Bolts (17),
four Flat Washers (18), four Spring
Washers (19), and four Nuts (20).
(See Assy. Diagram.)
Attach the two Uprights (12) to the2.
Working Bed (15) using four Bolts
(4), four Flat Washers (3), four Spring
Washers (2) and four Nuts (1). Hand
tighten only. (See Assy. Diagram.)
Attach the two Screw Hooks (6) to the3.
Frame (7) using two Flat Washers (8)
and two Nuts (10). Leave the Nuts
untightened to provide easy Springs
attachment. (See Assy. Diagram.)
Slide the Frame (7) down between4.
the two Uprights (12) onto the Work-
ing Bed (15). (See Assy. Diagram.)
Attach the Top Cross Beam (22) to5.
the two Uprights (12) using four Bolts
(4), four Flat Washers (3), four Spring
Washers (2), and four Nuts (1).
(See Assy. Diagram.)
Attach one end of the Springs (5) to6.
the mounting holes on the Top Cross
Beam (22) and the other end of the
Springs to the Screw Hooks (6) on
the Frame (7). (See Assy. Diagram.)
Maximum Pressing Capacity 20 Tons (40,000 Pounds)
Air Pressure Range* 110 PSI to 120 Maximum PSI
Operating Methods Air Operated and Manually Operated
Air Inlet Size 1/4” x 18 NPT
Ram Stroke 6-1/2”
Crusher Diameter 5-1/8” O.D.
Oil Filter Capacity Up to 6” H x 4” Diameter
Press Head Diameter 4-1/2”
Distance Between Uprights 16-3/4”
Arbor Plate Dimensions 2-1/16” L x 7-1/4” W x 3/4” Thick
Mounting Hole Diameter 1/2” (Qty. 4)

SKU 65330 For technical questions, please call 1-800-444-3353. Page 7
With the help of another person,7.
elevate and position the Air/Hydraulic
Jack (21) to Top Cross Beam (22).
Tighten Set Screw (25) against Ram
top of the Jack. Raise Frame (7) and
tighten Nut (10) to secure the Jack
(21). (See Assy. Diagram.)
Tighten all Nuts and Bolts.8.
If you will use the unit as a com-9.
mon Press: Place the Press Plates
(26) on the Working Bed (15). Then
screw the Press Head (9) under the
Frame (7). (See Assy. Diagram.)
If you will use the unit as a lter 10.
crusher: Screw the Filter Crush-
ing Head (13) and Connecting Rod
(11) under the Frame (7). Attach
the Drain Hose (24) to the bottom
outlet of the Crushing Housing (14)
with one Clamp (23). Then place the
Crusher attachment on the Working
Bed (15). NOTE: Make sure the
Drain Hose empties into a proper oil
container. (See Assy. Diagram.)
Use a proper lifting device to move11.
the assembled Shop Press to the
desired work location.
Use the four 1/2” diameter mounting12.
holes in the Legs (16) as a template
for drilling four 1/2” diameter holes in
the concrete oor surface. Temporar-
ily remove the Shop Press from its
work location. Then drill the four 1/2”
mounting holes in the concrete.
(See Assy. Diagram.)
Set the Shop Press back into posi-13.
tion, and rmly secure the Shop
Press to the concrete oor surface
using appropriate concrete anchors
(not included).
The Shop Press is now ready to use.14.
Air Supply
TO PREVENT
EXPLOSION:
Use only clean, dry, regulated,
compressed air to power this
tool. Do not use oxygen,
carbon dioxide, combustible
gases, or any other bottled
gas as a power source for this
tool.

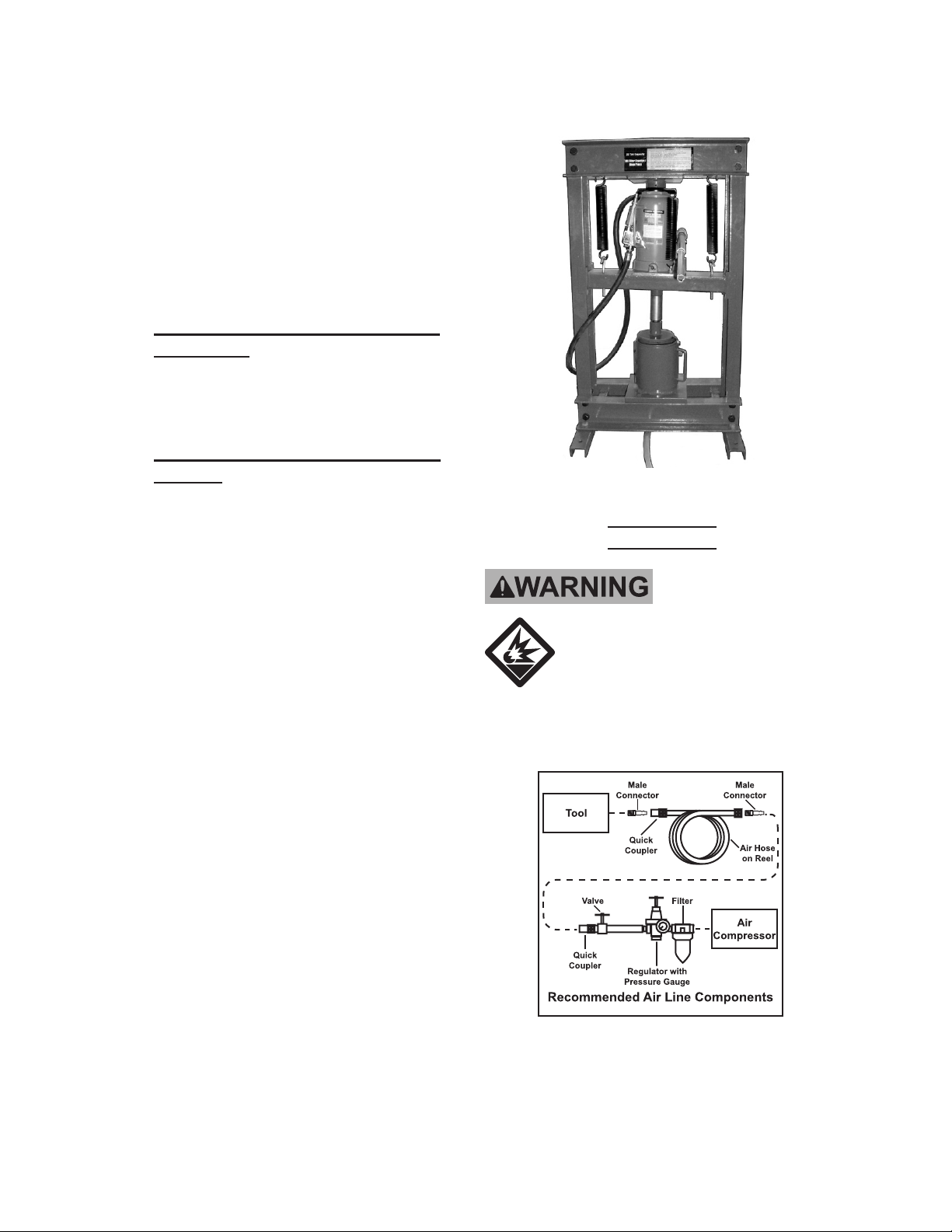

Incorporate shut-off valve, regulator1.
with pressure gauge, and lter for
best service, as shown in the previ-

SKU 65330 For technical questions, please call 1-800-444-3353. Page 8
ous diagram. An in-line shutoff
valve is an important safety device
because it controls the air supply
should the air hose rupture.
Note: If an automatic oiler system is not
used, add a few drops of Pneumatic
Tool Oil to the airline connection be-
fore operation. Add a few more drops
after each hour of continual use.
Attach an air hose to the compres-2.
sor’s air outlet. Connect the air hose
to the air inlet of the tool. Other com-
ponents, such as a connector and
quick coupler, will make operation
more efcient, but are not required.
WARNING! TO PREVENT SERIOUS
INJURY FROM ACCIDENTAL
OPERATION:
Do not install a female quick
coupler on the tool. Such a coupler
contains an air valve that will allow
the air tool to retain pressure and
operate accidentally after the air
supply is disconnected.
Note: Air ow, and therefore tool perfor-
mance, can be hindered by under-
sized air supply components.
The air hose must be long enough3.
to reach the work area with enough
extra length to allow free movement
while working.
Make sure the Lever on the Valve4.
Body of the Air/Hydraulic Jack is in
the off position. (Refer to the Air/Hy-
draulic Jack owner’s manual.)
Close the in-line safety valve be-5.
tween the compressor and the Shop
Press.
Turn on the air compressor according6.
to the manufacturer’s directions and
allow it to build up pressure until it
cycles off.
Adjust the air compressor’s output7.
regulator so that the air output is
enough to properly power the tool,
but the output will not exceed the
tool’s maximum air pressure (120
PSI) at any time. Adjust the pres-
sure gradually, while checking the air
output gauge to set the right pressure
range.
Inspect the air connections for leaks.8.
Repair any leaks found.
If the Shop Press will not be used at9.
this time, release the Lever on the
Valve Body of the Air/Hydraulic Jack
to prevent accidental operation.

SKU 65330 For technical questions, please call 1-800-444-3353. Page 9
OPERATING INSTRUCTIONS
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set
up or use of this Shop Press.
Inspect tool before use, looking
for damaged, loose, and
missing parts. If any problems
are found, do not use the Shop
Press until repaired.
If the Shop Press requires more force1.
to accomplish the task, verify that the
unit receives sufcient, unobstructed
airow (CFM) and increase the
pressure (PSI) output of the regulator
up to the maximum air pressure
rating (120 PSI) of this Press.
CAUTION! Do not exceed the
maximum air pressure rating. If the
tool still does not have sufcient force
at maximum pressure and sufcient
airow, then a larger Shop Press may
be required.
If you will use the unit as a lter 2.
crusher:
Place the Crushing Housing (14) ina.
the middle of the Working Bed (15).
(See Assy. Diagram.)
Screw the Filter Crushing Head (13)b.
rmly onto the Connecting Rod (11).
(See Assy. Diagram.)
Close the Release Valve on the Air/c.
Hydraulic Jack. Then insert the end
of the Jack Handle into the Handle
Bracket of the Jack and pump the
Jack Handle up and down. This
action will manually lower the Filter
Crushing Head (13). (See Air/Hy-
draulic Jack Owner’s Manual.)
Lower the Filter Crushing Head (13),d.
making sure the Crushing Head can
be lowered into the Crushing Hous-
ing (14). (See Assy. Diagram.)
Raise the Crushing Head (13) alle.
the way up by opening the Release
Valve on the Air/Hydraulic Jack.
Then place the oil lter that is to be
crushed into the Crushing Housing
(14). (See Assy. Diagram.)
Close the Release Valve on thef.
Air/Hydraulic Jack. Use the Jack
Handle of the Air/Hydraulic Jack to
manually lower the Filter Crushing
Head (13) onto the oil lter until the
lter is crushed to within 25% of its
original height. (See Air/Hydraulic
Jack Owner’s Manual.)
Open the Release Valve on the Air/g.
Hydraulic Jack. This will allow the
Springs (5) to again raise the Crush-
ing Head (13) so you can remove
the crushed oil lter. (See Assy.
Diagram and Air/Hydraulic Jack
Owner’s Manual.)
For pneumatic operation, Place theh.
Crushing Housing (14) in the middle
of the Working Bed (15)
(See Assy. Diagram.)
Screw the Filter Crushing Head (13)i.
rmly onto the Connecting Rod (11).
(See Assy. Diagram.)
Close the Release Valve on the Air/j.
Hydraulic Jack. (See Air/Hydraulic
Jack Owner’s Manual.)
Connect the air supply source tok.
the Air Valve Assembly of the Air/
Hydraulic Jack. Then set the com-
pressor’s regulator between 110 and
120 PSI.

SKU 65330 For technical questions, please call 1-800-444-3353. Page 10
Close the Release Valve on the Air/l.
Hydraulic Jack. (See Air/Hydraulic
Jack Owner’s Manual.)
Then squeeze and hold the Lever ofm.
the Air/Hydraulic Jack. This action
will pneumatically lower the Filter
Crushing Head (13). (See Assy.
Diagram and Air/Hydraulic Jack
Owner’s Manual.)
Slowly lower the Filter Crushingn.
Head (13), making sure the Crush-
ing Head can be lowered into the
Crushing Housing (14).
(See Assy. Diagram.)
Raise the Crushing Head (13) allo.
the way up by opening the Release
Valve on the Air/Hydraulic Jack.
Then place the oil lter that is to be
crushed into the Crushing Housing
(14). (See Assy. Diagram and Air/
Hydraulic Jack Owner’s Manual.)
Close the Release Valve on the Air/p.
Hydraulic Jack. (See Air/Hydraulic
Jack Owner’s Manual.)
Then squeeze and hold the Leverq.
of the Air/Hydraulic Jack to lower
the Filter Crushing Head (13). (See
Assy. Diagram and Air/Hydraulic
Jack Owner’s Manual.)
Continue lowering the Filter Crush-r.
ing Head (13) onto the oil lter until
the lter is crushed to within 25% of
its original height.
(See Assy. Diagram.)
Open the Release Valve on the Air/s.
Hydraulic Jack. This will allow the
Springs (5) to again raise the Crush-
ing Head (13) so you can remove
the crushed oil lter. (See Assy.
Diagram and Air/Hydraulic Jack
Owner’s Manual.)
If you will use the unit as a general3.
Shop Press:
To operate the Shop Press as aa.
general Press, remove the Crushing
Housing (14) and Crushing Head
(13) from the unit. If necessary, the
Connecting Rod (11) may be re-
moved and the Press Head (9) can
be screwed under the Frame (7)
directly. Follow previous instructions
for the manual and pneumatic op-
eration of the Shop Press.
(See Assy. Diagram.)
To prevent accidents, turn off the4.
tool, detach the air supply and safely
discharge any residual air pressure in
the Shop Press.

SKU 65330 For technical questions, please call 1-800-444-3353. Page 11
MAINTENANCE
INSTRUCTIONS
Procedures not specically
explained in this manual
must be performed only by a
qualied technician.
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION:
Detach the air supply from the
Shop Press, and safely
discharge any residual air
pressure in the Press before
performing any inspection,
maintenance, or cleaning
procedures.
TO PREVENT SERIOUS
INJURY FROM TOOL
FAILURE:
Do not use damaged
equipment. If abnormal
noise, vibration, or leaking
air occurs, have the problem
corrected before further use.
Note: Note: These procedures are in
addition to the regular checks and
maintenance explained as part of the
regular operation of the manual and
air-operated Shop Press.
Daily: Before each use, inspect the1.
general condition of the Shop Press
and its accessories. Check for bent,
cracked, or broken parts, damaged
hoses, and any other condition that
may affect its safe operation.
Daily: Every day, perform mainte-2.
nance on the air supply components
(air compressor, regulator, oiler, lter,
hoses, etc.) according to the com-
ponent manufacturers’ instructions.
The lubricator’s oil level needs to be
maintained and the moisture lter
must be regularly drained. Perform-
ing routine maintenance on the air
supply will allow the Shop Press to
operate more safely and will also
reduce wear on the Press.
Periodically, or when the Air/Hydraulic3.
Jack does not work, or does not oper-
ate at its optimum capability: Check
the hydraulic oil level in the Jack as-
sembly as well as purge the system.
Refer to the Jack assembly owner’s
manual (included) for lling (topping
off) the Jack assembly.
To clean: Use a clean, damp cloth4.
and mild detergent or solvent to clean
the external parts of the Shop Press.
Do not immerse any part in liquid.
5. All maintenance,
service, and repairs not mentioned in
this manual must only be performed
by a qualied service technician.

SKU 65330 For technical questions, please call 1-800-444-3353. Page 12
Part # Description Qty. Part # Description Qty.
1 Nut 16 14 Crushing Housing 1
2 Spring Washer 16 15 Working Bed 1
3 Flat Washer 16 16 Leg 2
4 Bolt 16 17 Bolt 4
5 Spring 2 18 Flat Washer 4
6 Screw Hook 2 19 Spring Washer 4
7 Frame 1 20 Nut 4
8 Flat Washer 2 21 Air/Hydraulic Jack 1
9 Press Head 1 22 Top Cross Beam 1
10 Nut 2 23 Clamp 1
11 Connecting Rod 1 24 Drain Hose 1
12 Upright 2 25 Set Screw 3
13 Filter Crushing Head 1 26 Press Plate 2
PARTS LIST
TROUBLESHOOTING
Problem Possible Causes Possible Solutions
Shop Press does
not work, or
does not operate
at its optimum
capability.
Pressure Release Valve open.1.
Air compressor’s Regulator2.
not set at between 110 PSI
and maximum 120 PSI.
Loose and/or damaged Hose3.
connections.
Hydraulic oil level low.4.
Trapped air in the system5.
Close Valve.1.
Set Regulator between 110 PSI and 1202.
maximum PSI.
Inspect all Hose connections.3.
Rell (top off) Pump Assembly with Hydraulic 4.
oil.
Purge air (see Jack’s manual).5.
Damaged
workpiece.
Workpiece not evenly1.
centered on Arbor Plates.
Workpiece not secured to2.
Arbor Plates and Press Apron.
Place the workpiece evenly centered on the1.
Arbor Plates.
Use clamps to secure workpiece.2.
Follow all safety precautions whenever diagnosing or servicing the
tool. Disconnect air supply before service.

SKU 65330 For technical questions, please call 1-800-444-3353. Page 13
ASSEMBLY DIAGRAM
