Harbor Freight Tools 93575 Assembly instructions

Visit our website at: http://www.harborfreight.com
Email our technical support at: [email protected]
ITEM 93575
REV 13e
Digital Safe
Batteries sold separately.
To ensure security of your safe, Bunker Hill Security
does NOT provide replacement keys.
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-800-444-3353 as soon as possible.
Copyright©2006 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.

Page 2 For technical questions, please call 1-800-444-3353. Item 93575
REV 06f
Specifications
Safe Dimensions 8” H x 7-7/8” W 12-3/16” L
Door Pin Locks 2 x .778”
Safe Wall Thickness 14 Gauge
Door Wall Thickness 9 Gauge
Batteries 4 - “AA”

Page 3For technical questions, please call 1-800-444-3353.Item 93575
Safety Warnings and Precautions
WARNING: When using this product, basic safety precautions should always be followed to
reduce the risk of personal injury and damage to equipment.
Read all instructions before using this safe!
1. Keep the area around the Safe clean. Cluttered areas invite injuries.
2. Observe conditions around Safe. Don’t expose to rain. Keep area well lit.
3. Use the right safe for the job. Do not attempt to force a small safe to do the work of a
larger industrial safe. There are certain applications for which this Safe was designed. Do
not modify this Safe and do not use this Safe for a purpose for which it was not intended.
4. Dress properly. Do not wear loose clothing or jewelry as they can be caught
in the Safe Door. Wear restrictive hair covering to contain long hair.
5. Maintain the Safe with care. The Safe must be kept clean,
dry, and free from oil and grease at all times.
6. Check for damaged parts. Before using the Safe, any part that appears damaged
should be carefully checked to determine that it will operate properly and perform
its intended function. Check for alignment and binding of moving parts; any broken
parts or mounting fixtures; and any other condition that may affect proper operation.
Any part that is damaged should be properly repaired or replaced by a qualified
technician. Do not use the Safe if the digital pad does not operate properly.
7. Replacement parts and accessories. When servicing, use only identical
replacement parts. Use of any other parts will void the warranty.
8. Maintenance. For your safety, service and maintenance should
be performed regularly by a qualified technician.
Caution: No device is theftproof. This safe is intended as a theft deterrent.
Harbor Freight Tools cannot be held responsible for damage or loss of
property due to criminal activity. This Safe is not fire resistant.
Warning: The warnings, cautions, and instructions discussed in this instruction
manual cannot cover all possible conditions and situations that may occur. It
must be understood by the operator that common sense and caution are factors
which cannot be built into this product, but must be supplied by the operator.
REV 06f

Page 4 For technical questions, please call 1-800-444-3353. Item 93575
Installation
1. Choose where you want to mount the
Safe. The supplied mounting Bolts are
for mounting in concrete. If you are
going to mount to another surface, you
must supply the appropriate 3/8” bolts.
If you are mounting on a shelf, make
sure the shelf is weight rated to safely
support the Safe and its contents.
If you are mounting on a wall or
floor, make sure no wires, pipes, or
cables are hidden behind the drill
path for mounting the screws.
2. Open the Safe by using the included key.
Install 4 “AA” batteries aligned with the
markings in the battery compartment.
Set up a PIN code, as explained below.
3. Situate the Safe where you want it and
draw marks through the four mounting
holes onto the mounting surface(s).
Some mounting configurations may use
only two holes on the safe - for better
security, use all four. Move the Safe
and predrill the holes for the 3/8” Bolts.
Fit the Safe over the drilled mounting
holes and secure it with the Bolts.
Operation
Programming your personal PIN
1. Open the Safe, as explained above. Make
sure the batteries are properly installed.

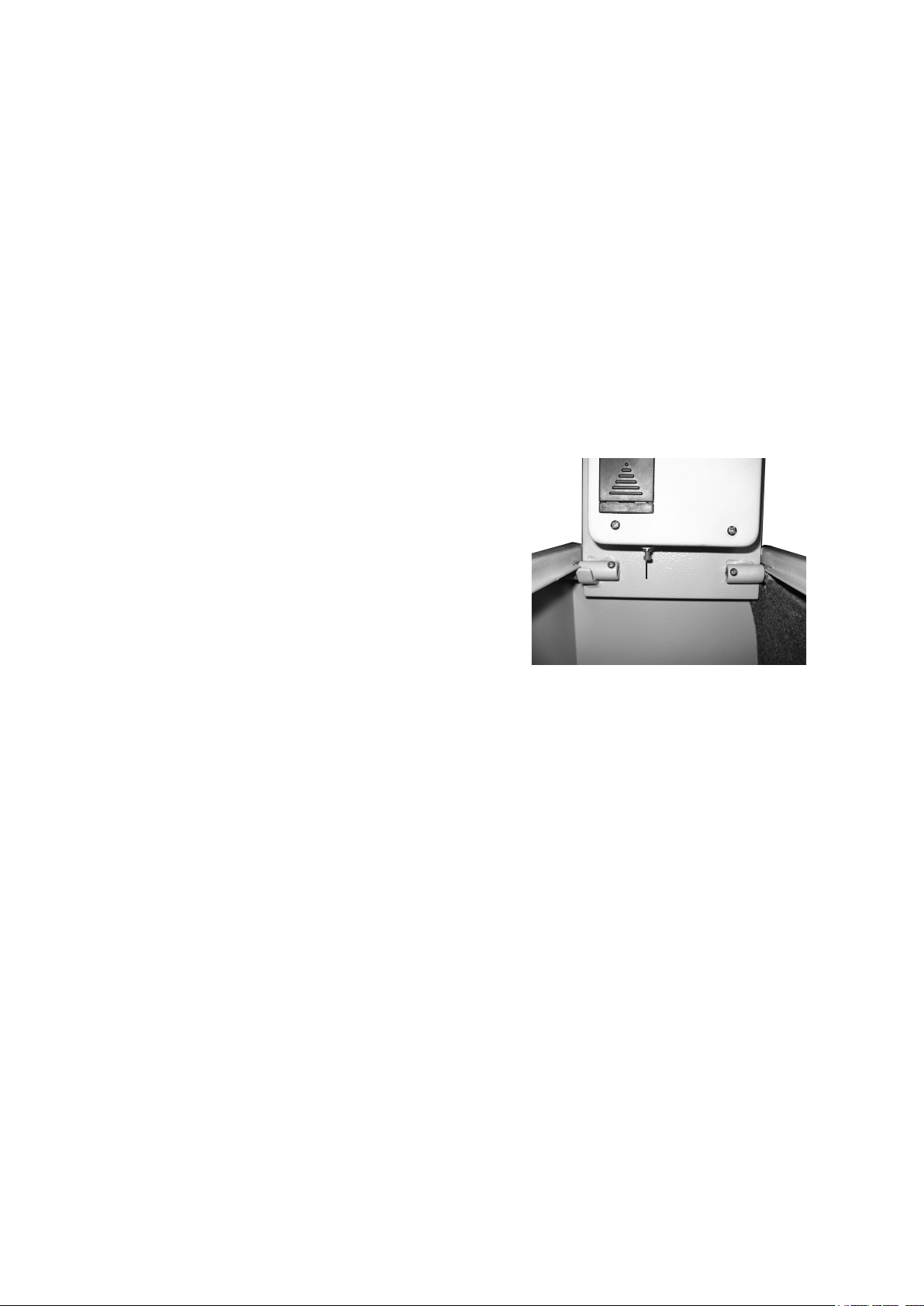

2. Press the Red Button (11) on the inside
of the door near the hinges. The unit
will beep twice and the yellow light
will illuminate. See FIGURE 1.
FIGURE 1
Red Button (11)
3. You only have thirty seconds to enter
your PIN.
Select your 3 to 8 digit PIN and input it
on the Keypad (7). A beep will sound
for each key pressed. Press the letter
“B” to confirm your PIN. After you press
“B”, the unit will beep twice to confirm
you’ve successfully inputted your PIN.
REV 06f

Page 5For technical questions, please call 1-800-444-3353.Item 93575
General Operation

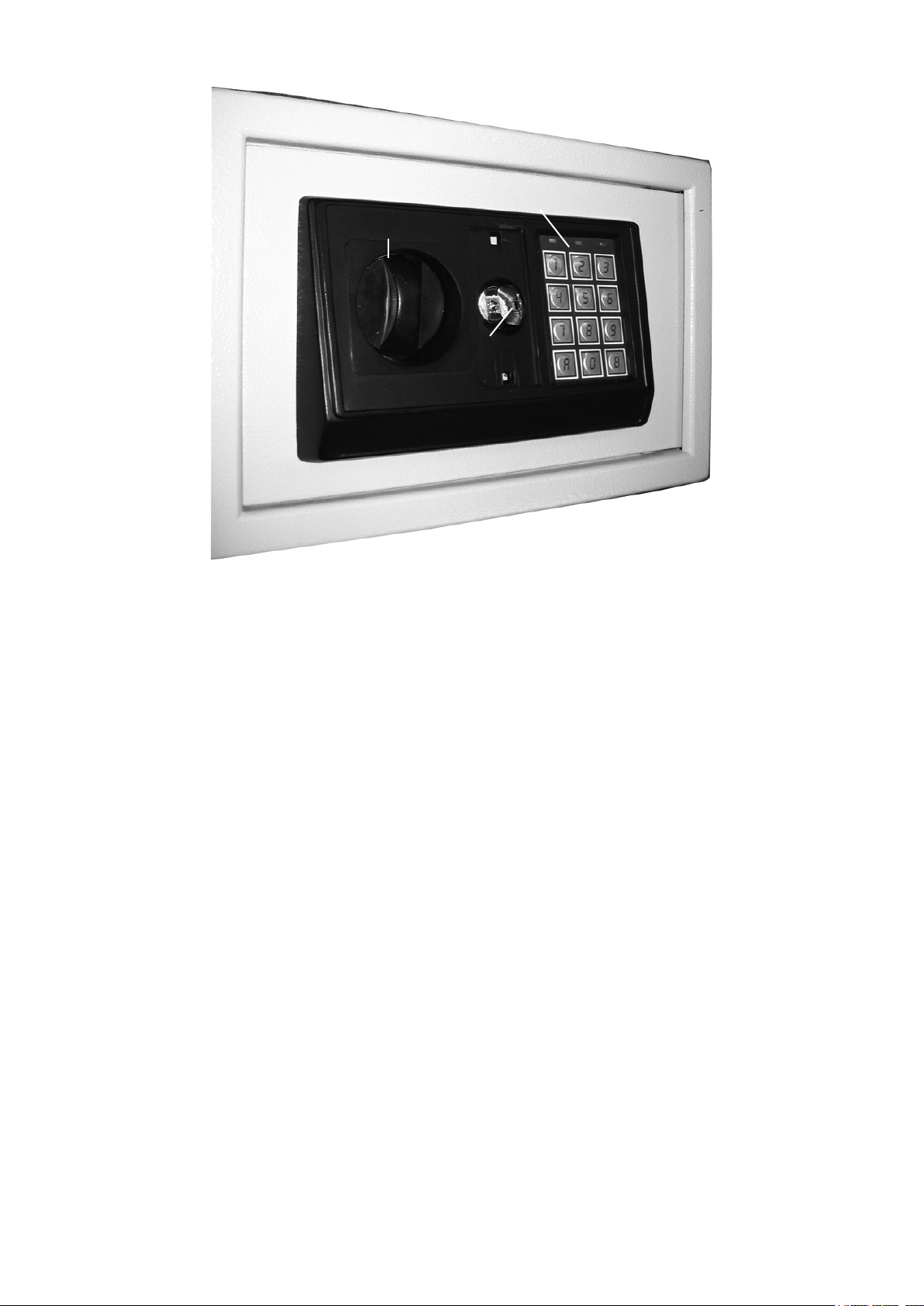

FIGURE 2
Knob (4)
Override Key (8)
Keypad (7)
1. To open the Safe, input your PIN, press
the letter “B”, and turn the Knob (4)
clockwise. The unit will beep twice
and the green light will illuminate
indicating that the Safe is now open.
Note: After entering your PIN you have
5 seconds to turn the Knob (4) and
open the Safe. After 5 seconds, the
mechanism re-locks. If the mechanism
re-locks, repeat number one above.
If incorrect numbers are entered and
the letter “B” is entered three times,
the Safe will lock up for 20 seconds.
Note: If you forget or lose your PIN. You can
gain access to the Safe by using your
Override Key (8). The Key (8) fits in the
keyhole shown in FIGURE 2 below. You
will have to remove a small panel covering
the keyhole. Insert your Key (8), and turn
it counterclockwise to open the Safe.
IMPORTANT
1. The Key Number and the Safe Number
are on the head of the emergency
lock. They will be needed if the key
needs to be replaced. Store the Key (8)
somewhere secure, outside of the Safe.
2. The red and green lights will illuminate
on the control panel when the batteries
are low. See the maintenance section
to replace the batteries. If batteries
become so low that the Safe will not
open, use the Override Key (8).

Page 6 For technical questions, please call 1-800-444-3353. Item 93575
Maintenance
1. Keep the Safe and particularly the Keypad (7) clean and clear of
dirt and debris. Wipe the unit clean with a lint free cloth.
2. To replace the batteries, open the Safe and remove the Battery Cover (10) inside the door.
Remove the batteries and replace with new ones (“AA”, qty. = 4) making sure to match the
polarity on the batteries with polarity on the battery holder. Replace the Battery Cover (10).
NOTE: Some parts are listed and shown for illustration purposes only and are not available
individually as replacement parts.
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM IN THIS MANUAL AS A
REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR DISTRIBUTOR MAKES ANY REPRESENTATION
OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE
PRODUCT OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE
MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS
SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS AND NOT BY THE BUYER. THE BUYER
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR
REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS
THERETO.

Page 7For technical questions, please call 1-800-444-3353.Item 93575
Parts List and Diagram
Part Description Qty.
1 Body 1
2 Door 1
3 Front Cover 1
4 Knob 1
5 Key Cover 1
6 Light 3
Part Description Qty.
7 Keypad 1
8 Key 1
9 Bolt 2
10 Battery Cover 1
11 Red Button 1
12 Battery 4

LIMITED 90 DAY WARRANTY
Harbor Freight Tools Co. makes every effort to assure that its products meet high
quality and durability standards, and warrants to the original purchaser that this product
is free from defects in materials and workmanship for the period of 90 days from the date
of purchase. This warranty does not apply to damage due directly or indirectly, to misuse,
abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity,
improper installation, normal wear and tear, or to lack of maintenance. We shall in no event
be liable for death, injuries to persons or property, or for incidental, contingent, special or
consequential damages arising from the use of our product. Some states do not allow
the exclusion or limitation of incidental or consequential damages, so the above limitation
of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with
transportation charges prepaid. Proof of purchase date and an explanation of the complaint
must accompany the merchandise. If our inspection veries the defect, we will either repair
or replace the product at our election or we may elect to refund the purchase price if we
cannot readily and quickly provide you with a replacement. We will return repaired products
at our expense, but if we determine there is no defect, or that the defect resulted from causes
not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specic legal rights and you may also have other rights
which vary from state to state.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • [phone]
