DROP ACTION BIOMETRIC SECURITY VAULT
INSTRUCTION MANUAL FOR SA-HD5-BIO

TABLE OF CONTENTS
IMPORTANT INFORMATION ............................................................................................... 2
1. REGISTRATION ................................................................................................................ 3
2. UNDERSTANDING YOUR VAULT ...................................................................................... 4
3. INITIAL ENTRY .................................................................................................................. 5
4. BATTERY INSTALLATION ................................................................................................ 6
5. PLACEMENT AND MOUNTING YOUR VAULT ................................................................... 6
6. PROGRAMMING YOUR FINGERPRINT ..........................................................................9
7. OPENING VAULT WITH PROGRAMMED FINGERPRINT .................................................. 10
8. PROGRAMMING ADDITIONAL FINGERPRINTS ............................................................. 10
9. TROUBLE SHOOTING ...................................................................................................... 11
10. LOCKOUT MODE/TAMPER PROTECTION...................................................................... 12
11. CLEARING ALL RECORDED FINGERPRINTS ................................................................... 13
12. SILENT ENTRY MODE .................................................................................................. 13
13. LOADING YOUR VAULT ............................................................................................... 13
14. MAINTAINING HINGES AND INTERNAL MECHANISMS ............................................... 13
WARRANTY ...................................................................................................................... 14
www.saproducts.com 1

2
DISCLAIMER - READ BEFORE VAULT SETUP
WEAPON STORAGE
SAFETY
Thank you for choosing a Sports Afield vault to protect your valuables. We are
commied to securing, organizing and protecng your most important documents,
valuables and keepsakes.
If you experience problems or challenges with your vault, please contact us.
Many issues can be quickly resolved without the product being returned.
Be sure to keep backup keys stored in a safe place away from unauthorized users
Do not put anything in your vault that will put pressure against the door when
it is closed.
If you choose to ulize this vault to store a weapon always follow proper weapon and
local laws when storing a weapon.
SA Consumer Products strongly recommends that you do not store loaded guns.
Always follow the firearm safety rules set out by the firearm’s manufacturer.
Store ammunion separately from valuables.
A Sports Afield vault or any other firearm storage device cannot take the place
of other safety procedures including advising children of the dangers of firearms.
SA Consumer Products and its distributors of the Sports Afield vaults do not
recommend, suggest, advise, promote, or otherwise condone the ownership or use of
firearms. We believe the decision to own or use a firearm is a serious decision that
should only be made by an adult who has carefully considered
the risks and benefits of such a decision.
PLEASE READ THIS INFORMATION CAREFULLY BEFORE OPERATING YOUR
SPORTS AFIELD VAULT.
DO NOT LOCK THIS MANUAL OR THE OVERRIDE ACCESS KEYS IN YOUR VAULT.
Contact Customer Service at [email protected] or [phone]

3
Register your vault at www.saproducts.com
PURCHASE DATE:
PURCHASE PRICE (BEFORE TAX):
MODEL NUMBER:
SERIAL NUMBER:
KEY NUMBER (IF APPLICABLE):
1. REGISTRATION
RETAILER NAME:
By registering your Sports Afield vault we will be able to expedite and address
any problems or challenges you may havewhich would otherwiserequirea
notary leer and proof of payment.
Theinformaon you record onto this page will be required in the event you
cannot access thecontents of your Sports Afield vault. Pleasefill out all the
required informaon below and retain for your records and safe keeping.
PLEASE HAVE THIS INFORMATION READY PRIOR TO CALLING FOR TECHNICAL
ASSISTANCE AT:
Contact Customer Service at [email protected] or [phone]
REGISTRATION INFORMATION

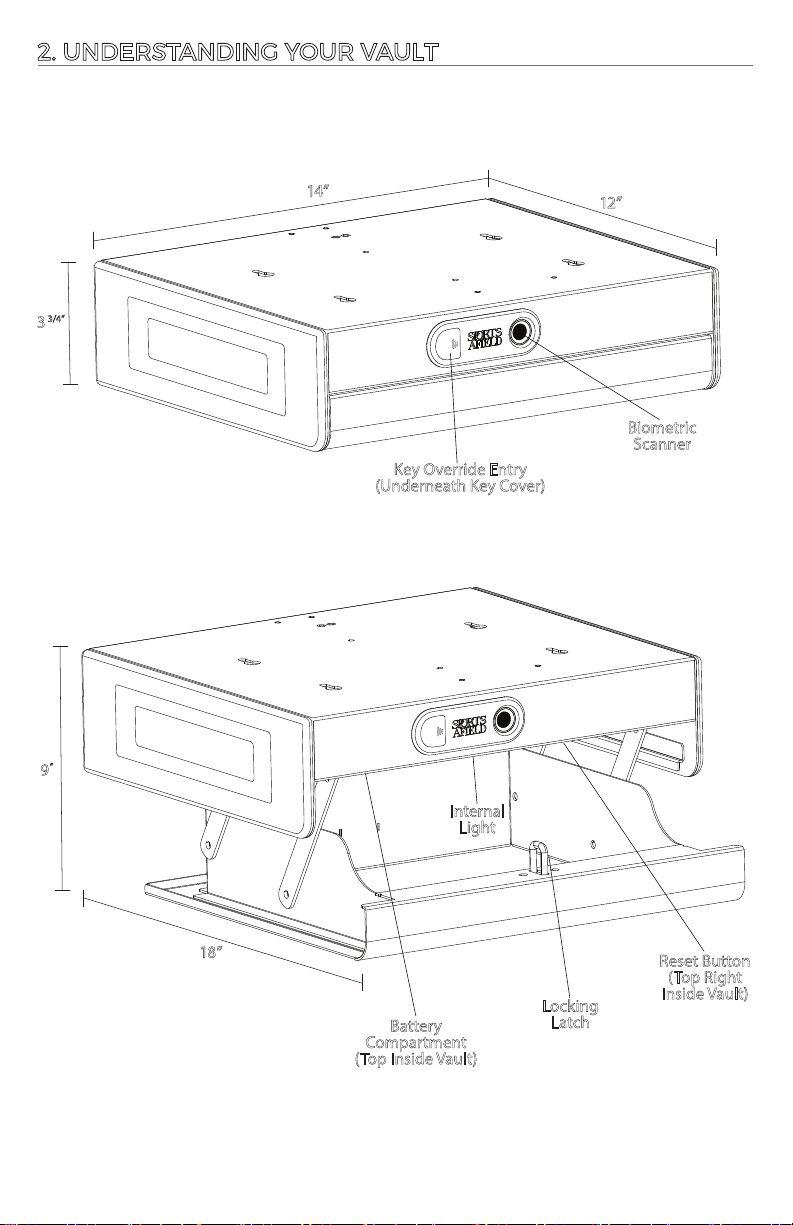

2. UNDERSTANDING YOUR VAULT
Key Override Entry
(Underneath Key Cover)
Internal
Light
Locking
Latch
Biometric
Scanner
Battery
Compartment
(Top Inside Vault)
Reset Button
(Top Right
Inside Vault)
4
33/4”
9”
14” 12”
18”

3. INITIAL ENTRY
5
3.
2. Insert the backup key. Turn
the key clockwise and your
vault door will unlock.
Step 1Step 3 Step 2
1. When unboxing, you will see
the manual, mounng plate
and key on top of the vault.
Remove these items and set
aside.
Lay down a towel or protecve
barrier and place the vault on
it’s side. Locate the key cover
and remove it by pressing the
three lines. The cover will pop
up on one side so that it can
be removed.
Gently pull it open while
keeping it on it’s side.
Remove the box of hardware
from the vault and set aside.

4. BATTERY INSTALLATION
6
5. PLACEMENT AND MOUNTING YOUR VAULT
TOOLS NEEDED: HARDWARE INCLUDED:
DRILL / HAMMER DRILL
3/32” DRILL BIT
PHILLIPS SCREWDRIVER
2X THUMBSCREWS
4X MOUNTING
PLATE SCREWS
Mounting with Provided Hardware
Step 1Step 2Step 3Step 4
1.
2.
3.
4.
WARNING: Thebaeries must be inserted with
the correct polarity. Exhausted baeries must be
removed from theproduct and discarded safely.
Do not mix old and new baeries. Do not mix
alkalineor standard (carbon – zinc) baeries. Do
not use rechargeable (nickel – cadmium) baeries.
While vault is sll on it’s side, find the
baery compartment
located inside on
the top of the vault. Press the tab to
release the baery tray.
Remove the empty baery tray from
the compartment.
Turn over the tray and insert the
(4) AAA
baeries (included) into the
tray in the correct orientaon.
Turn the baery pack over to align
the notch cut out on the baery tray
to the ridge inside of the baery
compartment.
Slide the tray back into the baery
compartment. The keypad will beep
once when baeries are successfully
installed.
RELEASE TAB
NOTCH SHOULD
BE IN THE BACK.
NOTCH MUST BE IN BACK
WHEN INSERTED INTO THE
COMPARTMENT.
IMPORTANT: Consult your local hardware retailer for proper hardware for your desired mounng surface.

7
Planning Your Space
5. PLACEMENT AND MOUNTING YOUR VAULT (Continued)
The provided screws are designed for mounng to surfaces of 1/2 inch or thicker.
If your surface is less than 1/2 inch thick, different mounng hardware is needed.
This vault is intended to be mounted under a surface of your choice. Some possibilies
include under your desk, under a bench, under a cabinet or any other locaon that is
convenient for you. Before beginning the process, take a moment to review the size of
your vault and evaluate that you will have enough space for the drawer to drop open.
NOTE: THIS VAULT REQUIRES
9” OF CLEARANCE.
WARNING: TO AVOID DANGER
OF THE DEVICE CLOSING ON
YOUR FINGER, USE CARE WHEN
HANDLING THE VAULT SIDES.
In order to mount the vault flush to the edge of your desk or desired surface, use
the provided template and complete the following steps for mounng. Keep in
mind, when the vault drawer is fully open it will extend 6” beyond the edge of your
desk so that you may easily and quickly access the contents.
Align the template with the front edge
of your or chosen surface. Use a pencil
to mark the locaon of the (4) holes.
Drill pilot holes on marked locaons.
Line up the mounng plate with
pilot holes and hold in posion.
While connuing to hold, using a
screwdriver or power drill, fasten
the plate to the surface using
provided screws.
1.
2.
3.
4.
Using the Provided Template
FRONT EDGE OF DESK OR CHOSEN SURFACE
TEMPLATE
14” 12”
33/4”
18”
9”

8
Locate the (4) mounng studs and the (4) keyhole slots on top of unit.
With the unit opened, align all 4 mounng plate studs with the key hole slots, push
head of mounng studs through key hole slots and slide the unit forward to engage.
Locate the (2) thumb screw holes on the top, inside of the vault. Hold the unit in
posion and use (2) thumbscrews to fasten the unit to the mounng plate.
MOUNTING
STUDS
KEYHOLE
SLOTS
MOUNTING PLATE AND
VAULT ARE NOW FASTENED
TO THE SURFACE.
THUMBSCREWS
5. PLACEMENT AND MOUNTING YOUR VAULT (Continued)
UNIT IS NOT YET FULLY SECURE. DO NOT OPERATE UNIT COMPLETING STEP 6.
STEP 5
STEP 6

6. PROGRAMMING YOUR FINGERPRINT
9
Step 1
1. Behind the front panel, inside the
right hand side of the vault, you
will find a reset buon.
2.
Press the reset buon to start the
programming process. You will
hear one beep and the indicator
ring will illuminate on the front of
the door
.
NOTE: Recording mode will me out
aer 10 seconds of inacvity. If this
occurs press reset buon and begin
again.
3. Place and hold the pad of your
finger on the scanner unl it flashes
green and beeps one me.
4. Repeat at least 3 more mes unl
there are 2 consecuve beeps and
2 green flashes.
IMPORTANT: Be sure to
use the same finger for each
recording sequence.
BEEP
BEEP
BEEP
HOLD FOR BEEP
LIFT FINGER
Step 2Step 3Step 4
BEEP
2 BEEPS + 2 GREEN FLASHES = SUCCESS!
RESET BUTTON IS
LOCATED BEHIND
THE FRONT PANEL
PRESS THE
RESET BUTTON

10
7. OPENING VAULT WITH PROGRAMMED FINGERPRINT
If your print is not accepted:
you will see 1 light flash with 1
sound. This means the scanner
did not read your fingerprint
(try again).
IMPORTANT: If you see 5 red
flashes with 5 sounds, the scanner
read your fingerprint but did not
accept it. Follow secon 6 to
reprogram your fingerprint.
x
1
x
1
RED
LIGHT x
5
x
5
RED
LIGHT
TRY AGAIN REPROGRAM
With keys in hand, close and lock the door.
Place and hold the programmed finger
on the scanner and indicator ring will
illuminate green and the vault will unlock.
You can now open your vault.
8. PROGRAMMING ADDITIONAL FINGERPRINTS
INDICATOR RING
INDIVIDUALLY MAPPING ALL
ZONES OF YOUR FINGERPRINT
WILL ENSURE A RELIABLE
READING BY THE SCANNER.
To ensure each programming
sequence is properly captured, it
needs to read the exact same place
on your finger four mes in a row,
once successful you can move onto
the next zone of your fingerprint.
This counts as one programmed
fingerprint of 100 fingerprints this
unit can keep in memory.
Once programming sequence has
been successfully completed, you
can move onto the next zone of your
fingerprint.
TIP
RIGHT
TOP
MIDDLE
LEFT
When accessing your vault quickly, there is a chance you may touch
the scanner with a part of your finger that you have not registered before.
For this reason, we recommend programming addional areas of your
fingerprint to ensure fast and reliable entry to your vault.

11
9. TROUBLE SHOOTING
Press the reset buon and follow
Step 6 instrucons again, for each
fingerprint zone you would like to
program.
If you experience any problems
reading your fingerprint, including
inconsistent readings, note the area
of your fingerprint that doesn’t
work properly, and specifically
re-program that area.
This scanner will hold up to 100
different fingerprints.
In the event that you run into issues with programming and accessing your
vault, please read through this secon for answers to your quesons.
BEEP
BEEP
BEEP
HOLD FOR BEEP
LIFT FINGER
2 BEEPS + 2 GREEN FLASHES = SUCCESS!
8. RECORDING ADDITIONAL FINGERPRINTS (Continued)
Placing a poron of a fingerprint on the scanner that
has not been programmed can result in an error. We
recommend programming mulple areas of each
fingerprint.
Make sure baeries are fresh. We suggest high grade
alkaline. Do not mix old and new baeries. No not use
rechargeable baeries.
Make sure you are placing the same part of your finger
print on the scanner that was used for programming. If
not, make note of the area that is not scanning and
program that area specifically.
SOLUTIONPROBLEM
YOUR PROGRAMMED
FINGERPRINT IS NOT
READING AT ALL TIMES

10. LOCKOUT MODE/ TAMPER PROTECTION
12
Locked Out Of Your Vault
In the event you are locked out your vault, use your backup keys to gain access and
follow the secon 6 Inial Entry instrucons.
If you have lost your backup keys, or are sll having any difficules, contact customer
service at the number below. Proof of purchase is required to obtain keys.
9. TROUBLE SHOOTING (Continued)
Contact Customer Service at [phone] or [email protected]
Low Battery Indicator
If you noce your indicator light is not
remaining on for a few seconds upon entering,
replace baeries immediately to avoid being
locked out of your vault.
Make sure to hold down your finger on the scanner
instead of tapping, as the scanner needs me to
complete the scanning process.
Fingerprints may lack definion due to excessive dryness.
We recommend applying moisturizer or slide your finger
print against your forehead before scanning process.
Pressing and releasing the reset buon will not erase
fingerprints already recorded. It simply places the
scanner in programming mode to allow for addional
fingerprints to be programmed. This unit will hold up
to 100 unique fingerprints.
SOLUTIONPROBLEM
YOUR FINGERPRINT
IS NOT READING
WILL PRESSING THE
RESET BUTTON CLEAR
THE MEMORY
1. Three consecuve incorrect code entries will
put the vault in “Basic Lockout” mode. Scanner
is deacvated for 30 seconds.
2. Aer “Basic Lockout” mode has ended, another
three consecuve incorrect code entries will
result in “Severe Lockout” mode. Scanner is
deacvated for 5-minutes.

12. SILENT ENTRY MODE
11. CLEARING ALL RECORDED FINGERPRINTS
First, hold the reset buon. The
scanner will flash green light and
make one sound. Aer holding for
5 seconds, the scanner will flash
green and sound two mes.
HOLD DOWN THE
RESET BUTTON
x
2 x
2
GREEN
LIGHT
13
14. MAINTAINING HINGES AND INTERNAL MECHANISMS
The hinges and internal locking mechanism are permanently lubricated, thus
needing no maintenance. Opening the door panel of your vault may void your
warranty. Always consult our customer service experts prior to doing so.
13. LOADING YOUR VAULT
1.
2.
3.
Store ammunion separately from valuables.
Don’t put anything in your vault that will put pressure against the door when closed.
Be aware that the drawer can get jammed when large or bulky items are stored
exceeding the maximum height of 2 1/2 to 3 inches.
To iniate silent entry mode, hold a programmed
finger on the scanner for 5 seconds beyond your
fingerprint being accepted. The green indicator
ring will turn off and back on, but will not beep,
indicang you are now in silent entry mode.
You will not hear any sounds for any funcons
while the vault is in silent entry mode.
To turn the sound back on, hold a programmed
finger on the scanner for 5 seconds beyond your
fingerprint being accepted. The green indicator
ring will turn off and back on and will beep once
indicang you are no longer in silent entry mode.
NOTE:
If 100 max fingerprints have already been programmed indicator ring will flash 5 mes
and beep 5 mes. We recommend clearing all programmed fingerprints and starng the
programming process over.

SA Consumer Products will repair or replace, at their sole discreon,
any Sports Afield vault damaged by fire, forced entry, forced aack
or natural flood for the lifeme of the original owner.
SA Consumer Products will repair or replace, at their sole discreon,
any Sports Afield vault with defecve parts, paint or lock for three
years of the original owner purchase date.
If SA Consumer Products deems a replacement vault is to be sent,
they will pay the freight costs to ship the replacement vault to the
original owner.
This three year warranty is limited to the vault and expressly
excludes any loss associated with the contents of the vault.
SA Consumer Products
reserves the right to receive full evidence
of your misfortune, such as a police report and/or homeowner’s
statement of coverage. This warranty is not valid outside of the
United States and Canada.
Proof of registraon and copy of sales receipt must be on file at
the me of claim. Visit our website at www.saproducts.com to
register your vault.
Three year warranty only applies to the original owner of the vault.
SA Consumer Products shall only be responsible and liable when the
vault is used in compliance with the direcons specified in your new
SA Consumer Products owner’s manual.
SA Consumer Products
requires that specific guidelines be
followed for repair. The vault will be repaired in-home if possible
(to include parts and labor); however, if factory replacement
is necessary (at
SA Consumer Products ’ sole discreon), the
replacement will be shipped freight prepaid, curbside delivery.
This warranty is inclusive and is in lieu of any and all other
warranes, express or implied. Specifically excluded are the
warranes of merchantability and fitness for a parcular purpose.
This warranty is limited to the vault itself and/or its value and
does not include consequenal damages of any kind including,
but not limited to, the contents in and of the vault.
14
