Harken 46.2 ST EL Manual

Installation and Maintenance Manual
MRW-D
Powered Radial Winch
46.2 ST EL/HY

2
Radial Winch 46.2 ST EL/HY
Installation and Maintenance Manual - Mod.D
Index
Introduction 3
Technical characteristics 3
Performance data 3
Weight 4
Maximum working load 4
Outline 5
Installation 6
Procedure 1 7
Procedure 2 8
Winch installation procedure 10
Positioning the self-tailing arm 11
Motor installation procedure 11
Electric wiring diagrams 12
Hydraulic connections diagram 14
Maintenance 15
Washing 15
Maintenance table 15
Disassembly procedure 15
Exploded view with maintenance products 19
Assembly 20
Harken®limited worldwide warranty 21
Ordering spare parts 21
Exploded view 22
Radial Winch 46.2 STA, STC, STCW EL/HY 22
Parts List 24
Radial Winch 46.2 STA EL/HY 24
Radial Winch 46.2 STC EL/HY 25
Radial Winch 46.2 STCW EL/HY 26
Exploded view 27
Radial Winch 46.2 STBBB, STCCC EL/HY 27
Parts List 29
Radial Winch 46.2 STBBB EL/HY 29
Radial Winch 46.2 STCCC EL/HY 30
Exploded view and parts list 31
Horizontal electric motor 12V / 24V 31
Vertical electric motor 12V / 24V 32
Hydraulic motor 33

3
Radial Winch 46.2 ST EL/HY
Installation and Maintenance Manual - Mod.D
Introduction
This manual gives technical information on winch installation and maintenance, including
disassembling and reassembling.
This information is DESTINED EXCLUSIVELY for specialised personnel or expert users.
Installation, disassembling and reassembling of the winch by personnel who are not experts may
cause serious damage to users and those in the vicinity of the winch.
Harken®accepts no responsibility for defective installation or reassembly of its winches.
In case of doubt the Harken®Tech Service is at your disposal at [e-mail]
This Manual is available only in English. If you do not fully understand the English language, do not
carry out the operations described in this Manual.
NOTICE
To use and understand this manual, user must refer to other documents, available on web site
www.harken.com and listed below:
- The Dual Funtion Control Box user manual, for the use of the Dual Function Control Box.
- The Dual Funtion Control Box installation manual, for all details, informations, wiring schemes and
warnings about its installation
Technical characteristics
Power ratio Gear ratio
1st speed 11,70 : 1 2,30 : 1
2nd speed 46,50 : 1 9,17 : 1
The theoretical power ratio does not take friction into account.
Performance data
Winch 46.2 ST EL (electric)
horizontal motor vertical motor
12 V (700 W) 24 V (900 W) 12 V (1500 W) 24 V (2000 W)
1st
speed
2nd
speed
1st
speed
2nd
speed
1st
speed
2nd
speed
1st
speed
2nd
speed
line speed (m/min)** 26,7 6,7 33,5 8,4 35,1 8,8 42,3 10,7
max load (Kg) 315 1300 315 1300 315 1300 315 1300
**Line speed is measured with no load
motor nominal power (W) current absorption at winch
MWL (A)
12 V 24 V 12 V 24 V
winch 46.2 ST E L horizontal 700 900 180 140
vertical 1500 2000 220 120
Introduction - Technical characteristics - Outline

4
Radial Winch 46.2 ST EL/HY
Installation and Maintenance Manual - Mod.D
Winch 46.2 ST HY (hydraulic)
1st speed 2nd speed
line speed (m/min)* 52,5 13,2
max load (Kg)*** 315 1300
* at 20 l/min oil ow (5,28 Gal/min)
*** at 120 bar at 20 l/min
NOTE
The ratio of the line load - pressure is evaluated at nominal ow rate.
The performance is evaluated measuring the pressure and ow on the motor ports.
The performance data are based on oil with a viscosity of 35mm2/s [165 SUS] and
temperature of 50°C [120°F].
Weight
ST A EH ST C/CW EH ST A EV ST C/CW EV ST A H ST C/CW H
weight (Kg) 14,9 17,5 16,7 19,3 12,7 15,3
ST BBB EH ST CCC EH ST BBB EV ST CCC EV ST BBB H ST CCC H
weight (Kg) 18,6 18,6 20,4 20,4 16,4 16,4
Versions:
A = drum in anodised aluminium
C = drum in chrome bronze
CW = chrome/white
BBB = all bronze
CCC = All-Chrome bronze
EH = horizontal electric winch
EV = vertical electric winch
H = vertical hydraulic winch
Maximum working load
WARNING!
The maximum working load (MWL) for the 46.2 ST Radial Winch is 1300 Kg (2866 lb)
Subjecting the winch to loads above the maximum working load can cause the winch to fail or
pull off the deck suddenly and unexpectedly during high loads causing severe injury or death.

5
Radial Winch 46.2 ST EL/HY
Installation and Maintenance Manual - Mod.D
Outline
Vertical electric motor (12 V / 24 V)
Hydraulic motor
Winch 46.2 ST EL/HY Horizontal electric motor (12 V / 24 V)
Winch 46 ST EL/HYWinch 46 ST Winch 46 ST EL HO Winch 46 ST HY
201
Ø101
90
Ø184
201
Ø101
90
Ø184
201
Ø101
90
Ø184
155
43
201
Ø101
90
Ø184
130
234
Winch 46 ST EL VT
201
Ø101
90
Ø184
394
140
Line entry height
Winch 46 ST EL/HYWinch 46 ST Winch 46 ST EL HO Winch 46 ST HY
201
Ø101
90
Ø184
201
Ø101
90
Ø184
201
Ø101
90
Ø184
155
43
201
Ø101
90
Ø184
130
234
Winch 46 ST EL VT
201
Ø101
90
Ø184
394
140
Line entry height
Winch 46 ST EL/HYWinch 46 ST Winch 46 ST EL HO Winch 46 ST HY
201
Ø101
90
Ø184
201
Ø101
90
Ø184
201
Ø101
90
Ø184
155
43
201
Ø101
90
Ø184
130
234
Winch 46 ST EL VT
201
Ø101
90
Ø184
394
140
Line entry height
Winch 46 ST EL/HYWinch 46 ST Winch 46 ST EL HO Winch 46 ST HY
201
Ø101
90
Ø184
201
Ø101
90
Ø184
201
Ø101
90
Ø184
155
43
201
Ø101
90
Ø184
130
234
Winch 46 ST EL VT
201
Ø101
90
Ø184
394
140
Line entry height

6
Radial Winch 46.2 ST EL/HY
Installation and Maintenance Manual - Mod.D

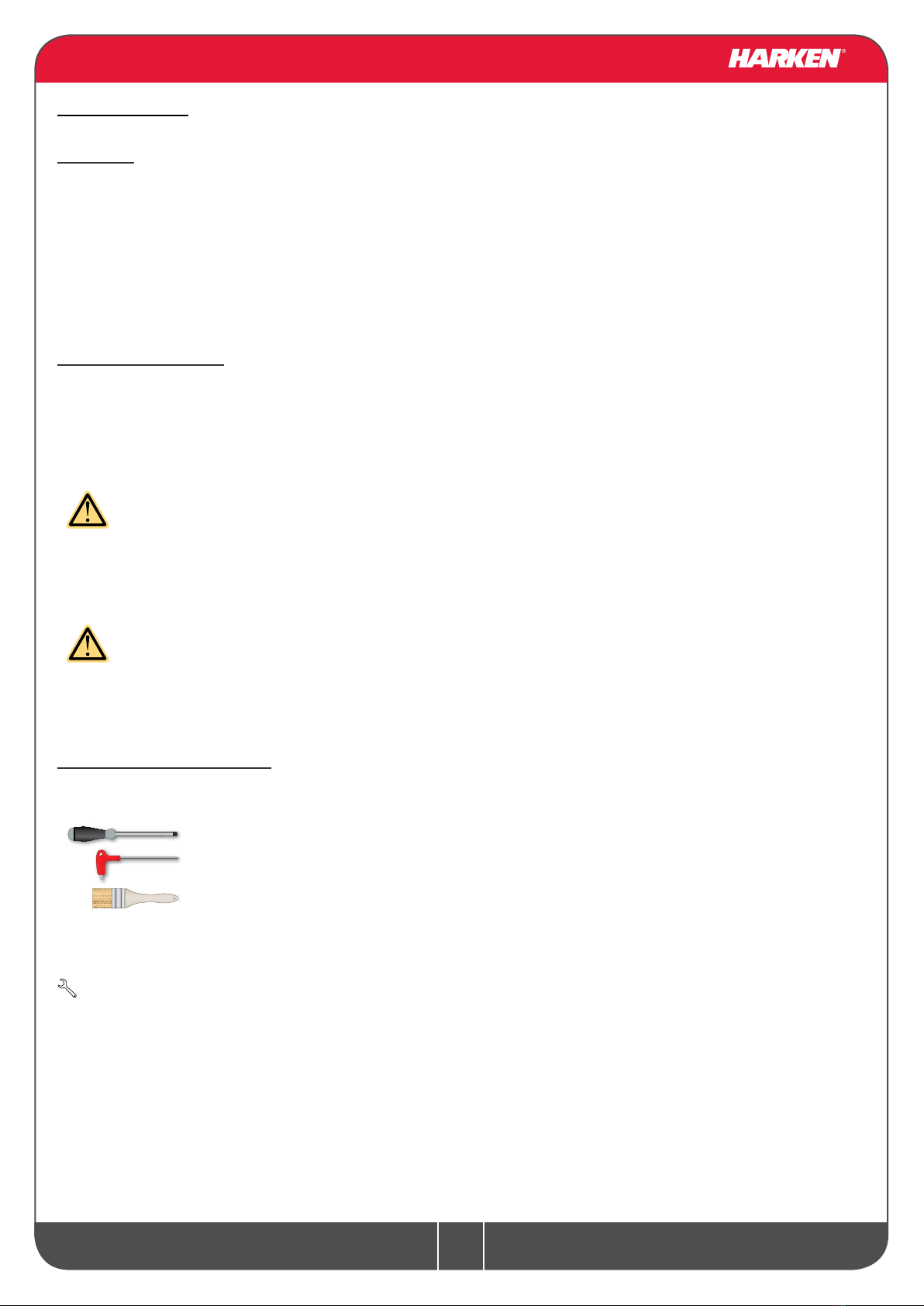

Installation
The winch must be installed on a at area of the deck, reinforced if necessary to bear a load equal
to at least twice the maximum working load of the winch.
It is the installer's responsibility to carry out all structural tests needed to ensure that the deck can
bear the load.
Harken®does not supply the screws needed to install the winch since these may vary depending
on the deck on which it is to be installed.
It is the installer's responsibility to choose the correct screws taking account of the loads they will
have to bear.
Harken®assumes no responsibility for incorrect installation of its winches or for an incorrect choice
of mounting screws.
DANGER!
Incorrect installation of the winch may cause severe injury or death. Consult the yard that built
the boat in the case of doubt over the correct positioning of the winch.
WARNING!
Failure to use the correct number and type of mounting fasteners or failure to ensure the
correct deck strength can result in the winch pulling off the deck suddenly and unexpectedly
during high loads causing severe injury or death.
WARNING!
Verify the entry angle of the sheet. This must be 8° with tolerance of
±2°, to avoid sheet overrides and damaging the winch or making the
winch inoperable leading to loss of control of the boat which can lead to
severe injury or death.
WARNING!

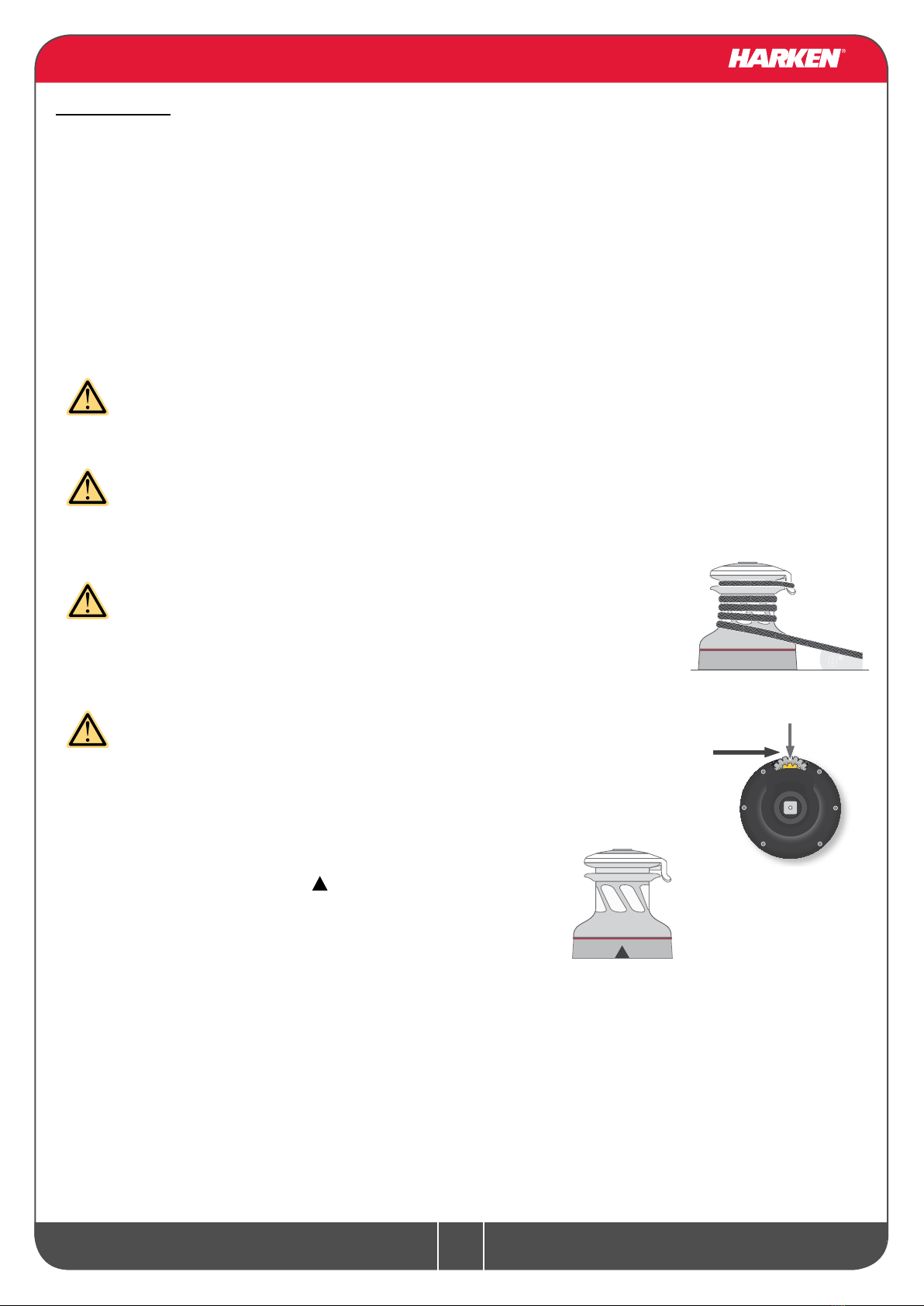

Mount the winch on the deck so that the drive gear is positioned where
the sheet enters the winch drum.
Incorrect position of drive gear can weaken winch leading to failure
which can cause an accident leading to severe injury or death.
NOTICE
For winch STA, STC and STCW versions only
You can find the icon on the skirt to identify
the drive gear position.
After correctly positioning the nal drive gear with respect to the load, check that the motor,
gearing, electrical wiring and/or hydraulic pipes can be housed below decks. To help nd the
optimal compromise, remember that, to make the installation of the motor easier, It can be coupled
to the winch in different positions.
Once you have decided the correct mounting position for the winch on the deck and checked the
space available below deck, proceed with the installation.
drive gear
SHEET
8°
Installation

7
Radial Winch 46.2 ST EL/HY
Installation and Maintenance Manual - Mod.D
The winch can be installed following one of the two procedures below (Procedure1 or Procedure 2):
Procedure 1
To install the winch you must remove the drum and use bolts as described ahead.
Tools needed: One medium at-bladed screwdriver
To identify the various parts, refer to the exploded view at the end of this Manual.
Torque to apply when assembling
1. Pull out the disconnect rod n°21 2. Unscrew the central screw ( 2Nm/18 in-lb)
3. Slide off the assy socket n°31 and the cover
n°30.
Pay attention to the o-ring in the socket.
4. Unscrew the three screws n°29
(4Nm/35 in-lb)

8
Radial Winch 46.2 ST EL/HY
Installation and Maintenance Manual - Mod.D

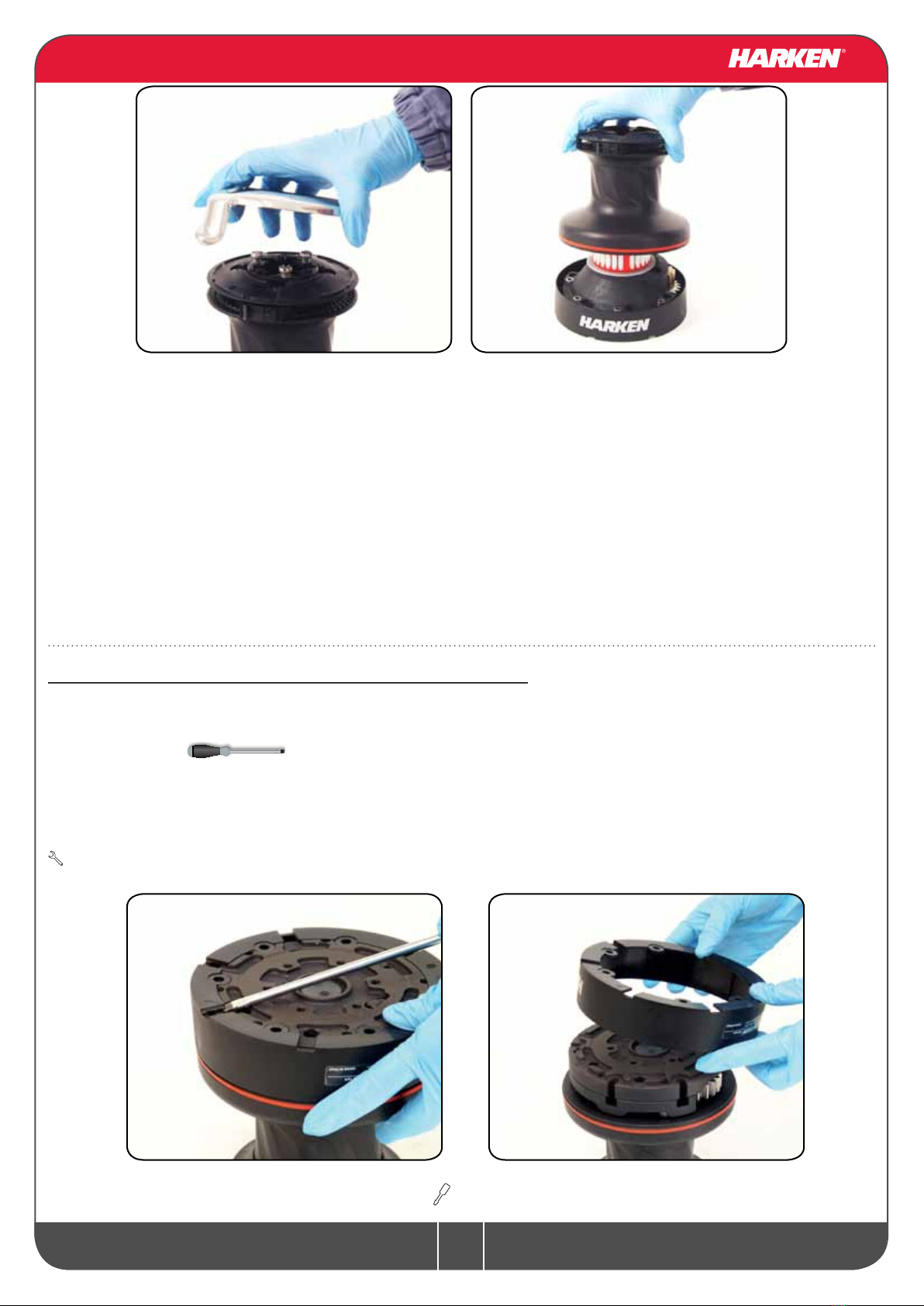

5. Remove the self-tailing arm n°28 by rotating
and lifting it.
1. Remove the skirt n°2 with the help of the
screwdriver placed as shown by the symbol
6. Lift off the drum n°24
2.Take off the base n°2
Winch STA, STC and STCW versions:
Install the winch on the deck in the position you have chosen, keeping in mind the limits described
on page 4 and using socket head (SH) bolts.
Winch STBBB and STCCC versions:
Install the winch on the deck in the position you have chosen, keeping in mind the limits described
on page 4 and using socket head (SH) bolts or hexagonal headed bolts (HH).
Procedure 2 (not pertinent for ST BBB/CCC versions)
To install the winch, remove the winch skirt and use hexagonal headed (HH) bolts.
Tools needed: One medium at-bladed screwdriver
To identify the various parts, refer to the exploded view at the end of this Manual.
See (paragraph on installation) the limits described on page 6 and using socket head (SH) bolts.
Torque to apply when assembling

9
Radial Winch 46.2 ST EL/HY
Installation and Maintenance Manual - Mod.D
3. Position the 5 M8 hexagonal headed bolts
in their holes
4. Reposition the skirt n°2 in its housing 5. Press down the skirt to position it correctly
NOTICE
Make sure the skirt is correctly clipped on to the base of the winch.
Install the winch on the deck in the position you have chosen, keeping in mind the limits described
on page 6 and using hexagonal headed (HH) bolts.

10
Radial Winch 46.2 ST EL/HY
Installation and Maintenance Manual - Mod.D
Winch installation procedure
Carry out Procedure 1 or Procedure 2,then install the winch on the deck in the chosen position.
NOTICE
Before drilling the deck, check the space available below deck for the ange and the motor
A. Position the base of the winch on the deck and mark the position of the holes or use the
drilling cut-out template at the point where you have decided to place the winch.
Below is a reduced scale diagram.
Ø150
46°
46°
64°
70°
70°
64°
Winch outside Ø184
final pinion
position
Ø8
n°5
Ø80 cut out for
powered winches
The drilling cut out template is available on the Harken®website, www.harken.com
B. Remove the winch and drill the ve 8.2 mm and a 80 mm diameter holes.
C. Bolt the base of the winch to the deck using ve M8 bolts (not supplied by Harken®) as
described at Procedure 1 or Procedure 2, correctly chosen for the thickness and type of the boat
deck. Consult the yard that built the boat in case of doubt.
WARNING!
To install the winch on the deck, use only bolts in A4 stainless steel (DIN 267 part11).
Bolts made of other materials may not have sufficient strength or may corrode which can result in
winch pulling off deck suddenly and unexpectedly during high loads causing severe injury or death.
NOTICE
To mount winches on the deck, do not use countersunk bolts.
D. Fill the mounting holes with a suitable marine sealant.
E. Remove the excess adhesive/sealant from the holes and base drainage channels
F. Reassemble the winch following the steps in Procedure 1 or Procedure 2 in the reverse order,
and apply the products indicated in the section on maintenance.

11
Radial Winch 46.2 ST EL/HY
Installation and Maintenance Manual - Mod.D
NOTICE
Before closing the winch, make sure the holes and drainage channels in the base of the winch
are not obstructed.
Positioning the self-tailing arm
Position the self-tailing arm so that the line leaving the winch is led into the cockpit.
Motor installation procedure
WARNING!
Make sure that the power is switched off before installing or carrying out maintenance on
the winch.
Once you have installed the winch on the deck, proceed with motor installation. The motor can be coupled
to the winch in different positions. Check the space available below deck and choose the suitable position.
Tools needed
A number ve hex key
A number six hex key (only for vertical electric motor)
A number ten hex key (only for hydraulic motor)
Two number thirteen wrenches
1. Position the ange (see Page 12) 2.Tighten six M6 precote coated screws
( 8 Nm/ 71 in-lb)
3. Position the reduction gear and motor 4.Tighten the two screws ( 8 Nm/ 71in-lb).
Be sure to align the ange.

12
Radial Winch 46.2 ST EL/HY
Installation and Maintenance Manual - Mod.D
After winch is assembled and before sailing, test the powered winch functioning: insert the lock-in
winch handle in the handle socket and check that the disconnect rod must disconnect gearbox.
Electric equipment
To guarantee greater efficiency in terms of safety and long life, for every winch model is mandatory
to install the Dual Function Control Box.
To fasten the Dual Function Control Box containing solenoids to bulkhead or wall, for all
installation details and for all electric wiring schemes, refer to the Dual Function Control Box
manual.
WARNING!
Before installing and using the device, read carefully the Dual Function Control Box manual
available on web site www.harken.com
Refer to the following chart for wire size:
Total distance between winch and battery
Winch
size
Current
voltage
Under 16.4 ft
AWG
Under 5 m
mm2
16.4 - 32.8 ft
AWG
5m - 10 m
mm2
32.8 - 49.2 ft
AWG
10m - 15 m
mm2
49.2 - 65.6 ft
AGW
15m - 20 m
mm2
46.2 12 V 2 32 0 50 00 70 000 95
46.2 24 V 5 16 3 25 2 35 0 50
Refer to the following chart for HCP model:
Winch
size
Current
voltage
HCP model Ampere
rating
46.2 12 V HCP1717 80A
46.2 24 V HCP1717 80A
46.2 12 V HCP1720 135A
NOTICE

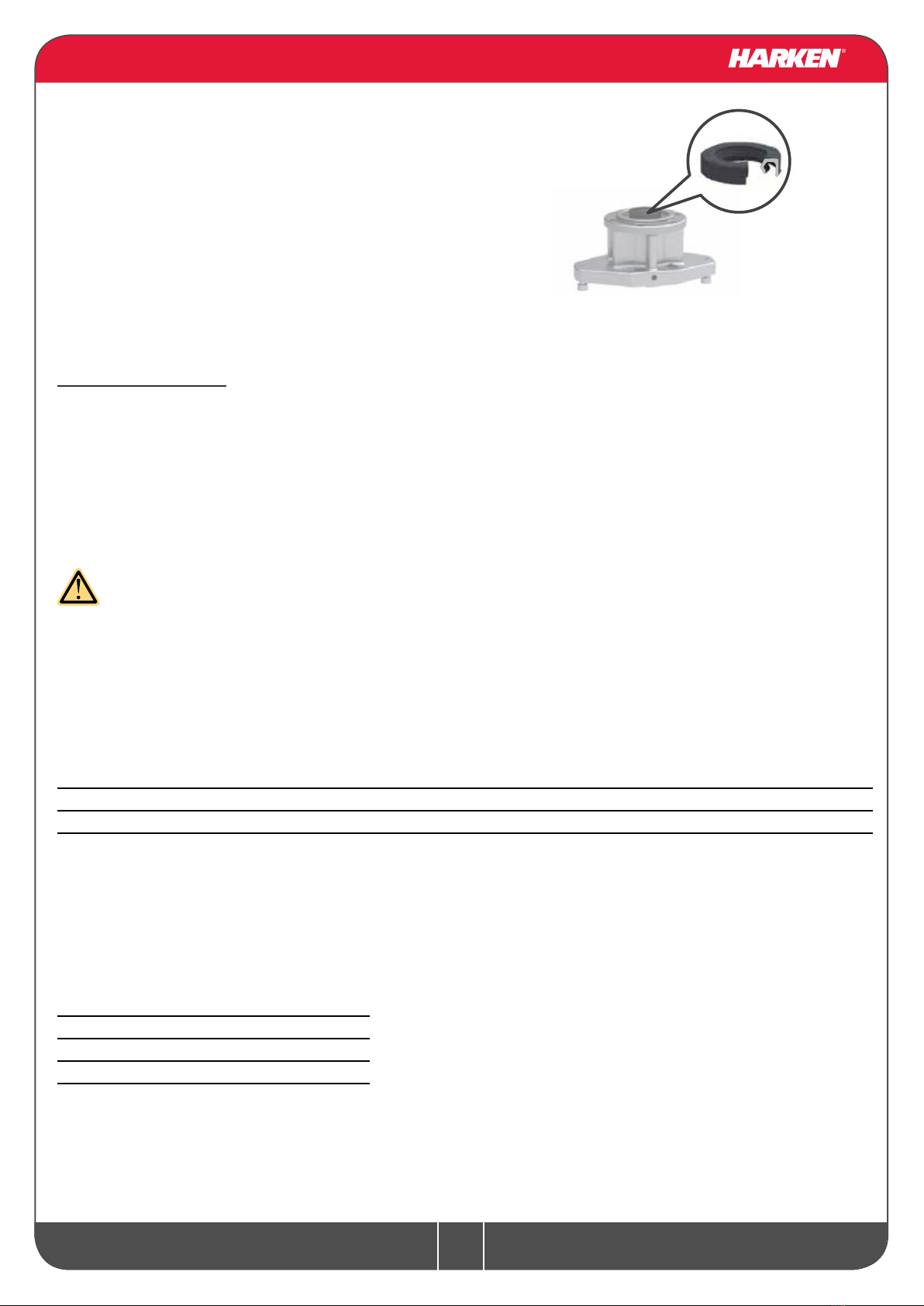

Before positioning the ange, check to
make sure that seals (the rst one is above
the ange and the second one is under the
ange) are seated correctly.

13
Radial Winch 46.2 ST EL/HY
Installation and Maintenance Manual - Mod.D
NOTICE
To connect motor, attach cable terminals to clamps
between nut and lock nut. Hold nut in contact with
motor using a spanner and tighten other nut with
second spanner. Take special care not to turn the
central spindles. These instructions apply when
assembling and disassembling. We recommend
using a torque wrench so as to obtain a torque equal
to and no greater than 10 Nm (88 in-lb).
NOTICE
Note that correct electrical contact sequence is:
Nut – Cable Terminal – Self-Locking Washer – Lock
Nut

14
Radial Winch 46.2 ST EL/HY
Installation and Maintenance Manual - Mod.D
WARNING!

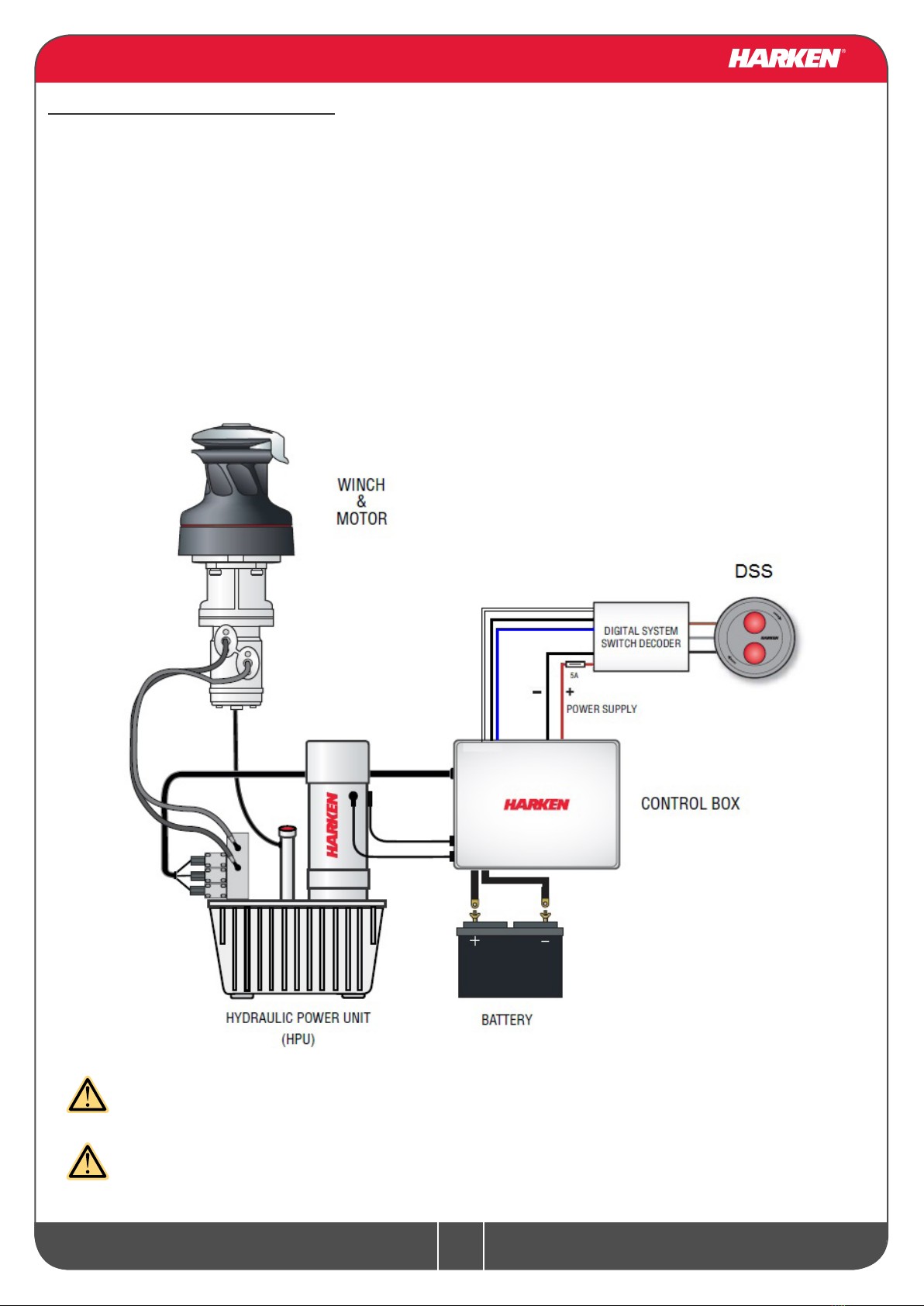

Refer to the Hydraulic Power Unit and Control Box manual.
WARNING!
Refer to the Digital System Switch manual.
Hydraulic connections diagram
The hydraulic motor must be connected to a hydraulic system using two high-pressure tubes which
serve for input or output according to the direction in which the motor will be run. The motor also
needs a third connection with a low pressure tube for drainage, so that excess oil can return to the
main tank to avoid shortening the life of the motor. This motor uses an open centre valve.
Refer to the following chart for the hydraulic system:
For the hydraulic motor:
Input/output pipe thread: G 1/2 – depth 15 mm
Drainage pipe thread: G 1/4 – depth 12 mm

15
Radial Winch 46.2 ST EL/HY
Installation and Maintenance Manual - Mod.D
Maintenance
Washing
Winches must be washed frequently with fresh water, and in any case after each use.
Do not allow teak cleaning products or other cleaners containing caustic solutions to come into
contact with winches and especially anodised, chrome plated or plastic parts.
Do not use solvents, polishes or abrasive pastes on the logos or stickers on the winches. Do not
use polishes or abrasive pastes on anodised, chromed plated or plastics surfaces.
Make sure that the holes and drainage channels in the base of the winch are not obstructed so
that water does not collect.
Maintenance table
Winches must be visually inspected at the beginning and end of every season of sailing or racing.
In addition they must be completely overhauled, cleaned and lubricated at least every 12 months.
After an inspection, replace worn or damaged components. Do not replace or modify any part of
the winch with a part that is not original.
WARNING!
Periodic maintenance must be carried out regularly. Lack of adequate maintenance shortens
the life of the winch, can cause serious injury and also invalidate the winch warranty.
Installation and maintenance of winches must be carried out exclusively by specialized
personnel.
WARNING!
Make sure that the power is switched off before installing or carrying out maintenance on
the winch.
In the case of doubt contact Harken®Tech Service at [e-mail]
Disassembly procedure
Tools needed:
One medium at-bladed screwdriver
A number ve hex key
Brush
Rags
To identify the various parts refer to the exploded view at the end of this Manual.
Torque to be applied in assembly phase
Maintenance

16
Radial Winch 46.2 ST EL/HY
Installation and Maintenance Manual - Mod.D
9. Remove the assy housing n°16
Important: washer n°13 may remain inside the
drum support!
10.Remove the washer n°13 11.Remove the gear n°10
8. Unscrew the 6 hex screws n°17
( 20Nm/177 in-lb)
7. Slide out the central shaft n°20
6. Completely unscrew the three screws n° 29
and remove the stripper arm support n°23
Carry out Procedure 1 as shown in the paragraph on winch installation and then do the following:

17
Radial Winch 46.2 ST EL/HY
Installation and Maintenance Manual - Mod.D
15. Remove the gear n°6
16. Remove the pawls carrier n°11 17. Remove the washer n°5
13. Remove the gear n°3
14. Remove the gear n°15
12. Remove the pawls carrier n°7

18
Radial Winch 46.2 ST EL/HY
Installation and Maintenance Manual - Mod.D
I. Unscrew the 4 screws n°27
( 4Nm/35 in-lb)
II. Remove the jaws n°26
Once the winch is completely disassembled, clean the parts with a degreasing that does not leave
residues, proper to clean metal components; rinse plastic parts in fresh water. Once you have done
this, dry the parts with cloths that do not leave residue.
Inspect gears, bearings, pins and pawls for any signs of wear or corrosion.
Carefully check the teeth of gears and ring gears to make sure there are no traces of wear.
Check the roller bearings and check there are no breaks in the bearing cages.
Replace worn or damaged components.
Carry out maintenance on components using the products listed below.
For more information on which products to use where, refer to the exploded diagram below.
Use a brush to lightly lubricate all gears, gear pins, teeth and all moving parts with grease.
Lightly lubricate the pawls and springs with oil. Do not use grease on the pawls!
If it is necessary to replace any jaws of the winch, proceed as follows:

19
Radial Winch 46.2 ST EL/HY
Installation and Maintenance Manual - Mod.D
Exploded view with maintenance products
Apply Harken®grease where indicated above
Apply Harken®grease: 1. on assy socket screw - 2. on drum gear
NOTICE
On every gear and every component that must be greased, apply Harken®grease with a brush in a proper
quantity as shown below:
Harken®Grease
G
Harken®Pawl Oil
O
Anti-seize
A
G
A
A
A
G
G
G
G
G
G
G
OO
G
G
A
G
1
G
2
3
NOTICE
Harken®grease to apply on all
teeth: do not use excessive
quantity of product to void wastes.
If in contact with the pawls, an
excess of grease can compromise
the safety of the winch.

20
Radial Winch 46.2 ST EL/HY
Installation and Maintenance Manual - Mod.D
Assembly
Make sure that the holes and drainage channels in the base of the winch are not obstructed.
Assemble the winch in the reverse order of the sequence in the section on disassembly.
To tighten bolts, use the torque indicated in the disassembly procedure.
In case of doubt concerning the assembly procedure contact Harken® Tech Service:
[e-mail]
If the jaws have been disassembled,
insert peeler between the two jaws,
taking care that the letters TOP on the
peeler are facing upwards.
When positioning the stripper arm, align
the peeler with it.
OIL
To assemble the pawls
Correctly position the spring in its
housing as shown at left. Hold the
spring closed and slide the pawl into its
housing. Once in position, check that the
pawls can be easily opened and closed
with a nger.
NOTICE
Before screw the central screw, check
the correct position of the o-ring in the
assy socket and apply Harken®grease.
