Harken UniPower Radial Manual

Radial
UniPower
Installation and Maintenance Manual
MRU-D

2
UniPower Radial Installation and Maintenance Manual - Mod.D
Index
Introduction 3
Technical characteristics 3
Performance data 3
Weight 3
Maximum working load 3
Outline 4
UniPower Radial Winch 4
Installation 4
Installation procedure 5
Positioning the self-tailing arm 6
Motor electric wiring 7
Electric wiring diagrams 7
Maintenance 9
Washing 9
Maintenance table 9
Winch disassembly procedure 9
Exploded view with maintenance products 12

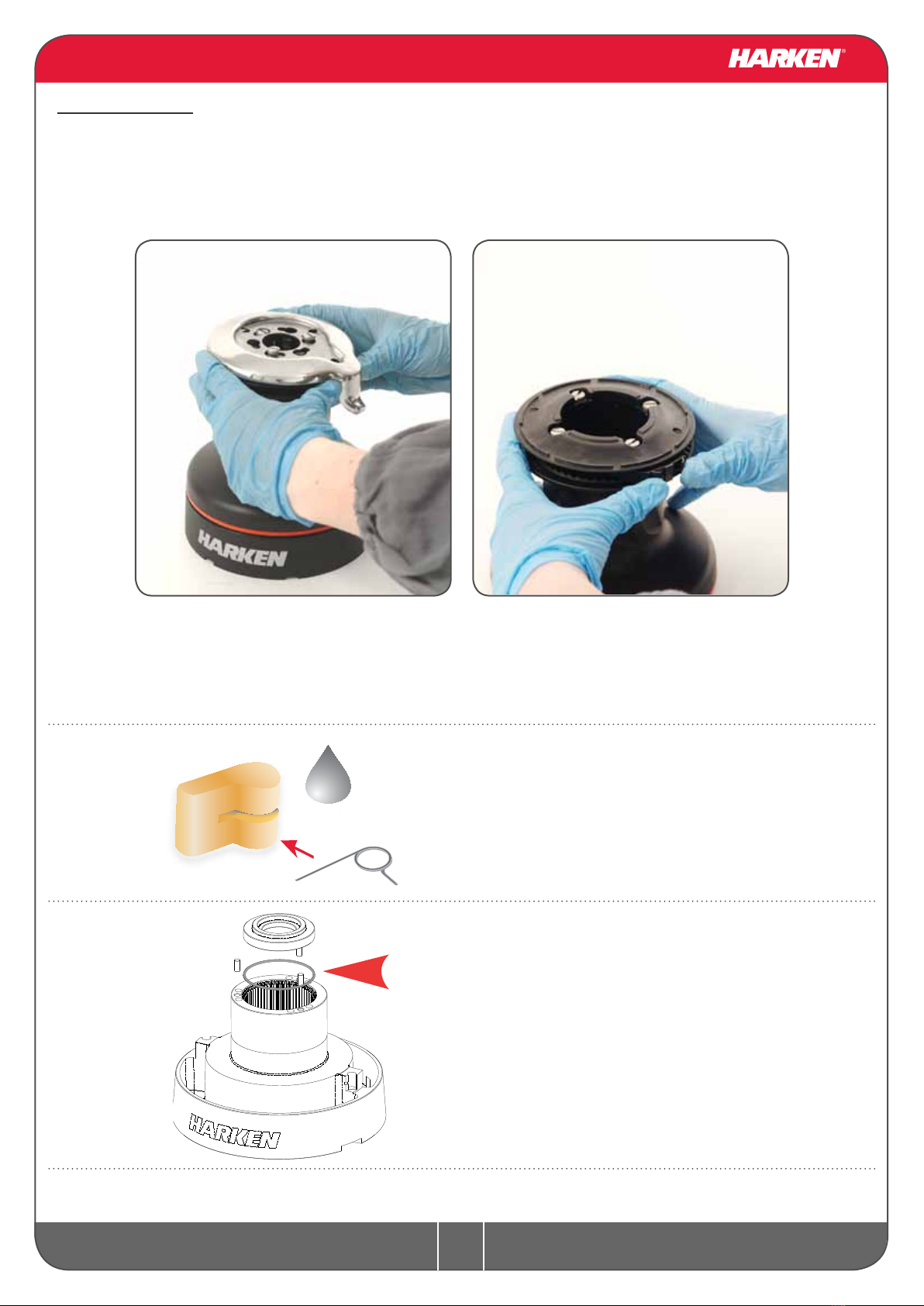

Winch assembly 13
Harken®limited worldwide warranty 14
Ordering spare parts 14

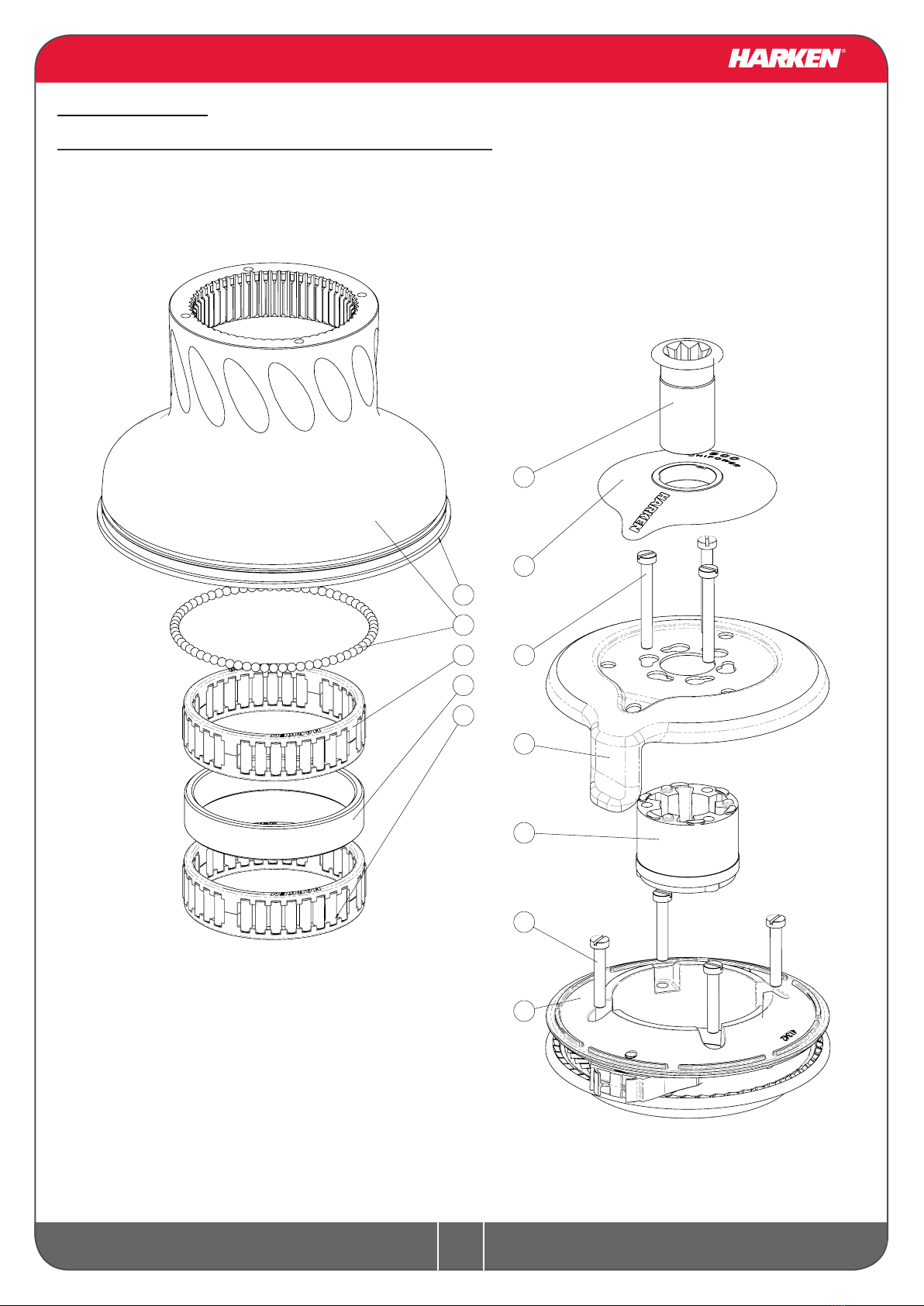

Exploded view 15
Parts List 17
UniPower 900 A 17
UniPower 900 C 18
UniPower 900 CW 19
UniPower 900 BBB 20
UniPower 900 CCC 21

3
UniPower Radial Installation and Maintenance Manual - Mod.D
Introduction - Technical characteristics
Introduction
This manual gives technical information on winch installation and maintenance, including
disassembling and reassembling.
This information is DESTINED EXCLUSIVELY for specialised personnel or expert users.
Installation, disassembling and reassembling of the winch by personnel who are not experts may
cause serious damage to users and those in the vicinity of the winch.
Harken®accepts no responsibility for defective installation or reassembly of its winches.
In case of doubt the Harken®Tech Service is at your disposal at techser[email protected]
This Manual is available only in English. If you do not fully understand the English language, do
not carry out the operations described in this Manual.
NOTICE
To use and understand this manual, user must refer to other documents, available on web site
www.harken.com and listed below:
- The Dual Funtion Control Box user manual, for the use of the Dual Function Control Box.
- The Dual Funtion Control Box installation manual, for all details, informations, wiring schemes
and warnings about its installation
Technical characteristics
Power ratio* Gear ratio**
9,75 : 1 100 : 1
*Socket input **Motor input
The theoretical power ratio does not take friction into account.
Performance data
UniPower Winch
motor nominal power 700 W motor nominal power 900 W
12 V (700 W) 24 V (900 W)
line speed*** 25 m/min - 82 ft/min 25 m/min - 82 ft/min
max load 900 Kg - 1984 lb. 900 Kg - 1984 lb.
***Line speed is measured with no load
motor nominal power (W) Current absorption at winch MWL (A)
12 V 24 V 12 V 24 V
900 Unipower
Winch 700 900 195 110
Weight
A C/CW BBB/CCC
weight 12 Kg - 26,50 lb. 14,50 Kg - 32 lb. 15,70 Kg - 34,61 lb.
Versions:
A = drum in anodised aluminium
C = drum in chrome bronze
CW = chrome/white
BBB = all bronze
CCC = All-Chrome bronze

4
UniPower Radial Installation and Maintenance Manual - Mod.D
Maximum working load
WARNING!
The maximum working load (MWL) for the UniPower Radial Winch is 900 Kg (1984 lb).
Subjecting the winch to loads above the maximum working load can cause the winch to fail or
pull off the deck suddenly and unexpectedly during high loads causing severe injury or death.
Outline
Installation
The winch must be installed on a at area of the deck, reinforced if necessary to bear a load equal
to at least twice the maximum working load of the winch. It is the installer's responsibility to carry
out all structural tests needed to ensure that the deck can bear the load. Harken®does not supply
the screws needed to install the winch since these may vary depending on the deck on which it
is to be installed. It is the installer's responsibility to choose the correct screws taking account of
the loads they will have to bear. Harken®assumes no responsibility for incorrect installation of its
winches or for an incorrect choice of mounting screws.
DANGER!
Incorrect installation of the winch may cause severe injury or
death. Consult the yard that built the boat in the case of doubt
over the correct positioning of the winch.
WARNING!
Failure to use the correct number and type of mounting fasteners
or failure to ensure the correct deck strength can result in the
winch pulling off the deck suddenly and unexpectedly during
high loads causing severe injury or death.
WARNING!
Verify the entry angle of the sheet.This must be 8° with tolerance
of ±2°, to avoid sheet overrides and damaging the winch or
making the winch inoperable leading to loss of control of the boat
which can lead to severe injury or death.
Outline - Installation
UniPower Radial Winch
Ø189 mm
100 mm
105 mm 216 mm
Ø110 mm
Line entry height
8°

5
UniPower Radial Installation and Maintenance Manual - Mod.D
Once you have decided the correct mounting position for the winch on the deck and checked the
space available below deck for the motor and electrical wiring, proceed with the installation.
Installation procedure
To install the winch, remove the drum and use Socket Head (SH) bolts.
Tools needed
One medium at-bladed screwdriver
To identify the various parts, refer to the exploded view at the end of this Manual.
Torque to apply when assembling
Install the winch on the deck in the position you have chosen, keeping in mind the limits described
on page 4 and using socket head (SH) bolts.
Carry out Installation procedure, then install the winch on the deck in the chosen position.
1. Unscrew the central screw ( 2Nm/18 in-lb)
3.Unscrew the three screws n°25 (4Nm/35 in-lb)
and remove the self-tailing arm n°8 by
rotating and lifting it.
2.Slide off the assy socketn°31 and the cover n°13
4. Lift off the drum n°27

6
UniPower Radial Installation and Maintenance Manual - Mod.D
NOTICE
Before drilling the deck, check the space available below deck for the motor.
A. Locate the point where you have decided to place the winch.Drill the deck with a Ø140 mm
hole, insert the motor through the hole, position the base of the winch on the deck and mark
the position of the holes.
Winch can be mounted in any direction without concern for drive gear location.
Below is a reduced scale diagram.
The drilling cut out template is available on the Harken®website, www.harken.com
B. Remove the winch and drill the ve 8.5 mm diameter holes and the 140 mm hole.
C. Bolt the base of the winch to the deck using ve socket headed M8 (not supplied by Harken®),
correctly chosen for the thickness and type of the boat deck. Consult the yard that built the boat in
case of doubt.
WARNING!
To install the winch on the deck, use only bolts in A4 stainless steel (DIN 267 part11).
Bolts made of other materials may not have sufficient strength or may corrode which can
result in winch pulling off deck suddenly and unexpectedly during high loads causing severe
injury or death.
NOTICE
To mount winches on the deck, do not use countersunk bolts.
D. Fill the mounting holes with a suitable marine sealant.
E. Remove the excess adhesive/sealant from the holes and base drainage channels.
F. Reassemble the winch following the steps in Installation procedure in the reverse order, and
apply the products indicated in the section on maintenance.
NOTICE
Before closing the winch, makesure the holes and drainage channels in the base of the winch arenot obstructed.
Positioning the self-tailing arm
Position the self-tailing arm so that the line leaving the winch is led into the cockpit.
Ø 140 Deck cutout
N° 5 fixing bolts M8
72°
Ø 8,50
72°
72°
Ø 160
72°
72°

7
UniPower Radial Installation and Maintenance Manual - Mod.D
Motor installation procedure
Electric equipment
To guarantee greater efficiency in terms of safety and long life, for every winch model is mandatory
to install the Dual Function Control Box.
To fasten the Dual Function Control Box containing solenoids to bulkhead or wall, for all
installation details and for all electric wiring schemes, refer to the Dual Function Control Box
manual.
WARNING!
Before installing and using the device, read carefully the Dual Function Control Box manual
available on web site www.harken.com
Refer to the following chart for wire size:
Total distance between winch and battery
Winch
size
Current
voltage
Under 16.4 ft
AWG
Under 5m
mm2
16.4 - 32.8 ft
AWG
5m - 10 m
mm2
32.8 - 49.2 ft
AWG
10 m - 15 m
mm2
49.2 - 65.6 ft
AGW
15m -20 m
mm2
UniPower 12 V 2 32 0 50 00 70 000 95
UniPower 24 V 5 16 3 25 2 35 0 50
Refer to the following chart for HCP model:
Winch
size
Current
voltage
HCP model Ampere
rating
UniPower 12 V HCP1717 80A
UniPower 24 V HCP1717 80A
After winch is assembled and before sailing, test the powered winch functioning: press the switch
and check that the drum turns.
Motor electric wiring

8
UniPower Radial Installation and Maintenance Manual - Mod.D
NOTICE
To connect motor, attach cable terminals to clamps between
nut and lock nut. Hold nut in contact with motor using
a spanner and tighten other nut with second spanner.
Take special care not to turn the central spindles. These
instructions apply when assembling and disassembling. We
recommend using a torque wrench so as to obtain a torque
equal to and no greater than 10 Nm (88 in-lb).
NOTICE
Note that correct electrical contact sequence is:
Nut – Cable Terminal – Self-Locking Washer – Lock Nut

9
UniPower Radial Installation and Maintenance Manual - Mod.D
Maintenance
Washing
Winches must be washed frequently with fresh water, and in any case after each use.
Do not allow teak cleaning products or other cleaners containing caustic solutions to come into
contact with winches and especially anodised, chrome plated or plastic parts.
Do not use solvents, polishes or abrasive pastes on the logos or stickers on the winches.
Make sure that the holes and drainage channels in the base of the winch are not obstructed so
that water does not collect.
Maintenance table
Winches must be visually inspected at the beginning and end of every season of sailing or racing.
In addition they must be completely overhauled, cleaned and lubricated at least every 12 months.
After an inspection, replace worn or damaged components. Do not replace or modify any part of
the winch with a part that is not original.
WARNING!
Periodic maintenance must be carried out regularly. Lack of adequate maintenance
shortens the life of the winch, can cause serious injury and also invalidate the winch
warranty. Installation and maintenance of winches must be carried out exclusively by
specialized personnel.
In the case of doubt contact Harken®Tech Service at [e-mail]
WARNING!
Make sure that the power is switched off before installing or carrying out maintenance on
the winch.
Winch disassembly procedure
Tools needed
One medium at-bladed screwdriver
A number six hex key
Brush
Rags
To identify the various parts refer to the exploded view at the end of this Manual.
Torque to be applied in assembly phase
Maintenance

10
UniPower Radial Installation and Maintenance Manual - Mod.D
7. Slide out the pawls carrier n°20
9.Remove the second planetary assy n°24 and
remove flange n°11.
Pay attention to the o-ring n°10 in the ring gear.
8.Lift off the gear n°9
10. Slide out the rst planetary assy n°23,
the ring gear n°4, the o-ring n°10 and the
pinion n°2.
Carry out Installation procedure as shown in the paragraph on winch installation and then do the
following:
5. Unscrew the 6 hex screws n°18
(20Nm/177 in-lb)
6. Slide off the gear carrier n°21.
Pay attention to rollers in the gear carrier.

11
UniPower Radial Installation and Maintenance Manual - Mod.D
If it is necessary to replace any jaws of the winch, proceed as follows:
Inspect balls inside the drum and carefully check the correct position; if it is necessary to put back
any balls, push balls in the race (as shown below):
Once the winch is completely disassembled, clean the parts with a degreasing that does not leave
residues, proper to clean metal components; rinse plastic parts in fresh water. Once you have done
this, dry the parts with cloths that do not leave residue.
Inspect gears, bearings, pins and pawls for any signs of wear or corrosion.
Carefully check the teeth of gears and ring gears to make sure there are no traces of wear.
Check the roller bearings and check there are no breaks in the bearing cages.
Replace worn or damaged components.
Carry out maintenance on components using the products listed below.
For more information on which products to use where, refer to the exploded diagram below.
Use a brush to lightly lubricate all gears, gear pins, teeth and all moving parts with grease.
Lightly lubricate the pawls and springs with oil. Do not use grease on the pawls!
I. Unscrew the 4 screws n°14
( 4Nm/35 in-lb)
II. Remove the jaws n°28

12
UniPower Radial Installation and Maintenance Manual - Mod.D
Winch exploded view with maintenance products
G
G
G
G
A
A
O
A
G
1
O
O
T
T
Harken®Grease
G
Harken®Pawl Oil
O
Axial Threadlocker
T
Anti-seize
A
Apply Harken®grease where indicated above
Apply Harken®grease: 1. on assy socket screw - 2. on drum gear
NOTICE
On every gear and every component that must be greased, apply Harken®grease with a brush in a proper
quantity as shown below:
NOTICE
Harken®grease to apply on all
teeth: do not use excessive
quantity of product to void wastes.
If in contact with the pawls, an
excess of grease can compromise
the safety of the winch.

13
UniPower Radial Installation and Maintenance Manual - Mod.D
Winch assembly
Make sure that the holes and drainage channels in the base of the winch are not obstructed
Assemble the winch in the reverse order of the sequence in the section on disassembly.
To tighten bolts, use the torque indicated in the disassembly procedure.
To assemble the pawls:
correctly position the spring in its housing as
shown at left. Hold the spring closed and slide
the pawl into its housing. Once in position,
check that the pawls can be easily opened and
closed with a nger.
NOTICE
Before assembly the winch check the correct
position of the o-ring n°10 between the ring
gear n°4 and the ange n°11 and the position
of rollers n°5 between the ring gear n°4 and the
gear carrier n°21.
Check the correct position of the o-ring n°10
between the ring gear n°4 and the assy base
n°3 and the position of the rollers n°5 between
the ring gear n°4 and the assy base n°3.
In case of doubt concerning the assembly procedure contact Harken®Tech Service: [e-mail]
When positioning the stripper arm,
align the peeler with it.
If the jaws have been disassembled,
insert peeler between the two jaws,
taking care that the letters TOP on the
peeler are facing upwards.
OIL

14
UniPower Radial Installation and Maintenance Manual - Mod.D
Harken®limited worldwide warranty
Refer to the Harken®Limited Worldwide Warranty in the Harken®Catalogue and on the website
www.harken.com
Ordering spare parts
Spare parts can be requested from Harken®as
described in the Harken®Limited Worldwide
Warranty, indicating the part number in the
Parts List and including the serial number of
the winch for which the parts are required.
The serial number of the winch is printed on
a plate on the drum support of the winch.
Harken® limited worldwide warranty - Ordering spare parts
W XXXXX
XXXXXXXXX
Headquarters
Harken®, Inc.
1251 East Wisconsin Avenue
Pewaukee, Wisconsin 53072-3755 USA
Tel: [phone]
Fax: [phone]
Email: hark[email protected]
Web: www.harken.com
Manufacturer
Harken®Italy S.p.A.
Via Marco Biagi, 14
22070 Limido Comasco (CO) Italy
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Web: www.harken.com
Tech Service
Email: tec[email protected]
Customer Service
Tel: [phone]
Email: [e-mail]
Tech Service
Email: tec[email protected]
Customer Service
Tel: [phone]
Email: [e-mail]

15
UniPower Radial Installation and Maintenance Manual - Mod.D
Exploded view 1/2
Exploded view
Winch Radial UniPower 900 A, C, CW, BBB, CCC
22
18
11
6
16
20
21
9
31
13
27
25
15
30
8
7
14
28
29
4
10
24
1
3
26
19
17
2
16
23
5
16
17
5
10
12
17
29

16
UniPower Radial Installation and Maintenance Manual - Mod.D
Exploded view 2/2
22
18
11
6
16
20
21
9
31
13
27
25
15
30
8
7
14
28
29
4
10
24
1
3
26
19
17
2
16
23
5
16
17
5
10
12
17
29
Winch Radial UniPower 900 A, C, CW, BBB, CCC

17
UniPower Radial Installation and Maintenance Manual - Mod.D
Parts list
UniPower 900 A
A = drum in anodised aluminium
Pos. Q.ty Code Description
11
1
1
A94953300
A96508600
M6014206
Kit Motor 0,7kW 12V Unipower 900
Kit Motor 0,9kW 24V Unipower 900
Electric motor
Polarity motor sticker
Key DIN 6885 5x5x15
21 S490310004 Pinion Z=9
31 A94903300 Assy base Unipower 900
Support Unipower 900
Winch Product Sticker**
41 S490340004 Ring gear Z=63
56 S450660003 Roller Ø5x10.5
61 M0648397 Seal Ø30xØ38x4 NBR
71 S4129400A0 Stripper arm support
81 S413440019 Stripper arm
91 S490780004 Gear Z=27
10 2 M6004597 O Ring 2237
11 1 S490800080 Flange
12 3 S490810004 Pin Ø12
13 1 S4908800A5 Cover Unipower 900
14 4 M0601803 Screw UNI EN ISO 1207 - M6x35 - A4
15 1 S281690097 Red line
16 6 S000080003 Pawl Ø8*
17 6 S000380001 Pawl Spring Ø8*
18 6 M0606103 Screw M6x60 UNI5931
19 4 M0635103 Socket head screw M6x16 UNI 5931
20 1 S490960004 Pawls carrier
21 1
3
A94904100
S414890080
Gear carrier
Gear carrier
Bushing Ø9xØ11x7
Pos. Q.ty Code Description
22 3
1
1
A94903900
S490390004
M6017594
Gear assembly Z=10
Gear Z=14
Bushing 121418-20
23 1 A94909800 First planetary assy
Gear Carrier
Gear z=26
Ball 3/16"
Pin Ø6
Bushing 0608-10
24 1 A94910000 Second planetary assy
Pawl Carrier
Gear Z=23
Pin Ø8
Bushing 0810-12
25 3 M6007103 Screw M6x50 UNI6107
26 Winch Serial Number Sticker
27 1
69
A94904200
M0619580
Assy Drum Unipower
Drum Unipower 900
Ball 3/16"
28 1
1
4
A94907700
S414280080
S385970001
Assy Jaws Unipower 900
Lower jaw
Upper jaw Unipower 900
Peeler W46 - 50
Spring
29 2 A74135100 Bearing Ø85xØ97x26
30 1 S413520080 Spacer
31 1
1
1
A94136400
S415130085
M0614303
Assy Socket W20-80
Socket Handle W20/80
Washer Ø7.7xØ25x5.8
Screw M8x20 UNI 6109
Parts List
*Available with service kit; see website www.harken.com
**Winch product sticker

18
UniPower Radial Installation and Maintenance Manual - Mod.D
UniPower 900 C
C = drum in chrome bronze
*Available with service kit; see website www.harken.com
**Winch product sticker
Pos. Q.ty Code Description
11
1
1
A94953300
A96508600
M6014206
Kit Motor 0,7kW 12V Unipower 900
Kit Motor 0,9kW 24V Unipower 900
Electric motor
Polarity motor sticker
Key DIN 6885 5x5x15
21 S490310004 Pinion Z=9
31 A94903300 Assy base Unipower 900
Support Unipower 900
Winch Product Sticker**
41 S490340004 Ring gear Z=63
56 S450660003 Roller Ø5x10.5
61 M0648397 Seal Ø30xØ38x4 NBR
71 S4129400A0 Stripper arm support
81 S413440019 Stripper Arm
91 S490780004 Gear Z=27
10 2 M6004597 O Ring 2237
11 1 S490800080 Flange
12 3 S490810004 Pin Ø12
13 1 S4908800A5 Cover Unipower 900
14 4 M0601803 Screw UNI EN ISO 1207 - M6x35 - A4
15 1 S281690097 Red line
16 6 S000080003 Pawl Ø8*
17 6 S000380001 Pawl Spring Ø8*
18 6 M0606103 Screw M6x60 UNI5931
19 4 M0635103 Socket head screw M6x16 UNI 5931
20 1 S490960004 Pawls carrier
21 1
3
A94904100
S414890080
Gear carrier
Gear carrier
Bushing Ø9xØ11x7
Pos. Q.ty Code Description
22 3
1
1
A94903900
S490390004
M6017594
Gear assembly Z=10
Gear Z=14
Bushing 121418-20
23 1 A94909800 First planetary assy
Gear Carrier
Gear z=26
Ball 3/16"
Pin Ø6
Bushing 0608-10
24 1 A94910000 Second planetary assy
Pawl Carrier
Gear Z=23
Pin Ø8
Bushing 0810-12
25 3 M6007103 Screw M6x50 UNI6107
26 Winch Serial Number Sticker
27 1
69
A94946100
M0619580
Assy Unipower 900 C Drum
Drum Unipower 900 C
Ball 3/16"
28 1
1
4
A94907700
S414280080
S385970001
Assy Jaws Unipower 900
Lower Jaw
Upper jaw Unipower 900
Peeler W46 - 50
Spring
29 2 A74135100 Bearing Ø85xØ97x26
30 1 S413520080 Spacer
31 1
1
1
A94136400
S415130085
M0614303
Assy Socket W20-80
Socket Handle W20/80
Washer Ø7.7xØ25x5.8
Screw M8x20 UNI 6109

19
UniPower Radial Installation and Maintenance Manual - Mod.D
UniPower 900 CW
CW = chrome/white
*Available with service kit; see website www.harken.com
**Winch product sticker
Pos. Q.ty Code Description
11
1
1
A94953300
A96508600
M6014206
Kit Motor 0,7kW 12V Unipower 900
Kit Motor 0,9kW 24V Unipower 900
Electric motor
Polarity motor sticker
Key DIN 6885 5x5x15
21 S490310004 Pinion Z=9
31
1
A96726400W
S6620800A5W
Assy base Unipower 900 RAL9003
Support Unipower 900
Skirt Unipower 900 RAL9003
Winch Product Sticker**
41 S490340004 Ring gear Z=63
56 S450660003 Roller Ø5x10.5
61 M0648397 Seal Ø30xØ38x4 NBR
71 S4129400A0 Stripper arm support
81 S413440019 Stripper Arm
91 S490780004 Gear Z=27
10 2 M6004597 O Ring 2237
11 1 S490800080 Flange
12 3 S490810004 Pin Ø12
13 1 S4908800A5W Cover Unipower 900 RAL9003
14 4 M0601803 Screw UNI EN ISO 1207 - M6x35 - A4
15 1 S281690097 Red line
16 6 S000080003 Pawl Ø8*
17 6 S000380001 Pawl Spring Ø8*
18 6 M0606103 Screw M6x60 UNI5931
19 4 M0635103 Socket head screw M6x16 UNI 5931
20 1 S490960004 Pawls carrier
21 1
3
A94904100
S414890080
Gear carrier
Gear carrier
Bushing Ø9xØ11x7
Pos. Q.ty Code Description
22 3
1
1
A94903900
S490390004
M6017594
Gear assembly Z=10
Gear Z=14
Bushing121418-20
23 1 A94909800 First planetary assy
Gear Carrier
Gear z=26
Ball 3/16"
Pin Ø6
Bushing 0608-10
24 1 A94910000 Second planetary assy
Pawl Carrier
Gear Z=23
Pin Ø8
Bushing 0810-12
25 3 M6007103 Screw M6x50 UNI6107
26 Winch Serial Number Sticker
27 1
69
A94946100
M0619580
Assy Unipower 900 C Drum
Drum Unipower 900 C
Ball 3/16"
28 1
1
4
A94907700W
S414280080W
S385970001
Assy jaws Unipower 900 RAL9003
Lower Jaw
Upper jaw Unipower 900 RAL9003
Peeler W46 - 50 RAL9003
Spring
29 2 A74135100 Bearing Ø85xØ97x26
30 1 S413520080 Spacer
31 1
1
1
A94136400
S415130085
M0614303
Assy Socket W20-80
Socket Handle W20/80
Washer Ø7.7xØ25x5.8
Screw M8x20 UNI 6109

20
UniPower Radial Installation and Maintenance Manual - Mod.D
UniPower 900 BBB
BBB = all bronze
*Available with service kit; see website www.harken.com
**Winch product sticker
Pos. Q.ty Code Description
11
1
1
A94953300
A96508600
M6014206
Kit Motor 0,7kW 12V Unipower 900
Kit Motor 0,9kW 24V Unipower 900
Electric motor
Polarity motor sticker
Key DIN 6885 5x5x15
21 S490310004 Pinion Z=9
31
1
A96940600
S694060043
Assy base Unipower 900 BBB
Support UniPower 900 CCC-BBB
Skirt for base UP900 BBB
Winch Product Sticker**
41 S490340004 Ring gear Z=63
56 S450660003 Roller Ø5x10.5
61 M0648397 Seal Ø30xØ38x4 NBR
71 S4129400A0 Stripper arm support
81 S693340019 Stripper Arm W50 BBB
91 S490780004 Gear Z=27
10 2 M6004597 O Ring 2237
11 1 S490800080 Flange
12 3 S490810004 Pin Ø12
13 1 A76940700 Cover Unipower 900 BBB
14 4 M0601803 Screw UNI EN ISO 1207 - M6x35 - A4
15 1 S281690097 Red line
16 6 S000080003 Pawl Ø8*
17 6 S000380001 Pawl Spring Ø8*
18 6 M0606103 Screw M6x60 UNI5931
19 4 M0635103 Socket head screw M6x16 UNI 5931
20 1 S490960004 Pawls carrier
21 1
3
A94904100
S414890080
Gear carrier
Gear carrier
Bushing Ø9xØ11x7
Pos. Q.ty Code Description
22 3
1
1
A94903900
S490390004
M6017594
Gear assembly Z=10
Gear Z=14
Bushing 121418-20
23 1 A94909800 First planetary assy
Gear Carrier
Gear z=26
Ball 3/16"
Pin Ø6
Bushing 0608-10
24 1 A94910000 Second planetary assy
Pawl Carrier
Gear Z=23
Pin Ø8
Bushing 0810-12
25 3 M6007103 Screw M6x50 UNI6107
26 Winch Serial Number Sticker
27 1
1
69
A96940500
S694050043
M0619580
Assy Unipower 900 Drum BBB
Drum Unipower 900 BBB
Ball 3/16"
28 1
1
4
A96998100
S414280080
S385970001
Assy jaws UniPower 900 BBB
Lower Jaw
Upper jaw Unipower 900
Peeler W46 - 50
Spring
29 2 A74135100 Bearing Ø85xØ97x26
30 1 S413520080 Spacer
31 1
1
1
A94136400
S415130085
M0614303
Assy Socket W20-80
Socket Handle W20/80
Washer Ø7.7xØ25x5.8
Screw M8x20 UNI 6109
