3CS2 HYDRO-HEATER SANITIZING SINK HEATERS
Models 3CS2-3, -4, -6 3CS2-3B, -4B, -6B, -9B
The Hatco Hydro-Heater is a state-of-the-
art, high efficiency circulation water heater,
using a combination of “free-flow”
technology and advanced electronic
controls for circulating hot water by
natural convection in a sanitizing sink.
This heater features a tubular water
chamber with heating elements uniquely
wrapped outside the flow tube so
elements do not come in direct contact
with the water. The design reduces
sediment and lime buildup on the
element, resulting in longer life. A special
electronic controller maintains the
setpoint temperature assuring a
responsive and efficient operation.
FLEXIBILITY
Designed to fit under the center of
the sink, the 3CS2 is perfect for 3- or
4-compartment sinks, pot and pan sinks,
and bar sinks with 180°F to 190°F
(82°-88°C) controls.
QUALITY
The following features assure the finest
performance for years to come:
• Utilizes “free-flow” technology and
advanced electronic controls to assure
a responsive and efficient operation.
• All models include a stainless steel
front, powdercoated body, convenient
drain outlet, and clean-out caps.

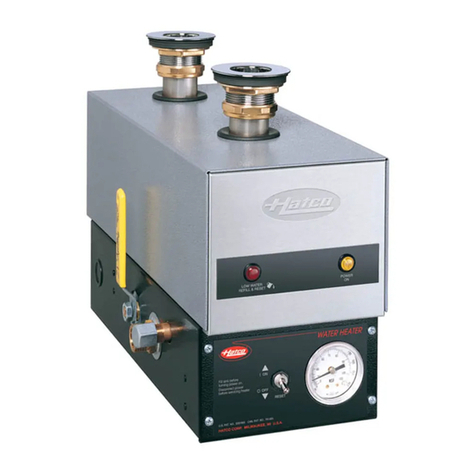

Model 3CS2-3
Patented
ANSI/NSF 2
WATER QUALITY REQUIREMENTS
Incoming water in excess of 3.0 grains of hardness per gallon (GPG)
(.75 grains of hardness per liter) must be treated and softened before
being supplied to water heater(s). Water containing over 3.0 GPG
(.75 GPL) will decrease the efficiency and reduce the operating life
of the unit.
Note: Product failure caused by liming or sediment buildup is not
covered under warranty.

ITEM#
SPECIFICATIONS
HATCO CORPORATION P.O. Box 340500 Milwaukee, WI 53234-0500 U.S.A. • [phone] • [phone]
Fax [phone] • Int’l. Fax [phone] • www.hatcocorp.com • E-mail: [email protected]
Form No. 3CS2-1006(S) Printed in U.S.A.
SIDE VIEW REAR VIEW
93⁄4"
(248 mm)
1⁄2" & 3⁄4"
Conduit K.O.
1⁄2" & 3⁄4" Conduit K.O.
3⁄4" hose
connection
to drain
1"
(25 mm)
123⁄8"
(314 mm)
51⁄2"
(140 mm) 81⁄2" (216 mm) 33⁄8" (86 mm)
63⁄4"
(171 mm)
31⁄16"
(78 mm)
171⁄8" (435 mm)
25⁄8"
(67 mm)
Model kW Phase Sink Area Shipping Weight
3CS2-3 3 1 15" (381 mm) Sq. or less 24 lbs. (11 kg)
3CS2-4 4 1 16"-18" (406-457 mm) Sq. 24 lbs. (11 kg)
3CS2-6 6 1 19"-21" (483-533 mm) Sq. 27 lbs. (12 kg)
3CS2-3B✝3 3 15" (381 mm) Sq. or less 24 lbs. (11 kg)
3CS2-4B✝4 3 16"-18" (406-457 mm) Sq. 24 lbs. (11 kg)
3CS2-6B✝63 19"-21" (483-533 mm) Sq. 27 lbs. (12 kg)
3CS2-9B✝9 3 21"-25" (533-635 mm) Sq. 27 lbs. (12 kg)
3CS2 HYDRO-HEATER SANITIZING SINK HEATERS
Models 3CS2-3, -4, -6 3CS2-3B, -4B, -6B, -9B
DIMENSIONS
73⁄4"W x 171⁄8"D x 123⁄8"H (197 x 435 x 314 mm).
VOLTAGE
208 or 240 volts, 50/60 Hz standard.
SIZING INFORMATION
For a Sink Heater: 2000 watts per sq. ft. (2,2 watts per sq. cm)
of vessel top.
3CS2 Sink Heaters are sized based on 140°F (60°C) supply
water with a 30 minute preheat period to reach the sanitizing
temperature. Sink Heaters are mounted in the center of the
third compartment sink with standard plumbing fittings
provided. Two 2" (51 mm) diameter holes are required for these
fittings and a full-size template is provided to locate holes in
the sink. The 3CS2 Sink Heater is easily attached to the
plumbing fittings with self-contained unions.
PRODUCT SPECS
Hydro-Heater Sanitizing Sink Heater
The electric heater to maintain the final sanitizing rinse in a third
compartment sink shall be a Hydro-Heater Model ....as
manufactured by the Hatco Corporation, Milwaukee, WI
53234 U.S.A.
The Third Compartment Sink Heater shall be rated at ....kW,
....volts, ....phase. The heater shall be complete with all internal
plumbing and wiring ready for external installation to the bottom
of sink.
The sink heater shall be equipped with an on-off switch,
a low-water cut-off, and a digital temperature display.
The heater shall consist of powdercoated black hammertone
front and body (or optional stainless steel body and base).
✝Balanced 3-phase.
OPTIONS (NOT FOR RETROFIT)
❑ Stainless Steel Body and Base
❑ Auto-fill Solenoid
❑ Remote Mounted Control
❑ Security Package
ACCESSORIES
❑Flush Hose, Cleaning Brush, Stopper, and Adapter
