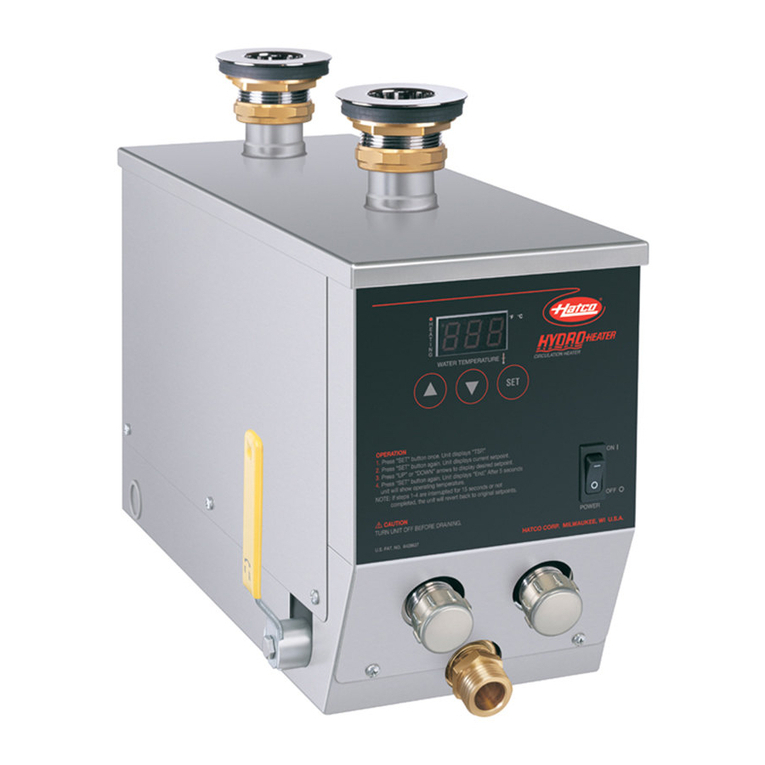

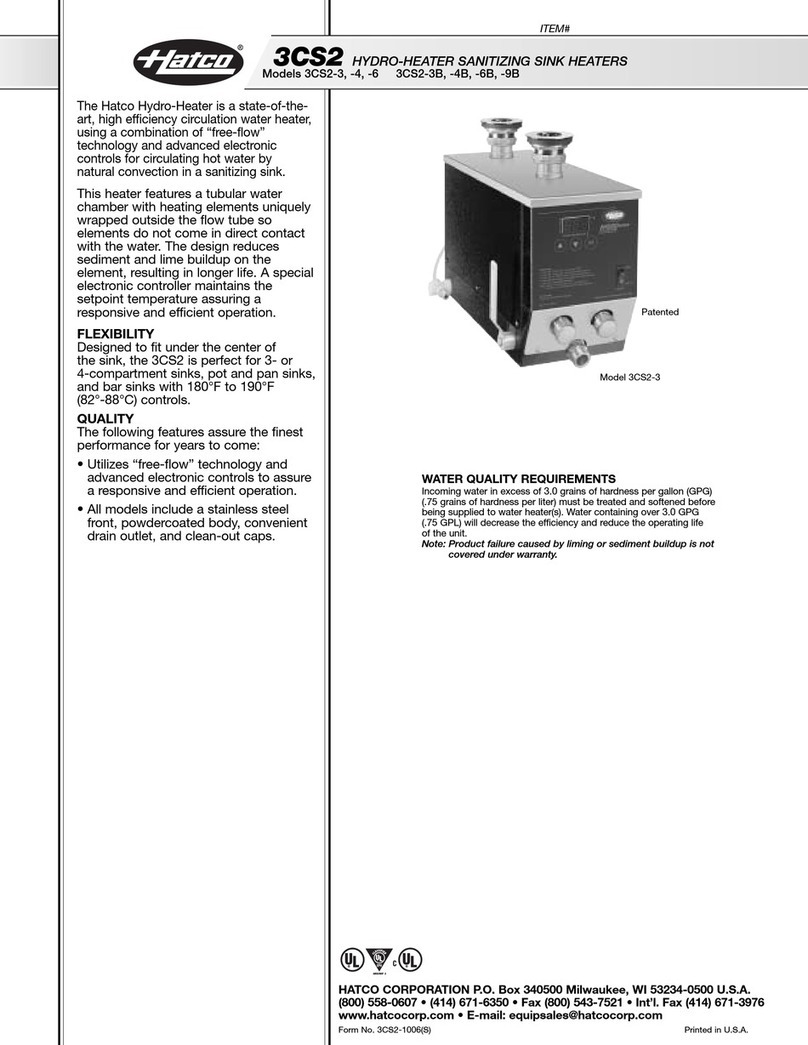

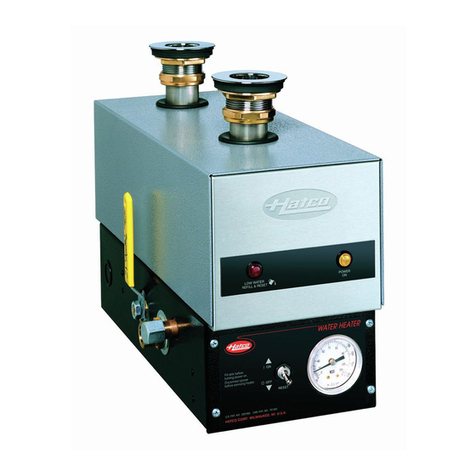

Hatco HYDRO-HEATER 3CS2-3 Application guide

Sanitizing Sink Heater
REPLACEMENT
PARTS LIST
3CS2-3
3CS2-4
3CS2-6
3CS2-9
3CS2-3B
3CS2-4B
3CS2-6B
3CS2-9B
3CS-2 Series

Form No. 3CS-2RP-0801 2 Printed in U.S.A.
CAUTION - Use of replacement parts
other than those supplied by Hatco
Corporation may result in damage to the
unit or injury to personnel.
28
29
31
30
26
35
1
25
43
22
44
37
18
16
19
32
6
7
13
4
5
35
36
27
15 40
9
9
14
39
42 34
38
2
12
10
20
11
33
17 21
3
8
14
24
45
41
23
HATCO 3CS-2 SERIES
SANITIZING SINK HEATERS
Model Designation
3CS2-XB 3 = Three
C = Compartment
S = Sink Heater
2 = 2nd Generation
X = Kilowatts
B = Balanced
Three-Phase

Form No. 3CS-2RP-0801 3 Printed in U.S.A.
1 Temperature Probe 02.01.166.00 1
2 Probe, Low Water Cut Off 02.40.015.00 1
3 Ball Valve, Threaded 03.02.001.00 1
4 Ball Valve Handle 03.02.001B.00 1
5 Ball Valve, Hex Extension 03.02.029.00 1
6 Ball Valve, Stop Plate 03.02.030.00 1
7 3" (8 cm) Valve Extension 03.02.031.00 1
8 3/4" x 3/4" Brass Hex Nipple 03.05.057.00 1
9 O-Ring 03.40.059.00 2-6
10 Hose Clamp, S.S. with Liner 03.40.061.00 4
11 Inlet Hose 03.40.062F.00 1
12 Outlet Hose 03.40.062R.00 1
13 Rubber Gasket 05.06.006.00 1
14 Keps Nut 05.04.205.00 4
15 Rod, Threaded 05.04.419.00 2
16 Low Water Cut Off, 24 Volt 02.01.148.00 1
17 Contactor - 3 Pole 02.01.167.00 1
18 Fuse, 2 Amp (2 per pack) R02.03.014.02 1
19 Fuse Block 02.03.022.00 1
20 Transformer, 208/240 - 24 Volt 02.17.044.00 1
21 On/Off Switch 02.19.081.00 1
PARTS COMMON TO ALL 3CS-2 MODELS
22 Electronic Temperature
Controller 02.01.165S.00 1
23 Strainer Assembly with
Gaskets R05.30.009.00 2
24 Terminal Block with Pins R02.15.035.00 1
25 Brass Hose Connector
with Shoulder 03.05.058.00 1
26 Cleaning Brush 03.40.060.00 1
27 Flush Hose Assembly 05.06.010.00 1
28 1-3/8" (4 cm) Rubber Stopper 05.06.026.00 1
29 Union Gasket 05.06.009.00 1
30 Strainer Gasket Kit!R00.05.0002.00 1
31 Brass Locknut 05.30.009A.00 2
32 Jacket, Black 04.06.220.00 1
33 Front Head Strap 04.06.223.00 2
34 Rear Head Strap 04.06.224.00 2
35 Side Panel, Black 04.06.222.00 2
36 Bottom Access Panel, Black 04.06.228.00 1
37 Front Control Panel 04.06.221.00 1
38 Top Assembly, S.S. 04.06.225.00 1
39 Drain Switch Kit R02.19.162.00 1
ITEM DESCRIPTION PART NO. QTY. ITEM DESCRIPTION PART NO. QTY.
Note: S.S. is an abbreviation for stainless steel.
!Includes all gaskets for both strainers.

40 Heating Element (Qty. 1-3)
41 Front Head
42 Rear Head
43 Cap, Clean Out (Qty. 2)
44 Gasket, Clean Out Cap (Qty. 2)
45 Pipe, Clean Out (Qty. 2)
Electrical Drawing
R02.06.003F.00
03.17.003.00
03.17.004.00
03.40.063.00
05.06.066.00
03.11.012.00
HS1-5376
R02.06.003F.00
03.17.001.00
03.17.002.00
---
---
---
HS1-5375
PARTS SPECIFIC TO MODEL 3CS2-3 & 3CS2-3B
240V
Balanced
Three-Phase
240V
Single Phase
208V
Balanced
Three-Phase
208V
Single Phase
480V
Three-Phase
ITEM DESCRIPTION
Form No. 3CS-2RP-0801 4 Printed in U.S.A.
R02.06.003F.00
03.17.001.00
03.17.002.00
---
---
---
HS1-5375
---
---
---
---
---
---
---
R02.06.003F.00
03.17.003.00
03.17.004.00
03.40.063.00
05.06.066.00
03.11.012.00
HS1-5376
40 Heating Element (Qty. 1-3)
41 Front Head
42 Rear Head
43 Cap, Clean Out (Qty. 2)
44 Gasket, Clean Out Cap (Qty. 2)
45 Pipe, Clean Out (Qty. 2)
Electrical Drawing
R02.06.004F.00
03.17.003.00
03.17.004.00
03.40.063.00
05.06.066.00
03.11.012.00
HS1-5518
R02.06.003F.00
03.17.001.00
03.17.002.00
---
---
---
HS1-5375
PARTS SPECIFIC TO MODEL 3CS2-4 & 3CS2-4B
240V
Balanced
Three-Phase
240V
Single Phase
208V
Balanced
Three-Phase
208V
Single Phase
480V
Three-Phase
ITEM DESCRIPTION
R02.06.003F.00
03.17.001.00
03.17.002.00
---
---
---
HS1-5375
---
---
---
---
---
---
---
R02.06.004F.00
03.17.003.00
03.17.004.00
03.40.063.00
05.06.066.00
03.11.012.00
HS1-5518
Note: S.S. is an abbreviation for stainless steel.
Note: “B” in model indicates balanced 3 phase only.

Form No. 3CS-2RP-0801 5 Printed in U.S.A.
40 Heating Element (Qty. 1-3)
41 Front Head
42 Rear Head
43 Cap, Clean Out (Qty. 2)
44 Gasket, Clean Out Cap (Qty. 2)
45 Pipe, Clean Out (Qty. 2)
Electrical Drawing
R02.06.004F.00
03.17.003.00
03.17.004.00
03.40.063.00
05.06.066.00
03.11.012.00
HS1-5378
R02.06.003F.00
03.17.003.00
03.17.004.00
03.40.063.00
05.06.066.00
03.11.012.00
HS1-5377
PARTS SPECIFIC TO MODEL 3CS2-6 & 3CS2-6B
240V
Balanced
Three-Phase
240V
Single Phase
208V
Balanced
Three-Phase
208V
Single Phase
480V
Three-Phase
ITEM DESCRIPTION
R02.06.003F.00
03.17.003.00
03.17.004.00
03.40.063.00
05.06.066.00
03.11.012.00
HS1-5377
---
---
---
---
---
---
---
R02.06.004F.00
03.17.003.00
03.17.004.00
03.40.063.00
05.06.066.00
03.11.012.00
HS1-5378
40 Heating Element (Qty. 3)
41 Front Head
42 Rear Head
43 Cap, Clean Out (Qty. 2)
44 Gasket, Clean Out Cap (Qty. 2)
45 Pipe, Clean Out (Qty. 2)
Electrical Drawing
R02.06.003F.00
03.17.003.00
03.17.004.00
03.40.063.00
05.06.066.00
03.11.012.00
HS1-5379
---
---
---
---
---
---
---
PARTS SPECIFIC TO MODEL 3CS2-9 & 3CS2-9B
240V
Balanced
Three-Phase
240V
Single Phase
208V
Balanced
Three-Phase
208V
Single Phase
480V
Three-Phase
ITEM DESCRIPTION
---
---
---
---
---
---
---
---
---
---
---
---
---
---
R02.06.003F.00
03.17.003.00
03.17.004.00
03.40.063.00
05.06.066.00
03.11.012.00
HS1-5379
Note: “B” in model indicates balanced 3 phase only.
Note: S.S. is an abbreviation for stainless steel.

NOTES
Form No. 3CS-2RP-0801 6 Printed in U.S.A.

NOTES
Form No. 3CS-2RP-0801 7 Printed in U.S.A.

HATCO CORPORATION
P.O. Box 340500, Milwaukee, WI 53234-0500 U.S.A.
[phone] [phone]
Parts & Service Fax [phone] Int’l. Fax [phone]
www.hatcocorp.com
Printed in U.S.A.
Form No. 3CS-2RP-0801 August 2001
