HATHASPACE HARMONY 1500 User manual

PRODUCT MANUAL
PURE AIR,
ALWAYS.
1 HEPA Air Purifier
HSE1500

NOTE:
Remove plastic bag from
filter before first use

1. Basic Information 4
2. Safety Instructions 5-6
3. Product Diagram 7
4. 4-in-1 Purification System 8
5. Buttons and Indicators 9-12
5.1. Control panel
5.2. LED display
5.3. Air quality indicator
5.4. Particle sensor
5.5. Brightness adjustment
6. Air Purifier Maintenance 13-14
6.1. Cleaning the unit
6.2. Replacing the filter
7. Troubleshooting 15-16
8. Limited Warranty 17
9. Customer Support 17
Contents

Use unit according to instructions provided in the manual. Keep manual for future
reference.
This appliance can be used by children aged 8 years and above and individuals
with reduced physical, sensory, mental capabilities or lack of experience if they
have been given supervision or instruction concerning the use of the appliance in
a safe way and understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be done by children without
supervision.
READ AND SAVE THESE INSTRUCTIONS
4
1. Basic Information
Model
Power Supply
Rated Power
CADR
Noise Level
Dimensions
Net Weight
HSE1500
120V / 60HZ
45W
250CFM
24dB-55dB
265 x 265 x 504mm
10.43 x 10.43 x 19.84in
4.10KG

This appliance is a floor type air purifier, to reduce the risk of fire, electric shock, or serious injury,
basic safety precautions should always be followed when using electrical appliances. Please read and
follow all the safety instructions before using and only use this air purifier as described in this manual.
This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric
shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the
outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to bypass
this safety feature.
WARNING: To reduce the risk of fire or electric shock, do not use this fan with any
solid-state speed control device.
Do not use the air purifier in wet or humid environments, or outdoors.
This appliance is designed for indoor use only.
Do not put the air purifier on an uneven floor such as a bed or sofa. Always
make sure to place the air purifier on a flat surface before operating.
Leave more than 20 cm distance between the air purifier and the wall.
Do not place the air purifier near sources of heat, such as stove tops, ovens,
or radiators.
Do not handle the unit with wet hands. Thoroughly dry your hands before
handling any part of the air purifier.
Do not use without removing the plastic wrap from the air purifier and filters.
Do not attempt to use other filters with this appliance. Only use Hathaspace
air replacement filters for this unit.
Do not block the air inlet, outlet, as well as the sensor, by anything.
Do not insert fingers or objects into the air outlet.
Do not immerse air purifier in liquids or clean the appliance with any liquid to
avoid electric shock and/or electrical fires.
Do not run the power cord under carpeting, rugs, furniture, or appliances.
Place the power cord away from high-trac areas.
2. Safety Instructions
5

2. Safety Instructions
6
Do not operate the unit if the power cord or plug is damaged. Doing so may
result in injury or damage to the unit.
Do unplug the appliance from the power supply before servicing.
Do inspect the unit frequently. Dirt that has collected should be removed
regularly to prevent excessive accumulation that may result in flashover
or fire.
Do not repair it by yourself if the air purifier does not work, it will void your
warranty. If your appliance is no longer working, damaged, or not functioning
properly, discontinue use, unplug immediately and contact customer support
immediately.

3. Product Diagram
7
Control Panel
Air Inlet
Air Outlet
Particle Sensor
Power CordRemovable Base
to replace the filter
HSE1500 Air Purifier

4. 4-in-1 Purification System
8
4-in-1 Air Filtration System
1. 2. 3. 4.
Your Hathaspace filter uses 4 advanced technologies to keep your air clean,
capturing airborne particles:
1. Polypropylene Pre-filter
A preliminary Polypropylene Pre-filter removes large particles like pet hair,
dust, and floating debris. This helps extend the life of the composite filter.
2. Pre-filter
Non-woven materials serve as an extra pre-filter, capturing small corrosive
particles. This extends the life of the H13 HEPA filter.
3. Activated Carbon Filter
Activated carbon absorbs smoke, odors, and gases in the air including but
not limited to formaldehyde, ammonia, sulfur dioxide, nitrogen oxide, toluene,
acetic acid, trimethylamine, benzene, and acetaldehyde. Small microporous
zeolite minerals are added to the carbon filter to remove heavy metals and
combustion chemicals.
4. H13 HEPA Filter
The high eciency HEPA filter can capture small micron particles. These
smaller particles make up the majority of harmful air pollutants like tobacco,
smoke and lead dust.

9
5. Buttons and Indicators
5
6
7
2
4
3
1
No.
1
2
3
4
5
6
7
Icon Function
Power button: Press to power on/o function.
Four Speed button: Adjust fan speed to 1- 2- 3- 4- SLP levels.
Sleep mode: Press speed button to choose sleep mode. In sleep mode, the screen
will show “SLP”, all the other indicator lights are turned o. The SLP indicator light is
automatically adjusted to half brightness.
Brightness adjustment: The default brightness is 100% when powered on.
Touch to switch air quality indicator light and LED light levels as follows:
- Air quality indicator light levels (0%>20%>40%>60%>80%>100%)
- LED display light levels (10%>20%>40%>60%>80%>100%)
Notice: When air quality indicator light level shows 0%, the LED display light shows 10%
brightness.
Filter reset: After the unit has been used for 3000 hours, the unit will remind the user to
replace the filter when it is powered on each time.
Auto mode: Press the auto mode button to alternate between PM2.5 and AQI display.
In Auto mode, the fan speed will automatically adjust according to the air quality.
Timer function: Press timer button to set to 1H>2H>4H>8H>0H. | H = Hour(s).
Child lock: Long press the button 3 seconds to turn on/o the child lock function.
5.1. Control Panel

10
5.2. LED Display
5. Buttons and Indicators
No.
1
2
3
4
5
6
7
8
9
Icon Definition
Fan Speed Indicator, 1-2-3-4-SLP levels.
Time Indicator
Eco mode: When lit, the unit automatically enters energy saving Eco mode when the PM2.5
count is lower than 35 for 30 mins or AQI>80%. The motor stops for 10 minutes, then runs
for 10 minutes in speed 1. If PM2.5 is detected to be higher than 35ug/m³, the ECO light
will turn o and exit the ECO mode.
Auto Mode Indicator
Filter Reset Indicator (Red Color). Press the Filter Reset button for 5 seconds to reset
the air purifier, otherwise, the filter light will keep blinking.
Child Lock Indicator
AQI Indicator
PM2.5 Indicator
PM & AQI Display: The PM2.5 and the AQI display can be chosen by the Auto button.
9
2
6
3
7
8
4
5
1

Index
Particle
Sensor
(ug/ m³)
Mode
≤50
51-100
101-150
>150
Manual
Mode
Auto
Mode
Eco
Mode
72.5%-100%
62.9%-72%
55.1%-62.8%
0.0%-54.9%
Adjust fan speed based on your needs. Using the Air Quality
Indicator, change the fan speed from 1 (low) to 4 (high)
depending on the air quality.
Your air purifier uses up to 50% less energy when in Eco mode.
Eco mode automatically turns the unit o and checks air quality
every 10 minutes.
Purifies the air automatically in dierent fan speeds based on
the air quality detected by the sensor.
Excellent
Good
Fair
Poor
1
2
3
4
Green
Blue
Yellow
Red
AQI (%)
Operation
Air Quality Speed Color
PM2.5
&
AQI
11
5.3. Air Quality Indicator
5.4. Particle Sensor
The sensor is placed inside the air purifier and can detect the air quality intelligently.
Note: The sensor assesses the air quality based on the air coming in through the outside small holes.
To ensure continuous operation, please keep it clean using a soft brush to prevent any particle build-up.
5. Buttons and Indicators

5.5. Brightness Adjustment
5. Buttons and Indicators
12
There are six levels of light brightness.
The light levels are pre-set at these levels:
• The default brightness of lights is 100% (including all indicators and air
quality lights).
• Press the brightness adjustment button to manually adjust the air quality
indicator light levels as follows: 0%>20%>40%>60%>80%>100%
• Press the brightness adjustment button to manually adjust the LED display
light as follows: 10%>20%>40%>60%>80%>100%
• The brightness is not memorized after the light is adjusted and it will still be
100% when the machine is turned on next time (unless you press and hold the
brightness key for 3 seconds to set the memory brightness setting).
• After adjusting the brightness of the light, long press the brightness key for 3
seconds to set the memory light brightness. For example, if you want to set to
20%, long press for 3 seconds, the light brightness will be 20% after the next
startup.

6.1. Cleaning the unit
6.2. Replacing Filter
6. Air Purifier Maintenance
• Please turn o the power and unplug power cord before cleaning the air
purifier.
• To remove dust, lightly wipe the unit with a soft, clean cloth. If needed,
wipe the unit with a clean damp cloth, then immediately dry with a clean
dry cloth. Don’t use alcohol, oil, benzene to clean the unit.
• Do not immerse the unit in water.
Note: The HEPA filter, gray color non-woven pre-filter, and the activated carbon
filter cannot be reused, cleaned, or replaced after being used. Please don’t wash
them by water.
To maintain the performance of the air purifier and purification eect, we advise
to replace the filters every 4 months or 3000 hours.
For the best performance and longest lifespan, use certified HARMONY 1500
replacement filters for HSE1500.

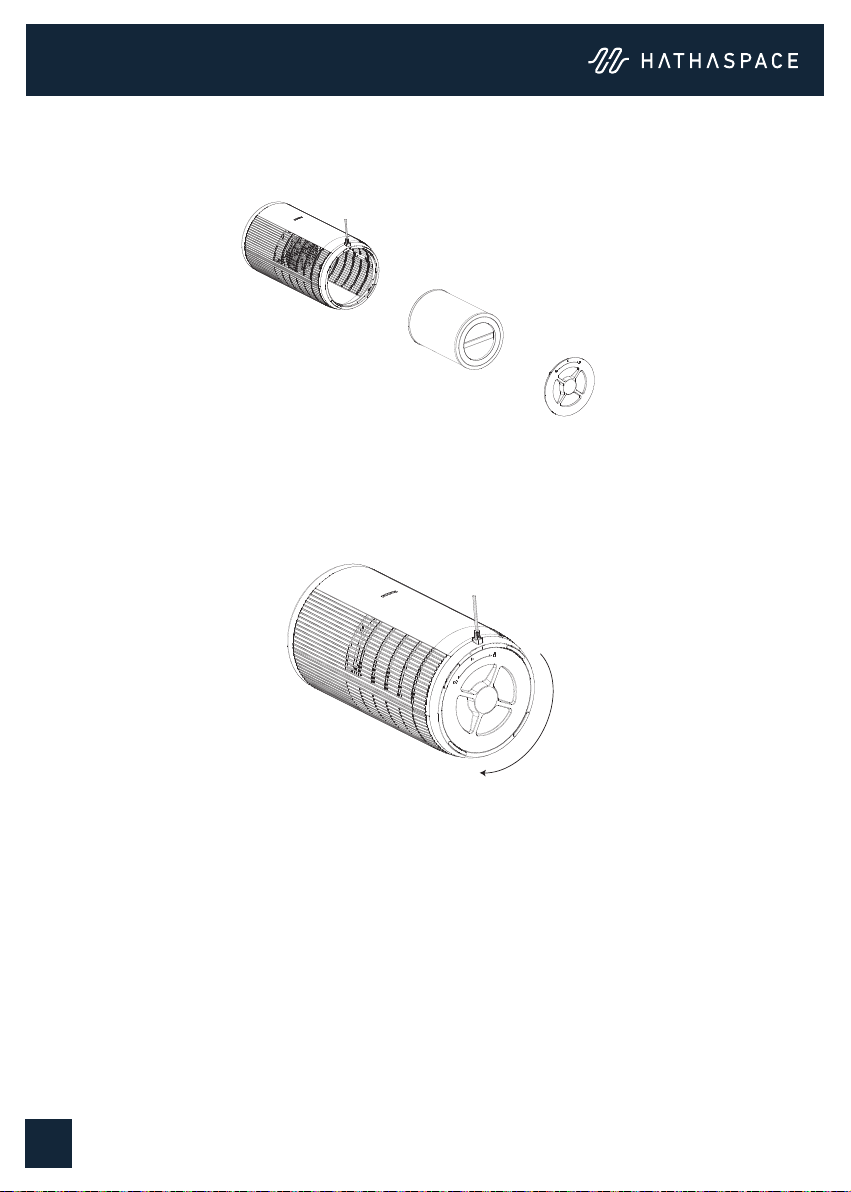

1) Unplug the air purifier from the electrical outlet.
2) Twist the bottom panel counterclockwise to remove the panel.
13

3) Remove the old filter and dispose of it properly. The filter is not recyclable.
4) Remove the new filter packaging and insert it into the air purifier.
5) Turn it clockwise to tighten the bottom panel.
6) Place the air purifier on the floor again and plug it back into the electrical
outlet. The air purifier will automatically clean the air again.
Note:
• The actual replacement frequency depends on its service length and air
quality.
• Please don’t forget to press the “Filter Reset“ button for 5 seconds to reset
the air purifier, otherwise, the filter light will keep blinking.
6. Air Purifier Maintenance
14

7. Troubleshooting
15
Problem Reasons Possible Solution
A. No electricity.
B. Power cord is damaged.
C. The outlet is damaged.
D. The air purifier malfunctioned.
A. The airflow is blocked by packaging.
B. A low speed is being used.
C. There is not enough clearance for the
air inflow.
D. The Pre-filter may be clogged by
large particles.
E. Filters are installed incorrectly.
A. The airflow is blocked by packaging.
B. The air purifier is on an inclined place
making the fan blades rub with the
air purifier’s lining.
C. The air purifier may be damaged or
a foreign object may be inside.
A. The filters have been used too long.
B. The applied environment has high
humidity or is very dirty.
C. There may be residual odors from
the manufacturing process.
A. A low speed is used.
B. The airflow is blocked by packaging.
C. The air outlet is blocked.
D. Filters installed incorrectly.
E. Is being used in open places.
F. The applied area is larger than
the eective range.
G. The quality of the air in the room is
very poor.
H. The room layout is not good.
A. The unit is operating in a very
dusty environment. A. Consider turning the fan to HIGH.
A. Replace the filter.
B. Make sure not to use your purifier
in an area with high humidity
or while diusing essential oils.
C. Keep running it for 1 week.
A. Increase the fan speed.
B. Remove the packaging.
C. Remove any matter that is
blocking the air outlet.
D. Make sure the filters are installed
correctly.
E. Close doors and windows while using
the air purifier.
F. Consider a larger air purifier.
G. Open the window to circulate new air.
H. Buy more air purifiers or change the
layout if possible.
A. Remove the packaging.
B. Put the air purifier on even
places.
C. Contact Customer Service.
A. Check that the unit is properly
plugged into an electrical
outlet.
B. Contact Customer Service.
C. Plug into a dierent outlet.
D. Contact Customer Service.
A. Remove the packaging.
B. Increase the fan speed.
C. Leave 20cm clearance on all
sides of the air purifier.
D. Clean the Pre-filter or
replace the filter.
E. Make sure the filters are
installed correctly.
Air purifier cannot be turned on
or respond to button controls.
Airflow is
significantly reduced.
Air purifier makes an
unusual noise while the fan
is on.
Strange smell comes from
the purifier.
Poor air purification
quality.
Air purifier always detects
high levels
of particulates.

7. Troubleshooting
Problem Reasons Possible Solution
A. Forgot to reset the air purifier.
A. The appliance has been running
infrequently.
A. The appliance is running too
frequently or there is high air
pollution.
A. Replace the filter.
A. Reset the air purifier by
pressing the “filter light”
button for 5 seconds.
The filter light is still on after
replacing the filter.
The filter light isn’t on within
8 months.
The filter light is on before
6 months.
16

Hathaspace warrants all products to be of the highest quality in material, craftsmanship,
and service, eective starting from the date of purchase.
Hathaspace will replace any product found to be defective due to manufacturer flaws
based on eligibility.
Hathaspace is not responsible in any way for any damages, losses, or inconveniences
caused by equipment failure by user negligence, abuse, or use noncompliant with the user
manual or any additional safety, use, or warnings included in the product packaging and
manual.
This warranty does not apply to the following:
• Damage due to abuse, accident, alteration, misuse, tampering or vandalism.
• Improper or inadequate maintenance.
• Damage in return transit.
Please see warranty details at https://www.hathaspace.com
Hathaspace strives to make every part of your experience exceptional. If you have any
questions or concerns about your air purifier, please feel free to contact our Customer
Support.
Email: [email protected]
Website: https://hathaspace.com
8. Limited Warranty
9. Customer Support
17

www.hathaspace.com
[email protected]om
1-800-446-0535
Hathaspace
Manufactured for Hathaspace EPA Est. No. 87627-CHN-1
© Hathaspace. All rights reserved.
HEPA AIR PURIFIER
HSE1500
