Hauler Racks C600 User manual

C600 RACK INSTRUCTIONS
P/N C600FULL-1 / C600MINI-1
Package Contents:
PARTS
(2) CROSS BARS
(4) C600 LEGS
(4) C600 HINGE ASSEMBLIES
(4) LOAD SECURE POSTS
HARDWARE KIT
(4) 3/8”-16 NUTS
(4) 3/8” SPLIT LOCK WASHERS
(4) 3/8”-16 x 1-1/2” HEX BOLTS
(16) 5/16”-18 x 1” HEX BOLTS
(16) 5/16”-18 SQUARE NUTS
(32) 5/16” SPLIT LOCK WASHERS
(8) 5/16”-18 x 1” CARRIAGE BOLTS
(8) 5/16”-18 x 1-1/2” HEX BOLTS
(8) SPACERS
Before you begin:
Rack fits both straight and angled caps.
Remove all components from the shipping carton.
The rack should be assembled on a padded surface such as carpet to prevent scratching of aluminum surfaces. Remove bands securing
components together.
Read the instructions thoroughly to familiarize yourself with the assembly sequence.
Note that you DO NOT tighten any nuts and bolts until the completed rack is installed on the vehicle unless specified. This allows for minor
adjustments to the rack during the installation process.
Gather the following tools used to assemble and install the rack.
9/16” Socket or open end wrench
1/2” Socket or open end wrench
5/16” Drill bit and drill
Pencil or marker
Tape measure
Center punch and hammer (optional)
Level
2x4 Boards
HAULER RACKS, INC. Page 1 of 6 Toll Free: 1-800-843-5445
7109 31st Avenue North Phone: [phone]
Minneapolis, MN 55427-2848 Fax: [phone]
WWW.HAULERRACKS.COM

HAULER RACKS, INC. Page 2 of 6 Toll Free: 1-800-843-5445
7109 31st Avenue North Phone: [phone]
Minneapolis, MN 55427-2848 Fax: [phone]
WWW.HAULERRACKS.COM
1. Hinge assembly

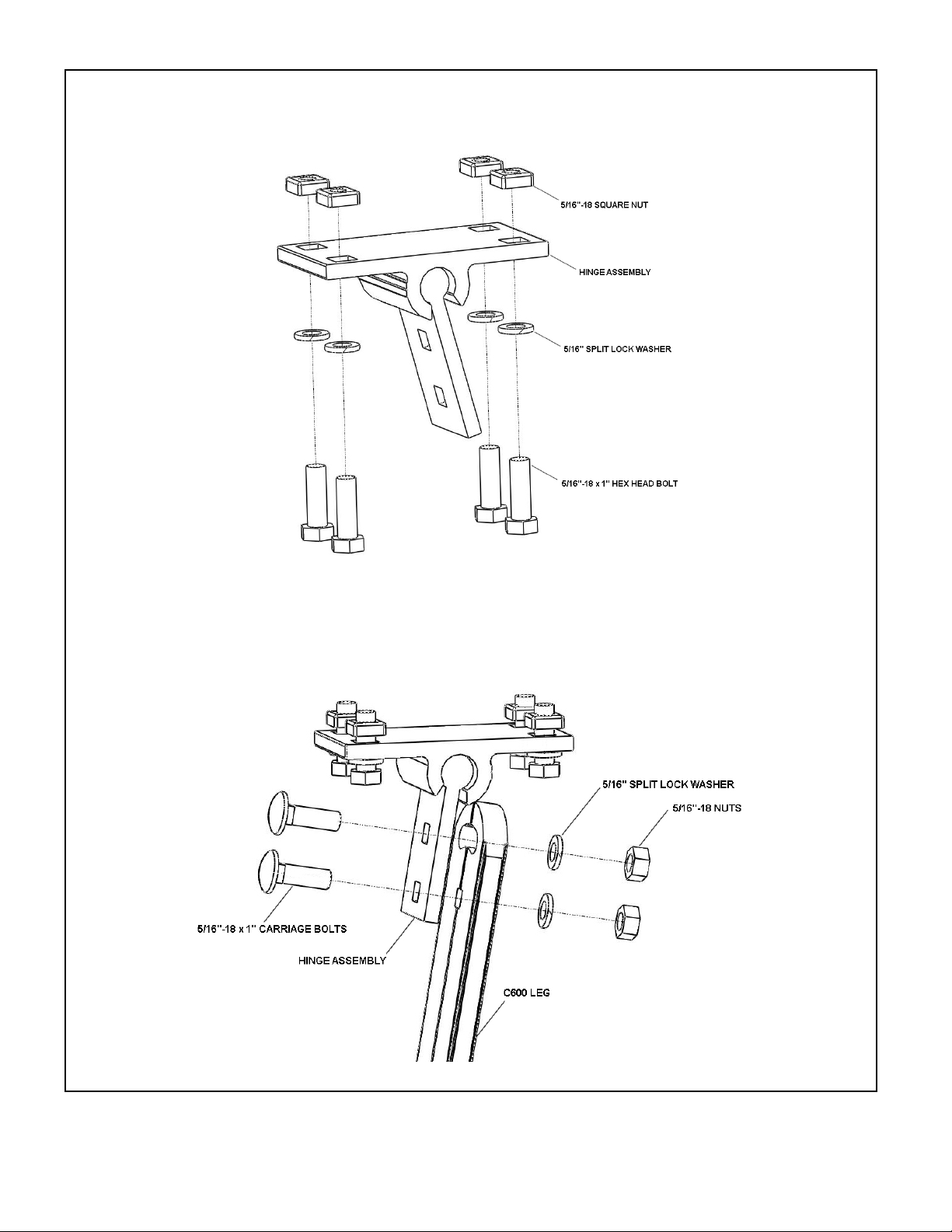

Assemble the hinge assembly as shown using (4) 5/16”-18 x 1” hex head bolts, (4) 5/16” split lock washers and (4) 5/16”-18 square nuts.
Note the flat portion of the 5/16”-18 square nut faces toward the hinge. Repeat for remaining hinges assemblies.
2. Leg assembly
Place the leg to the outside of the hinge assembly as shown.
Using (2) 5/16”-18 x 1” carriage bolts, go through the hinge first then the leg. Loosely secure the leg to the hinge with (2) 5/16” split lock
washers and (2) 5/16”-18 nuts.
Repeat for remaining hinge assemblies.

HAULER RACKS, INC. Page 3 of 6 Toll Free: 1-800-843-5445
7109 31st Avenue North Phone: [phone]
Minneapolis, MN 55427-2848 Fax: [phone]
WWW.HAULERRACKS.COM
4. Crossbar assembly
Orientate the hinged assembly with leg as shown with the angle ends pointing away from the center of the crossbar.
Slide the 5/16”-18 square nuts into the outer channels of the crossbar.
Slide the assembly into the crossbar. Repeat for other side of crossbar.
Repeat for other crossbar.
Slide in (1) 3/8”-16 x 1-1/2” bolt into the center channel of the crossbar on each end as shown below.
Repeat for other crossbar.

HAULER RACKS, INC. Page 4 of 6 Toll Free: 1-800-843-5445
7109 31st Avenue North Phone: [phone]
Minneapolis, MN 55427-2848 Fax: [phone]
WWW.HAULERRACKS.COM
4. (Continued) Crossbar assembly
Install the load secure posts as shown. Place the end load secure posts so they are flush against the crossbar.
Tighten the load secure posts with 3/8” split lock washers and 3/8”-16 nuts and tighten hardware. Repeat for other crossbar bar.
5. Mounting to cap

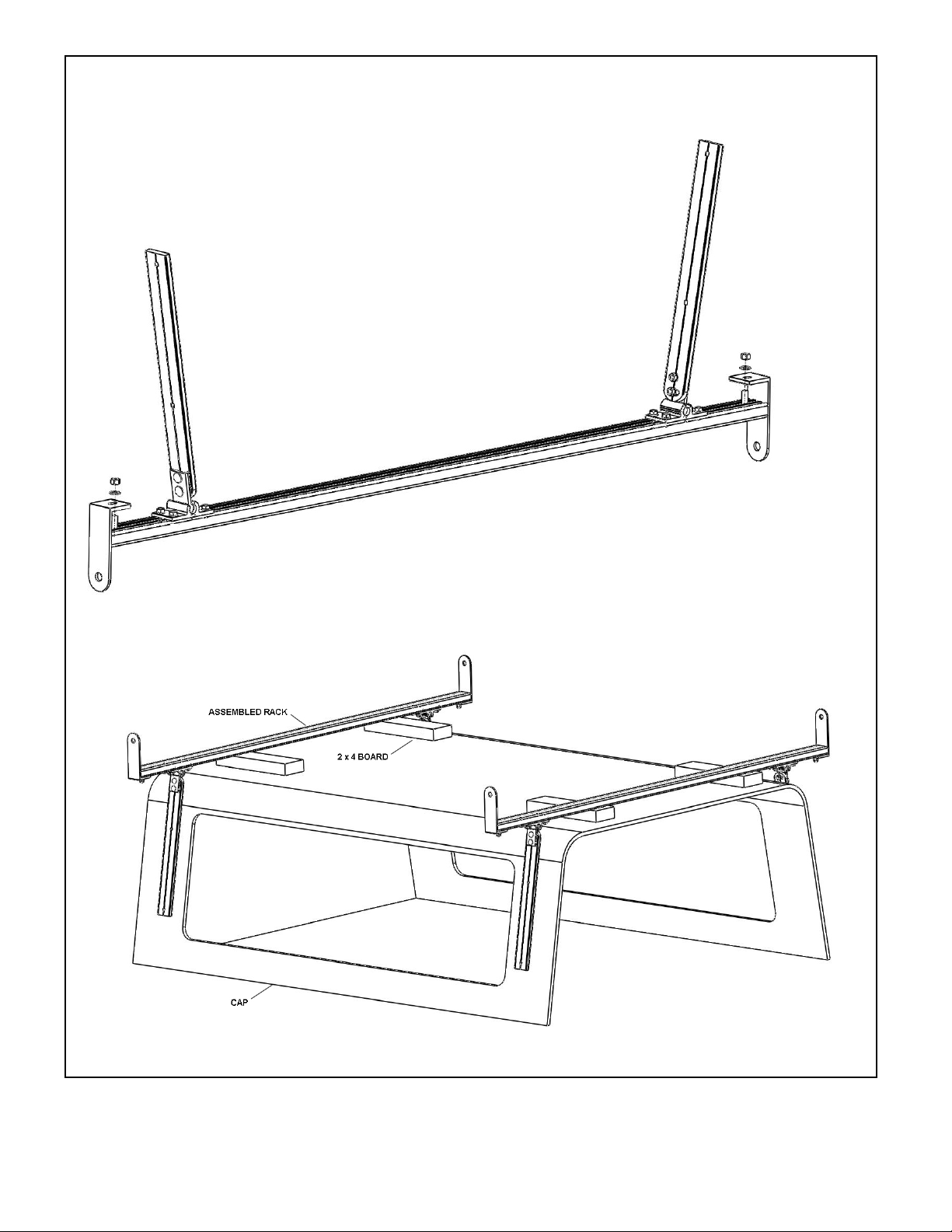

Place the rack assemblies on the cap to the desired positions. Place a 2” x 4” boards between the cap and crossbar to provide minimum
clearance between the cap roof and bottom of the crossbar. The crossbars can be positioned higher if required.
Check to make sure the front and rear crossbar assemblies are level with each other. Adjust if needed.

HAULER RACKS, INC. Page 5 of 6 Toll Free: 1-800-843-5445
7109 31st Avenue North Phone: [phone]
Minneapolis, MN 55427-2848 Fax: [phone]
WWW.HAULERRACKS.COM
5. (Continued) Mounting to cap
Move the leg assemblies so they are flush against the cap. If needed, the angle of the legs can adjusted to fit unique caps. Use a tape
measure to center the crossbar over the cap for best results.
Mark the location of the square hole pattern of the legs onto the cap. Use a center punch to mark the center of the square hole for drilling
(optional).
Drill 5/16” diameter holes through the cap at the mark locations.
Insert 5/16” x 1-1/2” bolts through the leg and into the cap.
Secure the leg on the inside of the cap using (2) spacers, (2) 5/16” split lock washers and (2) 5/16”-18 nuts.
Repeat for other legs.
Tighten all nuts and bolts.
Remove 2 x 4 boards.

HMIS15
C600 FULL & MINI
© 2008 Hauler Racks. Revised 8-18-2008
