Havis DS-PAN-1000 Series User manual

DS-GTC-1000-SERIES_OMN_11-17
www.havis.com
1-800-524-9900
Havis, Inc.
75 Jacksonville Road
Warminster, PA 18974
www.havis.com 1-800-524-9900
Owner’s Manual

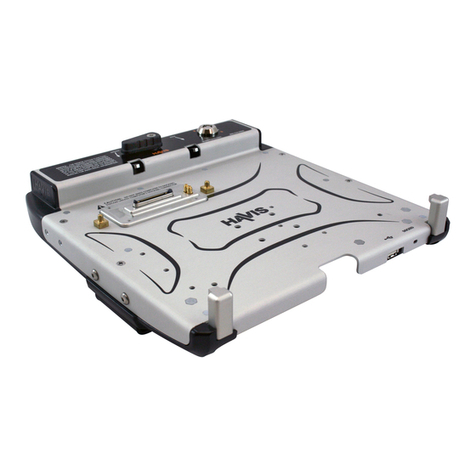

Havis Rugged Mobile Docking Station
For Panasonic Toughbook 20
DS-PAN-1001
DS-PAN-1001-2
DS-PAN-1002
DS-PAN-1002-2
DS-PAN-1003
DS-PAN-1006
DS-PAN-1000 Series
Related Products
Havis offers a wide variety of accessory products specically for use
with the DS-PAN-1000 Series Docking Station. For more information
or to order, please visit www.havis.com.
LPS-102
90W Power Supply
External power supply and cable for Panasonic Toughbook 20
with cigarette lighter adaptor.
DS-DA-503
Replacement Keys
Set of two (2) replacement keys for DS-PAN-1000
Series Docking Stations.
DS-DA-419
Screen Support
Secure your laptop screen to prevent excess wear and
reduce vibration while in use.
DS-DS-306
Replacement Power Supply Output Cable
Replacement yellow tip output cable for the LPS-102
power supply for DS-PAN-1000 Series Docking Stations.
LPS-211
Power Supply Mounting Bracket
Mount a power supply or USB hub directly to your
Docking Station with this versatile bracket.

Before Beginning (Original Instructions)
2 11
• NEVER STOW OR MOUNT THE DOCKING STATION DIRECTLY IN A VEHICLE
AIRBAG DEPLOYMENT ZONE.
• DO NOT USE COMPUTER WHILE DRIVING.
• FOR DOCKING STATION MODELS EQUIPPED WITH A BUNDLED POWER SUPPLY
(DS-PAN-1002, DS-PAN-1002-2, & DS-PAN-1006) REFER TO THE SUPPLIED LIND POWER
SUPPLY REFERENCE GUIDE.
• READ ALL INSTRUCTIONS THOROUGHLY BEFORE BEGINNING INSTALLATION.
• DO NOT STORE, INSTALL, OR OPERATE THE DOCKING STATION WHERE WATER, MOISTURE,
STEAM, DUST, ETC. ARE PRESENT
• DO NOT DOCK OR UNDOCK YOUR COMPUTER UNLESS IT IS POWERED OFF. DOCKING OR
UNDOCKING WITH YOUR COMPUTER IN ON, STANDBY, HIBERNATION, OR SLEEP MODES
CAN CAUSE PERMANENT DAMAGE.
• FOR THE DS-PAN-1001, DS-PAN-1001-2, DS-PAN-1002, & DS-PAN-1002-2 DOCKING STATIONS:
DO NOT CONNECT DIRECTLY TO VEHICLE VOLTAGE SOURCE: This product requires
a certied, automotive grade, Panasonic approved 90W power source rated for a
continuous, regulated 16VDC output (Havis Part Number LPS-102 or equivalent).
Failure to comply with this requirement will cause product damage that is NOT
repairable and is NOT covered under warranty.
• FOR THE DS-PAN-1003 & DS-PAN-1006 DOCKING STATIONS:
DO NOT CONNECT DIRECTLY TO VEHICLE VOLTAGE SOURCE: The Panasonic Toughbook 20
requires a certied, Panasonic approved power source rated for a continuous, regulated
16VDC output. Failure to comply with this requirement will cause product damage
that is NOT repairable and is NOT covered under warranty.
DS-PAN-1001
DS-PAN-1001-2
DS-PAN-1002
DS-PAN-1002-2
DS-PAN-1003
DS-PAN-1006
Havis is pleased to provide this Owner’s Manual to aid in the proper
installation and use of the DS-PAN-1000 Series Docking Station for
the Panasonic Toughbook 20, 2-in-1 laptop computer.
For questions regarding the set-up of your DS-PAN-1000 Series Docking Station,
please contact Havis at 1-800-524-9900 or visit www.havis.com for additional
product support and information.
This Owner’s Manual applies to the following Part Numbers:
Operation - Undocking (continued)
3) Once unlatched grab Toughbook 20 from carrying handle or each side and
carefully lift out of Docking Station, rear rst.
ONCE DOCKED, THE DISPLAY OF THE TOUGHBOOK 20
CAN ONLY OPEN APPROXIMATELY 165° AT WHICH TIME IT WILL
CONTACT THE DOCKING STATION’S REAR HOOKS.
DO NOT EXTEND THE DISPLAY PAST THIS POINT
OR DAMAGE TO THE LAPTOP MAY OCCUR.

Table of Contents
10 3
Specications
Parts Included
Port Replication Capability
Antenna Identication
Installation & Cable Management
Operation - Docking
Operation - Undocking
3
4
5
5
6
8
10
Specications
Power Supply Input 16V DC-In
Dimensions 2.5” ( 6.3 cm) H x 11.1” ( 28.1 cm ) W x 9.6” ( 24.4 cm ) D
Weight 4.30 lbs ( 1.95 kg )
Operating Environment -10° C to 50° C ( 14° F to 122°F )
Storage Environment -20° C to 60° C ( -4° F to 140° F )
• Do not place metal objects or containers of liquid on top of the Docking Station
• If a malfunction occurs, immediately unplug the Power Supply and remove the laptop
• Use only the specied Power Supply (Part # LPS-102) with this Docking Station
• Do not connect cables into ports other than what they are specied for
• Do not leave the Docking Station in a high temperature environment (greater than 85°C, 185°F)
for a long period of time
• Do not open display of laptop too far while docked, or damage may result (See page 11)
Precautions
Operation - Docking (continued)
Operation - Undocking
EC DECLARATION OF CONFORMITY in accordance with EN 50498
Manufacturers Name: Havis, Inc.
Manufacturers Address: 75 Jacksonville Road, Warminster, PA 18974 USA
Declares under our sole responsibility that the product:
Product name: Havis Docking Station For Panasonic Toughbook 20, 2-in-1 Laptop
Model: DS-PAN-100X, where ‘X’ may be any alphanumeric character and which describes product options.
May be followed by any alphanumeric characters which describe product options.
Product Options: This declaration covers all options of the above product which bear the CE Marking.
Is in conformity with the following standards or other normative documents:
Automotive EMC Directive EN 50498:2010, Electromagnetic compatibility (EMC) -
2004/108/EC: Product family standard for aftermarket electronic equipment in vehicles
Directive 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
Supplementary Information:
The product herewith complies with the requirements of the Automotive EMC Directive 2004/108/EC, Annex I, 6.5, 6.6, 6.8,
and 6.9. This product requires the use of a recommended e-Marked automotive power supply when used within vehicles.
Warminster, PA, USA October 10, 2017 Bruce Jonik, Director of Engineering , Havis, Inc.
FCC 47CFR, Part 15 compliance: This is an FCC Class B device. Any changes or modications
to the model DS-PAN-100X not expressly approved by Havis, Inc. could void
the user's authority to operate this equipment.
2) Unlatch computer from Docking Station by, pushing down on Release Handle,
then pushing in until Rear Hooks unlatch and a click can be heard. Rear Hooks
will remain unlatch and Toughbook 20 will elevate slightly from Docking Station.
1) If previously locked, unlock Docking Station using supplied key.
5) For theft deterrence, secure computer by locking Docking Station with
supplied key (Hardware Kit Item 2).

4 9
Parts Included Operation - Docking (continued)
Docking Station
Mounting Bracket
Docking Connector
Pass-Through Antenna
(Dual, optional)
Front Fence
Front Hooks (x2)
Rear Hooks (x2)
Locator Pins (x2)
Ground Pins (x3)
Barrel Lock
Release Handle
4) Lower rear of computer onto Docking Station, ensuring computer properly
aligns with the Locator Pins on the Docking Station. Apply light downward
pressure to the rear of computer, until Rear Hooks on Docking Station snap
into place and secure the computer. Ensure Rear Hooks are fully engaged
as shown in Reverse View below. If not, apply more downward pressure to
ensure full engagement.
This Hardware Kit includes:
1. Zip Ties (5)
2. Keys (2)
3. 1/4”-20 x 5/8” long
Button Head Screws (5)
4. Phillips 1/4”-20 x 3/8”
long Screws (5)
Tools required for installation:
• 5/32” Hex Drive
(For attaching Mounting Bracket to Motion
Device with Button Head 1/4”-20 Screws)
• #3 Phillips
(For attaching Docking Station to Mounting
Bracket with Button Head 1/4”-20 Screws)
Hardware Kit (HWK-0046)
3) With rear of computer elevated, load front of computer into Docking
Station ensuring the computer’s front hook pockets align with the Front Hooks
of the Docking Station as shown.
Front View
Reverse View

1) Ensure the Docking Station is unlocked.
2) Unlatch Rear Hooks by pushing down on Release Handle, then pushing
in until a click can be heard.
8 5
Operation - Docking Port Replication Capability
Antenna Identication (DS-PAN-1001-2, DS-PAN-1002-2)
Laptop InterfaceAntenna Connectors (TNC)
DO NOT FORCE LAPTOP ONTO DOCKING STATION. IF THERE IS RESISTANCE,
CHECK THE ALIGNMENT OF LAPTOP ON DOCKING STATION.
Port Replication & Pass-Through RF
(DS-PAN-1001, DS-PAN-1001-2, DS-PAN-1002, DS-PAN-1002-2)
VGAUSB 3.0 (x2) HDMI Serial
Ethernet
RJ45
External Antenna Switch
DISABLED / ENABLED Power
Input
DC IN 16V
Antenna (TNC)
Optional: Part IDs
(DS-PAN-1001-2,
DS-PAN-1002-2)
Latched Rear Hooks Unlatched Rear Hooks
(Ready to dock Toughbook 33)
Top View
Docking Station
Bottom View
Toughbook 20

Cable Channel
1/4”-20 x 3/8” Screws
This loop must be large enough
to allow full range of expected
rotation and extension without
stressing connections.
Collect cables to secure
to the mounting system
(Note: mounting system not included)
1/4”-20 x 5/8” Screws
Typical Motion Device Example
(not included)
Mounting Bracket
6 7
Installation & Cable Management (continued)Installation & Cable Management
1) Remove the Mounting Bracket from the packaging. Install the
Mounting Bracket to the Motion Device using (4) 1/4“-20 x 5/8” long
screws (Hardware Kit Item 3). Torque screws to 80 in-lbs (9.0Nm) ± 10%.
NOTE: Numerous hole patterns present in Mounting Bracket will accomodate Havis Motion
Devices as well as most competitors’
5) Secure cable bundle to the Mounting Bracket with a supplied Zip Tie.
6) Create a service loop with cable bundle to ensure that no tension is on the
connectors and to enable intended range of motion.
7) Tie off cables onto a stationary part of the mounting system.
(Mounting system not included with Docking Station)
2) Orient the Docking Station in a position that is comfortable to work with.
3) Install all cables that are necessary for computing needs.
Use Zip Ties (Hardware Kit Item 1) to strain relieve cables to the Strain
Relief Points, routing all cables together through the Cable Channel and
out the rear of the Docking Station.
NOTE: We recommend applying a drop of medium strength (blue)
thread locking adhesive to the threads of all fasteners.
4) Lower the Docking Station to the Mounting Bracket as shown and secure
with (4) 1/4”-20 x 3/8” long screws (Hardware Kit Item 4). Ensure cable
bundle remains in Cable Channel before securing. Torque screws to
80 in-lbs (9.0 Nm) ± 10%.

Cable Channel
1/4”-20 x 3/8” Screws
This loop must be large enough
to allow full range of expected
rotation and extension without
stressing connections.
Collect cables to secure
to the mounting system
(Note: mounting system not included)
1/4”-20 x 5/8” Screws
Typical Motion Device Example
(not included)
Mounting Bracket
6 7
Installation & Cable Management (continued)Installation & Cable Management
1) Remove the Mounting Bracket from the packaging. Install the
Mounting Bracket to the Motion Device using (4) 1/4“-20 x 5/8” long
screws (Hardware Kit Item 3). Torque screws to 80 in-lbs (9.0Nm) ± 10%.
NOTE: Numerous hole patterns present in Mounting Bracket will accomodate Havis Motion
Devices as well as most competitors’
5) Secure cable bundle to the Mounting Bracket with a supplied Zip Tie.
6) Create a service loop with cable bundle to ensure that no tension is on the
connectors and to enable intended range of motion.
7) Tie off cables onto a stationary part of the mounting system.
(Mounting system not included with Docking Station)
2) Orient the Docking Station in a position that is comfortable to work with.
3) Install all cables that are necessary for computing needs.
Use Zip Ties (Hardware Kit Item 1) to strain relieve cables to the Strain
Relief Points, routing all cables together through the Cable Channel and
out the rear of the Docking Station.
NOTE: We recommend applying a drop of medium strength (blue)
thread locking adhesive to the threads of all fasteners.
4) Lower the Docking Station to the Mounting Bracket as shown and secure
with (4) 1/4”-20 x 3/8” long screws (Hardware Kit Item 4). Ensure cable
bundle remains in Cable Channel before securing. Torque screws to
80 in-lbs (9.0 Nm) ± 10%.

1) Ensure the Docking Station is unlocked.
2) Unlatch Rear Hooks by pushing down on Release Handle, then pushing
in until a click can be heard.
8 5
Operation - Docking Port Replication Capability
Antenna Identication (DS-PAN-1001-2, DS-PAN-1002-2)
Laptop InterfaceAntenna Connectors (TNC)
DO NOT FORCE LAPTOP ONTO DOCKING STATION. IF THERE IS RESISTANCE,
CHECK THE ALIGNMENT OF LAPTOP ON DOCKING STATION.
Port Replication & Pass-Through RF
(DS-PAN-1001, DS-PAN-1001-2, DS-PAN-1002, DS-PAN-1002-2)
VGAUSB 3.0 (x2) HDMI Serial
Ethernet
RJ45
External Antenna Switch
DISABLED / ENABLED Power
Input
DC IN 16V
Antenna (TNC)
Optional: Part IDs
(DS-PAN-1001-2,
DS-PAN-1002-2)
Latched Rear Hooks Unlatched Rear Hooks
(Ready to dock Toughbook 33)
Top View
Docking Station
Bottom View
Toughbook 20

4 9
Parts Included Operation - Docking (continued)
Docking Station
Mounting Bracket
Docking Connector
Pass-Through Antenna
(Dual, optional)
Front Fence
Front Hooks (x2)
Rear Hooks (x2)
Locator Pins (x2)
Ground Pins (x3)
Barrel Lock
Release Handle
4) Lower rear of computer onto Docking Station, ensuring computer properly
aligns with the Locator Pins on the Docking Station. Apply light downward
pressure to the rear of computer, until Rear Hooks on Docking Station snap
into place and secure the computer. Ensure Rear Hooks are fully engaged
as shown in Reverse View below. If not, apply more downward pressure to
ensure full engagement.
This Hardware Kit includes:
1. Zip Ties (5)
2. Keys (2)
3. 1/4”-20 x 5/8” long
Button Head Screws (5)
4. Phillips 1/4”-20 x 3/8”
long Screws (5)
Tools required for installation:
• 5/32” Hex Drive
(For attaching Mounting Bracket to Motion
Device with Button Head 1/4”-20 Screws)
• #3 Phillips
(For attaching Docking Station to Mounting
Bracket with Button Head 1/4”-20 Screws)
Hardware Kit (HWK-0046)
3) With rear of computer elevated, load front of computer into Docking
Station ensuring the computer’s front hook pockets align with the Front Hooks
of the Docking Station as shown.
Front View
Reverse View

Table of Contents
10 3
Specications
Parts Included
Port Replication Capability
Antenna Identication
Installation & Cable Management
Operation - Docking
Operation - Undocking
3
4
5
5
6
8
10
Specications
Power Supply Input 16V DC-In
Dimensions 2.5” ( 6.3 cm) H x 11.1” ( 28.1 cm ) W x 9.6” ( 24.4 cm ) D
Weight 4.30 lbs ( 1.95 kg )
Operating Environment -10° C to 50° C ( 14° F to 122°F )
Storage Environment -20° C to 60° C ( -4° F to 140° F )
• Do not place metal objects or containers of liquid on top of the Docking Station
• If a malfunction occurs, immediately unplug the Power Supply and remove the laptop
• Use only the specied Power Supply (Part # LPS-102) with this Docking Station
• Do not connect cables into ports other than what they are specied for
• Do not leave the Docking Station in a high temperature environment (greater than 85°C, 185°F)
for a long period of time
• Do not open display of laptop too far while docked, or damage may result (See page 11)
Precautions
Operation - Docking (continued)
Operation - Undocking
EC DECLARATION OF CONFORMITY in accordance with EN 50498
Manufacturers Name: Havis, Inc.
Manufacturers Address: 75 Jacksonville Road, Warminster, PA 18974 USA
Declares under our sole responsibility that the product:
Product name: Havis Docking Station For Panasonic Toughbook 20, 2-in-1 Laptop
Model: DS-PAN-100X, where ‘X’ may be any alphanumeric character and which describes product options.
May be followed by any alphanumeric characters which describe product options.
Product Options: This declaration covers all options of the above product which bear the CE Marking.
Is in conformity with the following standards or other normative documents:
Automotive EMC Directive EN 50498:2010, Electromagnetic compatibility (EMC) -
2004/108/EC: Product family standard for aftermarket electronic equipment in vehicles
Directive 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
Supplementary Information:
The product herewith complies with the requirements of the Automotive EMC Directive 2004/108/EC, Annex I, 6.5, 6.6, 6.8,
and 6.9. This product requires the use of a recommended e-Marked automotive power supply when used within vehicles.
Warminster, PA, USA October 10, 2017 Bruce Jonik, Director of Engineering , Havis, Inc.
FCC 47CFR, Part 15 compliance: This is an FCC Class B device. Any changes or modications
to the model DS-PAN-100X not expressly approved by Havis, Inc. could void
the user's authority to operate this equipment.
2) Unlatch computer from Docking Station by, pushing down on Release Handle,
then pushing in until Rear Hooks unlatch and a click can be heard. Rear Hooks
will remain unlatch and Toughbook 20 will elevate slightly from Docking Station.
1) If previously locked, unlock Docking Station using supplied key.
5) For theft deterrence, secure computer by locking Docking Station with
supplied key (Hardware Kit Item 2).

Before Beginning (Original Instructions)
2 11
• NEVER STOW OR MOUNT THE DOCKING STATION DIRECTLY IN A VEHICLE
AIRBAG DEPLOYMENT ZONE.
• DO NOT USE COMPUTER WHILE DRIVING.
• FOR DOCKING STATION MODELS EQUIPPED WITH A BUNDLED POWER SUPPLY
(DS-PAN-1002, DS-PAN-1002-2, & DS-PAN-1006) REFER TO THE SUPPLIED LIND POWER
SUPPLY REFERENCE GUIDE.
• READ ALL INSTRUCTIONS THOROUGHLY BEFORE BEGINNING INSTALLATION.
• DO NOT STORE, INSTALL, OR OPERATE THE DOCKING STATION WHERE WATER, MOISTURE,
STEAM, DUST, ETC. ARE PRESENT
• DO NOT DOCK OR UNDOCK YOUR COMPUTER UNLESS IT IS POWERED OFF. DOCKING OR
UNDOCKING WITH YOUR COMPUTER IN ON, STANDBY, HIBERNATION, OR SLEEP MODES
CAN CAUSE PERMANENT DAMAGE.
• FOR THE DS-PAN-1001, DS-PAN-1001-2, DS-PAN-1002, & DS-PAN-1002-2 DOCKING STATIONS:
DO NOT CONNECT DIRECTLY TO VEHICLE VOLTAGE SOURCE: This product requires
a certied, automotive grade, Panasonic approved 90W power source rated for a
continuous, regulated 16VDC output (Havis Part Number LPS-102 or equivalent).
Failure to comply with this requirement will cause product damage that is NOT
repairable and is NOT covered under warranty.
• FOR THE DS-PAN-1003 & DS-PAN-1006 DOCKING STATIONS:
DO NOT CONNECT DIRECTLY TO VEHICLE VOLTAGE SOURCE: The Panasonic Toughbook 20
requires a certied, Panasonic approved power source rated for a continuous, regulated
16VDC output. Failure to comply with this requirement will cause product damage
that is NOT repairable and is NOT covered under warranty.
DS-PAN-1001
DS-PAN-1001-2
DS-PAN-1002
DS-PAN-1002-2
DS-PAN-1003
DS-PAN-1006
Havis is pleased to provide this Owner’s Manual to aid in the proper
installation and use of the DS-PAN-1000 Series Docking Station for
the Panasonic Toughbook 20, 2-in-1 laptop computer.
For questions regarding the set-up of your DS-PAN-1000 Series Docking Station,
please contact Havis at 1-800-524-9900 or visit www.havis.com for additional
product support and information.
This Owner’s Manual applies to the following Part Numbers:
Operation - Undocking (continued)
3) Once unlatched grab Toughbook 20 from carrying handle or each side and
carefully lift out of Docking Station, rear rst.
ONCE DOCKED, THE DISPLAY OF THE TOUGHBOOK 20
CAN ONLY OPEN APPROXIMATELY 165° AT WHICH TIME IT WILL
CONTACT THE DOCKING STATION’S REAR HOOKS.
DO NOT EXTEND THE DISPLAY PAST THIS POINT
OR DAMAGE TO THE LAPTOP MAY OCCUR.

DS-GTC-1000-SERIES_OMN_11-17
www.havis.com
1-800-524-9900
Havis, Inc.
75 Jacksonville Road
Warminster, PA 18974
www.havis.com 1-800-524-9900
Owner’s Manual
Havis Rugged Mobile Docking Station
For Panasonic Toughbook 20
DS-PAN-1001
DS-PAN-1001-2
DS-PAN-1002
DS-PAN-1002-2
DS-PAN-1003
DS-PAN-1006
DS-PAN-1000 Series
Related Products
Havis offers a wide variety of accessory products specically for use
with the DS-PAN-1000 Series Docking Station. For more information
or to order, please visit www.havis.com.
LPS-102
90W Power Supply
External power supply and cable for Panasonic Toughbook 20
with cigarette lighter adaptor.
DS-DA-503
Replacement Keys
Set of two (2) replacement keys for DS-PAN-1000
Series Docking Stations.
DS-DA-419
Screen Support
Secure your laptop screen to prevent excess wear and
reduce vibration while in use.
DS-DS-306
Replacement Power Supply Output Cable
Replacement yellow tip output cable for the LPS-102
power supply for DS-PAN-1000 Series Docking Stations.
LPS-211
Power Supply Mounting Bracket
Mount a power supply or USB hub directly to your
Docking Station with this versatile bracket.
