Hay Boa Table Installation instructions

– DISASSEMBLY INSTRUCTION MANUAL –
D I SAS S E M B LY

 RECYCLING & DISASSEMBLY 
All the furniture in this instruction manual is
ecolabelled and designed to be long-lasting products
made to endure years to come. The furniture is
100% recyclable and parts can be fully separated
and recycled. All parts can be delivered to a suitable
recycling facility.

 TABLE OF CONTENTS   TABLE OF CONTENTS 
ARBOUR ECO 6
CHISEL LOUNGE CHAIR 8
AAC 08 9
AAC 12 10
AAC 14 11
AAC 16 12
AAC 18 13
AAC 20 14
AAC 22 15
AAC 24 16
AAC 26 17
AAC 42 18
AAC 50 19
AAC 52 20
AAS 32 21
AAS 38 22
SOFT EDGE 40 CHAIR 23
SOFT EDGE 40 CHAIR WITH UPHOLSTERY 24
SOFT EDGE 50 SLED 25
SOFT EDGE 50 SLED WITH UPHOLSTERY 26
SOFT EDGE 60 CHAIR 27
SOFT EDGE 60 CHAIR WITH UPHOLSTERY 28
SOFT EDGE 70 STOOL 29
SOFT EDGE 72 STOOL 30
SOFT EDGE 80 BAR STOOL 31
SOFT EDGE 82 BAR STOOL 32
SOFT EDGE 90 BAR STOOL 33
SOFT EDGE 90 BAR STOOL WITH UPHOLSTERY 34
SOFT EDGE 100 LOUNGE 35
SOFT EDGE 100 LOUNGE WITH UPHOLSTERY 36
RESULT CHAIR 37
RESULT CHAIR WITH UPHOLSTERY 38
RESULT ARMCHAIR 39
RESULT ARMCHAIR WITH UPHOLSTERY 40
REVOLT CHAIR 41
CPH 10 42
CPH 25 43
CPH 30 44
CPH 30 EXTENDABLE 45
CPH 90 46
CPH 190 47
CPH DEUX 210 48
CPH DEUX 215 49
CPH DEUX 220 50
CPH DEUX 250 51
PASTIS TABLE 52
TRIANGLE LEG BENCH 53
TRIANGLE LEG TABLE 54
BOA TABLE 55

6 7

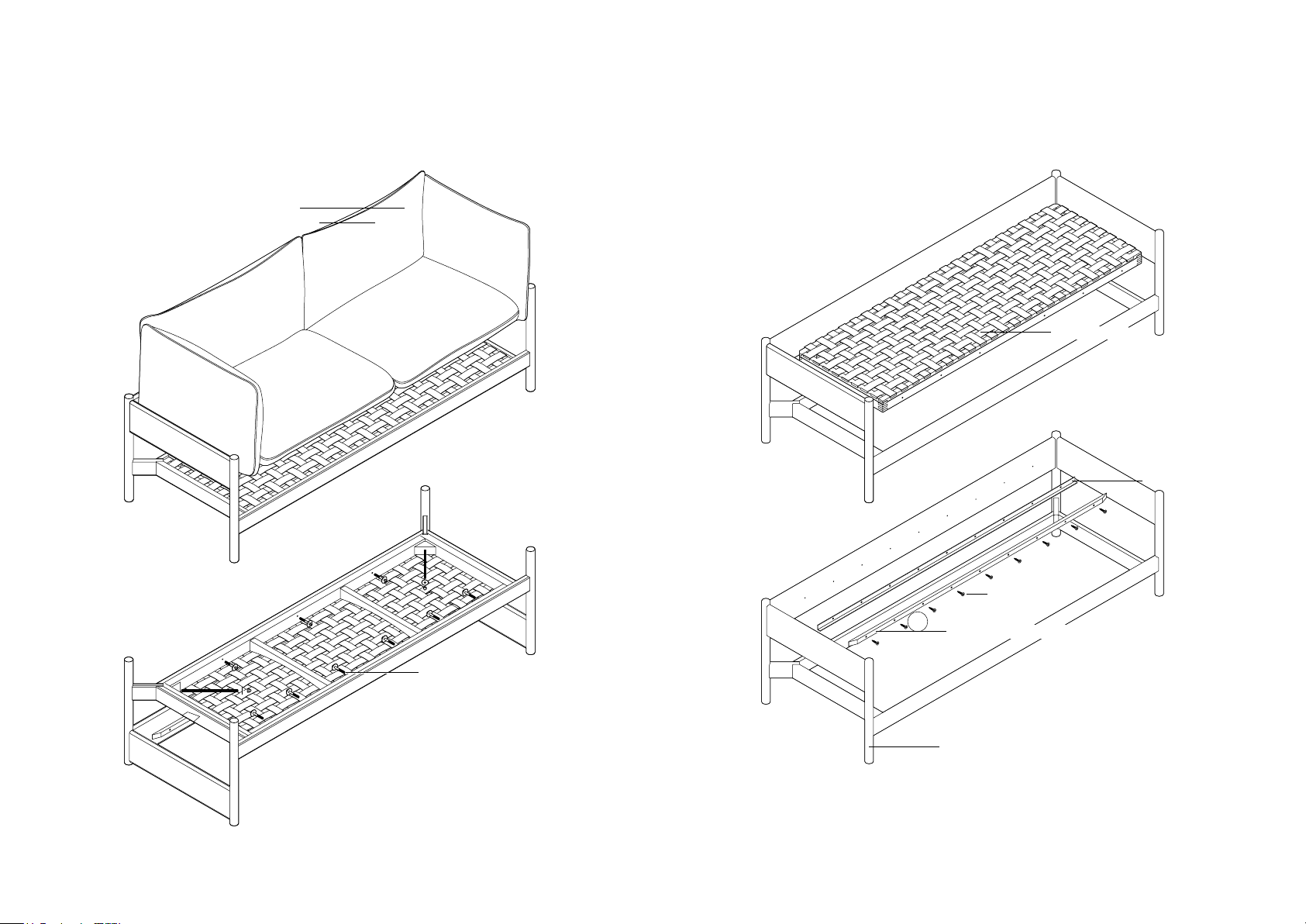

1. Remove the cushions.
2. Turn the sofa upside down and separate the base from
the frame by unscrewing all the screws
 ARBOUR ECO 
Frame - Wood
Reinforcement bar - Steel
Screws - Steel
Reinforcement bar - Wood
Webbing - Polyester
3. Remove the webbing base by lifting it up.
4. Unscrew all the screws to remove the steel profile
and the wood profile from the frame.
 ARBOUR ECO
Cushion cover - EU_Ecolabelled fabrics
Cushion filling - Feathers, polyurethane foam
Bolts, nuts and washers - Steel

8 9
 CHISEL LOUNGE CHAIR
1. Turn the table upside down.
2. Unscrew all the screws holding the legs and crossbar.
3. Unscrew the gliders from the legs.
 
Shell -
Recy cled
polypropylen e
Fitt ings - Steel
Frame - Steel
Fittings - Steel
Gliders - Polyethylene
Cover - Polypropylene
AAC 08

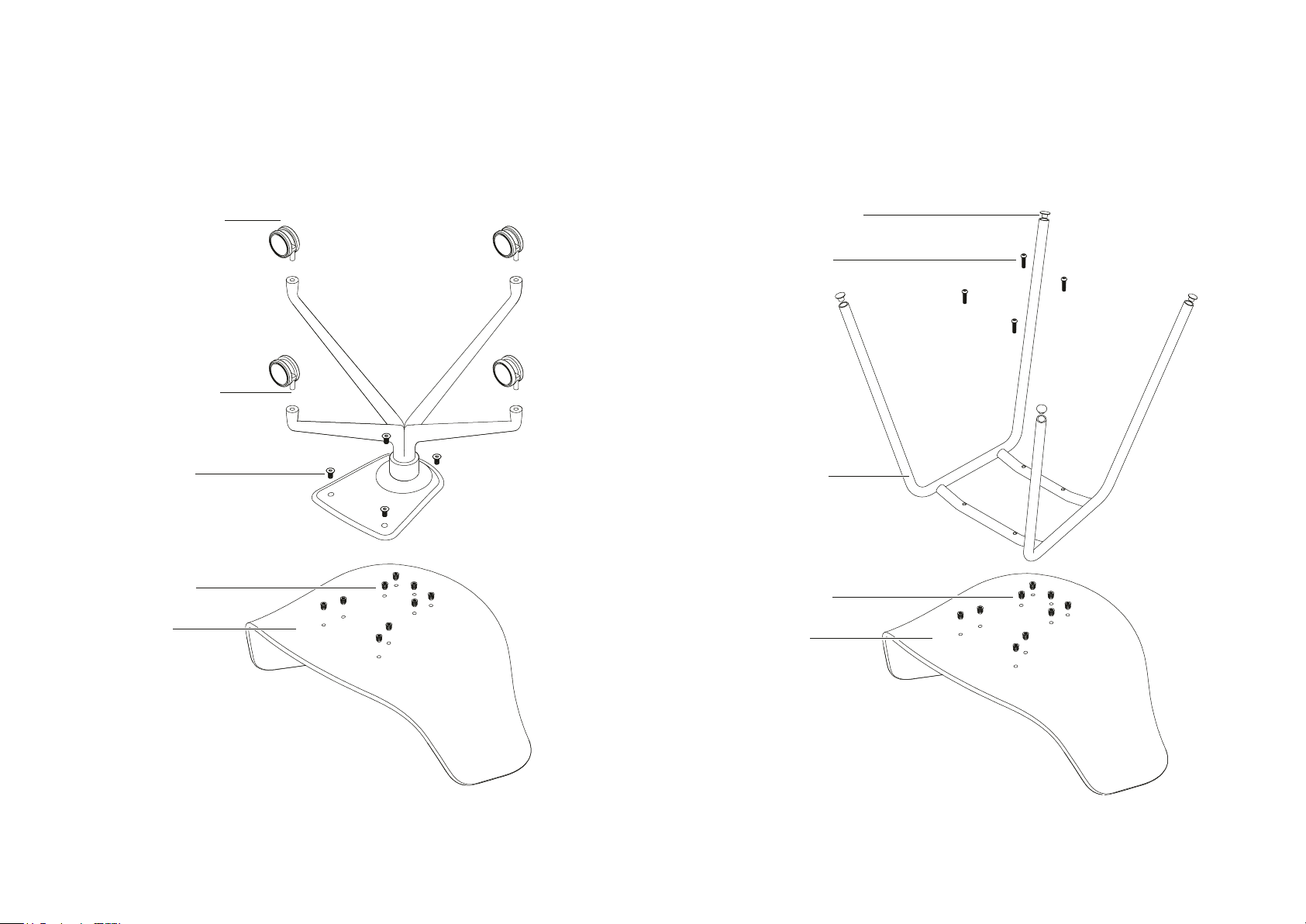

1. Turn the chair upside down.
2. Remove all the bushings from the bottom of the seat.
3. Remove the gliders from the legs.
4. Separate the base from the seat.
Frame - Wood
Fabric
Foam - P U

10 11
   AAC 12 AAC 14
1. Turn the chair upside down.
2. Remove all the bushings from the bottom of the seat.
3. Remove the gliders from the legs.
4. Separate the base from the seat.
1. Turn the chair upside down.
2. Remove all the bushings from the bottom of the seat.
3. Remove the wheels from the legs.
4. Separate the base from the seat.
Shell - Recycled
polypropylene
Legs - Solid oak
Gliders - Polyethylene
Fittings - Steel
Shell -
Recy cled
polypropylen e
Fitt ings - Steel
Fittings - Steel
Wheel - Plastic/steel
Frame - Aluminium

12 13
 AAC 16
1. Turn the chair upside down.
2. Remove all the bushings from the bottom of the seat.
3. Remove the gliders from the legs.
4. Separate the base from the seat.
Shell -
Recy cled
polypropylen e
Fitt ings - Steel
Frame - Steel
Fittings - Steel
Gliders - Polyethylene
Cover - Polypropolene
 AAC 18
1. Turn the chair upside down.
2. Remove all the bushings from the bottom of the seat.
3. Remove the gliders from the legs.
4. Separate the base from the seat.
Shell -
Recy cled
polypropylen e
Fitt ings - Steel
Fittings - Steel
Gliders - Polyethylene
Cover - Polypropylene
Frame - Steel
Fittings - Stee l
Armrest - Polyuretan

14 15
 AAC 20
1. Turn the chair upside down.
2. Remove all the bushings from the bottom of the seat.
3. Remove the gliders from the legs.
4. Separate the base from the seat.
Fittings - Steel
Gliders - Plastic/steel
Frame - Aluminium
Shell -
Recy cled
polypropylen e
Fitt ings - Steel
 AAC 22
Shell - Recycled
polypropylene
Legs - Beech plywood
Gliders - Polyethylene
Fittings - Steel
Legs - Oak veneer
1. Turn the chair upside down.
2. Remove all the bushings from the bottom of the seat.
3. Remove the gliders from the legs.
4. Separate the base from the seat.

16 17
 AAC 24
1. Turn the chair upside down.
2. Remove all the bushings from the bottom of the seat.
3. Remove the wheels from the legs.
4. Separate the base from the seat.
Fittings - Steel
Wheel - Plastic/steel
Frame - Aluminium
Shell -
Recy cled
polypropylen e
Fitt ings - Steel
 AAC 26
1. Turn the chair upside down.
2. Remove all the bushings from the bottom of the seat.
3. Remove the gliders from the legs.
4. Separate the base from the seat.
Shell -
Recy cled
polypropylen e
Fitt ings - Steel
Frame - Steel
Fittings - Steel
Gliders - Polyethylene

18 19
 AAC 42
1. Turn the chair upside down.
2. Remove all the bushings from the bottom of the seat.
3. Remove the gliders from the legs.
4. Separate the base from the seat.
Legs - Beech pl ywood
Gliders - Polyethylene
Fitt ings - Steel
Legs - Oak venee r
Shell -
Recy cled
polypropylen e
Fitt ings - Steel
 AAC 50
1. Turn the chair upside down.
2. Remove all the bushings from the bottom of the seat.
3. Remove the wheels from the legs.
4. Separate the base from the seat.
Fittings - Steel
Frame - Aluminium/steel
Wheel - Plastic/steel
Shell -
Recy cled
polypropylen e
Fitt ings - Steel

20 21
 AAC 52
1. Turn the chair upside down.
2. Remove all the bushings from the bottom of the seat.
3. Remove the wheels from the legs.
4. Separate the base from the seat.
Fittings - Steel
Shell -
Recy cled
polypropylen e
Fitt ings - Steel
Frame - Aluminium/steel
Wheel - Plastic/steel
 AAS 32
1. Turn the chair upside down.
2. Remove all the bushings from the bottom of the seat.
3. Remove the gliders and the footrest from the legs.
4. Separate the base from the seat.
Shell - Recycled
polypropylene
Legs - Beech plywood
Gliders - polyethylene
Fittings - Steel
Legs - Oak veneer
Footrest - Stainless steel

22 23
 AAS 38
1. Turn the chair upside down.
2. Remove all the bushings from the bottom of the seat.
3. Remove the gliders and the footrest from the legs.
4. Separate the base from the seat.
Shell - Recy cled
pol ypro pyle ne
Frame - Steel
Fittings - Steel
Gliders - Polyethylene
 SOFT EDGE 40 CHAIR

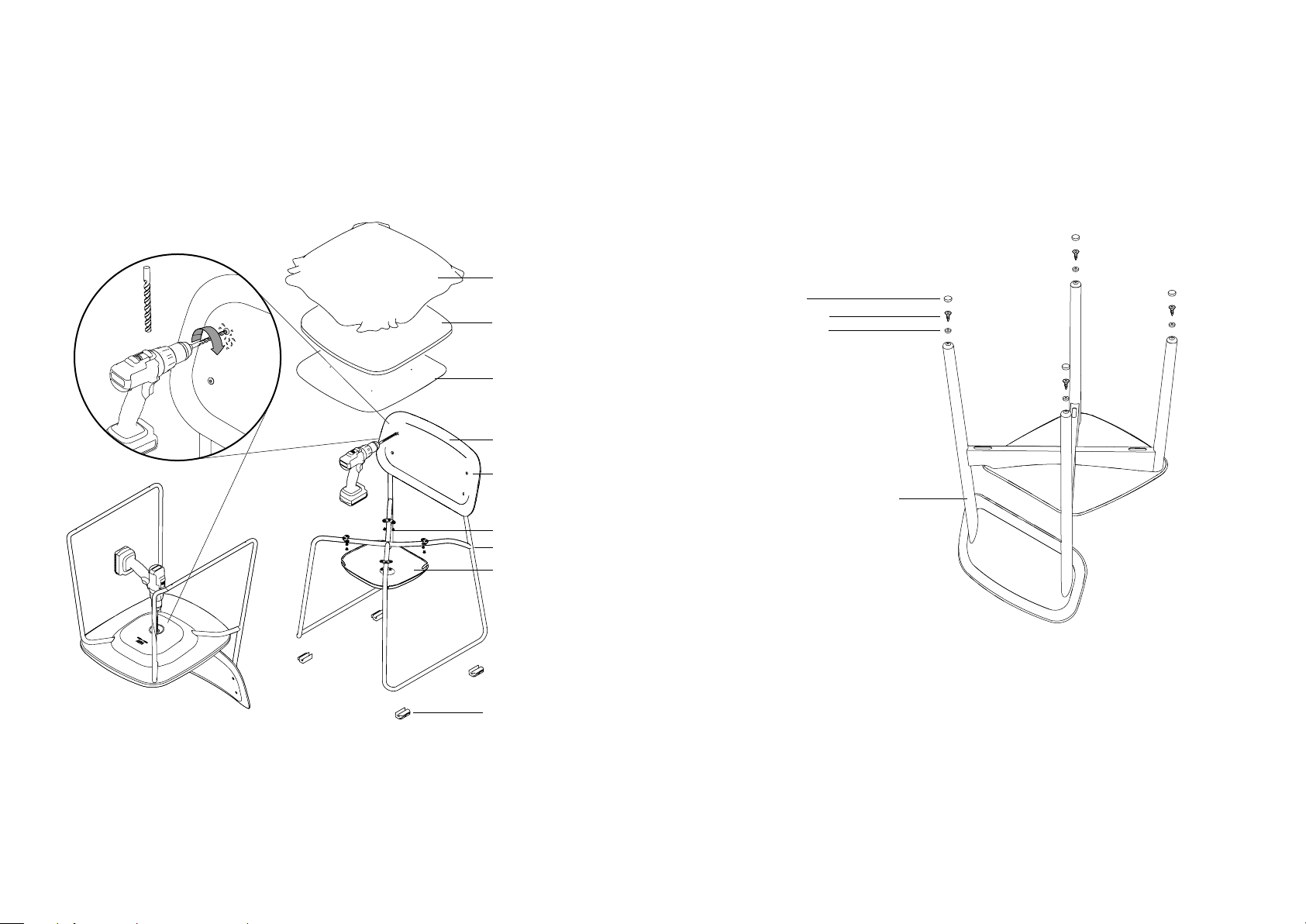

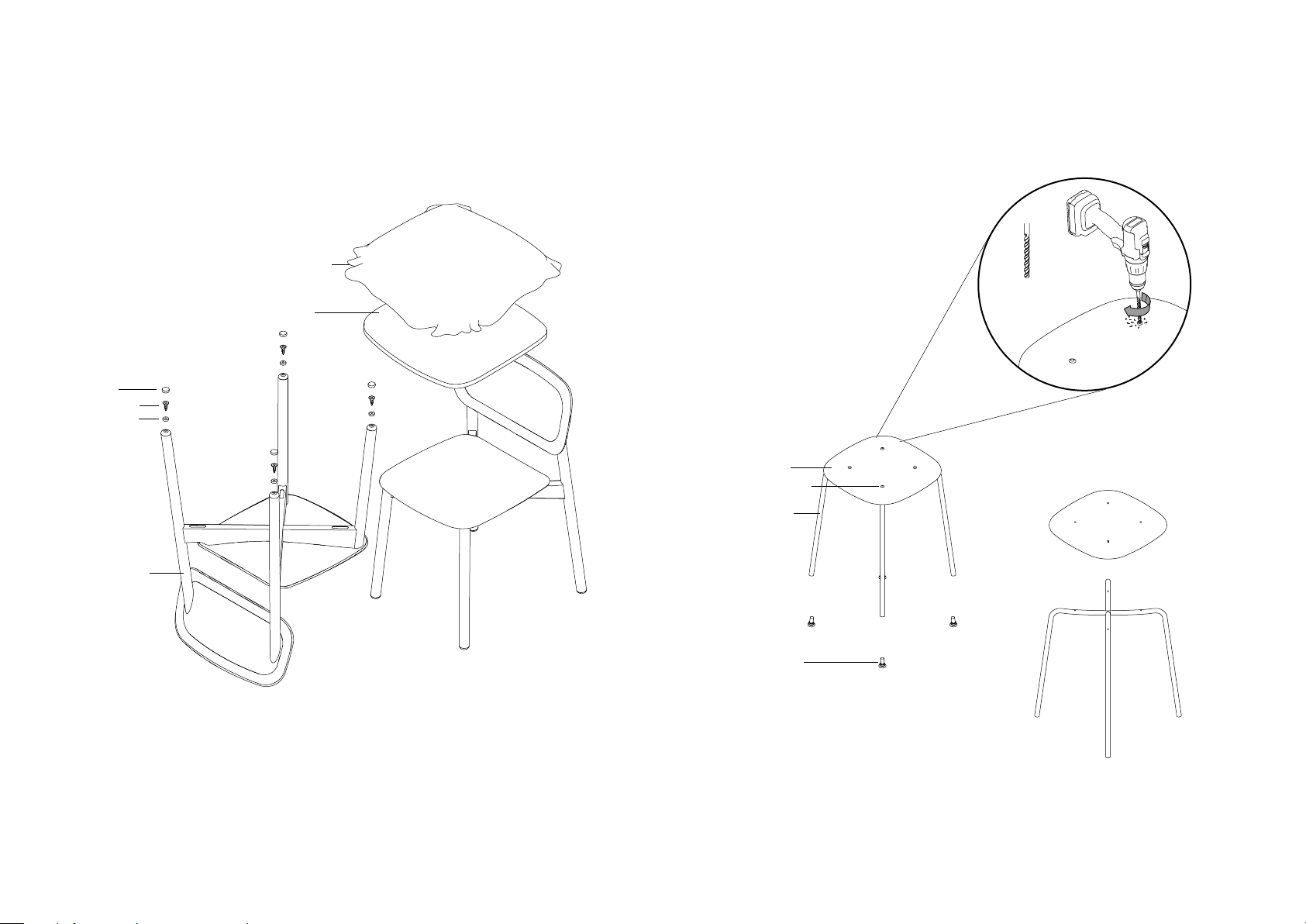

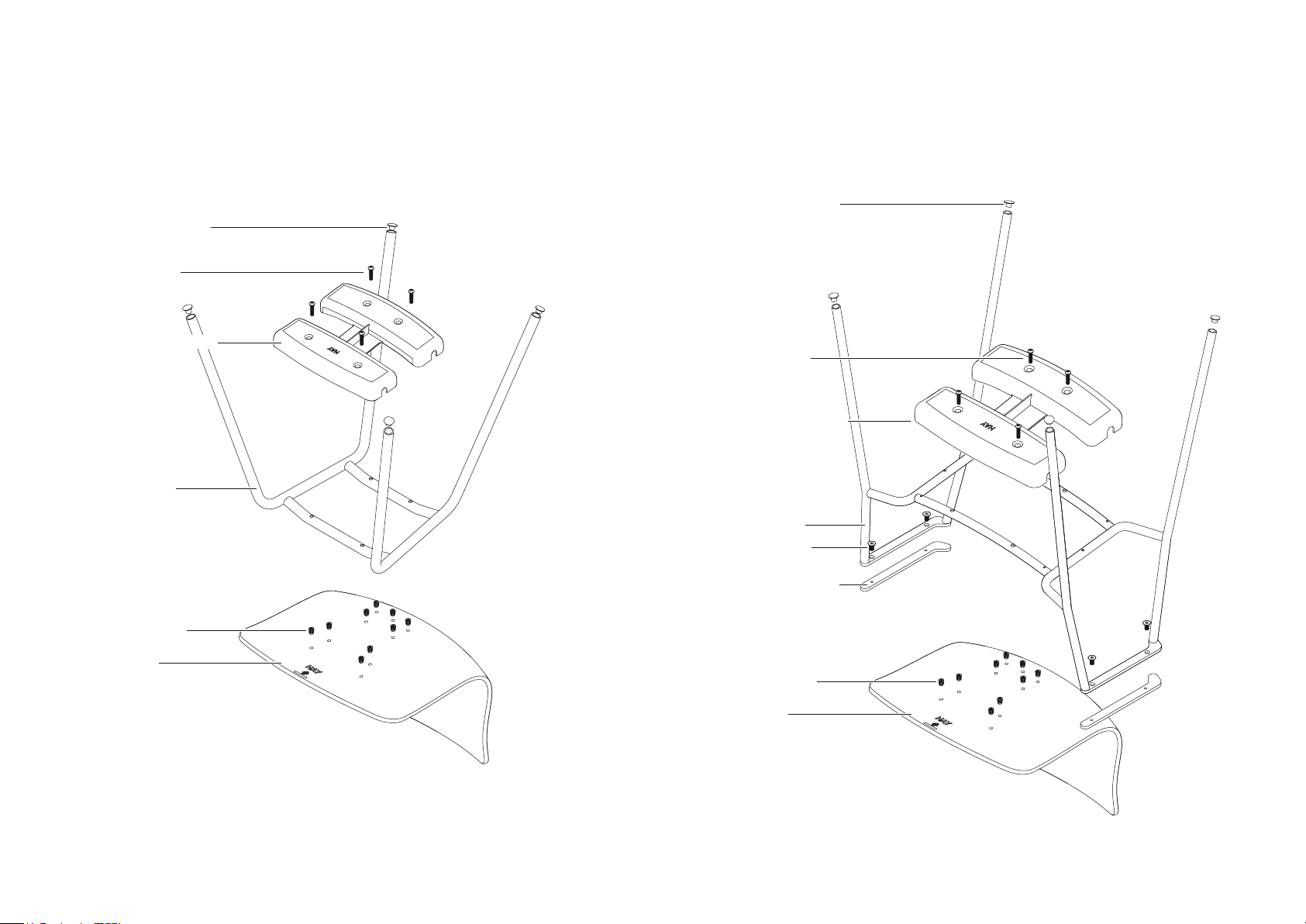

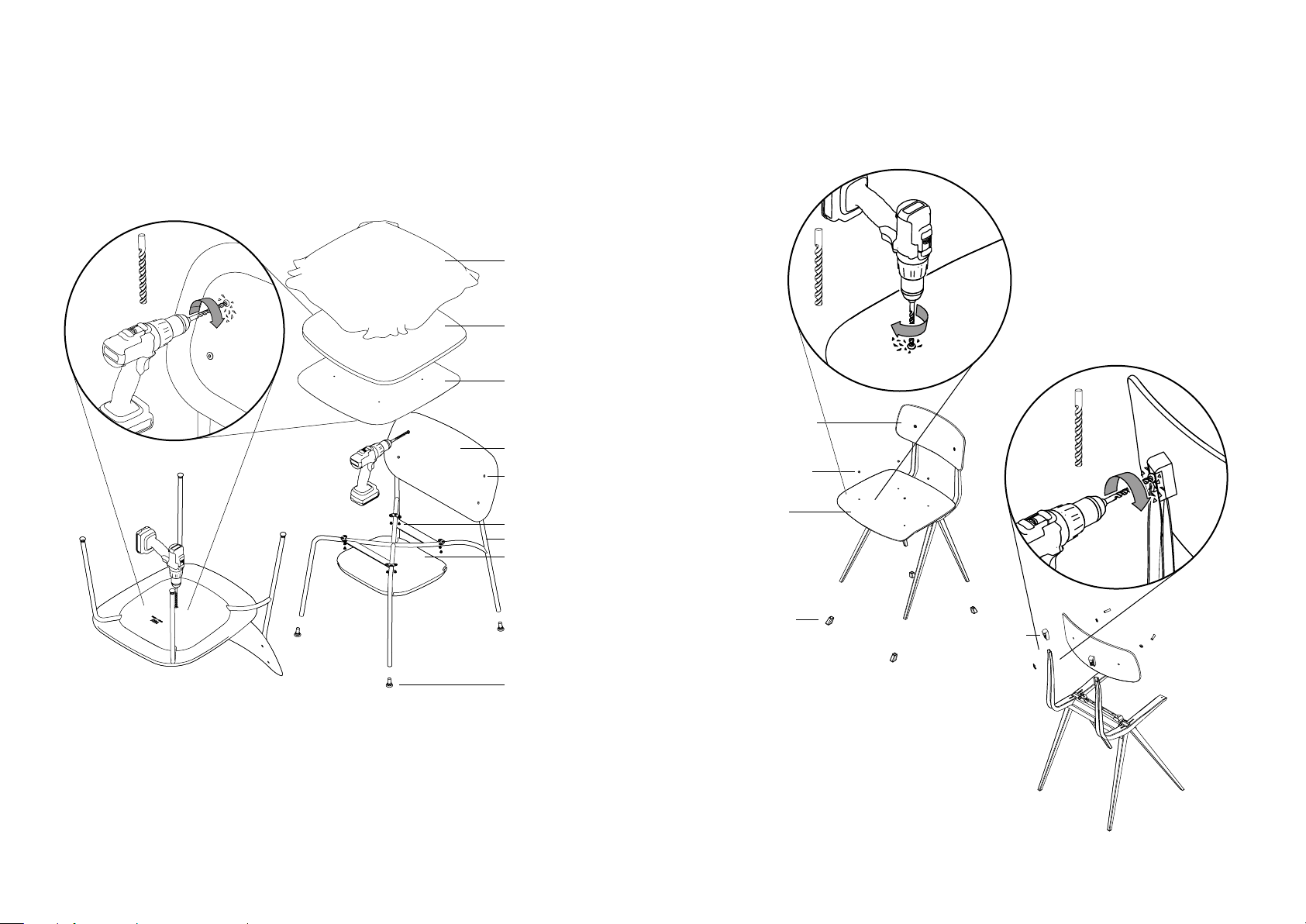

1. Hold the seat and backrest while unscrewing the rivets,
using a power drill with a 10mm bit.
2. Pull out the gliders from the legs.
3. Turn the chair upside down and drill out the rivets holding the cover.
Gliders - PELLD
Backrest - Wood
Frame - Steel
Rivets - Aluminium
Seat - Wood
Cover - PP
Ø10mØ10mmm

24 25
 SOFT EDGE 40 CHAIR WITH UPHOLSTERY
1. Hold the seat and backrest while unscrewing the rivets,
using a power drill with a 10mm bit.
2. Pull out the gliders from the legs.
3. Turn the chair upside down and drill out the rivets holding the cover.
4. Remove the upholstery and the foam from the wooden shell.
 SOFT EDGE 50 SLED
1. Hold the seat and backrest while unscrewing the rivets,
using a power drill with a 10mm bit.
2. Unscrew the gliders from the sled legs.
3. Turn the chair upside down and drill out the rivets holding the cover.
Backrest - Wood
Seat - Wood
Foam - PU
Cover - Textile
Rivets - Aluminium
Cover - PP
Gliders - PELLD
Frame - Steel
Screws - Steel
Ø10mØ10mmm
Cover - PP
Backrest - Wood
Rivets - Aluminium
Frame - Steel
Seat - Wood
Ø10mm

26 27
 SOFT EDGE 50 SLED WITH UPHOLSTERY
1. Hold the seat and backrest while unscrewing the rivets,
using a power drill with a 10mm bit.
2. Unscrew the gliders from the sled legs.
3. Turn the chair upside down and drill out the rivets holding the cover.
4. Remove the upholstery and the foam from the wooden shell.
 SOFT EDGE 60 CHAIR
1. Turn the chair upside down.
2. Remove the cap from the gliders.
3. Unscrew the screw and remove the gliders’ receivers.
Backrest - Wood
Seat - Wood
Rivets - Aluminium
Cover - PP
Gliders - PA
Frame - Steel
Screws - Steel
Foam - PU
Cover - Textile
Ø10mm
Frame, seat, backrest - Wood
Screws - Steel
Receivers - PP
Cap - PP

28 29
 SOFT EDGE 60 CHAIR WITH UPHOLSTERY
1. Turn the chair upside down.
2. Remove the cap from the gliders.
3. Unscrew the screw and remove the gliders’ receivers.
4. Remove the upholstery and the foam from the wooden shell.
 SOFT EDGE 70 STOOL
1. Hold the seat while unscrewing the rivets, using a power drill with a 10mm bit.
2. Pull out the gliders from the legs.
3. Turn the chair upside down and drill out the rivets holding the cover.
Frame, seat,
backrest - Wood
Screws - Steel
Foam - PU
Receivers - PP
Cap - PP
Cover - Textile
Gliders - PELLD
Seat - Wood
Rivets - Aluminium
Frame - Steel
Ø10mm

30 31
 SOFT EDGE 72 STOOL
1. Turn the stool upside down.
2. Remove the cap from the gliders.
3. Unscrew the screw and remove the gliders’ receivers.

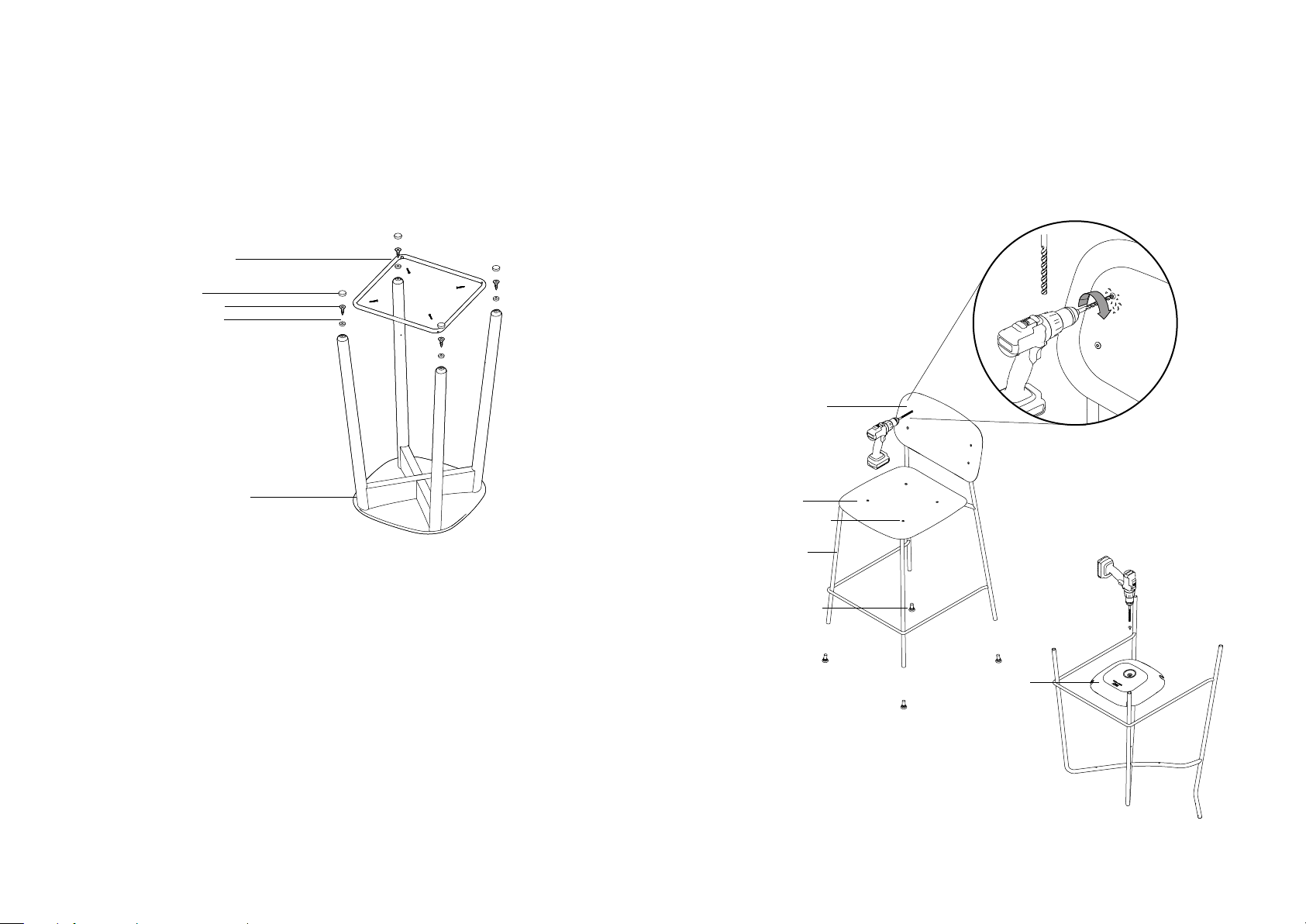

 SOFT EDGE 80 BAR STOOL
1. Hold the seat while unscrewing the rivets, using a power drill with a 10mm bit.
2. Pull out the gliders from the legs.
3. Turn the stool upside down and drill out the rivets holding the cover.
Frame, seat - Wood
Screws - Steel
Receivers - PP
Cap -PA
Seat - Wood
Rivets - Aluminium
Frame - Steel
Gliders - PELLD
Ø10mm

32 33
 SOFT EDGE 82 BAR STOOL
1. Turn the bar stool upside down.
2. Remove the cap from the gliders.
3. Unscrew the screw and remove the gliders’ receivers.
4. Unscrew the screws holding the footrest and remove it.
 
Seat - Wood
SOFT EDGE 90 BAR STOOL
1. Hold the seat and backrest while unscrewing the rivets,
using a power drill with a 10mm bit.
2. Pull out the gliders from the legs.
3. Turn the bar stool upside down and drill out the rivets holding the cover.
Frame, seat - Wood
Screws - Steel
Receivers - PP
Cap - PA
Footrest - Steel
Cover - PP
Backrest - Wood
Rivets - Aluminium
Gliders - PELLD
Frame - Steel
Ø10mm

34 35
 SOFT EDGE 90 BAR STOOL WITH UPHOLSTERY
1. Hold the seat and backrest while unscrewing the rivets,
using a power drill with a 10mm bit.
2. Pull out the gliders from the legs.
3. Turn the bar stool upside down and drill out the rivets holding the cover.
4. Remove the upholstery and the foam from the wooden shell.
 SOFT EDGE 100 LOUNGE
1. Hold the seat and backrest while unscrewing the rivets,
using a power drill with a 10mm bit.
2. Pull out the gliders from the legs.
3. Turn the chair upside down and drill out the rivets holding the cover.
Seat - Wood
Rivets - Aluminium
Gliders - PELLD
Cover - PP
Frame - Steel
Screws - Steel
Backrest - Wood
Foam - PU
Ø10mm
Cover - PP
Backrest - Wood
Seat - Wood
Rivets - Aluminium
Frame - Steel
Gliders - PELLD
Ø10mm

36 37
 SOFT EDGE 100 LOUNGE WITH UPHOLSTERY
1. Hold the seat and backrest while unscrewing the rivets,
using a power drill with a 10mm bit.
2. Pull out the gliders from the legs.
3. Turn the chair upside down and drill out the rivets holding the cover.
4. Remove the upholstery and the foam from the wooden shell.
 RESULT CHAIR
1. Hold the seat and backrest while unscrewing the rivets,
using a power drill with a 10mm bit.
2. Remove the bumpers from the backrest posts and the gliders from the legs.
Backrest - Wood
Seat - Wood
Foam - PU
Cover - Textile
Rivets - Aluminium
Cover - PP
Gliders - PELLD
Frame - Steel
Screws - Steel
Ø10mm
Backrest - Veneer
Seat - Veneer
Rivets - Aluminium
Gliders - LLDPE
Ø10mØ10mmm
Ø10mØ10mmm
Bumpers - TPE

38 39
 RESULT CHAIR WITH UPHOLSTERY
1. Unscrew the screws underneath the seat.
2. Remove the upholstery and the foam from the wooden shell.
3. Hold the seat and backrest while unscrewing the rivets,
using a power drill with a 10mm bit.
4. Remove the bumpers from the backrest posts and the gliders from the legs.
 RESULT ARMCHAIR
Back rest - V enee r
Seat - V enee r
Rivets - A luminium
Gliders - LLDP E
Armrest - ABS
Ø10mØ10mmm
Ø10mØ10mmm
Bump ers - TPE
1. Hold the seat and backrest while unscrewing the rivets,
using a power drill with a 10mm bit.
2. Remove the bumpers from the backrest posts and the gliders from the legs.
Ø10mØ10mmm
Bumpers - TPE
Backrest - Wood
Seat - Wood
Padding - PU
Textile - PU foam
Screws - Steel
Frame - Steel
Gliders - LLDPE
