Haylou X1 Pro User manual

@
HAYLOU
HAYLOU X11 Pro
True Wireless ANC Earbuds
User Manual

Overview
Mic 2
LED
MFB
Charging
Mic1 contacts
—)
Wy,
f
a /
Type-C
LED charging port

How to Wear
Please adjust earbud to fit youself best.
“® ¢
When calling, adjust Mic 1 towards mouth to
gain better talking experience.

How to Charge
1. Fully charge the charging case and earbuds
before first use.
2. Insert the charging cable to simultaneously
charge the earbuds and the charging case.
3. Earbuds: Put them back into the case, the
earbuds indicator light is solid red. After fully
charged, the indicator light is solid white for
60s and then goes out.
@
t

Battery Indicator of Charging Case
The charging case has enough power (power
210%). Open the charging case, LED will flash
white three times.
The charging case has medium power (30<
power<70%). Open the charging case, LED will
flash red and white three times at the same
time.
The charging case has low power (0<power
<30%). Open the charging case, LED will flash
red twice for 5 cycles.

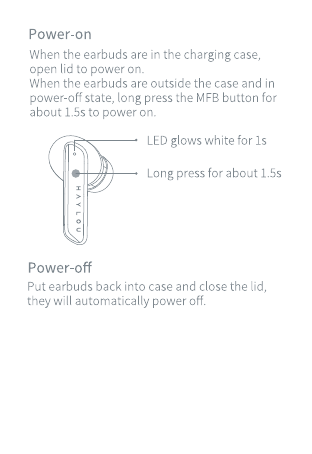

Power-on
When the earbuds are in the charging case,
open lid to power on.
When the earbuds are outside the case and in
power-off state, long press the MFB button for
about 1.5s to power on.
LED glows white for 1s
Long press for about 1.5s
Power-off
Put earbuds back into case and close the lid,
they will automatically power off.

How to Connect
Take out both earbuds from the case
simultaneously. Open device Bluetooth, search
for “Haylou X1 Pro” and click to connect.
If connection fails, put earbuds back into case
and try again. After connection, earbuds will
automatically re-connect to the last-paired
device whenever powering on (Bluetooth
needs to be turned on).
Turn on Bluetooth
Visibility
Visible to all luetooth devices nearby
Device name
Available Devices
Haylou X1 Pro

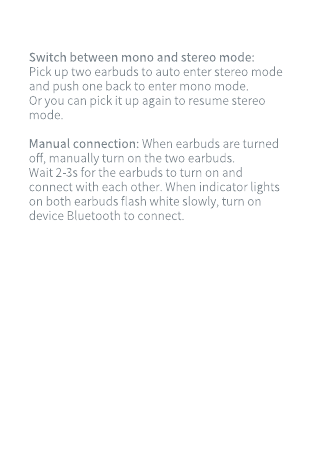

Switch between mono and stereo mode:
Pick up two earbuds to auto enter stereo mode
and push one back to enter mono mode.
Or you can pick it up again to resume stereo
mode,
Manual connection: When earbuds are turned
off, manually turn on the two earbuds.
Wait 2-3s for the earbuds to turn on and
connect with each other. When indicator lights
on both earbuds flash white slowly, turn on
device Bluetooth to connect.

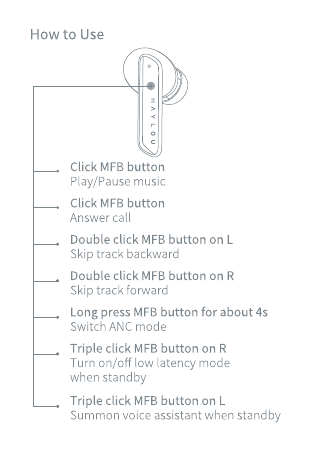

How to Use
|__, Click MFB button
Play/Pause music
|__. Click MFB button
Answer call
. Double click MFB button onL
Skip track backward
Double click MFB button on R
Skip track forward
Long press MFB button for about 4s
Switch ANC mode
Triple click MFB button on R
Turn on/off low latency mode
when standby
Triple click MFB button on L
Summon voice assistant when standby

Factory Setting
If the earbuds cannot be connected and used
normally, please refer to the following methods:
When the earbuds are in the charging case and
the charging case has power, long press
charging case button for 10s, the earbuds will
automatically be reset (the connection records
between the two earbuds and device will be
cleared).
* If the operation fails, please repeat the above
steps; or log in to the official store, contact
customer service to view the reset operation
video.
Audio only Outputs from Single Earbud
It's unusual indeed, please set earbuds to
factory, remove connectivity record on phone
and re-connect.
Other Charging Problems
1. White LED turns off after 1 minute. It means
your earbuds have been fully charged.
2. The earbuds won't be charged if the charging
case is out of power.
3, LED does not turn on when charging the case.
It means that the case has been fully charged
so the light does not turn on.

Package List
Earbuds, charging case, 3 pairs of ear tips
(M size has been pre-installed), charging cable,
user manual.
Basic Parameters(earbuds)
Operation range: 10m (open space with no
obstacle)
Battery capacity: 45mAh(single earbud)
Charging time: approx. 2hr
Talk time: approx. 5hr
Standby time: approx. 60hr
Input parameter: 5V = 100mA
Battery type: Rechargeable li-ion button battery
Bluetooth version: V5.2
Basic Parameters(charging case)
Input parameter: 5V = 500mA
Output parameter: 5V = 150mA
Charging time: approx. 3hr
Battery capacity: 400mAh
Battery type: li-ion polymer

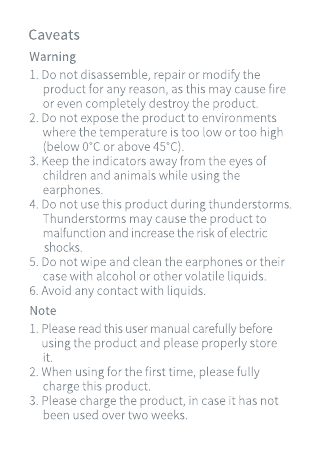

Caveats
Warning
1.
N
w
&
on
6.
Do not disassemble, repair or modify the
product for any reason, as this may cause fire
or even completely destroy the product.
. Do not expose the product to environments
where the temperature is too low or too high
(below 0°C or above 45°C).
. Keep the indicators away from the eyes of
children and animals while using the
earphones.
Do not use this product during thunderstorms.
Thunderstorms may cause the product to
malfunction and increase the risk of electric
shocks.
. Do not wipe and clean the earphones or their
case with alcohol or other volatile liquids.
Avoid any contact with liquids.
Note
1.
2.
3.
Please read this user manual carefully before
using the product and please properly store
it.
When using for the first time, please fully
charge this product.
Please charge the product, in case it has not
been used over two weeks.

4. Please use certificated charger.
5. Do not wear earphones for a long term to
protect your hearing.
6. Do not wear earphones in any situations with
potential risks as wearing them may reduce
your perception to the outside world.
Daily maintenance
Please do not shower with earbuds. Do not
wear them in rainy day. Do not leave them in
washing machine or other extreme situations.
Clean them with dry cloth.

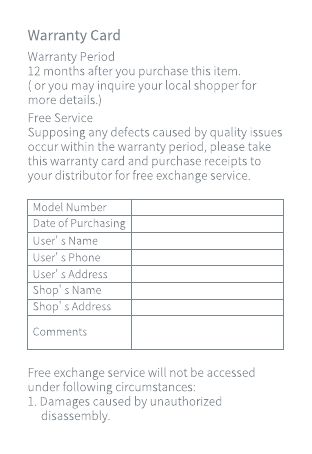

Warranty Card
Warranty Period
12 months after you purchase this item.
(or you may inquire your local shopper for
more details.)
Free Service
Supposing any defects caused by quality issues
occur within the warranty period, please take
this warranty card and purchase receipts to
your distributor for free exchange service.
Model Number
Date of Purchasing
User's Name
User's Phone
User's Address
Shop's Name
Shop's Address
Comments
Free exchange service will not be accessed
under following circumstances:
1. Damages caused by unauthorized
disassembly.

N
. Defects or physical damages caused by
leaking or dropping off.
Damages by act of God.
Supposing your item is within any damages
or defects except the above circumstances,
please return to us or your distributor for free
repairing.
w
FCC Requirement
This device complies with Part 15 of the FCC
rules. Operation is subject to the following two
conditions: 1) this device may not cause harmful
interference, and 2) this device must accept any
interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses and
can radiate radio frequency energy and if not
installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur ina

particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is encouraged
to try correct the interference by one or more of
the following measures:
- Reorient the receiving antenna.
- Increase the separation between the
equipment and receiver.
- Connect the equipment into and outlet on a
circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/TV
technician for help.
Changes or modifications not expressly approved
by the party responsible for compliance could
void your authority to operate the equipment.
The distance between user and products should
be no less than 20cm
FE FCC 1D: 2AMQ6-X1PRO
Manufacturer: Dongguan Liesheng Electronic
Co., Ltd
Address: Room 401-410, Building 1, No.
86 Hongtu Road, Nancheng District,
Dongguan City, Guangdong, China
