Hayman Reese 03274RW User manual

XX
TOWBAR
INSTALLATION INSTRUCTIONS
PART NUMBER
03274RW
VOLKSWAGEN AMAROK 2H CL4 UTE
49-75 Pacific Drive Keysborough, VIC 3173
Phone: [phone]
Email: [e-mail]
Rev: BPage 1Issue Date: 14-01-20
PRODUCT DETAILS:
Part Number:
03274RW
Maximum Towing Braked:
3500
kg
ECU Number:
WLE70004
Maximum Towing Unbraked:
750
kg
Tail Harness Length Required:
1200 mm
Maximum Static Ball Load:
300
kg
TBM/Lug Part Number:
21161
Wiring Part Number:
WLL9004
FITTING DETAILS:
Towbar Installation Time:
30 Mins.
Hayman Reese SmartCODE Solution Required:
YES
Wiring Installation Time:
30Mins.
RPA Disable/Other
YES
Total Installation Time:
60 Mins.
Notes:
Bumper Cut Required:
No
Electric Brake = Brack Prep Connector
RPA Automatically disable when vehicle is
coded
*See Appendix for added information

XX
TOWBAR
INSTALLATION INSTRUCTIONS
PART NUMBER
03274RW
VOLKSWAGEN AMAROK 2H CL4 UTE
49-75 Pacific Drive Keysborough, VIC 3173
Phone: [phone]
Email: [e-mail]
Rev: BPage 2Issue Date: 14-01-20
ENSURE THAT INSTRUCTIONS ARE UNDERSTOOD PRIOR TO FITMENT.
BEFORE YOU START:
1. Hayman Reese recommends that instructions are read completely prior to fitment.
2. Check all hardware items have been included refer to assembly diagram.
3. Please ensure this towbar is only fitted to vehicle models as per Hayman Reese application guide
(www.haymanreese.com.au).
4. Bumper Cuts
5. Vehicle and bumper variations can and do occur during vehicle manufacture after initial towbar design.
Fitment of towbar to vehicle and accuracy of bumper cut must be assessed prior to any bumper
modifications made. Incorrect bumper cuts are not covered under Hayman Reese warranty.
6. NOTE: Bumper cuts need to be approached with care, refer to notes below.
Bumper centreline –where the centreline of the bumper needs to be determined, the installer
must assess centre point by measurement of bumper width or determining two symmetrical
reference points to give centreline.
Bumper edge –To assist with accurate bumper cut measurement, reference to the start of the
bumper edge is now being commonly used.
oMeasure from bottom edge along bumper and around corner to the 70 mm point
(Figure 1).
oDo not measure from visible bumper front of corner, upwards (Figure 2).
7. Drilling
For any required drilling during installation, ensure that the area is clear of fuel, electrical & other components that may
be damaged.
All holes drilled into the body panels shall have all burrs & swarf removed then coated with a suitable rust preventative
paint.
8. Bolts/Fasteners
Ensure that all hardware is fastened to correct torque as specified in this fitting instruction.
All fasteners supplied with this product are used to achieve a specified clamp loading. If replacement is required ensure
that fasteners of the same grade and class are used.
9.
10. NOTE: Achieving correct torque is critical to proper installation and responsibility of the installer. Towbar failures attributed
to tension issues from over tightening or under tightening are not covered by Hayman Reese warranty.
11.
12. Product Labels
a. Towbar load rating sticker provided with this product shall be conspicuously located on inside rear end of the driver’s
door.
b. Powertrain Control Module (PCM)/Body Control Module (BCM) upgrade warning label will be provided in towbar kit for
vehicles as required. Affix warning label in door and owner’s handbook.
WARNING:
1.
2. Do not, drill, cut, weld or otherwise modify the towbar.
3. FOR TOWING PURPOSES ONLY - This towbar is designed and tested by Hayman Reese to adhere to ADR 62/02 which
provides only for the expected load demands of towing.
Figure 1
INCORRECT
CORRECT
Place Vehicle PCM/ BCM upgrade
warning label in door AND on front
cover of owner’s service handbook
Place Load Rating
sticker inside driver’s
door here
Figure 2

XX
TOWBAR
INSTALLATION INSTRUCTIONS
PART NUMBER
03274RW
VOLKSWAGEN AMAROK 2H CL4 UTE
49-75 Pacific Drive Keysborough, VIC 3173
Phone: [phone]
Email: [e-mail]
Rev: BPage 3Issue Date: 14-01-20

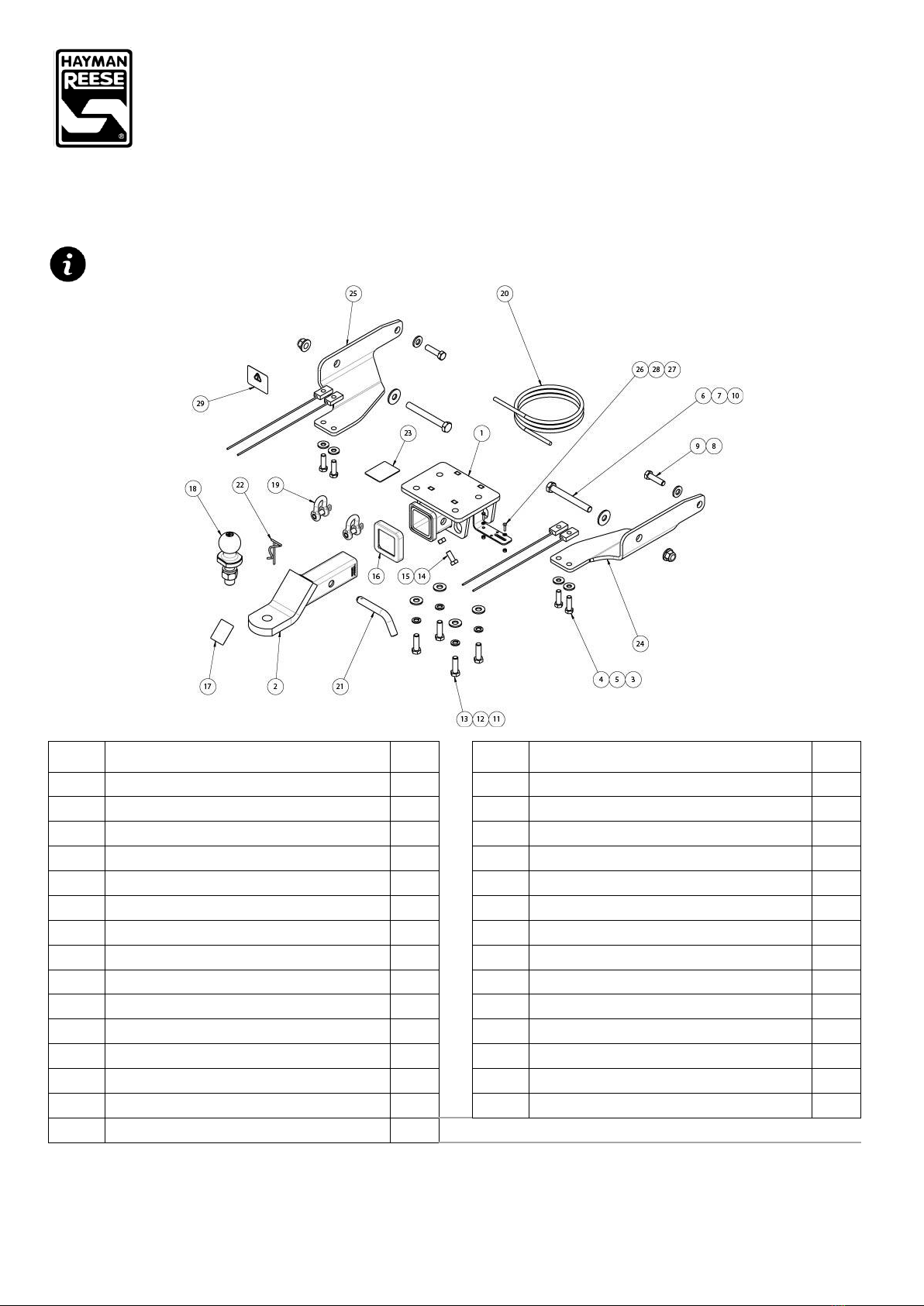

TOWBAR ASSEMBLY DIAGRAM
ITEM
DESCRIPTION
QTY
ITEM
DESCRIPTION
QTY
1
AMAROK WELDED ASSEMBLY
1
16
HITCH BOX COLLAR COVER
1
2
TRAILER BALL MOUNT
1
17
H.R STICKER
1
3
T PLATE M10 1.5P & WIRE W300
4
18
HR TOWBALL
1
4
M10 - 1.5 x 35mm SET SCREW
4
19
"D" SHACKLE 10mm
2
5
WSHR FT M10 X 25.4 X 3
4
20
CAN WIRING LOOM VW AMAROK
1
6
BOLT M14 x120 x 2.0P G10.9
2
21
PULL PIN
1
7
WASHER FT M12 x 37 x 3mm
2
22
SPRING COTTER PIN ASSY
1
8
WASHER FLAT 1/2"x1 1/8"x1/8"
2
23
COMPLIANCE LABEL
1
9
SET SCREW M12x45x1.5P GR 10.9
2
24
SUPPORT PLATE RHS
1
10
NUT HEX FLANGE NYLON M14-2.0
2
25
SUPPORT PLATE LHS
1
11
WASHER FLAT M12
4
26
SCREW PAN HD M4 X 16 X 0.7P G4.6
2
12
WSHR SPRING FT SEC M12x4.0x2.5mm
4
27
NUT NYLON LOCK HEX HD M4X0.7P
2
13
SET SCREW M12-1.5x40 GR8.8
4
28
M4 WASHER
2
14
BOLT M10-1.50 x 25
1
29
CAN TRAILER WARNING LABEL
2
15
HEX NUT M10x1.5
1

XX
TOWBAR
INSTALLATION INSTRUCTIONS
PART NUMBER
03274RW
VOLKSWAGEN AMAROK 2H CL4 UTE
49-75 Pacific Drive Keysborough, VIC 3173
Phone: [phone]
Email: [e-mail]
Rev: BPage 4Issue Date: 14-01-20

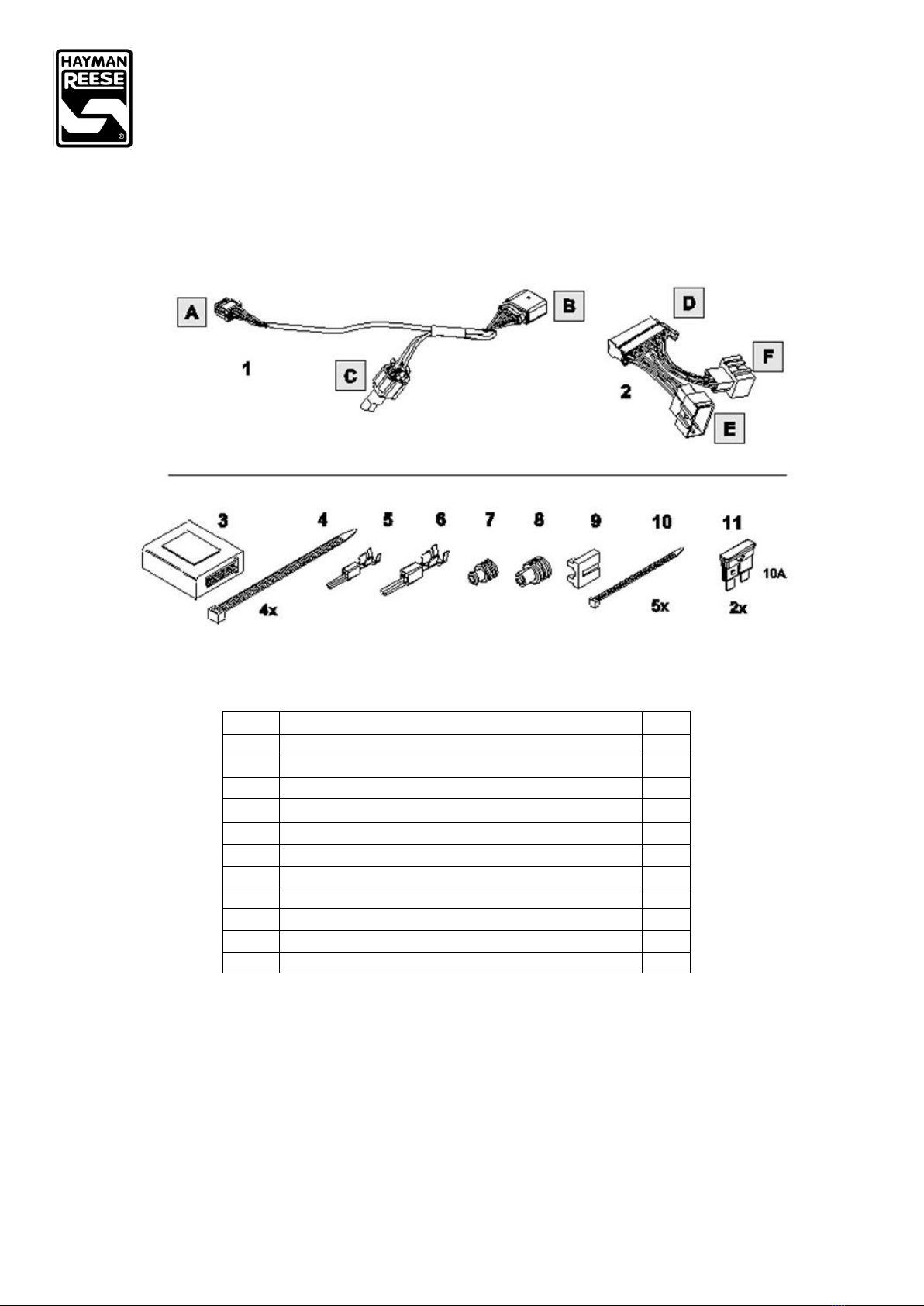

WIRING ASSEMBLY DIAGRAM

XX
TOWBAR
INSTALLATION INSTRUCTIONS
PART NUMBER
03274RW
VOLKSWAGEN AMAROK 2H CL4 UTE
49-75 Pacific Drive Keysborough, VIC 3173
Phone: [phone]
Email: [e-mail]
Rev: BPage 5Issue Date: 14-01-20
ITEM
DESCRIPTION
QTY
1
Rear outside harness
1
2
Front inside harness
1
3
Trailer module –> WLE70004
1
4
Tie Straps –300mm long
4
5
Brake controller plug pin - small
1
6
Brake controller plug pin - large
1
7
Weather Seal brake controller plug - small
1
8
Weather Seal brake controller plug - large
1
9
Secondary lock brake controller plug
1
10
Tie straps - 150mm long
5
11
Fuse 10A - red
2

XX
TOWBAR
INSTALLATION INSTRUCTIONS
PART NUMBER
03274RW
VOLKSWAGEN AMAROK 2H CL4 UTE
49-75 Pacific Drive Keysborough, VIC 3173
Phone: [phone]
Email: [e-mail]
Rev: BPage 6Issue Date: 14-01-20
TOOLS

XX
TOWBAR
INSTALLATION INSTRUCTIONS
PART NUMBER
03274RW
VOLKSWAGEN AMAROK 2H CL4 UTE
49-75 Pacific Drive Keysborough, VIC 3173
Phone: [phone]
Email: [e-mail]
Rev: BPage 7Issue Date: 14-01-20

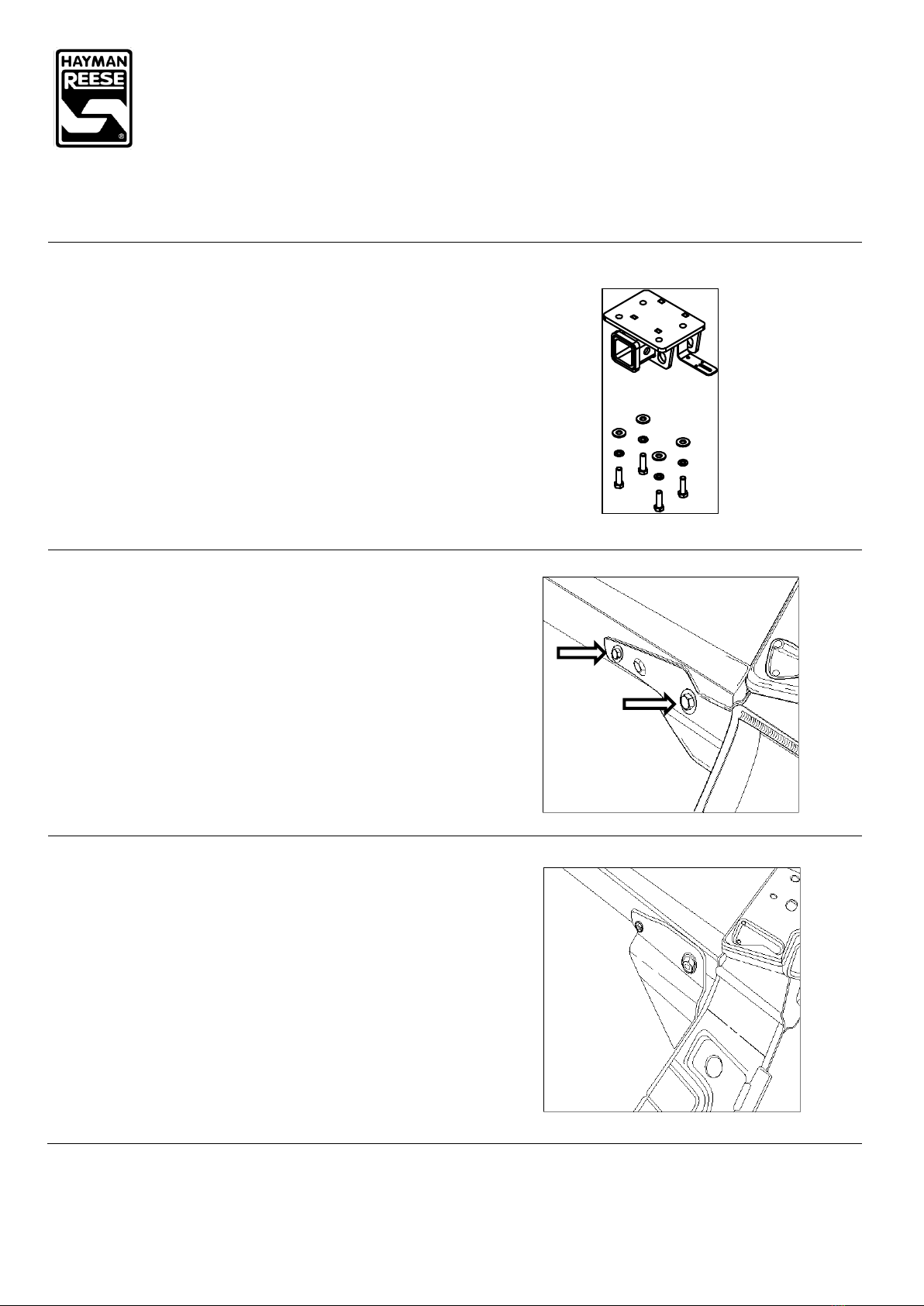

1. Fit Towbar under bumper, aligning holes in mount
plate with chassis.
Insert 4 off M12 x 40-1.5p Bolts, with spring
Washer and flat Washer through mount plate into
chassis Captive Nuts.
Torque:
M12x40x1.5P GR8.8 = 83Nm
2. Carefully remove the 2 step Mounting Bolts
connecting the step to the Chassis Rail, discarding
the existing Bolts.
3. Bolt the step support Bracket to the step using the
Bolts provided to the torque specification below,
Spare wheel may need to be lowered to make
room for installation of step support plates. See
exploded view on page 3 for reference.
Torque:
M14x120x2.0P GR10.9 = 175Nm
M12x45x1.5P GR10.9 = 117Nm

XX
TOWBAR
INSTALLATION INSTRUCTIONS
PART NUMBER
03274RW
VOLKSWAGEN AMAROK 2H CL4 UTE
49-75 Pacific Drive Keysborough, VIC 3173
Phone: [phone]
Email: [e-mail]
Rev: BPage 8Issue Date: 14-01-20
4. Using the step support Bracket as a drilling
template drill out the 2 holes in the bottom of the
step cross, using a 11mm drill bit.
Using the existing hole in the step cross tube
feed in the 2 x tapped plates and fasten the 2 x
M10 Bolts to them to the torque specification
below.
Torque:
M10x35x1.5P GR8.8 = 44Nm
Cut away excess wire from tapped plates.
Repeat steps 2 to 4 for other side of vehicle.
IMPORTANT
Due to possible vehicle variations, always confirm any
noted vehicle colour wires with a multi-meter to ensure
the correct function is identified before soldering or
scotch locking. For vehicle wires denoted with two
colours (example; RED/GREEN) the first colour will
always be the main wire colour while the second colour
is the thinner trace colour on the wire.

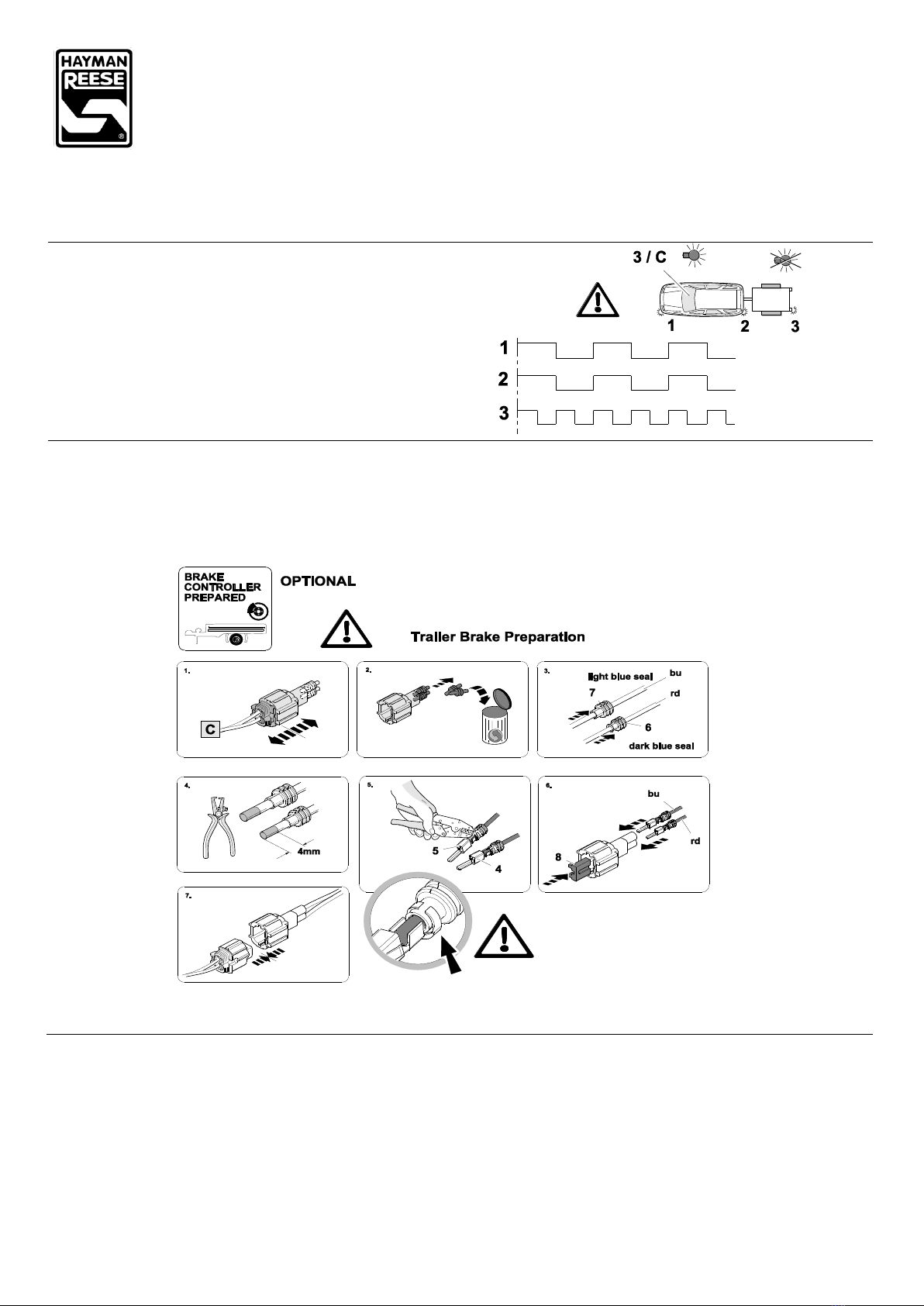

5. Find the prepared 14-way trailer plug located at
the rear left chassis underbody.
Unplug the blanking plug (1), discard (2).
Connect the rear outside harness (1) using
connector (B).

XX
TOWBAR
INSTALLATION INSTRUCTIONS
PART NUMBER
03274RW
VOLKSWAGEN AMAROK 2H CL4 UTE
49-75 Pacific Drive Keysborough, VIC 3173
Phone: [phone]
Email: [e-mail]
Rev: BPage 9Issue Date: 14-01-20
6. Connect tail harness with 8-way connector to
outside trailer harness connector (A).
Waterproof the trailer harness 8-way connector
(A) and the tail harness 8-way male connector,
using silicone or grease.
7. Route the trailer harness to the socket plate and
fix the trailer harness with enclosed tie straps.
Mount the trailer socket. (AA)
8. Remove the right front trim panels as shown.

XX
TOWBAR
INSTALLATION INSTRUCTIONS
PART NUMBER
03274RW
VOLKSWAGEN AMAROK 2H CL4 UTE
49-75 Pacific Drive Keysborough, VIC 3173
Phone: [phone]
Email: [e-mail]
Rev: BPage 10 Issue Date: 14-01-20
9. Locate the 2 prepared connectors and remove the
foam tape.
10. Connect internal harness (2) as shown.
Make sure that the connectors are fully home by
hearing the connector lock.
11. Connect the trailer ECU (3) using connector (D). Find
a good flat clean surface, remove the backing tape
from the adhesive pad and press the module against
this surface. Apply pressure for 60 seconds to
ensure good adhesion.

XX
TOWBAR
INSTALLATION INSTRUCTIONS
PART NUMBER
03274RW
VOLKSWAGEN AMAROK 2H CL4 UTE
49-75 Pacific Drive Keysborough, VIC 3173
Phone: [phone]
Email: [e-mail]
Rev: BPage 11 Issue Date: 14-01-20
12. Identify vehicle variant by VIN & action step 10 and
11 accordingly.
13. All other production times are not affected.
Option 1
14. If empty, place enclosed fuses 10A into fuse slot F60
and F61.

XX
TOWBAR
INSTALLATION INSTRUCTIONS
PART NUMBER
03274RW
VOLKSWAGEN AMAROK 2H CL4 UTE
49-75 Pacific Drive Keysborough, VIC 3173
Phone: [phone]
Email: [e-mail]
Rev: BPage 12 Issue Date: 14-01-20
Option 2
15. Enclosed fuses are not needed.
16. Re-connect the battery.
17. Next step is coding of vehicle. Pay attention to the
“SmartCODE”instruction (Appendix).
18. Check all light functions.
Before testing the lights and automatic parking
sensor deactivation with a tester or trailer
connected, the trailer module must be activated by
putting your foot on the brake.
This allows the module to detect if a trailer is
connected. Once a trailer is disconnected, another
press on the brake will enable the module to detect
no trailer is connected.

XX
TOWBAR
INSTALLATION INSTRUCTIONS
PART NUMBER
03274RW
VOLKSWAGEN AMAROK 2H CL4 UTE
49-75 Pacific Drive Keysborough, VIC 3173
Phone: [phone]
Email: [e-mail]
Rev: BPage 13 Issue Date: 14-01-20
19. A trailer bulb out condition is indicated with an
increased indicator frequency as well as a display on
the dash.
20. Place the instructions in the glove box after fitment.
21. Install brake controller plug.

49-75 Pacific Drive Keysborough, VIC 3173
Phone: [phone]
Email: [e-mail]
CUSTOMER INFORMATION
PLACE THESE INSTRUCTIONS IN THE
VEHICLE’S GLOVEBOX AFTER INSTALLATION
Rev: BPage 14 Issue Date: 14-01-20
THANK YOU FOR PURCHASING HAYMAN REESE.
WITH CORRECT MAINTENANCE AND CARE THIS PRODUCT WILL PROVIDE A
LIFETIME OF TROUBLE-FREE OPERATION.
TOWBAR MAINTENANCE AND CARE:
1.
Hayman Reese recommend that the towbar LUG or TBM (tow ball Mount) Pull Pin and R-clip are removed
and stored when not in use. Removal of LUG or TBM (tow ball mount) is advisable when not in use to
assist with any of the following.
Ensure rear number plate is not obscured.
Allow maximum available departure angle and prevent any potential interference.
Prevent possible interference with vehicles reverse sensors or camera detecting a tow ball mount
as an obstruction during reversing.
Removes towball mount as an obstruction for when moving around the rear of the vehicle.
2.
Hayman Reese recommends routine inspection of your towbar to ensure trouble free towing.
Bolt security and tension should be regularly inspected and checked for correct tension. Replace
any worn or defective parts with suitable grade & class fasteners. Inspection should be requested
to coincide with vehicle major services.
3.
It is the owner’s responsibility to ensure towing and down ball weight capacities of the towing vehicle are
not exceeded.
Towing and down ball weights allowable may differ according to model variations. Please refer to
owner’s manual or vehicle dealer to confirm exact rating for your vehicle model variant.
It is not uncommon for the vehicle tow rating to differ from the towbar rating. When this occurs,
the lesser rating must be adhered to.
For vehicles fitted with enhanced vehicle functions that may be altered/changed when towing i.e
Trailer sway mitigation, blind spot detection, adaptive cruise control etc. Please consult owner’s
manual to understand changes enabled when towing and after towing.
WARRANTY INFORMATION:
Hayman Reese Towbars are covered by a Lifetime Warranty.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to
be of acceptable quality and the failure does not amount to a major failure.
For further details please visit www.haymanreese.com.au/warranty or contact customer service on
1800 812 017 or [e-mail].

49-75 Pacific Drive Keysborough, VIC 3173
Phone: [phone]
Email: [e-mail]
CUSTOMER INFORMATION
PLACE THESE INSTRUCTIONS IN THE
VEHICLE’S GLOVEBOX AFTER INSTALLATION
Rev: BPage 15 Issue Date: 14-01-20
HAYMAN REESE SMART PIN
Your Hayman Reese towbar is equipped with Smart Pin technology to help reduce towbar tongue rattle in most
driving conditions. Please ensure below instructions are understood and routine maintenance is carried out to
ensure best towing experience.
Regularly inspect for wear and check the tightness of the Smart Pin Nut. Follow instructions below to re-
tighten the nut as necessary when movement and noise in the tow ball mount is noted.
Before towing, ensure R-Clip is properly installed and Smart pin nut is installed and tensioned.
Replacement parts are available from your Hayman Reese Distributor.

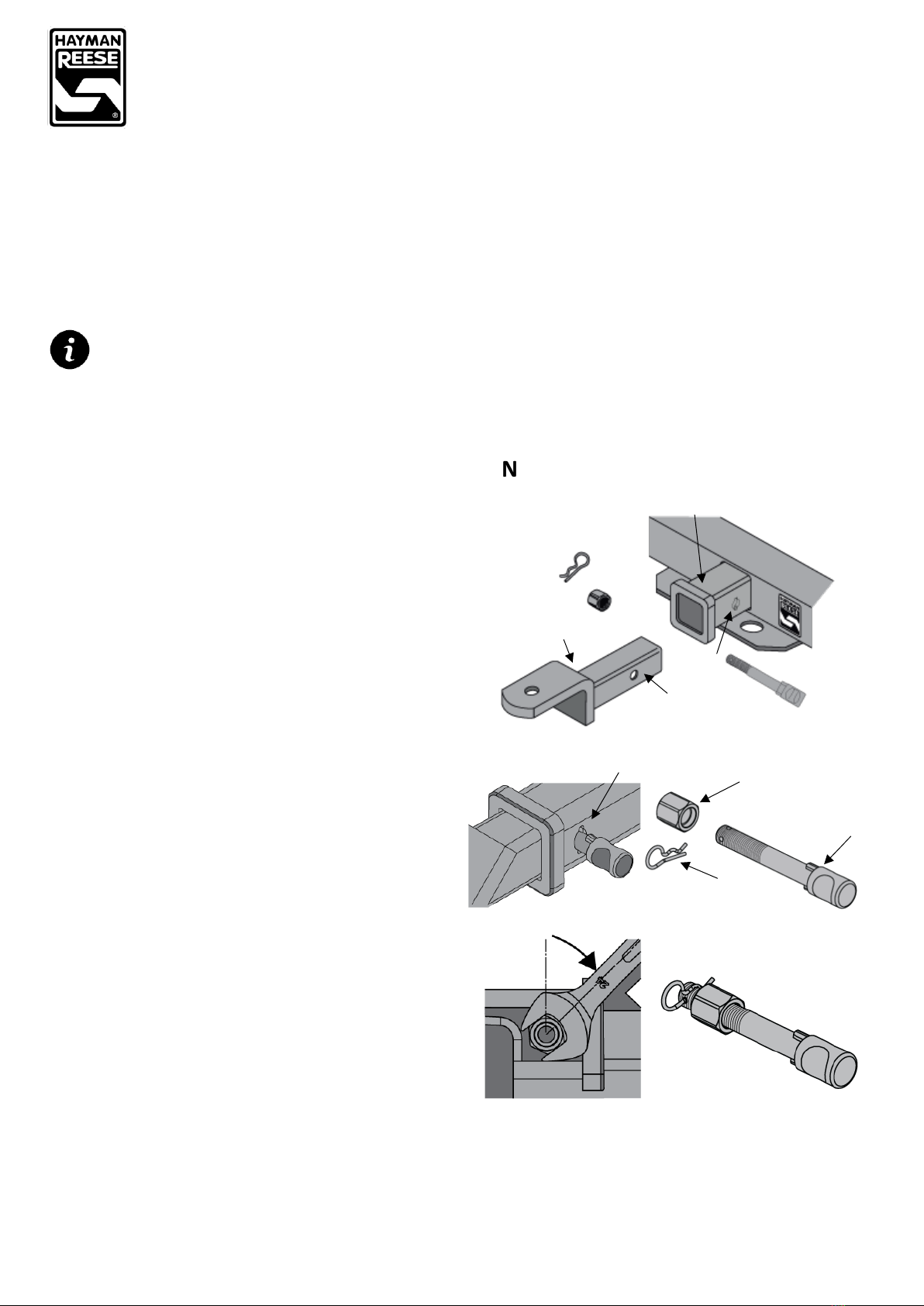

TOWBALL MOUNT REMOVAL/INSTALLATION
STEP 1
Insert Trailer Ball Mount (TBM) (a) into towbar hitchbox
(b), aligning hole in TBM shank (c) with hole in hitchbox
(d) (Fig. 1)
STEP 2
Insert Smart Pin (e) through hole in hitchbox and hole in
TBM shank (g); ensure the locators are inserted into the
notches in the hitchbox (Fig. 2)
STEP 3
Screw Smart Pin Nut (f) onto Smart Pin (g); tighten Smart
Pin Nut until finger tight, ensuring TBM is restrained
from up and down movement.
STEP 4
Tighten Smart Pin Nut by turning nut a further 1/8th of a
turn in the clockwise direction using a 24mm spanner
(Fig. 4).
STEP 5
Install Smart Pin R-Clip through the hole that provides
best clearance or easiest access. (Fig. 5)
Fig. 1
Fig. 4
(d)
HITCHBOX
(b)
Fig. 5
TRAILER BALL
MOUNT
(a)
(c)
Fig. 3
SMART PIN NUT
(f)
SMART PIN
(e)
Fig. 2
R-CLIP
(g)

Appendix
WARNING: This vehicle requires a system setting to ensure the trailer wiring and control module
are correctly recognised. This process (referred to as ‘coding’) must be carried out to enable
correct vehicle functionality when trailer is connected. Towing features enabled by correct control
module and coding support OE functionality as set by OE manufacturer. Please read the vehicles
owner’s manual for proper operation and understanding.
Coding can be carried out using the Hayman Reese SmartCODE (HRSC) using the following steps.
Note, if HRSC is unavailable, vehicle coding can be carried out by OE manufacturer as needed.
Before you start:
Ensure the HRSC software is up to date using the HAYMAN REESE SMARTCODE PC APP.
Ensure the vehicle battery is fully charged
Use of a battery support unit (BSU) is advised during the coding process.
Ensure towbar, wiring loom and ECU are correctly installed as per Hayman Reese fitting
instructions.
1. Locate the OBD2 port under the drivers footwell on the right-hand side and plug in the HRSC.
2. Close all doors and turn the ignition on
3. Follow the directions on the screen of the HRSC
4. Once the vehicle has been coded successfully proceed to the “clear codes” tab
5. Remove disconnect HRSC from OBD2 port.
6. Check the dash to make sure there are no warning faults.
7. Check the operation of trailer lights and ensure the Reverse Park Assist (RPA) is disabled and
‘trailer on’ icon is active where available.
For technical support and further information on Hayman Reese SmartCODE tool and coding process
contact your nearest Hayman Reese stockist.
Australia: 1800 812 017
New Zealand: 0800 237 886
