Crux Sightline RVCCH-75E User manual

TO FACTORY
HARNESS
22-PIN
(male plug)
8-PIN
(male plug)
INTERFACE
22-PIN
(female plug)
4 5 6
TO ENABLE VIDEO
IN-MOTION 1. On = Enable VIM
2. On = Enable R VC
3. Not Used
4. On = Enable Force R VC
5. May Vary
6. May Vary
WHITE / 12V OUTPUT
ON
1 2 3
VIDEO-IN
(female plug)
TO FACTORY
RADIO
GREEN / 12V POWER SWITCH
22-PIN
(female plug)
22-PIN
(male plug)
WHITE
WHITE
WHITE
GRAY
VIDEO HARNESS
TO CAMERA
work. Following these instructions from “Start” to” Finish” will ensure a
smooth and hassle free installation.
822-1348. We a re he re to help.
PAR TS INCLUDED:
(1) Universal Camera (CUB-01)
(1) 20 ft. Extension
(1) CH-75E Interface (2.1.2)
(1) CH-75E Harness (2644-B)
(1) Instruction
- Lens Angle 170 Degrees
- Resolution 420 TV Lines
- Min. Illumination 0.2Lux
- Voltage 12v
- Operating Temp. -22˚F - 176˚F
- NTSC
- Reference Lines
- Shutter Speed 1/60s - 20us
- Waterproof
- Pixels 656 x 492
PRECAUTIONS:
- Remove the negative side of the battery to avoid any short circuits
during the installation.
- Do not install the interface near any major components or near the
HVAC system. This may cause damage or overheating to the vehicle.
Please read the entire manual before installing this interface.
The force reverse is used to view the back-up camera when the vehicle
is not in reverse gear. Allows you to view what is in the back while
driving.
To activate this feature make sure the
dip switch settings are correct.
Then simply press the center button
once on the Left Hand steering wheel
control.
Note: The camera is defaulted to power
down after 10 seconds.
CHRYSLER:
2011-2015 300 (See Note Below)
DODGE:
2011-2014 Charger
2011-2016 Journey
IMPORTAN T:
Compatible Radio Type:
U-CONNECT 8.4” SCREEN

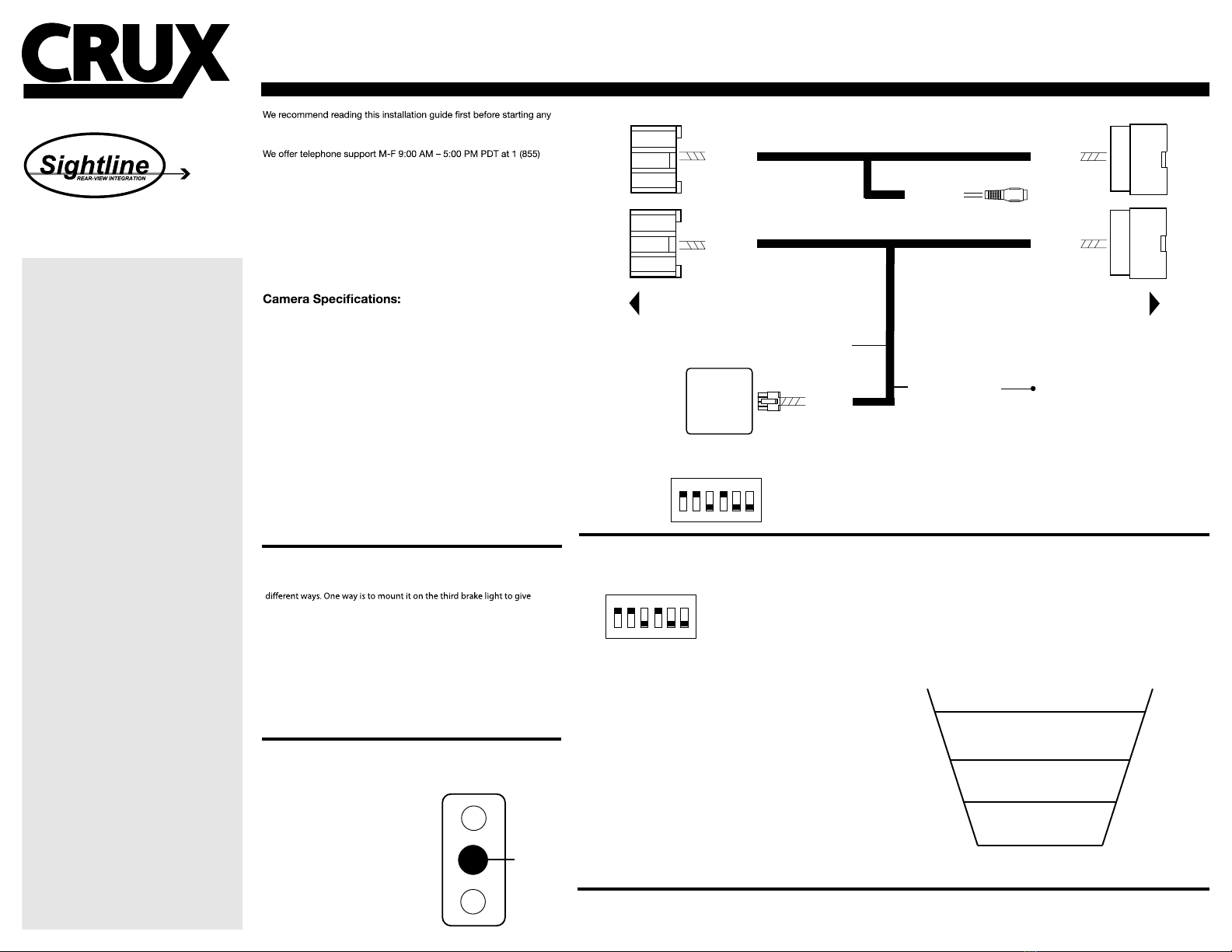

RVCCH-75E CONNECTIONS OVERVIEW
TROUBLE SHOOTING
1. No video display while in reverse.
- Make sure the dip switches are in the correct position. More support contact us.
The parking lines are there to assist you while reversing.
What the lines mean:
Green Line: CLEAR
Yellow Line: GETTING CLOSE
Red Line: WARNING - VERY CLOSE
RED
YELLOW
GREEN
INSTALLING THE CAMERA AND CABLE
REAR-VIEW & VIM INTEGRATION FOR CHRYSLER & DODGE VEHICLES with 2-PIECE RADIO
PARKING LINE
U-CONNECT 8.4” SCREEN
(2-PIECE RADIO)
Dip 1: Activates the Video In-Motion feature. The dip switch
is the permanent solution for keeping the VIM unlocked.
Use the Green wire with a toggle switch for a non-permanent
solution. (Switch not included)
Dip 2: Activates the Rear-View Camera image when the vehicle is in
reverse gear.
Dip 4: Activates the “Force Rear-View Camera” while driving.
Force Rear- View Camera allows the driver to view the
rear-view camera when not in the Reverse gear.
Dip 5 & 6: Varies, these switches are defaulted both to OFF.
If the radio is having turn-on issues please try the following:
Attempt One: Set both 5 & 6 to the ON position.
Attempt Two: Set 5 to On and 6 to OFF.
Attempt Three: Set 5 to OFF and 6 to ON.
If none of the above solutions work out for your vehicle please
contact tech support.
SETTING THE DIP SWITCHES
FORCE REVERSE
PRESS
SEEK UP
SEEK DN
4 5 6
TO ENABLE VIDEO
IN-MOTION 1. On = Enable VIM
2. On = Enable R VC
3. Not Used
4. On = Enable Force R VC
5. May Vary
6. May Vary
ON
1 2 3
INTERFACING SOLUTIONS
This kit includes a universal bullet camera that can be mounted in
it a clean install. Please see page 3 for installation instructions. After
the camera is installed to the desired location, route the power and
video wires towards the radio and make the connections. For powering
the camera, use the 12V OUTPUT (White Wire) from the 8-pin Molex
connector plugged into the interface.
Note: The camera is defaulted to power down after 10 seconds.
rev.080215
On 2015 Chrysler 300 without a separate
CD slot (one piece radio), use Part#
RVCCH-75C. (see radio picture on page 2)
NOTE:

CHRYSLER:
DODGE:
2011 -2014 Charger
2011 -2016 Journey
IMPOR TAN T:
Compatible Radio Type:
U-CONNECT 8.4” SCREEN
RVCCH-75E
REAR-VIEW & VIM INTEGR ATION FOR CHR YSLER & DODGE VEHICLES with 2-PIECE RADIO
U-CONNECT 8.4” SCREEN
(2-PIECE RADIO)
COMPATIBLE RADIO: 8.4” SCREEN
AYER)
INTERFACING SOLUTIONS
2011 -2014
rev080215
300 (See Note Below)
SEPARATE CD SLOT
NO CD SLOT
FOR RADIOS WITHOUT A SEPARATE CD SLOT, USE PART# RVCCH-75C
On 2015 Chrysler 300 without a separate
CD slot (one piece radio), use Part#
RVCCH-75C. (see radio picture)
NOTE:

CHRYSLER:
DODGE:
2011 -2014 Charger
2011 -2016 Journey
IMPORTAN T:
Compatible Radio Type:
U-CONNECT 8.4” SCREEN
RVCCH-75E
REAR-VIEW & VIM INTEGRATION FOR CHRYSLER & DODGE VEHICLES with 2-PIECE RADIO
U-CONNECT 8.4” SCREEN
(2-PIECE RADIO)
Step 4. Clean and clear the hole for the camera to be inserted.
Step 5. Insert the cables and camera through the drilled hole but DO NOT
FULLY INSERT, this will allow you to rotate the camera and position it when
testing the camera view from the display in the car.
Step 6. Route your power and RCA cable towards the front of the vehicle
Step 1. After you have removed the 3rd brake light from the trunk lid, use
the supplied drilling template to begin drilling the hole on the back side of the
brake light.
Step 2. Continue drilling through the back and into the front side of that
brake light. This will allow you a guide hole when you begin drilling on the
front side.
Step 3. Turn over the brake light and continue clearing the hole on the
front side of the brake light. Be very careful when drilling, take your time and
cleanly drill.
HOW TO DRILL THE HOLE: USING THE NON-CAMERA THIRD BRAKE LIGHT
INTERFACING SOLUTIONS
2011 -2015
rev080215
300 (See Note Below)
On 2015 Chrysler 300 without a separate
CD slot (one piece radio), use Part#
RVCCH-75C. (see radio picture on page 2)
NOTE:
