Hayman Reese 03314W User manual

TOWBAR
INSTALLATION INSTRUCTIONS
PART NUMBER
03314W
MAZDA 3 BP CL2 (SEDAN)
49-75 Pacific Drive Keysborough, VIC 3173
Phone: [phone]
Email: [e-mail]
Page 1
REV A 31-10-19
PRODUCT DETAILS:
Part Number:
03314W
Maximum Towing Braked:
1200
kg
ECU Number:
04826
Maximum Towing Unbraked:
600
kg
Tail Harness Length Required:
1200 mm.
Maximum Static Ball Load:
80
kg
TBM/Lug Part Number:
07758
FITTING DETAILS:
Towbar Installation Time:
60 mins
Vehicle Coding Required:
NO
Wiring Installation Time:
60 mins
RPA Disable/Other:
YES
Total Installation Time:
120 mins
Note:
Bumper Cut Required:
Yes
Use tail 04943 to automatically disable RPA and
Smart City Stop function where equipped

TOWBAR
INSTALLATION INSTRUCTIONS
PART NUMBER
03314W
MAZDA 3 BP CL2 (SEDAN)
49-75 Pacific Drive Keysborough, VIC 3173
Phone: [phone]
Email: [e-mail]
Page 2
REV A 31-10-19
ENSURE THAT INSTRUCTIONS ARE UNDERSTOOD PRIOR TO FITMENT.
BEFORE YOU START:
1. Hayman Reese recommends that instructions are read completely prior to fitment.
2. Check all hardware items have been included refer to assembly diagram.
3. Please ensure this towbar is only fitted to vehicle models as per Hayman Reese application guide
(www.haymanreese.com.au).
4. Bumper Cuts
5. Vehicle and bumper variations can and do occur during vehicle manufacture after initial towbar
design. Fitment of towbar to vehicle and accuracy of bumper cut must be assessed prior to any
bumper modifications made. Incorrect bumper cuts are not covered under Hayman Reese warranty.
6. NOTE: Bumper cuts need to be approached with care, refer to notes below.
Bumper centreline –where the centreline of the bumper needs to be determined, the installer
must assess centre point by measurement of bumper width or determining two symmetrical
reference points to give centreline.
Bumper edge –To assist with accurate bumper cut measurement, reference to the start of the
bumper edge is now being commonly used.
oMeasure from bottom edge along bumper and around corner to the 70 mm point
(Figure 1).
oDo not measure from visible bumper front of corner, upwards (Figure 2).
7. Drilling
For any required drilling during installation, ensure that the area is clear of fuel, electrical & other components that may be
damaged.
All holes drilled into the body panels shall have all burrs & swarf removed then coated with a suitable rust preventative paint.
8. Bolts/Fasteners
Ensure that all hardware is fastened to correct torque as specified in this fitting instruction.
All fasteners supplied with this product are used to achieve a specified clamp loading. If replacement is required ensure that
fasteners of the same grade and class are used.
9.
10. NOTE: Achieving correct torque is critical to proper installation and responsibility of the installer. Towbar failures attributed to
tension issues from over tightening or under tightening are not covered by Hayman Reese warranty.
11.
12. Product Labels
a. Towbar load rating sticker provided with this product shall be conspicuously located on inside rear end of the driver’s door.
b. Powertrain Control Module (PCM)/Body Control Module (BCM) upgrade warning label will be provided in towbar kit for
vehicles as required. Affix warning label in door and owner’s handbook.
WARNING:
1.
2. Do not, drill, cut, weld or otherwise modify the towbar.
3. FOR TOWING PURPOSES ONLY - This towbar is designed and tested by Hayman Reese to adhere to ADR 62/02 which provides
only for the expected load demands of towing.
Figure 1
INCORRECT
CORRECT
Place Vehicle PCM/ BCM upgrade
warning label in door AND on front
cover of owner’s service handbook
Place Load Rating
sticker inside driver’s
door here
Figure 2

TOWBAR
INSTALLATION INSTRUCTIONS
PART NUMBER
03314W
MAZDA 3 BP CL2 (SEDAN)
49-75 Pacific Drive Keysborough, VIC 3173
Phone: [phone]
Email: [e-mail]
Page 3
REV A 31-10-19

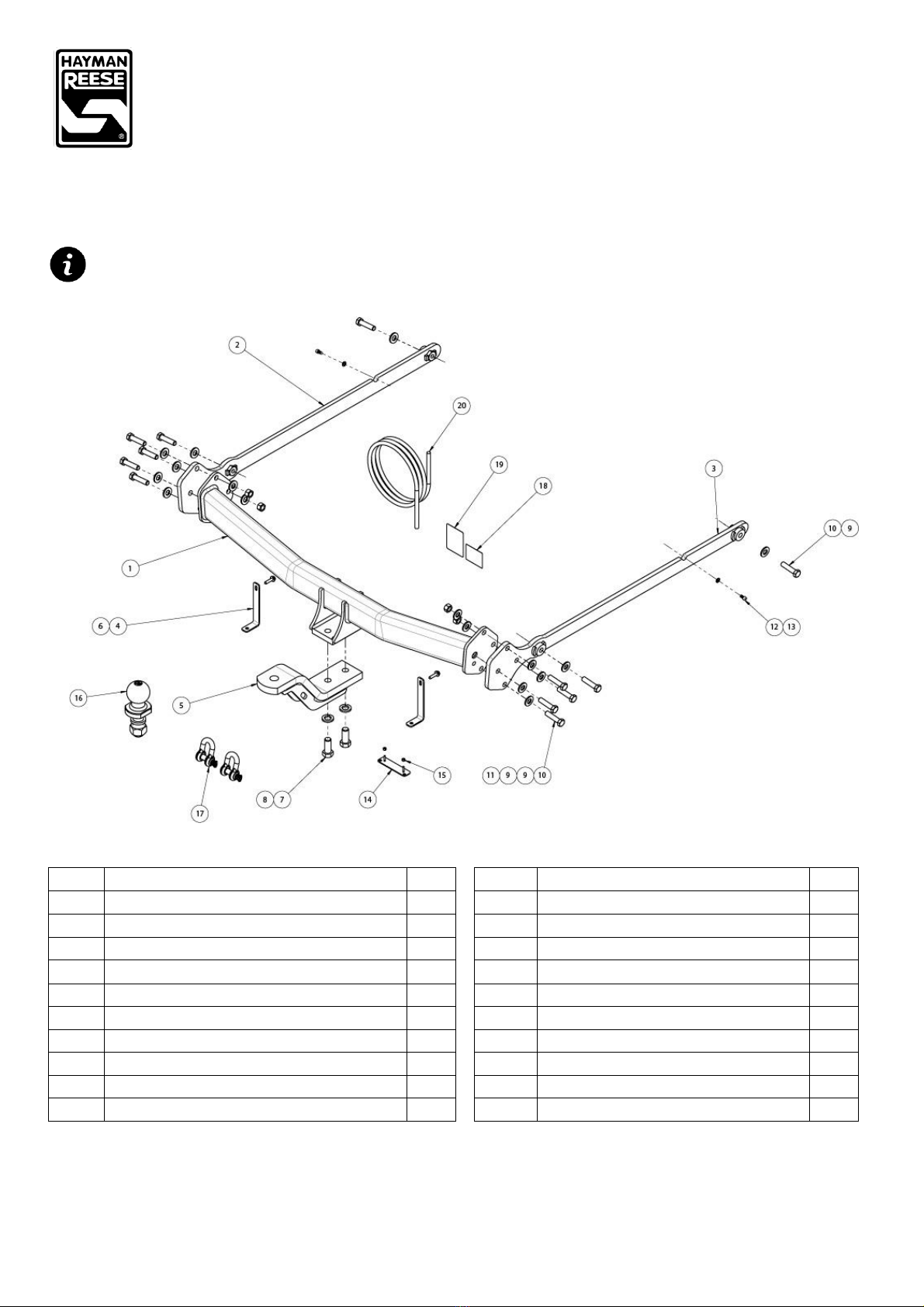

TOWBAR ASSEMBLY DIAGRAM
ITEM
DESCRIPTION
QTY
ITEM
DESCRIPTION
QTY
1
MAZDA 3 BP WELDED ASSEMBLY
1
11
NUT HEX M12x1.75P
6
2
LH SIDEARM ASSEMBLY
1
12
CAP SCREW HEX HD M6x12x1.0P
2
3
RH SIDEARM ASSEMBLY
1
13
WASHER PLAIN M6x12.5x1.2
2
4
BUMPER TAB
2
14
PLUG BRACKET
1
5
LUG ASSY
1
15
NUT NYLON LOCK HEX HD M4X0.7P G8
2
6
TEK SCREW 14-20 HEX HD 22mm
2
16
TOWBALL 50mm
1
7
SET SCREW HEX HD M16x40x2.0P
2
17
"D" SHACKLE 10mm
2
8
WASHER SPRING M16x5x3.5
2
18
H.R STICKER
1
9
WASHER PLAIN M14x28x3
18
19
ACRYLIC COMPLIANCE LABEL
1
10
BOLT HEX HD M12x50x1.75P
12
20
WIRING LOOM
1

TOWBAR
INSTALLATION INSTRUCTIONS
PART NUMBER
03314W
MAZDA 3 BP CL2 (SEDAN)
49-75 Pacific Drive Keysborough, VIC 3173
Phone: [phone]
Email: [e-mail]
Page 4
REV A 31-10-19
1. Remove 3 x screws and 2 x scrivets securing the
underside bumper cover to the bumper support.
2. Remove 3 x screws from the left-hand underside of
the bumper.
Repeat for opposite side.
3. In the wheel arch remove 1 x scrivets and 1 x screw.
Repeat for opposite side.

TOWBAR
INSTALLATION INSTRUCTIONS
PART NUMBER
03314W
MAZDA 3 BP CL2 (SEDAN)
49-75 Pacific Drive Keysborough, VIC 3173
Phone: [phone]
Email: [e-mail]
Page 5
REV A 31-10-19
4. Partially peel back wheel arch liner to expose 2 x
screws.
Remove 2 x screws.
Repeat for opposite side.
5. Open tail gate and remove 1 x screw cap cover and
water channel cover. Remove the 3 x exposed screws.
Repeat for opposite side.
6. In the luggage compartment remove the boot liner
carpet (1).
On right-hand side disconnect wiring and 1 x nut
securing tail light.
Pull tail light rearwards to dislodge.
Repeat for opposite side.
7. Fold down the rear seats (2) by pulling the release
levers (3).

TOWBAR
INSTALLATION INSTRUCTIONS
PART NUMBER
03314W
MAZDA 3 BP CL2 (SEDAN)
49-75 Pacific Drive Keysborough, VIC 3173
Phone: [phone]
Email: [e-mail]
Page 6
REV A 31-10-19
8. Remove the foam tool storage trays (1).
9. On the luggage compartment scuff trim (1), remove
the two trim clips (2).
10. Remove the rear scuff trim by pulling in an upwards
direction.
11. On the LHS, remove the 3 trim clips (1) securing the
LHS trim (2).
12. Carefully fold the LHS trim out and under the boot
arm.
Repeat for RHS.

TOWBAR
INSTALLATION INSTRUCTIONS
PART NUMBER
03314W
MAZDA 3 BP CL2 (SEDAN)
49-75 Pacific Drive Keysborough, VIC 3173
Phone: [phone]
Email: [e-mail]
Page 7
REV A 31-10-19
13. Behind the previously removed LHS trim, remove the
2 trim clips (1) securing the plastic trim (2).
14. Remove the LHS plastic trim (2).
15. In right-hand side interior, disconnect 3 x plugs
connected to bumper and feed through grommet
hole.
16. Remove 1 x screw and 1 x scrivets securing bumper in
the tail light cavity.
Repeat for opposite side.
Peel away bumper and put aside.

TOWBAR
INSTALLATION INSTRUCTIONS
PART NUMBER
03314W
MAZDA 3 BP CL2 (SEDAN)
49-75 Pacific Drive Keysborough, VIC 3173
Phone: [phone]
Email: [e-mail]
Page 8
REV A 31-10-19
17. Remove and discard impact beam secured by 4 x M12
nuts per side.
Remove and discard bumper support secured by 2 x
screws.
18. Underneath the vehicle, locate the electronic parking
brake brackets on both chassis rails.
Remove the existing M6 bolts and replace with the
M6 bolts provided, complete with 1 x washer per
bolt.
19. Insert left-hand sidearm into chassis rail.
Remove tape concealing 2 x mounting points on
chassis and loosely secure sidearm with 2 x M12
bolts, complete with 1 x washer per bolt.
NOTE: ensure welded nuts are facing inwards and
notch is on top.
Repeat for opposite side.

TOWBAR
INSTALLATION INSTRUCTIONS
PART NUMBER
03314W
MAZDA 3 BP CL2 (SEDAN)
49-75 Pacific Drive Keysborough, VIC 3173
Phone: [phone]
Email: [e-mail]
Page 9
REV A 31-10-19

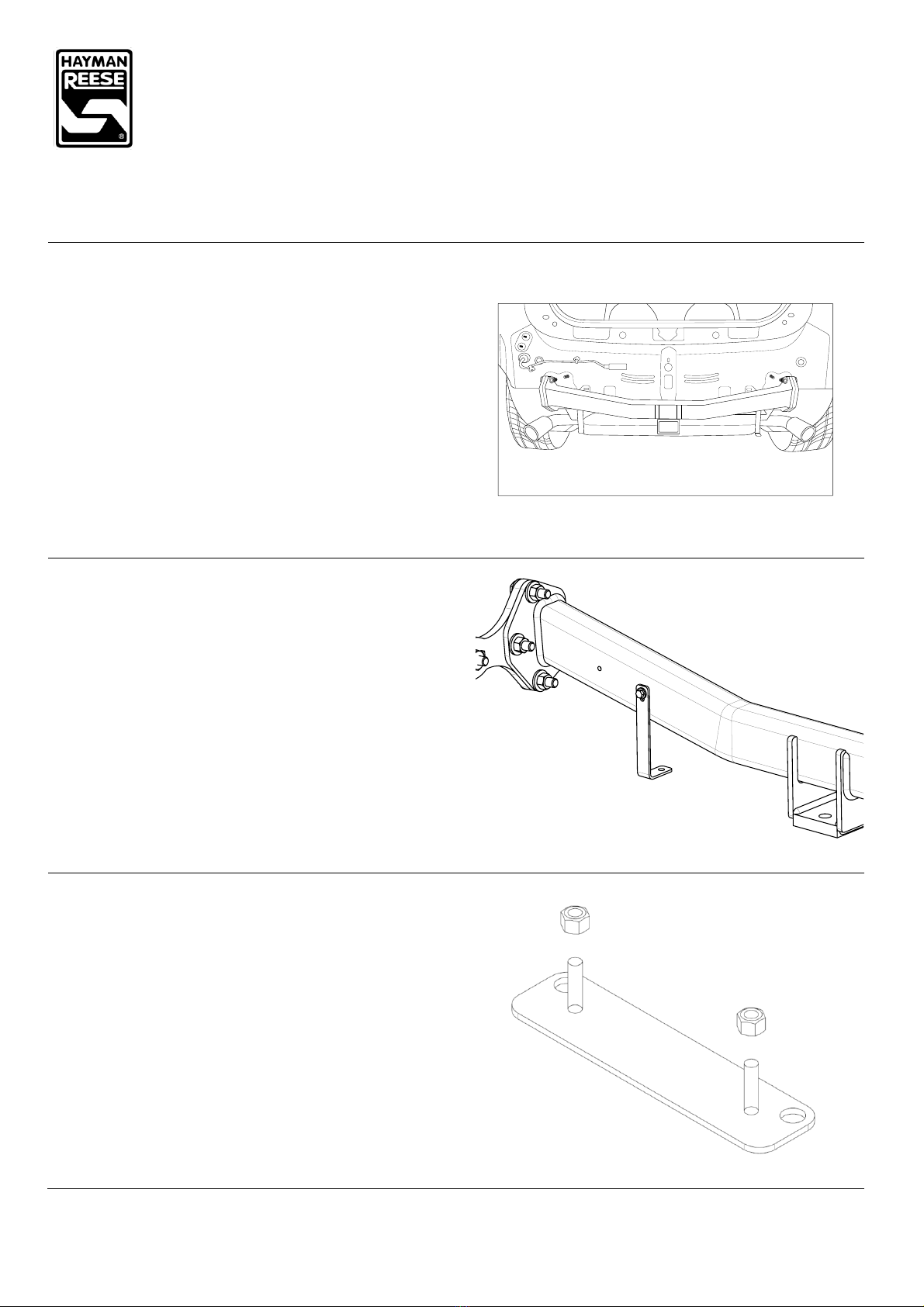

20. With 2 people, lift the centre section assembly up to
the sidearms. Loosely secure with 3 x M12 bolts per
side, complete with 2 x washers and 1 x nut per bolt
Secure sidearms to centre section with the remaining
2 x M12 bolts (1 per side), complete with 1 x washer
per bolt, inserted into captive nuts.
Torque all M12 fasteners to 77 Nm.
21. Secure bumper brackets to rear of crosstube with 1 x
tek screw per bracket. Use the hole closest to the
centre of the crosstube on either side as shown.
Ensure bracket fold is facing rearwards.
22. For the plug bracket find an appropriate position on
the bumper then mark out and drill 2 x ø5mm holes
69mm apart on bumper skin to support plug bracket.

TOWBAR
INSTALLATION INSTRUCTIONS
PART NUMBER
03314W
MAZDA 3 BP CL2 (SEDAN)
49-75 Pacific Drive Keysborough, VIC 3173
Phone: [phone]
Email: [e-mail]
Page 10
REV A 31-10-19
23. On the bottom edge of the bumper locate the centre
vertical. Cut approximately 100mm wide and 75mm
up from the edge as measure from outside the face
of bumper.
IMPORTANT
Due to possible vehicle variations, always confirm any noted
vehicle colour wires with a multi-meter to ensure the correct
function is identified before soldering or scotch locking. For
vehicle wires denoted with two colours (example;
RED/GREEN) the first colour will always be the main wire
colour while the second colour is the thinner trace colour on
the wire.
24. In the engine bay, disconnect the vehicle battery
negative terminal (1).
100mm
75mm

TOWBAR
INSTALLATION INSTRUCTIONS
PART NUMBER
03314W
MAZDA 3 BP CL2 (SEDAN)
49-75 Pacific Drive Keysborough, VIC 3173
Phone: [phone]
Email: [e-mail]
Page 11
REV A 31-10-19
25. Near the RHS tail light, patch in the RHS branch patch
connectors (1) in between the vehicle wiring (2) and
the tail light wiring (3).
26. Route the LHS patch across to the LHS tail light
connectors.
27. Patch in the LHS branch patch connectors (1) in
between the vehicle wiring (2) and the tail light wiring
(3).
28. Secure to the existing vehicle wiring using the
supplied Cable Ties.
29. On the LHS, locate the vehicle reverse parking module
(1).
30. Disconnect the 16-way connector (2) from the
module and patch in the mating RPA disable/trailer
activation connection in between the vehicle wiring
and the RPA module.

TOWBAR
INSTALLATION INSTRUCTIONS
PART NUMBER
03314W
MAZDA 3 BP CL2 (SEDAN)
49-75 Pacific Drive Keysborough, VIC 3173
Phone: [phone]
Email: [e-mail]
Page 12
REV A 31-10-19
31. Using an alcohol wipe, clean the LHS inner sheet
metal area (1) and the underside of the ECU (04826)
(2).
32. Connect the trailer patch 12-way connector (3) to the
ECU.
33. Apply double sided tape to the ECU (2) and secure it
to the vehicle sheet metal.
34. Connect the ground wire to the vehicle earthing point
(4).
35. Route the orange wire (5) towards the front of the
vehicle.
Note: Mount the ECU, ensuring the connector is
orientated downwards.
36. With the weather seal (1) removed, feed the power
wire through to the cabin from the boot.
37. With the front and rear scuff trims removed, continue
routing the power wire (1) towards the front of the
vehicle, tucking the power wire under the B pillar trim
(2).

TOWBAR
INSTALLATION INSTRUCTIONS
PART NUMBER
03314W
MAZDA 3 BP CL2 (SEDAN)
49-75 Pacific Drive Keysborough, VIC 3173
Phone: [phone]
Email: [e-mail]
Page 13
REV A 31-10-19
38. Remove the cover on the LHS kick panel (1).
39. Route the orange wire towards the fuse box (2).
40. On the vehicle fuse box (1), remove the vehicle fuse
15 Amp Fuse (F16) (2) and discard.
41. On the Add-A-Fuse (3), insert the supplied 20 amp
fuse (4) into the Add-A-Fuse top slot and then insert
the supplied 15 amp fuse (5) into the bottom slot.
42. In the orientation shown, insert the Add-A-Fuse (3)
into the slot occupied by the vehicle fuse (2).
43. Connect the Add-A-Fuse (3) to the main harness.
Note: To maintain correct electrical operation,
ensure you insert the fuse adaptor into the allocated
slot and in the orientation shown.
44. Drill a 30mm grommet hole (1) in a suitable location
to enable the tail harness to be routed from the
towbar to the ECU.

TOWBAR
INSTALLATION INSTRUCTIONS
PART NUMBER
03314W
MAZDA 3 BP CL2 (SEDAN)
49-75 Pacific Drive Keysborough, VIC 3173
Phone: [phone]
Email: [e-mail]
Page 14
REV A 31-10-19
45. With the rear bumper removed, secure tail harness to
towbar.
46. Route tail harness up through chassis and previously
drilled 30mm hole.
47. Seat grommet in 30mm hole and route to trailer
harness blue connector on patch loom.
Note: Keep harness routing clear of all sharp edges,
moving parts and places of extreme heat.
Note: Ensure grommet is seated correctly and makes
a good seal.
48. Connect the tail harness (tail length 1200mm) 8- way
connector (1) to the trailer patch mating 8- way
connector (2).
49. Cut-off, crimp the tail harness GREY and GREY/BLACK
wires (3) to the trailer patch matching GREY and
GREY/BLACK wires (4).
50. Apply silicone grease (not supplied) (5) to waterproof
connector.
51. Secure all harness using supplied Cable Ties.
52. Test the trailer patch function using a light board or multi-meter.
53. Re-fit all removed parts and secure all fasteners, ensuring there are no squeaks or rattles.
54. Place the fitting instructions in the glove box after fitment.

49-75 Pacific Drive Keysborough, VIC 3173
Phone: [phone]
Email: [e-mail]
Page 15
REV A 31-10-19
CUSTOMER INFORMATION
PLACE THESE INSTRUCTIONS IN THE
VEHICLE’S GLOVEBOX AFTER INSTALLATION
THANK YOU FOR PURCHASING HAYMAN REESE.
WITH CORRECT MAINTENANCE AND CARE THIS PRODUCT WILL PROVIDE A
LIFETIME OF TROUBLE-FREE OPERATION.
TOWBAR MAINTENANCE AND CARE:
1.
Hayman Reese recommend that the towbar LUG or TBM (tow ball Mount) Pull Pin and R-clip are removed
and stored when not in use. Removal of LUG or TBM (tow ball mount) is advisable when not in use to
assist with any of the following.
Ensure rear number plate is not obscured.
Allow maximum available departure angle and prevent any potential interference.
Prevent possible interference with vehicles reverse sensors or camera detecting a tow ball mount
as an obstruction during reversing.
Removes towball mount as an obstruction for when moving around the rear of the vehicle.
2.
Hayman Reese recommends routine inspection of your towbar to ensure trouble free towing.
Bolt security and tension should be regularly inspected and checked for correct tension. Replace
any worn or defective parts with suitable grade & class fasteners. Inspection should be requested
to coincide with vehicle major services.
3.
It is the owner’s responsibility to ensure towing and down ball weight capacities of the towing vehicle are
not exceeded.
Towing and down ball weights allowable may differ according to model variations. Please refer to
owner’s manual or vehicle dealer to confirm exact rating for your vehicle model variant.
It is not uncommon for the vehicle tow rating to differ from the towbar rating. When this occurs,
the lesser rating must be adhered to.
For vehicles fitted with enhanced vehicle functions that may be altered/changed when towing i.e
Trailer sway mitigation, blind spot detection, adaptive cruise control etc. Please consult owner’s
manual to understand changes enabled when towing and after towing.
WARRANTY INFORMATION:
Hayman Reese Towbars are covered by a Lifetime Warranty.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to
be of acceptable quality and the failure does not amount to a major failure.
For further details please visit www.haymanreese.com.au/warranty or contact customer service on
1800 812 017 or i[email protected].

49-75 Pacific Drive Keysborough, VIC 3173
Phone: [phone]
Email: [e-mail]
Page 16
REV A 31-10-19
CUSTOMER INFORMATION
PLACE THESE INSTRUCTIONS IN THE
VEHICLE’S GLOVEBOX AFTER INSTALLATION
HAYMAN REESE SMART PIN
Your Hayman Reese towbar is equipped with Smart Pin technology to help reduce towbar tongue rattle in most
driving conditions. Please ensure below instructions are understood and routine maintenance is carried out to
ensure best towing experience.
Regularly inspect for wear and check the tightness of the Smart Pin Nut. Follow instructions below to re-
tighten the nut as necessary when movement and noise in the tow ball mount is noted.
Before towing, ensure R-Clip is properly installed and Smart pin nut is installed and tensioned.
Replacement parts are available from your Hayman Reese Distributor.
TOWBALL MOUNT REMOVAL/INSTALLATION
STEP 1
Insert Trailer Ball Mount (TBM) (a) into towbar
hitchbox (b), aligning hole in TBM shank (c) with
hole in hitchbox (d) (Fig. 1)
STEP 2
Insert Smart Pin (e) through hole in hitchbox and
hole in TBM shank (g); ensure the locators are
inserted into the notches in the hitchbox (Fig. 2)
STEP 3
Screw Smart Pin Nut (f) onto Smart Pin (g); tighten
Smart Pin Nut until finger tight, ensuring TBM is
restrained from up and down movement.
STEP 4
Tighten Smart Pin Nut by turning nut a further
1/8th of a turn in the clockwise direction using a
24mm spanner (Fig. 4).
STEP 5
Install Smart Pin R-Clip through the hole that
provides best clearance or easiest access. (Fig. 5)
Fig. 1
Fig. 4
(d)
HITCHBOX
(b)
Fig. 5
TRAILER BALL
MOUNT
(a)
(c)
Fig. 3
SMART PIN NUT
(f)
SMART PIN
(e)
Fig. 2
R-CLIP
(g)
