Hayward ColorLogic® 4.0 User manual

ColorLogic®4.0 Installation Guide
©Copyright 2011 Hayward Industries

Table of Contents
Safety Precautions Page 1
Overview Page 2
Program Table Page 3
Network Module Installation Page 4
Wiring Lights Pages 5-6
Configuring Lights Page 7
Resetting Lights To Default Page 11
Auxiliary Configuration Page 12
Auxiliary Programming Page 13
Light Show Programming Pages 14-15
Fixed Color Programming Pages 16-17
Troubleshooting Pages 18-20
FAQ’s Pages 21-23
Wiring Diagrams Pages 24-26

Safety Precautions
Page 1
Hazardous voltage can shock, burn, cause serious injury and or death. To reduce the risk of
electrocution and or electric shock hazards:
•Ground Fault Circuit protection must be used in the circuit, however, all electrical wiring
MUST be in conformance with all applicable local codes, regulations, and the National
Electric Code (NEC).
•Replace damaged wiring immediately
•Reference NEC codes for all wiring standards including, but not limited to, grounding,
bonding and other general wiring procedures.
•Networked ColorLogic Lights and related electrical connections are receiving electrical power
at all times, even when the lights are OFF! Turn off power at the main breaker before
servicing ColorLogic lights.
Warning !

Compatibility
•The AQL-COLOR-MODHV is compatible with all Goldline Controls Pro Logic PS controls
operating with software version 4.00 or greater and whose enclosures provide a cutout for
installation.
•The ColorLogic Network Module will only operate with Generation 4 or later Hayward
ColorLogic 120VAC pool/spa light(s).
Description
•The ColorLogic Network Module is used with the Pro Logic to fully control the color, speed,
motion and brightness of pre-set light shows in a compatible Hayward ColorLogic pool/spa
light(s). After installing the ColorLogic Network Module and enabling the function in the Pro
Logic, the user can program various parameters to fully customize their pool/spa light(s)
operation.
•The ColorLogic Network Module can be used to control up to 32 pool or spa lights
simultaneously. This method of control features 2 user defined programs; five fixed colors
and eleven color-changing shows. All fixed colors and shows can be modified or changed.

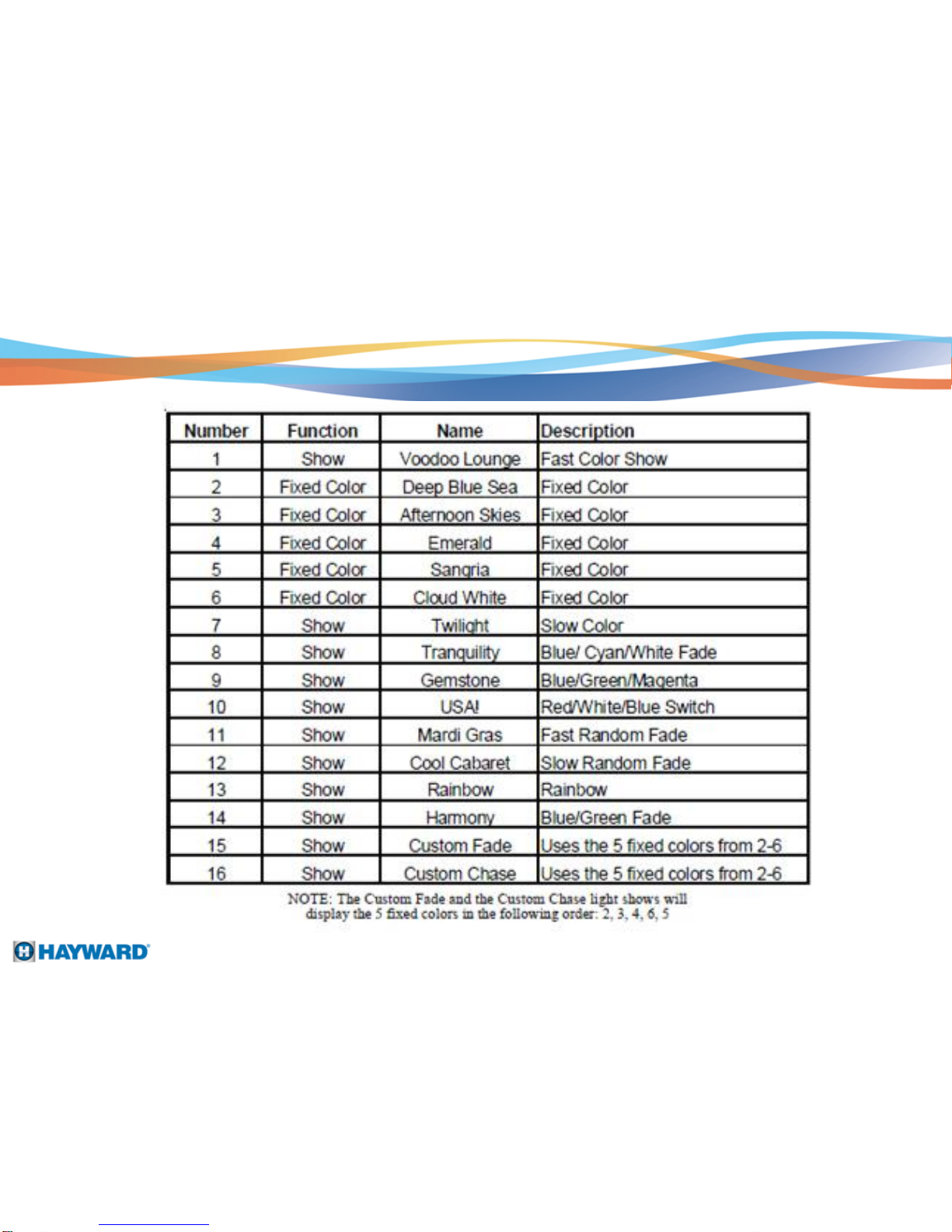

The factory set colors and shows are listed in the Program Table on the next page and can
also be found on the color laminated card included with the light. A color chart can be found
on the same card and will help when programming colors for the ColorLogic lights.
Overview
Page 2

Program Table
Page 3

Network Module Installation
Holding the modem at an angle,
insert the top of the modem into
the cutout.
Step A
Insert the bottom of the modem in place and rotate
the modem until it seats into the cutout.
Step B
Page 4
Remove the plastic plate by sliding it
towards the front of the enclosure.
Step C

The ColorLogic Network Module uses 120VAC power line communications to individually
control each networked light. The same bus must be used to power both the Network
Module and any networked light(s).
Network Module Wiring
NOTE: When using more than one circuit breaker to power Generation 4 ColorLogic
Lights, be sure that the breakers AND the Network Module feed are on the same
phase of power. Page 5
L1
L1
L2
L2

Network Module Wiring

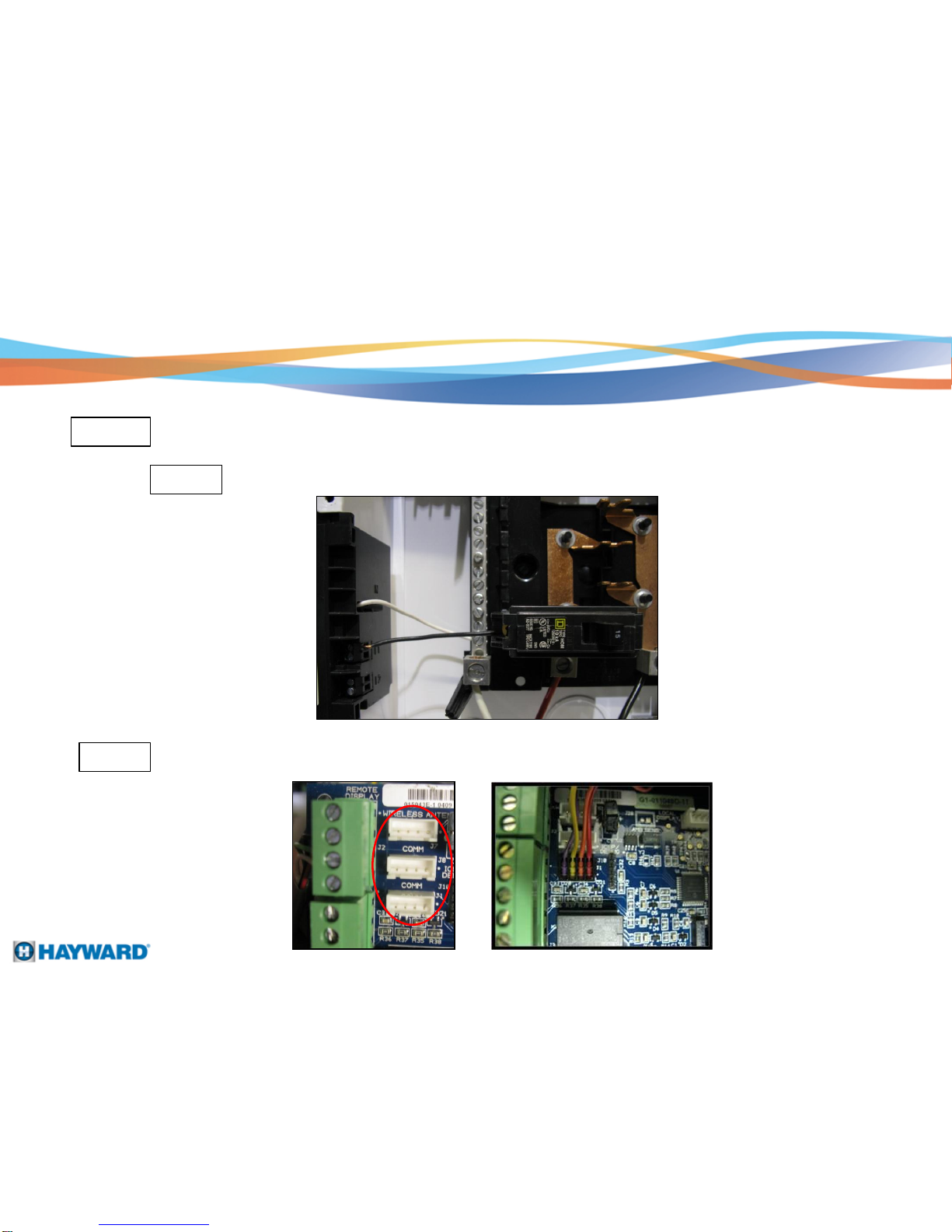

Connect neutral wire (white) from module to neutral bus bar of controller.
Connect load power wire (black) from breaker to module.
Step E
Step D
Connect data cable from module to any open Comm connector on PCB.
Step F
Page 6

ColorLogic Lights Wiring
Connect the pig-tail
wire of the GFCI
breaker to the
neutral bus bar.
Step G
Connect the line power wire
(from breaker) and load power
wire (to lights) to the Lights
Relay.
Step H
To light(s)
Connect the load neutral wire
(from light) to the GFCI breaker.
Step I
From light(s) Page 7

Configuring Lights
Note: Once the ColorLogic configuration process begins,
there is no way to exit and the process must be completed.
During ColorLogic configuration, the Pro Logic will find all networked lights in the
system and assign an identification number to each using the prefix "LT".
Press the + button to activate
ColorLogic options
Step J Press the + button to find ColorLogic
lights
Step K
Page 8

Configuring Lights
Power cycles to the ColorLogic light(s),
may take 1 minute or more. Do not
press any buttons while waiting.

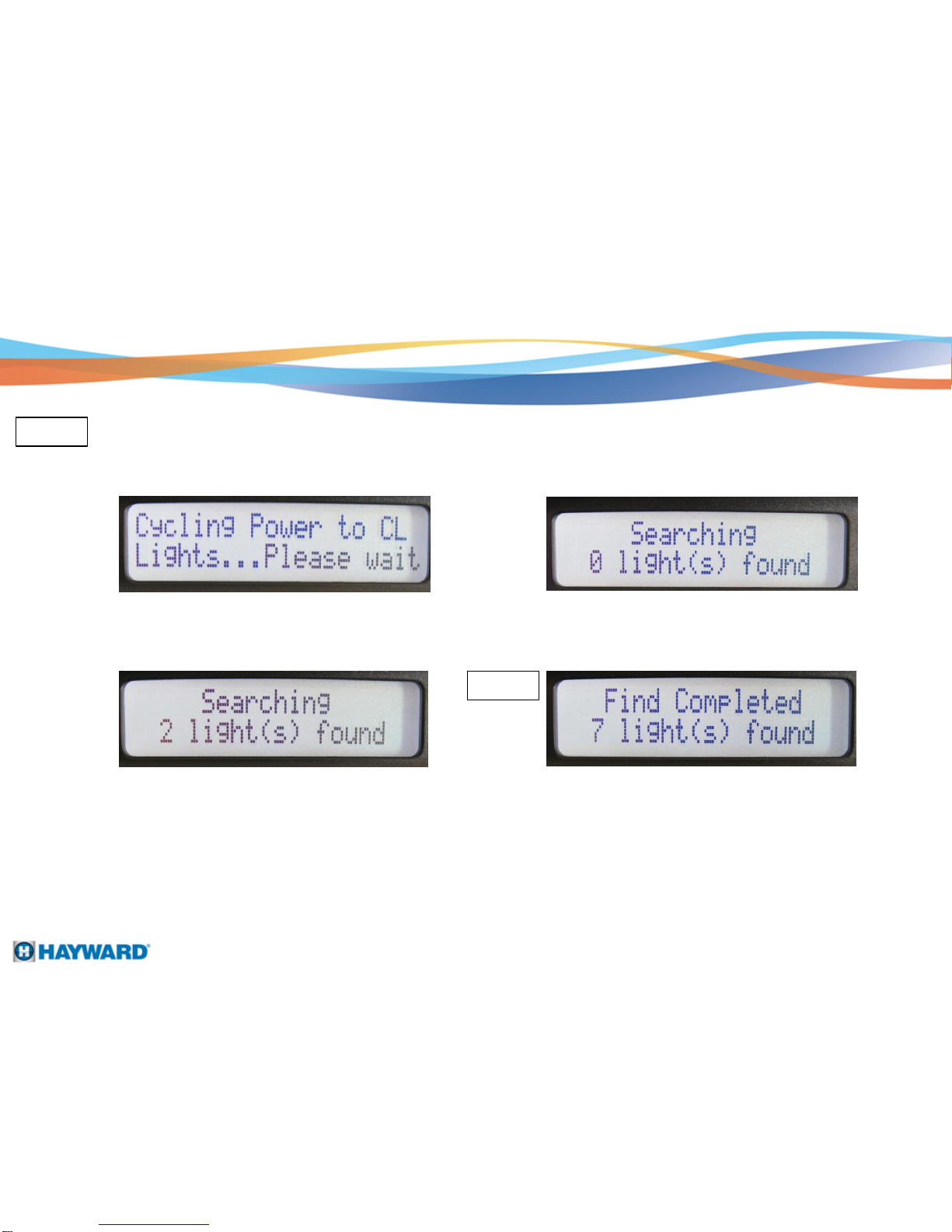

The system is now searching for installed
lights. The lights may blink several times
during this process.
Push the right arrow button to advance.
If all installed lights are not found, check wiring and configure/find
lights again. If problem persists, call Tech Support at: [phone].
Search for ColorLogic light(s),
may take up to 5 minutes
Step L
Step M
Page 9

Configuring Lights
After all lights are found, each light will need to be assigned an identification number. These
numbers will be shown as LT1,LT2, LT3..., depending on how many lights are found. The
number will identify the light for all future programming of shows, colors, etc.
The light being assigned will blink
to help identify the specific light.
To change the light #, press the + or
–button. Then press the right arrow
button to assign the next light.
The message below will be
displayed if key presses are made
prior to the module storing the
previous information. Simply wait a
moment and try again.
Step N Step O
Page 10

Resetting Lights to Default
The ColorLogic lights configuration can be reset if desired. Use this procedure when:
-adding a light to the system
-removing a light from the system
-re-assigning a LT number to an existing light
In the configuration menu, Initiate
reset of all ColorLogic configuration
parameters by pressing the + key
Step P Step Q Reset all ColorLogic configuration
parameters by pressing the + key.
ColorLogic lights are been reset.
Move to the next menu item by pressing
the right arrow key. Page 11

Auxiliary Configuration
Any Aux output can be configured to control a ColorLogic fixed color or light show,
(Aux 4 is used for example in this guide). A virtual Aux output can also be used on Pro Logic
Virtual models (see the Pro Logic manual for more information). AColorLogic light can be
assigned to more than one Aux and if more than one show is desired, additional Aux outputs
can be configured
Page 12
Step Q Select the desiredAux and press +.
Step R Scroll thru the list of available names
using the + and –buttons. Select the
name you want displayed and press
the right arrow button.
Select the function for how the Aux
will operate ( Manual, Timeclock, or
Countdown). Press the right arrow
button to move to the next step.
Step S

Auxiliary Programming
Page 13

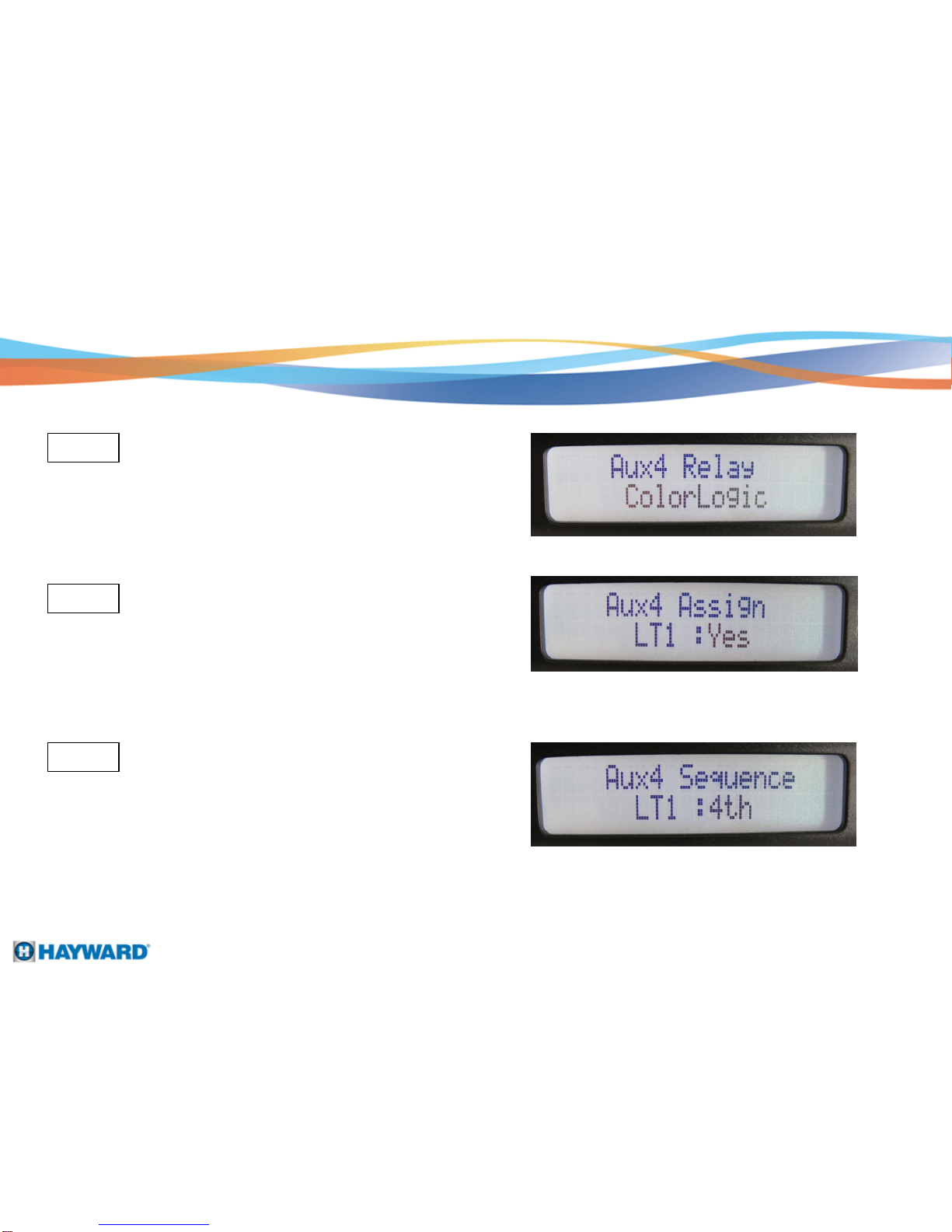

Step R Press the + or –button until
ColorLogic is display as relay type.
Then press the right arrow key.
Step S
Step T
The system will now ask individually if
each light found should be assigned to
the Aux. The default answer is no.
Press + or –to change to yes. Then
press the right arrow button.
For each light assigned, Press the
+ or –button to determine the
display sequence it will have with
others in the Aux being
programmed. Press the right arrow
key to move to the next light.
Note: Multiple lights can have the same sequence.

Light shows and fixed colors are programmed differently and will require different input from the
user. Programming the ColorLogic lights takes place within the Settings Menu of the Pro Logic
control. To enter the Settings Menu, push the "Menu" button until "Settings" is displayed. Push
the "<" or ">" buttons until the desired Aux is displayed then follow the sequence described on
the following pages.
Light Show Programming

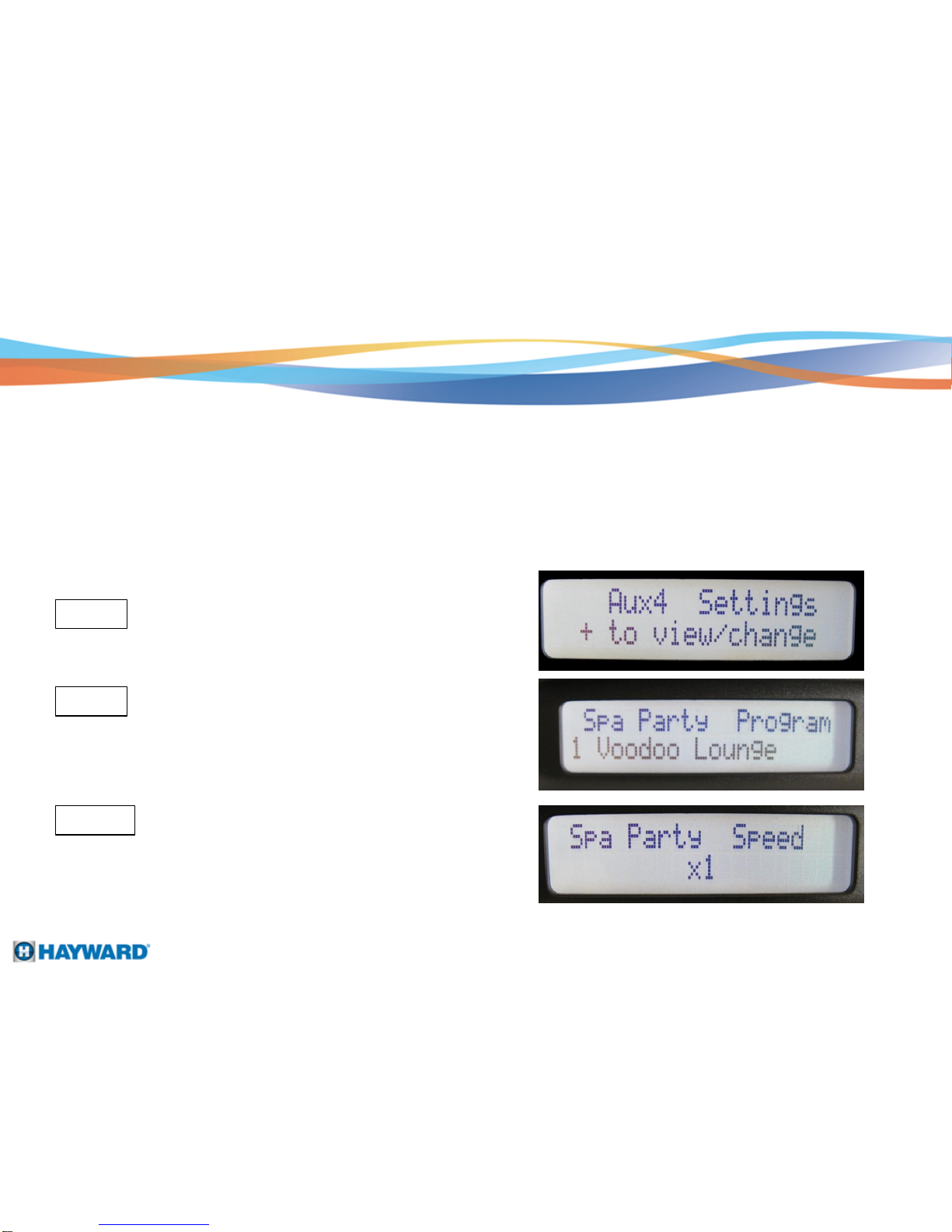

Select the desired Aux and press +.
Step U
Press + or –buttons to toggle between
all available light shows and fixed color
options. Press the right arrow to move
to the next step.
Step V
Press + or –buttons to toggle between
all available speeds. Press the right
arrow to move to the next step.
Step W
Page 14

Light Show Programming
Press + or –buttons to toggle between
all available motion options. Press the
right arrow to move to the next step.
Step X
Step Y Press + or –buttons to toggle between
all available brightness options. Press
the right arrow to move to the next step.
Note: When motion is set to OFF, there is no delay and all lights will illuminate at
the same time. When motion is set to a positive value (+0.2 to +1.2), the order of
illumination will start from the lowest LT number and advance to the highest. If a
negative motion value is selected (-1.2 to -0.2), the illumination sequence will be the
opposite (highest LT to lowest).
Page 15

Fixed Color Programming
Select the desired Aux and press +.
Step Z
Page 16
Press + or –buttons to toggle between
all available light shows and fixed color
options. Press the right arrow to move
to the next step.
Step AA
Press + or –buttons to toggle between
all available colors of fixed light..
Press the right arrow button twice to
move to the next step, FF. Press the +
button to reset factory settings (Step
DD).
Step CC
Step BB

Fixed Color Programming
Page 17
Step DD Press the + button to reset to fixed
color default.
Press the right arrow button to move
to next step.
Step EE
Step FF Press the + or - button to move to adjust
the brightness setting. Press the right
arrow button to the next menu item.
This completes the setting of the colors. To exit, press the menu button.

Troubleshooting
ColorLogic Lights system is not recognized by the Pro Logic and no ColorLogic
menu options are shown.
Verify that the Lights indicator light automatically turns on upon applying power to the Pro
Logic. If the indicator does not turn on, the Pro Logic is not communicating with the Network
Module which means you should check the RS-485 connection (i.e., the four wire
connection) between the Pro Logic main board and the Network Module.
Multiple lights blink at the same time during the identification process.
During the identification process only a single light should be blinking at any given time.
Each time the right arrow is pressed, a command is sent to turn off the current light and to
start the next light blinking. If two lights are blinking, previous light did not process the
command to turn off. Use the “Left Arrow” to return to the previous light and then continue
to identify the lights using the right arrow.
Page 18
