Quick
guide
HBCP – Compressor protection
F
unctionality:
The HBCP sensor is made to protect the compressor against liquid hammering . If the HBCP is to be used
in a different way, prior approval must be obtained from HB Products.
Download complete manual:
For further information please download the instruction manual from our homepage:
www.hbproducts.dk.
Caution
:
Only qualified personnel should work with the product. The technician must be aware of the
consequences of an improperly installed sensor, and must be committed to adhering to the applicable
local legislation.
HB Products
–
dedicated to optimal solutions for level measurement
and control of oil and refrigerants.
HB Products is a development-oriented company, which specializes in the development and
production of sensors for industrial refrigeration systems. Apart from expertise within oil and
refrigerant control, we have great know-how in the design and optimization of industrial
refrigeration systems. This knowledge enables us to develop and produce the best sensors!
Since its start more than 0 years ago, HB Products has attained a strong global position. This is
the result of our ability to think in terms of new technological solutions, create trustworthy
products, and provide a high level of service.
For further info and
guidance please visit
our homepage
www.hbproducts.dk

HB Products A/S – www.hbproducts.dk – [email protected] – tel.: [phone] Quick guide – HBCP – rev. 001- 013

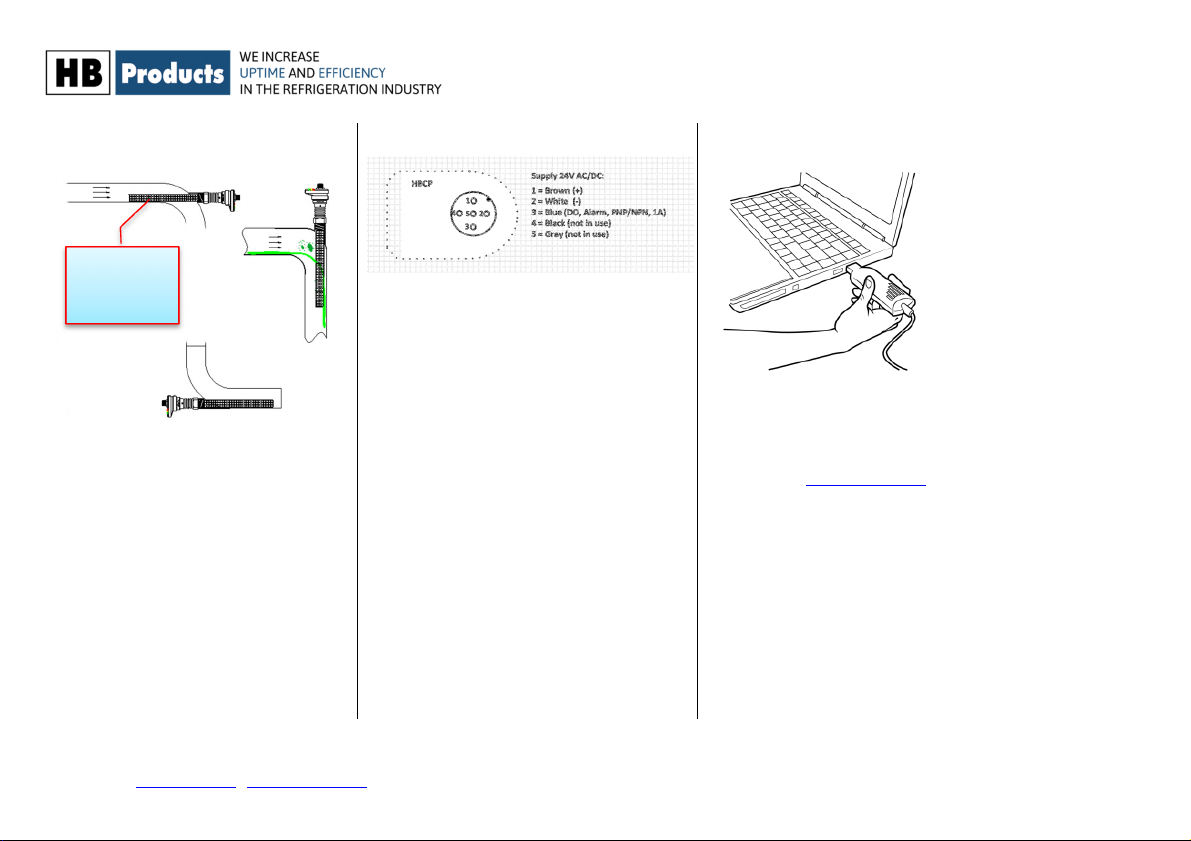

echanical installation
Electrical installation
Configuration of sensor
Sensor is factory programmed for compressor protection. In order to change the
control parameters the HB configuration tool is needed.
echanical specifications:
Ambient temperature: -40…+60°C
Liquid temperature: -50…+70°C
Max. pressure: 100 bar
Material, mechanical: AISI304/PTFE
Thread connection: see packaging.
Refrigerant: NH3 & CO
Electrical specifications:
Supply: 4 V AC/DC
Power consumption: 0,5 W
Alarm output: Transistor PNP, max 1A
Contact function: NC/NO
Alarms: Low & High
Cable: M1 -5 m
Plug: DIN 06 7 – M1 /5 pins
Enclosure: IP65
Material, electronics: Nylon 6 (PA).
Download of software:
The tool can be downloaded for free. Request access to download the tool by
sending an email to [email protected].
NOTE! To be able to change the control parameters, it is necessary to have a special
USB/M1 configuration cable as well as the configuration tool installed on a PC.
Installation guide:
HBCP can be mounted on a pipe bending. It should be
placed close to the compressor.
LED activation:
1) Green LED indicates 4 V supply; it blinks during operation.
) Yellow LED indicates liquid hammering (low alarm).
3) Red LED indicates liquid hammering (high alarm).
Caution! In case of welding work on the unit, the electronic
part must be removed. Welding work can damage the
electronics. The mechanical part of the sensor must not be
installed in the pipe socket during welding.
Note! All terminals are protected against improper termination
with a supply voltage up to 40 V. If the supply voltage is greater
than 40 V the electronics will be damaged.
Caution! Factory settings do not guarantee safe operation, since the configuration
parameters depend on the system design.
Note! Fault detection on the electronic function can be carried out without releasing
pressure from the system or disassembling the mechanical part of the sensor.
0
-
mm
gab
