Mounting Instructions | Montageanleitung |
Notice de montage
English Deutsch Français
PW22

2A2443-3.0 HBM: public PW22
English
1 Safety instructions 3........................................
2 Markings used 6............................................
2.1 Symbols on the product 6.....................................
2.2 The markings used in this document 6..........................
3 Mounting and load application 8.............................
4 Electrical connection 9......................................
4.1 Connecting in four‐wire and six‐wire configurations 9.............
4.2 Shortening the cable 9.......................................
4.3 Cable extensions 10..........................................
4.4 Parallel connection (option) 10..................................
4.5 EMC protection 10............................................
5 Specifications 11............................................
6 Dimensions (in mm; 1 mm = 0,03937 inches) 13................
6.1 Dimensions for version with protection housing 14.................

Safety instructions
PW22 A2443-3.0 HBM: public 3
1 Safety instructions
In cases where a breakage would cause injury to persons or damage to equip
ment, the user must take appropriate safety measures (such as safety devices
to protect against falls, collapses or overloads). For safe and trouble‐free op
eration, load cells must not only be correctly transported, stored, sited and
mounted but must also be carefully operated and maintained.
It is essential to comply with the relevant accident prevention regulations. In
particular you should take into account the limit loads quoted in the specifica
tions.
Appropriate use
Load cells are designed for metrological applications. Use for any additional
purpose shall be deemed to be not appropriate.
In the interests of safety, load cells should only be operated as described in the
Mounting Instructions. It is also essential to comply with the legal and safety
requirements for the application concerned during use. The same applies to
the use of accessories.
Load cells can be used as machine elements (for container and silo weighing,
for example). In these situations, you must make sure that for greater sensitiv
ity, the load cells are not constructed with the customary safety factors found in
machine design. Load cells are not safety elements within the meaning of ap
propriate use. The layout of the electronics conditioning the measurement sig
nal should be such that measurement signal failure does not cause damage.
General dangers of failing to follow the safety instructions
Load cells are state‐of‐the‐art and reliable. Load cells can give rise to remain
ing dangers if they are inappropriately installed and operated by untrained per
sonnel.
Everyone involved with siting, starting up, maintaining or repairing a load cell
must have read and understood the Mounting Instructions and in particular the
technical safety instructions.

Safety instructions
4A2443-3.0 HBM: public PW22
Remaining dangers
The scope of supply and performance of the load cells covers only a small
area of weighing technology. In addition, equipment planners, installers and
operators should plan, implement and respond to the safety engineering con
siderations of the weighing technology in such a way as to minimize remaining
dangers. Prevailing regulations must be complied with at all times. Reference
must be made to the remaining dangers associated with the weighing technol
ogy.
Ambient conditions
In the context of your application, please note that because of the alloy ele
ments used, the high‐strength aluminum alloy only has limited corrosion resist
ance if it comes into contact with electrolytes or if there are high and low pH
values. With stainless steel single point load cells, please note that acids and
all materials which release ions will also attack all grades of stainless steel and
their welded seams.
Should there be any corrosion, this could cause the load cell to fail. If this is the
case, the operator must take appropriate protective measures.
Unauthorized conversions and modifications are prohibited
Load cells must not be modified from the design or safety engineering point of
view except with our express agreement. Any modification shall exclude all li
ability on our part for any damage resulting therefrom.
Qualified personnel
Load cells must only be installed by qualified personnel, strictly in accordance
with the specifications in conjunction with the safety requirements and regula
tions listed below. It is also essential to observe the appropriate legal and
safety regulations for the application concerned. The same applies to the use
of accessories.
Qualified personnel means persons entrusted with siting, mounting, starting up
and operating the product, who possess the appropriate qualifications for their
function.

Safety instructions
PW22 A2443-3.0 HBM: public 5
Accident prevention
The prevailing accident prevention regulations must be taken into account,
even though the breaking load is well in excess of the full scale value. Pay par
ticular attention to the following data from the specifications
Slimit load (EL)
Slimit load at max. Eccentricity
Slimit lateral loading (ELq)
Sbreaking load.
CAUTION
Load cells are precision measuring elements and must be handled carefully
during mounting and transportation. Knocking or dropping the load cells can
damage them. Suitable retainers must be used during installation and opera
tion to protect the load cells against overloading. No forces or moments must
be directed via the spring area during mounting.

Markings used
6A2443-3.0 HBM: public PW22
2 Markings used
2.1 Symbols on the product
CE mark
The CE mark enables the manufacturer to guarantee that
the product complies with the requirements of the rel
evant EC directives (the declaration of conformity is
available at http://www.hbm.com/HBMdoc).
Statutory waste disposal mark
In accordance with national and local environmental
protection and material recovery and recycling regula
tions, old devices that can no longer be used must be
disposed of separately and not with normal household
garbage.
If you need more information about waste disposal,
please contact your local authorities or the dealer from
whom you purchased the product.
2.2 The markings used in this document
Important instructions for your safety are specifically identiefied. It is essential
to follow these instructions in order to prevent accidents and damage to prop
erty
Symbol Significance
CAUTION This marking warns of a potentially dangerous
situation in which failure to comply with safety
requirements can result in slight or moderate physical
injury.
Notice This marking draws your attention to a situation in
which failure to comply with safety requirements can
lead to damage to property.

Markings used
PW22 A2443-3.0 HBM: public 7
SignificanceSymbol
Important
This marking draws your attention to important
information about the product or about handling the
product.
Tip
This marking indicates application tips or other
information that is useful to you.
Information
This marking draws your attention to information
about the product or about handling the product.
Emphasis
See….
Italics are used to emphasize and highlight text and
references to other chapters and external documents.

Mounting and load application
8A2443-3.0 HBM: public PW22
3 Mounting and load application
The load cells are fixed at the mounting bores. For the recommended screws
and tightening torques refer to the table below:
Max. capacity Thread Min. property class Tightening torque1)
6...90 kg M6 10.9 10 N@m
1) Recommendedvalue for the stated property class. For screw dimensioning please refer to the
appropriate information given by the screw manufacturers.
Load must not be applied to the side where the cable connection is located, as
this would cause a force shunt.
Base plate
Recommended
flatness: 0.1
Center of mounting plate Loading direction
Mounting plate
Load introduction
(Costumer construction)
PW22
(1)
(2)

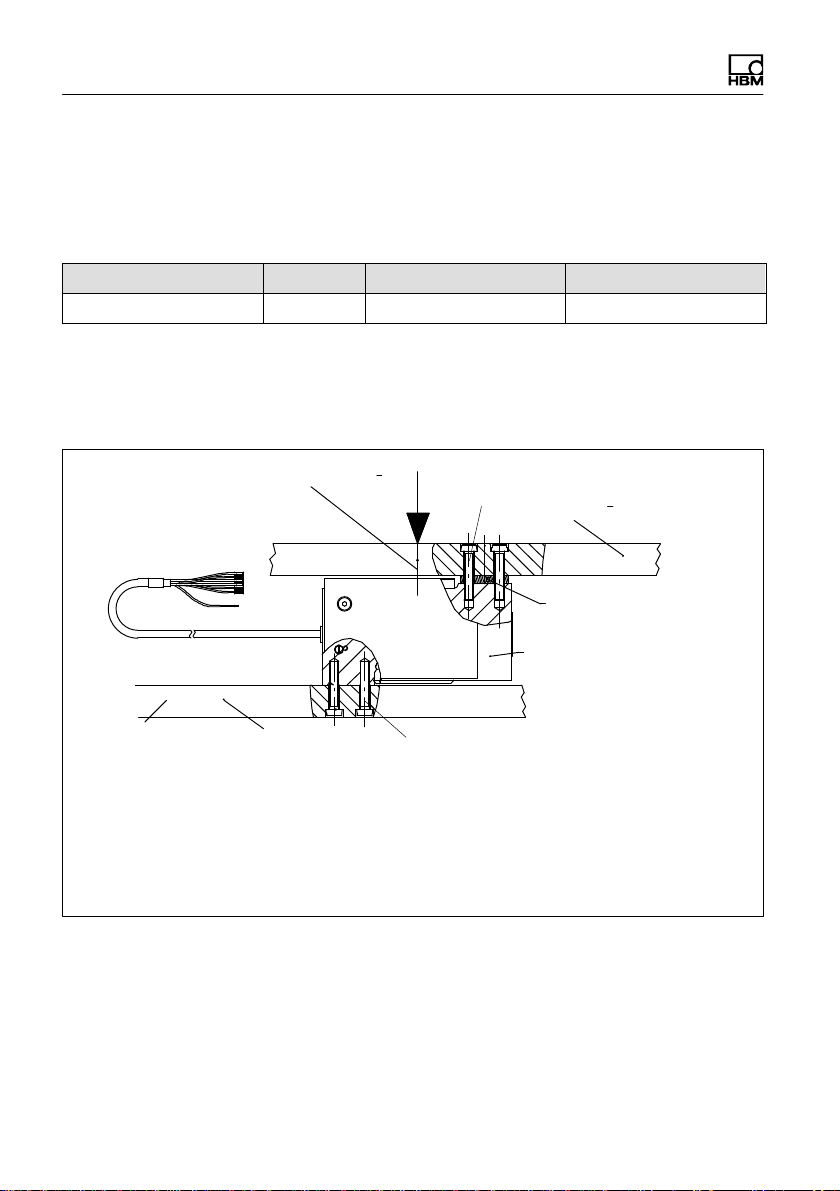

1: Mounting of PW22 at load introduction: 2 x M6; property class 10.9;
tightening torque 10 N·m; max. thread reach 20 mm.
Recommended flatness 0.1 mm on connection surface
2: Mounting of PW22 on base plate: 2 x M6; property class 10.9:
tightening torque 10 N·m; max. thread reach 20 mm
A_6

Electrical connection
PW22 A2443-3.0 HBM: public 9
4 Electrical connection
The following can be connected for measurement signal conditioning:
Scarrier‐frequency amplifier
SDC amplifier
designed for strain gage measurement systems.
4.1 Connecting in four‐wire and six‐wire configurations
When load cells in a six‐wire configuration are connected to amplifiers with a
four‐wire configuration, the sense leads of the load cells must be connected to
the corresponding excitation leads.
6‐wire cable connection (a choice of lengths: 1.5 m; 3 m; 6 m)
4
Contact 1 (white) = Signal (+)
Contact 3 (black) = Excitation (-)
Contact 6 (gray) = Sense (-)
Contact 4 (blue) = Excitation (+)
Contact 5 (green) = Sense +)
Contact 2 (red) = Signal (-)
Shield (yellow) = cable shield
connected to load cell body
Schematic diagram of a Pancon connector (CE100F26‐6), 6‐pin
12356
blue marking
4.2 Shortening the cable
When the 6-wire configuration is used, the load cell's 6-wire cable can be cut
off without impairing measurement accuracy.

Electrical connection
10 A2443-3.0 HBM: public PW22
4.3 Cable extensions
You must only use shielded, low‐capacitance measurement cables to extend
the cables, making sure that there is a proper connection with minimal contact
resistance.
The cable of a six‐wire load cell can be extended with a cable of the same
type.
4.4 Parallel connection (option)
Only single point load cells with an aligned output (nominal (rated) sensitivity
and output resistance) are suitable for parallel connection. Many of HBM's
single point load cell types are available with this option.
4.5 EMC protection
Electrical and magnetic fields often induce interference voltages in the measur
ing circuit. Therefore:
SUse shielded, low‐capacitance measurement cables only (HBM cables fulfill
both conditions)
SDo not route the measurement cables parallel to power lines and control
circuits.
If this is not possible, protect the measurement cable, in rigid steel conduits,
for example
SAvoid stray fields from transformers, motors and contact switches
To ensure the best EMC protection, the load cell, together with the connection
cable and the subsequent electronics, should be placed in a shielded housing.
Exception
Load cells with shielded, round cables are EMC‐tested in accordance with EC
directives and identified by CE certification. But you must make sure that the
shield of the connection cable is connected to the shielding housing of the elec
tronics.

Specifications
PW22 A2443-3.0 HBM: public 11
5 Specifications
Type PW22...
Accuracy class1) C3MR
Maximum number of load cell intervals
(nLC)3000
Maximum capacity (Emax)kg 6 10 20 30 50 90
Minimum LC verification
interval (vmin)g 0.5 1 2 2 5 10
Ratio of minimum verifica
tion intercal (Y) 12,000 10,000 15,000 10,000 9,000
Max. platform size mm 400 x 400
Sensitivity (Cn)mV/V 1.9 ±0.1
Zero signal (without pre
load) mV/V 0 ±0.1
Temperature effect
on zero balance (TK0)
% of Cn/
10 K ±0.0117 ±0.0140 ±0.0093 ±0.0140 ±0.0155
Temperature effect
on sensitivity (TKC) 2)
in the temperature range
+20...+40 5C [+68...+104 5F]
-10 ... +20 5C [+14...+68 5F]
% of Cn
/ 10 K ±0.0175
±0.0117
Relative reversibility error
(dhy) 2)
% of Cn
±0.0166
Linearity deviation (dlin)2) ±0.0166
Minimum dead load ouput
return (MDLOR) ±0.0166
Off-center load error 3) ±0.0233
Input resistance (RLC)Ω300...500
Output resistance (R0)300...500
Reference excitation volt
age (Uref)
V
5
Nominal range of excitation
voltage 1...12
Max. excitation voltage
(BU)15
Isolation resistance (Ris) at
100 VDC
GΩ>2

Specifications
12 A2443-3.0 HBM: public PW22
PW22...Type
Nominal (rated) range of
ambient temperature (BT)
°C [°F]
-10 ... +40 [14 ... 104]
Operating temperature
range (Btu)-10 ... +50 [-4 ... 122]
Storage temperature range
(Btl)-25 ... +70 [-13 ... 158]
Limit load (EL) at 120 mm
eccentricity
% of
Emax
150
Lateral load limit (Elq),
static >300
Permissible dyn. load
(Fsrel); with max. 50 mm ec
centricity
70
Breaking load (Ed) at 20
mm eccentricity 500
Nominal (rated) displace
ment at Emax (snom),
approx.
mm <0.2
Resonance frequency,
without load, approx. Hz 280 380 540 660 866 1015
Weight (G), approx. kg 0.5
Degree of protection acc.
to EN 60 529 (IEC 529) IP67
Material
Measuring body
Coating
Cable sheath
Aluminum
Silicone rubber
PVC
1) According to OIMLR60 with PLC = 0.7
2) The values for linearity deviation (dlin), relative reversibility error (dhy) and temperature effect on
sensitivity (TKC) are recommended values. The sum of these values remain within the cumulated
error limit acc. to OIML R60.
3) Loaded with 30 % of the max. capacity at 142 mm eccentricity (acc. to OIML R76).

Dimensions
PW22 A2443-3.0 HBM: public 13

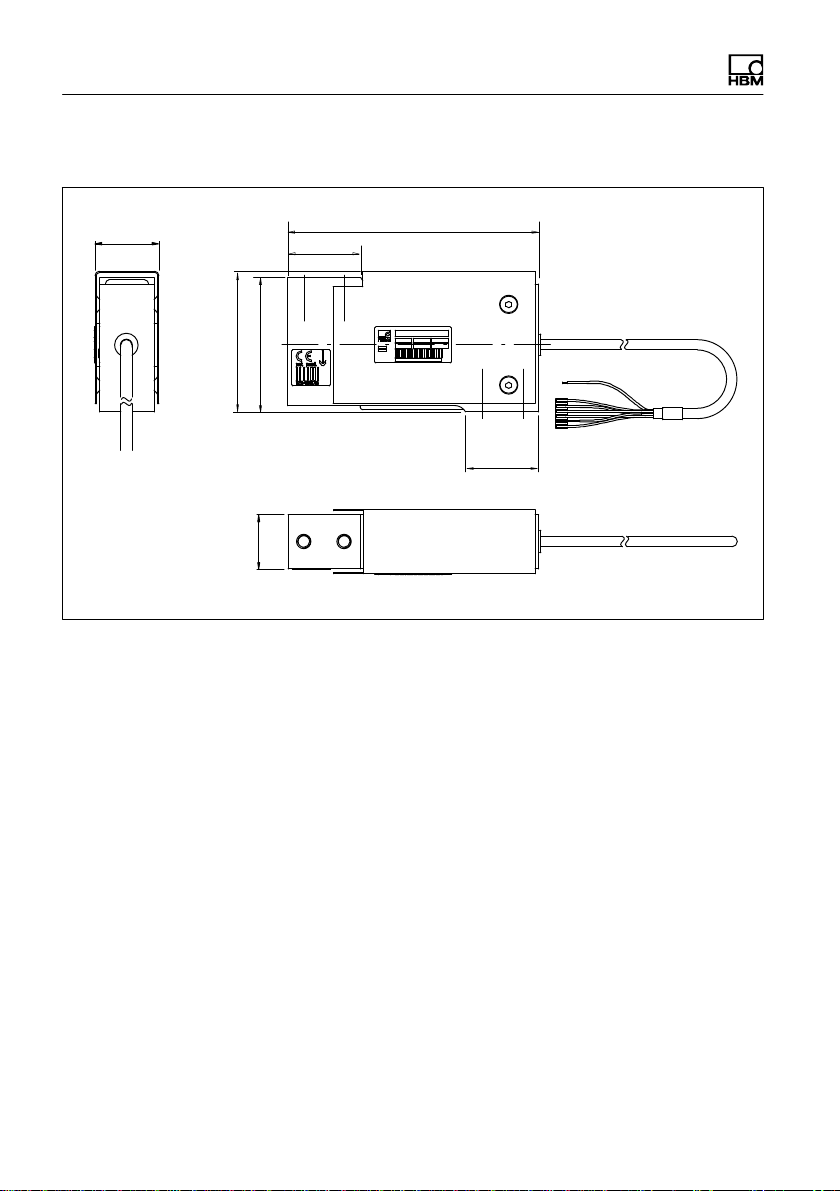

6 Dimensions (in mm; 1 mm = 0,03937 inches)
34.4
4xM6
63
25
20
118
65
34.4
19 19 7.5
25.4
Identificationplate
Load
direction
Cable:
Shielded 6‐core round cable
(6x0.14 mm2) with PVC‐sheath

Dimensions
14 A2443-3.0 HBM: public PW22
6.1 Dimensions for version with protection housing
118
34.4
63
66
25.4
30 34.4

Mounting Instructions | Montageanleitung |
Notice de montage
English Deutsch Français
PW22

2A2443-3.0 HBM: public PW22
Deutsch
1 Sicherheitshinweise 3......................................
2 Verwendete Kennzeichnungen 6.............................
2.1 Auf dem Gerät angebrachte Symbole 6.........................
2.2 In dieser Anleitung verwendete Kennzeichnungen 6..............
3 Montage und Lasteinleitung 8...............................
4 Elektrischer Anschluss 9....................................
4.1 Anschluss in Vier‐ und Sechsleiter‐Technik 9....................
4.2 Kabelkürzung 9..............................................
4.3 Kabelverlängerungen 10.......................................
4.4 Parallelschaltung (Option) 10...................................
4.5 EMV‐Schutz 10...............................................
5 Technische Daten 11.........................................
6 Abmessungen in mm 13.....................................
6.1 Abmessungen der Ausführung mit Schutzgehäuse 14.............

Sicherheitshinweise
PW22 A2443-3.0 HBM: public 3
1 Sicherheitshinweise
Wo bei Bruch Menschen und Sachen zu Schaden kommen können, müssen
vom Anwender entsprechende Sicherheitsmaßnahmen (z.B. Absturzsicherun
gen, Überlastsicherungen usw.) getroffen werden. Der einwandfreie und si
chere Betrieb von Wägezellen setzt sachgemäßen Transport, fachgerechte
Lagerung, Aufstellung und Montage sowie sorgfältige Bedienung und Instand
haltung voraus.
Die einschlägigen Unfallverhütungsvorschriften sind unbedingt zu beachten.
Berücksichtigen Sie insbesondere die in den technischen Daten genannten
Grenzlasten.
Bestimmungsgemäßer Gebrauch
Die Wägezellen sind für wägetechnische Anwendungen konzipiert. Jeder dar
über hinausgehende Gebrauch gilt als nicht bestimmungsgemäß.
Zur Gewährleistung eines sicheren Betriebes dürfen die Wägezellen nur nach
den Angaben in der Montageanleitung verwendet werden. Bei der Verwendung
sind zusätzlich die für den jeweiligen Anwendungsfall erforderlichen Rechts‐
und Sicherheitsvorschriften zu beachten. Sinngemäß gilt dies auch bei Ver
wendung von Zubehör.
Die Wägezellen können als Maschinenelemente (z.B. bei Behälterverwiegun
gen) eingesetzt werden. Beachten Sie in diesen Fällen, dass die Wägezellen
zugunsten einer hohen Messempfindlichkeit nicht mit den in Maschinenkon
struktionen üblichen Sicherheitsfaktoren konstruiert sind. Die Wägezellen sind
keine Sicherheitselemente im Sinne des bestimmungsgemäßen Gebrauchs.
Gestalten Sie die das Messsignal verarbeitende Elektronik so, dass bei Ausfall
des Messsignals keine Folgeschäden auftreten können.
Allgemeine Gefahren bei Nichtbeachten der Sicherheitshinweise
Die Wägezellen entsprechen dem Stand der Technik und sind betriebssicher.
Von den Wägezellen können Restgefahren ausgehen, wenn sie von unge
schultem Personal unsachgemäß eingesetzt und bedient werden.
Jede Person, die mit Aufstellung, Inbetriebnahme, Wartung oder Reparatur
einer Wägezelle beauftragt ist, muss die Montageanleitung und insbesondere
die sicherheitstechnischen Hinweise gelesen und verstanden haben.

Sicherheitshinweise
4A2443-3.0 HBM: public PW22
Restgefahren
Der Leistungs‐ und Lieferumfang der Wägezellen deckt nur einen Teilbereich
der Wägetechnik ab. Sicherheitstechnische Belange der Wägetechnik sind zu
sätzlich vom Anlagenplaner/Ausrüster/Betreiber so zu planen, zu realisieren
und zu verantworten, dass Restgefahren minimiert werden. Jeweils existie
rende Vorschriften sind zu beachten. Auf Restgefahren im Zusammenhang mit
der Wägetechnik ist hinzuweisen.
Umgebungsbedingungen
Beachten Sie in Ihrem Anwendungsfeld, dass die verwendete hochfeste Alumi
nium‐Legierung auf Grund ihrer Legierungselemente bei Kontakt mit Elektroly
ten und bei hohem und niedrigem pH‐Wert nur eingeschränkt korrosionsbe
ständig ist. Bei Plattformwägezellen aus nichtrostendem Stahl ist zu beachten,
dass Säuren und alle Stoffe die Ionen freisetzen, auch nichtrostende Stähle
und deren Schweißnähte angreifen.
Die dadurch evtl. auftretende Korrosion kann zum Ausfall der Wägezelle füh
ren. In diesem Fall sind von der Betreiberseite entsprechende Schutzmaßnah
men vorzusehen.
Verbot von eigenmächtigen Umbauten und Veränderungen
Die Wägezellen dürfen ohne unsere ausdrückliche Zustimmung weder kon
struktiv noch sicherheitstechnisch verändert werden. Jede Veränderung
schließt eine Haftung unsererseits für daraus resultierende Schäden aus.
Qualifiziertes Personal
Die Wägezellen sind nur von qualifiziertem Personal ausschließlich entspre
chend der technischen Daten in Zusammenhang mit den nachstehend ausge
führten Sicherheitsbestimmungen und Vorschriften einzusetzen. Hierbei sind
zusätzlich die für den jeweiligen Anwendungsfall erforderlichen Rechts‐ und
Sicherheitsvorschriften zu beachten. Sinngemäß gilt dies auch bei Verwen
dung von Zubehör.
Qualifiziertes Personal sind Personen, die mit Aufstellung, Montage, Inbetrieb
setzung und Betrieb des Produktes vertraut sind und die über die ihrer Tätig
keit entsprechende Qualifikationen verfügen.
