HBM T40FH User manual

Mounting Instructions | Montageanleitung
English Deutsch
T40FH

Hottinger Baldwin Messtechnik GmbH
Im Tiefen See 45
D-64239 Darmstadt
Tel. [phone]
Fax [phone]
[email protected]
www.hbm.com
Mat.: 7-2002.4429
DVS: A4429-3.0 HBM: public
09.2017
EHottinger Baldwin Messtechnik GmbH.
Subject to modifications.
All product descriptions are for general information only.
They are not to be understood as a guarantee of quality or
durability.
Änderungen vorbehalten.
Alle Angaben beschreiben unsere Produkte in allgemeiner
Form. Sie stellen keine Beschaffenheits- oder Haltbarkeits
garantie dar.

Mounting Instructions | Montageanleitung
English Deutsch
T40FH

2A4429-3.0 HBM: public T40FH
English
1 Safety instructions 4........................................
2 Markings used 10............................................
2.1 Symbols on the transducer 10..................................
2.2 The markings used in this document 11..........................
3 Application 12...............................................
4 Structure and mode of operation 13...........................
5 Mechanical installation 15....................................
5.1 Important precautions during installation 15......................
5.2 Conditions on site 16..........................................
5.3 Mounting position 16..........................................
5.4 Installation options 17.........................................
5.4.1 Installation with antenna ring removed 18........................
5.5 Preparing for the rotor mounting 19.............................
5.6 Mounting the rotor 22..........................................
5.7 Installing the stator 25.........................................
5.8 Rotational speed measuring system 29..........................
6 Electrical connection 31......................................
6.1 General information 31........................................
6.2 EMC protection 31............................................
6.3 Connector pin assignment Option 4, Code SU2, DU2, HU2 32....
6.4 Connector pin assignment Option 3, Code PNJ 37................
6.5 Supply voltage (SU2, DU2, HU2) 37.............................
6.6 Supply voltage (Option 3, Code PNJ) 38.........................
7 TEDS transducer identification (Option 3, Code PNJ) 39.......
7.1 Hierarchy of user rights 39.....................................
7.1.1 Standard rights (USR level) 39.................................
7.1.2 Calibration rights (CAL level) 39................................
7.1.3 Administrator rights (ID level) 39................................
7.2 Contents of the TEDS memory as defined in IEEE 1451.4 40.......

T40FH A4429-3.0 HBM: public 3
8 Shunt signal 44..............................................
9 Functionality testing 45......................................
9.1 Rotor status, LED A (upper LED) 45.............................
9.2 Stator status, LED B (lower LED) 46............................
10 Load-carrying capacity 47....................................
11 Maintenance 48..............................................
12 Waste disposal and environmental protection 49..............
13 Dimensions 50..............................................
13.1 T40FH torque transducer with rotational speed measuring system,
Option 4, Code SU2, DU2, HU2 50.............................
13.1.1 T40FH 100kNm - 150kNm 50.................................
13.1.2 T40FH 200kNm - 300kNm 52.................................
13.2 T40FH torque transducer (non-rotating),
Option 4, Code PNJ 54.......................................
13.2.1 T40FH 100 kNm - 150 kNm 54.................................
13.2.2 T40FH 200kNm - 300kNm 56.................................
14 Ordering numbers, accessories 58............................
15 Specifications 60............................................
16 Supplementary technical information 68......................

Safety instructions
4A4429-3.0 HBM: public T40FH
1 Safety instructions
FCC conformity and notice
Information
FCC option only available on request.
Important
Any change or modification not expressly approved in writing by the party
responsible for conformity could void the user's authority to operate this equip
ment. Where indicated, additional components or accessories whose use is
prescribed elsewhere during installation of the product must be used to ensure
compliance with the FCC Rules.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference
and (2) this device must accept any interference received, including interfer
ence that may cause undesired operation.
The FCC ID, that is to say, the unique identifier, must be visible on the device.
Model Measuring ranges FCC ID IC
T40S10 100 kNm, 130 kNm,
150 kNm 2ADAT−T40S10TOS11 12438A−T40S10TOS11
T40S11 200 kNm, 250 kNm,
300 kNm

Safety instructions
T40FH A4429-3.0 HBM: public 5
Example of a label with FCC ID and IC number.
Identification
plate
Fig. 1.1 Position of the label on the device stator
Model: T40S10
FCC ID: 2ADAT-T40S10TOS11
IC: 12438AT40S10TOS11
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause un
desired operation.
Fig. 1.2 Example of a label
This device complies with Industry Canada standard RSS210.

Safety instructions
6A4429-3.0 HBM: public T40FH
This device complies with Industry Canada license‐exempt RSS stan
dard(s).Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interfer
ence received, including interference that may cause undesired operation.
Cet appareil est conforme aux norme RSS210 d’Industrie Canada.
Cet appareil est conforme aux normes d’exemption de licence RSS d’Industry
Canada. Son fonctionnement est soumis aux deux conditions suivantes : (1)
cet appareil ne doit pas causer d’interférence et (2) cet appareil doit accepter
toute interférence, notamment les interférences qui peuvent affecter son
fonctionnement.
Appropriate use
The T40FH torque flange is used exclusively for torque, angle of rotation and
power measurement tasks within the load limits stipulated in the specifications.
Any other use is not appropriate.
Stator operation is only permitted when the rotor is installed.
The torque flange may only be installed by qualified personnel in compliance
with the specifications and with the safety requirements and regulations of
these mounting instructions. It is also essential to observe the applicable legal
and safety regulations for the application concerned. The same applies to the
use of accessories.
The torque flange is not intended for use as a safety component. Please also
refer to the "Additional safety precautions" section. Proper and safe operation
requires proper transportation, correct storage, siting and mounting, and careful
operation.
Load-carrying capacity limits
The data in the technical data sheets must be complied with when using the
torque flange. The respective specified maximum loads in particular must never
be exceeded. The values stated in the technical data sheets, forexample, must
not be exceeded for
SLimit torque,
SLongitudinal limit force, lateral limit force or bending limit moment,
STorque oscillation width,

Safety instructions
T40FH A4429-3.0 HBM: public 7
SBreaking torque,
STemperature limits,
SLimits of the electrical load-carrying capacity.
Use as a machine element
The torque flange can be used as a machine element. When used in this man
ner, it must be noted that, to favor greater sensitivity, the transducer is not
designed with the safety factors usual in mechanical engineering. Please refer
here to the section "Load-carrying capacity limits", and to the specifications.
Accident prevention
According to the prevailing accident prevention regulations, once the transduc
ers have been mounted, a covering agent or cladding has to be fitted as fol
lows:
SThe covering agent or cladding must not be free to rotate.
SThe covering agent or cladding should prevent squeezing or shearing and
provide protection against parts that might come loose.
SCovering agents and cladding must be positioned at a suitable distance or
be so arranged that there is no access to any moving parts within.
SCovering agents and cladding must still be attached even if the moving
parts of the torque flange are installed outside peoples' movement and
working range.
The only permitted exceptions to the above requirements are if the torque
flange is already fully protected by the design of the machine or by existing
safety precautions.
Additional safety precautions
The torque flange cannot (as a passive transducer) implement any (safety-rele
vant) cutoffs. This requires additional components and constructive measures,
for which the installer and operator of the plant is responsible. The electronics
conditioning the measurement signal should be designed so that measurement
signal failure does not subsequently cause damage.

Safety instructions
8A4429-3.0 HBM: public T40FH
The scope of supply and performance of the transducer covers only a small
area of torque measurement technology. In addition, equipment planners,
installers and operators should plan, implement and respond to safety engi
neering considerations in such a way as to minimize residual dangers. Perti
nent national and local regulations must be complied with.
General dangers of failing to follow the safety instructions
The torque flange corresponds to the state of the art and is failsafe. Transduc
ers can give rise to residual dangers if they are incorrectly operated or inappro
priately mounted, installed and operated by untrained personnel. Every person
involved with siting, starting-up, operating or repairing a torque flange must
have read and understood the mounting instructions and in particular the tech
nical safety instructions. The transducers can be damaged or destroyed by
non-designated use of the transducer or by non-compliance with the mounting
and operating instructions, these safety instructions or any other applicable
safety regulations (BG safety and accident prevention regulations) when using
the transducers. Transducers can break, particularly in the case of overloading.
The breakage of a transducer can also cause damage to property or injury to
persons in the vicinity of the transducer.
If the torque flange is not used according to the designated use, or if the safety
instructions or specifications in the mounting and operating instructions are
ignored, it is also possible that the transducer may fail or malfunction, with the
result that persons or property may be affected (due to the torques acting on or
being monitored by the torque flange).
Conversions and modifications
The design or safety engineering of the transducer must not be modified with
out our express permission. Any
modification shall exclude all liability on our part for any damage resulting
therefrom.
Selling on
If the torque flange is sold on, these mounting instructions must be included
with the torque flange.

Safety instructions
T40FH A4429-3.0 HBM: public 9
Qualified personnel
Qualified personnel are persons entrusted with the setup, mounting, startup
and operation of the product, who have the appropriate qualifications for their
function.
This includes people who meet at least one of the three following requirements:
1. Knowledge of the safety concepts of automation technology is a require
ment and as project personnel, you must be familiar with these concepts.
2. As automation plant operating personnel, you have been instructed how to
handle the machinery. You are familiar with the operation of the equipment
and technologies described in this documentation.
3. As commissioning engineers or service engineers, you have successfully
completed the training to repair the automation systems. You are also
authorized to operate, ground and label circuits and equipment in accor
dance with safety engineering standards.

Markings used
10 A4429-3.0 HBM: public T40FH
2 Markings used
2.1 Symbols on the transducer
Read and note the data in this manual
CE mark
The CE mark enables the manufacturer to guarantee that
the product complies with the requirements of the rele
vant EC directives (the Declaration of Conformity can be
found on the HBM website www.hbm.com under
HBMdoc).
Example of a label
Example of a label with FCC ID and IC number. Position
of the label on the device stator.
Statutory waste disposal mark
The electrical and electronic devices that bear this sym
bol are subject to the European waste electrical and elec
tronic equipment directive 2002/96/EC. The symbol indi
cates that, in accordance with national and local
environmental protection and material recovery and recy
cling regulations, old devices that can no longer be used
must be disposed of separately and not with normal
household garbage, see also Chapter 12, Page 49.
Model: T40S10
FCC ID: 2ADAT-T40S10TOS11
IC: 12438AT40S10TOS11
This device complies with part 15 of the
FCC Rules. Operation is subject to the fol
lowing two conditions: (1) This device may
not cause harmful interference, and (2)
this device must accept any interference
received, including interference that may
cause undesired operation.

Markings used
T40FH A4429-3.0 HBM: public 11
2.2 The markings used in this document
Important instructions for your safety are specifically identified. It is essential to
follow these instructions in order to prevent accidents and damage to property.
Symbol Significance
WARNING This marking warns of a potentially dangerous situa
tion in which failure to comply with safety require
ments can result in death or serious physical injury.
CAUTION This marking warns of a potentially dangerous situa
tion in which failure to comply with safety require
ments can result in slight or moderate physical injury.
Notice This marking draws your attention to a situation in
which failure to comply with safety requirements can
lead to damage to property.
Important
This marking draws your attention to important infor
mation about the product or about handling the prod
uct.
Tip
This marking indicates application tips or other infor
mation that is useful to you.
Information
This marking draws your attention to information
about the product or about handling the product.
Emphasis
See …
Italics are used to emphasize and highlight text and
identify references to sections, diagrams, or external
documents and files.

Application
12 A4429-3.0 HBM: public T40FH
3 Application
The T40FH torque flange measures static and dynamic torques on stationary
and rotating shafts. Test beds can be extremely compact because of the com
pact design of the transducer. This offers a very wide range of applications.
The T40FH torque flange is reliably protected against electromagnetic interfer
ence. It has been tested in accordance with harmonized European standards
and/or complies with US and Canadian standards. The CE mark and/or the
FCC label are attached to the product.

Structure and mode of operation
T40FH A4429-3.0 HBM: public 13
4 Structure and mode of operation
The torque flange consist of two separate parts: the rotor and the stator. The
rotor comprises the measuring body and the signal transmission elements.
Strain gages (SGs) are installed on the measuring body. The rotor electronics
for transmitting the bridge excitation voltage and the measurement signal are
located centrally in the flange. The transmitter coils for contactless transmission
of excitation voltage and measurement signal are located on the measuring
body's outer circumference. The signals are sent and received by a separable
antenna ring. The antenna ring is mounted on a housing that includes the elec
tronic system for voltage adaptation and signal conditioning.
Connector plugs for the torque and rotational speed signals, the voltage supply
and the digital output are located on the stator. The antenna segments (ring)
should be mounted concentrically around the rotor (see Chapter 5).
Antenna segments
Rotor
Connector
plugs
Stator housing
Type plate
Connector plugs

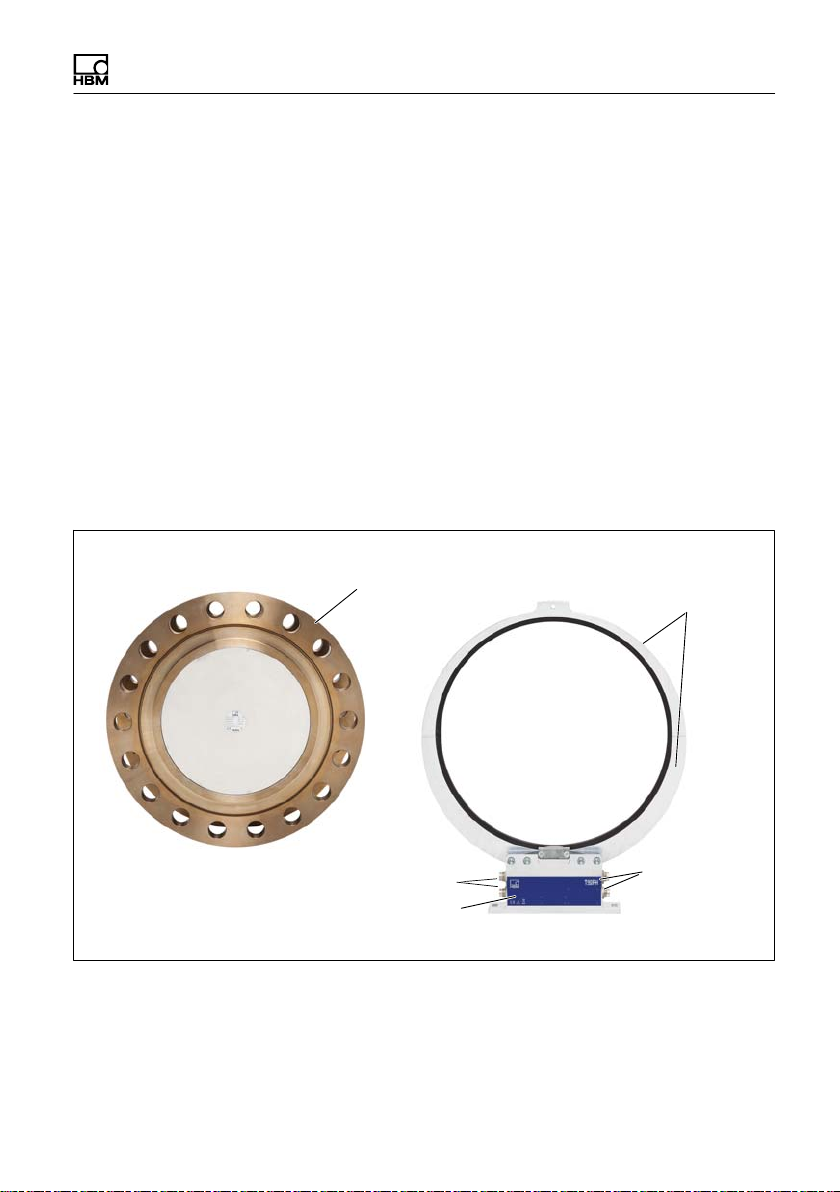

Fig. 4.1 Mechanical construction

Structure and mode of operation
14 A4429-3.0 HBM: public T40FH
The rotational speed sensor is mounted on the stator in Option 5 with a rota
tional speed measuring system. Rotational speed is measured magnetically by
a magnetic field dependent resistor and a ring gear attached to the rotor.

Mechanical installation
T40FH A4429-3.0 HBM: public 15
5 Mechanical installation
5.1 Important precautions during installation
Notice
A torque flange is a precision measurement element and therefore needs care
ful handling. Dropping or knocking the transducer may cause permanent dam
age. Make sure that the transducer cannot be overloaded, including while it is
being mounted.
SHandle the transducer with care.
SCheck the effect of bending moments, critical rotational speeds and natural
torsional vibrations, to prevent the transducer being overloaded by reso
nance sharpness.
SMake sure that the transducer cannot be overloaded.
WARNING
There is a danger of the transducer breaking if it is overloaded. This can cause
danger for the operating personnel of the system in which the transducer is
installed.
Implement appropriate safety measures to avoid overloads and to protect
against resulting dangers.
SUse a threadlocker (medium strength, e.g. LOCTITE) to glue the screws into
the counter thread to exclude prestressing loss due to screw slackening, in
the event of alternating loads.
SComply with the mounting dimensions to enable correct operation.
An appropriate shaft flange enables the T40FH torque flange to be mounted
directly. It is also possible to mount a joint shaft or relevant compensating ele
ment directly on the rotor (using an intermediate flange when required). Under

Mechanical installation
16 A4429-3.0 HBM: public T40FH
no circumstances should the permissible limits specified for bending moments,
lateral and longitudinal forces be exceeded. Due to the T40FH torque flange's
high torsional stiffness, dynamic shaft train changes are kept to a minimum.
Important
Even if the unit is installed correctly, the zero point adjustment made at the fac
tory can shift by up to approx. 0.5% of the characteristic value. If this value is
exceeded, we advise you to check the mounting conditions. If the residual zero
drift when the unit is removed is greater than 1% of the characteristic value,
please send the transducer back to the Darmstadt factory for testing.
5.2 Conditions on site
The T40FH torque flange must be protected against coarse dirt particles, dust,
oil, solvents and moisture.
There is wide ranging compensation for the effects of temperature on the out
put and zero signals of the transducer (see Chapter 15 “Specifications"). If
there are no static temperature ratios, for example, because of the temperature
differences between the measuring body and the flange, the values given in the
specifications can be exceeded. In this case, ensure static temperature ratios
by cooling or heating, depending on the application. As an alternative, check if
thermal decoupling is possible, e.g. by means of heat radiating elements such
as multiple-disc couplings.
5.3 Mounting position
The torque flange can be mounted in any position.
With clockwise torque, the output frequency for Option 5, code DU2 is 60 …90
kHz (Option 5, Code SU2: 10 …15kHz; Option HU2: 240 …360kHz). In con
junction with HBM amplifiers or when using the voltage output, a positive output
signal (0 V …+10 V) is present. In the case of the rotational speed measuring
system, an arrow is attached to the stator housing to clearly identify the direc
tion of rotation: If the measurement flange moves in the direction of the arrow,
connected HBM measuring amplifiers deliver a positive output signal.

Mechanical installation
T40FH A4429-3.0 HBM: public 17
With the non-rotating version, there is a positive output signal in mV/V for clock
wise torque.
5.4 Installation options
As its diameter is less than the flange diameter of the rotor, the antenna ring
must be dismantled for mounting. If access to the rotor in its installed state is
difficult, we recommend mounting the antenna ring beforehand. It is essential in
this case to comply with the notes on assembling the antenna segments (see
Section 5.7).

Mechanical installation
18 A4429-3.0 HBM: public T40FH

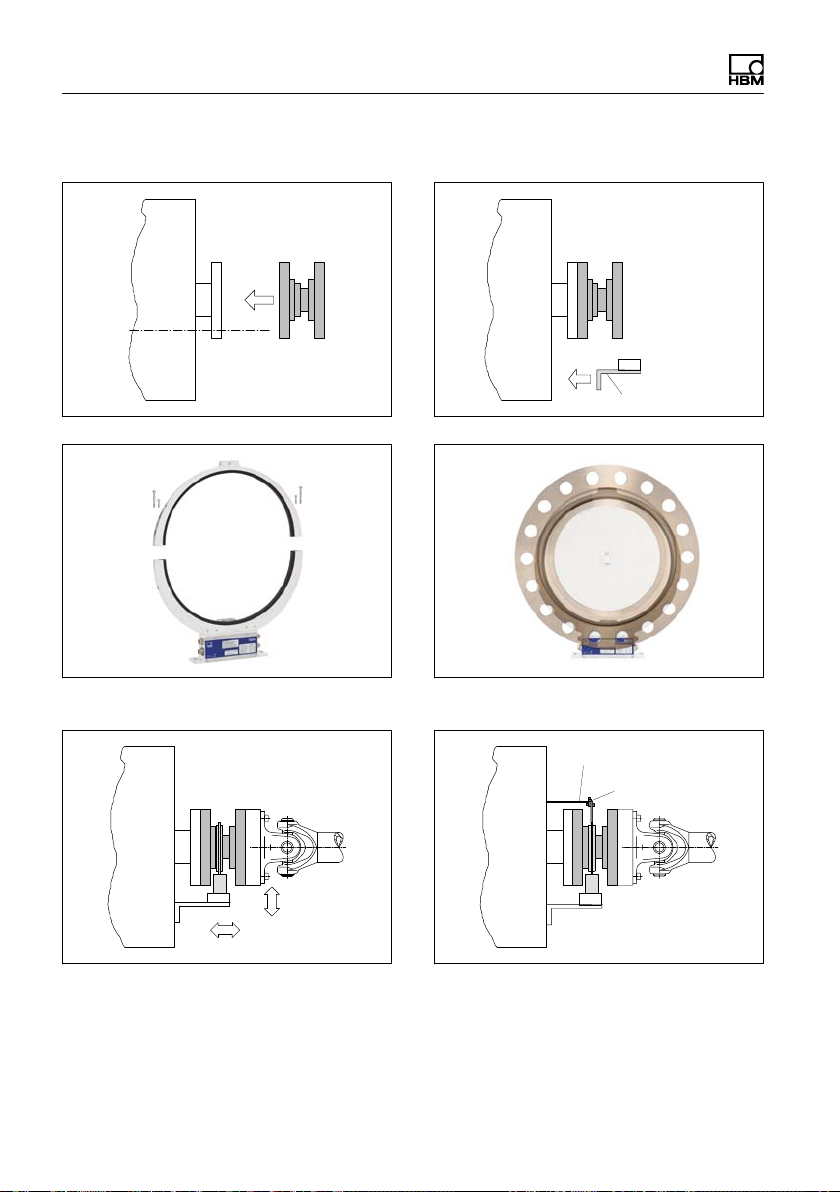

5.4.1 Installation with antenna ring removed
Customer
mounting
1 Install the rotor
3 Remove one antenna segment
5 Align and fully assemble the stator
2 Fit the stator mounting
4 Fit the antenna segment around the shaft
train
6 Fit the clamp fixture
Support supplied by customer
Clamp fixture
