HEALTH ONE HERA-9000 User manual

www.ehealth-one.com
HERA-9000(Android)
Before using this equipment, please read all "Safety Instructions" Carefully to ensure safe and correct operation.
FOR BETTER LIFE
USER MANUAL
For customer service, call
[phone]

Contents
A. GENERAL
A-1. SPECIFICATIONS ...................................................03
A-2.SAFETY INSTRUCTIONS ........................................04
A-3 COMPONENT PARTS .............................................06
A-4. DESCRIPTION ........................................................07
A-5. INSTALLATION LOCATION ....................................07
A-6. INSTALLATION .......................................................08
A-7. INSTRUCTIONS

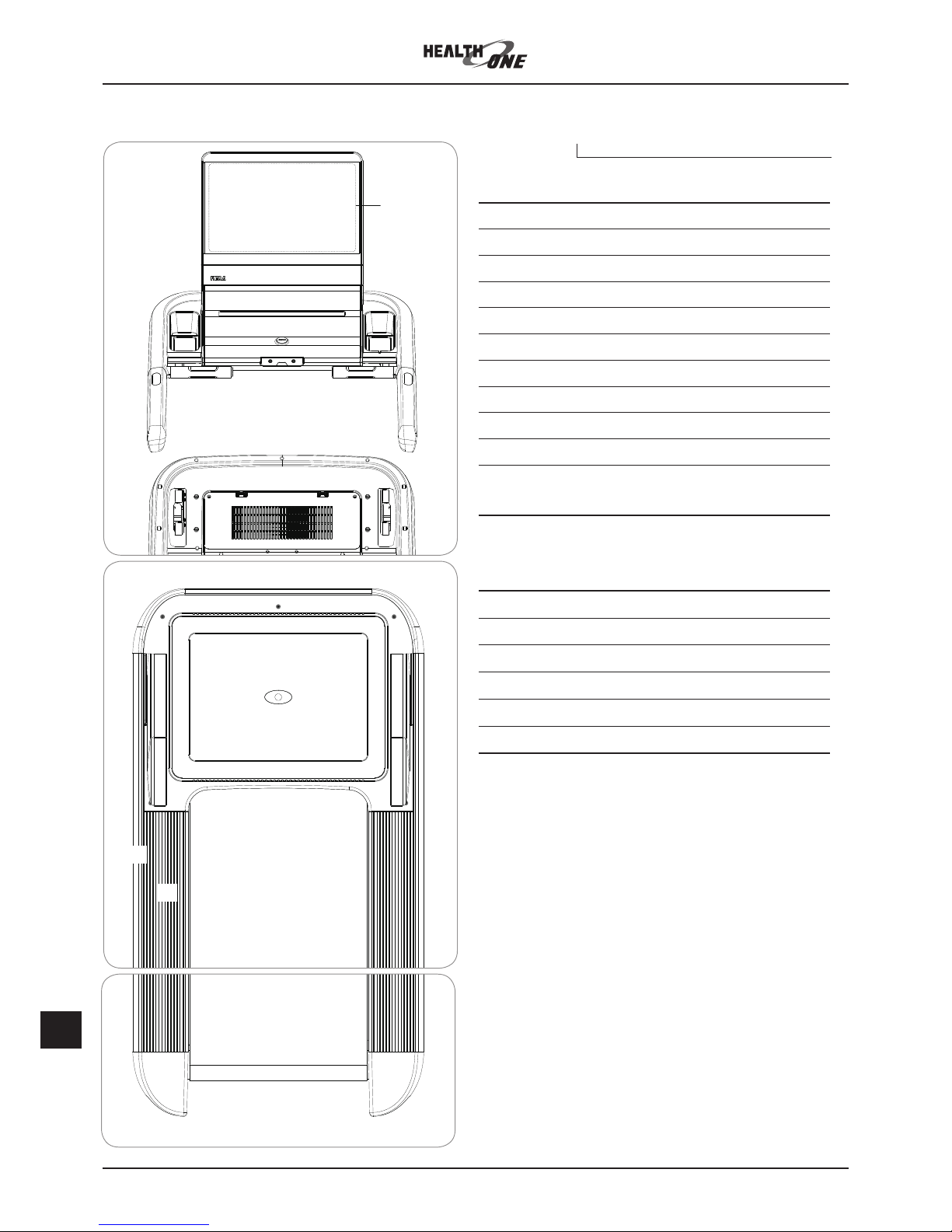

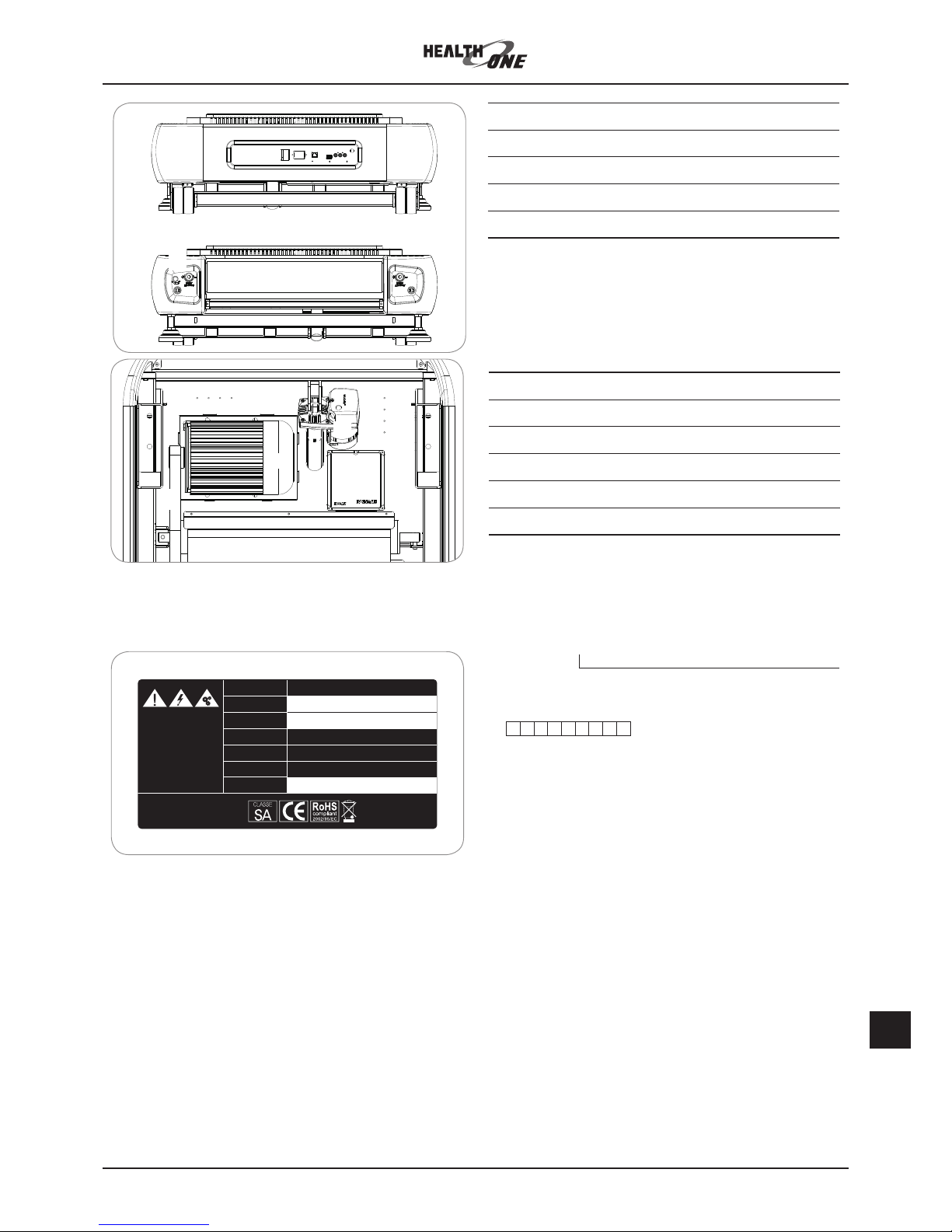

PARTS NAMES .......................................................14

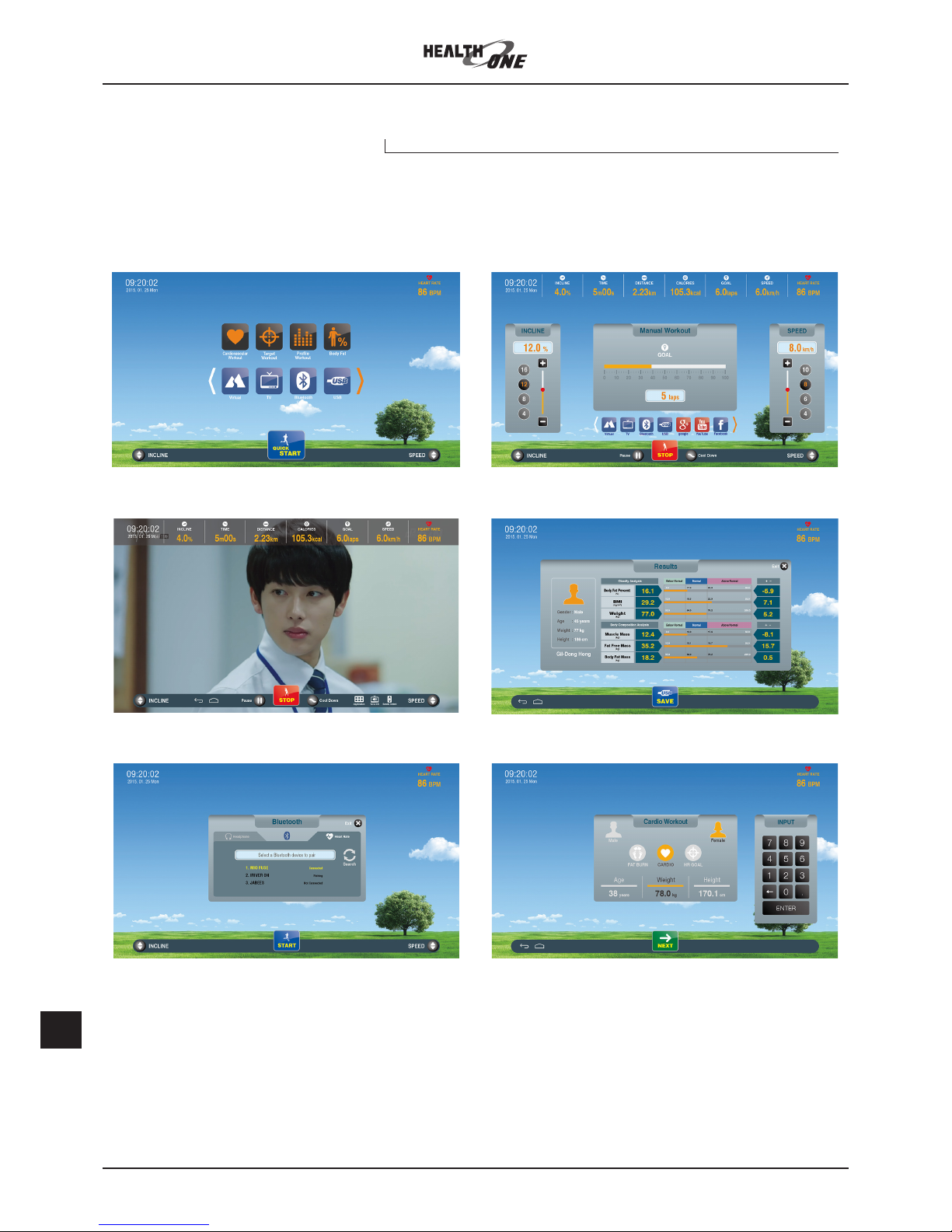

CONSOLE – FEATURES AND FUNCTIONS ............16

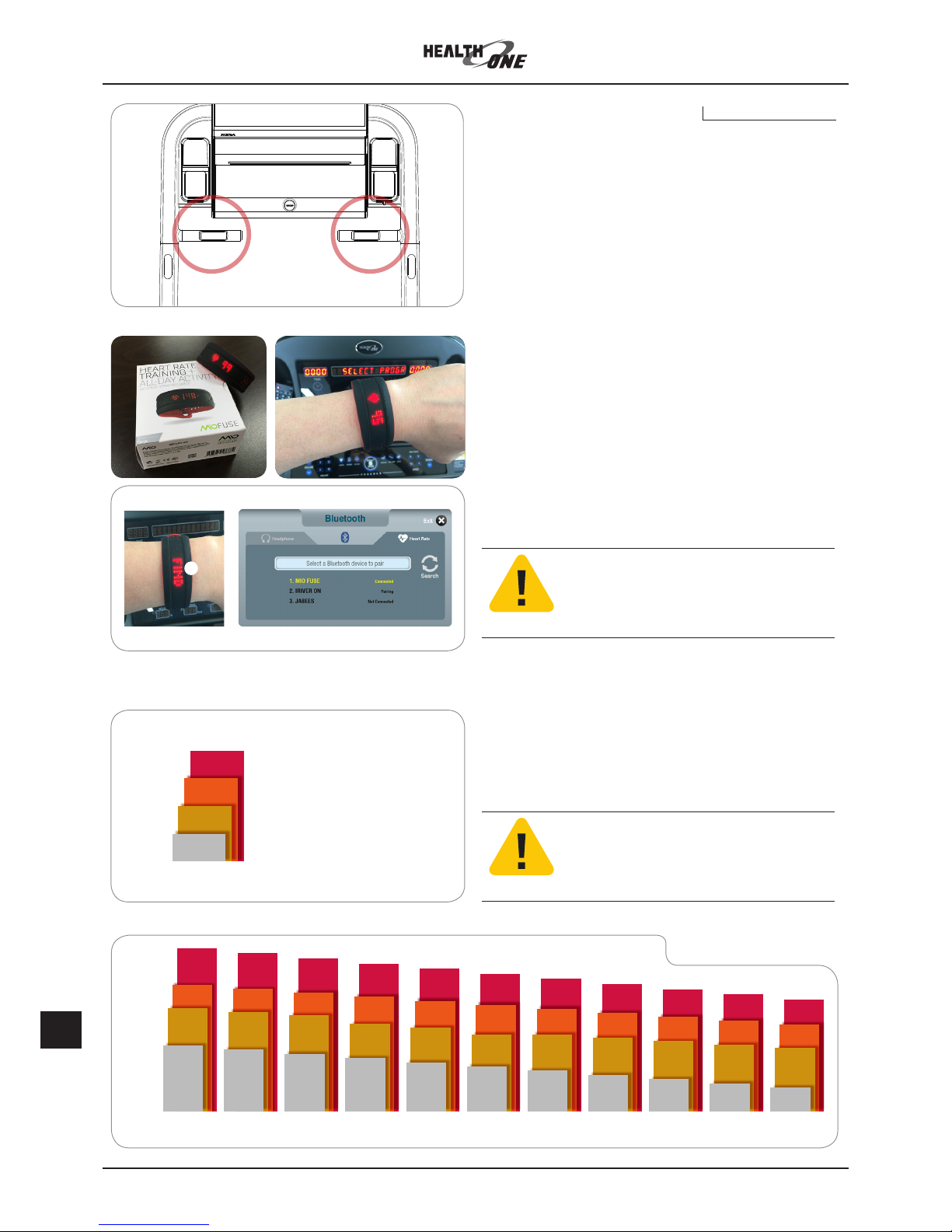

HEART RATE MONITORING SYSTEM.....................19
A-8. OPERATION INSTRUCTIONS
MANUAL WORKOUT...............................................20
TARGET WORKOUT ................................................21
PROGRAM WORKOUT............................................22
B. MANAGEMENT INSTRUCTIONS
B-1. SYSTEM PARAMETER ...........................................26
B-2. TV SETTING............................................................28
B-3. External input, USB Play ........................................29
B-4. REPLACEMENT OF PARTS ....................................30
B-5. LUBRICATION ........................................................31
B-6. MAINTENANCE.......................................................32
B-7. TROUBLE-SHOOTING............................................32
B-8. SELF-CHECK..........................................................33
1. Without prior consent of health-one, using or copying the pictures
and contents in this manual are not allowed.
2. Without prior notice to customer, product could be changed for
improvement purpose.
Head Office.
132, Sannam-ro, Ilsanseo-gu, Goyang-si, Gyeonggi-do,
Korea (10201)
Tel : [phone] / Fax : [phone]
www.eheatlh-one.com/ E-mail: [email protected]
Oversea Business Partners
HEALTH ONE ASIA PTE., LTD
391B Orchard Road, #23-01 Ngee Ann City Tower B, Singapore 238-874
Tel : [phone] / Fax : [phone]
www.healthone.asia / E-mail : [email protected]
HEALTH ONE GREECE
KONTOROUCHAS MICHAEL & CO-14 TRIAS STR, AGIOI ANARGIROI,
PO 13561, ATHENS, GREECE
Tel : [phone] / Fax : [phone]
www.healthone.gr / E-mail : [email protected]
HEALTH ONE(THAILAND) CO.,LTD.
1213/369 SOILADPROA 94, SRIVARA RD., KHET
WANGTHONGLANG, BANGKOK 10310, THAILAND
Tel : [phone]~4 / Fax : [phone]
www.health-onethai.com
HEALTH ONE(PORTUGAL) CO.,LTD.
COMPLEXO TURISTICO MINHITEL PRAIA DO CABEDELO
493-065 DARQUE PORTUGAL
Tel : + 351 258 331 274
E-mail : [email protected]



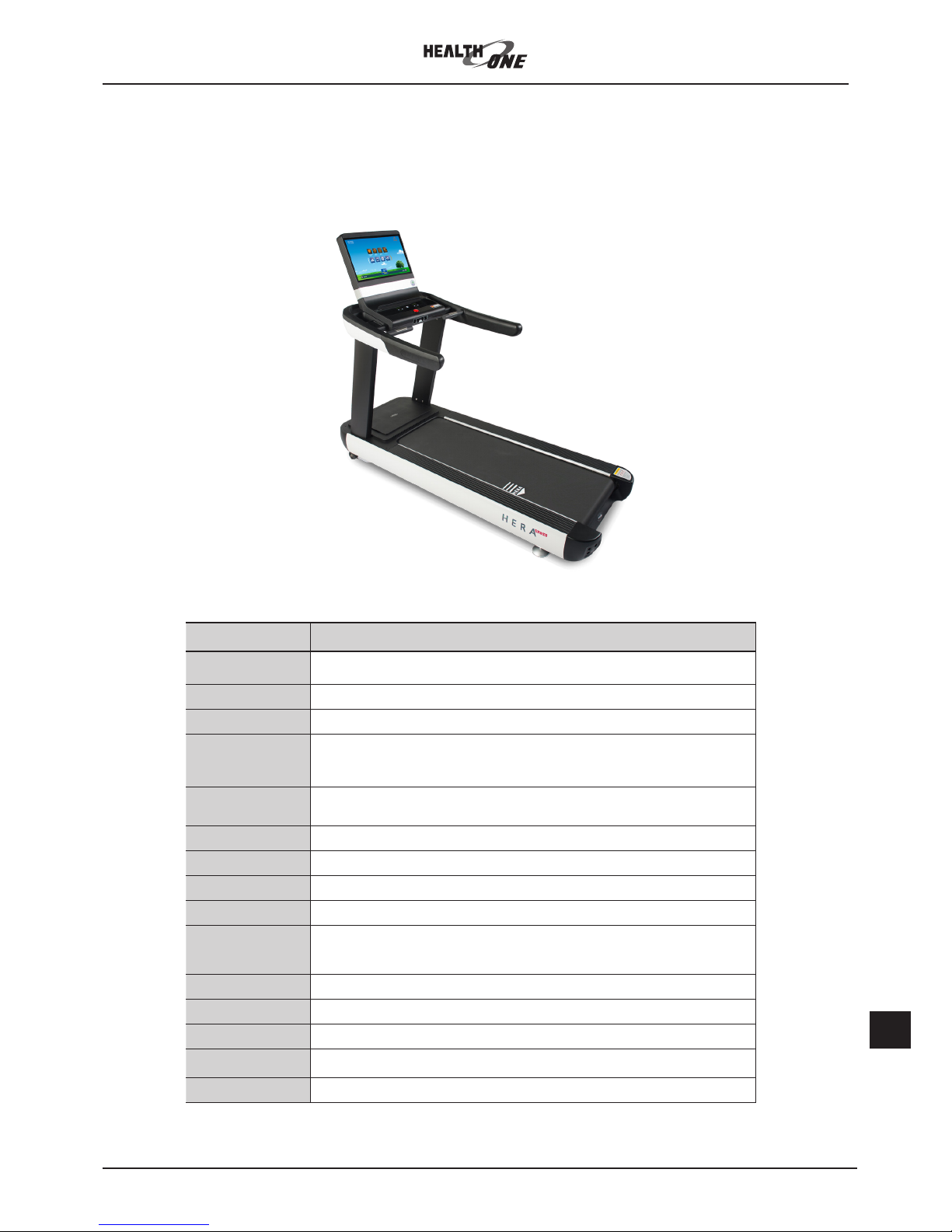

Items
HERA 9000 Android
Motor
AC 3HP (Continuous)
Speed
1.0 ~ 20.0 km/h
Incline
0-16% INCLINEx1
Programs
3 Cardio Programs
6 Prole Programs
3 Target Programs
Display
Speed, Distance, Calories, Incline,
Time, Program, Target, Heart Rate
Monitor
23 inch LED FULL HD TV
Auto Stop
O
Bluetooth
Option
USB Port : Video Clips
O
Heart Rate
Monitoring System
Contact & Telemetry
(Wearable HR Monitoring Device : Option)
Power
220V, 60Hz
Weight
225kg
Max. Load
180kg
Frame
Outer Layer : Aluminium, Inner Layer : Steel
Running Area
530 X 1495 mm
A-1. SPECIFICATIONSA. GENERAL
Specifications


A-2. SAFETY INSTRUCTIONSA. GENERAL

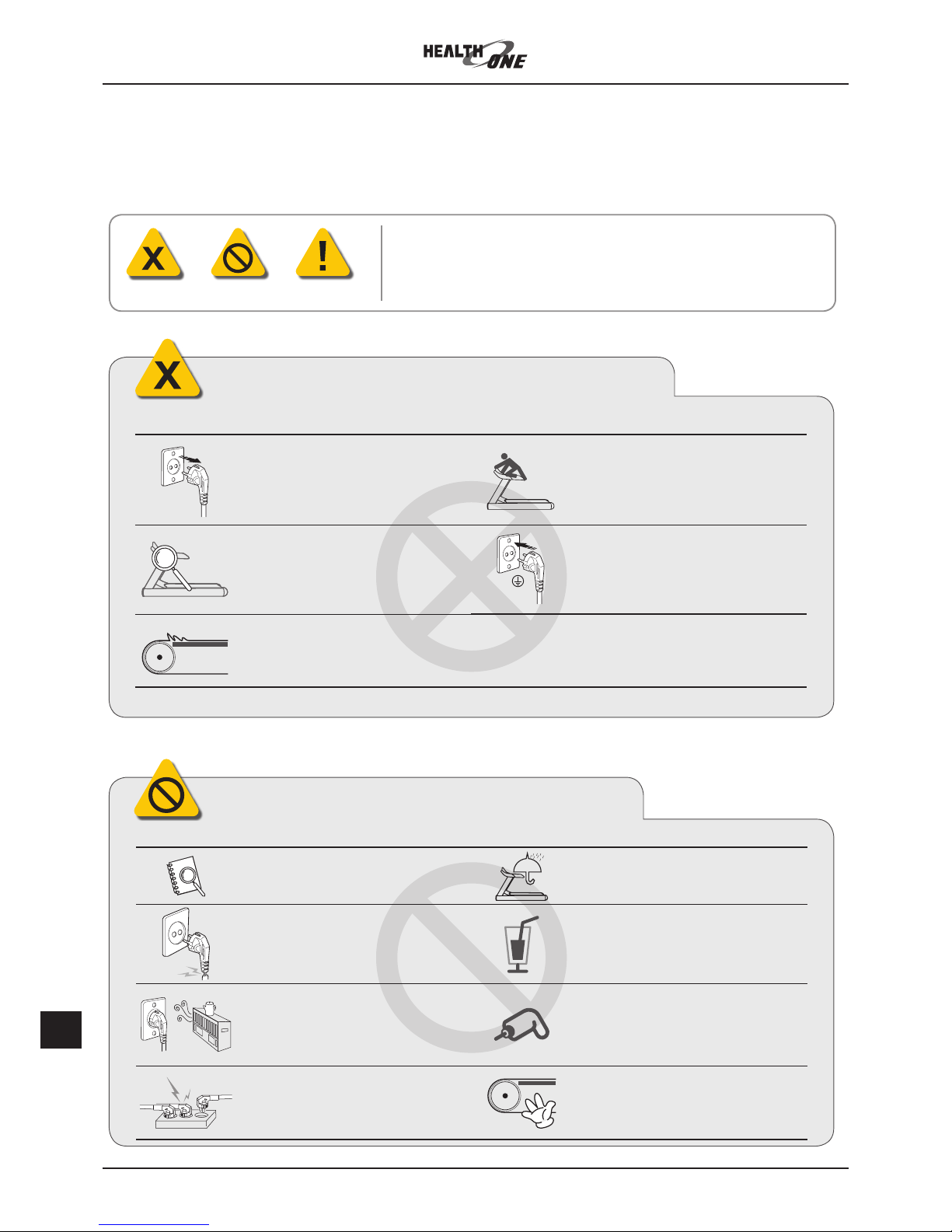

SAFETY INSTRUCTIONS
The following safety instructions are for correct and safe use of the Treadmill and should be followed for your safety and
to prevent accident.
There are 3types of safety marks PROHIBITION, WARNING, and CAUTION, according to the safety level.
Means possible severe or fatal injury.
Means possible damage or injury.
Always unplug the power after the use of the
treadmill or before cleaning or maintenance
to avoid electric shock.
Stepping on the handgrip, display console or
motor cover may cause damage or accident.
Check for proper assembly before rst use
and
do not attach any accessory not
recommended
by the manufacturer as it may be hazardous.
The treadmill uses power of over 10A AC200-
240V 50/60Hz. To reduce danger of accident
when it breaks down, connect the power
plug to a grounded socket as required by the
law.
Replace the worn-out running belt
immediately as it may cause excessive
friction with foot panel leading to static-
induced motor damage and electric shock.
Do not operate the treadmill in any other way
than stated in this Manual.
Do not install the treadmill near water, in very
dusty or humid areas nor on thick carpeting to
avoid damage.
Do not use the treadmill if the power cord was
damaged or the treadmill does not work
normally.
Do not operate the treadmill if it is doused with
water or other liquid. Stop the machine and
contact customer service immediately.
Do not keep the power cord and plug near the
re or excessive heat.
Do not attempt to repair or modify the Treadmill
unless by a qualied engineer.
Do not use a multisocket simultaneously with other
electrical equipment to avoid re due to overload.
Prevent foreign matter from getting into moving
parts such as in motor and rollers. Prevent
clothing or any part of your body from touching
moving parts.
This mark calls for your attention to a possible danger. Read the
accompanying instructions carefully to ensure safe use.
PROHIBITION CAUTIONWARNING
WARNING
PROHIBITION


A-2. SAFETY INSTRUCTIONSA. GENERAL
Power must be turned o and plugged removed
after use or when not in use for a long period of
time.
2m To avoid possible impact injury from falling of the
machine, ensure that solid objects are distance 2
meters from the back or 2 meter from the sides.
THINNERR
SOLVENT
Do not use any solvent, wax, thinner or other
petroleum product for cleaning. Use soft dry
cloth
only.
The Heart Rate monitoring system is not a
medical equipment. It’s gure could be dierent
depending on use environment
- Just take the measured gure for workout
program.
Means possible light damage on injury.
Safety Rules of Exercise
Means possible severe or fatal injury.
SPEED
Do not abruptly change the speed or incline.
Sudden reduction or increase of speed may cause
loss of balance or machine overload leading to an
accident.
Do not touch or let any part of your body
touch the rolling part of the machine while
belt is running to avoid accident.
Do not allow children under age 10, the
handicapped, the elderly or unt person or pets
use the machine to avoid accident unless
closely guided by a guardian.
Do not allow more than one person to use the
machine at the same time.
Do not step on the rearmost part near the roller
as it may cause accident.
WARNING
CAUTION
Means possible light damage on injury.
If you feel pain, diculty in breathing or other
symptoms while exercising, stop immediately
and consult your doctor.
Always select speed and incline appropriate for
you physical condition and do not overwork.
Always step down after the machine came to a
complete stop.
Keep you body straight up looking direct front
and keep the balance of your body while
exercising. Distraction may cause tripping over.
Wear proper cloths and shoes for exercise. While back walking, keep holding on the
handgrip at less than 4 km/h to avoid tripping.
Consult your doctor or a specialist (trainer)
before starting exercise, especially if you have
high blood pressure, heart disease or other
symptoms or if you are over 35.
CAUTION


A-3. COMPONENT PARTSA. GENERAL
Components of MainBody
HERA-9000(Android)
This produt is packed and delivered as semi-assembled.
Console Post Body
RoHS
complian
t
2002/95/ EC
RoHS
compliant
2002/95/ EC


INSTALLATION LOCATION
· Please check if the ground surface is level and solid.
Otherwise, it may cause noise, vibration, and tripping over.
· Please check if the location is indoors with low humidity and dust level.
Humidity and dust may cause machine break-down.
· Please check if any solvent or inflammable substance is nearby.
In case electric spark occurs within the machine due to electric leakage or static,
it may lead to an explosion or fire.
· Please allow enough space from surrounding fixtures.
Please install the machine with enough space in front to allow easy access to the power switch.
To ensure safe use, allow spaces of at least 2m at the back and 1m on each side.
· Please link less than 2 sets of Treadmil with power cable comming from one 30A ELB(Earth Leakage Breaker)
Over load current could generate abnormal operation of Treadmil
· Please use standard plug and socket and make sure the power outlet has been grounded.
· When moving, lift up the bottom of rear cover so that the machine can be moved easily on front wheels.
· If the entire machine has to be hauled up, 4-5 adults should do it carefully to avoid injury or accident.
DESCRIPTION
HERA-9000Android is a High Class SMART TREADMILL with a Wide 23 inch LED Monitor at Full HD Resolution. And it is
operated by Android OS with touch screen. Not only treadmill's basic functions, but also Body Fat checking, wireless Heart
Rate monitoring by Bluetooth functions are possible, and it is very well harmonized with one's customized workout. Also various
internet applications are available.
Product Specification
1. Android Operation System. Easy touch screen like Smart phone or tablets
2. Co-develop together with Korean IT Companies who have world's best technology
3. 23" Wide LED TV Panel(up to Full HD Resolution)
4. Body Composition Analyzing System (Body Fat, BMI, Muscle Mass etc)
5. Bluetooth Wearable Device(Option) & Semipermanent Capacitive Soft-Feeling Button
6. Auto Stop Function for Safety when not used
7. Strong Motor Power with Max 20 km/h, AC 7.5 HP(3HP continuous)
8. Various and optimized cardio workout programs
9. Wristband Type Wireless Heart Rate monitoring System
10. 3rd Generation Emotional Design
11. Diginified Design with round shapre
12. Wide Running Area (530 x 1495 mm)
13. Significantly reduces treadmill's noise and vibration with World's Best
14. Shock-Absorbing Rubber Bed [Patented]
A-4. DESCRIPTION
A-5. INSTALLATION LOCATION
A. GENERAL
A. GENERAL



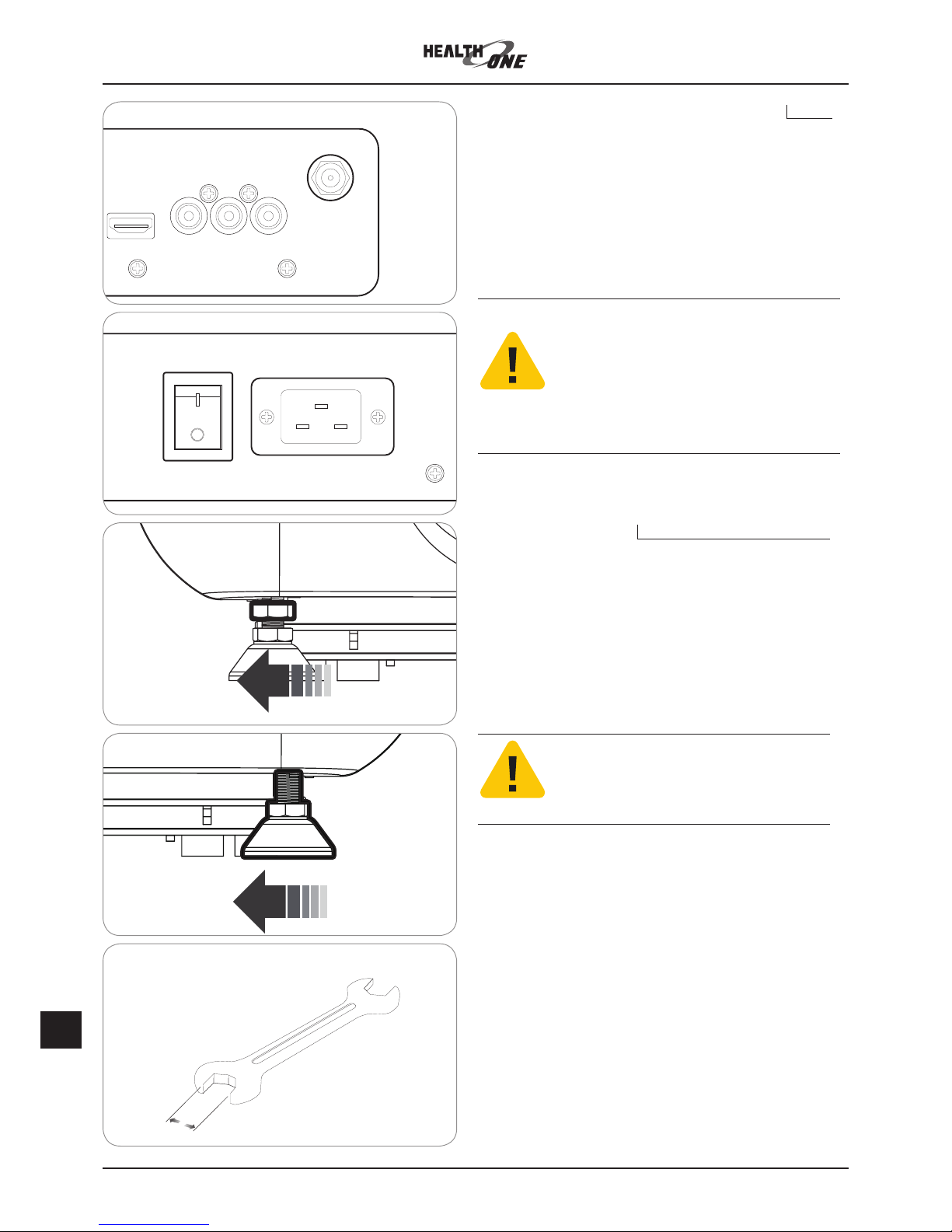

Power connection should be at standard voltage
Treadmill should be mounted on level floor. Avoid uneven surface.
After the installation, Treadmill should be grounded.
Please remove any foreign material from around motor area before the test operation.
ASSEMBLY AND INSTALLATION
After unpacking all the components, assemble and install the machine as per the following procedure.
BODY
Detaching the Motor Cover
1. Pull out 4 screws (5mm) at each corner of the motor cover
with a screwdriver
2. Lift the cover up to detach it from the frame.
Use bolts and tool
A. Phillips Screwdriver
B. M5 X 20 Pan head screw x 4pcs
A B
Use bolts and tool
A-6. INSTALLATIONA. GENERAL
1
2
CAUTION


POST

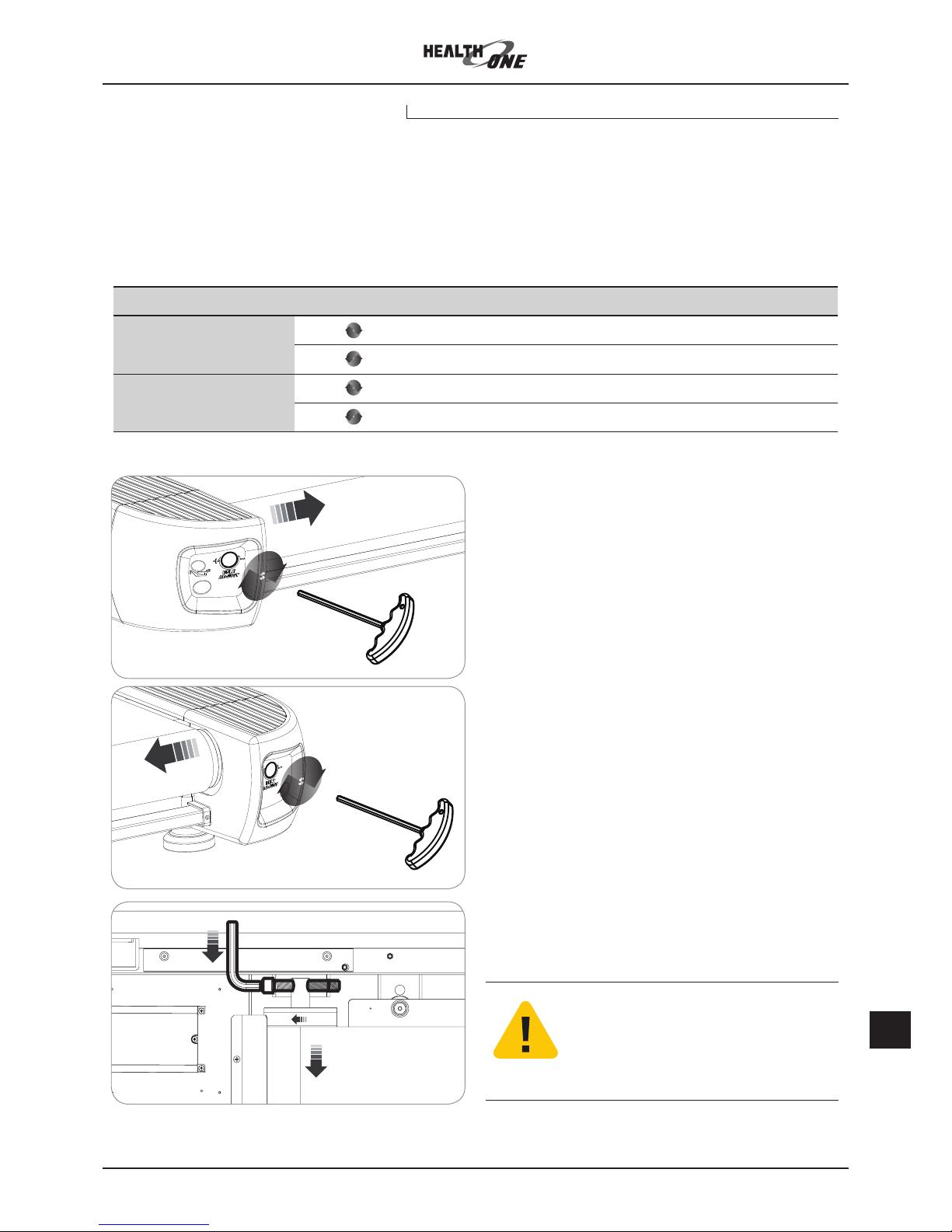

Attaching the Posts Assembly
1 : Insert posts (left & right) into the post guides at the front of the
main frame body
2 : Loosely tighten 12 bolt washers fasteningthe bottom
of the posts (6 each left & right)
Use bolts and tool
A. 8mm L-wrench
B. M10 X 60 Hex socket head cap screw 4pcs
C. M10/2t Washer 12pcs
D. 6mm L-wrench
E. M10 X 20 Hex socket button head cap screw 8pcs
Nuts must be tightened rmly.
Otherwise, it may cause noise, vibration and breakdown.
Screw bolts into the nuts before positioning and tighten
them in turn.
D E C
Use bolts and tool
A-6. INSTALLATION A. GENERAL
1
2
3
CAUTION


A-6. INSTALLATIONA. GENERAL

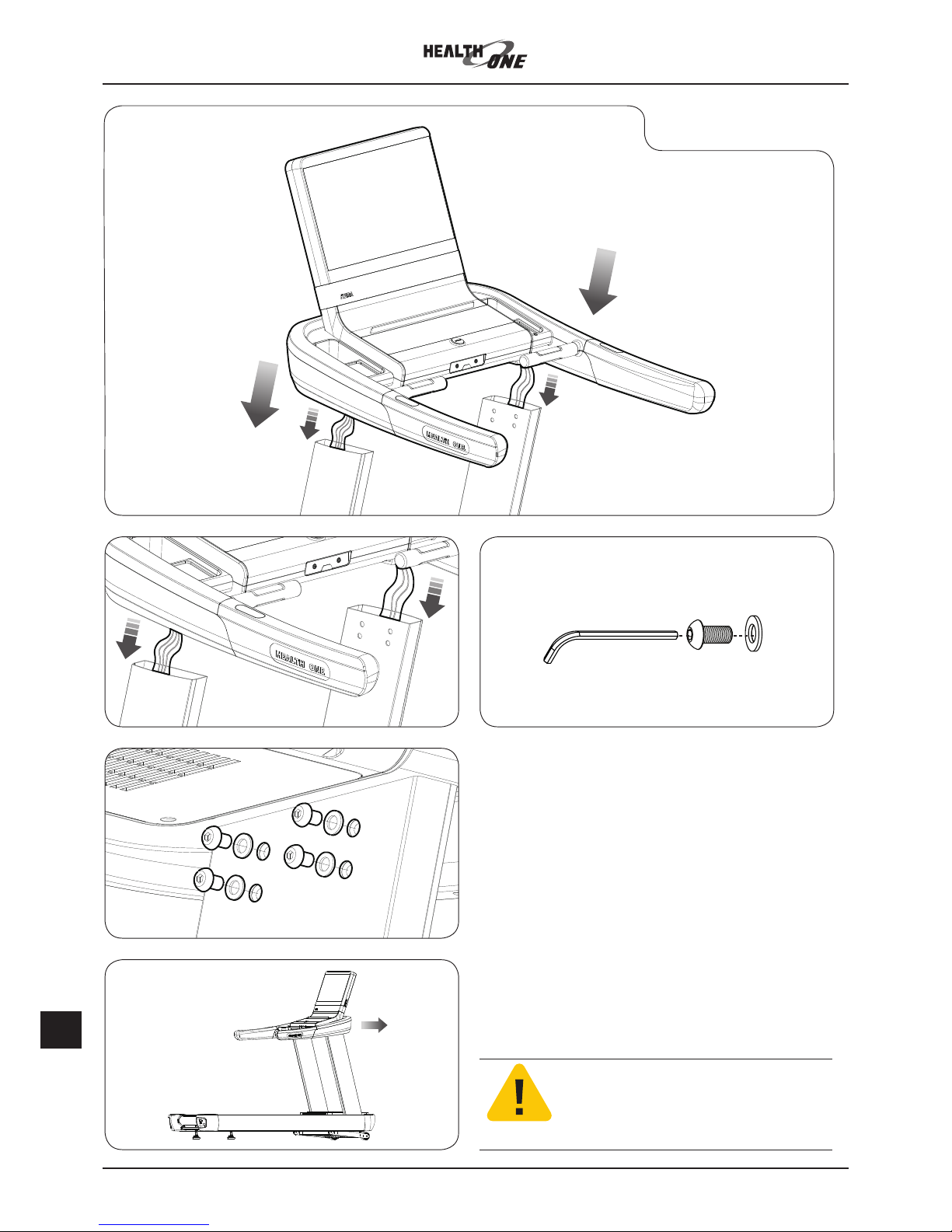

Console Assembly
Attaching the Console Assembly
1. Insert the legs of Console Assembly into the left and right post
2. pushing 4 cords through the post.
3. Loosely tighten 8 bolts with nuts fastening the bottom of the
Console Assembly to the top of the posts (4 bolts each left & right)
4. After assembling the console part, tighten all bolts surely and tightly
Use bolts and tool
A : 6mm L-Wrench
B : M10 X 20 Hex Socket Head Cap Screw (right & left) 8pcs
C : M10/2t Washer (right & left) 8pcs
A B C
Use bolts and tool
1
2
3
4
Nuts must be tightened rmly.
Otherwise, it may cause noise, vibration and breakdown.
Screw bolts into the nuts before positioning and tighten
them in turn.
CAUTION


A-6. INSTALLATIONA. GENERAL

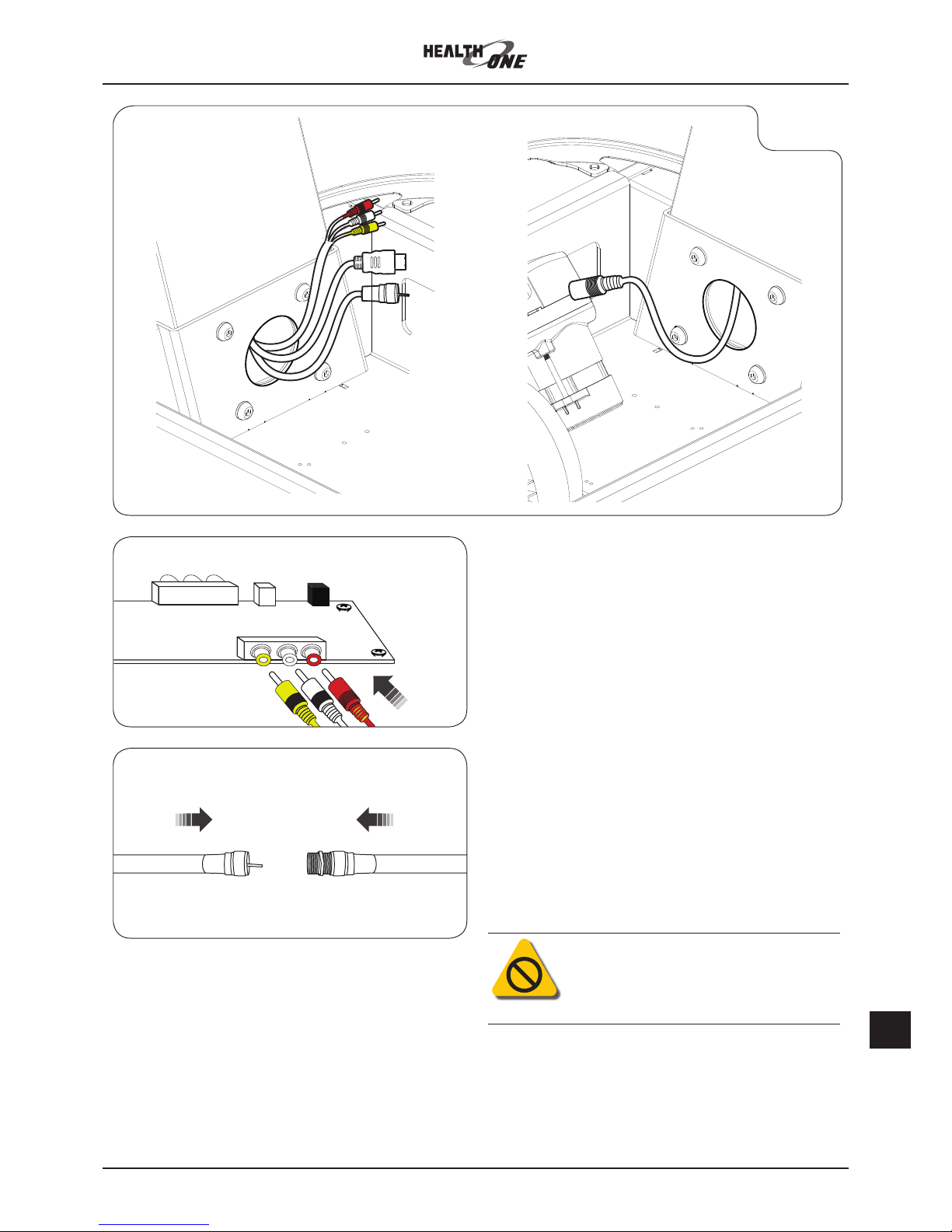

Wiring of Console
The Actuator, Motor and Input Cables on the Inverter are assembled
to the Socket in the factory in advance
1. Pull A: Audio Cable, B: HDMI, C: TV Antenna Cable from the hole
at the lower side of the left post
2. Pull D: TV Power Cable from the hole at the lower side of the right
post
3. Insert the Audio Cable into the Socket located in the PCB on the
back side of the front cover.
(Pay attention not to insert the cable in reverse.)
4. Join TV Antenna Connectors
CABLE
3
4
Use of any plug or a cord that is not grounded may
cause electric shock or malfunction of the machine.
A
1. Left Post 2. Right Post
C
B
D
WARNING


ON
OFF
POWER
AC IN 200~240V
/ 50~60Hz
HDMI IN
ETHERNET
AUDIO IN
R L VIDEO
IN
ANTENA
IN
ON
OFF
POWER
AC IN 220V / 60Hz
HDMI IN
AUDIO IN
R L VIDEO
IN
ANTENA
IN
AC Power connection and TV Antenna Cable
1. Insert the Antenna Cable to the Antenna Socket on the Front Cover
-For Video or DVD watching, insert Audio cable or DVD cable.
2. HERA -7000HD should use grounded socket and power cord. Insert
the power cord provided to the power inlet at the front of main body
and connect the power plug to the grounded socket.
3. Press the red lamp to turn on the main body.
Adjusting Level Foot
1. Screw/unscrew the level pads at the bottom of the frame using, if
necessary, a spanner to adjust levelness of the frame. Clockwise
frame down, Counterclockwise frame up)
2. When levelness has been achieved, turn the locking nuts upward
counterclockwise to lock the level pads rmly.
Use bolts and tool
24mm Spanner
A-6. INSTALLATIONA. GENERAL
Use bolts and tool
27mm
1
2/3
1
2
- Pull o the power plug while not in use for a long period of time.
- Only use standard power cord.
- Do not use extension of power cord.
- Do not use damaged power cord.
- Do not leave the power cord exposed on a frequented passage.
- Do not leave the power cord in damp area or near the
inammable material.
- If the Treadmill is moved or removed, pull o the power plug rst.
- If the supply cord is damaged, it must be replaced by a special
cord or assembly from the manufacturer or its service agent.
If the machine is not precisely leveled, it may
cause noise, sidedrifting of running belt and
reduce durability of the Treadmill.
CAUTION
CAUTION


Belt tension and side-drift adjustment.
Belt tension must be adjusted whenever the machine was rst installed or moved. Otherwise, it may cause slipping or damage
of belt or worn-down and breakage of other parts. Belt adjustment consists of belt tension adjustment and level adjustment.
Note : Turn the belt adjustment screw-heads in end-cover using 8 mm hexagon wrench to adjust the belt as shown in the above
Adjustment with T-Wrench and movement change of belt and roller
Adjustment of Tension
It is adjustment of distance between front and back rollers to obtain
optimal tension of the belt which is necessary to prevent slipping of
the belt during running..
1. Turn the power on.
2. Operate the machine at 4km/h.
3. Holding the handgrip, push the belt with foot to the opposite
direction of running. If the belt momentarily stops (slips), then
adjustment is necessary.
4. Adjust belt tension turning the adjustment screws left or right using
hexagon wrench. Repeat the process until no slippage occurs.
Adjustment of Side-drifting
After the adjustment of belt tension, adjust side-drifting as follows
1. Increase the belt speed to 10 km/h.
2. Adjust belt balance using 8mm hexagon wrench while visually
checking the belt for side-drifting.
3. If no sign of side-drifting shows after 5 minutes, then the balance
of belt has been achieved. If side-drifting occurs within 5 minutes,
repeat the process until balance is achieved.
4. If necessary, talce out the motor and adjust belt balmce by using
8mm L-wrench as shown in the picture
belt movement direction
belt movement direction
belt movement direction
A-6. INSTALLATIONA. GENERAL
Belt Section Wrench movement Roller shaft movement Side-drifting
Left
(Fig. 1)
Clockwise Left side backward To the right
Counterclockwise Left side forward To the left
Right
(Fig. 2)
Clockwise Right side backward To the left
Counterclockwise Right side forward To the right
Do not turn the wrench without checking the change
in belt movement. Too much turning will push the belt
to one side and can damage it. It is recommended to
turn the wrench by 1/4 or 1/8 revolution at a time for
precise ad justment.
CAUTION


A-7. INSTRUCTIONSA. GENERAL
Designation
Consol
1 Console Cabinet(Front)
2 Display
3 Control Board
4 HR / Body Fat Grip
5 HR / Body Fat Grip
6 Urethane Handgrip(L)
7 Urethane Handgrip(R)
8 Emergency Stop Button
9 Jack Housing(Earphone Connecter)
10 Console Cabinet(Rear)
11a / 11b
Cover for after-sales service
(11a : Under Console / 11b : Rear monitor)
Body
12 Motor Cover
13 Running Belt
14 Non-slip
15 Main Frame
16 Front Cover
17 End-Cover
1
211b
3
4 5
7
8
9
10
6
11a
12
13
14
15
16
17
PART NAMES


A-7. INSTRUCTIONSA. GENERAL
16
18
17
20
19
21
22
24
25
26
23
In side motor cover
21 Motor
22 Inverter
23 Actuator(Incline Motor)
24
Dust Block Plate
25 Poly Belt
26 Roller Front
Name plate
A : Indicates model name
B : T 0 9 1 2 1 0 0 K Indicates serial number
C : Indicates production date
NOTE : The name plate is located on the back cover of the console
cabinet
CAUTION!
Risk of electric shock
Do not open treadmil
motorcover. In case of
problem, please contact
the service center.
Product.
Model.
Serial number.
Net weight.
Max. User Weight.
Power.
Date.
TREADMILL.
210 kg
180 kg
AC 220V / 60Hz, 2.2kw
Date.
HEALTH-ONE.CO.,LTD.
www.ehealth-one.com
Tel.[phone]
MADE IN KOREA
A
B
C
16 Front Cover
17 End Cover
18 Wheel
19 Oil Inlet
20 Level Foot


Applications and Functions on Screen



 

A. GENERAL A-7. INSTRUCTIONS


                                           





                                         

 


                                                                    
                                                            

 
 




 
 





 

 

 


         
                                                






 
A. GENERAL A-7. INSTRUCTIONS


A. GENERAL
CONTROL BOARD
 









 
 


        

 




A-7. INSTRUCTIONS


CAUTION


A. GENERAL




Other Operation Menu




Bluetooth Connection & Pairing
Search device from Blooth Application
Please turn on wearable device, which supports Buetooth before
running the bluetooth application. Select Headphone or Heart Rate.
Connect the device.
Healthone treadmill does not automatically link any previously
connected device.

󱂧󱂨

󱂧󱂨


A-7. INSTRUCTIONS






CAUTION
CAUTION
CAUTION


A. GENERAL
Heart Rate Monitoring System



Contact Type Heart Rate Monitoring







How to Connect



Theoretical Heart Rate by Age








 




            






















          
          

Theoretical Heart Rate by Age
A-7. INSTRUCTIONS







CAUTION
CAUTION



