HearthStone Bari 8171 User manual

Hase Bari Wood Model 8171 & 8172
Manual: 6400-41418
R: 11/3/2020
(Bari Model 8171)
(Bari Plus Model 8172)
Wood Stove
OWNER'S MANUAL
INSTALLATION AND
OPERATING INSTRUCTIONS
PFS Report F20-618
SAVE THIS OWNER’S MANUAL
FOR FUTURE REFERENCE
CONTACT LOCAL AUTHORITIES WITH JURISDICTION (BUILDING DEPARTMENT or FIRE
OFFICIALS), ABOUT PERMITS REQUIRED, RESTRICTIONS AND INSTALLATION
INSPECTION IN YOUR AREA.
PLEASE READ THIS ENTIRE OWNER’S MANUAL BEFORE YOU INSTALL AND USE YOUR
NEW BARI WOOD STOVE.
To reduce the risk of fire, follow the installation instructions. Failure to follow these
instructions can result in property damage, bodily injury, or even death.
WARNING: This product can expose you to
chemicals including glass wool fiber and carbon
monoxide which are known to the State of California to
cause cancer, birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
California Prop 65
We recommend that our products be installed
and serviced by professionals who are
certified in the U.S. by NFI (National Fireplace
Institute), or by W.E.T.T. (Wood Energy
Technology Transfer) in Canada.
www.nficertified.org
www.wettinc.ca

Hearthstone Quality Home Heating Products, Inc ® Bari Model 8171
2
Notes on Stove Operation and Efficiency
Rating:
You have purchased a Hearthstone Bari 8171 tested to EPA Method 28, 28A and 5H, 40 CFR Part 60 where applicable.
This stove is certified to comply with the U.S. Environmental Protection Agency 2020 particulate emissions standard.
It is certified at .94 gr/hr. emission rate and under specific test conditions has been shown to deliver heat at rates ranging
from 14,065 to 26,036 Btu (output).
This wood heater has a manufacturer-set minimum allowable low burn rate that must not be altered. It is against federal
regulations to alter this setting or otherwise operate this wood heater in a manner inconsistent with operating instructions in
this manual.
Please refer to the Warranty section of this manual for registration instructions. In case of warranty claims, please contact
the point of original sale or the nearest authorized Hearthstone dealer. All warranty claims are processed by our dealer
network. Authorized Hearthstone dealers can be located at www.hearthstonestoves.com.
This heater is designed to burn natural wood only. Higher efficiencies and lower emissions generally result when burning air
dried seasoned hardwoods, as compared to softwoods or to green or freshly cut hardwoods. DO NOT BURN: Garbage,
lawn clippings, material containing rubber (including tires), materials containing plastic, waste petroleum products paints or
paint thinners, asphalt products, materials containing asbestos, construction or demolition debris, railroad ties, pressure
treated wood, manure or animal remains, salt water driftwood or other previously salt water saturated materials, unseasoned
wood, paper products, cardboard, plywood or particleboard. This prohibition against burning these materials does not
prohibit the use of fire starters made from paper, cardboard, saw dust, wax and similar substances for the purpose of starting
a fire in an affected wood heater. Burning these materials mat result in a release toxic fumes or render the heater ineffective,
cause smoke and damage the catalysts.
Following the maintenance guidelines set forth in this manual will help ensure the efficient use of your wood heater and
minimize visible emissions. Having you stove inspected by a trained professional on a regular basis will greatly increase the
potential for recognizing potential impacts to efficiency.
Proper draft is important to the efficient operation of your heater. Refer to the Normal Operation section of this manual for
information regarding adequate draft. Both excessive and sub-minimum draft can affect the efficiency of your wood heater.
Excessive draft can lead to over-consumption of fuel, lower overall heating capacity of the stove and potential over firing.
Low draft can result in inefficient burns, low heat output, expulsion of smoke into the living area when stove doors are opened
and an increased potential for build-up of flammable materials in the flue.
Efficiency:
Efficiency was captured using EPA Method 28R and weighted using CSA B415-10 methodology. A weighted average was
used to calculate the overall efficiency across all of the 4 burn rate categories using the higher heating value (HHV). The
weighted average efficiency is 75.9% (HHV).
To maximize the efficiency of your wood stove make sure it is sized properly for the space you plan to heat. An oversized
stove will often be forced to burn at a lower and dirtier burn rate. Consult with your dealer for sizing and correctly placing the
stove in your home. An incorrectly placed stove can greatly reduce efficiency. Maximizing the efficiency of your stove will
heat your house quickly, burn cleaner and use less wood.
Refer to the Choosing Firewood section of this manual for appropriate fuel selection. Seasoned firewood is typically at or
near 20% moisture content. This can be measured with any number of hand-held moisture meters available through your
local hearth shop. Follow instructions included in the meter you purchase to measure fuel wood moisture content. Burn only
dry, seasoned wood as using wet wood will greatly reduce your efficiency.
CO Emissions:
The Bari 8171 has the following CO emission rates by burn level: Category 1 (Low) – 3.0 gr./hr., Category 2 (Medium Low) –
3.6 gr./hr., Category 3 (Medium High) – 3.6 gr./hr. and Category 4 (High) – 6.0 gr./hr.. Wet wood or unapproved fuel
described above can greatly affect the emissions of a wood burning stove.
Smoke/Fire/CO Detectors:
It is highly recommended that smoke and CO detectors be installed throughout the heated space when a wood burning
heater is installed. Be certain to install these devices not only in the area where the wood appliance is located, but also in
bedrooms, hallways leading to other areas of the house and all common areas of the heated space. Check the batteries in
these devices and assure operation by performing whatever test operations are recommended by the manufacturer.

Hearthstone Quality Home Heating Products, Inc ® Bari Model 8171
3
TABLE OF CONTENTS
INTRODUCING YOUR BARI WOOD STOVE.........................................................................4
CODES ..................................................................................................................................................................5
SAFETY INFORMATION............................................................................................................................................5
PERIODIC CHECKLIST.............................................................................................................................................6
EMERGENCY PROCEDURES ....................................................................................................................................6
SPECIFICATIONS.....................................................................................................................................................7
INSTALLING YOUR BARI WOOD STOVE.............................................................................8

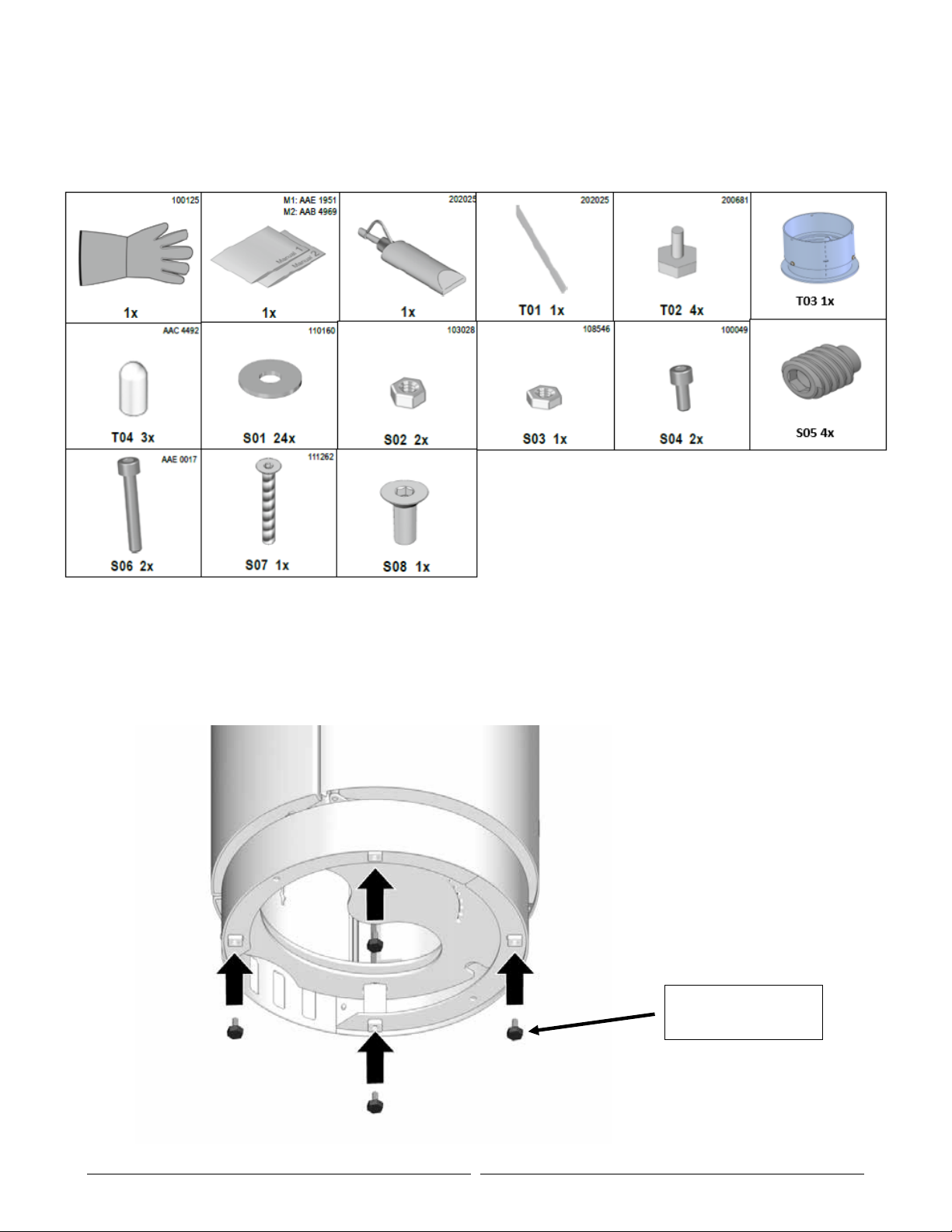

UNPACKING ...........................................................................................................................................................8
INSTALLING YOUR STOVE .......................................................................................................................................8

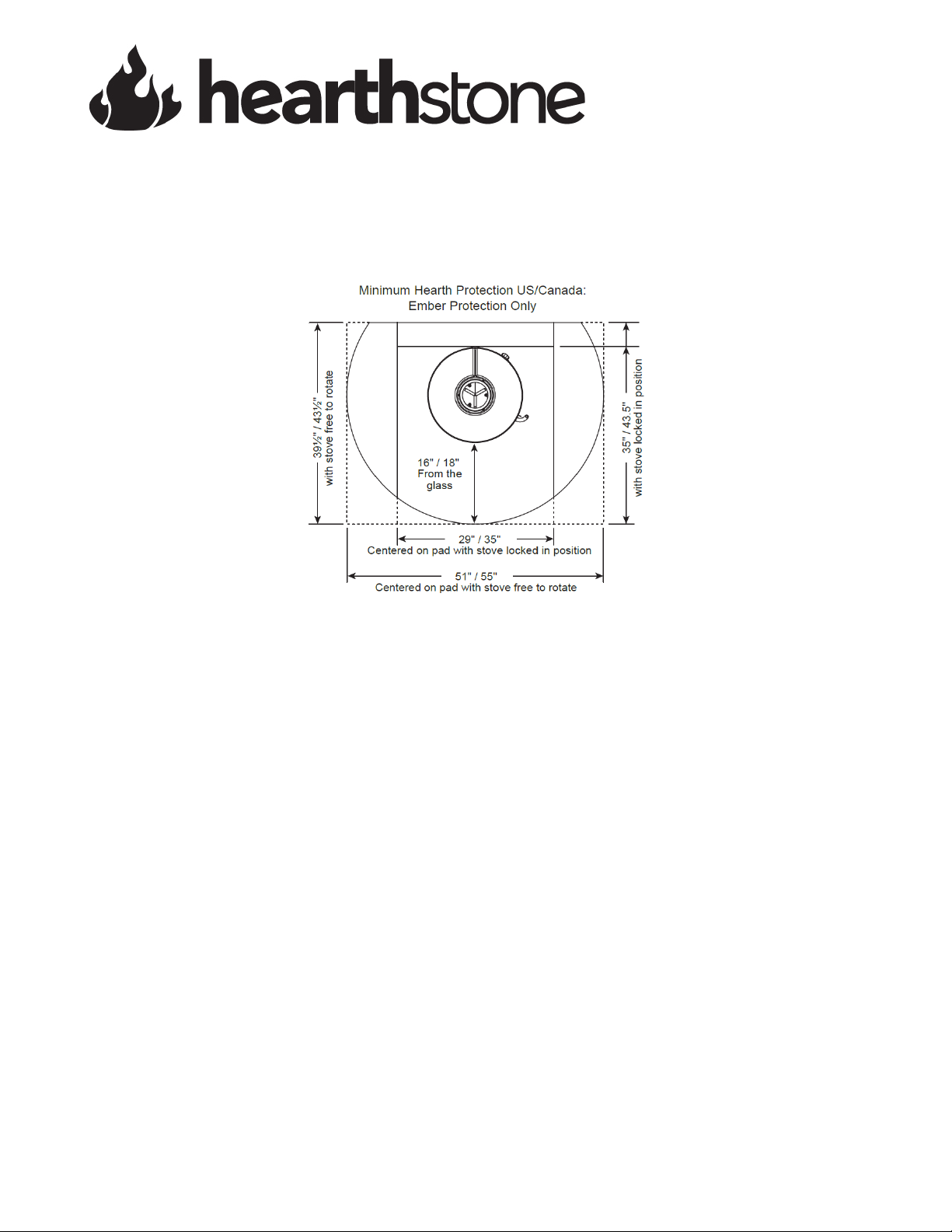

HEARTH REQUIREMENTS AND FLOOR PROTECTION .................................................................................................9

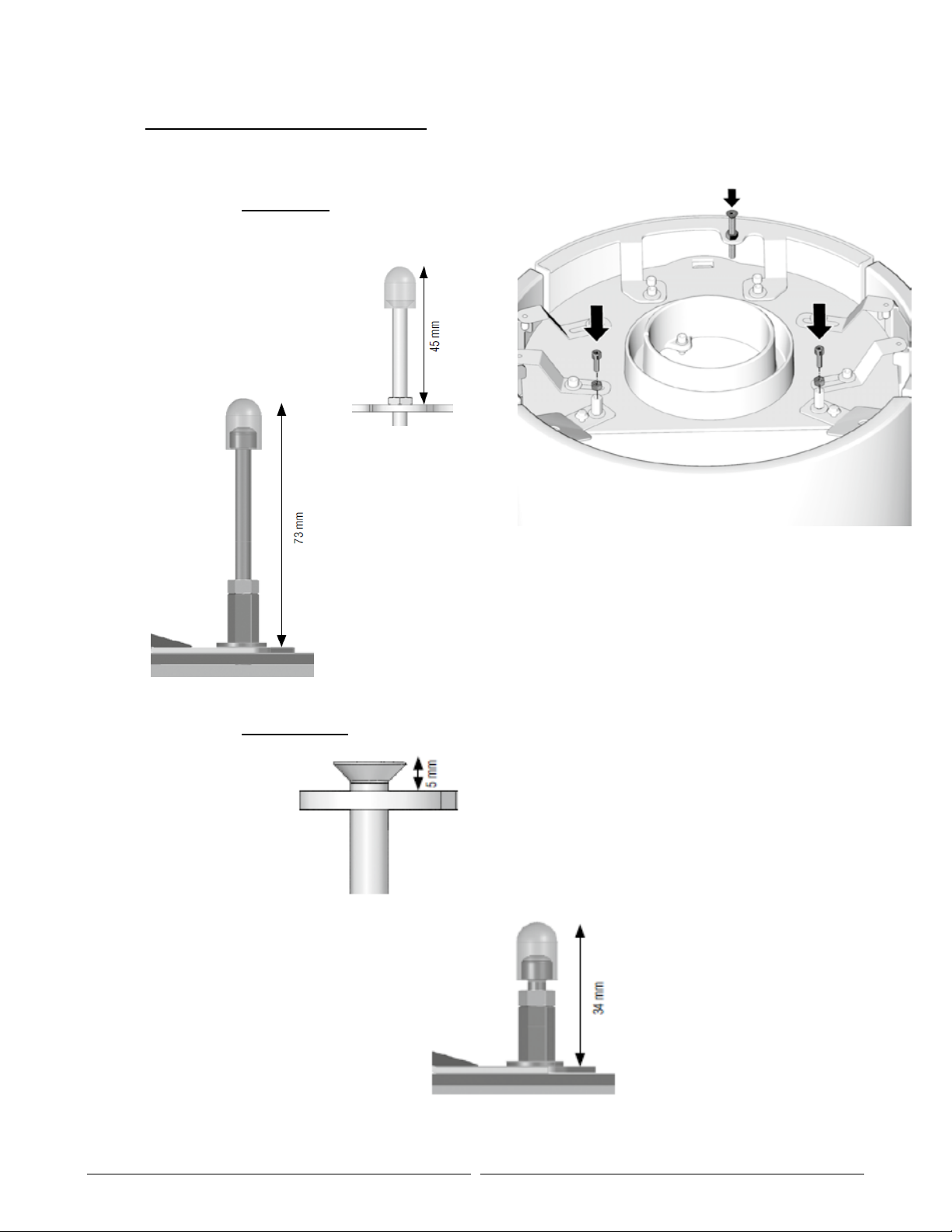

ROTATION LOCK INSTALL PROCEDURE..................................................................................................................10
COMBUSTIBLE SURFACE REQUIRED CLEARANCES .................................................................................................23
CHIMNEY CONNECTOR SYSTEMS AND CLEARANCES FROM COMBUSTIBLE WALLS FOR RESIDENTIAL HEATING APPLIANCES
..............................................................................................................................................................................24
OUTSIDE AIR SUPPLY...........................................................................................................................................25
VENTING COMPONENTS AND CONFIGURATION REQUIREMENTS...............................................................................25
INSTALLING A VENTING SYSTEM............................................................................................................................26
CONNECTING THE STOVE TO A CHIMNEY ...............................................................................................................26
INSTALLING IN AMOBILE HOME.............................................................................................................................29
OPERATING YOUR BARI WOOD STOVE...........................................................................29
CONTROLS AND FEATURES ..................................................................................................................................31
CHOOSING FIREWOOD..........................................................................................................................................34
WOOD HEAT VALUE .............................................................................................................................................34
BUILDING AFIRE..................................................................................................................................................35
NORMAL OPERATION............................................................................................................................................35
REMOVAL AND DISPOSAL OF ASHES.....................................................................................................................36
MAINTENANCE ....................................................................................................................37
CATALYTIC COMBUSTOR INSPECTION AND REPLACEMENT PROCEDURES ................................................................25
INSPECTING THE CATALYSTS.................................................................................................................................25
REPLACING THE CATALYSTS..................................................................................................................................26
CREOSOTE FORMATION &NEED FOR REMOVAL ....................................................................................................37
DOOR REMOVAL PROCEDURE:..............................................................................................................................37
GASKETS.............................................................................................................................................................37
GLASS.................................................................................................................................................................39
VERMICULITE PANEL REPLACEMENT: ....................................................................................................................40
STONE (IF EQUIPPED)...........................................................................................................................................40
CERAMIC PANELS (IF EQUIPPED)...........................................................................................................................40
TROUBLESHOOTING ..........................................................................................................44
COMMON ISSUES..................................................................................................................................................44
TROUBLESHOOTING GUIDE...................................................................................................................................45
REPLACEMENT PARTS & OPTIONAL ACCESSORIES.....................................................46
SAFETY LABEL....................................................................................................................47

Hearthstone Quality Home Heating Products, Inc ® Bari Model 8171
4
Introducing Your Bari Wood Stove
Thank you for purchasing a HASE Collection Bari
woodstove from Hearthstone Quality Home Heating
Products. This stove will provide years of comfortable
heat. This stove also provides the benefits of
advanced technology in wood burning without the
cost and maintenance requirements of a catalytic
device. The Bari blends modern technology with the
unique beauty and qualities of steel and soapstone.
We trust that you will appreciate the quality of this
handcrafted product.
Your Bari woodstove is designed to burn efficiently,
and produce a large amount of heat. However, you
should not consider your Bari the primary heat source
for your home. The Bari’s unique ability to rotate 180
degrees and the very large curved glass window
allow you to enjoy the fire from a variety of locations
in the room.
Please read this manual in its entirety. Its purpose is
to familiarize you with your stove's safe installation,
proper break-in, operation and maintenance. It
contains extremely important information so keep it
handy and refer to it often.
A qualified heating technician may need this owner’s
manual as a reference when installing this stove in
your home. There are national, state, and local
building codes that direct the technician on how to
install your stove. These codes stipulate the
dimension of stovepipe and clearances to walls,
ceilings, hearth, and other combustible surfaces. The
codes exist to reduce the risk of fire. Failure to follow
these instructions can result in fire, property damage,
bodily injury, and even death.
Install the stove in a safe, open area, away from traffic
flow, doors, and hallways. If possible, try to install the
stove near an existing chimney and chimney
connector. It is extremely important to install this
stove with the proper clearance from combustible
surfaces. You can purchase specific connector pipe
and special wall coverings as specified by this manual
and the NFPA 211 code to protect combustible
surfaces. Keep furniture, drapes, curtains, wood,
paper, and other combustibles at least 36 inches (92
cm) away from the stove. Never install the stove in a
location where gasoline, kerosene, charcoal lighter
fluid or other flammable liquids are used or stored.
Install the stove in your living area to allow heat to
radiate naturally to distant rooms. Do not install your
stove in a poorly insulated area. This is inefficient and
would likely result in higher fuel usage and possibly
unsafe burning conditions.
SAFETY NOTICE: AN IMPROPERLY INSTALLED
STOVE CAN RESULT IN A HOUSE FIRE. FOR
YOUR SAFETY, CAREFULLY FOLLOW THE
INSTALLATION DIRECTIONS. CONTACT LOCAL
BUILDING OR FIRE OFFICIALS ABOUT
RESTRICTIONS AND INSTALLATION INSPECTION
IN YOUR AREA.
The safety of your stove will depend on many factors,
some of which include: distance to combustible
objects, correct venting, and adequate chimney
maintenance. Should you have any questions, do not
hesitate to contact your dealer for additional
information.
Contact your dealer for any necessary warranty
service.
This stove is warranted by:
Hearthstone Quality Home Heating Products,
Inc®
317 Stafford Ave.
Morrisville, Vermont 05661
www.hearthstonestoves.com

Hearthstone Quality Home Heating Products, Inc ® Bari Model 8171
5
CODES
When you install your Bari wood stove, it is imperative
that you adhere to all Federal and local codes. Obtain
these codes from either of the following sources:
American National Standards Institute, Inc. (ANSI)
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc. (NFPA)
Battery March Park
Quincy, MA 02269
If you are installing your Bari in a mobile or
manufactured home, follow the guidelines described
in the Manufactured Home Construction and Safety
Standard, Title 24 CFR, Part 3280 (United States).
SAFETY INFORMATION
Read and understand this Owner's Manual
thoroughly before installing and using this stove.
Make sure to install your stove:
•According to the manufacturer's
recommendations,
•In accordance with all applicable codes, and
•With the proper sized chimney.
When using your stove:
•Warn children and others of the danger of
touching hot, radiating surfaces of your
woodstove. For your additional safety, you can
purchase hearth and stove guards through your
local dealer.
•Burn natural wood only. Higher efficiencies and
lower emissions result when burning air-dried,
seasoned wood, as compared to green or freshly
cut wood.
•Use caution when loading firewood into a hot
stove.
•Keep the front door closed and secured at all
times except when loading wood.
•Keep the ash pan tray fully inserted and the
handle tightly latched.
•Inspect the stovepipe, chimney connector and
chimney, as recommended.
Follow these safety precautions:
•Never modify this stove in any way.
•Never burn kiln dried, painted or treated wood in
this stove.
•Never burn garbage or trash, colored or glossy
paper, solvents, plywood, artificial logs,
cardboard, or driftwood, in this stove.
•Never burn coal in this stove.
•Never use gasoline, kerosene, charcoal lighter
fluid, or other flammable fluids to start or
invigorate the fire. These fuels will cause
dangerous burning conditions in the stove. Keep
all such materials away from the stove.
•Never use the stove if the ash pan is open,
damaged, not present, or does not fully seal. The
ash pan cover must be present under the pan to
ensure the pan seals properly.
•Never use a wood grate or other device to
elevate the fire.
•Never allow logs in the firebox to contact with the
glass when the door is closed.
•Never slam the door or use the door to force
wood in to the stove.
•Never over-fire your stove. (See page 36)
•Never put articles of clothing or candles on a hot
stove.
•Never connect the stove to a flue used by another
appliance.
•Never connect to or use in conjunction with any
air distribution ductwork unless specifically
approved for such installations.
Other safety guidelines:
•Keep all combustible items such as furniture,
drapes, clothing, and other items, at least 36"
(0.92 m) from the stove (See page 23)
•Install a smoke detector, preferably in an area
away from your wood stove.
•Keep a fire extinguisher handy. We recommend
the type rated "A B C."
•Dispose of ashes properly. (See page 36)
•Keep children and pets away from the stove when
it is burning; they could be seriously injured by
touching a hot stove.
•Clean your chimney system as needed. (See
page 37)
•Outside combustion air may be required if:

Hearthstone Quality Home Heating Products, Inc ® Bari Model 8171
6
1. This solid-fuel-fired appliance does not draw
steadily, smoke rollout occurs, fuel burns
poorly, or back-drafts occur whether or not
there is combustion present.
2. Existing fuel-fired equipment in the house,
such as fireplaces or other heating
appliances, smell, do not operate properly,
suffer smoke roll-out when opened, or back-
draft whether or not there is combustion
present.
3. Opening a window slightly on a calm
(windless) day alleviates any of the above
symptoms.
4. The house is equipped with a well-sealed
vapor barrier and tight fitting windows and/or
has any powered devices that exhaust house
air.
5. There is excessive condensation on windows
in the winter.
6. A ventilation system is installed in the house.
If these or other indications suggest that infiltration air
is inadequate, additional combustion air should be
provided from the outdoors. Outside combustion air
can be provided to the appliance by using the optional
outside air kit #91-53500 / #91-53700.
PERIODIC CHECKLIST
Perform each of these tasks at least at the specified
intervals.
At the End of Every Week:
•Empty ashes from the firebox and ash pan,
sooner if the firebox or the ash pan is full.
At the Beginning of Every Other Month:
•Depending upon your use of the stove, visually
inspect the chimney connector and chimney for
creosote. (Please see page 37)
•Check door seals using the "dollar bill test." -
When the stove is cool, shut the door on a dollar
bill. If the bill pulls out without any resistance,
then your stove’s door is not sealing properly. To
tighten the seal, adjust the door latch
mechanism or change the door gasket. (Refer to
page 37.)
At the End of Every Season:
•Dismantle the chimney connector and clean it
thoroughly. Replace any pieces that show signs
of rust or deterioration.
•Inspect and, if necessary, clean your chimney.
•Thoroughly clean out the inside of the stove.
•Inspect all door gasket material and replace if
worn, frayed, cracked or extremely hard.
•Inspect and replace cracked or damaged
vermiculite panels.
EMERGENCY PROCEDURES
If you have a stovepipe or chimney fire, follow
these instructions:
1. If the fire is too threatening, leave the area and
call the fire department immediately! If not,
perform the next three steps.
2. Close the primary air control.
3. Close the stovepipe damper (if present).
4. Keep the stove front door and ash pan closed!
•WARNING: DO NOT ATTEMPT TO PUT OUT A
STOVEPIPE OR CHIMNEY FIRE BY THROWING
WATER ONTO THE STOVE, STOVEPIPE, OR
CHIMNEY. THE EXTREMELY HIGH
TEMPERATURE OF SUCH FIRES CAN CAUSE
INSTANTANEOUS STEAM AND SERIOUS BODILY
HARM.
Once the chimney fire expires, leave the primary air
control closed and let the fire in the stove die out
completely. Inspect the stove, stovepipe, and
chimney thoroughly for any sign of damage before
firing the stove again. You must correct any damage
before using your stove again.

Hearthstone Quality Home Heating Products, Inc ® Bari Model 8171
7
SPECIFICATIONS
Maximum Heat Output: 26,000 btu per hour of
cordwood (based on independent laboratory test
results).
Floor Size of Heated Area: Up to a maximum of
1,400 square feet. Factors unique to your home
can reduce the square footage the stove will
heat. Home insulation value, number and
efficiency of windows, floor plan, stove
placement, quality of the fuel and other
conditions may limit the heating ability of the
stove.
Firebox Capacity: 1.25 cubic feet or 46 pounds of
wood (The amount and weight of wood
contained per cubic foot of firebox volume can
vary from 15 to 36 lbs. per cubic foot depending
on type of wood, moisture content, packing
density and other factors. As a constant for
comparison and test purposes, we are assuming
20 lbs. of seasoned hardwood per cubic foot of
firebox volume).
Maximum Log Length:17” (43 cm), vertically
Stove Dimensions –
Bari:
Height: 48.7" (112 cm)
Diameter: 18.5" (47cm)
Bari Plus:
Height: 54.6” (139cm)
Diameter: 18.5” (47cm)
Stovepipe Size: 6" (152 mm) diameter
Metal Chimney: 6" (152 mm) inside diameter
Masonry Chimney: 6” (15.2cm) inside diameter
(round flue) 8” x 8” (20 x 20cm) (square flue)
Actual Weight: 475 pounds (216 kg)
Crate Dimensions: H-49.5” W-32.4” L-24.5” or
126x82.3x62.2cm (add 4” or 10.2cm for pallet).
Optional Equipment:
91-53712: Outside Air Kit
90-53308: 4” air duct adapter
Bari Standard Dims
Bari Plus Dims

Hearthstone Quality Home Heating Products, Inc ® Bari Model 8171
8
Installing Your Bari Wood Stove
UNPACKING
Hearthstone packages your Bari stove with the
greatest care so that it ships safely. Under certain
circumstances, however, damage may occur during
transit and handling. When you receive the Bari,
carefully unpack and inspect the stove and all
accompanying parts. Make sure that all parts are
included in the box. If any parts are damaged or
missing, please contact your dealer immediately.
The stone panels on this stove are large and heavy
(150 pounds total). Use a second person to assist in
handling the panels to avoid injury, or damaging the
panels. Despite the mass of each piece of soapstone,
they will break if dropped.
If you purchased a stove with ceramic panels, they
have been shipped in separate boxes and will need
to be installed. You will need to carefully remove all
plastic wrapping and cardboard shipping materials
before lighting the unit for the first time.
INSTALLING YOUR STOVE
Choose a place to install your Bari woodstove.
Inspect this location to make sure that the stove and
stovepipes will have the required clearance from
combustible materials that are near the stove.
Combustibles include walls, floor, ceiling, and
chimney chase. You must carefully consider the
clearances to all of these combustibles before
actually connecting your stove.
If the floor is made of combustible material, then a
non-combustible floor protector is required between
the floor and the stove. An example of a non-
combustible floor protector is a hearth constructed
with a continuous layer of a listed backer board (such
as Micore, Wonder-Board or Durock) used for ember
protection with a tile, brick, slate, or another non-
combustible facing.
If you use a close clearance connector pipe, ensure it
is listed with Underwriter’s Laboratories. Check the
listing of your pipe with UL for the correct clearances.
The diagrams in this manual represent typical
installations, but are specific to the Simpson Dura-
Vent DVL brand.
CLEARANCES TO NFPA CODE 211 PROTECTED
SURFACES
You can reduce the clearances to combustible
surfaces by using any National Fire Protection
Agency (NFPA) approved wall protection system.
Please refer to NFPA Code 211 for specifications and
complete details. You can obtain this information
directly from the NFPA.
National Fire Protection Agency
Batterymarch Park
Quincy, MA 02269
1-800-344-3555
1-617-770-3000
www.nfpa.org

Hase Bari Wood Model 8171 & 8172
Manual: 6400-41418
R: 11/3/2020
HEARTH REQUIREMENTS AND FLOOR PROTECTION
Ensure you protect combustible flooring with a covering of a noncombustible material. The floor protection must
extend beyond the body of the stove at the minimum as follows:
In Figure 1 you will find two hearth options; one hearth for the freely rotating stove and the other for the locked
stove.
* Installations in Canada require 18” (45.72 cm) of floor protection on both side and front.
** Rear clearance required only if stovepipe runs horizontally back above the top of the stove.
Figure 1
Note: Dimensions shown in previous figures are from the body of the stove.
The Bari wood stove has a unique feature that allows it to rotate. This rotation allows positioning the body of the
stove into 13 different positions, up to a full 90 degrees to either side. In order to install the Bari onto the smaller
hearth protector shown in Figure 1, you must lock the stove in place. To do this, follow the instructions below:

Hearthstone Quality Home Heating Products, Inc ® Bari Model 8171
10
STOVE ASSEMBLY
Your Bari Stove has been shipped with some components and hardware in the firebox. Remove the contents of
the firebox and inspect the components in comparison to the list below:
ASSEMBLY PROCEDURE
1.Attach mounting feet to stove and position body to the installation point and align with flue location.
2. Adjust height of feet as needed to level appliance.
4x T02

Hearthstone Quality Home Heating Products, Inc ® Bari Model 8171
11
Optional Outside Air Kit
1. Install gasket to outside air intake frame body
2. Install outside air intake body to rear of stove
using two supplied screws.
Flue Collar Assembly
1. The Bari unit is shipped with the lower section
of the flue collar attached. Locate the rotating
bearings and bearing carrier in the hardware
kit.
2. Put the three metal bearings on the ends of the bearing carrier. Be very careful not to drop these
bearings into the body of the stove!
3. Lay the bearing bracket on top of the lower section of the flue collar.
4. Locate the top section of the flue collar, which is shipped in the firebox, align the top section of the flue
collar over the bearing bracket.
5. Install the provided screws and washers into the threaded holes of the top section of the flue collar to
secure the flue collar in place. The screws should hook under the lip of the lower flue collar and allow
the flue collar to rotate freely.

Hearthstone Quality Home Heating Products, Inc ® Bari Model 8171
12
If installing a Bari Plus 8172, skip to step 19 of the final assembly section.
Preassembly of optional Soapstone Body Front Panels (8171 model only)
(If using a ceramic body kit, skip to the next section)
1. Locate the Soapstone hardware kit supplied with the soapstone body panels. Compare the
hardware kit to the parts list below.
2. Designate which stones will be the bottom stone panels for the sides, install 2x T08 connection
brackets into the top of the bottom side soapstone pieces. Face the brackets to the inside of the
curved sides. BE VERY CAREFUL WITH ALL SOAPSTONE PARTS, THEY ARE VERY FRAGILE
AND WILL BREAK IF DROPPED.
3. Install 4x S15 silicone caps into the holes on the bottom of the soap stone sides.
4. Remove the threaded studs and hex nuts from the Bari base where the sides will go.
5. Install 2x T10 brackets to the Bari bottom with 2x S14 screws each side. Install the previously
removed threaded studs and hex nuts to the threaded holes on the T10 bracket.

Hearthstone Quality Home Heating Products, Inc ® Bari Model 8171
13

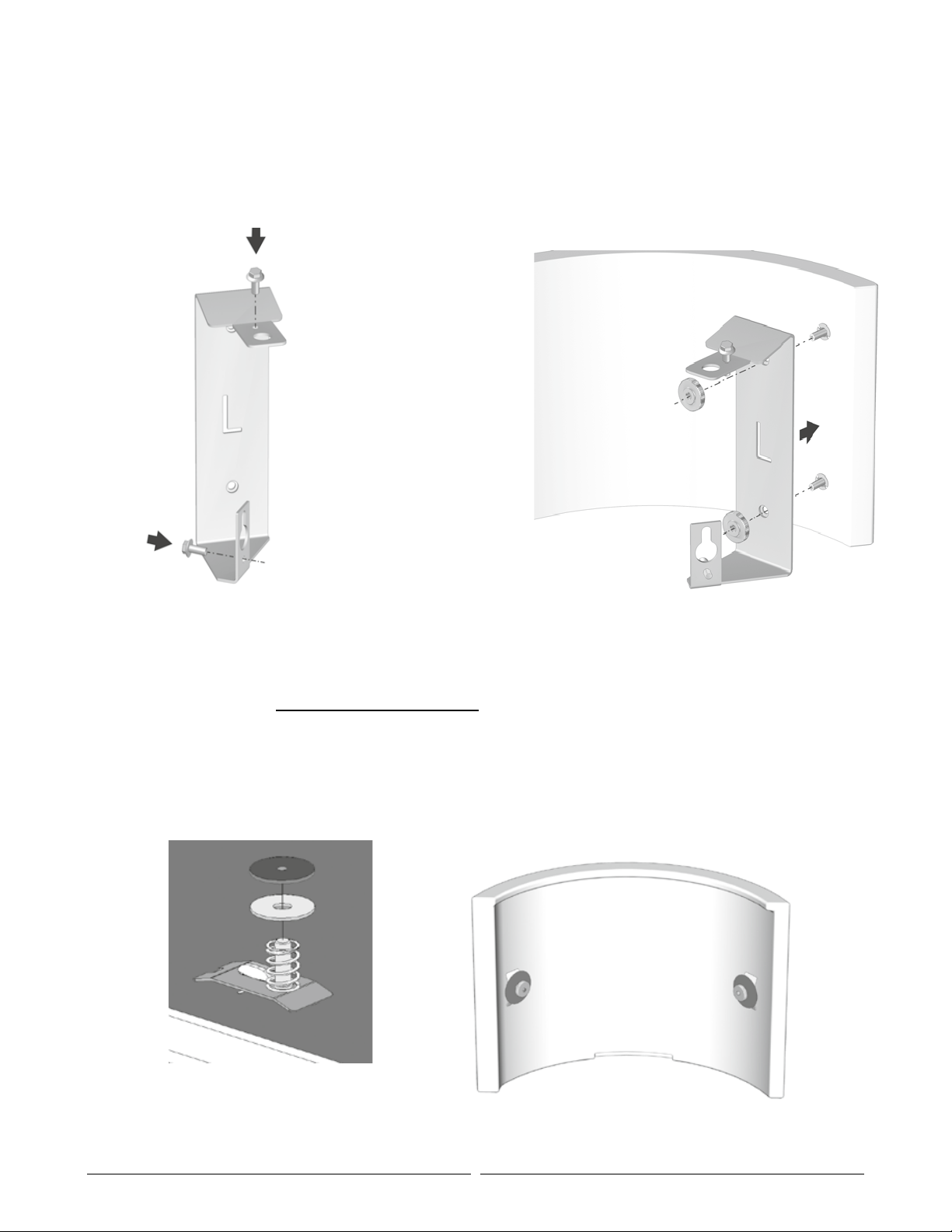

6. Place the front top soap stone panel face down on a soft surface, such as a blanket.
7. Install 2x S12 into left bracket T09.
8. Place 2x S16 washers onto studs on the back of the soap stone panel and install left T09 onto the
right side of the top front soap stone using 2x S13 thumb nuts.
9. Repeat this procedure with the right bracket T09 on the left side of the front top stone panel.
10. Place the bottom front soapstone panel face down on a soft surface, such as a blanket.
11. Install 2x S13 thumb screws onto the studs of the bottom front soapstone panel.
Preassembly of Optional Ceramic Body Front Panels (8171 model only)
1. Locate the front bottom ceramic panel. Place the panel face down on a soft surface, such as a
blanket. Unscrew the thumb nuts from the studs on the rear face of the ceramic. Remove the
hardware bag from the threaded stud.
2. Install the spring and washer from the hardware bag onto the threaded stud. Reinstall thumb nuts to
secure spring and washer in place. Flush the end of the stud to the surface of the thumb nut.

Hearthstone Quality Home Heating Products, Inc ® Bari Model 8171
14
Final Assembly of Optional Ceramic and Soapstone Body Panels (8171 model only)
1. Loosen bolts and washers from the side mounting brackets on the top stove surface supplied with the
stove.
2. Add 4x S01 washers to bottom side studs.
3. For Ceramic Panels: Align each
side’s bottom holes onto the bottom
side studs and push the side firmly
down so the threaded studs engage
the mounting holes.

Hearthstone Quality Home Heating Products, Inc ® Bari Model 8171
15
4. Align the threaded studs on the top body brackets into each side’s top panel bracket.
5. Adjust the height of the sides by either adding or removing washers from the bottom threaded studs to
line up side panels with the back panels.
6. Tighten top body bracket screws to lock the sides in place once the adjustments are properly made and
the sides have an even panel gap and height with the back panel.

Hearthstone Quality Home Heating Products, Inc ® Bari Model 8171
16
7. For Soapstone sides: Uninstall the two screws found half way up on the Bari’s body side.
8. Align the top stone panel’s bottom holes on the bracket previously installed to the top of the bottom side
stone panel. Firmly press the top side stone panel down onto the bracket.
9. Once the lower side stone panel is installed, reinstall the previously removed screws to secure the
soapstone panel bracket to the body of the stove. Install the top soapstone panels to the lower panel’s
top bracket by aligning the panel’s bottom holes to the silicone sleeves, and firmly press the stone down
onto the bracket.

Hearthstone Quality Home Heating Products, Inc ® Bari Model 8171
17
10. Align the top body securing brackets with the holes in the top stone panel, adjust the stone panels up
and down by removing or adding washers to the threaded studs on the body bottom. Once adjusted,
tighten the screws to lock the stone panel in place.
11. For Both Soapstone and Ceramic body kits: Remove the thumb nuts from the lower front body panel.
Align the threaded inserts on the panel with the holes in the lower front door. Reinstall thumb nuts to
secure lower panel to the lower front door.
12. Use the thumb nuts to adjust the bottom panel to be flush with the side panels and the front door.

Hearthstone Quality Home Heating Products, Inc ® Bari Model 8171
18
13. Remove the threaded spacers and washers from the body top. Place the foam spacer, T01, on the
upper surface of the front door.
14. Add the top front panel by locating the key slotted brackets to the hardware installed in the front face of
the stove body.
15. Adjust the front top panel until it is flush vertically and horizontally with the other body panels.
16. Once located, tighten the body hardware and reinstall the treaded spacers to secure the front top to the
body of the stove. Remove the foam spacer once hardware is tightened.
17. Loosen the top screws retaining the back panel to adjust if necessary.

Hearthstone Quality Home Heating Products, Inc ® Bari Model 8171
19
18. For Ceramic or Soapstone top panels: Install the leveling hardware for the top panel. Set top panel
on leveling hardware to test alignment. Adjust hardware to level top panel to side and front panels. (If
using a steel top, skip to step 22)
a. For a ceramic top, use 2x S02, 1x S03, 2x
S06, 1x S07 3x T04. Set to specified
height.
b. For a soapstone top, use 2x S02, 2x S04, 1x S08, 3x T04. Set to specified height.
Front screws
Rear screw
Front screws
Rear screw

Hearthstone Quality Home Heating Products, Inc ® Bari Model 8171
20

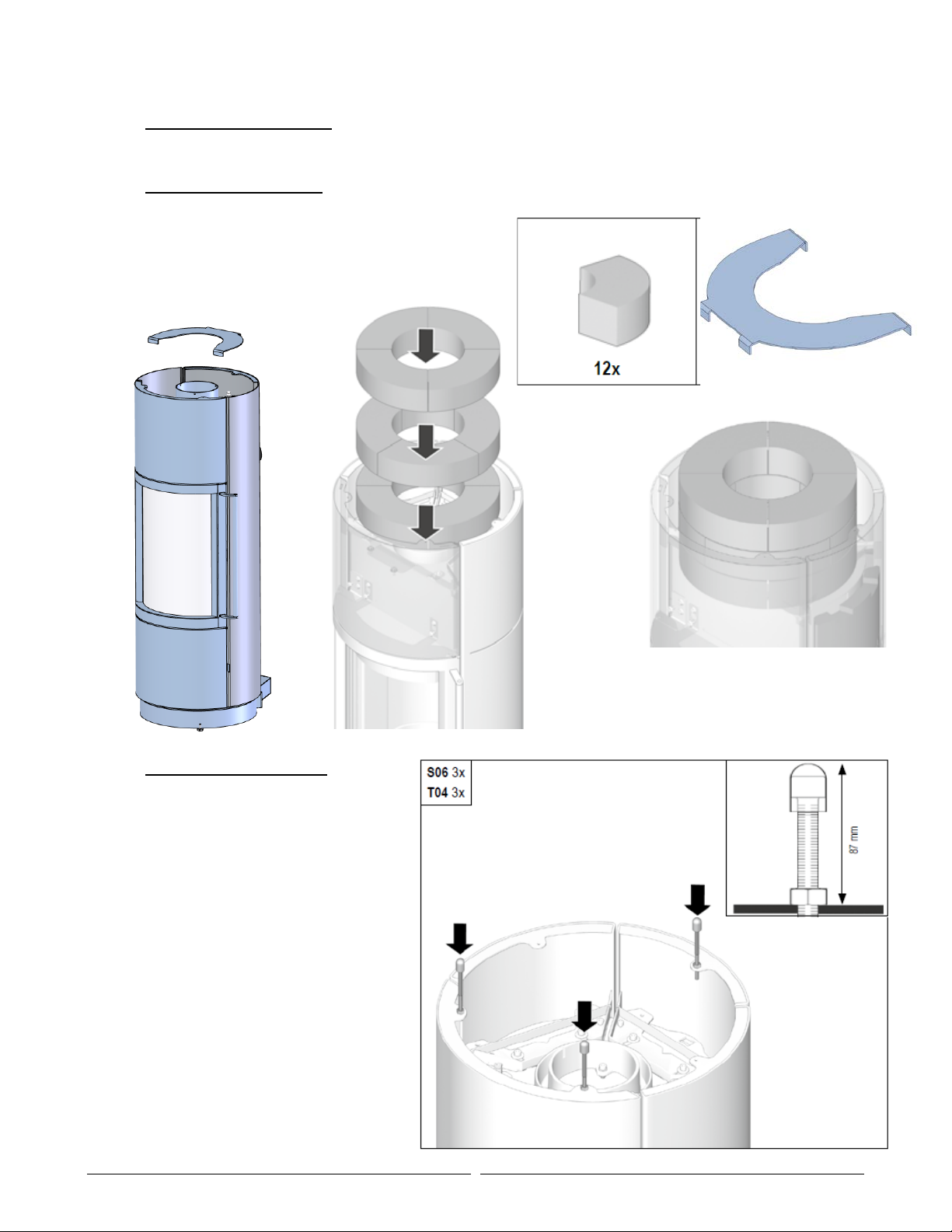

19. For Bari Plus 8172 units: It is recommended that a 12” section of single wall flue pipe be connected to
the flue collar on the top of the stove before installing the heat retaining stones or the body top. This will
make the final installation of the top and full flue pipe much easier.
20. For Bari Plus 8172 units Install the top heat retaining stones. BE SURE TO INSTALL THE STONES
SO THE JOINTS LINE UP AS SHOWN BELOW.
21. For Bari Plus 8172 units: Install the
leveling hardware to the indicated
height. Attach the top to the body of
the stove and ensure a slight gap
between the top and stove body.
