Heath Zenith 7750 User manual

This chime requires 2 “C” alkaline batteries (not included). In typical use,
alkaline batteries will last up to one year.
Wireless Chime
© 2016 HeathCo LLC 207354-02A

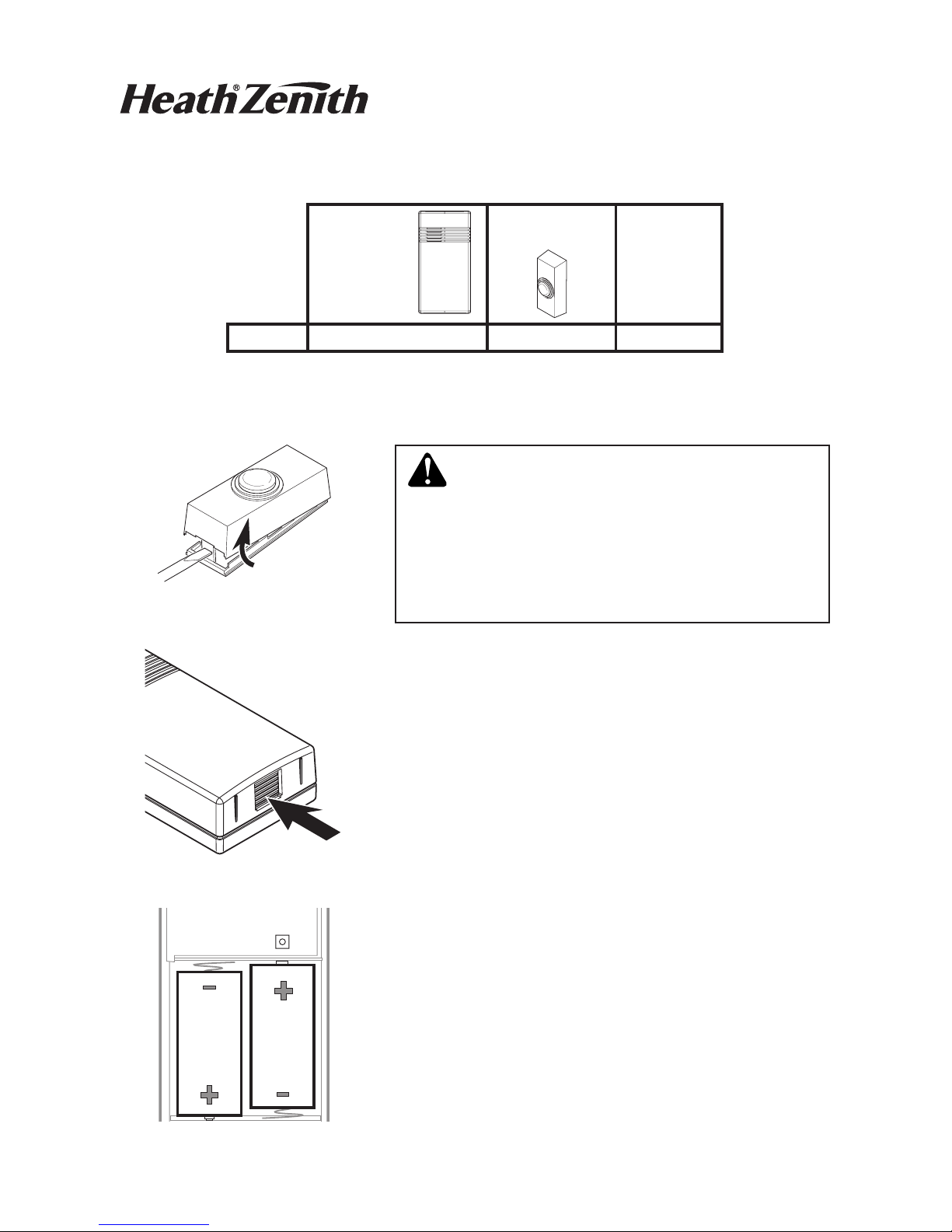

Figure 2
Figure 3
Figure 1
WARNING: To prevent possible
SERIOUS INJURY or DEATH:
• NEVER allow small children near
batteries.
• If battery is swallowed, immediately
notify doctor.

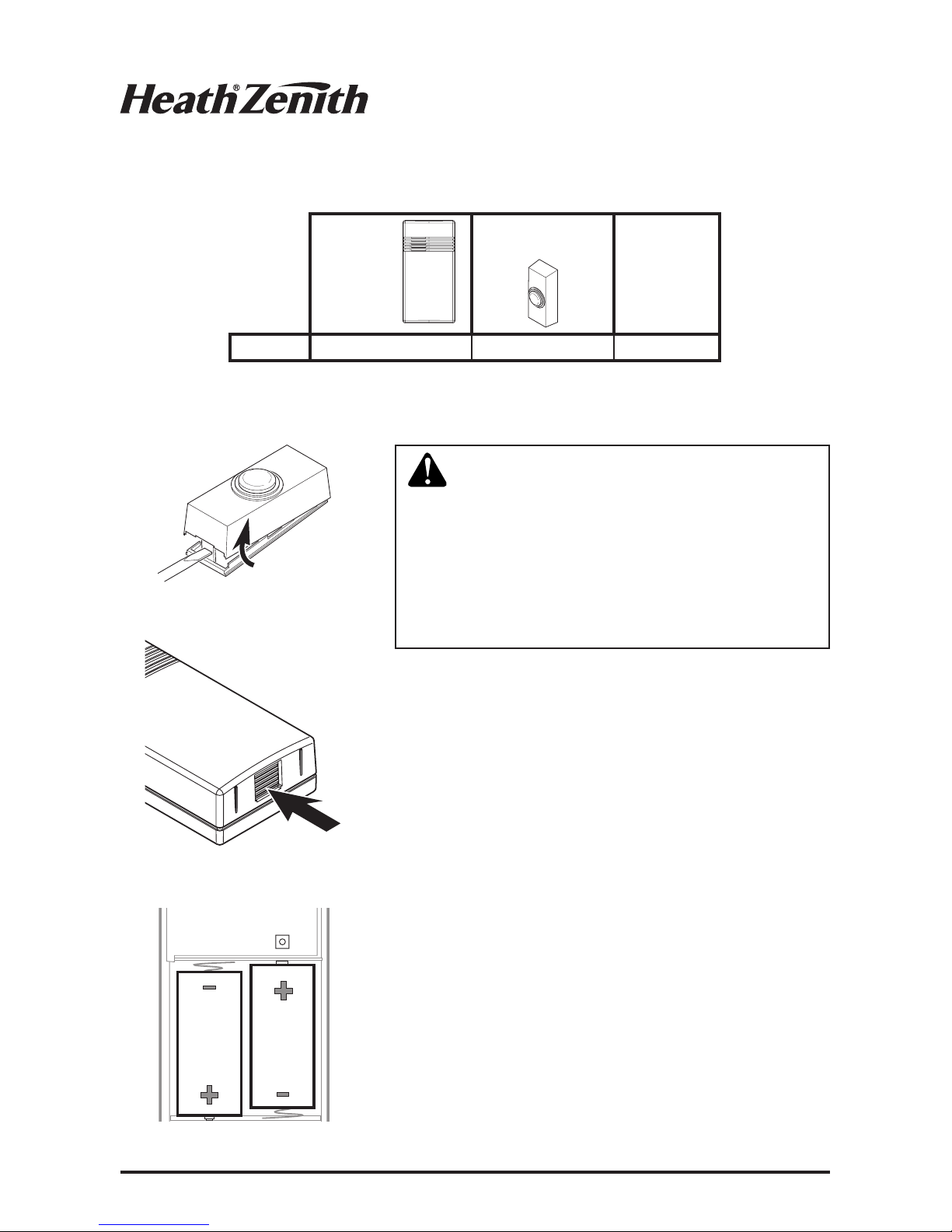

This package includes (Style of door sensor and chime may vary from illustration):
1. Remove orange battery tab from push
button. Remove back of case by pushing in
tab on bottom with a small screwdriver (see
Figure 1). Remove orange battery tab.
2. Open chime case. Press in catch on bottom
of chime and lift the case open (see Figure 2).
3. Install 2 alkaline “C” batteries. Make sure
batteries are oriented properly (see Figure 3).
4. Test range. Temporarily position chime and
push button where you want them mounted.
Press push button to verify chime and push
button work properly. If chime does not sound,
see Troubleshooting.
Model
Wireless
chime
Wireless push
button
Hardware
pack
7750 ✔ ✔ ✔
Type “C”
Type “C”
SYNC:
HOLD 3 SEC
RESET:
HOLD 10 SEC

Helpful Videos – www.hzsupport.com Helpful Answers – 1-800-858-8501
2
5. Mount push button. Use either screws or
double sided tape to mount push button.
• Screw Mounting: To mount with screws,
remove back of case by pushing in tab
on bottom with a small screwdriver (see
Figure 1). Note: Remove material in screw
holes (if needed) before mounting with
screws. Attach back of case to door jamb
or wall (see Figure 4). Snap front of push
button on.
• Tape Mounting: When attaching push but-
ton using double sided tape, make sure the
surface of the door jamb or wall is clean.
6. Mount chime. Determine mounting location.
• Drill 7/32" diameter pilot hole for wall anchor.
• Mount keyhole screw to wall leaving about
1/8" (3 mm) of the screw threads exposed.
• Using keyhole on back of chime base, hang
base on screw (see Figure 5).
• Note: For additional mounting security, re-
peat the above steps to install two additional
screws through the other two holes in the
chime back.
7. Snap chime cover onto chime base. Align
top edge of case with top of back plate. Rotate
bottom of case toward back plate and snap
into position.
Figure 4
Figure 5

3
Helpful Videos – www.hzsupport.com Helpful Answers – 1-800-858-8501

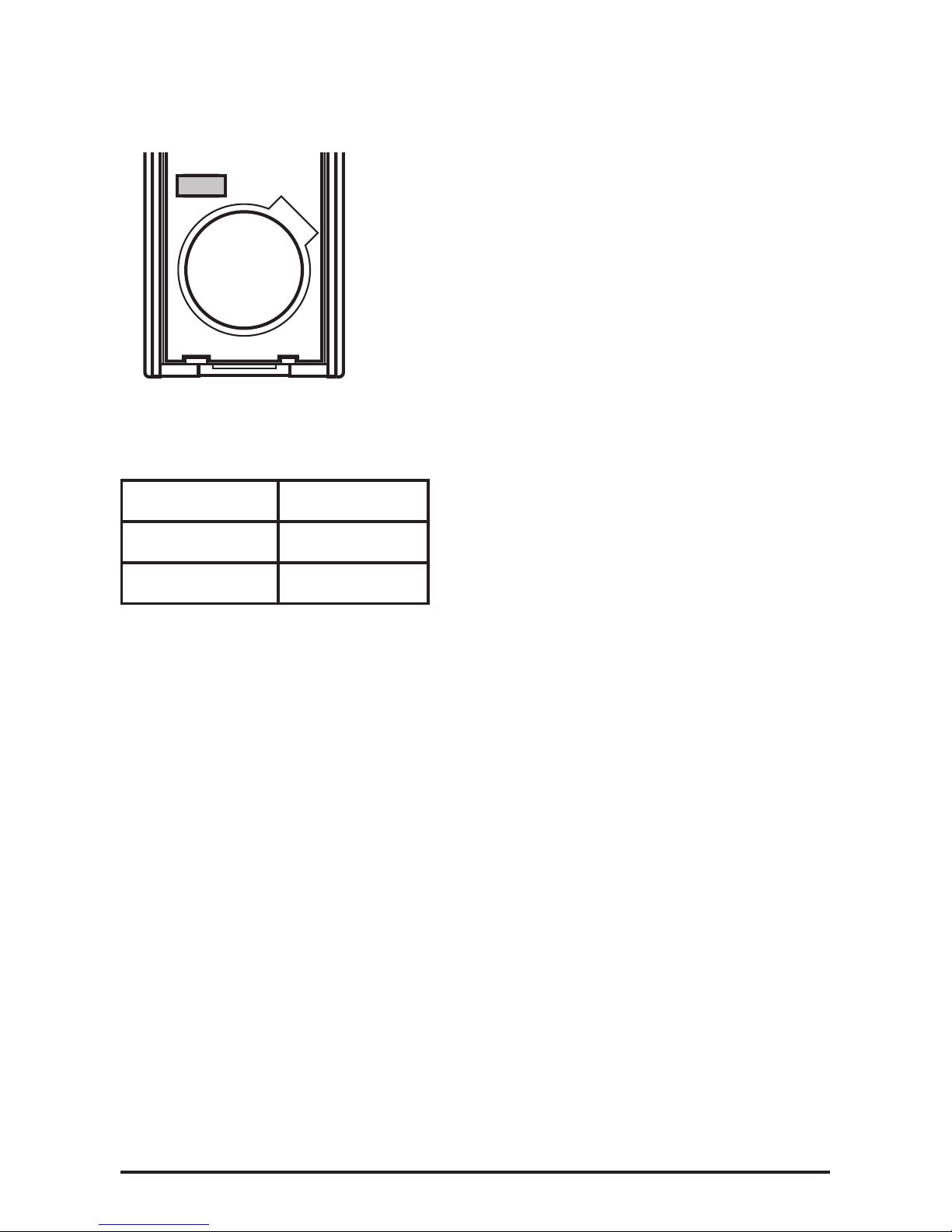

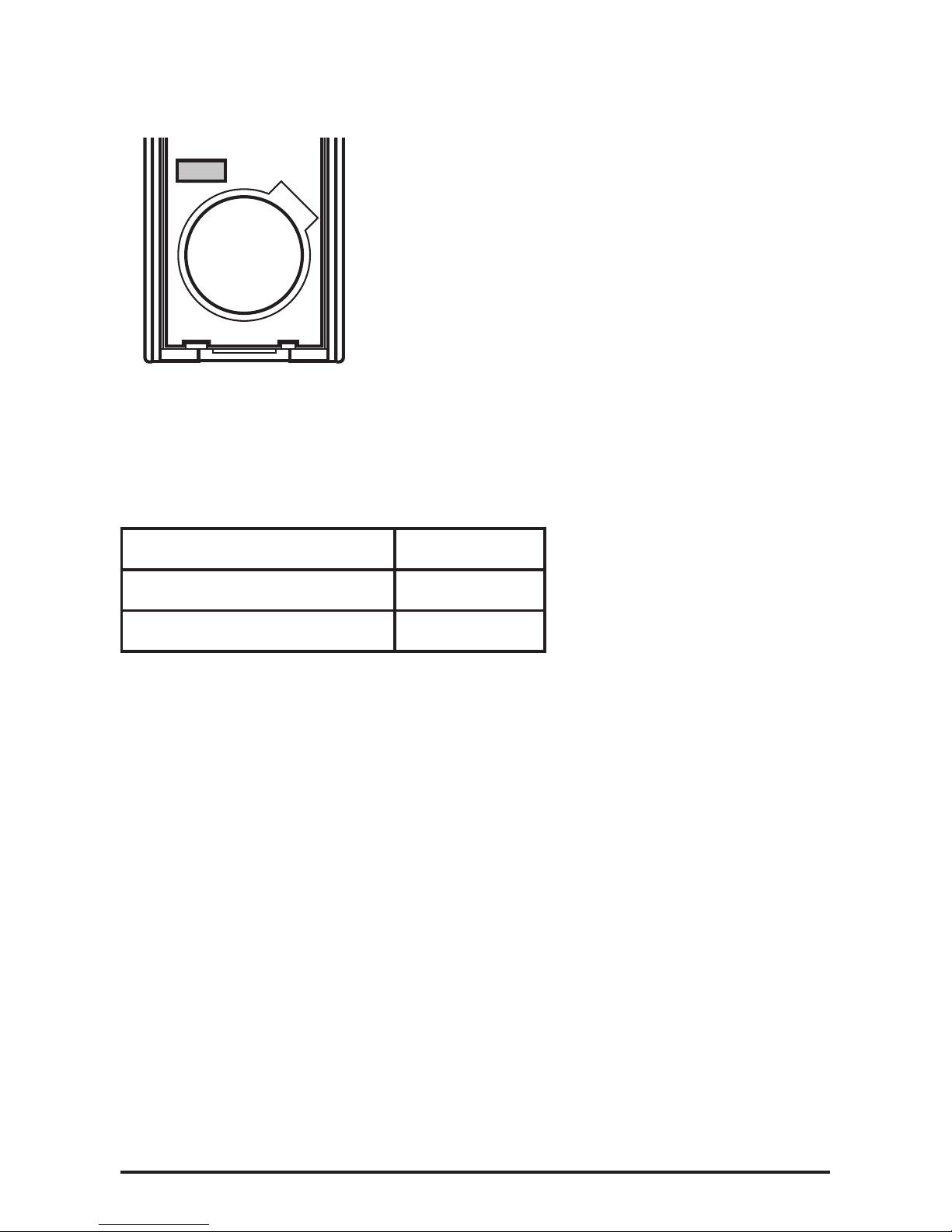

Inside Push Button
Tune Settings
Push Button Tune
Jumper - ON Ding
Jumper - OFF Ding-Dong
Tune Setting Table
The chime has different selectable tunes: Ding
(one note tune) or Ding-Dong (two note tune).
The factory setting is for the Ding-Dong tune.This
tune can be changed by following the instructions
in the Tune Setting Table.
Note: All chime models are designed to work with
up to 5 push buttons (sold separately).All chimes
are designed to play only two different tunes no
matter how many push buttons are used.

Helpful Videos – www.hzsupport.com Helpful Answers – 1-800-858-8501
4
Troubleshooting
1. PROBLEM: Chime does not sound.
A. POSSIBLE CAUSE: Batteries not installed correctly.
A. CORRECTIVE ACTION: Make sure batteries are installed according to
the diagram inside the push button and chime.
B. POSSIBLE CAUSE: Batteries are dead.
B. CORRECTIVE ACTION: Check charge of push button and chime bat-
teries and replace if necessary.
C. POSSIBLE CAUSE: Push button and chime are not synced.
C. CORRECTIVE ACTION: Sync the push button and chime.
• Press and hold the button on the chime until the chime sounds a
“Beep-Beep”.
• Press the push button within 30 seconds. The chime will sound a
“Beep-Beep” tone to indicate the push button is synced.
• Press the push button to ensure operation.
2. PROBLEM: Batteries seem okay, but the chime does not work after instal-
lation.
A. POSSIBLE CAUSE: Chime or push button is mounted on metal or near
metal studs. Note: Metal reduces transmission range.
A. CORRECTIVE ACTION: Use 1/4 in. to 1/2 in. (6 to 13 mm) wood shims
to move chime or push button away from metal surface.
B. POSSIBLE CAUSE: Chime is mounted near concrete floor or wall.Note:
Concrete may reduce range.
B. CORRECTIVE ACTION: Move chime away from concrete surface.
C. POSSIBLE CAUSE: Chime and push button are installed too far apart.
C. CORRECTIVE ACTION: Locate chime closer to push button.
3. PROBLEM: Chime sounds when not intended (false triggers).
POSSIBLE CAUSE: Chime is receiving interference from another wire-
less device.
CORRECTIVE ACTION: Reset chime and push button.
• Remove push button batteries. Wait 30 seconds.
• Press and hold the push button for 10 to 15 seconds within 60 seconds
after installing battery into the push button.
• Press and hold the button on the chime until the chime sounds a
“Beep-Beep-Beep-Beep”.
• To re-sync the push button and chime, press and hold the button on
the chime until the chime sounds a “Beep-Beep”.

5
Helpful Videos – www.hzsupport.com Helpful Answers – 1-800-858-8501
• Press the push button within 30 seconds. The chime will sound a
“Beep-Beep” tone to indicate the push button is synced.
• Press the push button to ensure operation.
Note: The push button and chime come synced from the factory. The range of
the wireless chime can vary with location, temperature, and battery condition.
Please contact us for assistance
before returning product to the
store or to HeathCo LLC.
If you experience a problem, follow
this guide.You may also contact us be-
tween 8:00 AM to 5:00 PM CST (M-F).
When contacting Technical Service,
please include the following informa-
tion: Name, Street Address, Daytime
Phone Number, Email Address, Model
Number, Date of Purchase, Place of
Purchase, Product Issue, and DATED
SALES RECEIPT FOR WARRANTY
REQUESTS.
Technical Service
No Service Parts Available for this
Product
HeathCo LLC
2445 Nashville Road
Bowling Green, KY 42101, USA
ATTN: Technical Service
Internet: www.hzsupport.com
Phone:[phone] (English Only)
Fax: [phone]
Regulatory Information
This device complies with Part 15 of the FCC Rules and RSS-210 of Industry
Canada. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
The user is cautioned that changes or modifications not expressly approved by
the party responsible for regulatory compliance could void the user’s authority
to operate the equipment.

Helpful Videos – www.hzsupport.com Helpful Answers – 1-800-858-8501
6
HeathCo LLC reserves the right to discontinue and to change specifications
at any time without notice without incurring any obligation to incorporate new
features in previously sold products.
ONE YEAR LIMITED WARRANTY
This is a “Limited Warranty” which gives you specific legal rights. You
may also have other rights which vary from state to state or province
to province.
For a period of one year from the date of purchase, any malfunction
caused by factory defective parts or workmanship will be corrected at
no charge to you.
Not Covered - Repair service, adjustment and calibration due to misuse,
abuse or negligence, light bulbs, batteries, and other expendable items are
not covered by this warranty. Unauthorized service or modification of the
product or of any furnished component will void this warranty in its entirety.
This warranty does not include reimbursement for inconvenience, installation,
setup time, loss of use, unauthorized service, or return shipping charges.
This warranty covers only HeathCo LLC assembled products and is not
extended to other equipment and components that a customer uses in
conjunction with our products.
THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRAN-
TIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY, REPRE-
SENTATION OR CONDITION OF MERCHANT ABILITY OR THAT THE
PRODUCTS ARE FIT FOR ANY PARTICULAR PURPOSE OR USE, AND
SPECIFICALLY IN LIEU OF ALL SPECIAL, INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES.
REPAIR OR REPLACEMENT SHALL BE THE SOLE REMEDY OF THE
CUSTOMER AND THERE SHALL BE NO LIABILITY ON THE PART
OF HEATHCO LLC FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO ANY
LOSS OF BUSINESS OR PROFITS, WHETHER OR NOT FORESEE-
ABLE. Some states or provinces do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation or exclusion
may not apply to you.
Please keep your dated sales receipt, it is required for all warranty
requests.

7
Vídeos prácticos – www.hzsupport.com Respuestas prácticas – 1-800-858-8501
© 2016 HeathCo LLC 207354-02 S

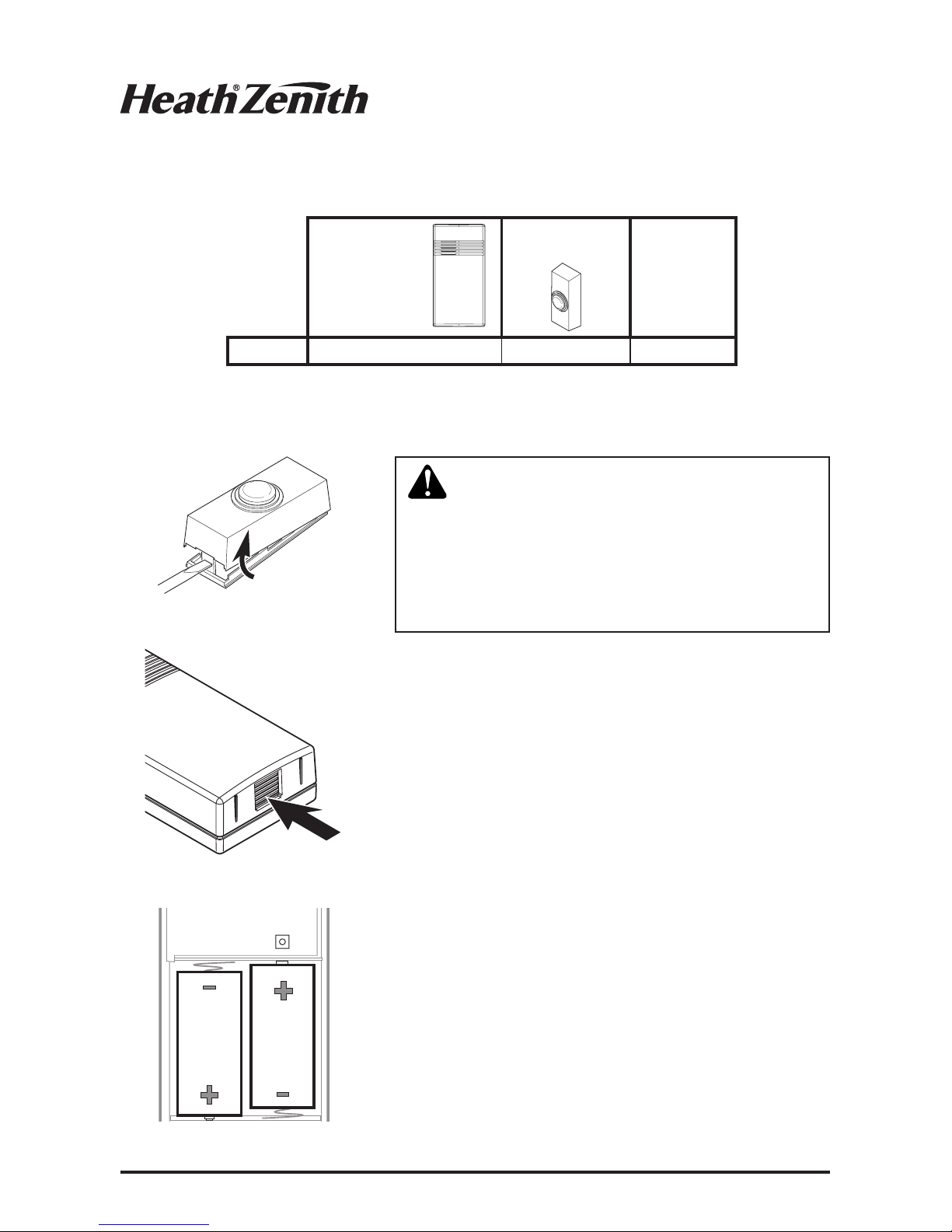

Campana inalámbrica
Esta campana requiere 2 pilas alcalinas tipo “C” (no incluidas). Con un
uso normal, las pilas alcalinas durarán hasta 1 año.
Este paquete tiene (El estilo del pulsador y de la campana puede variar de
la ilustración):
1. Retire la pestaña naranja de la batería del
botón pulsador. Extraer la parte posterior de
la caja presionando la aleta en el botón con
un destornillador pequeño (vea la Figura 1).
Quite la aleta anaranjada de la batería.
2. Abra la caja de la campana. Presione el
seguro, en la parte inferior de la campana, y
levante la caja (vea la Figura 2).
3. Coloque las 2 pilas alkalinas “C”. Asegú-
rese de que estén correctamente colocadas
(vea la Figura 3).
4. Pruebe el alcance. Ponga provisionalmente
la campana y el pulsador en la posición donde
los quiera instalar. Presione el pulsador para
verificar que la campanay el pulsador funcio-
nen apropiadamente.Si la campana no suena,
vea Análisis de Averías.
ADVERTENCIA: Para prevenir una
posible LESIÓN SERIA o LA MUERTE:
• NUNCA deje que los niños estén cerca
de las baterías.
• Si se traga una batería, notifique inme-
diatamente al doctor.
Figura 2
Figura 3
Figura 1
Modelo
Campana
inalámbrica
Pulsador
inalámbrico
Paquete de
ferretería
7750 ✔ ✔ ✔
Type “C”
Type “C”
SYNC:
HOLD 3 SEC
RESET:
HOLD 10 SEC

Vídeos prácticos – www.hzsupport.com Respuestas prácticas – 1-800-858-8501
8

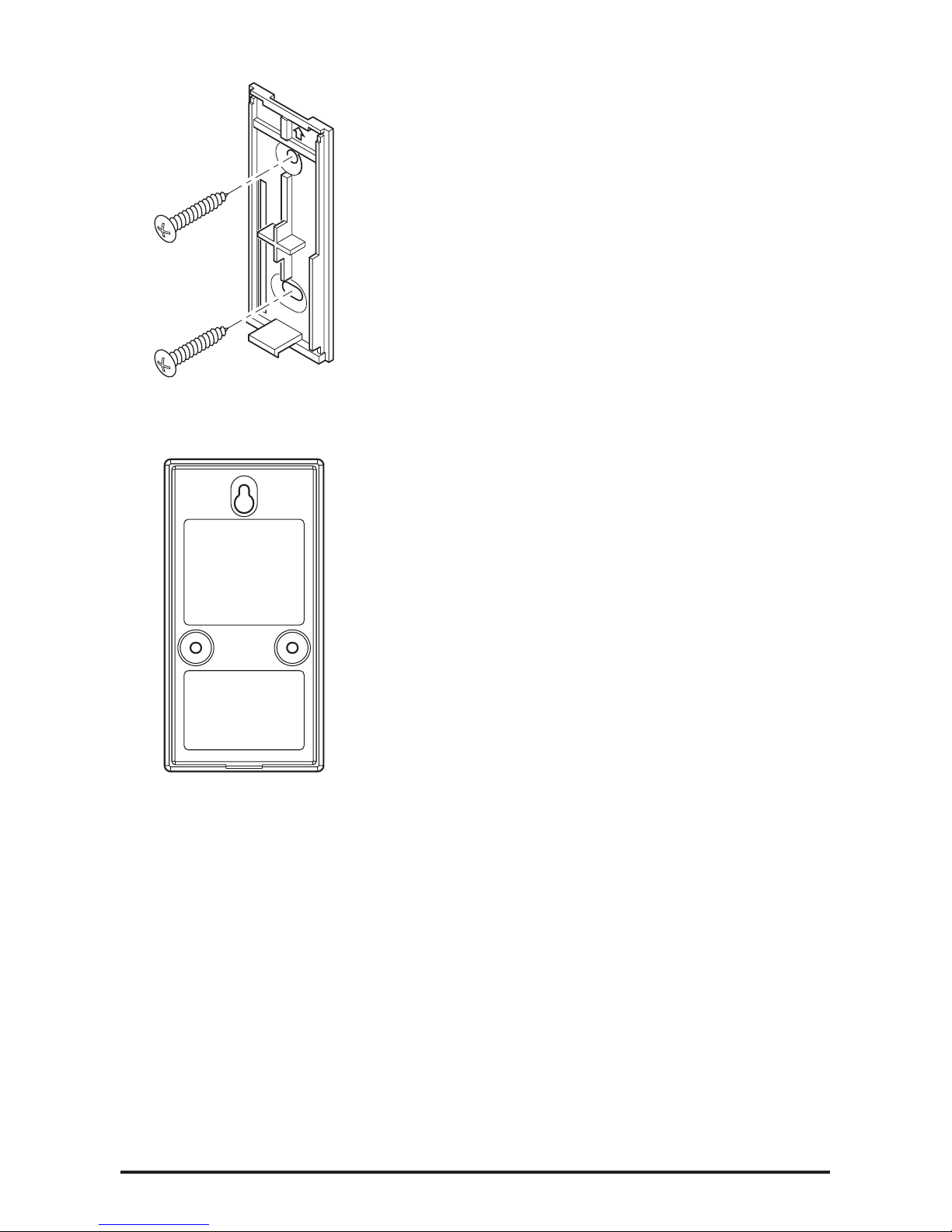

5. Monte el pulsador. Use ya sean tornillos o
cinta adhesiva por ambas caras para instalar
el pulsador.
• Montaje con tornillos: Para montar con
tornillos, quite la parte de atrás de la caja
empujando hacia adentro la lengüeta de
abajo con un destornillador pequeño y
girando la cuchilla (vea la Figura 1). Nota:
Quite la suciedad de los orificios para
tornillos (si es necesario) antes de poner
los tornillos. Coloque la parte de atrás de
la caja contra la jamba o la pared (vea la
Figura 4). Encaje a presión la parte frontal
del pulsador.
• Montaje con cinta adhesiva: Cuando
fije el pulsador usando cinta adhesiva por
ambas caras, asegúrese que la superficie
de la pared o la del batiente de la puerta
estén limpias.
6. Monte la campana. Determine el sitio para
el montaje.
• Perfore un agujero piloto de 5.5 mm (7/32
pulgadas) de diámetro para el ancla de
pared.
• Coloque el tornillo del orificio de alineación
en la pared dejando 3 mm (1/8 de pulgada)
de la rosca del tornillo sin apretar (vea la
Figura 5).
• Usando este orificio de alineación de la
parte posterior de la base de la campana,
cuelgue la base en el tornillo.
• Nota: Para una seguridad adicional en el
montaje, repita los pasos anteriores para
instalar dos tornillos adicionales a través
de los otros dos agujeros en el reverso del
timbre.
7. Inserte la cubierta de la campanilla en
la base de la campanilla. Alinee el borde
superior de la caja con la parte superior de la
placa de atrás.Gire la parte inferior de la caja
hacia la placa de atrás y asiéntela a presión
en su sitio.
Figura 4
Figura 5

9
Vídeos prácticos – www.hzsupport.com Respuestas prácticas – 1-800-858-8501
Botón pulsador Ajustes
Puente: ENCENDIDO Ding
Puente: APAGADO Ding-Dong

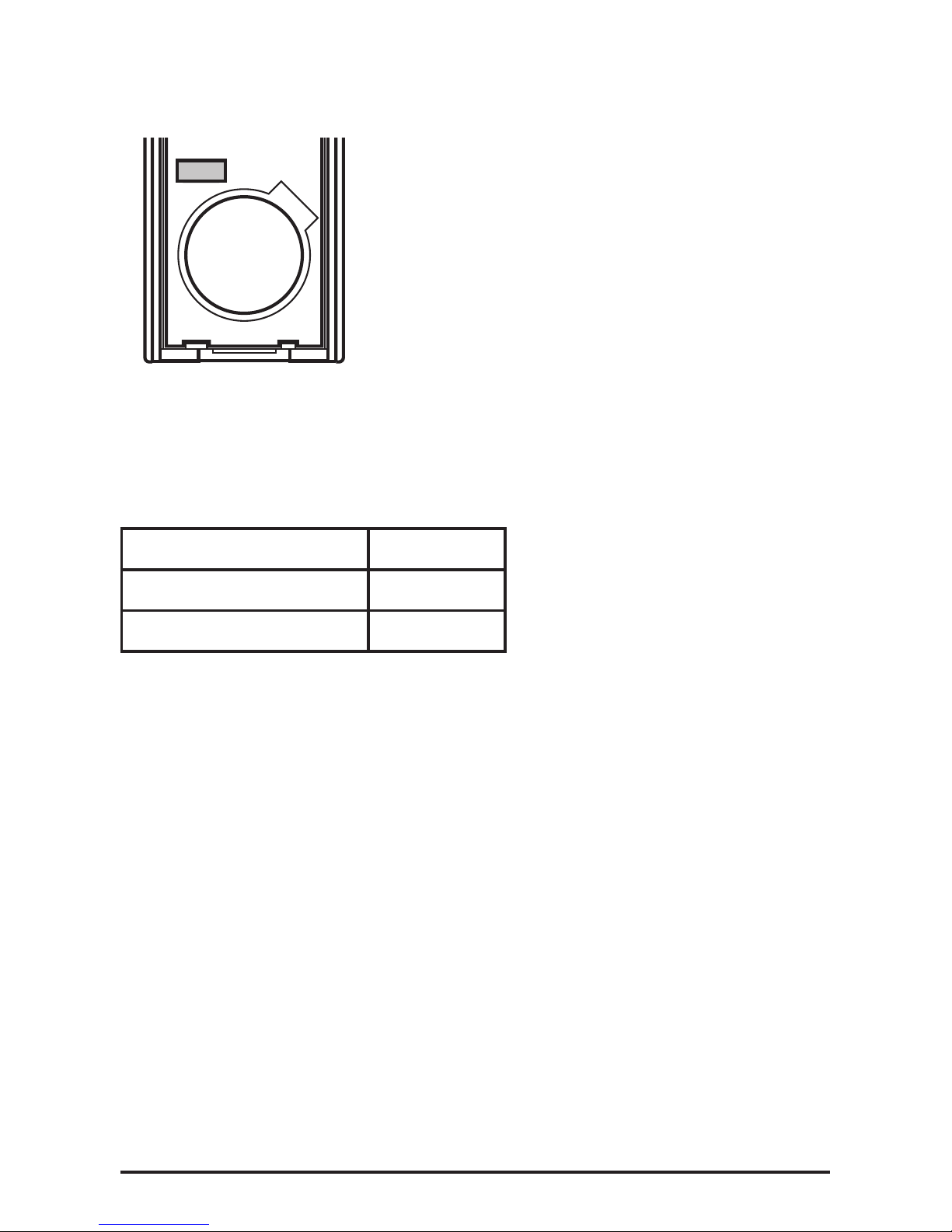

Tabla de programación de melodías
Dentro del Pulsador
Programación del tono
La campanilla tiene diferentes melodías que
se pueden seleccionar: Ding (melodía de una
nota) o Ding-Dong (melodía de dos notas). La
calibración de fábrica es el tono Ding-Dong. Esta
melodía se puede cambiar siguiendo las instruc-
ciones de la Tabla de Programación de Melodías.
Nota: Todos los modelos de campanillas están
diseñados para trabajar hasta con 5 botones
pulsadores (se venden por separado). Todas
las campanillas están diseñadas para reproducir
solo dos melodías diferentes, sin importar cuán-
tos botones pulsadores se utilicen.

Vídeos prácticos – www.hzsupport.com Respuestas prácticas – 1-800-858-8501
10
Análisis de Averías
1. PROBLEMA: La campanilla no suena.
A. CAUSA POSIBLE: Las baterías no están bien instaladas.
A. ACCIÓN CORRECTIVA: Asegúrese de que las baterías estén instaladas
de acuerdo con el diagrama ubicado dentro del botón pulsador y de la
campanilla.
B. CAUSA POSIBLE: Las baterías se acabaron.
B. ACCIÓN CORRECTIVA: Revise la carga de las baterías del botón
pulsador y de la campanilla y reemplácelas si es necesario.
C. CAUSA POSIBLE: El botón pulsador y la campanilla no están sincroni-
zados.
C. ACCIÓN CORRECTIVA: Sincronice el botón pulsador y la campanilla.
• Mantenga presionado el botón en la campanilla hasta escuchar un
“bip-bip”.
• Presione el botón pulsador durante 30 segundos. Cuando el botón
pulsador esté sincronizado, la campanilla hará un “bip-bip”.
• Presione el botón pulsador para asegurar el funcionamiento.
2. PROBLEMA: Las baterías parecen estar bien pero la campanilla no funciona
después de la instalación.
A. CAUSA POSIBLE: La campanilla o el botón pulsador están montados
sobre metal o cerca de montantes de metal. Nota: El metal reduce el
alcance de transmisión.
A. ACCIÓN CORRECTIVA: Use calzas de madera de 6 a 13 mm (1/4 a
1/2 pulg.) para sacar la campanilla o el botón pulsador de la superficie
de metal.
B. CAUSA POSIBLE: La campanilla está montada cerca de un piso o pared
de concreto. Nota: El concreto puede reducir el alcance.
B. ACCIÓN CORRECTIVA: Aleje la campanilla de la superficie de concreto.
C. CAUSA POSIBLE: La campanilla y el botón pulsador están instalados
demasiado alejados.
C. ACCIÓN CORRECTIVA: Ubique la campanilla más cerca del botón
pulsador.
Continúa
