heddier electronic Human Detector Flex User manual

Instruction Manual
Security made easy - Human Detector Flex 1 / 49
Instruction Manual
Human Detector Flex is a product of the
heddier electronic GmbH
Raiffeisenstraße 24
48734 Reken
Germany
Tel. [phone]
[email protected]
Release I/2022
Specifications are subject to change without prior notice. All measurements have been made under specific conditions. Disclaimer: This
document, as well as all other documents (offers / specifications / cover letters / etc.), do not guarantee any functionality of our products
desired by the customer. heddier electronic GmbH does not guarantee any functionality or marketability desired by the customer. The
customer should be able to make his own decision on the basis of the transmitted documents. heddier electronic GmbH
supports him in this,
as it is given by the "General Terms and Conditions of heddier electronic GmbH". In no case heddier electronic GmbH is liable for damages
and consequential damages caused by the use of the products and descriptive documents. Excluded from this are damages caused by
negligent behavior or damages that are regulated by superior laws.
Copyright by heddier electronic GmbH.Human Detector is a registered trademark of heddier electronic GmbH.

Instruction Manual
Security made easy - Human Detector Flex 2 / 49
Table of contents HDF-CONFIGURATOR
Introduction .............................................................................................................. 3
Human Detector Flex Software .................................................................................... 5
HDF-CONFIGURATOR Software ............................................................................... 5
General ............................................................................................................. 5
Safety instructions .............................................................................................. 7
General terms of use .......................................................................................... 8
Installation ...................................................................................................... 11
Starting HDF-CONFIGURATOR ........................................................................... 13
HDF-CONFIGURATOR menus ............................................................................. 14
Settings ........................................................................................................... 17
Manage HDF projects ....................................................................................... 17
Creating a new HDF project .......................................................................... 17
Open HDF project ........................................................................................ 20
Save HDF project ......................................................................................... 20
Save HDF project as ..................................................................................... 20
Change HDF project password ....................................................................... 21
Print HDF project ......................................................................................... 21
Add and manage HDF sensors ........................................................................... 22
Add HDF sensors with one alarm channel ........................................................ 23
Add HDF sensors with 2 alarm channels .......................................................... 25
Add and manage HDF alarm centres .................................................................. 26
Add HDF-BUZZER ......................................................................................... 26
Add HDF-SPEECH ......................................................................................... 31
Sensor configuration ..................................................................................... 32
Programming HDF-BUZZER/SPEECH ............................................................... 34
Change HDF-BUZZER/SPEECH password ......................................................... 35
Read HDF-BUZZER/SPEECH configuration ....................................................... 37
Setting up HDF alarm management .................................................................... 38
Add HDF-AMD .............................................................................................. 38
Creating alarm areas .................................................................................... 40
Assign alarm areas to HDF sensors ................................................................. 41
Programming HDF-AMD ................................................................................ 42
Change HDF-AMD password .......................................................................... 45
Read HDF-AMD configuration ........................................................................ 46
Download HDF-AMD log files ......................................................................... 47
Update HDF-AMD firmware ........................................................................... 48
Miscellaneous ........................................................................................................... 49

Instruction Manual
Security made easy - Human Detector Flex 3 / 49
Introduction
Security and surveillance technology
for museums, exhibitions, private collections and luxury goods trade
Thank you for choosing the H uman Detector Flex alarm system.
A powerful, compact and quick-to-install security and surveillance system, it supports you in protecting your
exhibits and valuables. Whether paintings, sculptures or automobiles, the
H uman Detector Flex system
features a wide range of applications.
Sensors and alarm modules are available for almost every task. These are extremely small and can be
operated with inexpensive lithium batteries, which last for up to 10 years.
(HDF - H uman Detector Flex)
HDF-3D PROTECT The HDF-3D PROTECT module detects the slightest vibrations
(structure-borne sound) and movements. This provides for the effective
protection of showcases, pedestals, technical exhibits and vehicles.
HDF-TOUCH
Approaching and touching objects can be easily detected with the HDF-
TOUCH
module. The system is ideal for securing metallic objects, but
can also be used for other purposes.
HDF-HANG HDF-HANG
secures pictures and hanging objects on gallery rails.
HDF-OPTICAL
Pictures, paintings and other hanging objects can be secured
sustainably, simply and contact-free with HDF-OPTICAL .
HDF-EXTERN
External sensors with an alarm output (NO or NC) can be connected
directly to the HDF-EXTERN module. This allows the H uman Detector
Flex System to be extended as required.
HDF-WIRE
Securing with tear-off wires is in many cases the cheapest and quickest
way to secure "small items" against theft. The HDF-WIRE module
supports up to two signalling circuits.
HDF-DOOR HDF-DOOR
secures doors, flaps and inspection hatches.
HDF-SHOCK
The HDF-SHOCK module detects heavy blows, position changes and
vibrations.
HDF-REMOTE
The HDF-REMOTE panic button allows for alarm messages to be easily
and invisibly sent by supervisors.
All alarm modules, with the exception of the HDF-REMOTE panic button, can additionally be operated with an
external power supply unit. The connection to the alarm centres ( HDF-BUZZER and HDF-SPEECH ) and the
HDF-AMD alarm management system is wireless via radio. The communication that takes place in the 868
MHz range uses a special modulation method that easily penetrates solid walls and large buildings. The
ranges achieved here are often several times greater than those that can be achieved with conventional
systems.

Instruction Manual
Security made easy - Human Detector Flex 4 / 49
The HDF-BUZZER and HDF-SPEECH alarm centres
Two systems with different extension levels are available with the HDF-BUZZER and
HDF-SPEECH alarm
centres.
The basic system
HDF-BUZZER enables the output of a loud alarm via a built-in piezo siren (buzzer). In
addition, three potential-free relay outputs are available. These can be individually controlled by the alarm
modules. Alarm messages are acknowledged and the system is armed and disarmed via an external input
using a key switch.
The
HDF-SPEECH alarm centre also has a voice output. Voice and sound messages are stored as .mps3
files and used as alarm messages.
The HDF-AMD unit (
AMD = Alarm M anagement D evice) enables targeted forwarding of alarm messages to
digital terminal devices (e.g. Android tablets and smartphones) and to external services. A precise distinction
is made here as to who is responsible for which alarm. Likewise, the HDF-AMD in combination with the
HDF-
ANTIJAM monitors the radio network for interfering signals. The HDF-AMD is an open system. Future
projects - such as the transmission of measurement data (temperature, humidity, etc.), but also the
connection to video control centres - can be implemented.

Instruction Manual
Security made easy - Human Detector Flex 5 / 49
HDF-CONFIGURATOR Software
General
The HDF-CONFIGURATOR manual describes the functionality of the Windows configuration software for the
backup technology of the
H uman Detector Flex family.
The software enables the programming of the HDF-BUZZER and HDF-SPEECH alarm centres via USB
interface. The HDF-AMD
alarm management system can also be set using a wireless network.
In addition, the HDF-CONFIGURATOR software enables the security engineer to create optimised
installations and adapt these to their security requirements. The software supports the creation of
documentation and saves log and configuration files.
Basic agreements for the operating instructions:
HDF sensors
The term HDF sensors refers to H uman Detector Flex sensors. In the operating instructions the terms
sensors, alarm modules, alarm sensors, sensor modules, detectors and the individual product names (such
as HDF-DOOR , HDF-EXTERN , etc.) are used. In all cases, the sensors are HDF sensors.
HDF alarm centres
The term HDF alarm centres refers to H uman Detector Flex alarm centres. In the operating instructions the
terms alarm centres, radio control centres, alarm units and the individual product names (HDF-BUZZER and
HDF-SPEECH ) are used. In all cases, these are HDF alarm centres.
HDF alarm management device
The term HDF alarm management device refers to H uman Detector Flex alarm management device. In the
operating instructions the terms alarm management device, HDF alarm management system, alarm
management system and the individual product names (HDF-AMD) are used. In all cases, it is an HDF alarm
management device. The abbreviation
AMD refers to Alarm M anagement D evice.
Designation of screen panels
The screen of the HDF-CONFIGURATOR software is used to control your security installation. The
manufacturer, heddier electronic GmbH, has placed great emphasis on ensuring that all relevant
information is always in the user's field of vision. The operating steps involve only a few repetitive actions.
These are easily recognisable and enable a quick familiarisation with the HDF-CONFIGURATOR software.
We would like to explain the main areas of the screen in advance, in order to facilitate these operating
instructions.

Instruction Manual
Security made easy - Human Detector Flex 6 / 49
Main menu
The main menu with a red background contains the most frequently used functions for controlling the
software.
Additional menu
The additional menu with a green background allows direct access to frequently used functions. The
additional menu can display different contents depending on the operating modes.
Configuration area
The overall configuration of the project is displayed in the configuration area with a yellow background. An
integrated zoom function facilitates the display of large projects.
Functional area
Entries and settings are made in the turquoise/blue highlighted function area. This is the main working area
of the HDF-CONFIGURATOR software.
Overview sensors
The column with a red background shows the project HDF sensors.
Overview alarm units
The line with a green background shows the project HDF alarm units (alarm centres and alarm management
devices).
Linking area
The linking area with a yellow background shows the assignment of HDF sensors to HDF alarm units.
Action window
Situation-related entries are made and actions are started in the action window with a turquoise/blue
background. The action window is only visible during the respective action.
The H uman Detector Flex systems can be used in three different operating modes. With the exception of
operation in EASY-Mode, the use of the HDF-CONFIGURATOR software is mandatory for the other two
operating modes.
EASY-Mode
EASY-Mode is the most simple operating mode. It is intended for small security system installations. In
EASY-Mode up to 30 alarm sensors can in principle be connected to one or more alarm centres
(HDF-
BUZZER or HDF-SPEECH ). The connection only requires a simple pairing at the push of a button on the
respective sensor. All alarm sensors on an alarm centre have the same alarm behaviour. An individual alarm
form is not possible for individual alarm sensors. Alarm sensors that have already been created cannot be
deleted individually.

Instruction Manual
Security made easy - Human Detector Flex 7 / 49
The HDF-CONFIGURATOR software in EASY-Mode is only required for changing the alarm behaviour of the
respective
HDF-BUZZER or HDF-SPEECH unit. This change is then valid for all paired alarm sensors.
MULTI-Mode
The use of the HDF-CONFIGURATOR software is mandatory in MULTI-Mode. The complete installation of
the security system is initially planned with the software. After completion of the planning the user can enter
the hardware identifiers (ID codes) of the individual
H uman Detector Flex components. The project data
generated in this way can now be transferred to the various alarm centres (HDF-BUZZER or HDF-SPEECH )
with the
HDF-CONFIGURATOR software via USB cable.
The MULTI-Mode provides the user with a high degree of flexibility. Each sensor and each alarm centre can
be individually programmed. The maximum number of alarm sensors per alarm centre is 200. The HDF-
CONFIGURATOR software also generates up-to-date project documentation.
PROFI-Mode
The use of the HDF-CONFIGURATOR software is also mandatory in PROFI-Mode. The PROFI-Mode is a
powerful extension of the MULTI-Mode. An HDF-AMD alarm management system is installed in addition. This
unit controls and evaluates all alarm and system messages. The information obtained in this way is forwarded
specifically to the smartphones of security staff. Alarm messages can also be displayed in any web browser.
This enables for instance the silent alerting of security staff. The settings required for commissioning are
made with the HDF-CONFIGURATOR software. The functions of the MULTI-Mode installation are completely
retained in PROFI-Mode. Updating from
EASY to MULTI-Mode or from MULTI to PROFI-Mode is possible at
any time. Moving in the opposite direction is feasible, but will always lead to restrictions in functionality.
Note:
You can download the latest version of the HDF-CONFIGURATOR software from the manufacturer's
download server. More information and access data will be provided after the purchase of the corresponding
components.
Safety instructions
Important safety instructions!
The HDF-CONFIGURATOR manual should be studied before commencing with the programming/set-up. The
installation of the
H uman Detector Flex Systems in conjunction with the HDF-CONFIGURATOR software
(MULTI and PROFI-Mode ) should only be carried out by a trained and experienced technician.
Projects should be saved regularly.
Handle the stored projects carefully and protect them from unauthorized access.
Check all settings after programming has been carried out. Test the programmed units for this.
Possible errors can then immediately be detected.
The following system requirements are necessary to ensure error-free operation:
· PC with Windows 10 operating system or higher
· USB interface
· WIFI adapter (2.4 GHz)

Instruction Manual
Security made easy - Human Detector Flex 8 / 49
General terms of use
The use of the software is subject to the " General Terms of Use". These are agreed to with the installation of
the HDF-CONFIGURATOR software.
General Terms of Use for the Configuration Software H uman Detector Flex - Configurator (HDF-
CONFIGURATOR) of heddier electronic GmbH
Last updated: 01 January 2022
1 Scope
1.1 These General Terms of Use regulate the use of the configuration software
HDF-CONFIGURATOR
(hereinafter referred to as "software") between the user (hereinafter referred to as " client ") and heddier
electronic Gesellschaft für innovative Datensysteme mbH (hereinafter referred to as " heddier ").
The software enables the setting and configuration of various alarm devices from the H uman Detector Flex
range. The application profiles created in this way are transferred to the respective devices via USB cable or
WLAN. Application profiles can be saved and used for documentation.
1.2 The software is described and advertised on the website www.human-detector.com for museums, cultural
institutions, galleries, institutional collectors and comparable persons and enterprises. The software is used
exclusively by the institutions and persons named here in accordance with the following General Terms of
Use. The users of the software are usually technicians employed by these institutions. The General Terms of
Use can be saved and/or printed out.
1.3 Usage is only offered to entrepreneurs, tradesmen, freelancers and public institutions. Consumers in the
sense of §13 BGB (German Civil Code) are not offered usage.
2 Prerequisites for use
2.1 The software can be downloaded free of charge from the www.human-detector.com website. The client
needs to complete an online registration before downloading. The data provided in the registration will be
checked by heddier. The client will be sent a confirmation email with a download link valid for a limited period
of time.
2.2
heddier has the right not to accept individual registrations and to refuse the confirmation email. This is
particularly the case if the data sent with the registration gives rise to the suspicion that the user is not a user
pursuant to 1.2.
2.3 The
client has the right to install the software on several end devices (personal computers with the
Microsoft Windows operating system).
2.4 The client confirms the General Terms of Use during the installation of the software. The installation
without confirmation and the associated acceptance of the General Terms of Use is not possible.
3 Prices
3.1 Usage of the software
is free of charge.
3.2 heddier reserves the right to raise prices for future additional software modules. It is not necessary to
purchase the additional modules to use the software.
4 Liability
4.1 heddier will only pay damages or compensation for futile expenses, regardless of the legal reason (e.g.
breach of duty, tort), to the following extent:
a) in the case of intent, in the full amount;

Instruction Manual
Security made easy - Human Detector Flex 9 / 49
b) in the event of gross negligence, in the amount of the typical and foreseeable damage that should have
been prevented through duty of care;
c) in other cases, only in the event of a breach of a material contractual obligation and in the event of default,
to compensation for typical and foreseeable damage, limited to the costs of the H uman Detector Flex
hardware directly affected by the installation.
4.2 The statutory liability for personal injury and under the Product Liability Act shall remain unaffected.
4.3 In case of data loss, heddier is only liable for damages that would have occurred even if the client had
properly backed up the data (see 5.3).
4.4
heddier assumes no liability for the proper functioning of the software on all end devices available on the
market.
5 Client obligations
5.1 The
client shall take reasonable precautions in the event that the software does not work properly in
whole or in part. For this purpose, heddier offers the possibility to operate the
H uman Detector Flex alarm
systems in EASY-Mode. The use of the software is not necessary in this operating mode with a reduced
range of functions.
5.2 The client shall thoroughly test the software for its usability for its intended purpose before using it in an
operational manner. In addition, clients will familiarize themselves in the usage of the software.
5.3 The client shall back up data in accordance with state-of-the-art technology and procedures. This
ensures that the current data from data files held in machine-readable form can be reproduced with
reasonable effort.
5.4 The client shall take appropriate measures to protect software and data backups from unauthorised
access.
5.5 The client is obliged to immediately report any occurring software error to heddier .
6 Warranty
6.1 heddier guarantees from the time of handover that the software essentially corresponds to the
description in the manual with regard to its functionality and is executable with the above-mentioned end
devices on the above-mentioned operating system. A temporal guarantee is not specified, as updated and/or
extended versions of the software may be published at a later date.
6.2 heddier is at liberty to remedy the defect reported by the client within a reasonable period of time by
means of a maximum of three replacement deliveries or subsequent rectifications. If
heddier does not
succeed in doing so, the
client shall be entitled to demand a reduction.
6.3 heddier does not guarantee that the software meets the client 's needs, functions with the client 's
programmes or that the software is suitable for the client 's purposes.
7 Support
7.1 Telephone or email support in respect of the Software as per contract is included in the subscription fees
to the usual extent.
7.2 Not included in the support are training in operation and installation of the software and services for the
end devices used by the
client . All fee-based support services are charged by heddier in consultation with
the
client at the current hourly rate in 10 minute intervals.

Instruction Manual
Security made easy - Human Detector Flex 10 / 49
8 Applicable law and place of jurisdiction
8.1 The law of the Federal Republic of Germany shall apply to the exclusion of the UN Convention on
Contracts for the International Sale of Goods.
8.2 If the client is a merchant, a legal entity under public law or a trust under public law, the place of
jurisdiction shall be Coesfeld.
9 Other
9.1 All supplements and amendments to these General Terms and Conditions of Use must be in writing to be
effective. The contracting parties shall also satisfy this requirement by sending documents in text form, in
particular by fax or email, unless otherwise provided for individual declarations in this contract.
9.2 Additional agreements, supplements and amendments to the General Terms and Conditions of Use
between heddier and the client require the written consent of heddier 's executive board to become effective.
This is especially true for the assumption of additional guarantees.
9.3 Should it transpire that provisions of the General Terms of Use are invalid or void, this shall not affect the
contract as a whole. Rather, the invalid or void provision shall be replaced by a valid provision that comes as
close as possible to the meaning of the General Terms of Use.

Instruction Manual
Security made easy - Human Detector Flex 11 / 49
Installation
To install the English version of the HDF-CONFIGURATOR software you need the installation file HDF-
CONFIGURATOR-en.msi . These can be obtained from heddier electronic GmbH on request.
Important note:
Please check installation files carefully you may find in forums or on internet platforms. heddier electronic
GmbH cannot assume any responsibility and will not provide support for programmes from non-official
sources.

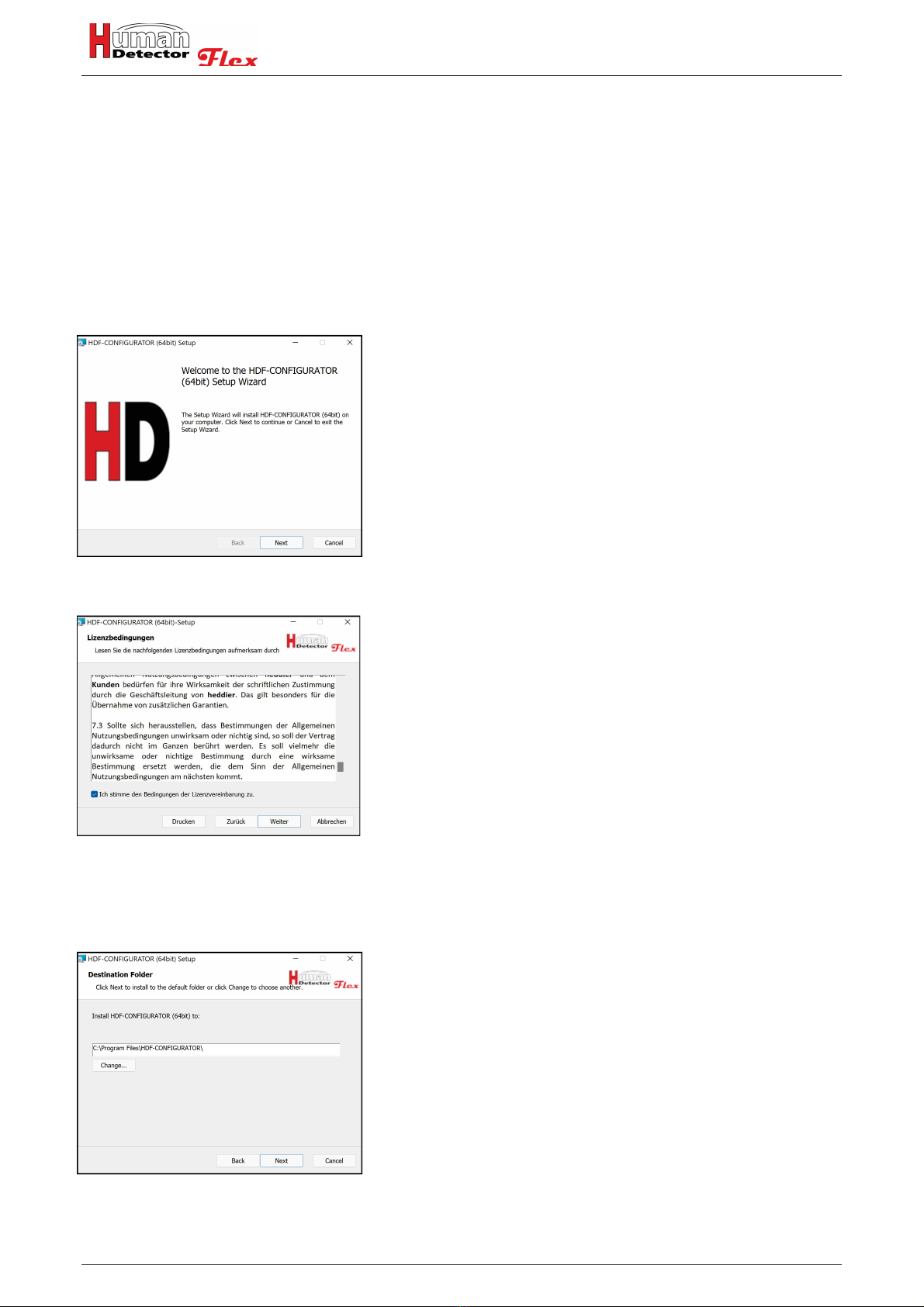

Start the installation software by running the
HDF-CONFIGURATOR-en.msi file.
Confirm the action window by pressing [Next] .
Please read the "General Terms of Use" carefully and agree to them if you wish to use the HDF-
CONFIGURATOR software. If you wish, you can also print out the terms of use.
Click [Next] to change to the next window.
If necessary, you can change the installation location of the software here. The installation location must be
on your personal computer and not on an outsourced network partition.

Instruction Manual
Security made easy - Human Detector Flex 12 / 49

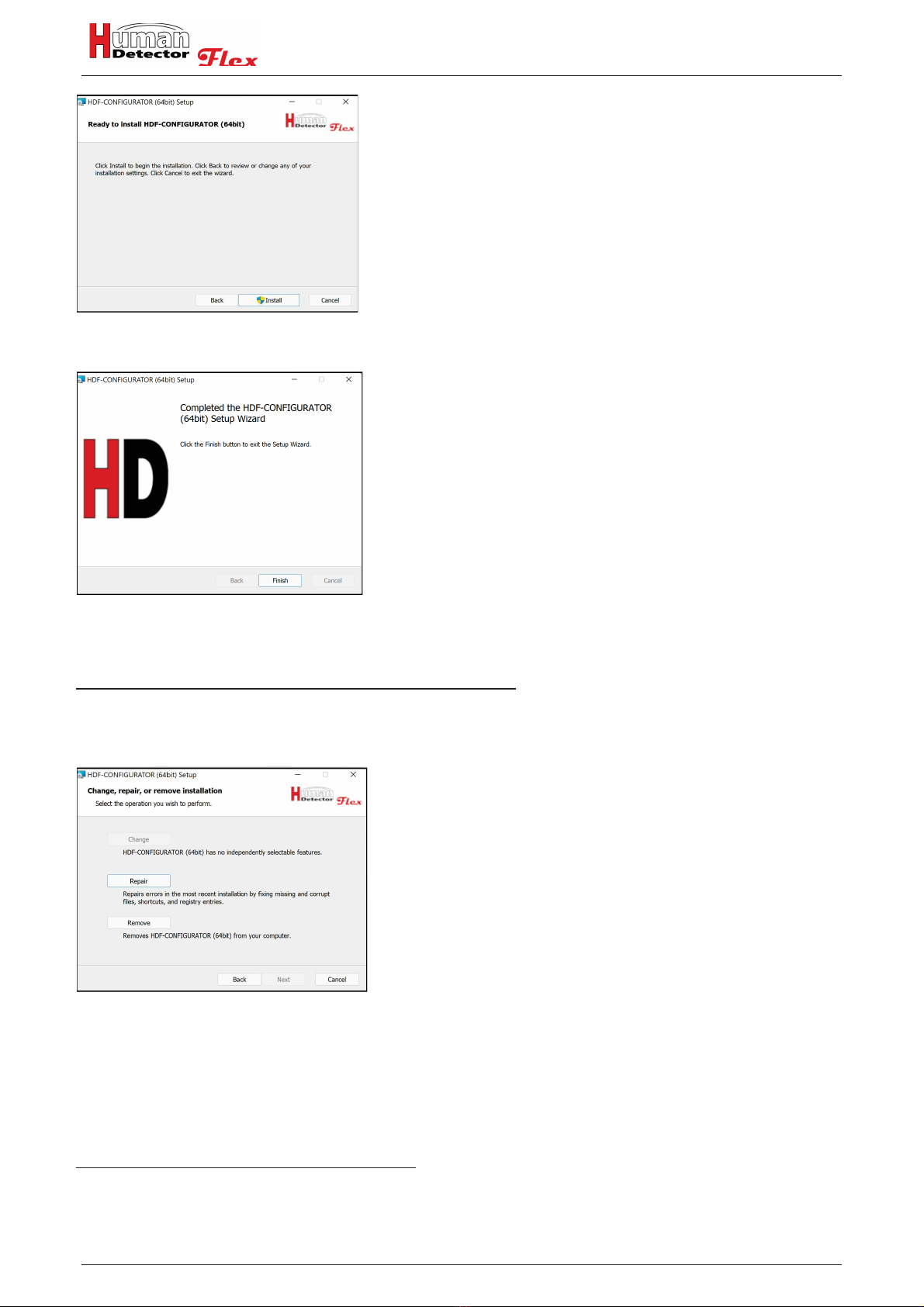

After entering all the required information, you can start installing the programme files by pressing [Install] .
After all files have been set up, you can finish the installation by pressing [Finish] . The HDF-
CONFIGURATOR software can now be started from the Windows start menu.
Repair and removal of the HDF-CONFIGURATOR software
Start the HDF-CONFIGURATOR-en.msi file again. The installation software recognises the original
installation and provides the following options:
You can repair or completely remove a possibly damaged installation here.
Note:
The repair only applies to programme files. Projects you have created cannot be edited with this function. If
you store your project files under the installation directory, they will also be deleted when you " remove "
these.
Updating the HDF-CONFIGURATOR software
Start the installation software first, if you wish to carry out an update. If the software version is newer, the
update will automatically be carried out. If the installation software corresponds to an older version, this will be
indicated by an error message and the installation process will be aborted.

Instruction Manual
Security made easy - Human Detector Flex 13 / 49
Starting HDF-CONFIGURATOR
After starting the HDF-CONFIGURATOR software, the following screen appears:
You can choose one of the following three options in the action window:
New Project
Creates a new H uman Detector Flex project.
Open Project
Opens an existing H uman Detector Flex project .
Close
Closes the central selection window and provides access to menus and functions of the HDF-
CONFIGURATOR software that can be used at this time.
Note:
If you want to exit the HDF-CONFIGURATOR software, you first need to close the central action window.

Instruction Manual
Security made easy - Human Detector Flex 14 / 49
HDF-CONFIGURATOR menus
The HDF-CONFIGURATOR software offers four function blocks in the main menu. These are grouped
together in the usual way in a menu bar at the top of the screen.
File menu
The File menu contains the following functions.
New Project
Creates a new H uman Detector Flex project. This function corresponds to the action window at the start of
the programme.
Open Project
Opens an existing H uman Detector Flex project. This function corresponds to the selection menu at the
start of the programme.
Save
Saves the current project under the previously selected project name. There will be no additional prompt.
Save as
Saves the current project under a project name, which can be defined in a selectable directory.
Change Project Password
If a password already exists for the project, it can be changed here. If the project has been saved without a
password so far, a password can be assigned to the project here.
Notes:
The password consists of at least 6 characters. Please choose a " strong " password, e.g. consisting of a
random combination of numbers and letters.
The selected password is the project password. It is used to store and protect the project. It is not to be
confused with the passwords of the alarm centres
(HDF-BUZZER and HDF-SPEECH ) and the password of
the alarm management system (HDF-AMD
).
Save the password in a secure location. If the password is lost, the project can no longer be opened
and edited.
Settings
Enables the selection of the language for the guidance of the user of the HDF-CONFIGURATOR software.
Print
Prints the complete documentation of a H uman Detector Flex project. The print output can be set within the
scope of the Windows options.

Instruction Manual
Security made easy - Human Detector Flex 15 / 49
Close
Exits the HDF-CONFIGURATOR software. If the project has not been saved, a confirmation prompt will be
displayed.
Edit menu
The Edit menu contains the following functions.
Add HDF-Sensor
Enables the addition of new H uman Detector Flex sensors.
Add HDF-BUZZER
Enables the addition of a new HDF-BUZZER alarm centre.
Add HDF-SPEECH
Enables the addition of a new HDF-SPEECH alarm centre.
Add HDF-AMD
Enables the addition of a new HDF-AMD alarm management device.
Programming HDF-BUZZER/SPEECH
Enables the transfer of project data to an HDF-BUZZER or HDF-SPEECH unit.
Change HDF-BUZZER/SPEECH Password
Enables changing the password of an HDF-BUZZER or HDF-SPEECH unit.
Read HDF-BUZZER/SPEECH Configuration
Enables reading the project data of an HDF-BUZZER or HDF-SPEECH unit.
Programming HDF-AMD
Enables the transfer of project data to an HDF-AMD unit.
Change HDF-AMD Password
Enables changing the password of an HDF-AMD unit.
Read HDF-AMD Configuration
Enables reading the project data of an HDF-AMD unit.
Download HDF-AMD Log Files
Enables downloading the log files of an HDF-AMD unit.
Update HDF-AMD Firmware
Enables updating the firmware of an HDF-AMD unit.

Instruction Manual
Security made easy - Human Detector Flex 16 / 49
Designer menu
The Designer menu is deactivated in the current HDF-CONFIGURATOR software. HDF-DESIGNER is a
future software module to support the graphical design work of building services planners and architects.

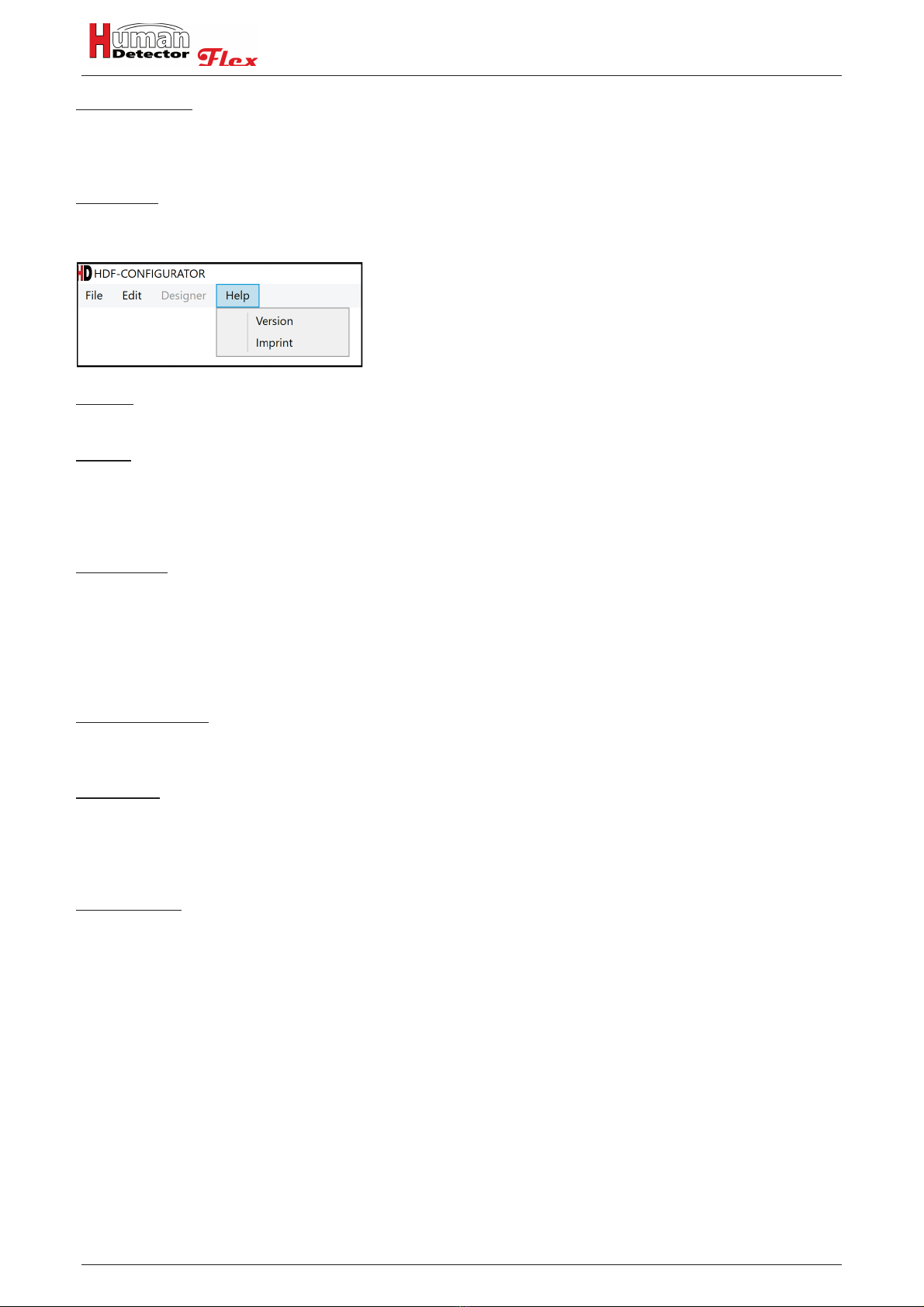

Help menu
The Help menu contains the following functions.
Version
Displays the current version number of the HDF-CONFIGURATOR software.
Imprint
Displays information about the HDF-CONFIGURATOR software manufacturer.
In addition to the described menu bar in the upper area of the screen, the software contains additional
operating elements in the lower area.
Zoom slider
The [Zoom] slider allows you to zoom in and out of the project display in the configuration area. This enables
the convenient display of large projects. As soon as the display is enlarged, a horizontal or vertical scroll bar
is automatically displayed - depending on the orientation.
Depending on the selected project mode, a maximum of three additional menu items are displayed in the
lower corner of the screen (additional menu).
Project Summary
After selecting this function, the "General Information" of the project can be edited and displayed.
This menu item is visible in all operating modes (PROFI, MULTI and EASY-Mode
).
Alarm Area
This function maps the room layout of the building in which the objects to be secured are located. The rooms
can be named individually. A hierarchical structure in the form of a tree structure is available. The function is
necessary to be able to assign alarm output devices, such as smartphones, to specific alarm areas.
This menu item is only visible in PROFI-Mode.
Programming
Enables the transfer of project data to an HDF-BUZZER , HDF-SPEECH or HDF-AMD unit. This menu item is
visible in all operating modes (PROFI, MULTI and EASY-Mode
).

Instruction Manual
Security made easy - Human Detector Flex 17 / 49
Settings
In the Settings menu the language of the HDF-CONFIGURATOR software can be set. Additional languages
can be added to the software. Please contact our technical sales department for more information about
language extension. Changing the set language will become effective after restarting the software.
Manage HDF projects
All important settings for securing exhibits with the H uman Detector Flex technology are stored in ‘projects’.
The associated files are stored on your computer with the file extension *.hdfproj . This extension is unique
and should only be used by the H uman Detector Flex systems.
Several functions are available for the administration and maintenance of HDF projects.

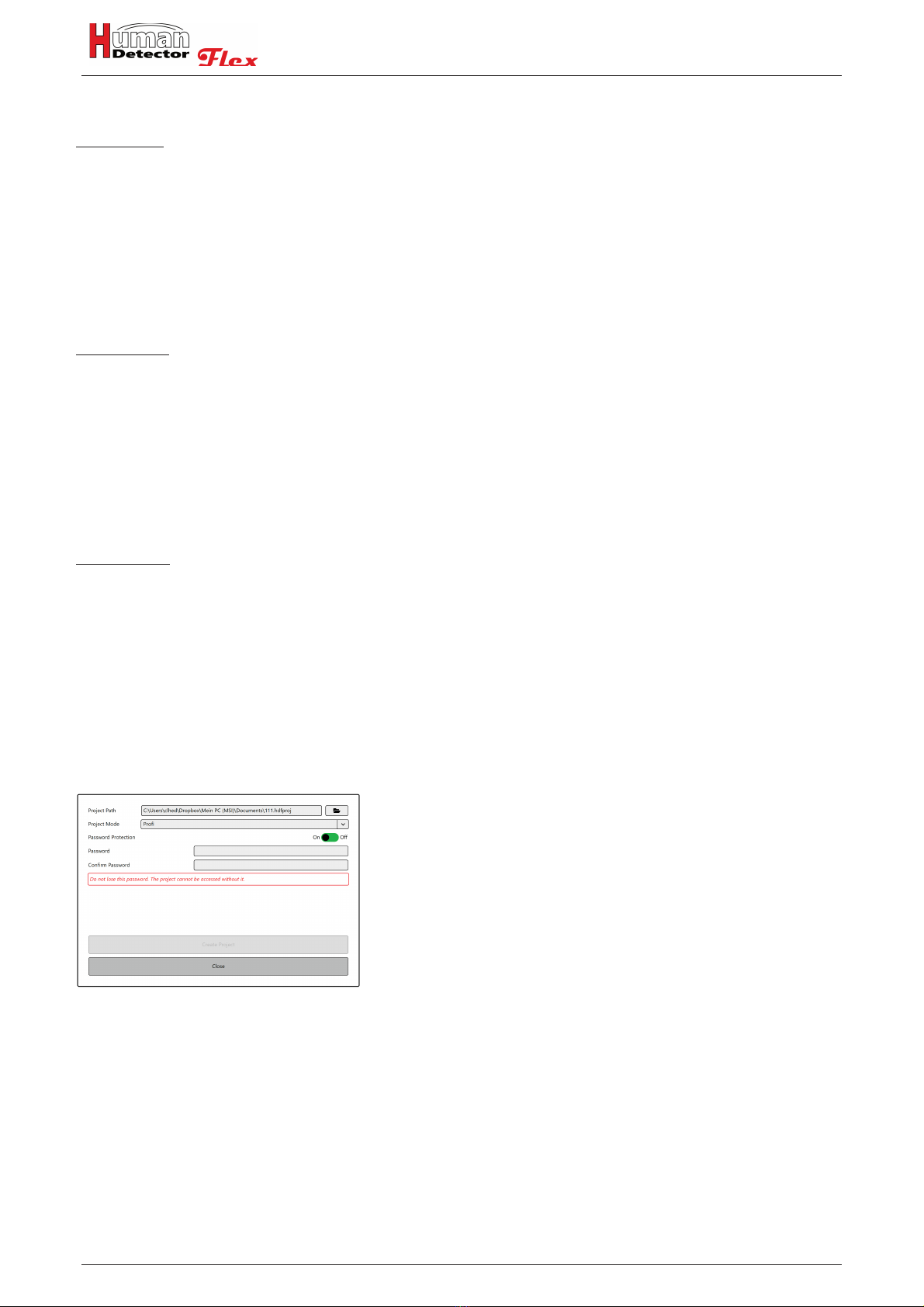

Creating a new HDF project
Use the function from the action window when starting the programme or from the [File] menu, if you wish to
create a new HDF project. In both cases, you will first be shown a selection window. The storage location and
project name can be set in this window.
Another window will be displayed where you can select the desired operating mode.

Instruction Manual
Security made easy - Human Detector Flex 18 / 49
You can choose from the following:
EASY-Mode
EASY-Mode is the most simple operating mode. It is intended for small security system installations. In
EASY-Mode up to 30 alarm sensors can in principle be connected to one or more alarm centres
(HDF-
BUZZER or HDF-SPEECH ). The connection only requires a simple pairing at the push of a button on the
respective sensor. All alarm sensors on an alarm centre have the same alarm behaviour. An individual alarm
form is not possible for individual alarm sensors. Alarm sensors that have already been created cannot be
deleted individually.
The
HDF-CONFIGURATOR software in EASY-Mode is only required for changing the alarm behaviour of the
respective
HDF-BUZZER or HDF-SPEECH unit. This change is then valid for all " paired " alarm sensors.
MULTI-Mode
The use of the HDF-CONFIGURATOR software is mandatory in MULTI-Mode. The complete installation of
the security system is initially planned with the software. After completion of the planning the user can enter
the hardware identifiers (ID codes) of the individual
H uman Detector Flex components. The project data
generated in this way can then be transferred to the various alarm centres (HDF-BUZZER or HDF-SPEECH )
with the
HDF-CONFIGURATOR software via USB cable.
The MULTI-Mode provides the user with a high degree of flexibility. Each sensor and each alarm centre can
be individually programmed. The maximum number of alarm sensors per alarm centre is 200. The HDF-
CONFIGURATOR software also generates up-to-date project documentation.
PROFI-Mode
The use of the HDF-CONFIGURATOR software is also mandatory in PROFI-Mode. The PROFI-Mode is a
powerful extension of the MULTI-Mode. An HDF-AMD alarm management system is installed in addition. The
device monitors and evaluates all alarm and system messages. The information obtained in this way can be
forwarded specifically to the smartphones of security staff. Alarm messages can also be displayed in any web
browser. This enables for instance the silent alerting of security staff. The settings required for commissioning
are made with the HDF-CONFIGURATOR software. The functions of the MULTI-Mode installation are
completely retained in PROFI-Mode. Updating from
EASY to MULTI-Mode or from MULTI to PROFI-Mode is
possible at any time. Moving in the opposite direction is feasible, but will always lead to restrictions in
functionality.
The project password can then be assigned. Move the "Password Protection" slider to the ON position.
Re-enter the password after the first entry. It is important that both password entries are identical. Only then
can the project be created by pressing the [Create Project] button.
"General Information" is now displayed in the communication window. These can be completed or changed
at any time.

Instruction Manual
Security made easy - Human Detector Flex 19 / 49
The following entries are possible:
Project Mode
Three operating modes (EASY, MULTI and PROFI-Mode) are available. The display of the function area and
the selection of menu items in the additional menu change depending on the selected mode.
Institution
Input field for the name of the institution (e.g. Art Gallery XYZ, new annex)
Builder
This field may contain the name of the installing company (e.g. Smith Security Technology).
Project
Input field for the project name (e.g. Securing new picture hall)
Version
Input field for a version number. It may be necessary to plan different versions, depending on the project.
Responsible Employees
Input field for the responsible employee in the project
Date
The date can be entered manually (format: dd.mm.yyyy) or selected from a calendar. The date format adjusts
automatically in other languages.
Comments
Comments can be saved in this input field.
Note:
All input fields have a maximum length of 500 characters. If these cannot be displayed completely, place the
cursor in the field and scroll through the input field with the [Left Arrow] and [Right Arrow] keys.

Instruction Manual
Security made easy - Human Detector Flex 20 / 49
Open HDF project
Use the function from the action window when starting the programme or from the [File] menu, if you want to
open an existing [HDF project]. In both cases a selection window will be displayed.
Select the desired project file (file extension *.hdfproj) and confirm your selection by pressing [Open] .
Save HDF project
The project is automatically saved by selecting this menu item. No additional window is displayed. The HDF
project is saved under the current name. Older files are overwritten without a confirmation prompt.
Note:
If there is an "*" after the project name in the top line of the screen, this means that the project still contains
unsaved data. Example: HDF-CONFIGURATOR - Backup.hdfprj*
Save HDF project as
A selection window appears after selecting the menu item [Save HDF project as]. There you can enter the
project name and select a suitable storage location. Confirm your entry by pressing the save button.
