Heinner CH-201WH User manual

TRADITIONAL COOKER HOOD
Model: CH-201WH
www.heinner.ro
•Traditional cooker hood
•Suction power: 209.7 m³/h
•Color: white

www.heinner.com 85W, 50Hz, 220-240V
1
Before using the appliance, please read carefully this instruction manual and keep it for
future reference.
This instruction manual is designed to provide you with all required instructions related to the
installation, use and maintenance of the appliance.
In order to operate the unit correctly and safety, please read this instruction manual carefully
before installation and usage.
I. INTRODUCTION
III. SAFETY PRECAUTIONS
IV.
II. CONTENT OF YOUR PACKAGE
➢
Traditional cooker hood
➢User manual
➢
Warranty card
Thank you for purchasing this product!

www.heinner.com 85W, 50Hz, 220-240V
2
If this product has arrived damaged please return for change or repair.
DO NOT INSTALL THIS APPILANCE IF YOU FOUND IT DANAGED.
Children should be supervised to ensure that they do not play with the appliance.
This appliance is designed for domestic use only.
Any installation work must be carried out by a qualified electrician or competent person.
There is a fire risk if cleaning is not carried out in accordance with the instructions.
Details concerning the method and frequency of cleaning are stated in the section .
“INSTALLATION AND MAINTENANCE”.
Do not pull on the connection cord, but rather on the plug, to separate the appliance from
the mains.
When cleaning the appliance, it must be off power first.
IV. INSTALATION
MOUNTING OF THE V-FLAP
If the cooker hood does not have an assembled V-flap 1, you should mount the half-parts
to its body.The images only show an example of how to mount the V-flap,the outlet may
be various according to different models and configuration.
To mount the V-flap 1 you should:
• Mount two half-parts 2 into the body 6
• a pin 3 should be top oriented;
• the axis 4 should be inserted in the holes 5 on body;
• repeat all the operations for the 2nd half-part
Before installation, turn the unit off and unplug it from the outlet.

www.heinner.com 85W, 50Hz, 220-240V
3
INSTALATION
Method A
1. The cooker hoods should be placed at a distance of 65-75cm from the cooking
surface for best effect.
2. To install onto the wall, drill 4 holes of Ø 8mm on a suitable place according with the
center distance of hole in the back of the cooker hood.
3. Insert the nut into the holes.
4. Insert the screws into the nuts and tight.
5. Put up the cooker hood onto the fixed screws.
6. Then use the attached accessories enclosed to turn the screws into the two holes of
inside the hood, and then fix the screws to tighten the hood onto the wall.
7. Put the one way valve onto the cooker hood.

www.heinner.com 85W, 50Hz, 220-240V
4

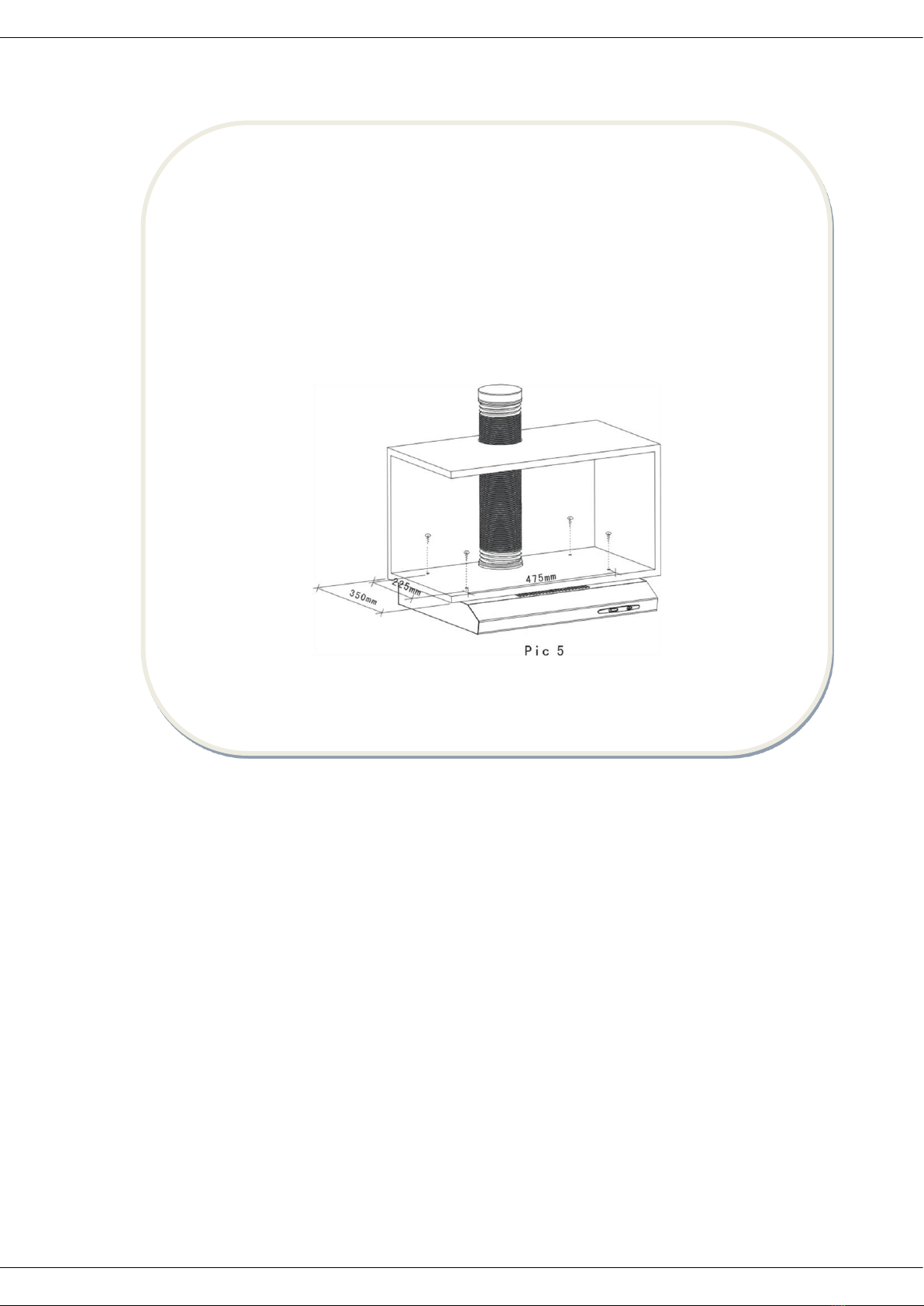

Method B
1) Drill 4 holes of Ø 6mm at the bottom of the hanging Cup board.
2) Put the one way valve on the cooker hood, then install the cooker hood on the
bottom of the cupboard, tighten the hood with enclosed 4 screws.
3) Install the adjusted board on the bottom of the hood in order to keep out the gap
between hood back and cupboard.

www.heinner.com 85W, 50Hz, 220-240V
5
Notice
There are 2 methods for ventilation, including 'horizontal ventilation' and 'vertical
ventilation'. Please pay attention to the ventilation method when installation.
Vertical ventilation: As shown in pic 6A, please use the cover to seal the outlet on the
back, then the air can be vented from top.
Horizontal ventilation: As shown in pic. 6B, please use the cover to seal the outlet on
the top, then the air can be vented from back.
Air ventilation setting
Outdoor air ventilation: Turn the adjuster to outdoor position (pic. 7A), install the
outlet, turn on the cooker hood, then the air will be vented from the outside outlet
(pic. 7C).
Indoor air ventilation: Turn the adjuster to indoor position (pic. B), install the outlet
cover, turn on the cooker hood, then the air can be vented from the inside outlet (pic.
7D).
For safety reason, please use only the same size of fixing or
mounting screw which are recommended in this instruction
manual.
Failure to install the screws or fixing devide in accordance with
these instructions may result in electrical hazards.

www.heinner.com 85W, 50Hz, 220-240V
6
FAULT
POSSIBLE CAUSE
SOLUTION
Light on, but motor does not
work
Fan switched turned off
Select a fan switch position
Fan switch failed
Contact service center
Motor failed
Contact service center
Light does not work, motor
does not work
House fuses blown
Reset/Replace fuses
Power cord loose or disconnected
Refit cord to power outlet. Switch
power outlet on.
Oil leakage
One-way valve and the air
ventilation entrance are not
tightly sealed
Take down the one-way valve and
seal with sealant.
Leakage from the connection of
U-shaped section and cover
Take U-shaped section down and
seal.
Lights not working
Broken/Faulty globes
Replace globes as per this
instruction.
Insufficient suction
The distance between the cooker
hood and the gas top is too far
Refit the cooker hood to the
correct distance.
The cooker hood inclines
The fixing screw not tight enough
Tighten the hanging screw and
make it horizontal
NOTE: Any electrical repairs to this appliance must conform to your local, state and federal
laws. Please contact the service centre if in any doubt before undertaking any of the above.
Always disconnect the unit from the power source when opening the unit.

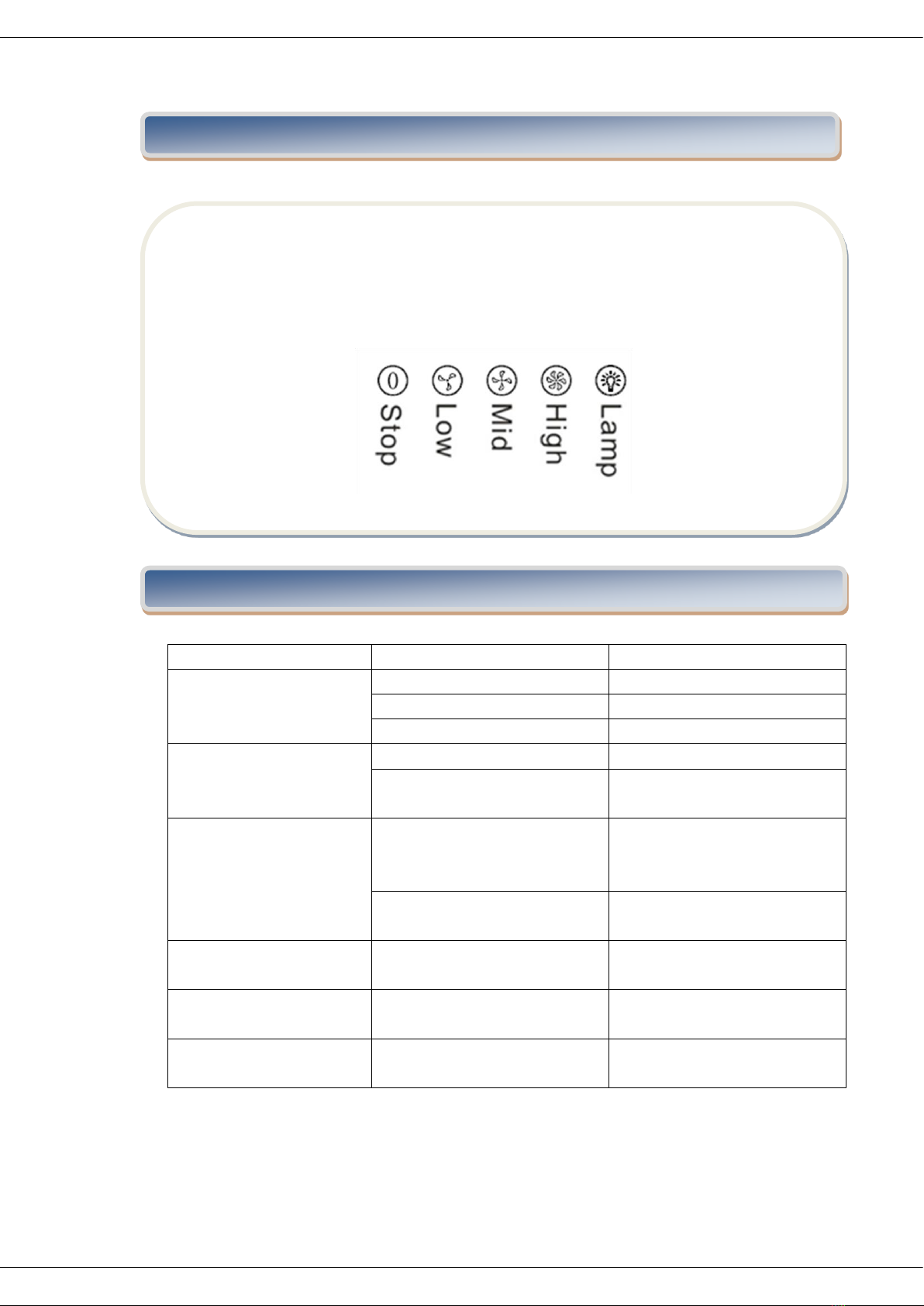

The switch is operated as below:
1. Press stop button, the motor will stop.
2. Press the button to “low”, “middle” and “high”, the motor will be turned on at “low”,
“middle” and “high” speed respectively.
3. Press “light”, the light will be on. Press it again, the light will be off.
V. OPERATION
VI. TROUBLESHOOTING

www.heinner.com 85W, 50Hz, 220-240V
7
VII. CLEANING AND MAINTENANCE
CAUTION
Before maintenance or cleaning is carried out, the cooker hood should be disconnected
from the main supply. Ensure that the cooker hood is switched off at the wall socket and
the plug removed.
External surfaces are susceptible to scratches and abrasions, so please follow the
cleaning instructions to ensure the best possible result is achieved without damage.
GENERAL
Cleaning and maintenance should be carried out with the appliance cold especially when
cleaning. Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on the
surfaces.
STAINLESS STEEL
The stainless steel must be cleaned regularly (e.g. weekly) to ensure long life expectancy.
Dry with a clean soft cloth. A specialized stainless-steel cleaning fluid may be used.
NOTE: Ensure that wiping is done along with the grain of the stainless steel to prevent
any unsightly crisscross scratching patterns from appearing.
CONTROL PANEL SURFACE
The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is clean
and well wrung before cleaning. Use a dry soft cloth to remove any excess moisture left
after cleaning.
IMPORTANT
Using neutral detergents and avoid using harsh cleaning chemicals, strong household
detergents or products containing abrasives, as this will affect the appliance appearance
and potentially remove any printing of artwork on the control panel and will void
manufactures warrantee.
GREASE MESH FILTERS
The mesh filters can be cleaned by hand. Soak them for about 3 minutes in water with a
grease-loosening detergent then brush it gently with a soft brush. Please do not apply
too much pressure, avoid damaging it. (Leave to dry naturally out of direct sun light)
Filters should be washed separately to crockery and kitchen ustensils. it is advisable not
to use rinse aid.

www.heinner.com 85W, 50Hz, 220-240V
8

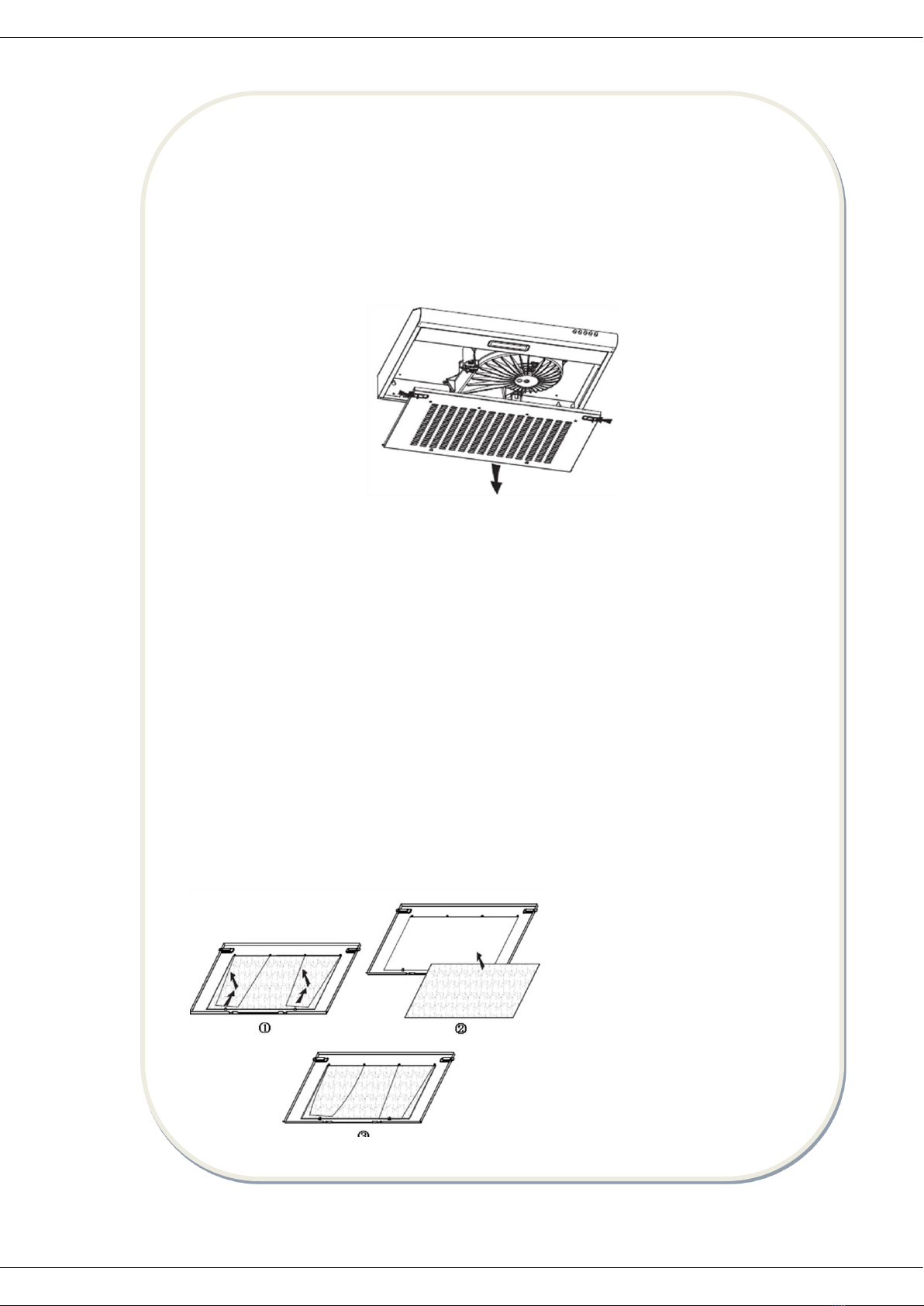

Removing grease mesh filters
a. Push the grease mesh filter buckles forward and remove the front of the filters.
b. Then push the left or right lower side stops of the filter up until the hanging point
at one side stop is not hanging the hood cavity.
c. Finally, take the whole mesh filters away.
Please do not use abrasive detergent for it will damage the hood.
INSTALLING GREASE MESH FILTERS
- To install filters for the following four steps.
- Angle the filter into slots at the back of the hood.
- Push the button on handle of the filter.
- Release the handle once the filter fits into a resting position.
- Repeat to install all filters.
CARBON FILTER – buy separately
Activated carbon filter can be used to trap odors. Normally the activated carbon filter
should be changed at three or six months according to your cooking habit. The
installation procedure of activated carbon filter is as below.
1. Remove the grease filter.
2. Place the carbon filter onto the grease filter.
3. Fix the properly-adjusted carbon filter with the small steel wire.
4. Reinstall the grease filter.
5. Use carbon filters for recirculation mode only
NOTE:
Make sure the filter is securely
locked. Otherwise, it would loose and
cause dangerous. When activated
carbon filter attached, the suction
power will be lowered.

www.heinner.com 85W, 50Hz, 220-240V
9

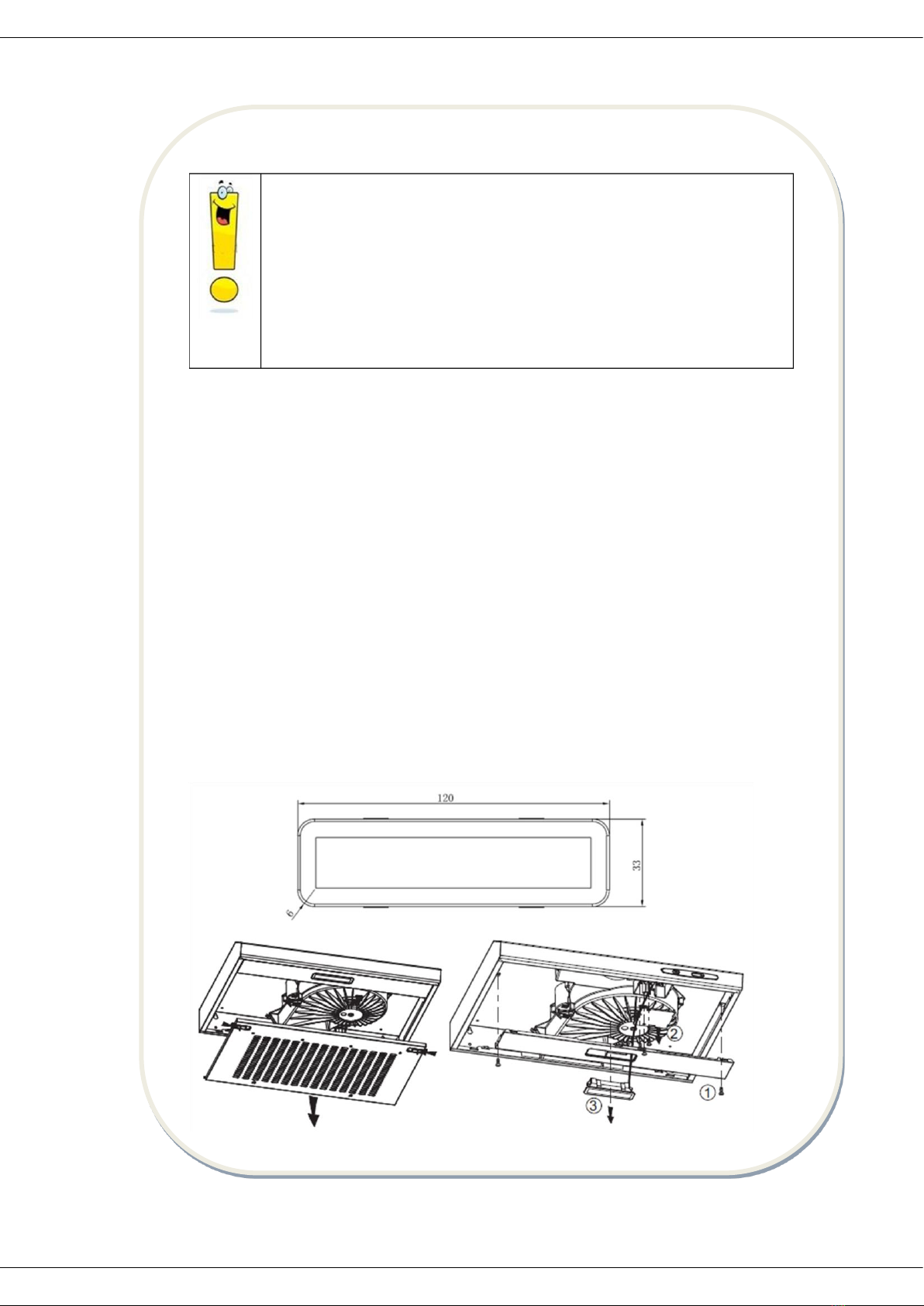

BULB REPLACEMENT
The bulb must be replaced by the manufacturer, its service agent or
similarly qualified persons.
Always switch off the electricity supply before carrying out any operations
on the appliance. When handling bulb, make sure it is completely cooldown
before any direct contact to hands.
When handling globes hold with a cloth or gloves toensure perspiration
does not come in contact with theglobe as this can reduce the life of the
globe.
Note:
Before changing the lights, make sure that the appliance is plugged off.
Protect against danger when changing lights, such as wearing gloves.
Changing the lights:
• Remove the filter.
• Loosen the 2pcs ST4*8mm self-tapping screw from the lighting panel, take out the
lighting fixture.
• Disassembly the 3pcs ST3*12mm screws on the terminal box cover and take down the
wire cover.
• Pull out the terminal from the PCB terminal block, disconnect the wire connector and
replace the lamp.
• ILCOS D code for this lamp is: DBS-2/65-H-120/33
– LED modules –rectangle LED lamp
– Max wattage: 1×2 W
– Voltage range: AC 110-240V
– Dimensions:

www.heinner.com 85W, 50Hz, 220-240V
10
Suction power:
209.7 m³/h
Motor
1x85W
Color:
White
VIII. TECHNICAL FICHE
Environment friendly disposal
You can help protect the environment!
Please remember to respect the local regulations: hand in the non-working electrical equipment’s to
an appropriate waste disposal center.
HEINNER
is a registered trademark of Network One Distribution SRL. Other brands and product
names are trademarks or registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from NETWORK
ONE DISTRIBUTION.
Copyright © 2013 Network One Distribution. All rights reserved.
www.heinner.com, http://www.nod.ro
http://www.heinner.com, http://www.nod.ro
This product is in conformity with norms and standards of European Community
Importer: Network One Distribution
Str. Marcel Iancu, nr 3-5, Bucuresti, Romania
Tel: [phone], www.heinner.com , www.nod.ro

www.heinner.com 85W, 50Hz, 220-240V
11
Product fiche
Trademark
Heinner
Model
CH-201WH
Annual energy consumption (kWh/year)
43.7
Energy efficiency class
C
Fluid dynamic efficiency
9.5
Fluid dynamic efficiency class
E
Lighting efficiency (lux/W)
53.0
Lighting efficiency class
A
Grease filtering efficiency (%)
80.8
Grease filtering efficiency class
C
Airflow at minimum and maximum speed under
normal conditions of use (m3/h)
99.6/209.7
Airborne acoustical A-weighted sound power
emissions at minimum and maximum speed
under normal conditions of use (dB(A))
55/71
Power consumption in standby mode (W)
-
Power consumption in off mode (W)
0
