Hendi 223338 User manual

User manual
Gebrauchsanweisung
Gebruiksaanwijzing
Instrukcja obsługi
Mode d’emploi
Istruzioni per l’utente
Instrucţiunile utilizatorului
Руководство по эксплуатации
CONVECTION OVENS HENDI NANO
PIEC KONWEKCYJNY HENDI NANO
You should read this user manual carefully before
using the appliance
Przed uruchomieniem urządzenia należy koniecznie
dokładnie przeczytać niniejszą instrukcję obsługi
Item: 223338
223321
223314

NOTE: all devices that require a steady connection to water mains (including this device) must be
connected to a water softener which removes calcium and magnesium compounds from the wa-
ter. The water softener must be used in line with the manufacturer’s recommendations included
in instruction manual.
If a water softener is not connected or is user and/or regenerated incorrectly, the dealer shall not recognise
any complaints related to repairs due to lime scale build-up in the device.
THE FOLLOWING PRODUCTS ARE RECOMMENDED TO ASSURE PROPER REGENERATION:
Salt tablets, 25 kg bag - code: 231265
Water hardness
German degrees
(°dH) French degrees (°fH) mmol/l Clark degrees Water softener connection
over 24 over 40 over 4.2 over 28 Required
18 - 24 32 - 40 3.2 – 4.2 22 - 28 Required
12 - 18 19 – 32 2.1 – 3.2 13 - 22 Required
4 - 12 7 - 19 0.7 – 2.1 5 - 13 Required
under 4 under 7 under 0.7 under 5 Not required

Keep this manual with the appliance.
Diese Gebrauchsanweisung bitte beim Gerät aufbewahren.
Bewaar deze handleiding bij het apparaat.
Zachowaj instrukcję urządzenia.
Gardez ces instructions avec cet appareil.
Conservate le istruzioni insieme all’apparecchio.
Păstraţi manualul de utilizare alături de aparat.
Хранить руководство вместе с устройством.
For indoor use only.
Nur zur Verwendung im Innenbereich.
Alleen voor gebruik binnenshuis.
Do użytku wewnątrz pomieszczeń.
Pour l’usage à l’intérieur seulement.
Destinato solo all’uso domestico.
Numai pentru uz casnic.
Использовать только в помещениях.
INDEX
INSTRUCTION FOR THE INSTALLER
1. WARNING..........................................................................................................................................................................................................5
2. PRELIMINARY OPERATIONS......................................................................................................................................................................5
3. INSTALLATION AREA....................................................................................................................................................................................5
4. PREPARING FOR INSTALLATION..............................................................................................................................................................6
5. ELECTRICAL CONNECTION .......................................................................................................................................................................6
6. WATER CONNECTION ............................................................................................................................................................................... 10
7. FUMES DISCHARGE...................................................................................................................................................................................10
8. STACKING OVENS.......................................................................................................................................................................................10
9. SPECIFICATION............................................................................................................................................................................................11
INSTRUCTION FOR THE USER
1. WARNING.......................................................................................................................................................................................................12
2. TESTING..........................................................................................................................................................................................................13
3. ORDINARY MAINTENANCE ....................................................................................................................................................................13
4. EXTRAORDINARY MAINTENANCE.......................................................................................................................................................14
5. MAINTENANCE IN CASE OF BREAKAGE............................................................................................................................................15
6. ADVICE DURING COOKING.................................................................................................................................................................... 16

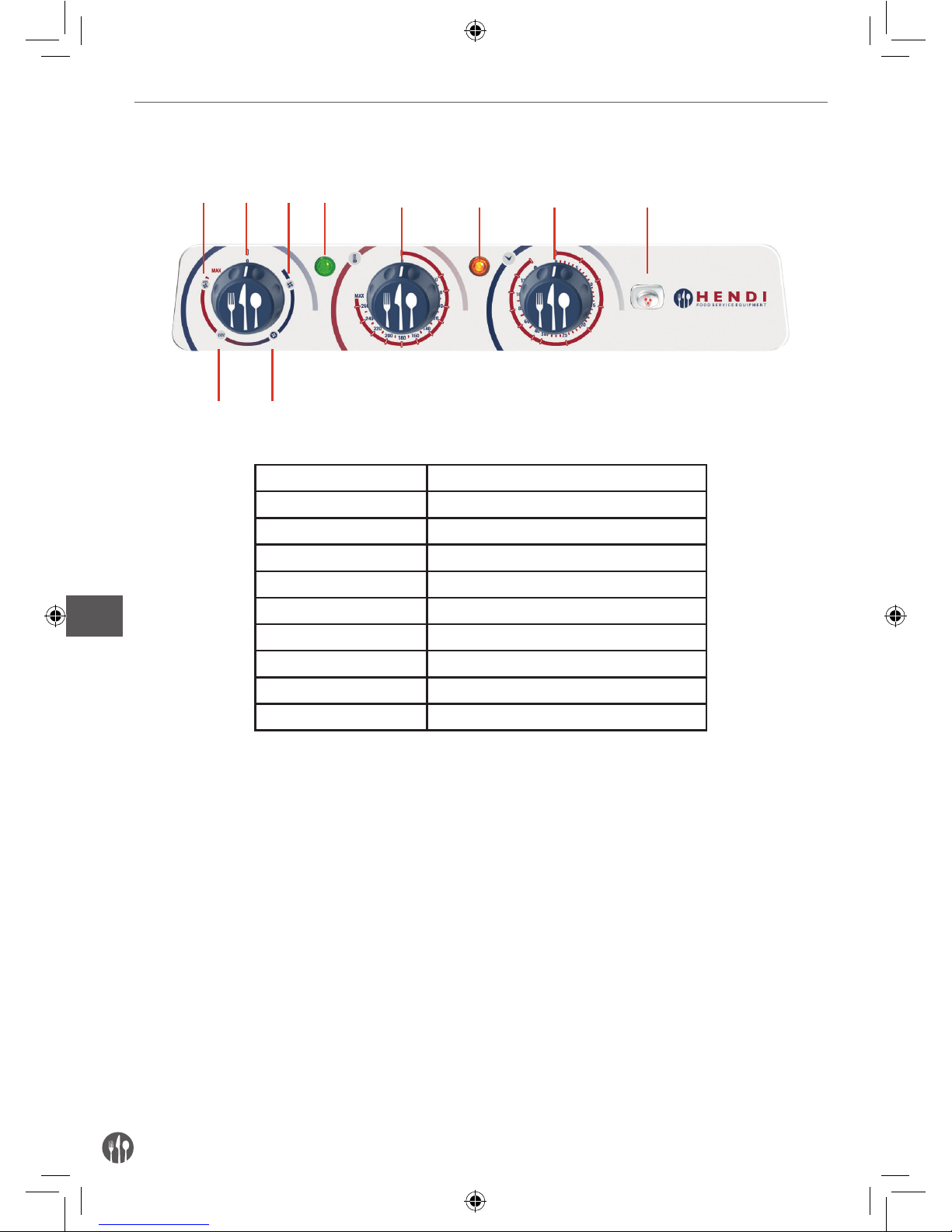

7. MECHANICAL OVEN CONTROL PANEL.............................................................................................................................................. 17
8. MULTIFUNCTION OVEN CONTROL PANEL....................................................................................................................................... 18

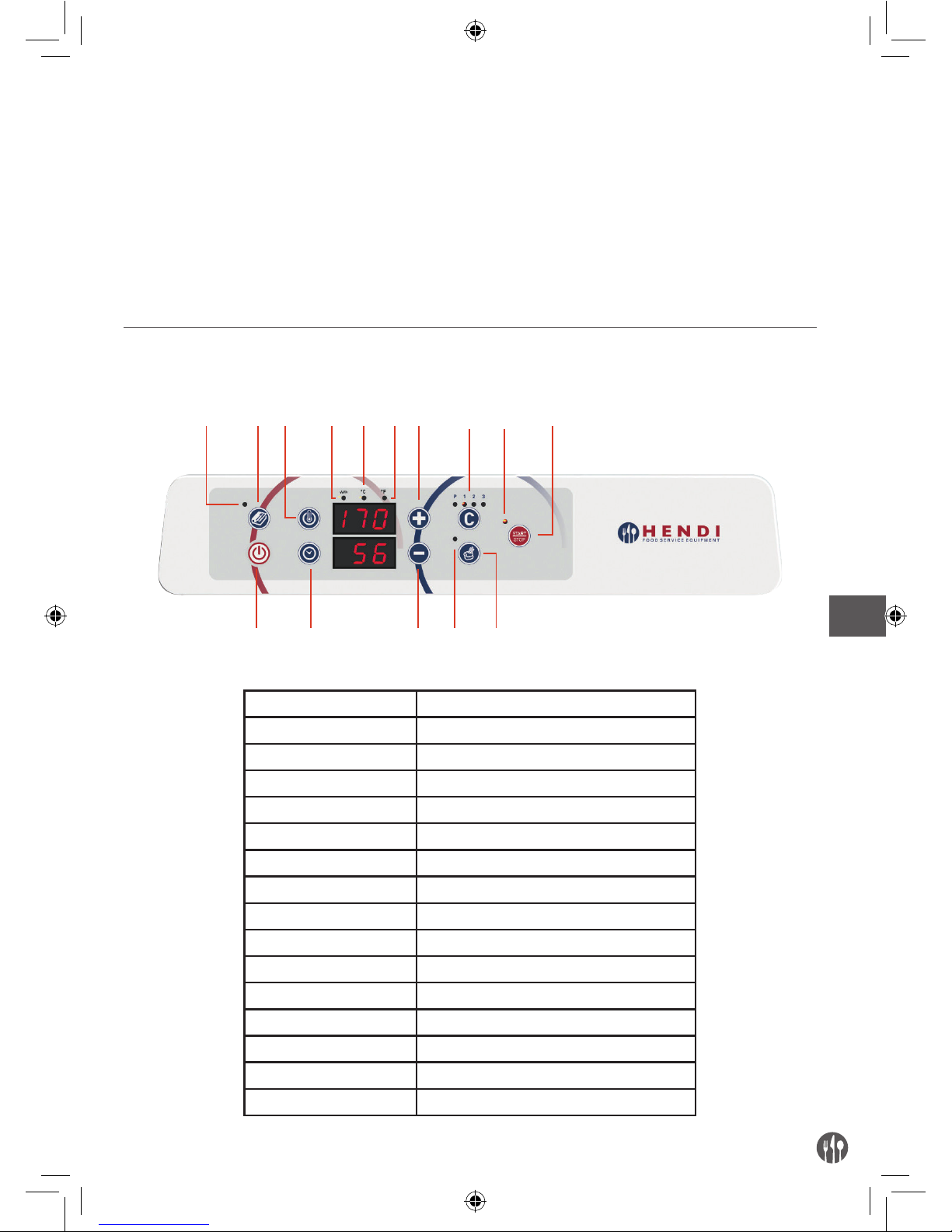

9. DIGITAL OVEN CONTROL PANEL .........................................................................................................................................................19
10. WARRANTY................................................................................................................................................................................................. 23
11. DISCARDING & ENVIRONMENT .........................................................................................................................................................23
4
EN

INTRODUCTION
Dear client, thank you and congratulations for buying this appliance; we are confident that this is the begin-
ning of a positive and long-lasting collaboration.
This manual has all the necessary information for the correct use, maintenance and installation of this
appliance. The objective of this manual is to enable the technician and user to take all measures and pre-
cautions necessary for the safe, efficient, long-term use of the appliance.
Keep this booklet in a safe place, over the entire life cycle of the product for subsequent reference by the
operators designated to use and specialized technicians.
Where documents are lost or damaged the replacement documentation must be requested directly from
the manufacturer or retailer.
The manufacturer is not held liable for any damage caused by people or things or for inappropriate use of
the appliance, modifications or repairs carried out by unauthorized personnel or used with spare parts not
recommended by the manufacturer and not intended for use with this model.
This appliance complies with the EEC directives in force.
1. WARNING
Read this instructions booklet carefully before starting the installation and start-up operations.
All installation, assembly, assistance and extraordinary maintenance shall be carried out by qualified person-
nel and supplied with necessary professional (authorizations by the manufacturer or retailer), in accordance
with local laws in effect where installation takes place regarding product and workplace safety.
Incorrect installation, assistance, maintenance, cleaning, tampering or modifications can cause malfunction,
damage and breakage.
The appliance must only be used for cooking or heating of foods in industrial kitchens. Any other use is inap-
propriate and dangerous.
2. PRELIMINARY OPERATIONS
On receipt of the product, make sure it has not been damaged during transport and that the packaging has
not been tampered with. In the case of damage or missing parts inform the carrier and retailer/manufacturer
immediately, indicating the code (Art.) and serial number (Ser N°) and attach a photo.
Check that the installation area is kept clear so that doors, corridors and passageways are accessible.
WARNING: the appliance may fall over during transport leading to breakage and damage to things and
people. Use suitable transport capable of taking the weight of the appliance. Do not drag or lean the device
for any reason. Lift it up straight from the ground and place horizontally.
3. INSTALLATION AREA
The appliance shall be installed in enclosed and well ventilated areas (not outdoors).
The ambient temperature of the place of installation of the oven must be higher than +4° C.
Before positioning the appliance, check the overall dimensions and the exact position of the electrical, water
and fumes exhaust connections, fumes exhaust.
INSTRUCTIONS FOR THE INSTALLER
5
EN

6
EN
It is advised to place the oven under an extractor hood or in such a way that hot fumes and odours exit the oven
via adequate ventilation to the outside.
The oven must be placed on a flat surface so that it does not slip or turn over.
The installation area must be able to support the weight of the appliance filled to the maximum.
See the information level on the back of the oven for the gross weight.
Make sure that it is placed so that the door may be fully opened.
Position it so that the back of the oven is easily accessible for maintenance, connection to the mains sockets,
and water.
The appliance is not meant to be fitted and a 5 cm space must be left all round it.
Do not position other heat sources like, fryers or hotplates, near the oven. If this is not possible at least respect
the following distances from machinery: 50 cm from the sides and above the appliance and 70 cm from behind.
Do not place the device near materials or containers of inflammable liquids (such as walls, furniture, screens,
gas canisters) as it can be a fire hazard. If this is not possible, cover the inflammable parts with fire and heat-
proof material and by checking fire hazard regulations.
4. PREPARING FOR INSTALLATION
Remove the outer packaging (wooden or carton box) and
dispose it in compliance with the laws in force in the
country of installation.
REMOVING PROTECTIVE FILM ETC.
Remove the protection film from the external and internal
walls. (See image)
Remove all information covering from the inside, and take
off all plastic packaging.
STAND ADJUSTMENT
Do not use the appliance without feet.
The adjustable feet are already screwed to the underside of the oven.
If they are not used, this prevents airflow from cooling the electric parts and outsides of the oven which causes
over-heating and damage to components.
The oven will function correctly if placed level on a flat surface by adjusting the feets accordingly and using a
spirit level. Screw or unscrew them as necessary to adjust.
5. ELECTRICAL CONNECTION
WARNING: Mains connection must be carried out by a qualified and authorized technician according to
national, international and local laws in the country where it is installed. Before mains connection, ensure
that the frequency (…..V) and voltage (….Hz) meet the requirements indicated in the in the information tag
on the back of the appliance.
The electric system, as prescribed and specified by the Standard in force, must be equipped with an efficient
ground. It is possible to guarantee the electric safety of the appliance only in the presence of Standard electric
system.

7
EN
For direct connection to the mains, it is necessary to interpose a device between the equipment and the same
mains, sized for the load, that ensure its disconnection. The contacts must have an opening distance enabling
the full disconnection, in conditions of over-voltage category III, per compliance with installation regulations.
This device also must be located in a place and in a manner to be easily accessible at any moment by the
operator.
OVENS WITH CABLE AND SINGLE PHASE PLUGS
For appliance with cable and plug (single phase 220-240V) the plug merely needs to go into the appropriate
socket (the socket must be adapted for the supplied plug and must withstand the voltage required by the
appliance indicated on the information plate). The product must be positioned so that the plug is always
accessible.
The appliance comes with certified cable and plug therefore they must not be tampered with or modified. Only
the cable can be substituted: this must be carried out by a qualified authorized technician. The earth wire
must always be yellow green.
APPLIANCE NOT SUPPLIED WITH CABLE WITH
THREE PHASE TERMINALS

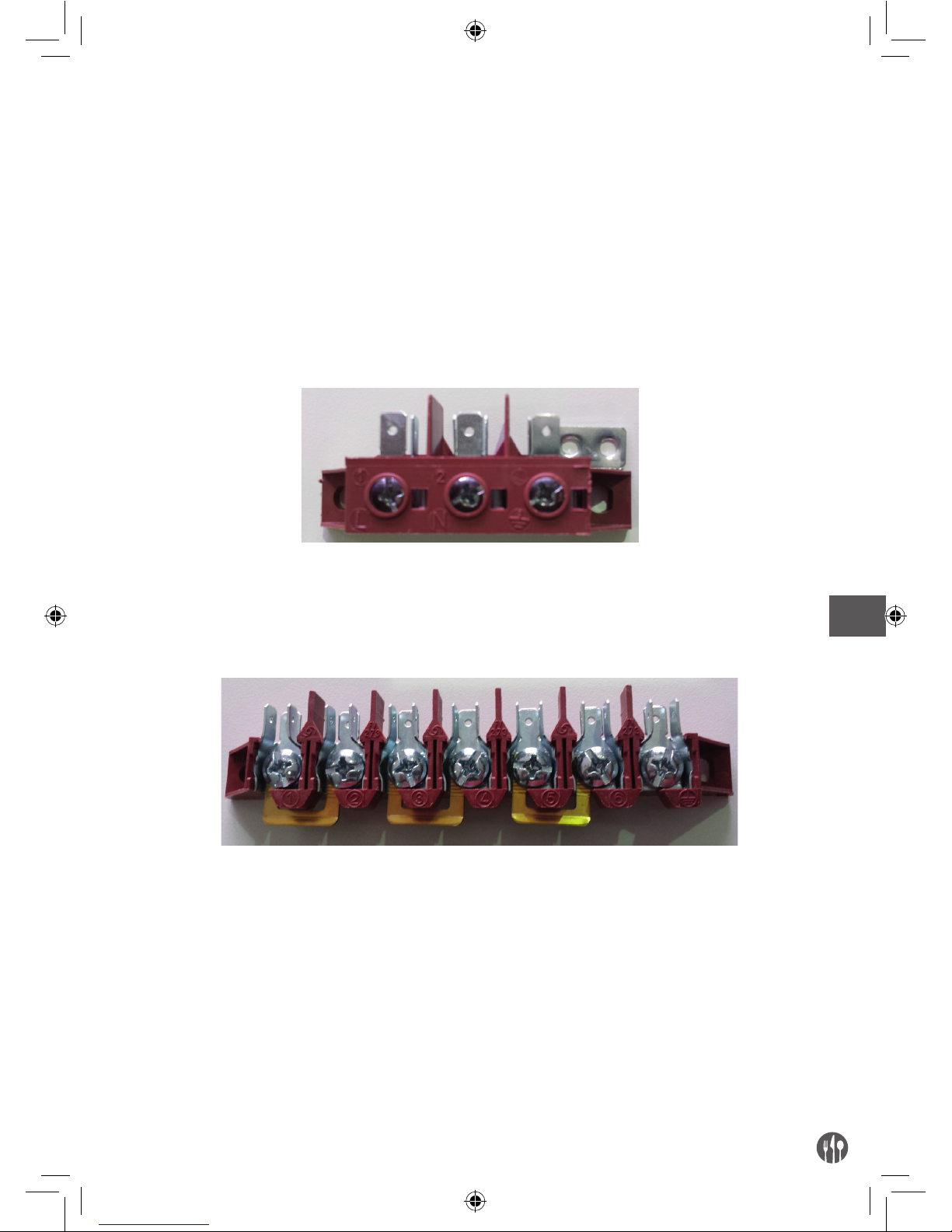

Articles supplied by us come with terminals such as in the image. To connect to the mains see the label in the
manual and stuck to the lower part of the back of the appliance near the Information Plate .
The oven must be connected to the electricity with a rubber cable such as H07RN-F.
WARNING: the yellow/green voltage wires in the earth cable must be 3cm longer than the others.
The oven must be connected directly to the mains and must have an easily accessible switch from the start
,installed for the device according to the national, international and local laws in the country where it is in-
stalled. This switch must separate polarization guaranteeing complete disconnection in accordance with the
overvoltage III category.
Correct earthing is obligatory and the earth wire must not be operated by the protection switch.
CABLE CONNECTION

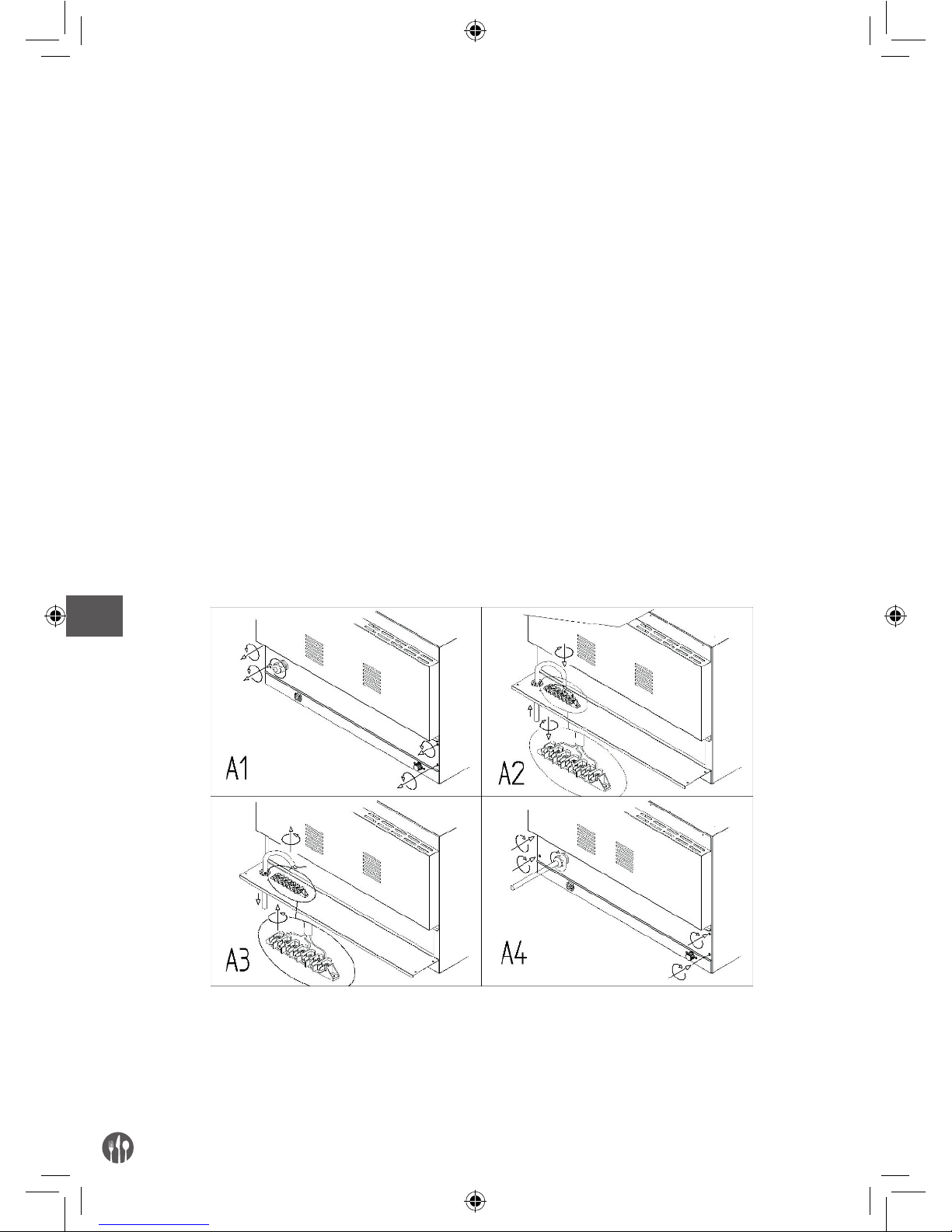

Proceed as follows to connect the power supply wire to the terminal board:
• ( A1 ) Loosen the tops of the cable gland and open the bottom part of the back of the appliance by loosening

8
EN
the screws.
• ( A2 ) Feed the new cable through the cable gland. Connect the cable voltage to the terminal strips following
the connection diagram on the label on the back of the appliance. Only connect what is indicated inserting the
copper bridge and the electricity cable together under the screws, in the tightening direction, so the cable and
the bridge are tightly fixed by tightening the screw. The type of cable to be used (HO7RN-F) is indicated on the
label for each connection and the voltage sections in mm².
• ( A4 ) Close the bottom part of the back of the appliance by tightening the screws and fit the cable by tight-
ening the cable gland top.
Erroneous connection could lead to overheating of the terminal board which could lead to blowout and electric
shock.
Check that all the connections are tight before connecting the oven to the mains.
PE = Yellow/Green: “EARTH” protection conductor.
N = Blue: neutral conductor.
L1, L2, L3 = Brown, Grey, Black: live conductors
Check there is no static discharge between live and earth. Check the limit switch continuity between the ex-
ternal casing and the earth wire of the mains. It is advised to use a multi tester to carry out these operations.

9
EN
CABLE SUBSTITUTION
This must be carried out by a qualified authorised technician. The earth wire must always be yellow green.
WARNING: the yellow/green voltage wires in the earth cable must be 3cm longer than the others.
Proceed as follows to connect the power supply wire to the terminal board:
• ( A1 ) Loosen the tops of the cable gland and open the bottom part of the back of the appliance by loosening
the screws.
• ( A3 ) Loosen the terminal screws and feed the cable conductors through. Take out the old cable from the
cable gland.
• ( A2 ) Feed the new cable through the cable gland. Connect the new cable’s conductors to the terminal fol-
lowing the connection diagram on the label at the lower part of the back of the appliance. Only connect what
is indicated inserting the copper bridge and the electricity cable together under the screws, in the tightening
direction, so the cable and the bridge are tightly fixed by tightening the screw. The type of cable to be used
(HO7RN-F) is indicated on the label for each connection and the voltage sections in mm².
• ( A4 ) Close the bottom part of the back of the appliance by tightening the screws and fit the cable by tight-
ening the cable gland top.
Check that all the connections are tight before connecting the oven to the mains.
WARNING: Erroneous connection could lead to overheating of the terminal board which could lead to
blowout and electric shock.
Check there is no static discharge between live and earth. Check the limit switch continuity between the ex-
ternal casing and the earth wire of the mains. It is advised to use a multi tester to carry out these operations
The appliance must be connected to the mains using a H07RN-F cable.

10
EN

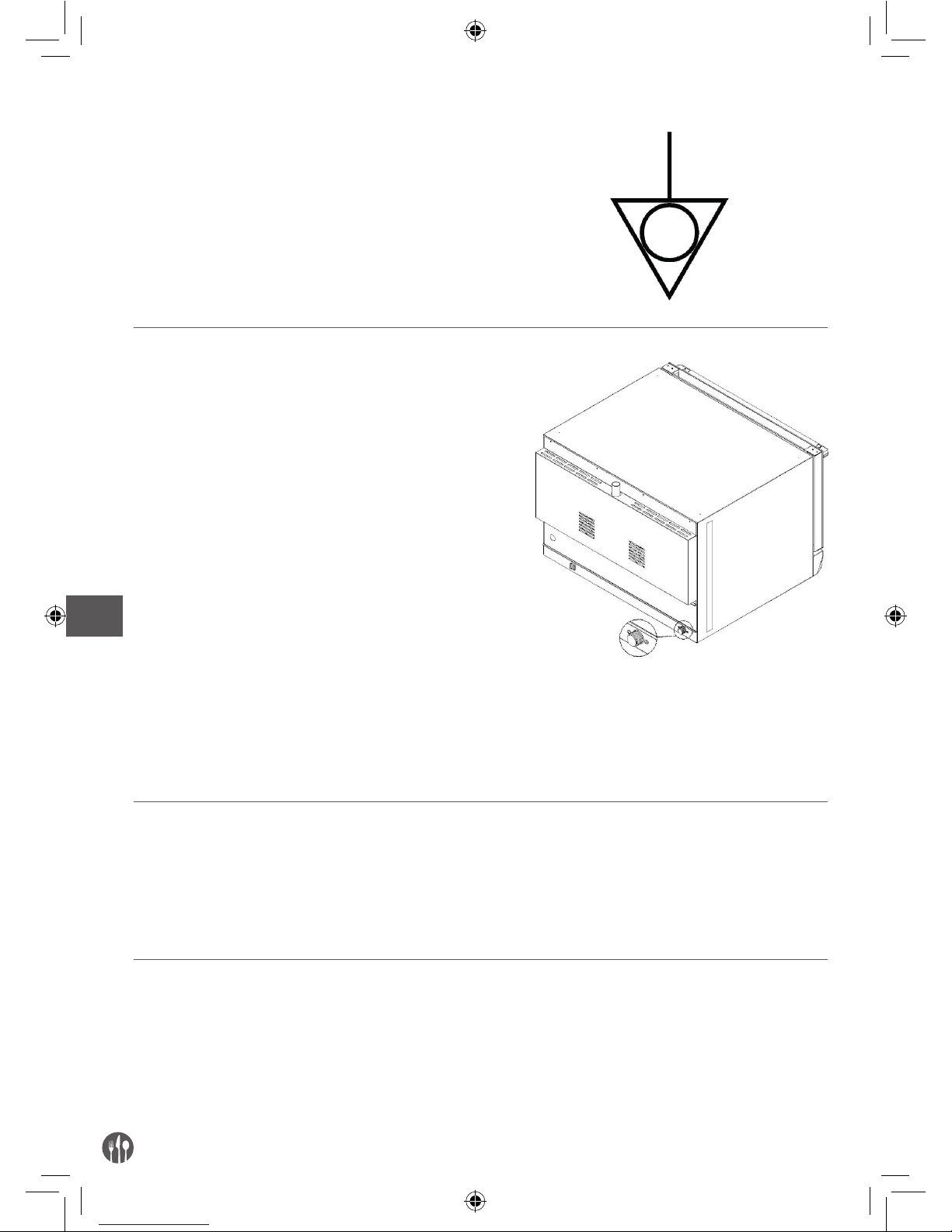

EQUIPOTENTIAL CONNECTION
This connection shall be carried between the different
appliances with the terminal marked by the symbol: (see
image).
This terminal enables the connection of Yellow/Green ca-
ble with a section between 2.5 and 10mm² .
The appliance shall be included in an equipotential sys-
tem whose efficiency shall be duly verified according to
the provisions of the laws in force.
6. WATER CONNECTION
Make sure the device is placed near a water connection.
Before connecting the device,
allow enough water through to remove any remnants in
the piping so that they did not get into the magnetic valves.
It is necessary to install a shut-off valve and mechanical
filter between the plumbing and the device. On the back of
the device, in the area marked with a label, the convection
oven has an input G 3/4’’ with a filter.
The inflowing water shall have a pressure value com-
prised between 150 (1,5 bar) and 200 kPa (2bar) and a
maximum temperature of 30°C. If the inflow pressure
value exceeds 200kPa (2bar), a pressure reducer will have
to be installed, calibrated at 200kPa
(2 bar).
WATER TREATMENT
In order to ensure trouble-free operation of the device, the water should have a hardness of maximum 5°dH to
prevent lime deposits. For higher values a water softening station should be installed first.
7. FUMES DISCHARGE
Hot fumes and odours are emitted from the cooking chamber during cooking. This is located at the top part
of the back of the oven. Do not place objects on the discharge so as not to hinder the outflow of the fumes
and hence avoid causing damage thereto. It is advisable to position the oven under a suctioning or ensure
adequate ventilation to outside for hot fumes and odours through a pipe no smaller than the oven drainage.
Avoid bends and blockages.
8. STACKING OVENS
Stacking several ovens requires the use of the special kit which keeps the correct distance between the two
ovens.
