Introduction
5Service-instructions
1 Introduction
1.1 About this manual
This service manual contains information needed by the service
technician for professional and correct fault isolation, repair and
maintenance of the unit. The service technician must also observe
the contents of the installation instructions and the user manual.
Target group Target group for this service manual is qualified personnel who are
familiar with the technical functioning and operation of the unit.
Figures All figures in this service manual are intended as examples.
Discrepancies can arise between this and the actual unit.
Spare parts To ensure the reliability of the unit and the individual components, it is
essential that only genuine OEM parts be used.
Spare parts can be identified exactly with the aid of the online
database.
1.2 Warranty
The warranty is void and safety is no longer assured in the event of:
•Modifications or technical changes to the unit,
•Improper use,
•Incorrect startup, operation or maintenance of the unit,
•Problems resulting from failure to observe these instructions.
FM06-138

Safety instructions
6 Service-instructions
2 Safety instructions
For servicing tasks, the service technician must be familiar with and
observe regional regulations.
In addition, the notes in the service manual must be observed.
DANGER Danger to life due to electric current
üDisconnect power prior to performing gas and electrical work.
• Disconnect unit from the mains supply and secure it against restart.
• Check to ensure absence of voltage.
DANGER Risk of fatal injury from gas
üDisconnect the unit from gas supply prior to performing gas installation
tasks.
• Lock site gas supply and secure it against restart.
FM06-138

Description of operation
7Service-instructions
3 Description of operation
3.1 Grease collection system
The grease collection system must be activated for each cooking step
as required. During a cooking step with activated grease collection
system, the fat pump is switched on in intervals. The intervals as well
as the duty cycle are controlled by fixed software parameters.
The function is only available in the combi steaming and convection
modes.
3.2 Automatic flushing
During the WaveClean automatic cleaning program, the grease
collection system is also rinsed.
The hose to the collection container is not rinsed in the process. The
intervals as well as the duty cycle are controlled by fixed software
parameters.
FM06-138

Opening and closing the unit
8 Service-instructions
4 Opening and closing the unit
4.1 Side wall
BA
Image: A Sizes 6.x and 10.x; B Size 20.x
4.1.1 Removing the side wall
1. Unscrew the screws in the side wall.
2. Pull the bottom edge of the side wall forwards.
3. Remove the side wall.
4.1.2 Attaching the side wall
NOTICE Risk of property damage from leaky housing
• Check seals when attaching the housing parts.
• Replace damaged seals.
1. Insert top edge of side wall.
2. Carefully push the bottom of the side wall inward.
3. Secure the bottom of the side panel with screws.
4. Check that the side wall is in contact with the unit on all sides.
FM06-138

Component overview grease collection system
9Service-instructions
5 Component overview grease collection system
a b c d e
f
Image: Overview grease collection system
a Riser pipe, MM10031053 b Grease drain from siphon box to
grease pump
c Grease pump with condenser d Water hose for flushing grease
separator
e Grease drain hose f Double solenoid valve
FM06-138

Component overview grease collection system
10 Service-instructions
a b c
d e f g h i j
Image: Overview grease pump
a Reduction, MM10030670 b Hose 20 x 5mm, MM10011567
(sold by the meter)
c Hose clamp, MM10012751 d Supply line from siphon box
e Hose clamp, MM10012751 f Hose 20 x 5mm, MM10011567
(sold by the meter)
g Pipe bend, MM10031306 h Hose 20 x 5mm, MM10011567
(sold by the meter)
i Reduction, MM10030670 j Grease pump120V, MM
10029936
FM06-138

Circuit diagram overview grease collection system
11Service-instructions
6 Circuit diagram overview grease collection system
STEUERPLATINE
CONTROL PCB
-A1
X15
K13 K14
21 345
-G40
-K40
A1A2
-K41
-C40
-RC40
/4.5
-K40
12 14 11 12 14 11
-F1
12
-Q1
12 12
N
L

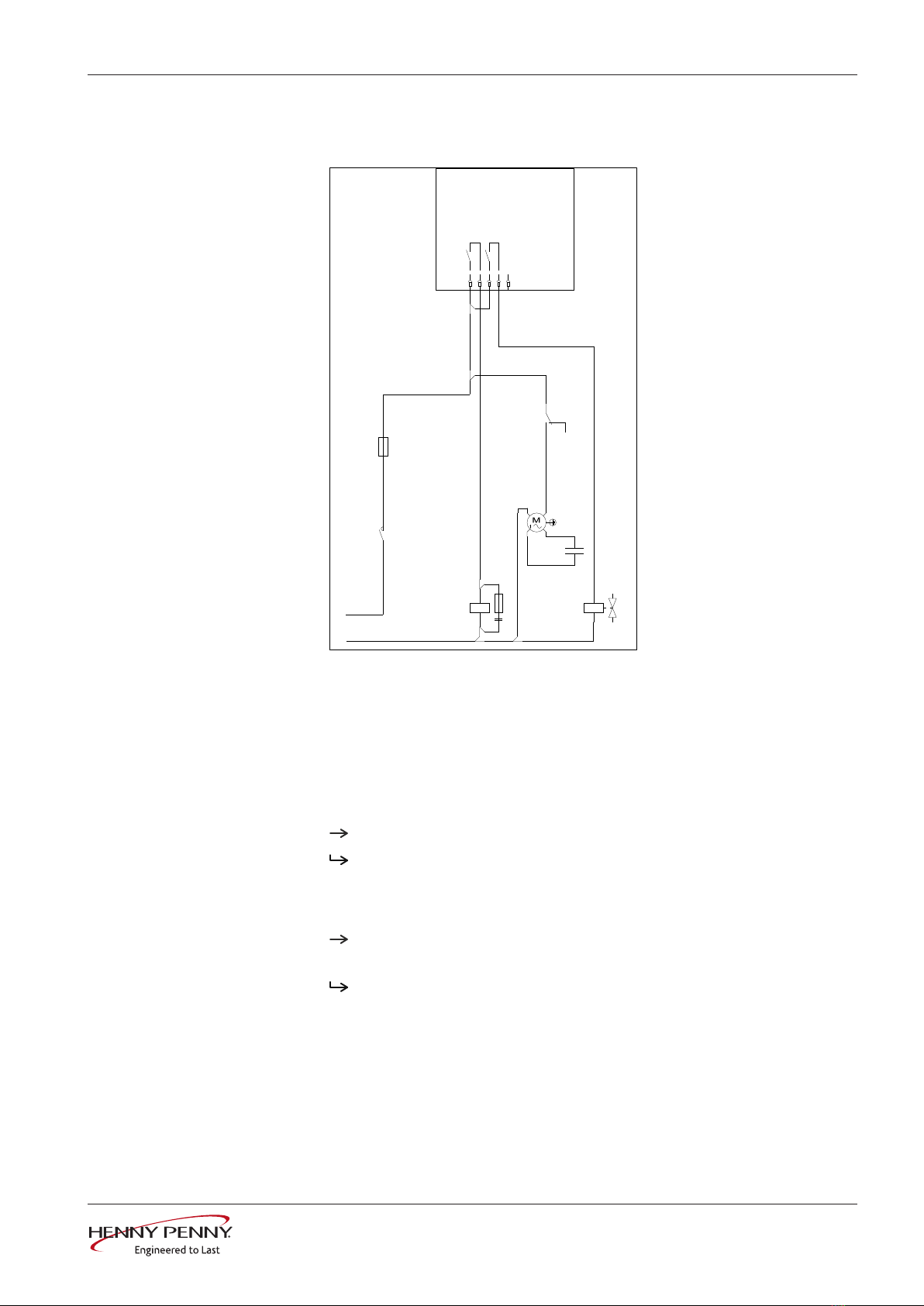

Image: Circuit diagram grease separator
A1 Control board, MM10013404 C40 Capacitor, MM10031308
F1 Fuse, 10A, MM202643 G40 Grease pump 130V,
MM10029936
K40 Relay, 120V, MM10017207 K41 Solenoid valve 120V,
MM10030669
Control of the grease pump
Relay K13 on control board A1 controls relay K40 with 120V.
Grease pump G40 is switched on.
Control solenoid valve for flushing grease drain incl. grease
pump
Relay K14 on control board A1 controls solenoid valve K41 with
120V.
Solenoid valve K41 is switched on.
FM06-138

Service menu - appliance test
12 Service-instructions
7 Service menu - appliance test
7.1 Service menu
Description • Functional testing of individual components
•Error analysis
•Maintenance
•Change basic settings
•Software update
The graphics shown may deviate due to changes and different
software versions.
7.1.1 Calling up the service level

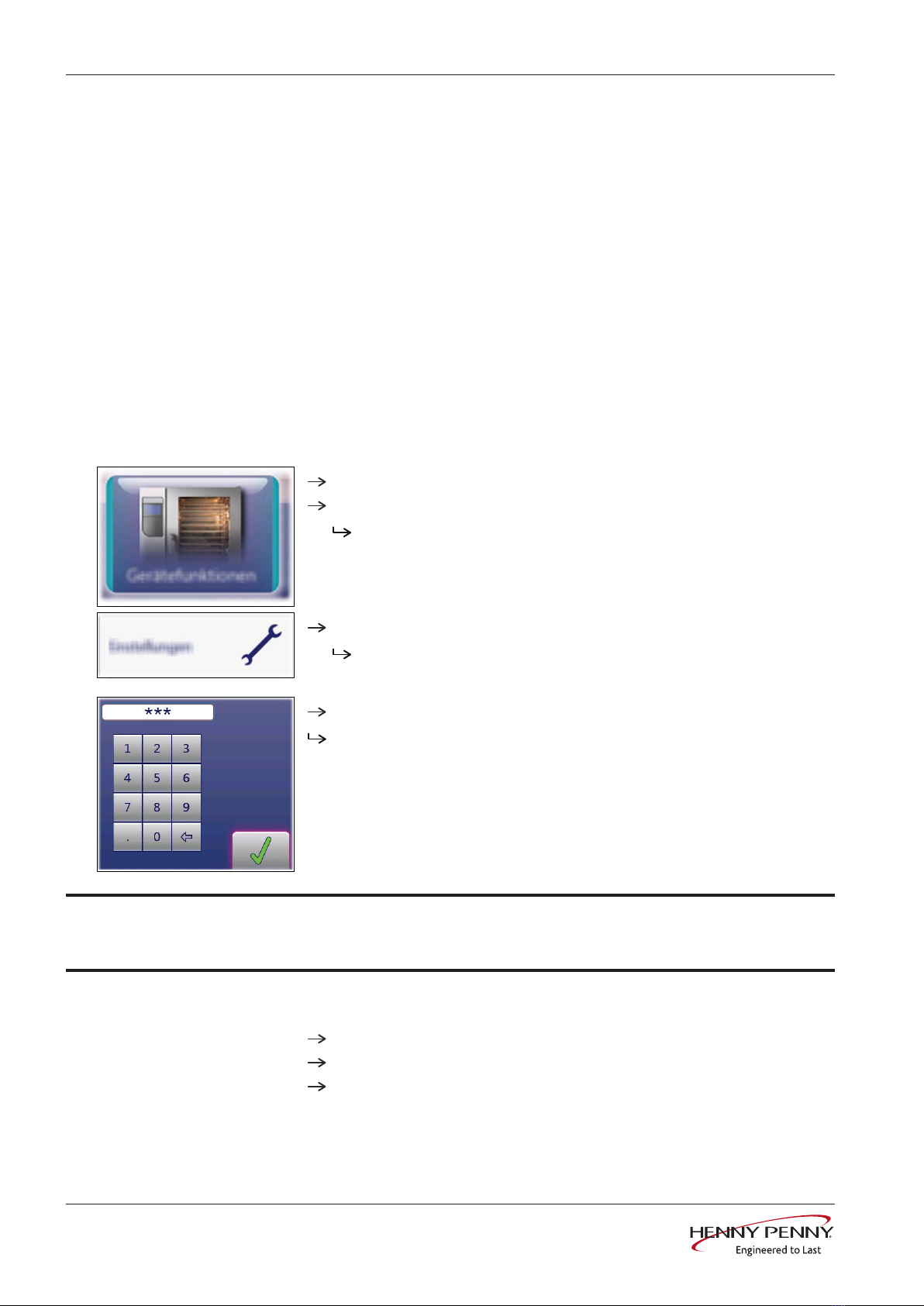

Calling up the Service menu
Switch the appliance on.
Touch the "Appliance functions" field.
Display of Appliance functions menu.
Touch "Settings" field.
Display of PIN window.
Enter password and touch Confirmation field.
Display of menu Appliance test (Service menu) .
INFORMATION
The password for the service menu is 1967
7.1.2 Service menu overview
Selecting a menu element Display of the menu elements in the left area.
Page change by swiping upward/downward.
Select menu element by touching.
FM06-138

Service menu - appliance test
13Service-instructions
7.2 Relay test
Overview

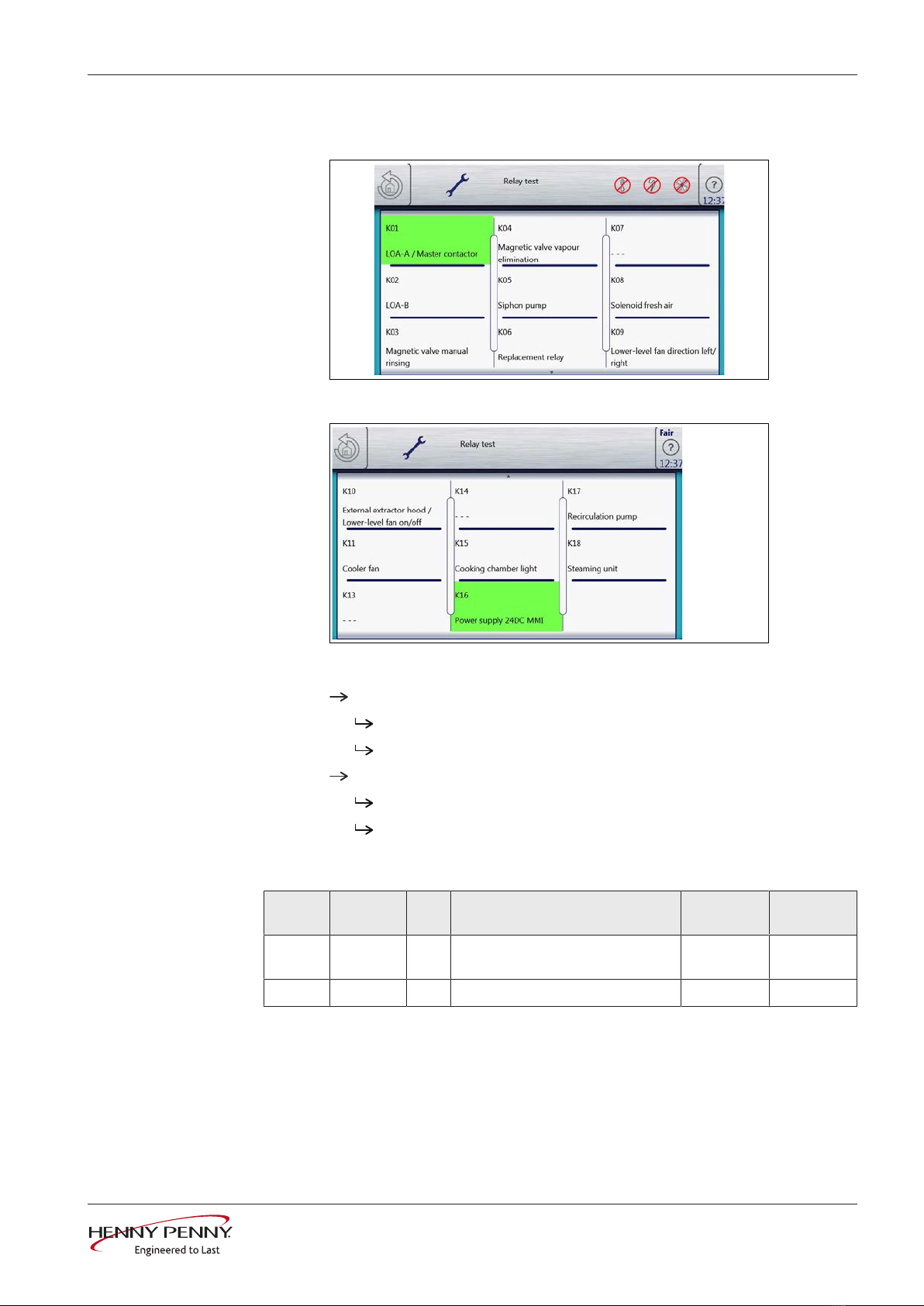

Image: Relay test page 1
Image: Relay test page 2
Activating relay test Tap the field of relays to be tested.
The relay is active.
Field of active relays is highlighted in green.
Deactivating relay Tap the green highlighted field of the field to be deactivated.
The relay is inactive.
Field is grayed out.
Relay overview grease
collection system
Relay Connect
or
No. Description Info
Electric
Info
Gas
K13 X15 2 Control relay K40 for grease
pump
208V AC 110V AC
K14 X15 4 Solenoid valve flushing 208V AC 110V AC
FM06-138

Cleaning and maintenance
14 Service-instructions
8 Cleaning and maintenance
8.1 Clean grease collection system
Prerequisite Cooking program has ended
Container with 2 liters of warm water is ready.
Sufficient funnel is ready.
Visual inspection
Grease drain hose has a slope to the grease collector.
There is no puddle of grease under the unit.
Remove the grease drain hose from the grease collector.
Hold grease drain hose up and place funnel on top.
Run 2 liters of warm water through the hose.
Cleaning is complete.
8.2 Function test grease separator
Open cooking chamber door.
Remove horde wagon.
Spray water into the cooking chamber with the hand shower for at
least 30 seconds.
Open the relay test in the service menu.
Activate relay K13. The grease pump switches on.
Water/grease is pumped into the collection container = pump
system in order.
Water/grease is not pumped into the collection container = carry
out troubleshooting.
8.3 Function test Automatic flushing
Open the relay test in the service menu.
Activate relay K14.
Solenoid valve K41 for flushing is switched on.
After approx. 30 seconds, additionally activate relay K13.
Water is pumped into the collection tank = solenoid valve OK.
Water and occasional lumps of grease are pumped into the
collection container = clean the grease drainage system. Then
repeat the test.
Water is not pumped into the collection tank = carry out
troubleshooting.
FM06-138

Troubleshooting
15Service-instructions
9 Troubleshooting
9.1 Fat Poopme
Before testing, spray water into the cooking chamber with the hand
shower. Repeat this during troubleshooting if necessary.
Switch on grease pump G40 via relay test (K13) in
the service menu. Does the pump switch on (noise)?
Check hose and piping for blockage. Clean if
necessary.
Is 120V present at relay K40 between terminals A1
and A2?
Is 120V present at relay K40 between terminal A2
and terminal 14?
YesNo
Yes No
Relay on control board A1 defective. Use reserve
relay or replace circuit board.
Grease pump G40 defective. Replace component.
Yes No
Relay K40 defective. Replace component.
FM06-138

Troubleshooting
16 Service-instructions
9.2 Solenoid valve flushing
Before checking the solenoid valve, make sure that the grease pump
is working properly.
Switch on solenoid valve K41 via relay test (K14) in
the service menu. After approx. 30 seconds,
additionally switch on grease pump G40 in the relay
test (K13). Is water pumped into the collection tank?
There is no error
Ensure that water is being supplied on-site. Is this
available?
Are 120V available at the solenoid valve?
YesNo
Yes No
Carry out troubleshooting on the on-site supply.
Solenoid valve K41 defective. Replace component.
Yes No
Relay on control board A1 defective. Use reserve
relay or replace circuit board.
FM06-138

Henny Penny Corporation
P.O.Box 60
Eaton,OH 45320
USA
Phone [phone]
Fax [phone]
Toll free in USA
Phone [phone]
Fax [phone]
www.hennypenny.com
*FM06-138* Henny Penny Corp., Eaton, Ohio 45320, Revised 10/29/2021
