Henny Penny OFE-290 User manual

Henny Penny
Open Fryer-Electric
Model OFE-290
TECHNICAL MANUAL

Model 290
TABLE OF CONTENTS
Section Page
Section 1. TROUBLESHOOTING.............................................................................................1-1
1-1 Introduction ....................................................................................................1-1
1-2 Safety .............................................................................................................1-1
1-3 Troubleshooting ..............................................................................................1-2
1-4 Error Codes .................................................................................................... 1-9
Section 2. MAINTENANCE....................................................................................................... 2-1
2-1 Introduction ....................................................................................................2-1
2-2 Maintenance Hints ......................................................................................... 2-1
2-3 Preventive Maintenance ................................................................................2-1
2-4 High Temperature Limit Control .................................................................... 2-2
2-5 Fuse Holders ..................................................................................................2-4
2-6 Power/Pump Switch ......................................................................................2-5
2-7 Temperature Probe Replacement .................................................................. 2-6
2-8 Complete Control Panel - Henny Penny ........................................................ 2-7
2-9 Contactors ...................................................................................................... 2-8
2-10 Heating Elements ........................................................................................... 2-10
2-11 Drain Microswitch ......................................................................................... 2-13
2-12 Drain Valve and Extension .............................................................................2-14
2-13 Nylatron Strips Replacement ......................................................................... 2-15
2-14 Lid Couterweight CablesWiring Diagrams.....................................................2-17
Section 3. PARTS INFORMATION ........................................................................................... 3-1
3-1 Introduction ....................................................................................................3-1
3-2 Genuine Parts ................................................................................................. 3-1
3-3 How To Order................................................................................................ 3-1
3-4 Prices .............................................................................................................3-1
3-5 Delivery ..........................................................................................................3-1
3-6 Warranty ........................................................................................................3-1
3-7 Idex of Parts Lists Illustrations ......................................................................3-2
104 FM06-025 i
Revised1-04

Model 290
1-1. INTRODUCTION This section provides troubleshooting information in the form
of an easy to read table.
If a problem occurs during the first operation of a new fryer,
recheck the installation per the Installation Section of this
manual.
Before troubleshooting, always recheck the operation pro-
cedures per Section 3 of this manual.
1-1 1103
SECTION 1. TROUBLESHOOTING
here information is of particular importance or safety related,
the words DANGER, ARNING, CAUTION, and NOTICE are
used. Their usage is described below.
SAFETY ALERT SYMBOL is used with DANGER,
ARNING, or CAUTION which indicates a personal injury
type hazard.
NOTICE is used to highlight especially important information.
CAUTION used without the safety alert symbol indicates
a potentially hazardous situation which, if not avoided,
may result in property damage
CAUTION indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate
injury.
WARNING indicates a potentia y hazardous situation
which, if not avoided, cou d resu t in death or serious
injury.
DANGER INDICATES AN IMMINENTLY
HAZARDOUS SITUATION WHICH, IF NOT
AVOIDED, WILL RESULT IN DEATH OR SERIOUS
INJURY.
1-2. SAFETY

Model 290
1-3. TROUBLESHOOTING To isolate a malfunction, proceed as follows:
1. Clearly define the problem (or symptom) and when it
occurs.
2. Locate the problem in the Troubleshooting table.
3. Review all possible causes. Then, one-at-a-time work
through the list of corrections until the problem is solved.
4. Refer to the maintenance procedures in the Maintenance
Section to safely and properly make the checkout and re-
pair needed.
If maintenance procedures are not fo owed correct y,
injuries and/or property damage cou d resu t.
1103 1-2

Model 290
Prob em Cause Correction
COOKING SECTION
Product co or not correct:
A. Too dark • Temperature too high •Check temperature setting
in the program mode; see
Programming Section in
Operator’s Manua
• Fau ty temperature probe • Remove and rep ace tempera-
ture probe
• Shortening too o d • Change shortening
• Shortening too dark • Fi ter shortening
• Change shortening
• Breading product too far • Bread product c oser to
in advance actua frying period
B. Too ight • Temperature too ow • Check temperature setting
• Remove and rep ace tempera-
ture probe
• Fryer incorrect preheat • A ow proper preheat time
• S ow fryer heat-up/recovery • Fau ty e ement
• Wrong cook button • Be sure to se ect the correct
pushed. amount of product to be cooked
C. Product • Shortening o d • Rep ace shortening
greasy
• Temperature too ow • Check temperature setting
• Temperature not recovered
when product was dropped
in frypot
• Fau ty temperature probe • Remove and rep ace defective
temperature probe
• Frypot over oaded • Reduce cooking oad
• Product not removed from • Remove product from
frypot immediate y after frypot immediate y after
end of cyc e end of cyc e
1-3 1203

Model 290
Prob em Cause Correction
COOKING SECTION (Continued)
D. Spotted • Improper separation of the • Load product into racks
product product proper y
• Breading not uniform on • Sift breading regu ar y
the product • Separate product during
breading
• Burned breading partic es • Fi ter the shortening more
on product frequent y
• Product sticking together • Separate product prior to
pressure cooking
E. Dryness of • Moisture oss prior to • Use fresh products
product cooking
• Overcooking the product • Reduce cooking time
• Reduce cooking
temperature
• Wrong cook button pushed • Be sure to se ect the
correct amount of
product to be cooked
Product f avor
(taste):
A. Sa ty taste • Breading mixture is too sa ty • Sift breading after each use
• Incorrect breading mixture
• Discard o d breading
• Incorrect choice of • Use breading designed for
breading the desired product
B. Burned taste • Burned shortening favor • Rep ace shortening
• Frypot not proper y c eaned • Drain and c ean frypot
C. B and taste • Raw product not fresh • Use fresh raw product
• Breading mixture incorrect • Use breading designed for
for product (spice content desired product
too ow)
• Cooking temperature too • Check temperature
high (spice f avors ost)
1103 1-4

Model 290
Prob em Cause Correction
COOKING SECTION (Continued)
D. Rancid taste • Shortening too o d • Rep ace shortening, and
fo ow recommended care
and use of shortening
• Infrequent fi tering • Rep ace shortening and
fo ow recommended care
and use of shortening
• Non-compatib e products • Rep ace shortening
cooked within the same • Use compatib e products,
shortening. - and fo ow
recommended care and use of
shortening
• Raw product not fresh • Use fresh product
Genera :
• Incorrect meat cut • Use correct meat cutting
A. Meat procedures
separation
from bone • Overcooking • Check cooking time
• Product not fresh • Use fresh product
B. Bone co or • Using frozen product • Use fresh product
not proper (b ack bone)
• Improper processing of • Use proper processing
product (b ack bone) procedure for product
• Product not thorough y • Check cooking time
cooked (red bone) • Check cooking temperature
C. Breading fa s • Incorrect breading • Use correct breading
off procedures procedure
• Product partia y frozen • Thorough y thaw the
product, before breading
D. Product • Product breaded too ong • Refer to breading and
sticking prior to cooking frying instructions
together
• Improper oading • Proper y oad product per
procedure oading procedures
• Wrong cook button pushed • Be sure to se ect the
correct amount of product to
be cooked
1-5 103

Model 290
Prob em Cause Correction
POWER SECTION
With switch in •Open circuit •Check to see that unit is
POWER position, p ugged in
the fryer is com- •Check the breaker or fuse
p ete y inoperative at supp y box
(NO POWER) •Check vo tage at wa
receptac e
•Check MAIN POWER
switch; rep ace if defective
• Check cord and p ug
• Check 15 amp fuses
1203 1-6
• B own fuse or tripped •Reset breaker or rep ace fuse
circuit breaker at supp y
box or contro pane
• B own fuse in PC board •Rep ace g ass fuse in board
• Fau ty POWER/PUMP switch. •Check POWER/PUMP switch
per maintenance section on
the POWER/PUMP switch
•Fau ty cord and p ug •Check cord and p ug
• Check power at receptac e
•Fau ty drain switch •Check drain switch per
maintenance section on
drain switches
•Fau ty PC Board •Remove and rep ace contro
pane
•Fau ty high imit contro switch •Check high imit contro
switch per maintenance
section on the high imit
•Drain va ve open •C ose drain va ve
•Possib e fau ty temperature probe •Rep ace temperature probe
•Fau ty contactor •Check contactor per maintenance
section on contactors
HEATING OF SHORTENING SECTION
Shortening will not heat

Model 290
Prob em Cause Correction
HEATING OF SHORTENING SECTION (Continued)
Heating of shortening • Low or improper voltage • Use a meter and check the
too slow receptacle against data plate
• eak or burnt out element(s) • Check heating element(s) per
Heating Elements Section
• Points in contactor bad • Check contactor per Heating
Contactors Section
• ire(s) loose • Tighten
• Burnt or charred wire • Replace wire and clean
connection connectors
Shortening • Programming wrong • Check temperature setting
overheating in the program mode
• Faulty PC board • Remove and replace control
panel
• Faulty temperature probe • Remove and replace temperature
probe
• Check contactor for not • Check faulty contactor per
opening Heating Contactors Section
1-7 1103

Model 290
Prob em Cause Correction
SHORTENING FOAMING/DRAINING SECTION
Foaming or boiling • ater in shortening • At end of a Cook Cycle,
over of shortening drain shortening and clean
frypot; add fresh shortening
• Condensation line stopped up • Remove and clean condensation
line
• Improper or bad • Use recommended
shortening shortening
• Improper filtering • Refer to the procedure
covering filtering the shortening
• Cold zone full of cracklings • Filter shortening
• Improper rinsing after • Clean and neutralize the
cleaning the fryer frypot; rinse with vinegar
to remove the alkaline, then
rinse with hot water and
dry frypot
Shortening will • Drain valve clogged with • Open valve - push cleaning
not drain from frypot crumbs rod through drain opening from
inside of frypot
Shortening leaking • Obstruction in drain • Remove obstruction
through drain valve
• Faulty drain valve • Replace drain valve
1103 1-8

Model 290
1-4. ERROR CODES In the event of a control system failure, the digital display shows an
error message. These messages are coded: “E04”, “E05”, “E06”,
“E41”. A constant tone is heard when an error code is displayed,
and to silence this tone, press any of the product buttons.
DISPLAY CAUSE PANEL BOARD CORRECTION
“E04” Control board overheating Turn switch to OFF position, then turn
switch back to ON; if display still shows
“E04”, the board is getting too hot; check for
signs of overheating behind the control
panel; once panel cools down the controls
should return to normal; if “E04” persists,
replace the control
“E05” Shortening overheating Turn switch to OFF position, then back to
ON; if display shows “E05”, the heating
circuits and temperature probe should be
checked; once the unit cools down, the
controls should return to normal; if “E05”
persists, replace the controls
“E06” Temperature probe failure Turn switch to OFF position, then back to
ON; if the display shows “E06”, the tempera-
ture probe should be checked; once the
temperature probe is repaired, or replaced, the
controls should return to normal; if “E06”
persists, replace the controls
“E41” Programming Failure Turn switch to OFF position, then back to
ON. If display shows “E41”, the control
should be re-initialized (see programming
section); if the error code persists, replace
the control panel.
“E71” Pump motor relay failure or Replace relay if contacts are stuck closed;
wiring problem check wiring on PO ER/PUMP switch, or at
wall receptacle; L1 and N may be reversed
1-9 1103

Model 290
1-4. ERROR CODES (Continued)
CE On y - A ong with the error codes from page 1-11, CE
units have the fo owing se f-diagnostic error codes:
DISPLAY CAUSE PANEL BOARD CORRECTION
“E10” High limit Reset the high limit by manually pushing up on the red reset
button; if the high limit does not reset, the high limit must be
replaced per the High Limt Temperature Control Section
“E15” Drain Switch Close the drain, using the drain valve handle; if display still
shows “E-15”, check the drain microswitch per the Drain
Switch Section
1103 1-12

Model 290
This section provides checkout and replacement procedures, for
various parts of the fryer. Before replacing any parts, refer to the
Troubleshooting Section to aid you in finding the cause of the
malfunction.
1. A multimeter will help you to check the electric components.
2. hen the manual refers to the circuit being closed, the
multimeter should read zero unless otherwise noted.
3. hen the manual refers to the circuit being open, the multimeter
should read infinity.
Do not move the fryer with hot shortening in the frypot or
fi ter pan. Severe burns can resu t from sp ashing hot
shortening.
4. Remove weights from the frame to easily access rear of fryer.
To ensure a long life of the fryers and their components, regular
maintenance should be performed. Refer to the chart below.
Frequency Action
Twice Daily Filter Shortening (See Filtering
Instructions Section in Operator’s
Manual)
Annually Lubricate Lid Rollers in back of fryer.
(See Lubricating Lid Rollers Section)
2-1 1203
SECTION 2. MAINTENANCE
2-1. INTRODUCTION
2-2. MAINTENANCE HINTS
2-3. PREVENTIVE
MAINTENANCE

Model 290

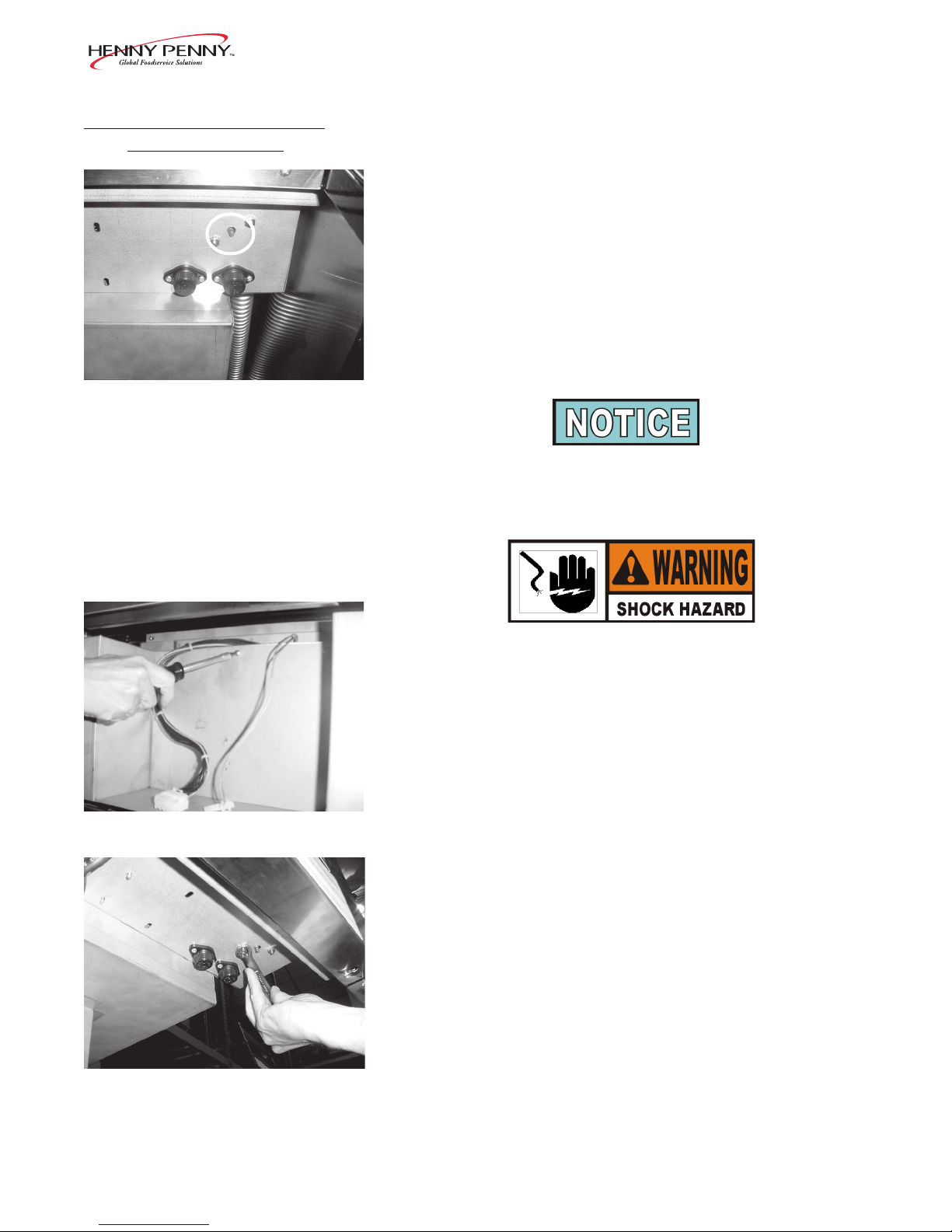

This high temperature control is a safety, manual reset control,
which senses the temperature of the shortening. If the shortening
temperature exceeds 425°F (218°C), this switch opens and shuts
off the heat to the frypot. hen the temperature of the shortening
drops to a safe operation limit, manually reset by pressing the red
reset button. The red reset button is located under the control
panel, in the front of the fryer, to the right of the drain. Once reset,
the frypot starts heating.
Checkout
Before replacing a high temperature limit control, check to see
that its circuit is closed.
The shortening temperature must be below 380°F (193°C) to
accurately perform this check.
1. Remove electrical power supplied to the fryer.
To avoid e ectrica shock or property damage, move the
power switch to OFF and disconnect main circuit
breaker, or unp ug cord at wa receptac e.
2. Remove the control panel.
3. Remove the inner heat shield.
4. Remove the two nuts securing the high limit bracket to the unit,
and pull the bracket from the unit.
5. Remove the two screws securing the high limit to the bracket,
and remove the high limit from the bracket.
6. Remove the two electrical wires from the high temperature
limit control.
7. Manually reset the control, then check for continuity between
the two terminals after resetting the control. If the circuit is
open, replace the control, then continue with this procedure. (If
the circuit is closed, the high limit is not defective. Reconnect
the two electrical wires.)
1103 2-2
2-4. HIGH TEMPERATURE
LIMIT CONTROL

Model 290
To avoid e ectrica shock of property damage, move the
power switch to OFF and disconnect main circuit
breaker, or unp ug cord at wa receptac e.
Rep acement
1. If the tube is broken or cracked, the control will open,
shutting off electrical power. The control cannot be reset.
2. Drain shortening from the frypot and discard. A substance
in the tube could contaminate the shortening.
3. Remove control panel.
4. Loosen small inside screw nut on capillary tube.
5. Remove capillary bulb from bulb holder inside the frypot.
6. Straighten the capillary tube.
7. Remove larger outside nut that threads into pot wall, and
remove defective control from control panel area.
8. Insert new control and replace screws.
9. Uncoil capillary line, starting at capillary tube, and insert
through frypot wall.
To avoid e ectrica shock or other injury, run the capi ary
ine under and away from a e ectrica power wires and
termina s. The tube must never be in such a position
where it cou d accidenta y touch the e ectrica power
termina s.
10. Carefully bend the capillary tube as shown in photo and place
into bulb brackets.
2-3 1103
2-4. HIGH TEMPERATURE
LIMIT CONTROL
(Continued)

Model 290
11. Pull excess capillary line from pot and tighten nut into frypot wall.
Be sure capillary bulb of high limit is positioned so it doesn’t
interfere with the carrier or get damaged when cleaning the
frypot
12. ith excess capillary line pulled out, tighten smaller nut.
13. Replace inner and front panels.
14. Refill with shortening.
There are two fuse holders on each model of the electric fryers. To
check or change fuse, unscrew black fuse holder cap.
To avoid e ectrica shock or property damage, move the
power switch to OFF and disconnect main circuit
breaker, or unp ug cord at wa receptac e.
Checking Procedure for Fuse Ho ders
CONTROL PANEL FUSES 3 Phase
Remove the control panel and pull the wires from the fuse holder
terminals. Using a multimeter or continuity light, check across the
terminals. The circuit should be closed. If not, replace the fuse
(HP# EF02-007) or fuse holder (HP# EF02-006).
1103 2-4
2-4. HIGH TEMPERATURE
LIMIT CONTROL
(Continued)
2-5. FUSE HOLDERS

Model 290
The PO ER/PUMP switch is a three way rocker switch with a
center OFF position. ith the switch in the PO ER position the
fryer operates. ith the switch in the PUMP position the filter pump
operates, but the unit will not heat.
To avoid e ectrica shock or property damage, move the
power switch to OFF and disconnect main circuit
breaker, or unp ug cord at wa receptac e.
Checkout
1. Remove control panel.
2. Label and remove wires from the switch.
3. OFF position-should be open circuit anywhere on the switch.
4. Power position. Check from: #5 to #6 closed circuit
#l to #2 closed circuit
5. Pump position. Check from: #4 to #5 closed circuit
#3 to #2 closed circuit
Check across the jumpers on the wires of the PO ER/PUMP
switch. These jumpers have resistors and capacitors which
may be faulty.
Rep acement
1. ith control panel removed, and wires off of the switch,
push in on tabs on the switch to remove from the panel.
2. Replace with new switch, and reconnect wires to switch
following the wiring diagram.
3. Replace the control panel.
2-5 1103
2-6. POWER/PUMP SWITCH

Model 290
The temperature probe relays the actual shortening temperature to
the control. If it becomes disabled, “E06” shows in the display.
Also, if the temperature is out of calibration more than 10°F, or
10°C, the temperature probe should be replaced as follows:
1. Remove electrical power supplied to the fryer.
To avoid e ectrica shock or property damage, move the
power switch to OFF and disconnect main circuit
breaker, or unp ug cord at wa receptac e.
2. Drain the shortening from the frypot.
3. Remove the control panel.
4. Using a 1/2" wrench, remove the nut on the compression fitting.
5. Remove the temperature probe from the frypot.
6. Place the nut and new ferrule on the new temperature probe and
insert the temperature probe into the compression fitting until it
extends one-half (1/2) inch (1.3 cm) into the frypot. Use the
temperature probe gauge provided in the temperature probe kit,
to ensure proper placement in frypot. See Figures 2-1 and 2-2.
7. Tighten hand tight and then a half turn with wrench.
Excess force will damage temperature probe
8. Connect new temperature probe to PC board and replace
control panel.
9. Replace shortening.
10. Turn power on and check out fryer.
1103 2-6
Figure 2-1
2-7. TEMPERATURE PROBE
REPLACEMENT
Figure 2-2

Model 290

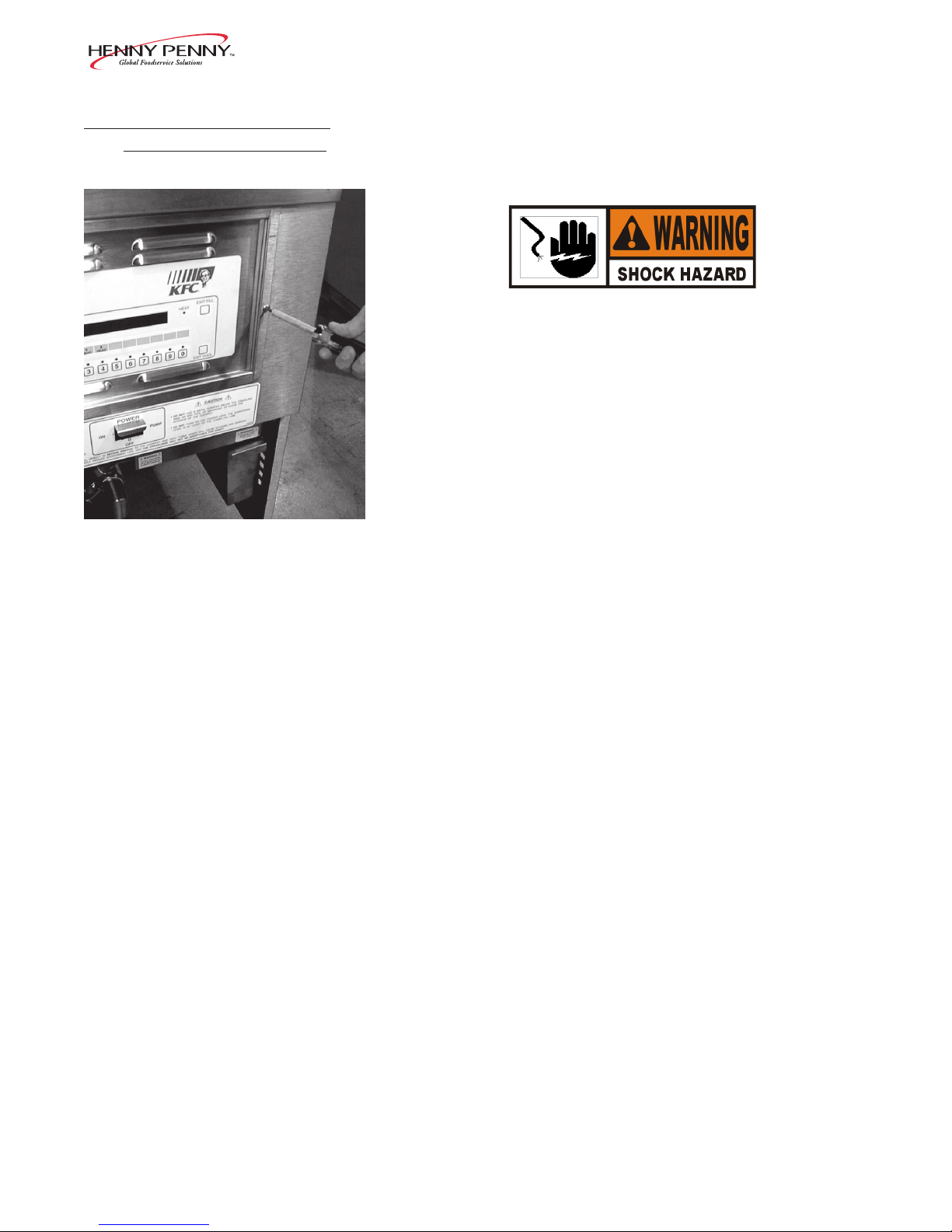

Should the control panel become inoperative, follow these instruc-
tions for replacing the board.
1. Remove electrical power supplied to the fryer.
To avoid e ectrica shock or property damage, move the
power switch to OFF and disconnect main circuit
breaker, or unp ug cord at wa receptac e.
2. Remove the two screws securing he control panel and lift
panel up and out
3. Unplug the connectors going to the control board.
4. Install a new control panel.
2-7 1103
2-8. COMPLETE CONTROL
PANEL-HENNY PENNY
