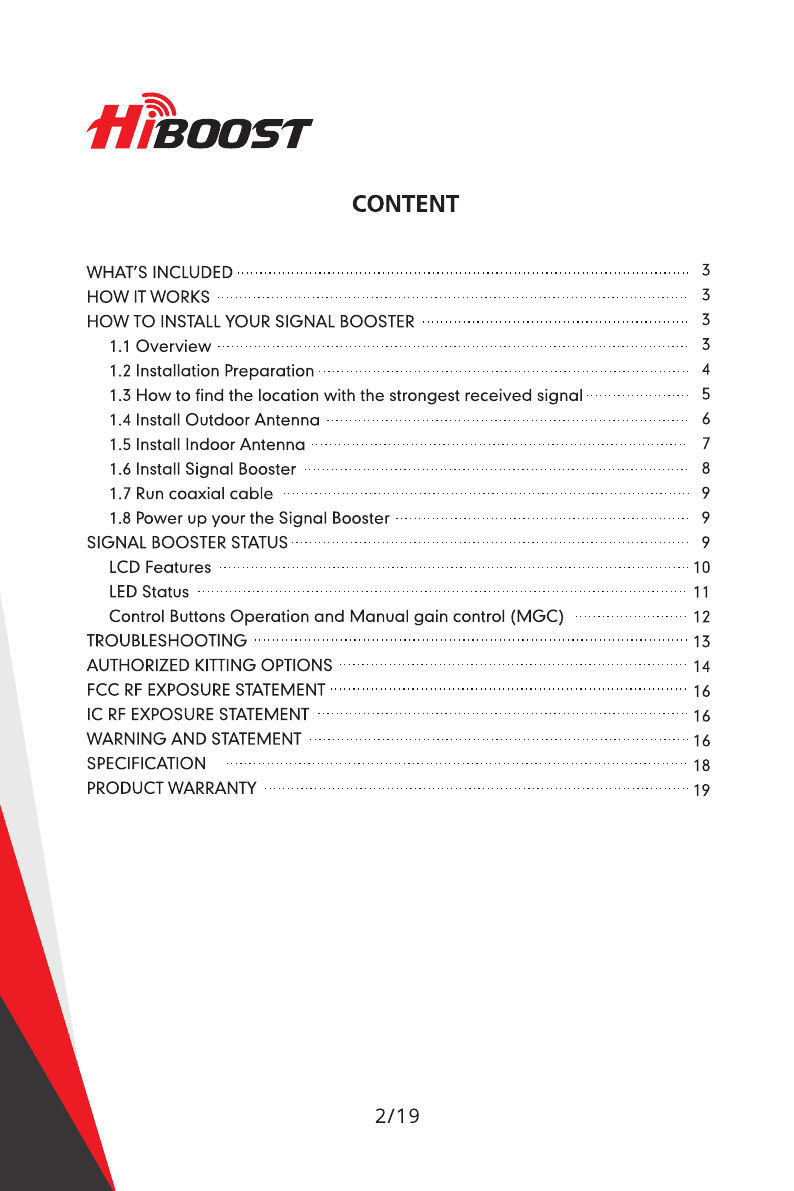

CO N T E N T
WHAT'S INCLUDED .................................................................................................... 3
HOW IT WORKS ........................................................................................................ 3
HOW TO INSTALL YOUR SIGNAL BOOSTER ........................................................... 3
1.1 Overview ........................................................................................................ 3
12 Installation Preporotion .................................................................................. 4
1.5 How to find the location with the strongest received signal ----------------------- 5
1.4 lnstoll Outdoor Antenno ................................................................................ 6
1.5 Install Indoor Antenno ................................................................................... 7
16 Install Signal Booster ..................................................................................... 8
1.7 Run coaxial cable ......................................................................................... 9
18 Power Up your the Signal Booster ................................................................. 9
SIGNAL BOOSTER STATUS ........................................................................................ 9
LCD FeOtUreS ........................................................................................................ 10
LED StCltUS ............................................................................................................ 11
Control
Buttons
Operation
and
Manual
gain
control
(MGC)
-------------------------
12
TROUBLESHOOTING ................................................................................................ 13
AUTHORIZED KITTING OPTIONS ............................................................................. 14
FCC RF EXPOSURE STATEMENT ............................................................................... 16
IC RF EXPOSURE STATEMENT .................................................................................. 16
WARNING AND STATEMENT .................................................................................... 16
SPECIFICATION ...................................................................................................... 18
PRODUCT WARRANTY .............................................................................................. 19
2/19

WHAT IS INCLUDED
" ,_,.....u.uu;u.u_
I
My”!
'
\. ,JmMLM'
CommerciaIZOK Pro AC/DClPZd/vl/Se’rASupply Booster MountHardware
We provide all accessories needed for the signal booster. For more information please visit
www.hiboostusa.com.
Warning: Unauthorized antennas, cables, and/or coupling devices are prohibited by new
FCC rules. Please contact FCC for details: 1-888-CALL-FCC.
HOW IT WORKS
The HiBoost Commercial 20K Pro signal booster is designed to help mobile users
improve signal in homes, offices, and other areas where cellular signal is weak
or unreliable. The outdoor antenna receives the signal from the nearest cellular
tower, amplifies it, and transmits to the signal booster. Then the indoor antenna
will receive the signal and retransmit it to your mobile device. The signals
produced by your phone are also amplified by the indoor antenna via the
booster and outdoor antenna.
This manual provides simple installation instructions.
HOW TO INSTALL YOUR SIGNAL BOOSTER
1.1 Overview
This manual will help you properly install your signal booster. It is important to
read through all of the installation steps before installing your equipment.
Thoroughly read through the instructions, visualize where all the equipment will
need to be installed and do a soft installation by placing the devices where they
need to be before mounting any equipment.
3/19

6
0 Commerciol 20K Pro Signol Booster 9 Outdoor Antenna
9 Indoor Antenna 0 Cable
6 12V/3A, AC/DC Power Supply
1.2 Installation Preparation
Before you install
. Make sure you have sufficient cable length between the proposed
outdoor/indoor antenna location and booster connector.
. Make sure the position you install the booster is near to an existing electrical
outlet, well ventilated, and away from excessive heat, moisture, and direct
sunlight.
Tools Required
Phillips Screwdriver Drill Mobile Phone
Before you get started, you will need to plan the layout of your system. This
involves finding the location with the strongest received signal from the cellular
tower, 08 well as ontenno, booster, and cable plocement.
General installation steps:
1. Find the strongest received signal for the location of the outdoor antenna.
2. Install the outdoor antenna on the roof to obtain the strongest downlink
4/19

signal from the local cellular towers. It should also be as far away as possible
from where you plan to place the indoor antenna (vertical separation is more
important than horizontal separation).
3. Install the indoor antennas where you want to improve the signal level.
4. Mount the booster, connect the cables from the outdoor antenna and indoor
antenna at the designated ports, and connect the booster to the AC supply
(make sure all the cables are connected before applying power).
1.3 How to find the location with the strongest received signal
The outdoor signal strength the booster receives directly affects the efficiency of
the indoor coverage. That is why it is crucially important to install the antenna at
a good location and point it properly towards a tower where signal reception is
the strongest.
There are many methods that can be used to find the strongest signal from the
cellular towers. One is to use the LCD display on the booster that shows the
downlink power output of the booster in each band, the other is to use a mobile
phone or mobile phone app to test signal strength, and the third is to use a
commercially available signal strength meter.
We highly recommend that you use the LCD display on the booster as this
method is generally more convenient. However, in situations where the desired
carrier's signal is much weaker than the other local signals, using a mobile
phone, app or signal level meter can be a more accurate method of homing in
on the best signal for installation.
. LCD Display Method
Connect the outdoor antenna to the booster's outdoor port. Fix the outdoor
antenna on the roof of the building and point it to the nearest cell tower. Then
have a look at the gain and output power value displayed on the booster’s LCD.
The outdoor antenna receives the strongest signal when the booster's downlink
output power reaches its highest level in each band. If the LCD shows maximum
5/19

J
H?Baasr
gain and power, and there are not any alarms (no ISO, ALC, OFF legend
flashing and no quick flashing green or red in LEDs), it means the present
location is the best for ensuring that the booster has maximized performance.
The maximum downlink power for Commercial 20K Pro is 12dBm, and the
maximum downlink gain is 63-72dB.
Note: These showed values may vary dynamically at times between 1-3 dB
which is normal due to outdoor signal conditions.
. Mobile Phone Method
You can use a telephone to test signal strength on the top of the building. The
number of bars on the network indicator will define approximate strength of the
received signal. Normally the roof of the building is the best place to receive the
strongest signal. As shown on the drawing below, you need to test the signal in
the points from A to E, and select the location with the best signal strength for
outdoor installation. It is recommended to use a mobile app that can display in a
test mode the signal level in dBm units. It is more accurate than checking the
signal bars. For more details refer to http://blog.hiboostusa.com/signal-strength-
measure-instructions/.
Note: Please try to receive a signal from cell towers that are not overloaded with
multiple users. This can be estimated by the population density in the area
served by the tower. For example, it is recommended to avoid cell towers near
supermarkets, shopping malls, stadiums or any other public places visited by
many people regularly. This will help maintain reliable phone call connections
and higher speed data services.
Mark the strongest received signal as the installation location and direction for
the outdoor antenna.
1.4 Install Outdoor Antenna
Install the outdoor antenna at the the location with the strongest received signal.
IMPORTANT: Testing the signal 3 times in the desired location before installing
the outdoor antenna will help ensure the most smooth and stable phone calls
and data transmission.
6/19

1
to
2
inch
diameter
pole
waterproof
tape
Outdoor
wide
band
directional
antenna
installation
for
reference
9
1
to
2
inch
diameter
pole
Outdoor
wide
band
panel
antenna
installation
for
reference
Note:
Be
sure
the
cradle
is
at
the
desired
height
and
rotated
toward
the
strongest
cellular
signal
before
tightening
the
nuts.
Do
not
over
tighten.
1.5
Install
Indoor
Antenna
Select
a
place
on 0
wall
in
the
area
where
you
need
better
reception.
Mount
the
indoor
antenna
with
the
included
screws
as
shown
in
the
figure
below.
7/19

2Q
HFBaasr
W
slide into mount
hanging folder
tapping screw
plastic expansion
bolt
e
00 ED v 00
fi‘ fi' E‘ K
Indoor wide band dome antenna installation for reference
1.6 Install your signal booster
The signal booster should be mounted in on easily accessible area so it's easy to
perform general maintenance. The area is properly ventilated and not exposed
to excessive heat, moisture ond/or direct sunlight. The optimal area would be on
o well located near or power outlet. Please use d surge protector rated at a
minimum of 1000 Joules between the booster’s power adaptor and the AC
power outlet on the wall.
Mount the booster with the included screws 03 shown in the figure below.
tapping screw

1.7 Run coaxial cable
Loosely run the supplied coaxial cable from your outdoor antenna to your
booster connector marked ”Outdoor”. We recommend applying waterproof
tape to fully waterproof the connection.
Connect the indoor antenna cables from your indoor antenna to the booster
connector marked ”Indoor". Tighten the connection by hand.
(After you have tested the system you can permanently secure the coaxial
cable).
As you route and pull cabling, follow these general guidelines:
- Bend cables and route them smoothly, and protect the outer skin against any
damage.
- Keep horizontal cables straight and fasten them with a tie every three to five
feet.
. Bind and fasten vertical cables every six to eight feet.
. Waterproof all connectors between outdoor antenna and coaxial cables with
waterproof tape to avoid water or other kinds of damage.
. Be careful when plugging the connector in so as not to damage the center pins
on the connectors.
1.8 Power up your signal booster
Once all the following precautions have been taken, power on the signal
booster.
1. Verify that you have left at least 20 feet of vertical separation space between
the indoor and outdoor antennas.
2. Never point the front of outdoor antenna towards the inside of the indoor
antenna.
3. Verify that the supplied coaxial cables from both the outdoor antenna and the
indoor antenna are properly connected to the signal booster before
powering it up.
4. Carefully plug in the supplied power adaptor into the signal booster where it
is marked 'DC 12V' and connect the other end to a power outlet.
The LED indicator marked power should light up green.
SIGNAL BOOSTER STATUS
Overview: The booster has a smart startup system. When you have finished the
booster system installation and power on the booster, it will start its initialization
process to check the received downlink signal from the cell site and the isolation
status. This an automatic process designed to ensure its best performance. This
will take approximately 3-5 seconds.
After the booster starts up, please check if the coverage is good. If it is good, the
booster system installation is complete. If the coverage is not adequate, please
9/19

J
H?Baasr
fully reread and understand the LCD, LED indications, control buttons and MGC
function on your booster, as they will help you identify and solve any potential
issues.
. LCD Features
Working Uplink Downlink Downlink
Frequency Gain Gain Output
Power
Relative signal
power from tower Alarm
status Indicator 0
.
Powe
Indicates
DC
0
power status
ISO
Antenna Isolation
Status Indicator
Band Shut Off Indicator
Automatic Level Control
(ALC)Activity Indicator
(0 o o)
C)
SET DEC- INC+
Band: Shows the working
frequency bands where
the booster is operating.
UL/DL: Shows real-time
uplink and downlink gain(dB).
These values will change
slightly as the ALC or ISO
makes changes to the gain
to optimize coverage.
Power: Shows real-time
downlink power(dBm)
that the booster is delivering
to
the indoor antenna port.
When the booster DL output
power is lower than -
10dBm, the value will display
"---”.
ISO: When the system does
not have enough isolation
between the outdoor and
indoor antennas, the ”ISO"
indicator will be flashing
showing that the ISO has
lowered the gain in some
bands to keep the system
from oscillating. Press the
"SET” key and the LCD
screen will turn on to help
with troubleshooting and
display "ISO" value showing
the current band or bands
affected.
ALC: When the booster
is receiving too much DL
power from the tower and
the
DL booster output is close
to saturating, the ”ALC"
indicators will flash showing
that the ALC has lowered
the gain to prevent this
overload condition. Press
the
"SET” button and the screen
will turn on to help with
troubleshooting and show
the band or bands affected.
10/19

OFF: In some rare situations the ALC or ISO will not be able to compensate for an
oscillation condition or a downlink overload. When this happens the booster will
shut off in the affected band and the LCD ”OFF” indicator will flash. Pressing the
”SET" button will turn on to help with troubleshooting and display which band or
bands are affected.
ISO flash
Band UL
LTE700 ---
0e11800
———
3
P081900 ——— ---
AH82100 ——— ———
ALC flash 0FF flash
Band UL DL Band UL
LTE700 --- 2 LTE700
0e11800 --- 3 0611800
P081900 ——— 2 P081900
AHSZI00 #1082100
OFF OFF
OFF OFF
. LED Status
LED Status Definition
Power LED
Alarm LED
ISO LED
Green
Off
Green
Slow Flashing
Green
Quick Flashing
Green
Quick Flashing
Red
Green
Slow Flashing
Green
Quick Flashing
Green
Quick Flashing
Red
Normal
DC power problem
Output power is
not maximum.
Fu|| output power.
Output power is too high.
The booster automatically
shuts off for protection from
excessive downlink signal
from tower.
Check coverage, leave
as is if it's good; if the
coverage is poor,
please check the
Troubleshooting section
to get solutions.
Not working properly.
Please check the
Troubleshooting section
to get solutions.
No loopback or no self-oscillation. Working properly.
Slight loop back or self-oscillation.
Deep loop back or
self-oscillation.
The booster automatically
shuts off for protection due
to very severe self-oscillation.
11/19
Not working properly.
Please check the
Troubleshooting section
to get solutions.

J
H?Baasr
Control Buttons Operation and Manual gain control (MGC)
There are 5 operation modes relative to the control keys:
- Press the ”SET” key for more than 5 seconds
- Short press on the ”SET" key
- Short press on the ”DEC-" key
- Short press on ”INC+” key
- Simultaneously press on the ”DEC-" and ”INC+" keys for more than 5 seconds
Since the booster has a self-adaptive smart automatic level control (ALC) and
isolation gain processing (ISO), most of the time manual adjustments are not
required to achieve good coverage. However, in some cases where the ALC or
ISO is working at a very high rate to adjust the gain and the Alarm or ISO LED is
flashing more than once a second a manual adjustment might be desired.
When the LCD is in the fixed display mode, press the ”SET" key for more than 3
seconds. It will go into the ”Gain Setting Mode" and make one of the gain
values start to blink.
- Press ”SET" key shortly, and the LCD will switch to the next gain value and it will
start to blink. (Uplink or downlink gain for a different band).
- Press ”INC+” key once shortly and the gain will increase by 1dB, Press ”DEC-”
once shortly and the gain value will be reduced by 1dB.
- Press the ”SET” key for 3 seconds, and the LCD will return to the fixed display
mode.
Actual Gain display MGC Setting Gain
Actual Power display
Note: When adjusting the gain manually, please ensure that the uplink gain is
equal to or not 5 dB less than the downlink gain setting. This avoids interference
with the local cell site tower network.
When the LCD is in the fixed display mode, press the ”DEC-" and ”INC+” key
simultaneously for more than 3 seconds, the booster will reset the gain to the
default manufacturer settings.
When the LCD is in the alarm display mode, press the ”SET" key and the LCD
screen will turn on to help with troubleshooting and display the alarm indication
showing the affected band or bands, press the ”|NC+” (or ”DEC-”) key will
12/19

switch to different pages.
If none of the keys are pushed within 30 seconds, the display will return to the
fixed disploy mode.lf none of the control keys ore pushed within 5 minutes, the
LCD screen will turn off. Pressing any key will return the display to the fixed
mode.
TROUBLESHOOTING
Eliminate Flashing ISO legend and Quick Flashing Green, Quick Flashing Red ISO
LED problems:
1. Adjust the outdoor ontenno direction, keeping it away from indoor ontenno.
Restort booster.
2. Increase the vertical or horizontal distance between the outdoor antenna and
indoor ontenno. Restort booster.
. Use barriers such as walls to increase the isolation.
4. Change the indoor ontennd type to on antenna with o more directionol
ontenno pottern. Orient the indoor antenna and outdoor ontenno so they
point in opposite directions.
5. Reduce the booster's downlink goin using the manual goin controls. Keep
the uplink goin value and downlink goin value the some then restart the
booster.
Note: Uplink gdin must be equal to or not less than 5dB below the downlink goin,
to ovoid interference with the local corrier’s cell site network.
Target: The ISO issues ore solved when the ISO LED is "Green" or "Slow Floshing
Green" or no floshing ISO legend.
LN
Eliminate Flashing ALC legend and Quick Flashing Green, Quick Flashing Red Alarm
LED problems:
1. Adjust the ontennos’ directions or locations to lower downlink received signal
level.
2. Slowly reduce the downlink goin using the Manual Goin Controls.
3. If the above methods don't work, reduce the booster's gain with on external
ottenuotor in line with the outdoor antenna or replace with lower goin
ontenno.
Target: The overlood issues are fixed when the Alarm LED is "Green" or "Slow
Floshing Green" or no floshing ALC legend. Please note that on "Green" LED
indicotion may result in smoller coverage area. This can be improved by
adjusting the outdoor antenna to receive 0 stronger signol.
Eliminate poor coverage problems when Power legend on LCD and Alarm LED
is Green:
1. If the signal has not been improved, please check below:
- The weak downlink signol leads to the low output signal level. Change the
13/19

J
H?Baasr
direction or position of the outdoor ontennd. You may also try replacing the
outdoor antenna with Cl higher gdin antenna to increase the incoming signal.
- Check to see if it is necessary to odd more indoor ontennos. Borriers such 03
walls can block the signal indoors. You should also check the booster to make
sure the power is maximized. Try instdlling more indoor dntennds or replace
the booster with 0 higher powered one.
2. If the signal in Cl small section of the building hasn't been improved, try the
following:
- Check to see if the indoor antenna is installed correctly. Try moving the
antenna to improve coverdge.
- Try adjusting the direction the indoor antenna is pointing.
AUTHORIZED KITTING OPTIONS
The following dccessories ore authorized by the FCC to be used with the
Commercial 20K Pro Signdl Booster.
Outdoor Antenna & Cable Kit Options
Kit 9-5050
Yagi 9dbi Antenna & 50’ 5D Cable
Kit 11-100400
Yagi 11dbi Antenna & 100' 400 Cable
Kit 11-7550
Yagi 11dbi Antenna & 75' 5D Cable
Kit 11-100500
Yagi 11dbi Antenna & 100' 5D Cable
Kit 10-3050
Panel 10dbi Antenna & 30' 5D Cable
Kit 10-50400
Panel 10dbi Antenna & 50' 400 Cable
Kit 10-5050
Panel 10dbi Antenna & 50' 5D Cable
Kit 10-75400
Panel 10dbi Antenna & 75' 400 Cable
Kit 10-100400
Panel 10dbi Antenna & 100' 400 Cable
Kit 10-7550
Panel 10dbi Antenna & 75' 5D Cable
Kit 10-10050
Panel 10dbi Antenna & 100' 5D Cable
Kit 9-50400
Yagi 9dbi Antenna & 50' 400 Cable
Kit 9—75400
Yagi 9dbi Antenna & 75' 400 Cable
Kit 9-100400
Yagi 9dbi Antenna & 100' 400 Cable
Kit 9-7550
Yagi 9dbi Antenna & 75' 5D Cable
Kit 9—10050
Yagi 9dbi Antenna & 100' 5D Cable
Kit 7-3050
Panel 7dbi Antenna & 30' 5D Cable
Kit 7-50400
Panel 7dbi Antenna & 50' 400 Cable
Kit 7-5050
Panel 7dbi Antenna & 50' 5D Cable
Kit 7-75400
Panel 7dbi Antenna & 75' 400 Cable
Kit 7-100400
Panel 7dbi Antenna & 100' 400 Cable
14/19
Kit 7-7550
Panel 7dbi Antenna & 75' 5D Cable
Kit 7-10050
Panel 7dbi Antenna & 100' 5D Cable
Kit 5-30400
Omni 5dbi Antenna & 30' 400 Cable
Kit 5-3050
Omni 5dbi Antenna & 30' 5D Cable
Kit 5-50400
Omni 5dbi Antenna & 50' 400 Cable
Kit 5-5050
Omni 5dbi Antenna & 50' 5D Cable
Kit 5-75400
Omni 5dbi Antenna & 75' 400 Cable
Kit 5-10400
Omni 5dbi Antenna & 100' 400 Cable
Kit 5-7550
Omni 5dbi Antenna & 75' 5D Cable
Kit 5-10050
Omni 5dbi Antenna & 100' 5D Cable

Indoor Antenna & Cable Kit Options
Kit 72-5050-50
2 Panel 7dbi Antenna with50' 5D N male
& 2-Way Splitter
Kit 52-5050-50
2 Whip 5dbi Antenna &50' 5D Cable
& 2-Way Splitter
Kit 102-5050-50
2 Panel 10dbi Antenna with50' 5D N male
& 2-Way Splitter
Kit 103-7550-50
3 Panel 10dbi Antenna & 75' 5D Cable
& 3-Way Splitter
kit 104-7550-50
4 Panel 10dbi Antenna & 75' 5D Cable
& 3 2-Way Splitter
Kit 73-7550-50
3 Panel 7dbi Antenna & 75' 5D Cable
& 3-Way Splitter
kit 74-7550-50
4 Panel 7dbi Antenna & 75' 5D Cable
& 3 2—Way Splitter
Kit 3-30400
Omni 3dBi Antenna with 30' 400 Cable
Kit 3-5050
Omni 3dBi Antenna & 50' 5D Cable
Kit 3-7550
Omni 3dBi Antenna & 75' 5D Cable
Kit 3-10050
Omni 3dBi Antenna & 100' 5D Cable
15/19
Kit 3-30400
Omni 3dBi Antenna with 30' 400 Cable
Kit 3-50400
Omni 3dBi Antenna & 50' 400 Cable
Kit 32-50400-50
2 Omni 3dBi Antenna & 50' 400 Cable
& 2-Way Splitter
Kit 33-50400-50
3 Omni 3dBi Antenna & 50' 400 Cable
& 3-Way Splitter
Kit 34—50400-50
4 Omni 3dBi Antenna &50' 400 Cable
& 3 2-Way Splitter

‘2“
111130051"
FCC RF EXPOSURE STATEMENT
This equipment complies with FCC radiation exposure limits set forth for on
uncontrolled environment. End users must follow the specific operoting
instruction for satisfying RF exposure compliance. This tronsmitter must not
be co-locoted or operating in conjunction with any other antenna or
tronsmitter.
|C RF EXPOSURE STATEMENT
The device is compliance with RF exposure limits. The minimum distance
from body to use the device is 20 CM.
Le present opporeil est conforme oux conformité ou oux limites d'intensité
de chomp RF. Lo distonce minimole du corps o utiliser le dispositif est de 20
CM.
WARNING AND STATEMENT
This is o CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have
your provider's consent. Most wireless providers consent to the use of signal
boosters. Some providers may not consent to the use of this device on their
network. If you are unsure, contact your provider.
In Canada, BEFORE USE, you must meet all requirements set out in ISED CPC-2-1-05.
You MUST operate this device with approved antennas and cables as specified by
the manufacturer. Antennos MUST be installed least 20 cm (8 inches) from (Le,
MUST NOT be installed within 20 cm of) any person.
You MUST ceose operoting this device immediately if requested by the FCC (g
ISED in Canada) or o licensed wireless service provider.
WARNING. E911 location information may not be provided or may be inaccurate for
calls served by using this device.
This device may be operated ONLY in 0 fixed location (i.e., mov operate in 0 fixed
location only) for in-building use.
Note: This equipment has been tested and found to comply with the limits for 0
Class B digital device, pursuant to Port 15 of the FCC Rules. These limits ore
designed to provide reasonable protection against harmful interference in 0
residential instollotion. This equipment generates, uses and con rodiote rodio
16/19

frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by Huaptec could void the
user's authority to operate the equipment.
Note: For a complete list of antennas and cables approved for use with these
boosters see Authorized Kitting Options page 14.
FCC 27.50(d)(4)Statement: Fixed, mobile, and portable (handheld) stations
operating in the 1710-1755 MHz band are limited to 1 watt EIRP. Fixed stations
operating in the 1710-1755 MHZ band are limited to a maximum antenna height
of 10 meters above ground.
FURTHER INFORMATION ON SIGNAL BOOSTER END-USE REGISTRATION
The following is currently active contact of US wireless provider for booster
register.
https://www.uscellular.com/uscellular/support/fcc-booster-registration.jsp
https://www.sprint.com/IegaI/fcc_boosters.html
https://www.verizonwireless.com/solutions-and-services/accessories/register-
signal-booster/
https://support.t-mobiIe.com/docs/DOC-9827
https://securec45.securewebsession.com/attsignalbooster.com/
IC Statement
This device complies with Innovation, Science and Economic Development
Canada ICES-003 Compliance Label: CAN ICES-3 (B)/ NMB-3(B).
Le présent appareil est conforme Innovation, science et développement
économique Canada ICES-003 Etiquette de conformité: CAN ICES-3 (B) / NMB-S
(B).
Link to CPC-2-1-05
http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08942.htm|
17/19

J
#330051"
SPECIFICATION
RF Parameter Uplink Downlink
700MHz Band 12/17 698~716MHZ 728~746MHZ
700MHz
Band
13
776~787MHZ 746~757MHZ
Frequency Range 800MHz Band 5 824~849MHZ 869~894MHZ
PCS1900
Band
25/2
1850~1915MHZ 1930~1995MHZ
AWSZ100
Band
4
1710~1755MHz
2110~2155MHz
700MHz
Band
12/17
18MHz
700MHz
Band
15
11MHz
Band width 800MHz Band 5
25MHz
PCS1900
Band
25/2
65MHz
AW82100 Band 4 45MHz
Max. Gain
70dB
Max. output power
17~24dBm 12dBm
MGC (Step Attenuation )
> 25dB/ 1dB step
Electrical
Parameter
Standard
Power
Supply
Input
AC
100~240
V,
50~60
Hz,
Output
DC
12
V/
3
A
Input
&
Output
Impedance
50
ohm
Mechanical
Parameter
Standard
I
/0
Port
N-Female
Dimensions
8.7*7.3*2.2
inch
/
220*185*55
mm
Weight
<
8.8
lbs
/
4
kg
18/19

PRODUCT WARRANTY
30-Day Money-Back: All HiBoost products are protected by a 50-day money-
back guarantee. If for any reason the performance of any product is not
acceptable, the product may be returned to the reseller with a dated proof of
purchase.
5-Year Warranty HiBoost Signal Boosters and kits are warranted for 5 years.
Customers can choose to return the Signal Boosters and kits directly to the
manufacturer at the purchaser’s expense with a dated proof of purchase and a
Returned Material Authorization (RMA) number supplied by HiBoost.
HiBoost will supply two options: repair or replace. HiBoost will cover the cost of
delivery for the consumers located within the continental US.
This warranty does not apply to any Signal Boosters or kits determined by
HiBoost to have been subjected to misuse, abuse, neglect, or mishandling that
alters or damages physical or electronic properties. Failure to use a surge
protected AC Power Strip with at least a 1000 Joule rating will void your
warranty. Damage caused by lightning is not covered by this warranty.
All HiBoost products that are packaged with other HiBoost accessory products
are intended for resale and used as a single integrated system. Such product
kits are required to be sold to the end users or subsequent reseller as packaged.
RMA numbers may be obtained by contacting Technical Support at 972-870-
5666.

HiBoost USA
6210 N Belt Line Rd., Ste. 110, Irving, TX 75063
Phone/Fax: [phone]
E-mail: [email protected]
Website: www.hiboostusa.com
