HiBoost Hi10-EGSM User manual

User Manual 02P
HiBoost Consumer Mobile Signal Booster
HiBoost Booster – Hi10-EGSM, Hi10-3S-IOT (Hi10-EDW-IOT), Hi13-LTE800, Hi13-EGSM, Hi13-DCS, Hi13-ENR700,
Hi13-EW, Hi13-ED, Hi13-3S-IOT (Hi13-EDW-IOT), Hi13-3SL-IOT, Hi13-5S-IOT, Hi17-EW,
Hi17-3S-IOT(Hi17-EDW-IOT), Hi17-3SL-IOT, Hi17-5S-IOT, Hi13-EL800, Hi17-EL800, Hi23-ENR700.
HiBoost Booster – Hi10-EGSM, Hi10-3S-IOT (Hi10-EDW-IOT), Hi13-LTE800, Hi13-EGSM, Hi13-DCS, Hi13-ENR700,
Hi13-EW, Hi13-ED, Hi13-3S-IOT (Hi13-EDW-IOT), Hi13-3SL-IOT, Hi13-5S-IOT, Hi17-EW,
Hi17-3S-IOT(Hi17-EDW-IOT), Hi17-3SL-IOT, Hi17-5S-IOT, Hi13-EL800, Hi17-EL800, Hi23-ENR700.
HiBoost Booster – Hi10-EGSM, Hi10-3S-IOT (Hi10-EDW-IOT), Hi13-LTE800, Hi13-EGSM, Hi13-DCS, Hi13-ENR700,
Hi13-EW, Hi13-ED, Hi13-3S-IOT (Hi13-EDW-IOT), Hi13-3SL-IOT, Hi13-5S-IOT, Hi17-EW,
Hi17-3S-IOT(Hi17-EDW-IOT), Hi17-3SL-IOT, Hi17-5S-IOT, Hi13-EL800, Hi17-EL800, Hi23-ENR700.
HiBoost Booster – Hi10-EGSM, Hi10-3S-IOT (Hi10-EDW-IOT), Hi13-LTE800, Hi13-EGSM, Hi13-DCS, Hi13-ENR700,
Hi13-EW, Hi13-ED, Hi13-3S-IOT (Hi13-EDW-IOT), Hi13-3SL-IOT, Hi13-5S-IOT, Hi17-EW,
Hi17-3S-IOT(Hi17-EDW-IOT), Hi17-3SL-IOT, Hi17-5S-IOT, Hi13-EL800, Hi17-EL800, Hi23-ENR700.
HiBoost Booster – Hi10-EGSM, Hi10-3S-IOT (Hi10-EDW-IOT), Hi13-LTE800, Hi13-EGSM, Hi13-DCS, Hi13-ENR700,
Hi13-EW, Hi13-ED, Hi13-3S-IOT (Hi13-EDW-IOT), Hi13-3SL-IOT, Hi13-5S-IOT, Hi17-EW,
Hi17-3S-IOT(Hi17-EDW-IOT), Hi17-3SL-IOT, Hi17-5S-IOT, Hi13-EL800, Hi17-EL800, Hi23-ENR700.
Manuel de l'utilisateur 17P
Amplificateur de signal Mobile Consommateur HiBoost
Betriebsanleitung 33P
Amplificateur de signal Mobile Consommateur HiBoost
Manuale d'uso 48P
HiBoost Amplificatore del Segnale Mobile
Manual de Usuario 63P
HiBoost Amplificador de Señal Móvil de Consumo
MADE BY HUAPTEC

Usage And Installation Restrictions
2
Preface
Glossary of Terms
Safety Warnings
Overview
Features
LCD Introduction
Before You Install
Installation Overview
Booster System Installation Examples
Troubleshooting
Main Specification
Product Warranty
Huaptec Contact Way
Step 1. Installation of Outdoor Antenna
Step2.Installthe Indoor Antenna
Step 3. Install the Mobile Signal Booster
Step 4. Booster Commissioning
Control Button and Manual Gain Control (MGC)
Install HiBoost Booster System
Package Contents
Booster Ports' Description
3
3
3
4
5
5
6
6
6
7
8
8
8
8
10
11
12
12
14
15
16
16

3
Preface
Booster Model
Safety Warnings
This user manual describes design, installation, commissioning and maintenance of HiBoost consumer mobile signal
boosters. Please read user manual carefully before installing and maintaining the boosters. The information in this
manual is a subject to change without prior notice.
Note:The users of repeaters should get permission from the mobile providers for the use and installation of the repeater.
Item Definition
Glossary of Terms
700MHz Available on LTE/NR700(703~733MHz/758~788MHz) network
800MHz Available on LTE800(832~862MHz/791~821MHz) network
1800MHz Available on GSM/LTE1800(1710~ 1785MHz/1805-1880MHz) networks
2100MHz Available on 3G(WCDMA/UMTS2100)(1920-1980MHz/2110-2170MHz) networks
2600MHz Available on LTE2600(2500-2570MHz/2620~2690MHz) network
RF Radio Frequency
ATT Attenuation
ALC Automatic Level Control
AGC Automatic Gain Control
MGC Manual Gain Control
dB Decibel
dBm Decibels relative to 1 mill watt
UL Uplink
DL Downlink
Hz Hertz
MHZ Megahertz
NF Noise Figure
RSSI Received Signal Strength Indicator
900MHz Available on EGSM900(880~890MHz/925-935MHz) and PGSM900
(890~915MHz/935~960MHz) , WCDMA/UMTS900(880~915MHz/925~960MHz) networks
The user manual can be used for the following models: Hi10-EGSM, Hi10-3S-IOT (Hi10-EDW-IOT), Hi13-LTE800,
Hi13-EGSM, Hi13-DCS, Hi13-ENR700, Hi13-EW, Hi13-ED, Hi13-3S-IOT (Hi13-EDW-IOT), Hi13-3SL-IOT, Hi13-5S-IOT,
Hi17-EW, Hi17-3S-IOT(Hi17-EDW-IOT), Hi17-3SL-IOT, Hi17-5S-IOT, Hi13-EL800, Hi17-EL800, Hi23-ENR700.
Users must follow the principles stated below:
The booster should follow system requirements of mobile signal enhancement, assure good grounding and lightning
protection.
Booster's power supply voltage should meet the standards of security requirements;
The device has a plug connection, the socket must be close to the device and accessible.
Operating Temperature range is -10 - +55 degrees Celsius.
Any operation should be carried out only after cutting off power in advance. Only the professional user is authorized
for the operation.
Do not dismantle the machine, maintain or displace accessories by yourself. In this way, the equipment can be
damaged and you can even get an electric shock.
Do not open the booster, touch the module of booster, or open the cover of module to touch the electronic
component. The components will be damaged due to electrostatic.
Keep away from heating equipment, because the booster will dissipate heat during working. And do not cover
booster with anything that influences heat-dissipation.
During the transportation and storage process, the device should avoid the humid environment, prevent violent
impact and avoid strong vibration.
The Body Separation distance is 50cm by using the procedure of MPE calculation.

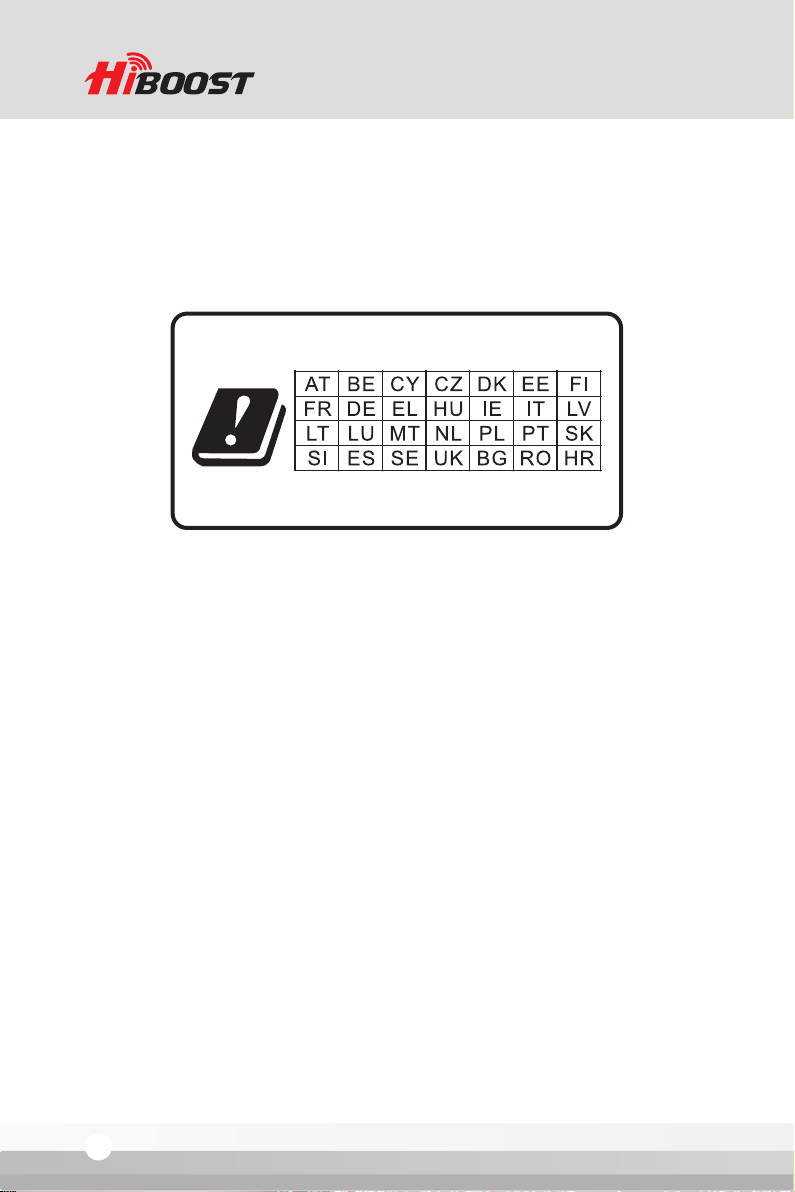

USAGE AND INSTALLATION RESTRICTIONS
4
Signal booster devices for NR700, LTE800, EGSM/PGSM/WCDMA/UMT900, GSM/LTE1800, WCDMA/UMTS2100, and
LTE2600 mobile network operators, holders of the corresponding licenses and in each case within the frequencies
assigned to them, since they are broadband amplifiers acts.
The new HiBoost generations are self-regulating and switch themselves off in critical situations because they are
equipped with C.A.S. (automatic shutdown control). If installed incorrectly, these systems can cause serious disruptions to
mobile network operators, with legal and economic consequences for the owner of the kit and the installer who installed
the antennas.
Huaptec Telecom GmbH assumes no liability for incorrect installation by inexperienced and unqualified personnel or in
any case by personnel without the necessary equipment and license.
Furthermore, Huaptec Telecom GmbH also assumes no liability for improper use of the field expansion kits due to
incorrect positioning and alignment of the external and internal antennas, which can cause problems for other users or
disruptions to mobile network operators and providers.
Note: Mobile network boosters are not telecommunications terminal equipment, but rather radio equipment whose
operation constitutes spectrum use and therefore require frequency allocation. However, since the operating frequencies
in question have been allocated to mobile network operators and are no longer available, the operation of a repeater is
subject to the approval of mobile network operators.

5

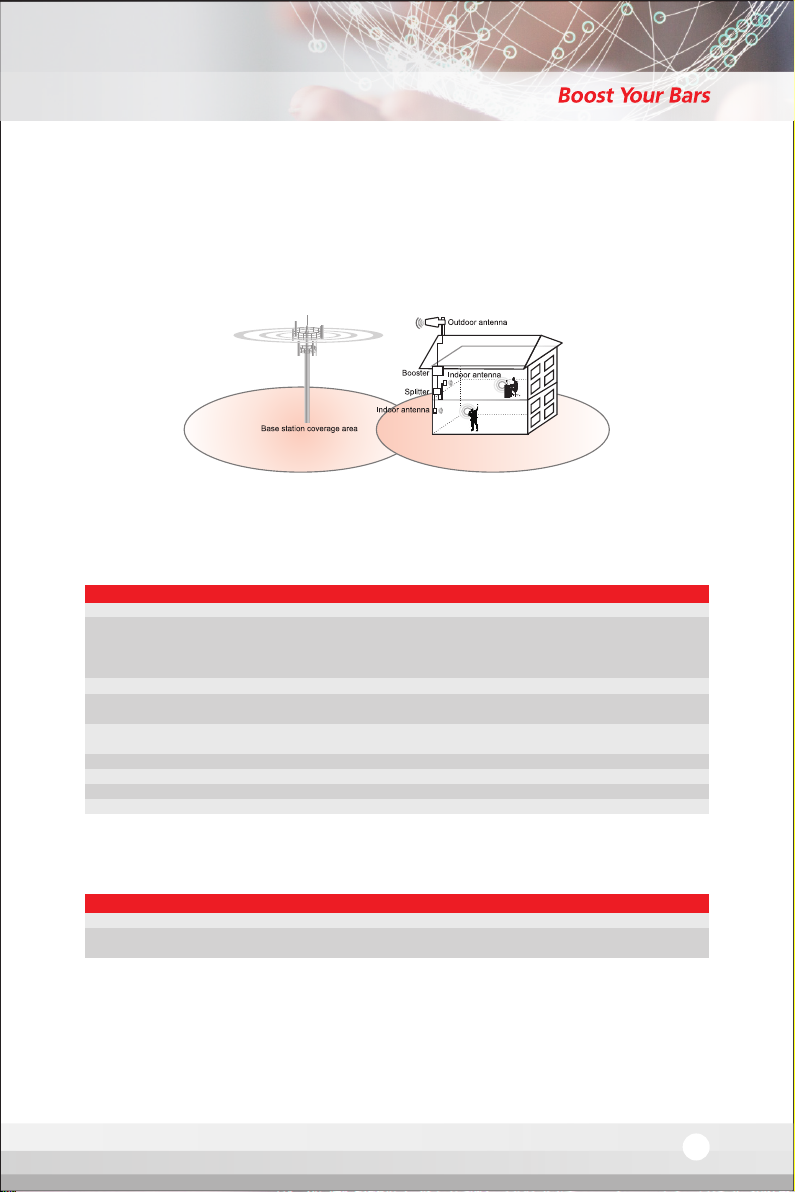

HiBoost Booster Overview
HiBoost consumer boosters are designed to amplify a weak mobile signal indoors.
The devices are bi-directional. The outdoor antenna receives the signal from the cell tower and transmits it to the signal
booster, the booster amplifies the signal and the indoor antenna sends it to your mobile device. Visa versa, the signal
produced by your phone is also received by the indoor antenna, amplified by the booster and then sent back to the cell
tower through the outdoor antenna.

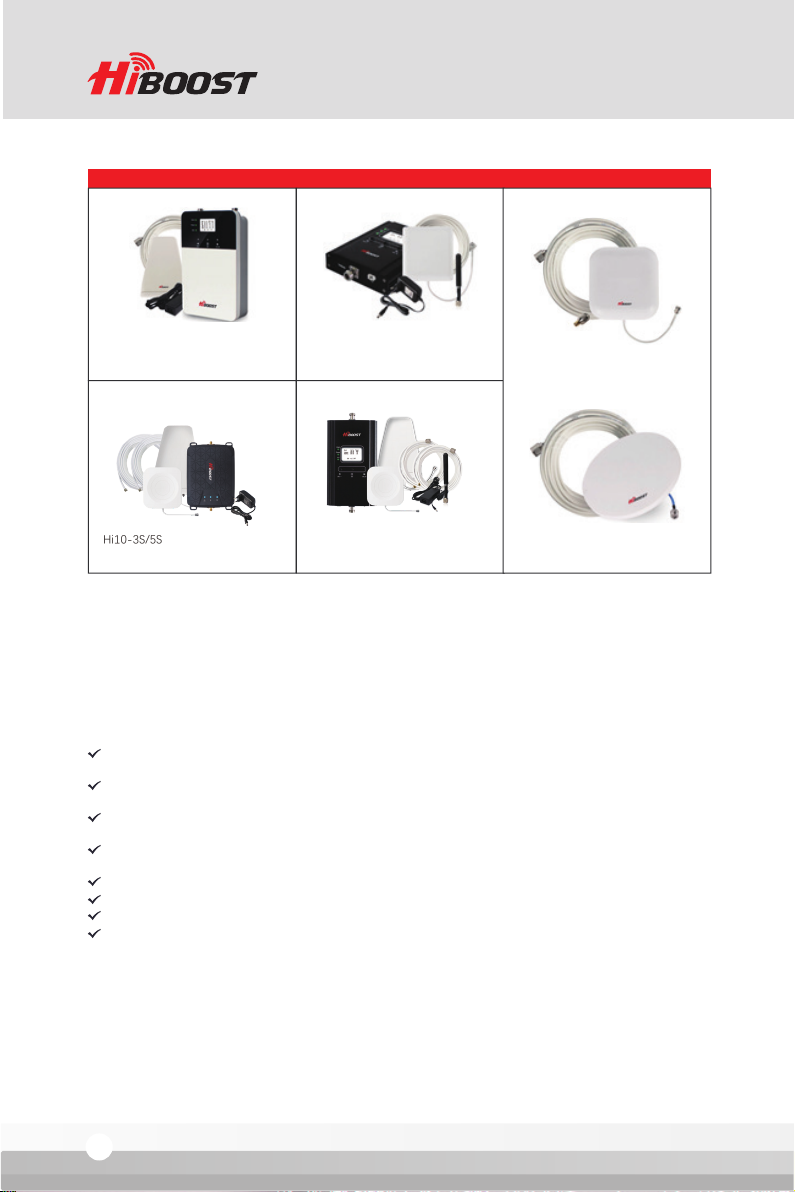

Package Contents
Hiboost Professional Signal Booster Standard Packing List
Optional Panel Kit for HiBoost Consumer Booster
No. Name Description Quantity
No. Name Description Quantity
1 1Hiboost Professional Signal Booster
3 Power Cord
2 1Adapts
Hi10/13 Single Band 12V/3A
Hi10-23 Dual Band 12V/3A
Hi10-17 Triple Band 12V/3A
Hi10-17 Quint Band 12V/3A
European Standard Plug
4 5Plastic expansion bolt Triple Band ^8
Quintuple Band ^8
5 4Tapping screw
6 1User Manual
Triple Band M4*25
Quintuple Band M4*25
2 1N-Female
Indoor Wide Band Panel Antenna
/ Indoor Wide Band Omni Antenna
7 1Outdoor Antenna N-Female
8 1Whip antenna (Single band/Dual band) N-Female
9 1Hiboost200 low-loss cable 50 feet (15mt),N-male
1 2Hiboost200 low-loss cable 50 feet, N-male

Features
Standard Package Content Accessories Standard Kit
Hi13-3S/3SL/5S-IoT
Hi17-3S/3SL/5S-IoT
Hi10-EGSM, Hi13-LTE800
Hi13-EGSM, Hi13-DCS
Hi10-3S/5S Hi13/23-ENR700, Hi13-ED
Hi13/17-EW, Hi10/13/17-EL800
Note: The outdoor and indoor antennas of the booster must be connected with the appropriate RF cables. The length of
the cable or other accessories needed can vary according to the size and construction materials used in the building,
outdoor signal strength and layout of the structure. Please contact us for assistance in designing your system.
If you need to add more indoor antennas or other accessories, please contact Huaptec Support Team at the phone 044-
20-32395802 or by e-mail [email protected].
Embedded CPU, self-adaptive intelligent system very easy to use and install, better performance is guaranteed even
under complicated and constantly changing RF environment conditions.
ISO: Intelligent isolation processing to avoid self-oscillation, quite wide adjusting range to stabilize the signal
strength/quality for clearer voice/ higher data throughput and avoid interference with mobile networks.
ALC: Intelligent automatic level control, quite wide adjusting range to stabilize the output power and improve the
signal quality for clearer voice and higher data throughput.
LCD Display: Displays ISO status, ALC status, actual gain and downlink output power which makes booster installation
and troubleshooting much easier.
MGC: Manual gain control buttons to adjust the gain for both uplink and downlink independently, 31dB range.
Excellent RF performance, larger coverage area, clearer voice and higher data throughput.
Elegant design, compact size, very low power consumption and heat dissipation.
Bluetooth and Wi-Fi modules.
6

7

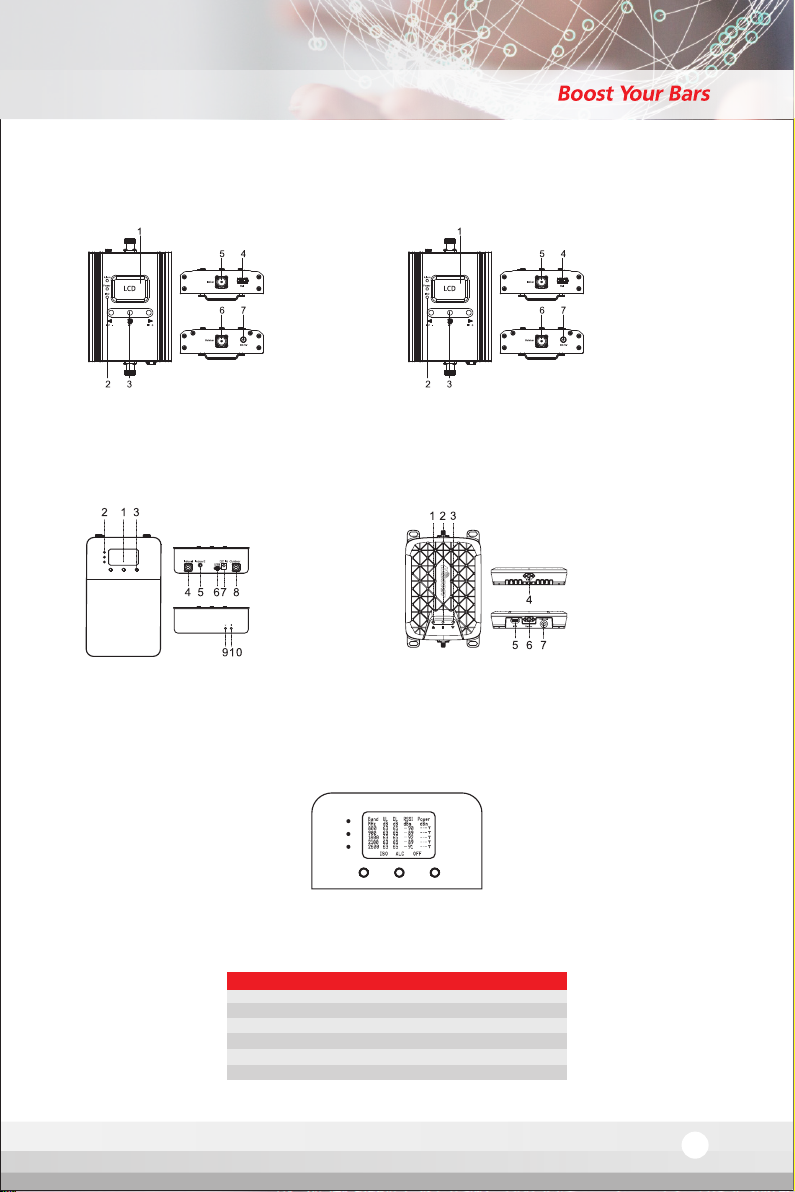

Booster Ports' Description
Single Band Booster
Triple and Quintuple Band
LCD Introduction
1. LCD 2. Booster’s Status LED indicators
3. Control buttons 4. Set
5. Indoor antenna port 6. Outdoor antenna port
7. Power connector
1. LCD 2. LED indicators 3. Control buttons
4. Indoor antenna port 5. Built-in antenna port*
6. Set 7. Power connector
8. Outdoor antenna port
9. Wifi led 10. Bluetooth led
Hi10-3S/5S
1. Alarm LCD 2. Data LED
3. Wifi LED
4. Indoor antenna port 5. USB
6. Outdoor antenna port
7. Power connector
Dual Band Booster
1. LCD 2. Booster’s Status LED indicators
3. Control buttons 9. Whip Antenna Port
4. Bluetooth/Wi-Fi LED indicators
5. Indoor antenna port 6. USB Port
7. Power connector 8. Outdoor antenna port
After the booster is on, gain and power will light up on the screen.
"Band"- displays the working frequency. Find below the list of frequencies displayed corresponding to the supported
networks.
Frequency
NR700
LTE800
EGSM&UMTS900
DSM&LTE1800
WCDMA/UMTS2100
LTE2600
LCD Display
700 MHz
800 MHz
900 MHz
1800 MHz
2100 MHz
2600 MHz

8
There are 5 operation modes relative to the control keys：
Press the "SET" key for more than 3 seconds
Briefly press the "SET" key
Briefly press the "DEC-" key
Briefly press the "INC+" key
Simultaneously press the "DEC-" and "INC+" keys for more than 3 seconds Since the booster has a self-adaptive
smart automatic level control (ALC), and isolation gain processing (ISO), most of the time manual adjustments are not
required to achieve good coverage. However, in some cases when the ALC or ISO are working at a very high rate to
adjust the gain and the Alarm or ISO LED is flashing more than once a second, a manual adjustment might be
required. When LCD is in the fixed display mode, press the "SET" key for more than 3 seconds. It will go into the "Gain
Setting Mode" and make one of the gain values start to blink.
Press the "SET" key briefly, and the LCD will switch to the next gain value and it will start blinking. (Uplink or downlink

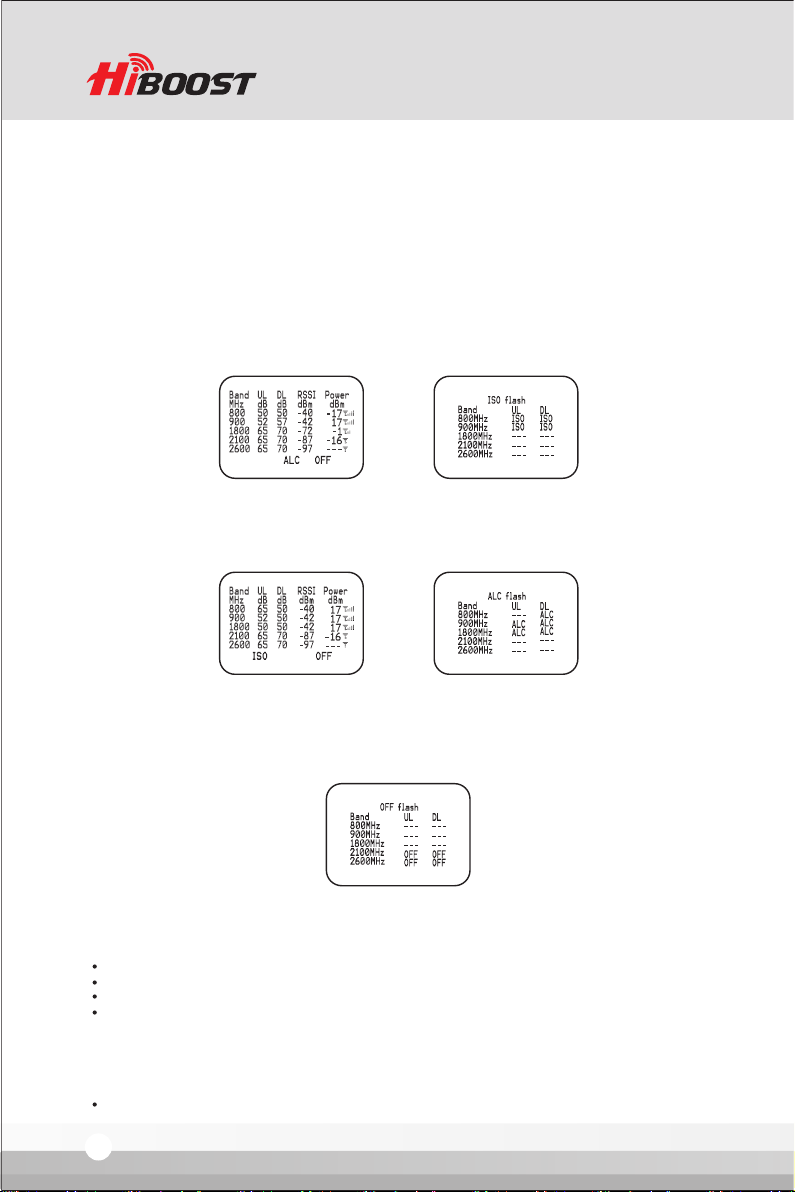

Control Button and Manual Gain Control (MGC)
"Power dBm"- power indication.
The displayed value shows real-time power. When booster's output power is 4OdBm lower than rated output power, the
value will display "---".
"ULdB"" DLdB"- gain indication.
The displayed value shows real-time uplink and downlink gain.
"ISO"_ isolation alarm indication.
When the booster doesn't have enough isolation between the outdoor and indoor antennas, the "ISO" is flashing. Press
the "SET" key and the LCD screen will display " ISO" value showing the current affected band or bands.
"ALC"- strong receiving power alarm indication.
When the booster's receiving too strong signal from outside, output power gets overrated and "ALC" starts flashing.
Press the "SET" key and the screen will turn on and show the affected band or bands.
"OFF"- booster shut-down alarm indication.
When LCD screen is in "OFF" state and the booster shuts down, LCD screen will be flashing. When LCD screen is "ON"
and the booster shuts down, "OFF" is flashing.
Press the "SET" key and the screen will show the affected band or bands.

9
Note: When adjusting the gain manually, please ensure that the uplink gain is equal to or not less than 5dB compared
with the configured downlink gain values. This avoids interference with the local cell tower network.When the LCD is in
the fixed display mode, press the "DEC-" and "INC+" key simultaneously for more than 3 seconds, the booster will reset
the gain to the default manufacturer settings.
When the LCD is in the alarm display mode, press the "SET" key and the LCD screen will turn on to help with
troubleshooting and display the alarm indication showing the affected band or bands, press the "INC+" (or "DEC-") key
to switch to different pages.
If none of the keys are pressed within 30 seconds, the display will return to the fixed display mode. If none of the control
keys are pressed within 5 minutes, the LCD screen will turn off. Pressing any key will return the display to the fixed mode.
Easy Installation in 4 simple steps

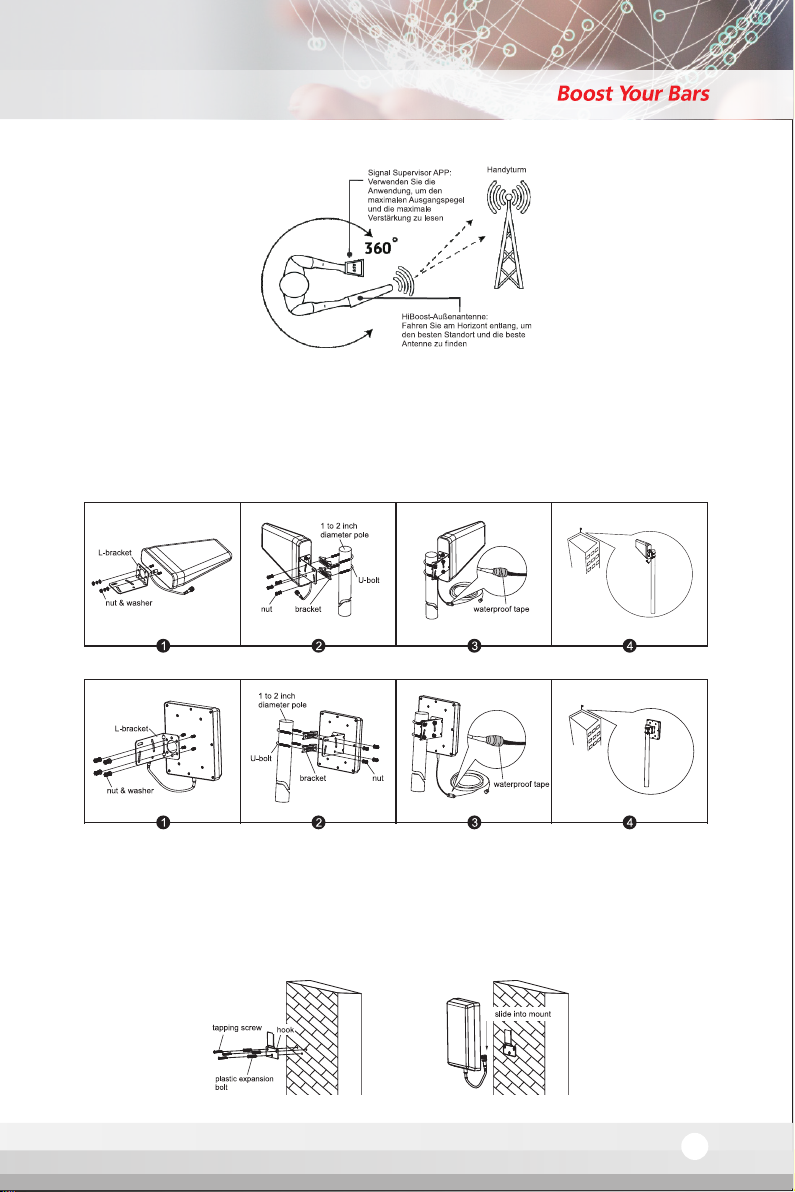

1. Find the strongest received signal for the location of the outdoor antenna
2. Install the outdoor antenna on the roof to obtain the strongest downlink signal from the local cellular towers It
should also be as far away as possible from where you plan to place the indoor antenna (vertical separation is more
important than horizontal separation).
3. Install the indoor antennas where you want to improve the signal level
4. Mount the booster, connect the cables from the outdoor antenna and indoor antenna at the designated ports, and
connect the booster to the AC supply (make sure all the cables are connected before applying power)
Make sure you have sufficient cable length between the outdoor,indoor antennas and the booster in case you have
not a standard kit.
Make sure the place where you install the booster is close to one of the existing electrical outlet. It should also be
well ventilated, away from excessive heat, moisture, and direct sunlight.
Install HiBoost Booster System
Before You Install
Installation Overview
Installation Overview
gain for a different band).
Press the "INC+" key once briefly and the gain will increase by 1dB, Press "DEC-" once briefly and the gain value will
be reduced by 1dB.
Press the "SET" key for more than 3 seconds, and the LCD will return to the fixed display mode.
1. Outdoor wide band Directional antenna
2. 50ft (15.2m) Hiboost200 low-loss cable
3. You can add an indoor panel/omni antenna and
50ft (15.2m)
Hiboost200 low-loss cable to extend the coverage
1. Outdoor wide band Directional antenna
2. 50ft (15.2m) Hiboost200 low-loss cable
3. Hiboost booster with built-in antenna

10
1.1 How to find the location with the strongest received signal
The booster's main function is to improve a weak RF signal inside a house, office or any other indoor area. The received
outdoor downlink signal strength directly affects the efficiency of the indoor coverage. That is why it is crucially important
to install the antenna at a good location and point it properly towards a tower where signal reception is the strongest.
There is two methods that can be used to find the strongest downlink signal from the local towers.
Step 1. Installation of Outdoor Antenna
You can use a mobile to test signal strength near the window or on the top of the building. The number of bars on
network indicator will define the approximate strength of the received signal. Normally, the roof of the building is the
best place to receive the strongest signal. As shown in the graph below, you need to test the signal in points from A to E,
and select a place with the best signal strength for outdoor installation. It is recommended to use a mobile app that can
display signal level, since it is more accurate than checking signal bars.
Mobile Phone Method
(for Hi10 Model/Hi13 Model/Hi17 Model/Hi23 Model)
Connect your booster with your smartphone through the Signal Supervisor application. Temporarily fix the outdoor
antenna on the roof and check the output power and gain values on your mobile phone. Turn the antenna slowly until
the application shows maximum power. Once this is achieved, the current location is the best to maximize the
performance of your amplifier.
Attention: for Hi10 models of the Hi10-EGSM, Hi10-EL800, Hi10-3S, Hi10-5S Series the downlink max output power is
10dBm, the maximum gain is 65dB; for Hi13 models of the Hi13-EGSM, Hi13-LTE800, Hi13-DCS, Hi13-ENR700, Hi13-ED,
Hi13-EW, Hi13-EL800, Hi13-3S/3SL/5S-IoT Series the downlink max output power is 13dBm, the maximum gain is 65dB;
for Hi17 models of the Hi17-EW, Hi17-EL800, Hi17-3S/3SL/5S-IoT Series the downlink max output power is 17dBm, the
maximum gain is 65dB; for Hi23 models of the Hi23-ENR700 Series the downlink max output power is 23dBm, the
maximum gain is 75dB;
Signal Supervisor method
Multi-storey building

Install the outdoor antenna at the location with the strongest received signal.
IMPORTANT: Testing the signal 3 times in the desired location before installing the outdoor antenna will help ensure the
smoothest and stable phone calls and data transmission. In most cases, outdoor wideband directional antenna is the best
choice. You can also choose an outdoor wide- band panel antenna as an option.
Pole mounting is recommended for your convenience:
Note: Wrap waterproof tape around the connectors between outdoor antenna and feeder line to avoid water or other
kind of damage.
Outdoor Wide Band Directional Antenna Installation:
Outdoor Wide Band Panel Antenna Installation:
1.2 Install Outdoor Antenna
If you choose the product's built-in antenna to cover your place, no indoor antenna installation is required. If you need
to extend the booster's coverage area, you can add an external indoor panel antenna. Install the indoor panel antenna as
shown on the graph below.
Step2.Installthe Indoor Antenna
11

If you have an indoor Omni ceiling antenna, the best place to install it is the center of your house. Install Omni ceiling
antenna as shown in the graph below.
Note: the required distance between the indoor and outdoor antennas is 10-15 m. Step 3. Install Signal Booster
1. Select the location near a power supply on a wall.
2. Mount the booster with the screws included into the kit as shown on the graph below.
3. Connect the outdoor antenna cable to the booster connector marked as "outdoor". Tighten the connection by hand or
with a wrench.
4. Connect the indoor antenna cables to the booster connector marked as "indoor". Tighten the connection by hand or
with a wrench.
5. Connect the AC power cord to the signal booster, then connect the plug to the electrical outlet to power on the
booster.
Note: the required booster mounting distance above the floor is 1-1,8 m.
If it's necessary to install multiple indoor antennas solution, please contact us, We will provide you with a professional
installation plan.
Step 3. Install the Mobile Signal Booster
Single and Dual Band Triple and Quintuple Band Hi103S/Hi105S
The booster has an intelligent startup system; booster commissioning is an automatic process able to guarantee an
optimal system performance.
As soon as you finish the booster system installation, plug it into a power supply to start the booster. It will start working
and checking the receiving signal strength and the isolation to ensure the best system performance. Automatic
adjustment will take about 3-5 seconds.
After the booster starts working, check the coverage. If the signal has improved throughout your home/office, the
booster commissioning is completed.
Step 4. Booster Commissioning
1. The rated output power is reached, but the coverage is not enough or the signal in some areas has not improved：
2. The rated output power is not reached.
In case the coverage is not enough, please check the following issues.
Check whether the indoor antenna is installed correctly or not, try to change the antenna position to improve
coverage.
Change the position or direction of the outdoor antenna to get a stronger receiving signal and higher output power
(Not necessarily to reach the rated value as long as the coverage is enough).
Check whether it is necessary to add more indoor antennas since the obstructions （thick walls, reinforced fence,
natural barriers like hills, mountains, etc.）block the signal.
Check if it is necessary to adjust the direction of the indoor antenna.
12

Check the LCD display. If the current gain is less than the rated value and "ISO" is flashing, it means the gain is
reduced by ISO function for not having enough isolation.
ISO status indicates if the booster has enough isolation between the outdoor and indoor antennas in order to avoid loop
back or so-called self-oscillation. HiBoost is equipped with a smart AGC function to avoid interference with mobile
networks. "ISO" flashing on the LCD display means that ISO function is working great and self-oscillation has been
eliminated.
More about "ISO" legend indication
ALC indicates the strength of receiving power of the booster. Flashing ALC means that the booster has strong receiving
power.
When the ISO or ALC indicators are flashing, please check the ISO and Alarm LED colors.
ISO LED flashing means that ISO function is working well and self- oscillation has been eliminated. ISO LED will remain
"Green" or will be "Slow Flashing Green". Note: This improvement won't increase the coverage, but is mandatory to avoid
causing interference to local carrier's cell site towers.
More about "ALC" legend indication
More about LCD indication：
LCD Status Meaning Solution
ISO Status
Remain still
Flashing but actual gain is not
more than 30dB and less than
rated gain.
Flashing but actual gain is
more than 30dB.
No loop back or no self-
oscillation. NO action is needed.
NO action is needed.
Slight loop back or no self-
oscillation
Deep loop back or no self-
oscillation
Please check the
Troubleshooting section to
get solutions.
Remain still
LCD Status Meaning Solution
ALC Status Full output power
Too strong receiving
Working Properly
Flashing but actual gain is not
more than 30dB and less than
rated gain.
Flashing but actual gain is
more than 30dB.
Output power is not weak
or just suitable.
Check coverage, leave it as it is if it's
good.
Please check the Troubleshooting
section to get solutions if coverage
is not good.
Working properly, but the signal is
too strong. Please check the
Troubleshooting section to get
solutions.
"- - -" status
LCD Status Meaning Solution
"OFF" status
Flashing LCD
screen
Actual gain is more
than 32dB less than
rated gain.
Output power is lower
40dBm than rated output
power.
Severe loop back or self-
oscillation or output
power is heavily
overrated which leads to
booster break down.
Check coverage, leave it as it is if it's
good；Please check the
Troubleshooting section to get
solutions if coverage is not good.
Not working properly. Please check
the Troubleshooting section to get
a solutions.
13

LCD Status Meaning Solution Methods
ISO LED
Green
Slow Flashing
Green
No loop back or no self-oscillation NO action is needed.
Slight loop back or self-oscillation
Quick Flashing
Green Deep loop back or self-oscillation
Quick Flashing
Red
OFF
Severe loop back or self-oscillation
The booster auto shuts off for
protection due to very severe self-
oscillation.
NO action is needed.
Not working properly. Check coverage. Leave it
as is if it's good. Please check the Troubleshoot-
ing section to get a solutions if coverage is not
good.
Not working properly.
Please check the Troubleshooting section to get
a solutions.
Problem Solution Methods
The signal booster has no power. Check that the AC outlet is working.
The booster's power is on but the phone is not
connected to the network and still cannot
communicate with the signal.
Try to fasten the connections between the different
parts of the system.
Change the direction of donor antenna or its installation
position.
Good downlink signal with poor communication quality.
Check whether there's interference.
Consult the operator whether the signal source base
station works well.
Alarm LED: Indicates the strength of the received signal from the cell tower. Flashing Alarm means that the booster is
receiving a strong signal on one or more bands. Alarm LED shall remain "Green" or "Slow Flashing Green". Slow flashing
green indicates that everything is working well and the booster is working at nearly the optimum output power to
achieve the best possible coverage.
Green
LCD Status Meaning Solution Metods
Alarm LED
Full output powerSlow Flashing Green
Quick Flashing Green
Quick Flashing Red
Output power is too high
signal
The booster automatically
shuts off for protection from
excessive downlink signal
from tower.
Working Properly
Output power is not maximum
Check coverage, if it is good, leave it as it
is; if coverage is not good, increase the
receiving signal level.
Not working properly, actions must be
taken.
Not working properly.
Check coverage, leave it as it is if it's
good; actions must be taken if coverage
is not good or you don't feel
comfortable about Alarm LED quick
flashing green.
Troubleshooting
The power is on but the coverage is not good. Check "ISO"，"ALC" or other LCD or LED indications.
Take the actions mentioned below.
Eliminate flashing ISO legend and quick flashing green, quick flashing red
ISO LED problems：
14

1. Adjust the outdoor antenna direction, keeping it away from the indoor antenna. Restart the booster.
2. Increase the vertical or horizontal distance between the outdoor antenna and indoor antenna. Restart the booster.
3. Use barriers such as walls to increase the isolation.
4. Change the indoor antenna type to another one with a more directional pattern. Orient the indoor antenna and outdoor
antenna so that they point in opposite directions.
5. Reduce the booster's downlink gain using the manual gain control. Keep the uplink gain value and downlink gain value
the same, then restart the booster. Note: Uplink gain must be equal to or not less than 5dB below the downlink gain to
avoid interference with the local carrier's network.
Target: The ISO issues are solved when the ISO LED is "Green" or " Slow Flashing Green" or no flashing ISO legend.
1. Adjust the antennas' direction or position to lower downlink received signal level.
2. Slowly reduce the downlink gain using the Manual Gain Control.
3. If the above methods don't work, reduce the booster's gain with an external attenuator in line with the outdoor
antenna or replace it with a lower gain antenna.
Target: The overload issues are fixed when the Alarm LED is " Green" or "Slow Flashing Green" or no flashing ALC
legend. Please note that a " Green" LED indication may result in smaller coverage area. This can be improved by
adjusting the outdoor antenna to receive a stronger signal.
Note: The flashing ISO and Alarm status indicates that ISO and ALC functions are working properly and the problems of
self-oscillation and strong downlink signals are fixed. In most cases, there is no need to take any additional measures
except for deep self-oscillation or excessively strong signals from the cell tower. The self-adaptive ALC and isolation gain
processing system automatically solve most problems.
Eliminate Flashing ALC legend and Quick Flashing Green, Quick Flashing
Red Alarm LED problems：
Eliminate poor coverage problems when Power "-" legend on LCD and
Alarm LED is Green：
1. If the signal has not been improved, please check below：
The weak downlink signal leads to the low output signal level. Change the direction or position of the outdoor
antenna. You may also try replacing the outdoor antenna with a higher gain antenna to increase the incoming signal.
Check if it is necessary to add more indoor antennas. Barriers such as walls can block the signal indoors. You should
also check the booster to make sure the power is maximized. Try installing more indoor antennas or replace the
booster with one of higher power.
2. If the signal in some part of the house/building hasn't been improved, try the following：
Check if the indoor antenna is installed correctly. Try moving the antenna position to improve the coverage.
3. Remark：
When increasing the downlink gain make sure the isolation is adequate to prevent system oscillation.
Try adjusting the direction of the indoor antenna.
30-Day Money-Back Guarantee All HiBoost products are protected by 30-day money-back guarantee. If for any reason
the performance of the received product is not acceptable，the client can return the product within30-day period and
get spent money back.2-Year Warranty HiBoost signal boosters are covered with 2-year warranty. Huaptec offers two
options for the products under warranty: repair or replace.This warranty does not apply to HiBoost signal boosters or kits
that have been subjected tomisuse, abuse, neglect or mishandling and that have its physical or electronic properties
altered or damaged. Failure to use surge protected AC power strip with at least a 1000 Joule rating will void your
warranty.All HiBoost products that are packaged with HiBoost accessory products are intended for use and resale as a
single unit, and such product kits are required to be sold to the end users or subsequent reseller as packaged.For any
questions or suggestions do not hesitate to contact Huaptec Support Team on the phone [phone] or by
e-mail [email protected]
Product Warranty
15

RF Parameter UL DL
Frequency Range
700 MHz
800 MHz
900 MHz
1800 MHz
2100 MHz
2600 MHZ
703-733 MHz
832-862 MHz
880-915 MHz
1710-1785 MHz
1920-1980 MHz
2500-2570 MHZ
758-788 MHZ
791-821 MHZ
925-960 MHZ
1805-1880 MHZ
2110-2170 MHZ
2620-2690 MHZ
Max. Gain
Hi10 Model
Hi13 Model
Hi17 Model
Hi23 Model
60 dB
60 dB
65 dB
70 dB
63 dB
65 dB
65 dB
75dB
Main Specification
Max. output
Hi10 Model
Hi13 Model
Hi17 Model
Hi23 Model
17dBm
17dBm
17dBm
20dBm
10dBm
13dBm
17dBm
23dBm
MGC (Step Attenuation) >31 dB/1 dB step
Input & Output Impedance 50 ohm
1 /O Port Type N-Female
Operating Temperature
Relative Humidity
Barometric Pressure
Environment Conditions
- 10ºC～+55ºC
5%-95%
55 kPa -106 kPa
IP40
Intelligent AGC*power ALC
ISO
>42 dB
>42 dB
Power Supply
Single Band
Dual Band
Triple & Quint Band
Input AC 90-264V, 50/60 Hz, Output DC 12V/3A
Input AC 90-264V, 50/60 Hz, Output DC 12V/3A
Input AC 90-264V, 50/60 Hz, Output DC 12V/3A
Power Consumption
Single Band
Dual Band
Triple & Quint Band
<5W
<10W
<15W
Dimensions
Single Band
Dual Band
Triple & Quint Band
120*198*34 mm
120*198*34 mm
153*246*36 mm
Weights
Single Band
Dual Band
Triple & Quint Band
<1 kg
<1 kg
<1.8 kg
Electrical Parameter
Mechanical Parameter
Environment Parameter
Huaptec Contact Way
Huaptec CN Huaptec EU Huaptec US
Phone/Fax:[phone]
E-mail :[email protected];
Phone/Fax:
[phone]
[phone]
[phone]
Phone/Fax:[phone]
Website:www.huaptec.com; Website:www.hiboost.com/eu Website:www.hiboost.com;
Address:
3rd FL, E BLDG, Sogood Science
Park, Hangkong Road, Xixiang,
Bao'an, Shenzhen, China 518102
Address:
Herderstr. 94, 40721 Hilden,
Germany
Address:
3150 Premier Dr.,Ste.130,Irving,TX
75063
Email: [email protected]
[email protected];
[email protected];
E-mail:[email protected];
16

17
Vue d’ensemble
Preface
Glossaire Terminologique
Avertissements de Sécurité
Package Contents
Description des Ports de L'amplificateur
Installation du Systeme D'amplification Hiboost
Resolutions des problemes
Specifications Principales
Garantie du produit
Manière de contact Huaptec
Bouton de commande et commande manuelle de gain (MGC)
Vue D'ensemble de L'installation
Exemples D'installation du Systeme Hiboost
Étape 1. Installation de l'antenne extérieure
Etape 2. Installer I'antenneexterieure
Etape 3.Installer L'amplificateur de Signal Mobile
Etape 4. Mise en Service de L'amplificateur
En savoir plus surI'indication de la legende"ISO"
En savoir plus sur Il'indication de la legend "ALC"
Plus a propos de I'indicateur LCD：
Characteristiques
Introduction LCD
AvantI'installation
18
18
18
20
20
21
22
22
23
24
24
24
24
25
26
27
27
28
28
28
29
31
32
32

Preface
Booster Model
Avertissements de Sécurité
Ce manuel d'utilisation decrit la conception, I'installation, la mise en service et la maintenance des amplificateurs de
signaux mobiles Hiboost grand public. Veuillez lire attentivement le manuel d'utilisation avant d'installer et d'entretenir
les amplificateurs de puissance.
Les informations contenues dans ce manuel sont sujettes a modification sans preavis. Les avis sur I'amelioration
manuelle sont les bienvenus.
Note: Les utilisateurs de repeteurs doivent obtenir I'autorisation des fournisseurs de services mobiles pour I'utilisation et
I'installation durepeteur.
Item Definition
Glossaire Terminologique
700MHz Disponible sur le réseau NR700(703~733MHz/758~788MHz)
800MHz Disponible sur le réseau LTE800(832~862MHz/791~821MHz)
1800MHz Disponible sur les réseaux GSM/LTE1800(1710-1785MHz/1805-1880MHz)
2100MHz Disponible sur les réseaux (WCDMA/UMTS2100) (1920-1980MHz/2110-2170MHz)
2600MHz Disponible sur les réseaux LTE2600(2500~2570MHz/2620~2690MHz)
RF Fréquence Radio
ATT Atténuation
ALC Contrôle Automatique de Niveau
AGC Contrôle de Gain Automatique
MGC Contrôle de Gain Manuel
dB Decibel
dBm Décibels relatif à 1 milliwatt
UL Liaison Montante
DL Liaison Descendante
Hz Hertz
MHZ Mégahertz
NF Facteur de Bruit
RSSI Received Signal Strength Indicator
900MHz Disponible sur les réseaux EGSM900(880~890MHz/925~935MHz) et PGSM900
(890-915MHz/935~960MHz), WCDMA/UMTS900(880~915MHz/925~960MHz)
Le manuel d'utilisation peut étre utilise pour les modeles suivants：Hi10-EGSM, Hi10-3S-IOT (Hi10-EDW-IOT), Hi13-LTE800,
Hi13-EGSM, Hi13-DCS, Hi13-ENR700, Hi13-EW, Hi13-ED, Hi13-3S-IOT (Hi13-EDW-IOT), Hi13-3SL-IOT, Hi13-5S-IOT,
Hi17-EW, Hi17-3S-IOT(Hi17-EDW-IOT), Hi17-3SL-IOT, Hi17-5S-IOT, Hi13-EL800, Hi17-EL800, Hi23-ENR700
Les utilisateurs doivent suivrent les principes cités ci-dessous:
L'amplificateur de puissance doit être conforme aux exigences du système de l'équipement d'amélioration des
signaux mobiles, assurer une bonne mise àla terre et une bonne protection contre la foudre.
La tension d'alimentation de l'amplificateur doit être conforme aux normes de sécurité; toute opération ne doit être
effectuée qu'après une coupure de courant préalable. Seul le professionnel est autorisépour l'opération.
L'appareil dispose d'une prise de courant, la prise doit être proche de l'appareil et accessible.
Pendant le transport et le stockage, l'appareil doit éviter l'environnement humide, les chocs violents et les fortes
vibrations.
Ne pas démonter la machine, l'entretenir ou déplacer les accéssoires par vous-mêmes. De cette façon, l'équipement
peut être endommagéet vous pouvez mêmes recevoir un choc électrique.
Ne pas ouvrir l'amplificateur, toucher son module, ou ouvrir le couvercle pour toucher les composants électroniques.
Les composants seront endommagés àcause de l'electricitéstatique.
Tenir àl'écart des appareils de chauffage, car le booster dissipe la chaleur pendant le travail. Et ne couvrez pas le
booster avec des éléments qui influencent la dissipation de la chaleur.
La plage de température de fonctionnement est de -10 à+55 degrés Celsius.
La distance de séparation du corps est de 50 cm en utilisant la procédure de calcul de l'EMP.
18

RESTRICTIONS D'UTILISATION ET D'INSTALLATION
Les amplificateurs de signal pour NR700, LTE800, EGSM/PGSM/WCDMA/UMT900, GSM/LTE1800, WCDMA/UMTS2100 et
LTE2600 ne peuvent être installés que par des opérateurs de réseaux mobiles GSM / UMTS, titulaires des licences
correspondantes et dans chaque cas dans les fréquences attribuées àeux, puisqu'ils sont des actes d'amplificateurs àlarge
bande.
Les nouvelles générations HiBoost s'autorégulent et s'éteignent dans les situations critiques car elles sont équipées de
C.A.S. (contrôle d'arrêt automatique). S'ils sont mal installés, ces systèmes peuvent provoquer de graves perturbations
pour les opérateurs de réseaux mobiles, avec des conséquences juridiques et économiques pour le propriétaire du kit et
l'installateur qui a installéles antennes.
Huaptec Telecom GmbH n'assume aucune responsabilitéen cas d'installation incorrecte par du personnel
inexpérimentéet non qualifiéou en tout cas par du personnel sans l'équipement et la licence nécessaires.
En outre, Huaptec Telecom GmbH décline également toute responsabilitéen cas d'utilisation inappropriée des kits
d'extension de champ en raison d'un positionnement et d'un alignement incorrects des antennes externes et internes, ce
qui peut causer des problèmes aux autres utilisateurs ou des perturbations aux opérateurs et fournisseurs de réseaux
mobiles.
Remarque: Les répéteurs de téléphonie mobile ne sont pas des équipements terminaux de télécommunications, mais
bien des équipements radio dont l'exploitation constitue une utilisation du spectre et nécessite donc l'attribution de
fréquences. Or, les fréquences d'exploitation en question ayant été attribuées aux opérateurs de réseaux mobiles et
n'étant plus disponibles, l'exploitation d'un répéteur est soumise à l'approbation des opérateurs de réseaux mobiles.
19

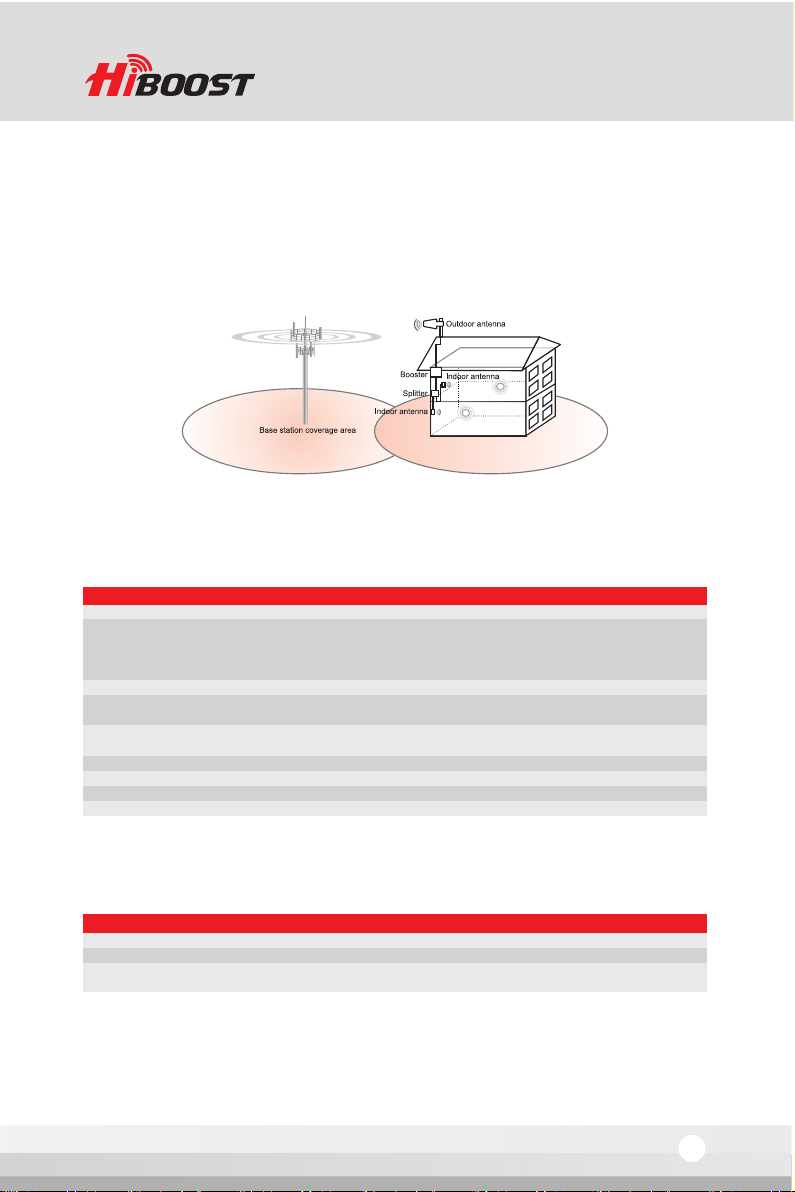

Vue d’ensemble
Les amplificateurs consommateurs Hiboost sont concus pour aider les utilisateurs mobiles a amplifier les signaux faibles
des telephones portables.
Les appareils sont bidirectionnels. L'antenne exterieure recoit le signal de la tour de telephonie mobile et le transmet a
T'amplificateur de signal, ce dernier amplifie le signal et T'antenne interieure T'envoie a votre appareil mobile. Visa versa,
le signal produit par votre telephone est egalement recu par I'antenne interieure, amplifie par I'amplficateur puis renvoye
a la tour de telephonie via T'antenne exterieure.
Package Contents
Hiboost Professional Signal Booster Standard Packing List
HiBoost Consumer Booster Kit de panneau optionnel/kitomni comprend les
accessoires suivants
No. Name Description Quantity
No. Name Description Quantity
1 1Amplificateur de Signal Professionnel Hiboost
3 Câble d'alimentation
2 1Adapteur
Hi10/13 Bande Simple 12V/3A
Hi10-23 Bande Double 12V/3A
Hi10-17 Bande Triple 12V/3A
Hi10-17 Bande Quintuple
Prise standard européenne
4 5Boulon d'expansion en plastique
5 4Vis de taraudage
6 1Manuel de l'utilisateur
Bande Triple M4*25
Bande Quintuple M4*25
3 1N-Femelle
Antenne pour Panneau Interieur
Antenne Omni Interieure
7 1Antenne directionnelle large bande extérieure N-Femelle
8 1Antenne fouet (Simple/Double bande) N-Female
2 1Antenne directionnelle extérieure N-Femelle
9 1Cable a faible perte Hiboost200 50 pieds (15mt)
1 2Cablea faibleperte Hiboost200 50 pieds, N-male
20
