Hiboy MAX User manual

HIB Y
MAX
The manufacturer reserves the right to make changes to the product, and update this manual at any time.
www.hiboy.com
Visit www.hiboy.com to download the latest user manual.
HIBOY MAX ELECTRIC SCOOTER
HIB Y
HIB Y

Contents
1. Package Contents
Carefully check package contents, if anything is
missing or damaged, please contact Hiboy customer
service for support: [e-mail]
Charger
4 x Allen Wrench
1
4 x Rubber Stopper
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.

2. Product Overview 3. Assembly
32
4. Accelerator/Throttle 1. LED dispaly
2. Handle
3. Brake
11. Anti-slip Pedal
10. Battery Compartment
12. Kickstand
7. Rear Fender
9. Disc Brake
8. Tail Light
13. Front Fender
6. Folding Spanner
15. Shock Absorber
14. Motor
5. Headlight
1. Press down on the folding spanner with your feet. 2. Unfold the stem and push it until you hear a click.
Then unfold the kickstand to support the scooter.
3. . Install the brake, then use the allen wrench
(the biggest one)to tighten it.
4. Rotate in counterclockwise direction to install the
two handles. Then verify that your scooter powers
on and off.

Note :Do not keep your feet on the rear mudguard.
1. To turn on/off the power: press the power button for 3 seconds.
Download "HIBOY MAX" from "App Store"(iPhone) or "Google Play"(Android), then connect to your scooter.
4. Charging 5. Quick Start
5
4
6. E-Scooter App
2. To switch different speeds modes by tabbing power button
Beginner mode:”S”gear characters display in blue
Normal mode: ”S” gear characters display in yellow
Sports mode: ”S” gear characters display in red
3. To turn on/off the Headlights: Double tab the power button.
4. To switch (KM/H) & (Mph): Triple tab the power button.
5. Cruise Control: Keep the accelerator pedal for 6 seconds at 8 Mph (or faster speed) to activate the
cruise mode. To deactivate the cruise mode by pressing accelerator again or brake.

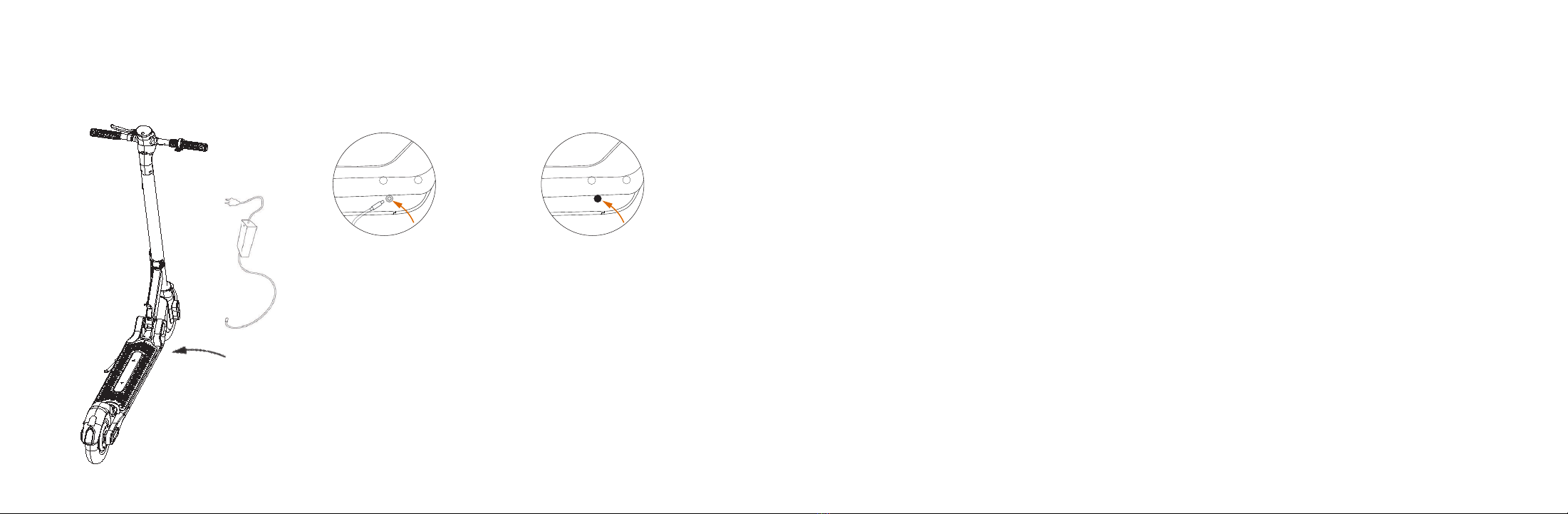

Fill and fix the rubber
plug after the charging
Open the rubber plug
Insert the charging plug in
Your scooter will be fully charged when the LED light on the charger changes
from red （charging）to green. Even so, we still don't recommend charging
your scooter for long time.
Do not connect the charger if the charging port is wet. Cover the charging
port when not use.

1. Install the App.
76
7. How to Ride
2. Power on the HIBOY MAX Electric Scooter. A
blinking Bluetooth icon indicates the Scooter is waiting
for a connection.
3. The Bluetooth icon will stop blinking and remain illuminated
when the connection is successful.
You can now start to use your Electric Scooter, check the
status with App, and interact with other users. Have fun!
1. Before riding: wear helmets and knee pads in case of falls and injuries when you learn to ride the
scooter.
Always wear a helmet and safety gear to
avoid falling and injury during the driving
learning, as shown in the figure. 1. Turn on the scooter, and check the electricity
indicator.
3. When the scooter starts to glide, put both feet on
the footrest and press the accelerator.
2. Stand on the footrest with one foot, and push
off with the other foot to starting gliding.
m p h
k m/ h
s
m p h
k m/ h
s

8. Riding Notice
98
5. Tilt your body to the steering direction as you turn
and slowly turn the handlebar.
4. Release the accelerator to reduce the speed
slowly and squeeze the brake lever for a sudden
brake.
Do not ride in the rain. Please keep a medium or low speed (５mph) when you
ride through speed bumps, elevator door sills, bumpy
roads or other uneven surfaces Slightly bend your knee to
better adjust mentioned surfaces.
Do not accelerate when you go downhill.
Look out for doors, elevators and other
overhead obstacles.

1110
9. Dangerous Actions (No Attempting!)
Always steer clear of obstacles. Do not ride in traffic lanes or residential
areas where vehicles and pedestrians are
both allowed.
Do not ride in a ponding that is
higher than 0.79 inches.
Do not turn the handlebar violently
during high-speed riding
Do not ride with anyone else,
including children.
Do not press the throttle when walking with the
scooter.
Do not hang bags or other heavy stuff on
the handlebar.
Keep both feet on the deck all time.

11. Folding and Carrying
1312
10. Safety Instructions
The Hiboy Max electric scooter is a leisure device. But once they're in a public area, they'll be seen as vehicles,
subjecting to any risks faced by vehicles. For your safety, please follow instructions in the manual and traffic
laws and regulations set forth by government and regulatory agencies.
● At the same time, you should understand that risks cannot be entirely avoided as others may violate traffic
regulations and drive incautiously, and you're exposed to road accidents just as when you're walking or biking.
The faster the scooter is, the longer it takes to stop. On a smooth surface, the scooter may slip, lose balance,
and even result in a fall. Thus it is crucial that you use caution, keep proper speed and distance, especially so
when you're unfamiliar with the place.
● Respect pedestrians' Right of Way. Try not to startle them while driving, especially children. When you ride
from behind pedestrians, ring your bell to give them a heads-up and slow your scooter to pass from their left
(applicable to countries where vehicles drive on the right). When you ride across pedestrians, keep to the
right at a low speed. When you drive across pedestrians, keep the lowest speed or getting off the vehicle.
● Closely follow the safety instructions in the manual. Hiboy shall not be liable for any financial losses, physical
injuries, accidents, legal disputes and other interest conflicts resulted from actions that violate user instructions.
● Do not lend your scooter to whoever doesn't know the operations. And when you do lend it to your friends,
please take the responsibility to ensure he/she knows the operation and wears the safety gear.
● Check the scooter before every use. When you note loosen parts, low battery alerts, excessive wear, strange
sounds, malfunctions and other abnormal conditions, stop riding.
Make sure that the scooter's turned off. To fold, step on the folding pedal while pushing
the handlebar forward slightly. Then fold the handlebar down. To open, step on the folding
pedal again, and unfold the stem and push it until you hear a click.
When your scooter is folded up, simply lift it by the stem to carry.

15
14
12. Daily Care and Maintenance
If you see stains on the scooter's body, wipe them off with a damp cloth. If the stains won't scrub off, put on
some toothpaste, and brush them with a toothbrush, then wipe them off with a damp cloth.
Daily Care and Maintenance
Notes: do not clean the scooter with alcohol, gasoline, kerosene or other corrosive and volatile chemical
solvents to prevent dire damage. Do not wash the board with a high-pressure water spray. During cleaning,
make sure that the scooter's turned off, the charging cable is unplugged, and the rubber flap is closed as
water leakage may result in electric shock or other major problems. When the scooter not in use, keep it
indoors where it is dry and cool. Do not put it outdoors for long time. Excessive sunlight, overheating and
overcooling accelerate the battery pack's lifespan．
Notes: do not clean the scooter with alcohol, gasoline, kerosene or other corrosive and volatile chemical
solvents to prevent dire damage. Do not wash the board with a high-pressure water spray. During cleaning,
make sure that the scooter's turned off, the charging cable is unplugged, and the rubber flap is closed as
water leakage may result in electric shock or other major problems. When the scooter not in use, keep it
indoors where it is dry and cool. Do not put it outdoors for long time. Excessive sunlight, overheating and
overcooling accelerate the battery pack's lifespan．
1. Use original battery packs, use of other models or brands may bring about safety issues;
3. Use original power adapter to avoid potential damage or fire;
4. Mishandling of used batteries may do tremendous harm to the environment. To protect natural
environmentplease follow local regulations to properly dispose of used batteries.
Battery maintenance
Store
2. Do not touch the contacts. Do not dismantle or puncture the casing. Keep the contacts away from metal
objects to prevent short circuit which may result in battery damage or even injuries and deaths;
If the brake is too tight, use the allen wrench to loosen the screws on the caliper, and slightly send back
the brake cable to shorten the exposed length, then tighten the screws. If the brake is too loose, loosen the
screws and slightly pull out the brake cable to lengthen the exposed length, then tighten the screws.
5.After every use, fully charge the battery to prolong its lifespan.
1.Please try to store the scooter in a cool and dry place between 14℉and 104℉. Extremely humid
environments the interior of the scooter may suffer condensation or even water accumulation, which may
damage the battery rapidly.
2. In daily use, try to avoid recharging the scooter after completely exhausting the battery. If the battery is
low, charge it as soon as possible.
3.Please charge the scooter every other month to preserve the battery.

16 17
14. Limited Warranty Statement13. Specifications
If you are unsatisfied with your purchase, the return policy allows you to return the product purchased on the
Authorization channel within 30 days counting from the date of receipt of shipment, and request a refund from
the Authorization channel for any reason. Note: Express shipping cost is non-refundable. For the return request
seller is not responsible for lost packages due to the carrier, or products received that cannot be verified.
Received products that have damage determined to have been caused by the end-user may be subject to
denial of the return request.
TO QUALIFY FOR A REFUND, ALL THE FOLLOWING CONDITIONS MUST BE MET:
30 DAY SATISFACTION GUARANTEED RETURN POLICY
1.A Return Merchandise Authorization (RMA) must be requested from Hiboy within 30 days from the date of
receipt of shipment. To request an RMA, contact the customer service centre at [e-mail]
2.The cost of return shipping will be borne by the customer.
3.For warranty service, please keep your receipt and/or invoice to validate proof of purchase.
4.Returned product must be in good physical condition (not physically broken or damaged).
5.All accessories originally included with your purchase must be included with your return.
6.If you return a product to seller, (a) without an RMA from seller(b) without all parts included in the original
package, seller retains the right to refuse delivery of such return.
Battery 36V/7.5AH
Charging time 4-6H
Display LED
Frame Material Aluminum alloy + ABS + PC
Tires Rubber
Wheel Size 8.5inch
Max Slope 15°
Riding Modes
Beginner Mode: 9.3mph
Normal Mode: 13.6mph
Sports Mode: 18.6mph
Voltage 36V
Load Range 55-220 lbs
Age 16-50
Dimensions 46.5* 19.7*43.7inches
Dimensions (After folding)
Motor
44.1*13.0*16.9inches
350W

18 19
HOW TO OBTAIN WARRANTY SERVICE
LIMITATION OF DAMAGESLIMITED PRODUCT WARRANTY
REMEDIES
Seller warrants the original purchaser that your e-scooter shall be free from defects in materials and
workmanship under normal use for a period aforementioned. Seller does not warrant the operation of the
product will be uninterrupted or error-free. Seller is not responsible for damage arising from failure to follow
instructions relating to the product's usage.
If a hardware defect is found and a valid claim is received by Seller within the Warranty Period, Seller will, at
its option and to the extent permitted by law, either (1) repair the product at no charge, using new or
refurbished replacement parts or, (2) replace the product with a new or refurbished product.
IIn the event of a defect, to the extent permitted by law, these are your sole and exclusive remedies. Shipping
and handling charges may apply except where prohibited by applicable law. Any replacement hardware product
will be warranted for the remainder of the original warranty period or thirty (30) days, whichever is longer, or for
any additional period of time that may be applicable in your jurisdiction.
A Warranty Service Order must be requested from seller within Warranty Period from the date of receipt of
shipment. To request a Warranty Service Order, contact the customer service center: [e-mail]
To obtain warranty service, you must deliver the product, in either its original packaging or packaging providing
an equal degree of protection, to the address specified by seller. In accordance with applicable law, seller may
require the customer to furnish proof of purchase details and/or comply with registration requirements before
receiving warranty service.period or thirty (30) days, whichever is longer, or for any additional period of time that
may be applicable in your jurisdiction.
Except to the extent prohibited by applicable law, seller shall not be liable for any incidental, indirect, special, or
consequential damages, including but not limited to loss of profits, revenue or data, resulting from any breach of
express or implied warranty or condition, or under any other legal theory, even when seller has been advised of
the possibility of such damages. Some jurisdictions do not allow the exclusion or limitation of special, indirect
incidental or consequential damages, so the above limitation or exclusion may not apply to you.

20 21
Question & Answer Contact Us
1.What if the E-Scooter arrived missing accessory or broken part?
2. Is that possible to replace some components for example the rear cover?
A: Please take a photo and send to Hiboy Support Team by sending email: [e-mail]
And Hiboy Support Team will reply to you soon and send correct accessory or part replacement.
A: Yes, please take a photo and send to Hiboy Support Team by sending email: [e-mail]
And Hiboy Support Team will reply to you soon.
3. What operating temperatures are recommended? Is it waterproof?
A: Operating temperatures: 14℉-104℉; Storage temperature: -4℉-113℉;
Waterproof: IP54 resistance, which means that it is protected from water spray from any direction.
4.Is there an Android/iOS app? If so, what does it do?
A: Yes, the app is Hiboy MAX
Simply pair the Electric Scooter via Bluetooth and use the app to view current speed, remaining power
and other real-time riding statistics. The Self Checking system enables you to check the motor, battery
accelerator and hall. Check the scooter before every use helps you discover the problem early. Firmware
updates ensure that you always have the best riding experience possible.
@HiboyUS
HiboyUS
www.hiboy.com
hiboyus
@Hiboy_Official
Contact us if you experience issues relating to riding, maintenance and safety, or errors/faults with your Hiboy MAX.
HIBOY LIMITED
18351 Colima Rd APT 983 Rowland Heights CA 91748
E-mail Service: [e-mail]
