Hiboy TITAN PRO User manual

ＵＳＥＲ ＭＡＮＵＡＬ
TITAN PRO ELECTRIC SCOOTER

Contents 1. Package Contents
Carefully check package contents, if anything is missing or
damaged, please contact Hiboy customer service for support:
[e-mail]
1 x Charger
1 x Allen Wrench
2 x Screws
1 x Rear
Fender
1
2 x Keys
01
02
04
05
07
10
12
13
14
15
17
18
1
2
3
4
5
7
8
9
10
11
12
13
Package Contents
Product Overview
Assembly
Riding Basics
Specifications
Limited Warranty Statement
Error Code
19
14
Contact Us
Question & Answer
Safety Instructions
Dangerous Actions (No Attempting!)
08
6
Riding Notice
Pre-set the scooter
Daily Care and Maintenance
1 x Folding
Mechanism
1 x Handlebar
Buckle

2. Product Overview
Click “▲” and “▼”button to adjust Speed Mode( Mode1(ECO), Mode2(STD), Mode3(TURBO))
32
Total mileage display /
Single time range display
Speed display
Brake sign
Cruise system
Upsfift
Power button
Downshift
Battery
Gear display
Speed Mode
Each battery bar represents 25% power, when the battery is below 25%(Red Light),
the battery needs to be charged
Battery Display
Max speed
Average speed
Brake Handle
Folding Mechanism
Front Fender
Front Motor
Rear Fender
Rear Suspension
Front Suspension
Disc Brake
Rear Motor
Rear Damper
Rear Light
Front Light
Front/Rear Light
Single & Dual
Motor Switch
Battery Display
Key
Handle

1. Tighten the folding mechanism 2. Install handlebar buckle, tighten the screws
3. Remove 4 screws of the handlebar buckle
3. Pre-set the scooter
5
4
Click "▲" and "▼"button at the same time to enter setting mode. When the number at the bottom of the screen flashes, it
indicates that you have entered the setting mode. Click "▲" and "▼" button to adjust the parameter and click " " to confirm and
enter to next setting mode. After the setting is completed, leave the screen on for about 5 seconds to automatically exit the setting
mode.
4. Assembly
P01
P02
P03
P04
P05
P06
P07
P08
P09
P10
P11
P12
P13
P14
P15
P16
P17
Backlight Adjustment
Mileage Unit
Battery Voltage
Sleep Time
Assist Gear
Diameter of the Wheels
Measurement Speed
Speed Limit
Startup Settings
Drive Mode Setting
Resistance Sensitivity Setting
Resistance Start Strength Setting
Assist Magnet Plate Type Setting
Controller Current Limit Setting
Temporarily Unavailable
Clear ODO
Cruise Control
48V. (DO NOT CHANGE).
"0" means KM, "1" means MILE.
"1" means darkest, "3" means brightest.
0 means no sleep, other numbers are sleep time 1-60 minutes.
0, 3, 5, 9 gears are optional (Not recommend to change)
Keep it "10" inches. (DO NOT CHANGE).
1-100 optional.
Keep it "50"(DO NOT CHANGE)
"0" means Kickstart Mode, "1" means Non-kickstart Mode.
0: assist start; 1: electric drive; 2 assist and electric drive coexist.
Range 1-24
Range 0-5
5, 8, 12 three types of magnet quantity
Range 1-20A
Long press the "▲" for 5 seconds to clear ODO and total time TTM
0: no cruise; 1: cruise.

4. Put the handlebar on it and tighten the screws
5. Remove the rear screws, install the rear fender then tighten the screws
76
5. Riding Basics
Prepare the product according to the instructions. Always wear a helmet and safety gear so to
avoid falling and injury during the driving learning, as shown in the figure. Keep away from
vehicles and crowded areas.
Preparation for riding
1.Use the key to start the scooter
2.Click the power button to start your scooter
3.Click "▲" and "▼"button to adjust Speed Mode( Mode1(ECO), Mode2(STD),
Mode3(TURBO))
4.Step on the deck of scooter and propel yourself, then press throttle lever to ride your scooter.
Note: When the scooter stops driving and the meter is not operated for 3 minutes, the
dashboard and the scooter will turn off. (The shutdown time can be set)
1.Press the yellow button to turn on the light.
2.Press the red button to switch single or dual motor. (Default is single motor, press button to
switch dual motor)
3.Use your left hand to operate the rear brake.
4.Use your right hand to operate the front brake.
Riding
Handlebar Operation Instructions
Long press "▼" to enter the cruise control. When riding at a constant speed for 8 seconds,
cruise control starts, braking, or accelerating can end cruise control, and long press "▼" again
to exit cruise control
Cruise Control Operation Instructions

6. Riding Notice
Do not accelerate when you go downhill.
Look out for doors, elevators and other overhead
obstacles.
Please keep a medium or low speed (５mph) when you ride through
speed bumps, elevator door sills, bumpy roads or other uneven
surfaces Slightly bend your knee to better adjust mentioned surfaces.
Do not press the throttle when walking with the
scooter.
Always steer clear of obstacles.
Keep both feet on the deck all time.Do not hang bags or other heavy stuff on the
handlebar.
Do not ride in the rain.
98
Long press "▼" to enter the cruise control. When riding at a constant speed for 8 seconds,
cruise control starts, braking, or accelerating can end cruise control, and long press "▼" again
to exit cruise control

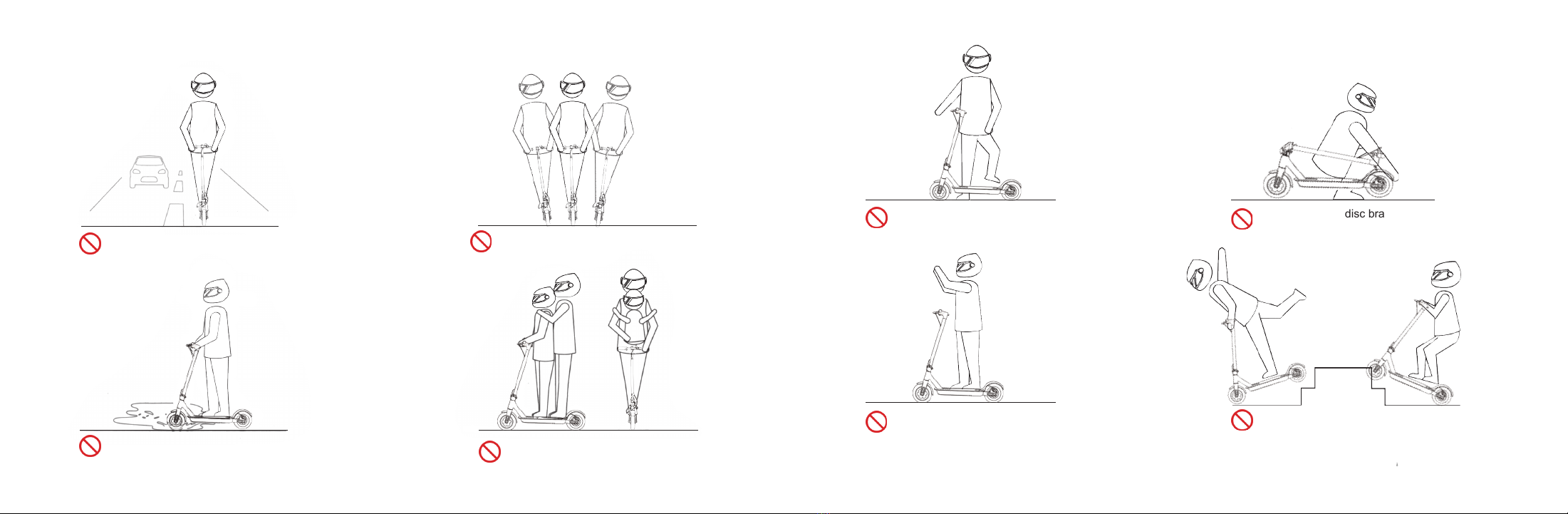

7. Dangerous Actions (No Attempting!)
Do not ride in traffic lanes or residential
areas where vehicles and pedestrians are
both allowed.
Do not ride in a ponding that is
higher than 0.79 inches.
Do not turn the handlebar violently
during high-speed riding
Do not ride with anyone else,
including children.
Do not keep your feet on the rear
mudguard.
Do not keep your hands away from
handlebar.
Do not touch the disc brake.
Do not try riding up or down stairs, and
jumping over obstacles
1110

9. Daily Care and Maintenance
Cleaning and storage
Battery maintenance
If you see stains on the scooter's body, wipe them off with a damp cloth. If the stains won't scrub off, put on some toothpaste,
and brush them with a toothbrush, then wipe them off with a damp cloth.
Notes: do not clean the scooter with alcohol, gasoline, kerosene or other corrosive and volatile chemical solvents to prevent
dire damage. Do not wash the board with a high-pressure water spray. During cleaning, make sure that the scooter's turned
off, the charging cable is unplugged, and the rubber flap is closed as water leakage may result in electric shock or other major
problems.When the scooter not in use, keep it indoors where it is dry and cool. Do not put it outdoors for a long time.
Excessive sunlight, overheating and overcooling accelerate the battery pack's lifespan．
1. Use original battery packs, use of other models or brands may bring about safety issues;
2. Do not touch the contacts. Do not dismantle or puncture the casing. Keep the contacts away from metal objects to prevent short
circuit which may result in battery damage or even injuries and deaths;
3. Use original power adapter to avoid potential damage or fire;
4. Mishandling of used batteries may do tremendous harm to the environment. To protect natural environment, please follow local
regulations to properly dispose used batteries.
5.After every use, fully charge the battery to prolong its lifespan.
Storage and Disposal
1.Please try to store the scooter in a cool and dry place between 14℉and 104℉. In extremely humid environments the interior of
the scooter may suffer condensation or even water accumulation, which may damage the battery rapidly.Devices are not intended for
use at elevations greater than 2000 m above sea level Prolonged Exposure to UV Rays, Rain and the Elements May Damage the
Enclosure Materials, Store Indoors When Not in Use.
2. In daily use, try to avoid recharging the scooter after completely exhausting the battery. If the battery is low, charge it as soon as
possible.
8. Safety Instructions
The Hiboy Titan Pro electric scooter is a leisure device. But once they're in a public area, they'll be seen as vehicles,
subjecting to any risks faced by vehicles. For your safety, please follow instructions in the manual and traffic laws and
regulations set forth by government and regulatory agencies.
● At the same time, you should understand that risks cannot be entirely avoided as others may violate traffic regulations
and drive incautiously, and you're exposed to road accidents just as when you're walking or biking. The faster the scooter
is, the longer it takes to stop. On a smooth surface, the scooter may slip, lose balance, and even result in a fall. Thus it is
crucial that you use caution, keep proper speed and distance, especially so when you're unfamiliar with the place.
● Respect pedestrians' Right of Way. Try not to startle them while driving, especially children. When you ride from behind
pedestrians, ring your bell to give them a heads-up and slow your scooter to pass from their left (applicable to countries
where vehicles drive on the right). When you ride across pedestrians, keep to the right at a low speed. When you drive
across pedestrians, keep the lowest speed or getting off the vehicle.
● Closely follow the safety instructions in the manual. Hiboy shall not be liable for any financial losses, physical injuries,
accidents, legal disputes and other interest conflicts resulted from actions that violate user instructions.
● Do not lend your scooter to whoever doesn't know the operations. And when you do lend it to your friends, please take
the responsibility to ensure he/she knows the operation and wears the safety gear.
● Check the scooter before every use. When you note loosen parts, low battery alerts, excessive wear, strange sounds,
malfunctions and other abnormal conditions, stop riding.
● WARNING – Risk of Fire – No User Serviceable Parts.
13
12

10. Specifications
Operating Temperature
IP Rating
Voltage
Max. Charging Voltage
Capacity
Nominal Power
(1) The height of the body: distance from the ground to the highest end of the body.
(2) Description of the battery life: it is measured under the condition of full charge, a load of 150 lb, at 77°F , on a flat road without wind, and at
a speed of 9.3mph. The real battery life will differ with different factors of the load, humidity, wind speed and operation habits.
(3) The maximum allowable weight shall be kept within 260lb (driver and objects included)in any case. Consider an extra weight of the clothes or other
accessories with us during the trip and the gravity generated by speed, the scooter will not support it if this load limit is exceeded.
47.2*10.2*46.4 inch
47.2*10.2*20.4 inch
61.7 lbs
44 ~ 286 lbs
16 ~ 50 Years old
32 Mph
40 miles
35°
48 V
54.6 V
54.6 V
17.5 Ah
800 W*2
1200 W*2
Peak Power
Input Voltage
Output Voltage
Output Current
Charging Time
100 V ~ 240 V
14-104 °F
IP54
Max. Range
Max.Slope
Recommended Age
Max.Speed
Load
Titan Pro
Dimensions
Weight
User
Scooter
Battery
Motor
Charger
ltem
Unfolded (Length. x Width x Height)
Folded (Length. x Width x Height)
Net Weight
Electric Scooter
8-9 h
2 A
14 15
1. Simple & efficient: Hiboy provides a straightforward warranty that is processed in the most hassle-free way possible
2. 30-Days Money Back: For 30 days after the date of purchase, return your undamaged / Unused Hiboy product and receive a
refund for ANY REASON.
3. Up to 12-month warranty: We offer 12 months for the scooter and 6 months for the battery. We take care of quality-related issues
with a REPLACEMENT PARTS.
4. Lifetime Technical Support: If you have any questions about your purchase, please feel free to reach us directly and we will
gladly assist you!
LIMITED PRODUCT WARRANTY
Hiboy warrants the original purchaser that your Hiboy product shall be free from defects in materials and workmanship under normal
use for a period aforementioned.
Hiboy does not warrant the operation of the product will be uninterrupted or error-free.
Hiboy is not responsible for damage arising from failure to follow instructions relating to the product's usage.
RETURN
If you are unsatisfied with your purchase, Hiboy’s return policy allows you to return the product purchased on the Authorization
channel within 30 days counting from the date of receipt of shipment, and request a refund from the Authorization channel for any
reason. Please contact us immediately by [e-mail] for return address or return label. Hiboy is not responsible for the
shipping cost of the package returned by the customers themselves.
11. Limited Warranty Statement
WARRANTY

1. What if the E-Scooter arrived missing accessory or broken part?
A: Please take a photo and send to Hiboy Support Team by sending email: [e-mail]
And Hiboy Support Team will reply you soon and send correct accessory or part replacement.
3. Is that possible to replace some components for example the rear cover?
A: Yes, please take a photo and send to Hiboy Support Team by sending email: [e-mail]
And Hiboy Support Team will reply you soon.
4. Why the screen returns an error code like E-01, E-02, or E-03? What should I do?
A: Please contact Hiboy Support Team to remove the error code.
2. What if the rear brake of the scooter doesn't work well?
A: You may please contact us for instructions of brake adjusting, or search "How to adjust rear brake of scooter"
in YouTube for tutorial video as well.
16 17
12. Question & Answer
REMEDIES
If a hardware defect is found and a valid claim is received by Hiboy within the Warranty Period, Hiboy will, at its option and to the
extent permitted by law, either (1) repair the product at no charge, using new or refurbished replacement parts or, (2) replace the
product with a new or refurbished product. In the event of a defect, to the extent permitted by law, these are your sole and exclusive
remedies. Shipping and handling charges may apply except where prohibited by applicable law. This Limited Warranty is valid only
in the jurisdictions where the products are sold by www.hiboy.com, and is valid to the extent permitted by the applicable laws of such
jurisdictions. Any replacement hardware product will be warranted for the remainder of the original warranty period or thirty (30)
days, whichever is longer, or for any additional period of time that may be applicable in your jurisdiction.
HOW TO OBTAIN WARRANTY SERVICE
A Warranty Service Order must be requested from Hiboy within Warranty Period from the date of receipt of shipment. To request a
Warranty Service Order, contact Hiboy Service Team [e-mail].
To obtain warranty service, you must deliver the product, in either its original packaging or packaging providing an equal degree of
protection, to the address specified by Hiboy. In accordance with applicable law, Hiboy may require the customer to furnish proof
of purchase details and/or comply with registration requirements before receiving warranty service.period or thirty (30) days,
whichever is longer, or for any additional period of time that may be applicable in your jurisdiction.
LIMITATION OF DAMAGES
Except to the extent prohibited by applicable law, Hiboy shall not be liable for any incidental, indirect, special, or consequential
damages, including but not limited to loss of profits, revenue or data, resulting from any breach of express or implied warranty or
condition, or under any other legal theory, even when Hiboy has been advised of the possibility of such damages. Some jurisdic-
tions do not allow the exclusion or limitation of special, indirect, incidental or consequential damages, so the above limitation or
exclusion may not apply to you.

E-01 Motor Error
E-02 Handlebar Error
E-03 Controller Error
E-05 Controller Under voltage
E-06 Communication Error, The instrument does not receive the
controller signal.
E-07 Communication Error, The controller cannot receive the
instrument signal.
13. Error Code
@hiboyscooter
HiboyUS
www.hiboy.com
hiboyus
Contact us if you experience issues relating to riding, maintenance and safety, or errors/faults with your Hiboy scooter.
HIBOY INTELLIGENT INC
1822 E ROUTE 66 STE A339
GLENDORA, CA 91740
E-mail Service: [e-mail]
18 19
14. Contact Us
