HIK VISION AE-MD5043-SD User manual

Mobile Video Recorder
Quick Start Guide

Mobile Video Recorder (-SD) Quick Start Guide
i
Legal Information
© 2021 Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.
About this Manual
The Manual includes instructions for using and managing the Product. Pictures, charts, images and
all other information hereinafter are for description and explanation only. The information
contained in the Manual is subject to change, without notice, due to firmware updates or other
reasons. Please find the latest version of this Manual at the Hikvision website
(https://www.hikvision.com/).
Please use this Manual with the guidance and assistance of professionals trained in supporting the
Product.
Trademarks
and other Hikvision's trademarks and logos are the properties of
Hikvision in various jurisdictions.
Other trademarks and logos mentioned are the properties of their respective owners.
Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND THE PRODUCT
DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED “AS IS” AND
“WITH ALL FAULTS AND ERRORS”. HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR
A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT
WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT
DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS
INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION,
WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY,
OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY
RISKS, AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION,
PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK,
VIRUS INFECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE
TIMELY TECHNICAL SUPPORT IF REQUIRED.
YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE
SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW.
ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT
INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF
PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS.
YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE
DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR

Mobile Video Recorder (-SD) Quick Start Guide
ii
PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED
TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN
RIGHTS ABUSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER
PREVAILS.

Mobile Video Recorder (-SD) Quick Start Guide
iii
Regulatory Information
FCC Information
Please take attention that changes or modification not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
FCC compliance: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
●Consult the dealer or an experienced radio/TV technician for help.
This equipment should be installed and operated with a minimum distance 20 cm between the
radiator and your body.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with
"CE" and comply therefore with the applicable harmonized European standards
listed under the EMC Directive 2014/30/EU, the LVD Directive 2014/35/EU, the
RoHS Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products marked with this symbol cannot be
disposed of as unsorted municipal waste in the European Union. For proper

Mobile Video Recorder (-SD) Quick Start Guide
iv
recycling, return this product to your local supplier upon the purchase of
equivalent new equipment, or dispose of it at designated collection points. For
more information see: www.recyclethis.info
2006/66/EC (battery directive): This product contains a battery that cannot be
disposed of as unsorted municipal waste in the European Union. See the product
documentation for specific battery information. The battery is marked with this
symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or
mercury (Hg). For proper recycling, return the battery to your supplier or to a
designated collection point. For more information see: www.recyclethis.info
The user manual for local area network devices shall contain instructions related to the
restrictions mentioned in the above sections, namely that:
(i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the
potential for harmful interference to co-channel mobile satellite systems;
(ii) the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725
MHz shall comply with the e.i.r.p. limit; and
(iii) the maximum antenna gain permitted for devices in the band 5725-5825 MHz shall comply
with the e.i.r.p. limits specified for point-to-point and non point-to-point operation as appropriate.
(i)Les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une
utilisation à l'intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de
satellites mobiles utilisant les mêmes canaux.
(ii) le gain d'antenne maximal autorisé pour les appareils dans les bandes 5250-5350 MHz et
5470-5725 MHz doivent respecter le pire limiter; et
(iii) le gain d'antenne maximal autorisé pour les appareils dans la bande 5725-5825 MHz doivent
respecter le pire limites spécifiées pour le point-à-point et l'exploitation non point à point, le cas
échéant.
Users should also be advised that high-power radars are allocated as primary users (i.e. priority
users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause
interference and/or damage to LE-LAN devices.
Les utilisateurs de radars de haute puissance sont désignés utilisateurs principaux (c.-à-d., qu'ils
ont la priorité) pour les bandes 5250-5350 MHz et 5650-5850 MHz et que ces radars pourraient
causer du brouillage et/ou des dommages aux dispositifs LAN-EL.

Mobile Video Recorder (-SD) Quick Start Guide
v
Symbol Conventions
The symbols that may be found in this document are defined as follows.
Symbol
Description
Danger
Indicates a hazardous situation which, if not avoided, will or could
result in death or serious injury.
Caution
Indicates a potentially hazardous situation which, if not avoided,
could result in equipment damage, data loss, performance
degradation, or unexpected results.
Note
Provides additional information to emphasize or supplement
important points of the main text.

Mobile Video Recorder (-SD) Quick Start Guide
vi
Contents
Chapter 1 Installation and Connection........................................................................................1
1.1 Before You Start ....................................................................................................................1
1.2 Environment ..........................................................................................................................1
1.3 Install SIM Card......................................................................................................................2
1.4 Install SD Card........................................................................................................................2
1.5 Install Antenna ......................................................................................................................3
Chapter 2 Device Wiring .............................................................................................................5
2.1 Power Cord Wiring ................................................................................................................5
2.1.1 Shutdown Delay .........................................................................................................5
2.1.2 Scheduled Shutdown .................................................................................................6
2.2 Alarm Input Connection........................................................................................................7
2.3 Sensor-In Wiring ....................................................................................................................7
2.4 Power on Device....................................................................................................................8
Chapter 3 Activation...................................................................................................................9
3.1 Default Information ..............................................................................................................9
3.2 Activate via Web Browser.....................................................................................................9
Chapter 4 Basic Operation ........................................................................................................10
4.1 Login.....................................................................................................................................10
4.2 Dial .......................................................................................................................................10
4.3 Connect to EHome Platform ...............................................................................................11
Chapter 5 FAQ.......................................................................................................................... 13
5.1 Why does my device fail to start up after connecting the power? ...................................13
5.2 Why does my device fail to dial? ........................................................................................13
5.3 Why does my device fail to position?.................................................................................13

Mobile Video Recorder (-SD) Quick Start Guide
1
Chapter 1 Installation and Connection
Note
Device pictures in this section are only for reference. In condition that device pictures conflict with
the real devices, the later prevails.
1.1 Before You Start
Take out the device from the package. Check the device and accessories. Contact us if something is
missing or damaged.
1.2 Environment
Consider the following environment conditions when installing the device.
Anti-vibration
Install the device on the part with weak vibration (such as the part behind the driver’s seat, the
part behind the passenger’s seat, etc.) and far away from the engine.
Heat dissipation
Install the device in the position far away from heat and with good ventilation for good heat
dissipation.
Enough space
Leave enough space for ventilation, heat dissipation, opening and closing the front panel, etc.
Figure 1-1 Recommended Installation Space

Mobile Video Recorder (-SD) Quick Start Guide
2
Placing angle
Place the device horizontally. The other placing angles may damage the device.
Fixing position
All the screws in the fixing positions must be fastened tightly to avoid device falling during the
vibration in driving.
1.3 Install SIM Card
Install 3G/4G SIM card to realize wireless communication.
Before You Start
Prepare SIM card and key to front panel lock.
Steps
1. Wear antistatic gloves.
2. Insert the key and turn counterclockwise to unlock the front panel.
3. Insert SIM card into SIM card slot till you hear a click.
Figure 1-2 SIM Card Slot
4. Cover the front panel, and turn the key clockwise to lock the front panel.
1.4 Install SD Card
SD card is installed well after the device leaves factory. If you want to change the SD card, follow
the steps below.
Before You Start
Prepare SD card and key to front panel lock.
Steps
1. Wear antistatic gloves.
2. Insert the key and turn counterclockwise to unlock the front panel.
3. Insert SD card into SD card slot till you hear a click.

Mobile Video Recorder (-SD) Quick Start Guide
3

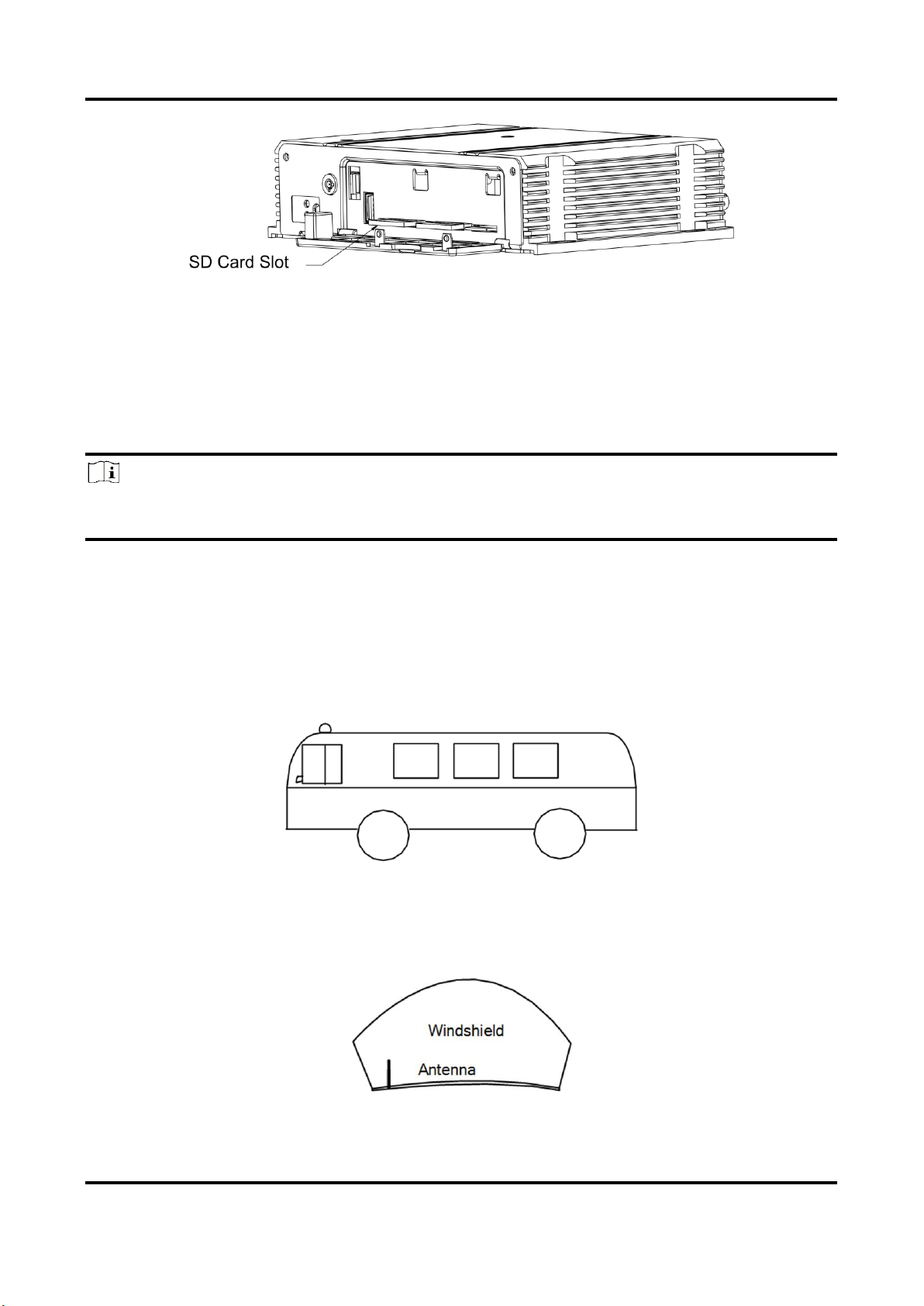

Figure 1-3 SD Card Slot
4. Cover the front panel, and turn the key clockwise to lock the front panel.
1.5 Install Antenna
Follow the notice below for antenna installation.
Note
The installations of 3G/4G and Wi-Fi antennas are only applicable to the device supporting 3G/4G
and Wi-Fi.
●Connect antennas to corresponding antenna interfaces.
●Place antenna vertically with its signal receiving end facing upward.
●If the cable is too long, you can roll them up to prevent signal receiving from being affected.
●Install 3G/4G antenna in car windshield, seat backrest, or other non-metallic objects. Keep away
from metal objects for at least 50 cm.
●Vertically install positioning antenna on the automobile roof with no shelter.
Figure 1-4 Install Positioning Antenna on Automobile Roof
●Follow the instructions below in case that you need to install positioning antenna inside your
automobile.
○Install antenna on platform under the front windshield.
Figure 1-5 Install Positioning Antenna Inside Automobile

Mobile Video Recorder (-SD) Quick Start Guide
4
○Fix antenna with neutral silica gel.
○When adjusting the antenna position, ensure that at least 4 satellites have a signal strength
above 35 dB. You can go to Location Status interface to view positioning signal status.

Mobile Video Recorder (-SD) Quick Start Guide
5
Chapter 2 Device Wiring
2.1 Power Cord Wiring
Warning
●In order to ensure the safety of your automobile and device, a fuse is required for wiring of
automobile power and device power.
●Do not connect the power cord to the device before all the cables are connected.
2.1.1 Shutdown Delay
The device starts up when your automobile ignites and shuts down after automobile is off.
Automobile ignition startup and shutdown are realized by positive pole ignition switch (providing
high level signal when the switch closes). Ignition switch is connected to the positive pole of
automobile batteries.
Steps
Note
●The wire connection of the device varies with the automobile ignition models.
●Make sure the connection of ignition switch is correct.
1. Connect DC IN + of the device to the positive pole of automobile batteries, jumping over the
switch of normal automobile power.
2. Connect DC IN - of the device to the negative pole of automobile batteries.
3. Connect ACC of the device to the automobile ignition switch.
4. Place fuse into the fuse holder.
Figure 2-1 Power Cord

Mobile Video Recorder (-SD) Quick Start Guide
6
Result

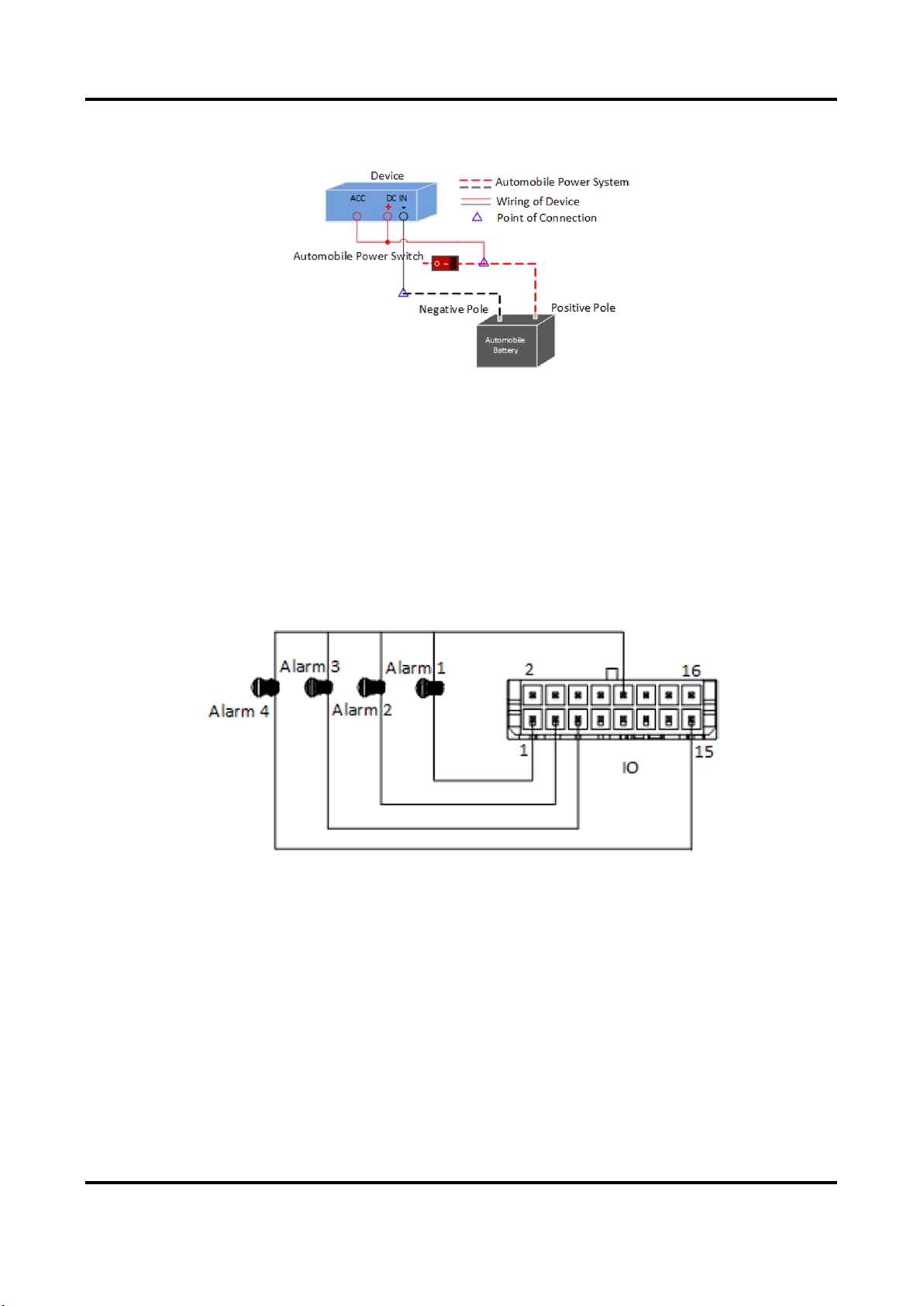

Figure 2-2 Shutdown Delay
Note
●Contact the automobile manufacturer for the connection information of starting switch.
●The automobile ignition switch, also called car key, controls the startup and shutdown of your
automobile. Most of automobiles adopt positive pole ignition switch currently.
●The normal automobile power refers to the main power of the automobile power supply system.
After the automobile is off, the normal automobile power still provides direct-current source for
the other devices inside and generally a main switch is used to turn on/off it.
What to do next
Configure parameters of the function. Refer to User Manual for details.
2.1.2 Scheduled Shutdown
Steps
1. Connect DC IN + and ACC of the device to the positive pole of automobile batteries.
2. Connect DC IN - of the device to the negative pole of automobile batteries.
3. Place fuse into the fuse holder.
Figure 2-3 Power Cord

Mobile Video Recorder (-SD) Quick Start Guide
7
Result
Figure 2-4 Scheduled Shutdown
What to do next
Configure parameters of the function. Refer to User Manual for details.
2.2 Alarm Input Connection
The device adopts the high/low-level electrical signals triggering (high level: 6 to 36 VDC; low level:
0 to 5 VDC) to realize alarm input. And in order to avoid error report caused by voltage fluctuation,
no alarm will be triggered by voltage ranging of 5 to 6 VDC.
Figure 2-5 Alarm Input Connection
2.3 Sensor-In Wiring
Steps
1. Connect the delivered extension cable to I/O interface.
2. Connect the automobile braking, reversing, left-turn, and right-turn signals to sensor-in
interface.

Mobile Video Recorder (-SD) Quick Start Guide
8
Figure 2-6 Sensor-In Wiring
2.4 Power on Device
Connect the device to power supply after all the installations above are finished. You can view the
indicators to get knowledge of the device status.
Note
The indicator types vary with different models. Here the most comprehensive indicators are
introduced.
●Power indicator (PWR)
○Solid green: Device is powered on.
○Solid red: Device is standby.
●Recording indicator (REC)
Solid green: Device is recording normally.

Mobile Video Recorder (-SD) Quick Start Guide
9
Chapter 3 Activation
For the first-time access, you need to activate the device by setting an admin password. No
operation is allowed before activation. The device supports multiple activation methods. In this
section, we introduce activation via web browser.
3.1 Default Information
Device default IP address and user name are as follows.
●Default IP address: 192.168.1.64
●Default user name: admin.
3.2 Activate via Web Browser
You can activate the device via web browser.
Before You Start
Ensure your device and computer are in the same network segment.
Steps
1. Visit device IP address via web browser.
2. Enter Password.
Note
We highly recommend you to create a strong password of your own choosing (using a minimum
of 8 characters, including at least three kinds of following categories: upper case letters, lower
case letters, numbers, and special characters) in order to increase the security of your product.
And we recommend you reset your password regularly, especially in the high security system,
resetting the password monthly or weekly can better protect your product.
3. Confirm password.
4. Click OK.

Mobile Video Recorder (-SD) Quick Start Guide
10
Chapter 4 Basic Operation
4.1 Login
You can get access to the device via web browser.
Steps
1. Visit the IP address of the device via web browser.
2. Enter the user name and password.
3. Click Login.
Note
Follow the installation prompts to install the plug-in before other operations.
4.2 Dial
Set the dialing parameters if you want to connect the device to the network via dialing.
Before You Start
Install SIM card and connect 3G/4G antenna to your device.
Steps
1. Go to Configuration → Network → Basic Settings → 3G/4G.
2. Check Enable.
3. Click Dial Parameters.
4. Select Network Mode.
Automatic
The device will automatically switch to the strongest network.
Auto-Search and Auto-Switch
Network priority: 4G > 3G > 2G. The device will automatically connect network of high
priority.
3G
The device only connects 3G network.
4G
The device only connects 4G network.
5. Set dial parameters.
–To connect the device to private network, enter Access Number, User Name, Password, and

Mobile Video Recorder (-SD) Quick Start Guide
11
APN.
–To connect the device to general network, you do not need to set dial parameters.
Figure 4-1 Set Dial Parameters
Note
Contact the network operator to obtain the private network dial parameters.
6. Optional: For the special private network needing two sets of dialing parameters, click The
default load to set the other set of dialing parameters.
7. Click Save.
8. Optional: Click Wireless Dial-up Status to view dialing status.
4.3 Connect to EHome Platform
EHome is a platform access protocol. The device can be remotely accessed via EHome platform.
Before You Start
●Create the device ID on EHome platform.
●Ensure the device can communicate with the platform normally.

Mobile Video Recorder (-SD) Quick Start Guide
12
Steps
1. Go to Configuration → Network → Advanced Settings → Platform Access.
2. Check Enable.
3. Select Platform Access Mode as Ehome Platform.
Figure 4-2 Configure EHome Platform
4. Select Server Address Type.
–When the server is in extranet, and the IP address is dynamic, you can select Domain Name.
–When the server IP address is static, you can select IP Address.
5. Enter Server Address, Server Port, and Device ID.
Server Address
Enter the static IP address of EHome platform.
Server Port
The default value is 7660.
Device ID
The ID of the device registered on the EHome platform. If you leave it empty, you can log in
to the platform with the serial number.
6. Click Save.

Mobile Video Recorder (-SD) Quick Start Guide
13
Chapter 5 FAQ
5.1 Why does my device fail to start up after connecting the
power?
Question
Why does my device fail to start up after connecting the power?
Answer
●Check power supply specification.
●If PWR indicator is unlit, check power supply and fuse installation.
5.2 Why does my device fail to dial?
Question
Why does my device fail to dial?
Answer
●Check 3G/4G antenna connection.
●Place 3G/4G antenna away from metal objects.
●Check your SIM card balance.
●Ensure 3G/4G dial parameters are correct.
5.3 Why does my device fail to position?
Question
Why does my device fail to position?
Answer
●Vertically install positioning antenna on the automobile roof with no shelter.
●Ensure your vehicle is in a place with good GPS signal. Check GPS signal in corresponding
interface.
