HIK VISION DS-PS1-I-WE User manual

DS-PS1-I-WE
Wireless Internal Sounder
©2020 Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.
About this Manual
The Manual includes instrucons for using and managing the Product. Pictures, charts, images and all other informaon hereinaer are for descripon and explanaon only. The informaon contained in the Manual is subject to change,
without noce, due to firmware updates or other reasons. Please find the latest version of this Manual at the Hikvision website (hps://www.hikvision.com/).
Please use this Manual with the guidance and assistance of professionals trained in supporng the Product.
and other Hikvision's trademarks and logos are the properes of Hikvision in various jurisdicons. Other trademarks and logos menoned are the properes of their respecve owners.
Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED “AS IS” AND “WITH ALL FAULTS AND ERRORS”. HIKVISION MAKES
NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL
HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF
SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
YOU ACKNOWLEDGE THAT THE NATURE OF INTERNET PROVIDES FOR INHERENT SECURITY RISKS, AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM
CYBER-ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS
PRODUCT IN A MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS. YOU
SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY
ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.
Appearance
1
2Indicaon
This product and - if applicable - the supplied accessories too are
marked with "CE" and comply therefore with the applicable harmonized
European standards listed under the RE Direcve 2014/53/EU, the RoHS
Direcve 2011/65/EU.
replacement of a baery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium
baery types);
– disposal of a baery into fire or a hot oven, or mechanically crushing or cung of a baery, that can result in an
explosion;
– leaving a baery in an extremely high temperature surrounding environment that can
result in an explosion or the leakage of flammable liquid or gas; and
– a baery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid
or gas.
LED Indicaon Descripon
Buzzer
2012/19/EU (WEEE direcve): Products marked with this symbol
cannot be disposed of as unsorted municipal waste in the European
Union. For proper recycling, return this product to your local supplier
upon the purchase of equivalent new equipment, or dispose of it at
designated collecon points. For more informaon see:
www.recyclethis.info
2006/66/EC (baery direcve): This product contains a baery that cannot be disposed of as unsorted municipal
waste in the European Union. See the product documentaon for specific baery informaon. The baery is marked
with this symbol, which may include leering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper
recycling, return the baery to your supplier or to a designated collecon point. For more informaon see:www.recy-
clethis.info
Armed
Operaons
Green LED flashes 7 mes.
Enrolled
Red LED flashes 3 mes.
Formaed
Red LED flashes twice.
Disarmed
Red LED flashes once.
Display Signal Strength
indicator turns red for 3 s.
indicator flashes red for 3 s.
Disconnected
Week Signal
indicator turns orange for 3 s
Medium Signal
indicator turns green for 3 s.
Strong Signal
Check signal strength and select installaon place
Enter the signal checking mode by operang on the AX PRO.
Zone Alarm
Note:
-You can sign in web client “Device - Sounder - Sengs” or the
mobile client “wireless Device” to adjust the volume of buzzer.
-The zone alarm buzzer in volume level 3 compliants with EN
cerficaon.
Two beeps.
Disarmed
One beep.Armed
Fire bell.Fire Alarm
High and low frequency alternated
impulsive sound.
Panic Alarm
Rapid high frequency impulsive sound.
1
ON
OFF
Indicator Buzzer Set Screw Tamper
Screw Hole
Tamper Buon Power Switch
EN 50131-1:2006+A2:2017
EN 50131-4:2019
EN 50131-5-3:2017
Security Grade(SG) 2
Environmental Class(EC) II
Cerfied by Teleficaon
Hangzhou Hikvision Digital Technology CO.,Ltd. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China

4Enrollment
5Installaon
1. Remove the screw on the boom of the sounder, and disassemble the peripheral and remove the rear panel.
Note:
for re-enrollment, you need to hold the tamper buon while powering the peripheral on simultaneously.
For power on again, push the power swith to ON at least 5 s aer power off.
2.Loosen the set screw at the boom of the sounder and remove the front panel.
-The addional force shall be equal to three mes the weight of the equipment but not
less than 50N. The equipment and its associated mounng means shall remain secure
during the installaon. Aer the installaon, the equipment, including any associated
mounng plate, shall not be damaged.
-Install the device on the place with nonflammable surface, such as concrete wall.
!
2
ON
OF F
ON
OF F
Enroll the Peripheral Locally
Enroll the Peripheral with APP
1. In the APP, tap the "Enrollment Mode" buon on the control panel page to make the control panel enter the enroll-
ment status.
2. Push the power switch of the peripheral to on, and it will be automacally enrolled to the control panel.
1. In the APP, tap the icon "+"and scan the QR code on the peripheral or enter the serial No. (Last 5 digit) of the peripheral.
2. Push the power switch of the peripheral to on, and it will be automacally enrolled to the control panel.
2. Log in to the APP Store, download and install App.
3. Power on the security control panel.
4. Log in the APP and tap the icon "+" . Scan the QR code or input the control panel serial No. (Last 5 digit) to add the
control panel.
5. Enroll the peripheral locally, with OR code, or with serial No..
1. Check signal strength and select installaon place
Enter the signal checking mode by operang on the control panel.
Signal indicator turns green for 3 s: Strong.
Signal indicator turns orange for 3 s: Medium.
Signal indicator turns red for 3 s: Weak.
Signal indicator flashes red for 3 s: Lost.
Hangzhou Hikvision Digital Technology CO.,Ltd. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China

Operaon
6
Formang

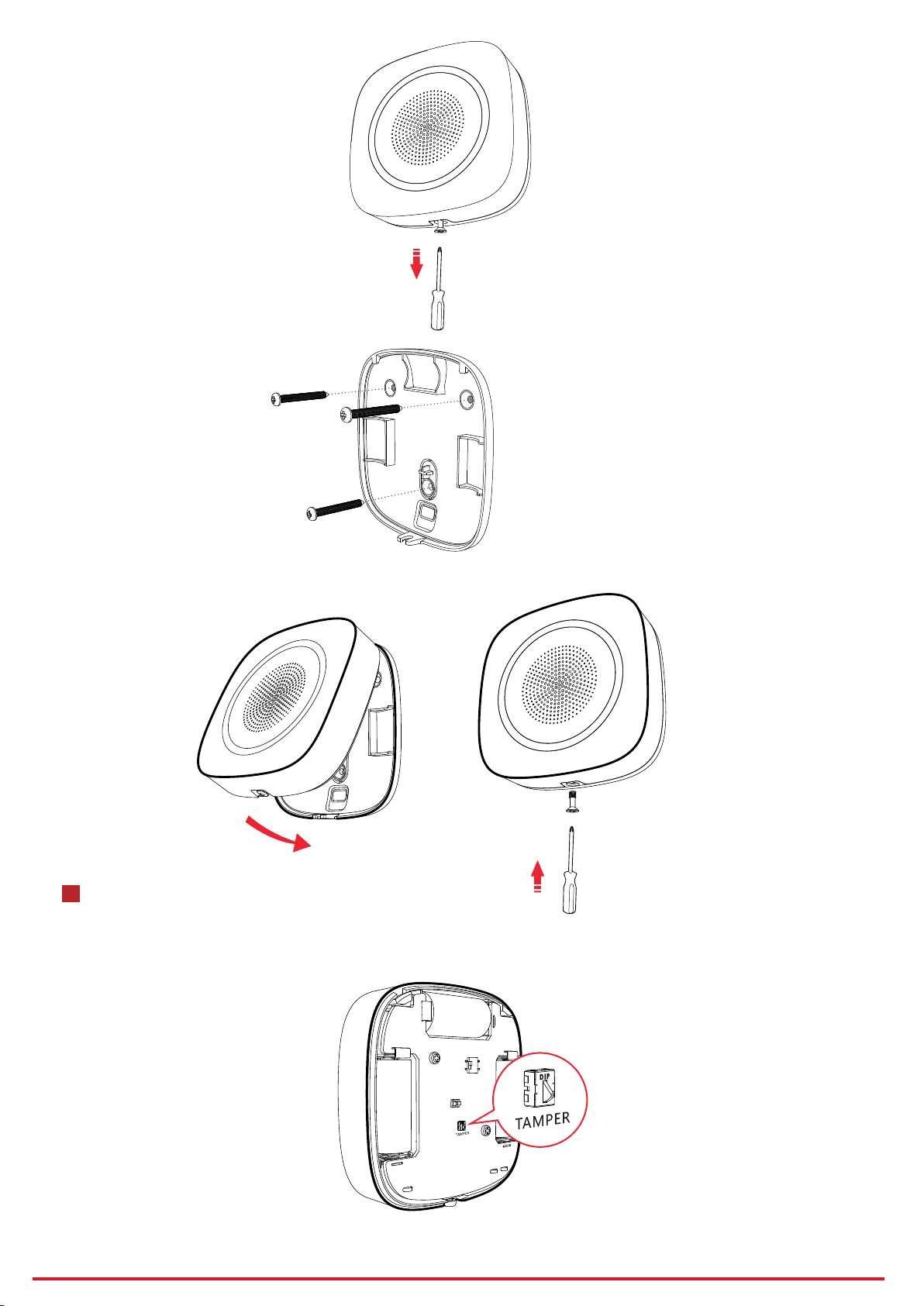

3.Secure the sounder with other three screws.
4.Fix the front panel on the sounder body. Tighten the set screw to complete the installaon.
Hold the tamper buon, and push the power switch to ON simultaneously. Release the tamper buon aer 8 s, and the
device will starts formang. While the formang is completed, the red LED flashes 3 mes.
3
ON
OFF
Hangzhou Hikvision Digital Technology CO.,Ltd. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China

7
8
Operaon Cauon and Device Maintenance
Specificaon
Replace Baeries
- All the electronic operaon should be strictly compliance with the electrical safety regulaons, fire prevenon regula-
ons and other related regulaons in your local region.
- Do not drop the device or subject it to physical shock, and do not expose it to high electromagnesm radiaon. Avoid
the equipment installaon on vibraons surface or places subject to shock (ignorance can cause equipment damage).
- Please make sure that the power has been disconnected before you wire, install or dismantle the device.
- If smoke, odors or noise rise from the device, turn off the power at once and unplug the power cable, and then please
contact the service center.
- Do not drop the device or subject it to physical shock, and do not expose it to high electromagnesm radiaon. Avoid
the equipment installaon on vibraons surface or places subject to shock (ignorance can cause equipment damage).
- Do not place the device in extremely hot (refer to the specificaon of the device for the detailed operaon tempera-
ture), cold, dusty or damp locaons, and do not expose it to high electromagnec radiaon.
- The device for indoor use shall be kept from rain and moisture.
Exposing the equipment to direct sun light, low venlaon or heat source such as heater or radiator is forbidden (igno-
rance can cause fire danger).
- Do not aim the device at the sun or extra bright places. A blooming or smear may occur otherwise (which is not a
malfuncon however), and affecng the endurance of sensor at the same me.
- Improper use or replacement of the baery may result in hazard of explosion. Replace with the same or equivalent type
only. Dispose of used baeries according to the instrucons provided by the baery manufacturer.
- Do not expose the device to the corrosive gas. Otherwise the equipment damage may occur.
- Do not expose the device to the explosive situaon.
4
Hangzhou Hikvision Digital Technology CO.,Ltd. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China
The device is self powered from the manufacturer.
Replace all baeries at the same me.
Do not mix old and new baeries.
CAUTION
RISK OF EXPLOSION IF BATTERY IS
REPLACED BY AN INCORRECT TYPE
DISPOSE OF USED BATTERIES
ACCORDING TO THE INSTRUCTIONS
CHEMICAL BURNING DANGER
DO NOT SWALLOW THE BATTERY
KEEP NEW AND USED BATTERIES
AWAY FROM THE CHILDREN
INSTALL THE BATTERIES ACCORDING
TO THE POLARITY MARK ON THE
BATTERY HOLDER. THE OPPOSITE
POLARITY MAY CAUSE DEVICE
DAMAGE
DO NOT REVERSE THE POLARITY OF
THE BATTERY
Frequency 868 MHz
Metod Two-way communicaon
Distance 1.6KM
Indicator Red/Green/Amber
Strobe light Red/Blue
Power Baery (default power supply method)
Consumpon
Quiescent Current:40uA
Max. 3V/4A (alerts in volume level 3)
Low Baery Cut Off
2.45 V
Voltage Range
Fully charged (new)to 2.45V DC (baery)
Baery life span
3CR123A, 3years in work status (triggered every two weeks and
alerng 90 s for each triggering)
Power switch Power switch
Tamper switch Front and rear tamper-proof
Decibel 90 to 110 db
Max. sound duraon 15min
（
900s
）
Operaon
Temperature
-10 °C to 40 °C (14°Fto 104°F)
Operaon Humidity 10% to 90%
Dimension (W × H ×
D)
88× 88 × 32 mm (3.46" ×3.46" × 1.26"）
Weight 169.5g
Installaon Wall mounng
General
RF
Indicaon
Power
Interface
Buzzer
