How to Install and Configure Temperature Screening Metal Detector Door
Introduction
ISD-SMG318LT-F walk-through metal detector, adopting thermal imagery technology, realizes non-
contact skin surface temperature measurement. Face detection function of the camera makes an
accurate positioning of the measurement. The detector also supports metal detection.
Product
Product Model
Note
Thermal camera
NP-SGXXXLT-F
Please upgrade camera to special firmware
version
Metal detector doesn’t need firmware
Walk metal detector
ISD-SMG318LT-F
Firmware download:
For thermal camera on the metal detector door
http://www.hikvisioneurope.com/uk/portal/?dir=portal%2FProduct%20Firmware%2F00%20Temperature%
20Screening%2FMetal%20Detector%20Door

Title:
How to Install and Configure Temperature Screening
Metal Detector Door
Version:
v1.0
Date:
01/07/2020
Product:
Temperature Screening Metal Detector Door
Page:
2 of 16
Tools needed during installation
Tape measure or other distance measuring instruments: used to determine the distance when installing
equipment on site
Common tools: one set of screwdriver, one set of metric Allen keys, etc.
Computer and network cable: used for equipment setup & debugging
Precautions for site survey
The unit is designed to operate correctly only in an indoor environment and should be located away from
any source of wind or draught, either natural or artificial such as air conditioning units. Also avoid direct
sunlight and other sources of heat such as radiators or heating vents.
It must be used indoors to ensure that the indoor temperature is 10℃- 35℃. If the temperature range is
exceeded, the accuracy of temperature measurement cannot be guaranteed.
Install where there is a sufficient light source for correct operation of the camera but avoid backlight,
reflections and occlusion etc.
Thermal camera warm-up time must exceed 30 minutes to allow for self-calibration and correct operation
A person entering the screening area from an outdoor environment should ideally be allowed to climatise to
the indoor conditions for 3-5 minutes before being screened for best results. This is due to the influence of
external temperature extremes or physical exercise immediately before screening takes place which could
cause inaccurate temperature measurement. Remove hats and lift up forehead hair for an accurate reading
of temperature.
When measuring the skin surface temperature of the human body, a person needs to stand at a distance of
1m from the fixed temperature screening metal detector door, pass one by one, make a short stop, and face
facing the camera.

Title:
How to Install and Configure Temperature Screening
Metal Detector Door
Version:
v1.0
Date:
01/07/2020
Product:
Temperature Screening Metal Detector Door
Page:
3 of 16
A. Installation and wiring
1. Open package
1) Open package and check if all items are complete as following picture shows
Safety enhancement kit includes:
Safety Enhancement Kit

Title:
How to Install and Configure Temperature Screening
Metal Detector Door
Version:
v1.0
Date:
01/07/2020
Product:
Temperature Screening Metal Detector Door
Page:
4 of 16

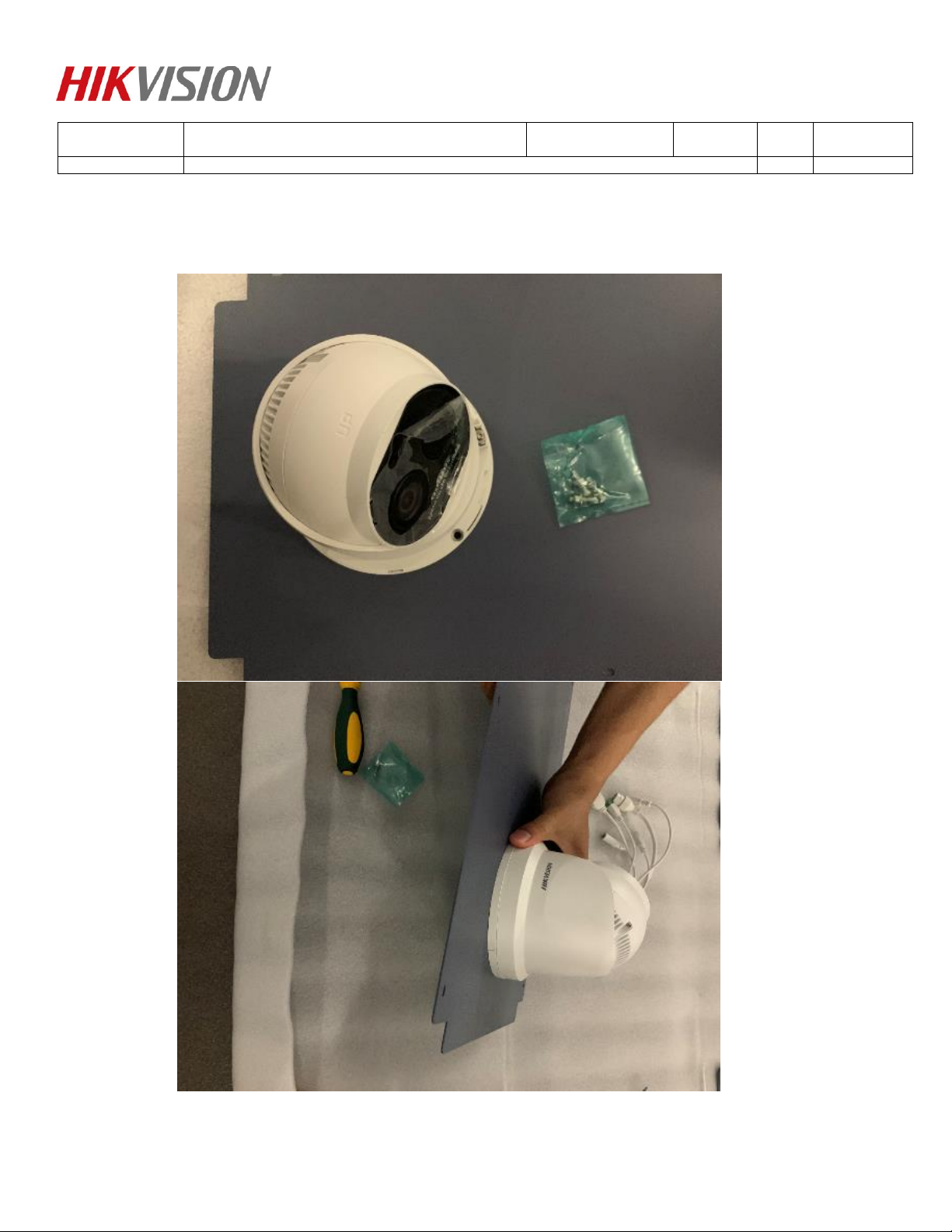

2. Fix turret camera on the bracket
1) Remove trim from turret camera and fix it on the bracket with 3 screws, then put the trim back

Title:
How to Install and Configure Temperature Screening
Metal Detector Door
Version:
v1.0
Date:
01/07/2020
Product:
Temperature Screening Metal Detector Door
Page:
5 of 16

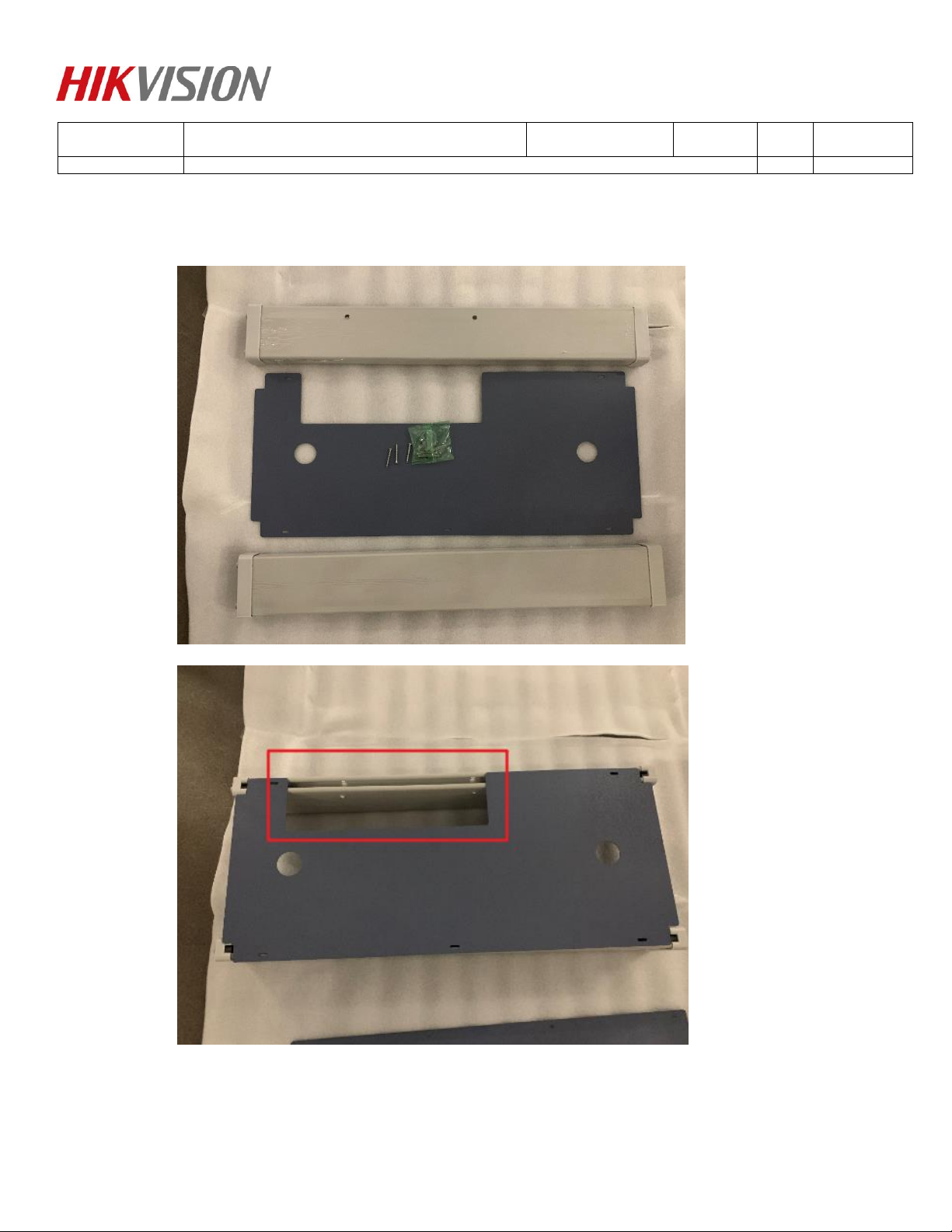

3. Assemble LCD screen and camera
1) Connect left and right door panel and tighten the screw

Title:
How to Install and Configure Temperature Screening
Metal Detector Door
Version:
v1.0
Date:
01/07/2020
Product:
Temperature Screening Metal Detector Door
Page:
6 of 16

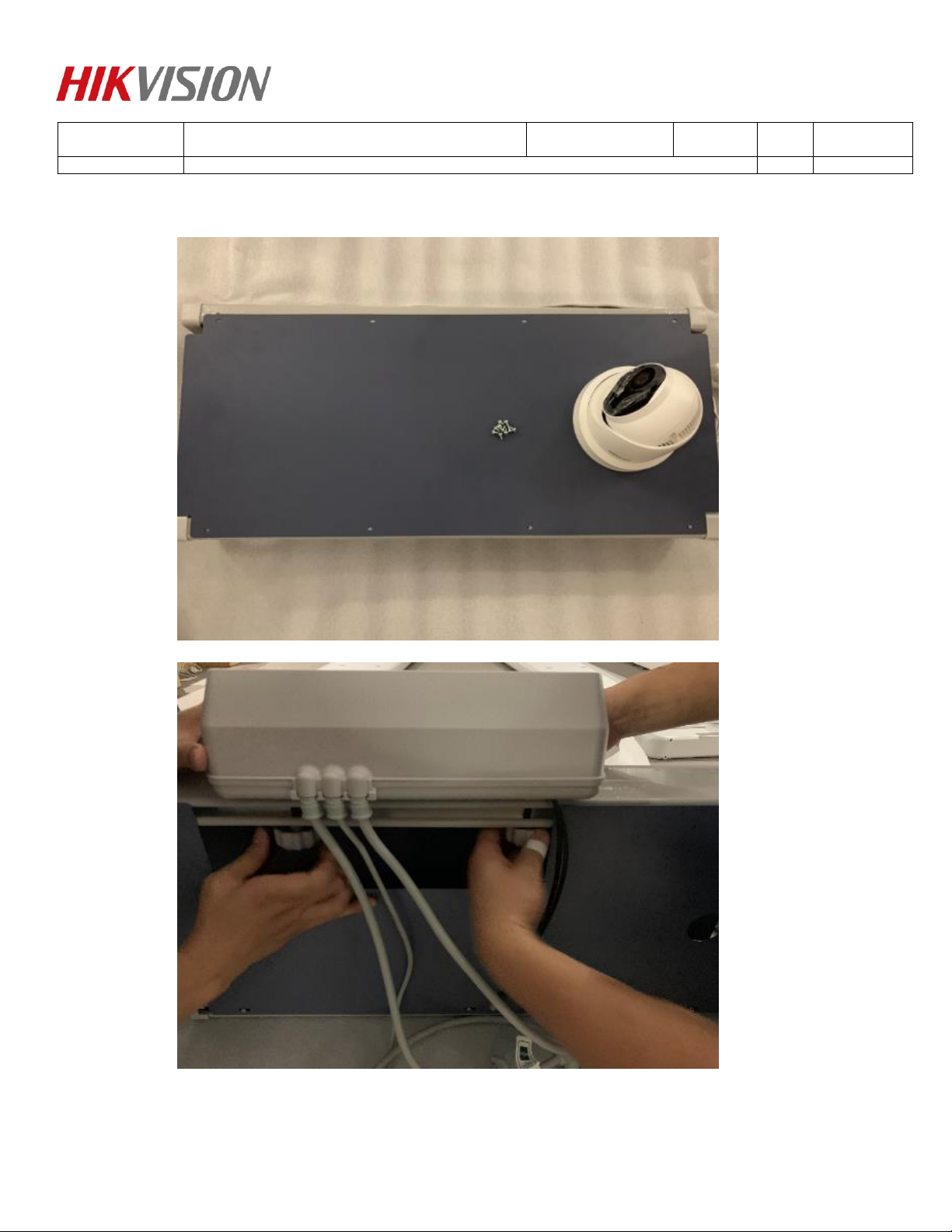

2) Fix LCD screen and camera with screws

Title:
How to Install and Configure Temperature Screening
Metal Detector Door
Version:
v1.0
Date:
01/07/2020
Product:
Temperature Screening Metal Detector Door
Page:
7 of 16
4. Connect cables of camera and LCD screen
1) Connect power cable and RS485 cable of camera and LCD screen like the following picture
shows
For first installation, we need to do configuration for camera on web client. Connect one
network cable with camera as well

Title:
How to Install and Configure Temperature Screening
Metal Detector Door
Version:
v1.0
Date:
01/07/2020
Product:
Temperature Screening Metal Detector Door
Page:
8 of 16
5. Connect left and right door panel
1) Insert cable of LCD screen to left and right door panel. Right side will be power cable and
signal cable, left side is signal cable only
Note:
Pay attention to the left and right sign and do not make mistake

Title:
How to Install and Configure Temperature Screening
Metal Detector Door
Version:
v1.0
Date:
01/07/2020
Product:
Temperature Screening Metal Detector Door
Page:
9 of 16
2) Post the sticker ‘WARNING LIVE TERMINALS ENCLOSED’ above power terminal

Title:
How to Install and Configure Temperature Screening
Metal Detector Door
Version:
v1.0
Date:
01/07/2020
Product:
Temperature Screening Metal Detector Door
Page:
10 of 16

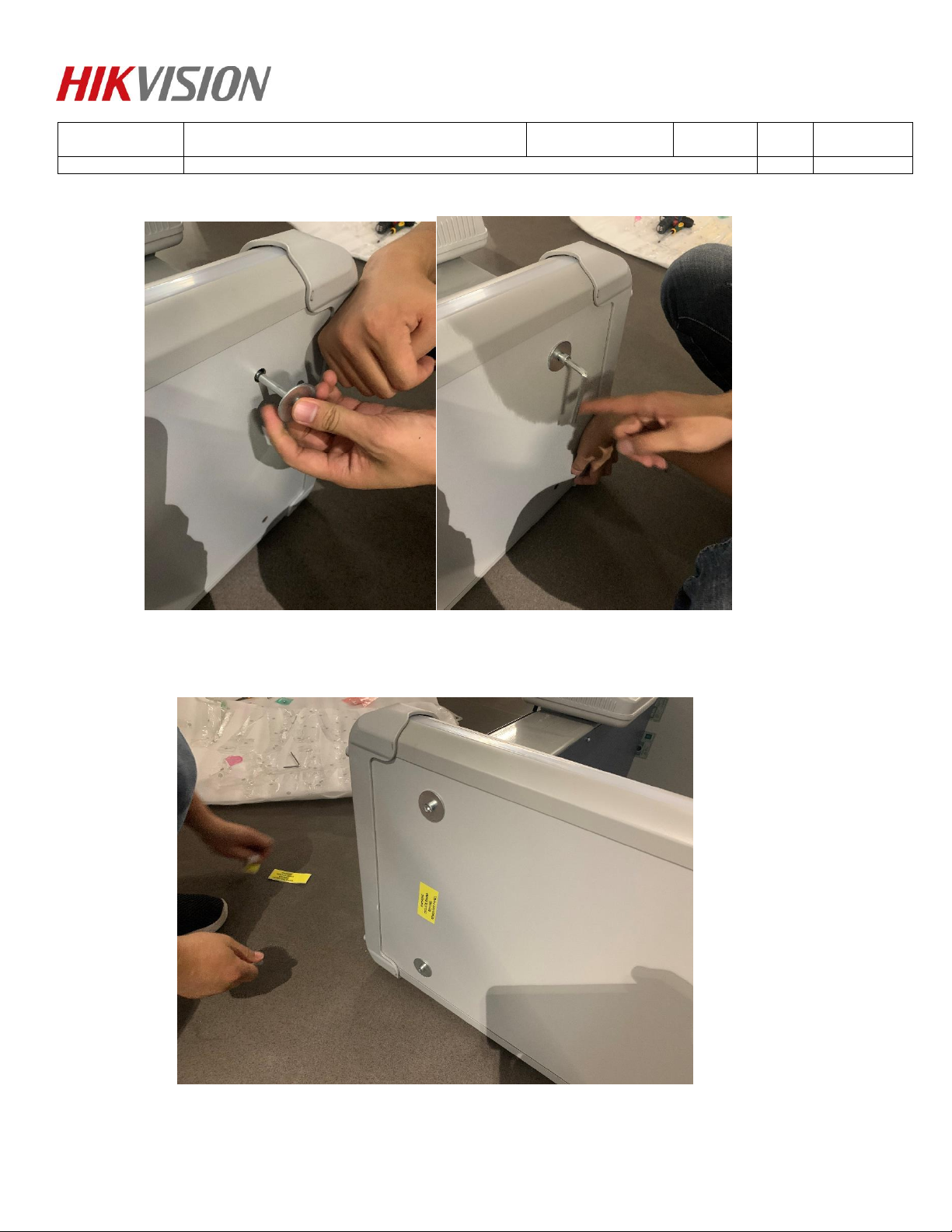

3) After connecting the cable, fix left and right door panel on middle part
4) After tightening the screws, post the stickers ‘WARNING ISOLATE MAINS BEFORE
REMOVING PANEL’ on outside of both left and right panel

Title:
How to Install and Configure Temperature Screening
Metal Detector Door
Version:
v1.0
Date:
01/07/2020
Product:
Temperature Screening Metal Detector Door
Page:
11 of 16
B. Turret camera configuration

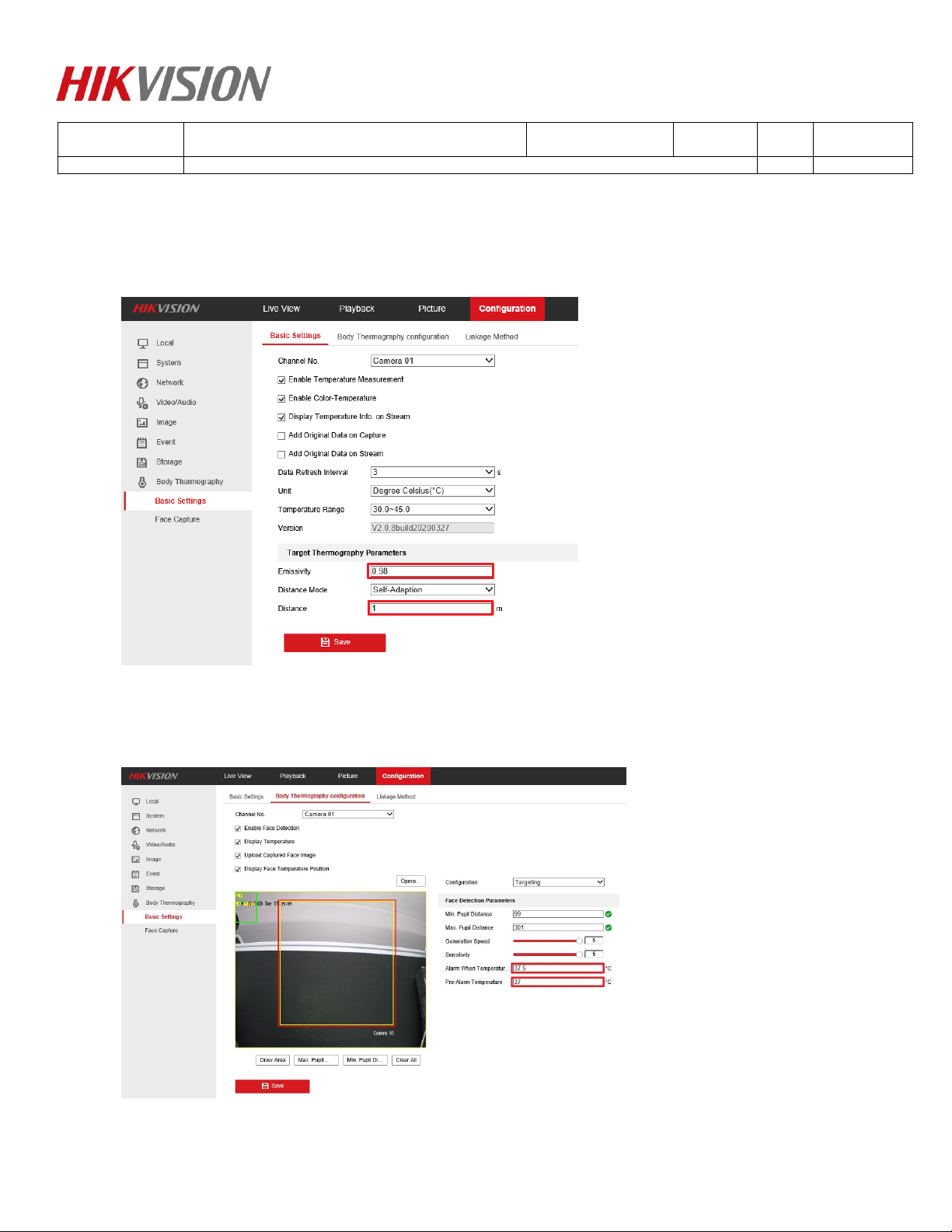

1) Use SADP tool to activate device and type in IP address on web page to log in the device. Choose
‘body thermometry –basic settings-target thermometry parameters’, set emissivity as 0.98 and distance
as 1m, and click save.
2) Select body thermometry configuration to do alarm configuration. The alarm temperature should
consider actual situation, here we set 37.5℃as alarm temperature and 37℃as pre-alarm temperature
Enable Face Detection: must check, enable face detection function
Display temperature: check, temperature will display on the optical camera view

Title:
How to Install and Configure Temperature Screening
Metal Detector Door
Version:
v1.0
Date:
01/07/2020
Product:
Temperature Screening Metal Detector Door
Page:
12 of 16
Note: If temperature screening camera is upgraded from baseline firmware to customized firmware,
please restore camera to default, then reboot both camera and metal detector door to take effect.

Title:
How to Install and Configure Temperature Screening
Metal Detector Door
Version:
v1.0
Date:
01/07/2020
Product:
Temperature Screening Metal Detector Door
Page:
13 of 16

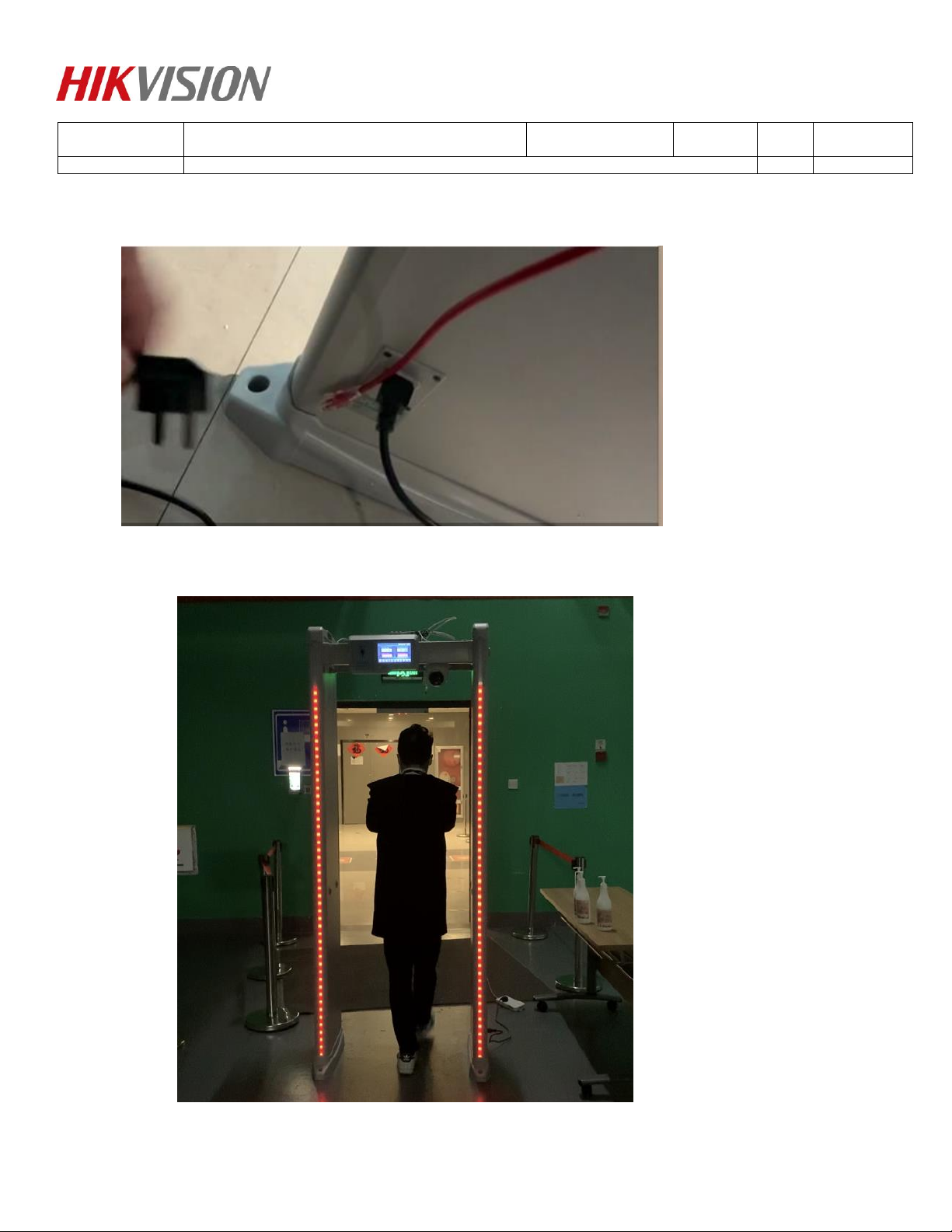

C. Test effect
1) Put the metal detector on, power on and it will do self-checking. After self-checking, it is ready to work
2) If temperature is over pre-alarm threshold, the screen will display real time temperature and warning light will
be on and buzzer will be triggered; if temperature is over alarm temperature, besides light and buzzer, voice
prompt will be broadcasted: temperature is abnormal, please check

Title:
How to Install and Configure Temperature Screening
Metal Detector Door
Version:
v1.0
Date:
01/07/2020
Product:
Temperature Screening Metal Detector Door
Page:
14 of 16
D. How to disable metal detection function
If you want to disable metal detection alarm, you need to set sensitivity of all areas to 0.
Use touch screen to set as the following picture shows
1) Click ‘sensitivity’
2) Log in with account 00000000
3) Use“-”to set sensitivity of all area to 0

Title:
How to Install and Configure Temperature Screening
Metal Detector Door
Version:
v1.0
Date:
01/07/2020
Product:
Temperature Screening Metal Detector Door
Page:
15 of 16
E. How to clear counting numbers
1) Click More on main interface
2) Log in with default account ‘00000000’
3) Click clear to clear people counting numbers

Title:
How to Install and Configure Temperature Screening
Metal Detector Door
Version:
v1.0
Date:
01/07/2020
Product:
Temperature Screening Metal Detector Door
Page:
16 of 16
See Far, Go Further
HIKVISION Technical Support
