SERVICE MANUAL
TRANS•LIFTTM
Resident
Stand Assist
From Hill-Rom
Product No. P444A
For Parts Or Technical Assistance man173
USA [phone] Canada [phone]
International: Contact your distributor.

TRANS l LIFT TM Resident Stand Assist Service Manual (man173) Page i
TRANS•LIFT
Resident Stand Assist
Service Manual
Revisions
man173
Revision Letter Pages Affected Date
Original Issue August, 1998

Revisions
Page ii TRANS l LIFT TM Resident Stand Assist Service Manual (man173)
COPYRIGHT1998 HILL-ROM, INC.
All rights reserved. No part of this text shall be reproduced or transmitted in
any form or by any means, electronic or mechanical, including photocopying,
recording, or by any information or retrieval system without written
permission from HILL-ROM, INC. (Hill-Rom).
First Edition
First Printing 1998
Printed in the USA
Hill-Romis a registered trademark of Hill-Rom, Inc.
TRANS•LIFTTM is a trademark of Hill-Rom, Inc.
The information contained in this manual is subject to change without notice.
Hill-Rom makes no commitment to update or keep current, the information
contained in this manual.
The only product warranty intended by Hill-Rom is the express, written
warranty accompanying the bill of sale to the original purchaser. Hill-Rom
makes no other warranty, express or implied, and in particular, makes no
warranty of merchantability or fitness for a particular purpose.
Additional copies of this manual can be obtained from Hill-Rom.

TRANS l LIFT TM Resident Stand Assist Service Manual (man173) Page iii
Table of Contents
Chapter 1: Introduction
Purpose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 3
Audience. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 3
Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 3
Chapter 1: Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 3
Chapter 2: Troubleshooting Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 3
Chapter 3: Theory of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 3
Chapter 4: Removal, Replacement, and Adjustment Procedures. . . . . . . . . . . 1 - 3
Chapter 5: Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 4
Chapter 6: General Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 4
Chapter 7: Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 4
Typographical Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 4
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 5
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 5
System Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 7
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 8
Physical Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 8
Electrical Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 9
Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 9
Battery Charger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 9
Regulations, Standards, and Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 9
Model Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 9
Safety Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 10
Warning and Caution Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 13
Chapter 2: Troubleshooting Procedures
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 3
Initial Actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 3

Table of Contents
Page iv TRANS l LIFT TM Resident Stand Assist Service Manual (man173)
Function Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 4
Final Actions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 9
Leg Spreader Malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 10
Control Box Malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 13
Battery Malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 15
Actuator Malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 16
Handset Pendant Malfunction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 18
Battery Charger Malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 19
Chapter 3: Theory of Operation
Theory of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 3
Braking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 3
Actuator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 3
Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 3
Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 3
Battery Charger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 4
Control Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 4
Chapter 4: Removal, Replacement, and Adjustment Procedures
Front Caster. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 3
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 3
Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 4
Rear Caster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 5
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 5
Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 6
Base Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 7
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 7
Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 7
Tie Rod Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 8
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 8
Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 9
Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 9
Leg Subassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 10

Table of Contents
TRANS l LIFT TM Resident Stand Assist Service Manual (man173) Page v
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 10
Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 11
Spreader Shaft and Pedal Subassemblies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 12
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 12
Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 13
Base Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 14
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 14
Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 15
Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 16
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 16
Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 16
Control Box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 17
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 17
Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 17
Mounting Post. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 18
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 18
Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 18
Knee Pad Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 19
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 19
Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 19
Actuator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 20
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 20
Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 21
Lift Arm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 22
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 22
Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 22
Column Stand Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 24
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 24
Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 24
Battery Charger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 25
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 25

Table of Contents
Page vi TRANS l LIFT TM Resident Stand Assist Service Manual (man173)
Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 26
Handset Pendant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 27
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 27
Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 28
Wall Mounting Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 29
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 29
Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 30
Chapter 5: Parts List
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 3
Service Parts Ordering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 5
Exchange Policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 7
In-Warranty Exchanges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 7
Out-of-Warranty Exchanges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 7
Recommended Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 8
TRANS•LIFTTM Resident Stand Assist—P444A . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 10
Base Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 12
Chapter 6: General Procedures
Cleaning and Care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 3
General Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 3
Steam Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 3
Hard to Clean Spots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 3
Disinfection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 4
Stand Assist Sling Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 4
Battery Pack Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 4
Lubrication Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 5
Preventive Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 6
Preventive Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 7
Preventive Maintenance Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 8
Tool and Supply Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 9
Chapter 7: Accessories

TRANS l LIFT TM Resident Stand Assist Service Manual (man173) Page 1 - 1
1
Chapter 1
Introduction
Chapter Contents
Purpose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 3
Audience. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 3
Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 3
Chapter 1: Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 3
Chapter 2: Troubleshooting Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 3
Chapter 3: Theory of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 3
Chapter 4: Removal, Replacement, and Adjustment Procedures. . . . . . . . . . . 1 - 3
Chapter 5: Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 4
Chapter 6: General Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 4
Chapter 7: Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 4
Typographical Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 4
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 5
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 5
System Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 7
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 8
Physical Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 8
Electrical Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 9
Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 9
Battery Charger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 9
Regulations, Standards, and Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 9
Model Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 9
Safety Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 10
Warning and Caution Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 13

Chapter 1: Introduction
Page 1 - 2 TRANS l LIFT TM Resident Stand Assist Service Manual (man173)
1NOTES:

Purpose
Chapter 1: Introduction
TRANS l LIFT TM Resident Stand Assist Service Manual (man173) Page 1 - 3
1
Purpose
This manual provides requirements for the TRANS•LIFTTM Resident Stand
Assist normal operation and maintenance. It also includes a parts list (in
chapter 5) for ordering replacement components.
Audience
This manual is intended for use by only facility-authorized maintenance
personnel. Failure to observe this restriction can result in severe injury to
people and serious damage to equipment.
Organization
This manual contains seven chapters.
Chapter 1: Introduction
In addition to a brief description of this service manual, chapter 1 also provides
a product overview.
Chapter 2: Troubleshooting Procedures
Repair analysis procedures are contained in this chapter. These procedures are
used to gather information, identify the maintenance need, and verify the
effectiveness of the repair.
Chapter 3: Theory of Operation
This chapter describes the application of the mechanical and electrical systems
employed in this product.
Chapter 4: Removal, Replacement, and Adjustment
Procedures
Chapter 4 contains the detailed maintenance procedures determined necessary
in chapter 2.

Typographical Conventions
Chapter 1: Introduction
Page 1 - 4 TRANS l LIFT TM Resident Stand Assist Service Manual (man173)
1Chapter 5: Parts List
This chapter contains Hill-Rom’s warranty, part-ordering procedure, and
illustrated parts lists.
Chapter 6: General Procedures
Cleaning, preventive maintenance, and other general procedures are described
in this chapter.
Chapter 7: Accessories
There are no accessories for the TRANS•LIFTTM Resident Stand Assist.
Typographical Conventions
This manual contains different typefaces and icons designed to improve
readability and increase understanding of its content. Note the following
examples:
• Standard text—used for regular information.
•Boldface text—emphasizes a word or phrase.
•NOTE:—sets apart special information or important instruction
clarification.
• The symbol below highlights a WARNING or CAUTION:
Figure 1-1. Warning and Caution Symbol
– A WARNING identifies situations or actions that may affect
patient or user safety. Disregarding a warning could result in
patient or user injury.
– A CAUTION points out special procedures or precautions that
personnel must follow to avoid equipment damage.
• The symbol below highlights an electrical shock hazard WARNING:
Figure 1-2. Electrical Shock Hazard Warning

Introduction
Chapter 1: Introduction
TRANS l LIFT TM Resident Stand Assist Service Manual (man173) Page 1 - 5
1
Introduction
Overview

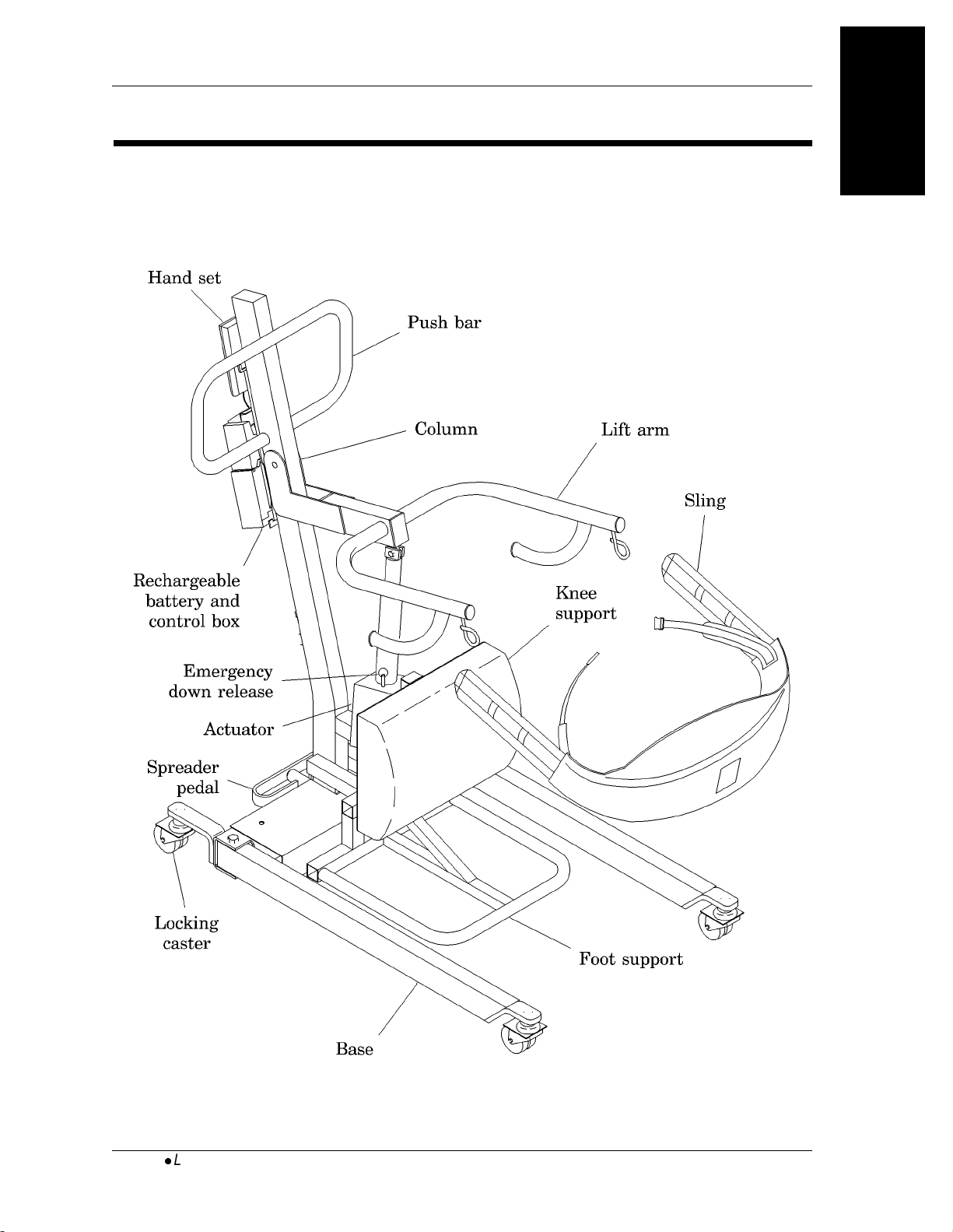

Figure 1-3. TRANS•LIFTTM Resident Stand Assist
m173_062

Introduction
Chapter 1: Introduction
Page 1 - 6 TRANS l LIFT TM Resident Stand Assist Service Manual (man173)
1Today, with improvements in technology and changes in the way healthcare is
delivered, Hill-Rom is designing products to continuously meet the changing
needs of the healthcare industry.
The TRANS•LIFTTM Resident Stand Assist consists of a column stand
assembly mounted on a castered base assembly. The spreader pedal widens the
base frame to allow the resident access from a chair. The lift arm and
adjustable stand assist sling are attached to the stand column subassembly. A
battery pack powered actuator raises and lowers the lift arm and sling. The
knee and foot supports are located below the lift arm. These provide additional
support when standing and foot placement during resident transferring. A
rechargeable battery pack supplies power for the TRANS•LIFTTM Resident
Stand Assist. The battery pack stores enough power for approximately 40
assists. It is recharged by the wall mounted battery pack charger that plugs into
a standard 110/120V AC power source.
The TRANS•LIFTTM Resident Stand Assist has been designed to be mobile but
stable. The sturdy, steel frame with locking set brakes on the casters allows for
easy positioning, locking, assisting, and moving. The TRANS•LIFTTM
Resident Stand Assist is highly mobile and independent of an AC electrical
source because it uses a rechargeable battery pack. The handset cord allows the
caregiver the freedom to move around and operate the TRANS•LIFTTM
Resident Stand Assist remotely while interacting with the resident. The
TRANS•LIFTTM Resident Stand Assist will enhance caregiver productivity and
quality of care for the less mobile and more dependent resident.
The TRANS•LIFTTM Resident Stand Assist can be used for several purposes,
including using the stand to assist in walking. It can be used with or without the
stand assist sling and is designed to increase the mobility of the user. The
TRANS•LIFTTM Resident Stand Assist is capable of assisting a resident of up
to 400 lb (181 kg) who is seated or resting on a surface as high as 40" (102 cm)
off the floor.
The TRANS•LIFTTM Resident Stand Assist has been designed for the comfort
and safety of the resident. Thick, slip resistant sling padding reduces the
potential of sling slippage while supporting the resident. The lift arm and
column stand are designed so that the resident does not come in contact with
the actuator or the column stand during operation. The actuator has an
emergency down release that slowly lowers the lift arm and the resident should
battery power be lost. An emergency stop button, located on the control box,
will shut down power to the TRANS•LIFTTM Resident Stand Assist in case of
an emergency.
m173_062

Introduction
Chapter 1: Introduction
TRANS l LIFT TM Resident Stand Assist Service Manual (man173) Page 1 - 7
1
System Features
The features of the TRANS•LIFTTM Resident Stand Assist include:
• Individual locking casters
• Adjustable base frame for easier chair access
• Integral actuator clutch
• Emergency stop button
• Emergency down release
• Magnetic backed handset
• Handset cord offers 360° caregiver access
• Audible low battery pack alarm
• Rechargeable battery pack
• Comfortable and adjustable full support stand assist sling
• Knee and foot supports for the resident
• Push bar provides a secure area to grip during resident transfer

Specifications
Chapter 1: Introduction
Page 1 - 8 TRANS l LIFT TM Resident Stand Assist Service Manual (man173)
1Specifications
Physical Description
See table 1-1 on page 1-8 for TRANS•LIFTTM Resident Stand Assist
specifications.
Table 1-1. Specifications
Feature Dimension
Height (fully extended) 63.625" (161.61 cm)
Width 24" (61 cm)
Length 52" (132 cm)
Weight 117 lb (53.12 kg)
Caster size 3" (8 cm)
Floor to Base Clearance 4.625" (11.75 cm)
Maximum angle of inclination (up) 70°
Maximum angle of inclination (down) 14°
Minimum wall clearance 15" (38 cm)
Maximum resident weight 400 lb (181 kg)
Lift range Floor level 0" (0 cm) to 40"
(102 cm)
Storage relative humidity range 20 - 95%
Operating relative humidity 30 - 85%
Storage temperature range -40°F - 150°F (-41°C - 65.5°C)
Ambient operating temperature range 50°F - 110°F (10°C - 43°C)
Sound level <45 dBA at resident’s ear

Model Identification
Chapter 1: Introduction
TRANS l LIFT TM Resident Stand Assist Service Manual (man173) Page 1 - 9
1
Electrical Description
Battery
24V DC
A fully charged battery will provide approximately 40 assists.
Battery Charger
110/120V AC, 60 Hz
Charging voltage: 27.6V DC (± 2%).
Charging current: <650 milliampere.
Regulations, Standards, and Codes
TRANS•LIFTTM Resident Stand Assist meets specifications UL 2601-1.
Model Identification
See table 1-2 on page 1-9 for TRANS•LIFTTM Resident Stand Assist model
identification.
Table 1-2. Model Identification
Model Number Description
P444A TRANS•LIFTTM Resident Stand Assist

Safety Tips
Chapter 1: Introduction
Page 1 - 10 TRANS l LIFT TM Resident Stand Assist Service Manual (man173)
1Safety Tips
WARNING:
Only facility-authorized maintenance personnel should troubleshoot the
TRANS•LIFTTM Resident Stand Assist. Troubleshooting by
unauthorized personnel could result in personal injury or equipment
damage.
WARNING:
Follow the product manufacturer’s instructions. Failure to do so could
result in personal injury or equipment damage.
WARNING:
Only facility-authorized maintenance personnel should perform
preventive maintenance on the TRANS•LIFTTM Resident Stand Assist.
Preventive maintenance performed by unauthorized personnel could
result in personal injury or equipment damage.
WARNING:
Adhere to the “Infection Control Policies and Procedures” outlined in the
Safety Coordinator ReferenceGuide . Failure to do so could result in the
spread of infection.
WARNING:
Dispose of the TRANS•LIFTTM Resident Stand Assist sling in
accordance with the proper disposal procedure as specified by the local
regulating authority.
WARNING:
Dispose of the battery pack in accordance with the proper disposal
procedure as specified by the local regulating authority. Failure to do so
could result in personal injury.
WARNING:
Replace the sling after 20 machine washings, or 6 months of regular
use, whichever comes first. Failure to do so could result in personal
injury.

Safety Tips
Chapter 1: Introduction
TRANS l LIFT TM Resident Stand Assist Service Manual (man173) Page 1 - 11
1
WARNING:
Set both rear brakes and press the emergency stop button on the
control panel before attaching or removing the sling. Failure to do so
could allow the stand assist to move or actuate, and personal injury
could result.
WARNING:
Place the control pendant in its home position on the top of the main
mast during travel to prevent inadvertant operation of the actuator.
Failure to do so could result in personal injury.
WARNING:
Use caution when operating the spreader bar. Ensure the wheelchair is
removed from the support legs before decreasing the width. Failure to
do so could result in personal injury or equipment damage.
WARNING:
Ensure both the caster brakes are set prior to leaving the resident
unattended. Failure to do so could result in personal injury.
WARNING:
Do not use a sling with a torn or damaged strap. Personal injury could
result.
WARNING:
Use the stand assist for transfer only. Do not use the stand assist for
transport. Personal injury could result.
SHOCK HAZARD:
Do not expose the unit to excessive moisture. Personal injury or
equipment damage could occur.
SHOCK HAZARD:
Unplug the unit from its power source. Failure to do so could result in
personal injury or equipment damage.

Safety Tips
Chapter 1: Introduction
Page 1 - 12 TRANS l LIFT TM Resident Stand Assist Service Manual (man173)
1CAUTION:
Do not use bleach or chlorine to wash the sling. Equipment damage
could occur.
CAUTION:
Do not use harsh cleaners, solvents, or detergents. Equipment damage
could occur.

Warning and Caution Labels
Chapter 1: Introduction
TRANS l LIFT TM Resident Stand Assist Service Manual (man173) Page 1 - 13
1
Warning and Caution Labels
Figure 1-4. Warning and Caution Labels
m173_063
