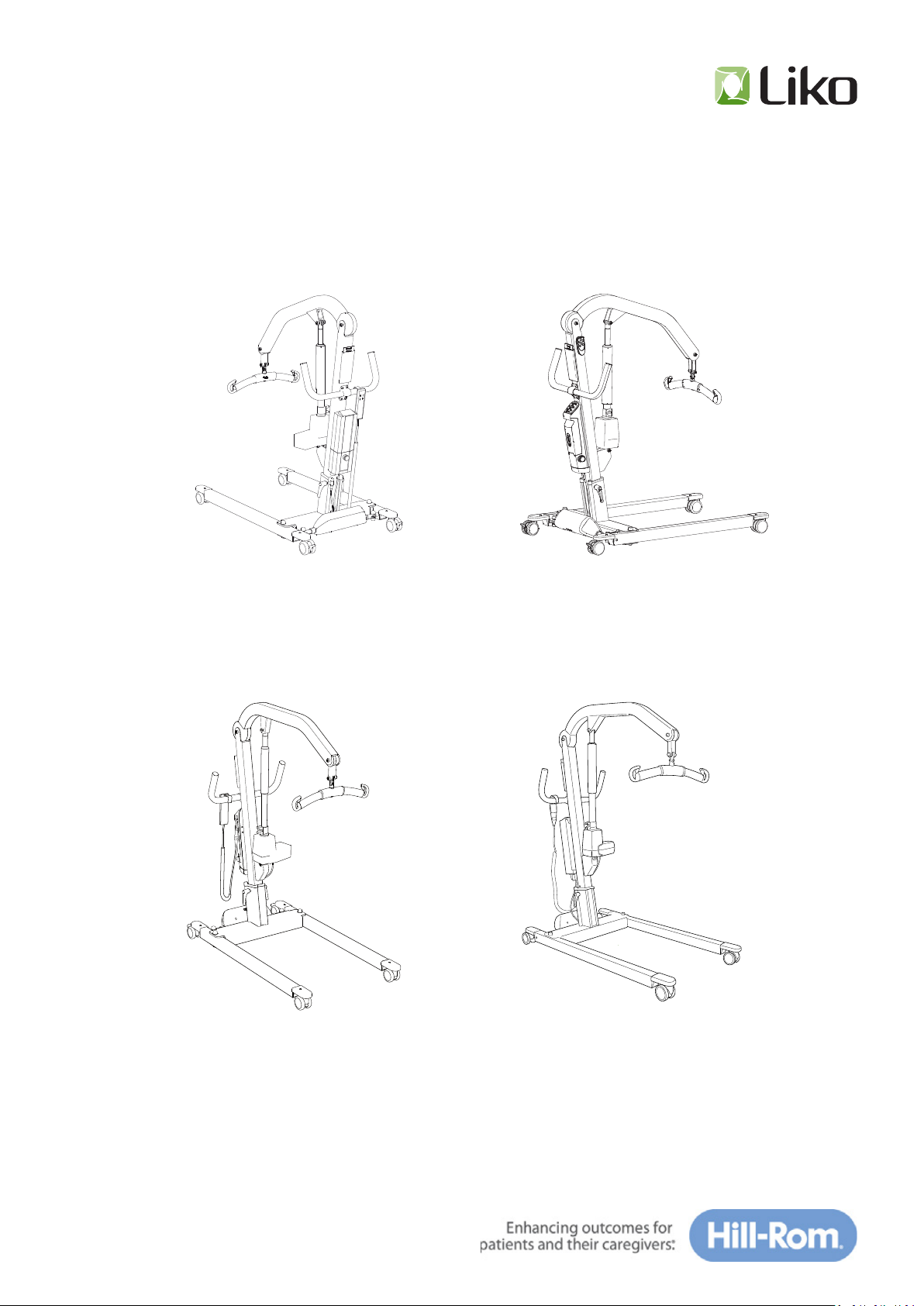

Hillrom Liko Viking M Series User manual

Prod. No. 2040005
S/N 7 100 101-7 200 200
DISCONTINUED 2012
Prod. No. 2040015
S/N 7 500 401 - 7 600 500
DISCONTINUED 2016
Prod. No. 2040035
S/N 9 200 001 - 9 300 000
DISCONTINUED 2016
Viking™ M
mobile li
Service Manual
3EN370401 Rev. 21
ENGLISH
Prod. No. 2040045
S/N 9 400 001 -

Spare part statement
Liko AB will as a manufacturer of overhead & mobile lis keep spare parts available
for 10 years aer the last manufacturing date of the product.
Spare parts are available in the spare parts list or in the Service Manual for each model of li.
Components (manufacturing parts) are not available aer last manufacturing date.
Repairs and maintenance may only be performed by personnel authorized by Hill-Rom
and using original Liko™ spare parts.
For informaon regarding Service and Maintenance educaon, contact your Hill-Rom representave.
For contact informaon please visit our website: www.hill-rom.com lwww.liko.com
In this document, this warning symbol indicates that special care should be taken.
If instrucons are not followed there is a risk of serious injury to paent or caregiver.

Service Manual Viking™ M mobile lift • 3EN370401 Rev. 21 3 www.liko.com lwww.hill-rom.com
Table of Contents
Viking™ M mobile li
Page
1.0 Technical Data
1.1 Viking M 2040005............................................................ 4
1.2 Viking M 2040015............................................................ 5
1.3 Viking M 2040035............................................................ 6
1.4 Viking M 2040045............................................................ 7
2.0 Troubleshoong
2.1 Viking M 2040005............................................................ 8
2.2 Viking M 2040015............................................................ 9
2.3 Viking M 2040035........................................................... 10
2.4 Viking M 2040045........................................................... 11
2.5 Control Unit CBL ............................................................ 12
3.0 Spare Parts Assembly informaon ............................................ 13
4.0 Spare Parts List
4.1 Viking M 2040005........................................................... 14
4.2 Viking M 2040015........................................................... 18
4.3 Viking M 2040035........................................................... 22
4.4 Viking M 2040045........................................................... 26
5.0 Service
5.1 Control Unit CBL, parameter Code Key............................... 30
5.2 Control Unit CBL, Reset Service Interval Parameters.......... 31
5.3 Control Unit Jumbo Care..................................................... 32
6.0 Liko Service System.................................................................... 33
7.0 Periodic Inspecon Informaon................................................ 34
8.0 Prevenve Maintenance ........................................................... 35
9.0 Product Changes........................................................................ 36

Service Manual Viking™ M mobile lift • 3EN370401 Rev. 21 4 www.liko.com lwww.hill-rom.com
1.1 Technical Data Viking™ M mobile li, 2040005
4www.liko.com
Viking M • 7EN137102-04
L
G
B
FF1B1
A
E
D
C
Measurements
Technical Data
Built for indoor operation.
Type B, according to the degree of protection
against electrical shock.
Class ll equipment.
A: Max. load and weight in kg. Measurement in cm.
B: Max. load and weight in lbs. Measurement in inch.
* These measures depend on in which hole the mast is levelled and secured. See assembly instructions page 5.
Lifting speed: 3.5 cm/s (1.4 inch./s) without load
Batteries: Two 12 V 2.9 Ah valve-regulated
lead-acid gel-type batteries.
New batteries are provided by the
supplier.
Battery charger: Built-in charger, 100-240 VAC,
50-60 Hz, max 400mA
Motor (mast): 24 V, 9.2 A, permanent magnetic
motor with mechanical safety
mechanism and safety nut.
Motor (base): 24 V, 5.5 A, permanent magnetic
motor.
Material: Aluminium
Emergency
lowering: Mechanical and electrical
Wheels: Front: 75 mm twin castor wheels.
Rear: 75 mm brake-equipped twin
castor wheels.
Intermittent
operation:
Int. Op 10/90, active operation max
2 min. Out of a time of 100, active
must be less than 10, though not
more than 2 min.
Degree of
protection:
IP 43
Viking M Max.
load
L*
Max.
L*
Min.
A*
Max.
A*
Min.
B B1C D E* F F1G Weight
Total
Weight
Part
Turning
diameter
A: 205 179
174
169
52
47
42
202
197
192
144
139
134
123 87 69-111 56-97 100
105
110
10,5 4,5 88 35 18 140
B: 450 70
69
67
21
19
17
80
78
76
57
55
53
49 34 27-44 22-38 39
41
43
4.1 1.6 35 77 40 55

Service Manual Viking™ M mobile lift • 3EN370401 Rev. 21 5 www.liko.com lwww.hill-rom.com
1.2 Technical Data Viking™ M mobile li, 2040015
Maximum load: 205 kg (450 lbs)
Material: Aluminium
Weight: Total weight: Heaviest part:
34.0 kg (75 lbs) 15.3 kg (34 lbs)
Wheels: Front: 75 mm (3 inch.) twin wheels.
Rear: 75 mm (3 inch.) twin wheels with brakes.
Turning diameter: 1400 mm (55.2 in)
Em. Lowering: Manual and electrical
Liing interval: 1270 mm (50.0 in)
Liing Speed
(no load): 42 mm/s and 38 mm/s, respecvely
( 1.7 in/s and 1.5 in/s, respecvely)
Sound Level: 46 dB(A)
Protecon Class: IP 54
Op. Forces
of Controls:
HandControl: 4 N
Operaon Panel: 4 N
HandControl
IR
Baeries: 2 AAA LR03 1.5 V.
Reach: 2 m (80 in)
Electrical Data: 24 V
Intermient
operaon:
Int. Op 10/90, acve operaon max 2 min. Only
10% of a given length of me may
be acve, yet no more than 2 min.
Baeries: NiMH cells, 2.2 Ah. New baeries provided by the
supplier.
Baery
Charger:
CBL20001, built-in, 100-240 V AC,
50-60 Hz, max 600 mA.
Li Motor: Permanent magnet motor with mechanical safety
mechanism; 24 V, 8.5 A
Motor for
base-width
adjustment:
Permanent magnet motor
24 V, 6 A
The device is intended for use indoors
Type B, in accordance with the electrical shock protecon class.
Class II equipment.
Amax.* Amin.* B B1 B2 B3***C D D2** E* F F1 Lmax* Lmin* M N O
max. min. max. min.
2020
1970
1920
1440
1390
1340
1230 870 660
650
650
595
1110 690 970 560 195
1100
1050
1000
105 30
1790
1740
1690
520
470
420
385 220 495
Measurement in mm
Top view
Lateral view
B
B1
F F1
Amax.
B2
Amin.
**600 mm (24 in)
E
M
N
O
Max. reach posion of li arm
B3
Lmin
Lmax
C
D2
D
Max. reach posion of li arm
D1
**700 mm (28 in)
Note: The measurements are based on the li being equipped with standard sling bar and standard wheels. When changing to other liing accessories, or
other wheels, check that the li sll achieves desired liing height.
* Dierent measurements apply to Viking M li depending on the height-seng posion, see ”Assembly”, in the Instrucon Guide.
** Reference measurement according to Standard EN ISO 10535:2006.
Measurement in inch.
A max.* A min.* B B1 B2 B3***C D D2** E* F F1 Lmax* Lmin* M N O
max. min. max. min.
79.5
77.6
75.6
56.7
54.7
52.8
48.4 34.3 26.0
25.6
25.6
23.4
43.3 27.2 38.2 22.0 7.7
43.3
41.4
39.4
4.2 1.2
70.5
68.5
66.5
20.5
18.5
16.5
15.2 8.7 19.5

Service Manual Viking™ M mobile lift • 3EN370401 Rev. 21 6 www.liko.com lwww.hill-rom.com
1.3 Technical Data Viking™ M mobile li, 2040035
Maximum load: 205 kg (450 lbs)
Material: Aluminium
Weight: Total weight: Heaviest part:
30,2 kg (66.6 Ibs) 15,8 kg (34.8 Ibs)
Wheels: Front: 75 mm (3 inch.) twin wheels
Rear: 75 mm (3 inch.) twin wheels with brakes
Turning diameter 1400 mm (55.2 in)
Emergency
lowering device:
Mechanical and electrical
Liing interval: 1270 mm (50.0 in)
Liing speed
(no load)
42 mm/s and 38 mm/s, respecvely
( 1.7 in/s and 1.5 in/s, respecvely)
Sound level: 46 dB(A)
Protecon class: IP 54
Operang Forces of
Controls:
HandControl: 2.4 N
Operaon Panel: 4 N
Electrical data: 24 V
Intermient
power:
Int. Op 10/90, acve operaon
max 2 min. Only 10% of a given
length of me may be acve, but no
more than 2 min.
Baeries: NiMH cells, 2.2 Ah. New baeries
provided by the supplier.
Baery charger: CBL20002, built-in, 100-240 V AC,
50-60 Hz, max 600 mA.
Li motor: Permanent magnet motor with
mechanical safety mechanism
24 V, 8.5 A
Motor for base-width
adjustment:
Permanent magnet motor
24 V, 6 A
Amax.* Amin.* B B1 B2 B3***C D D2** E* F F1 Lmax* Lmin* M N O
max. min. max. min.
2020
1970
1920
1440
1390
1340
1230 870 660
650
650
595
1110 690 970 560 195
1100
1050
1000
105 30
1790
1740
1690
520
470
420
385 220 495
Measurement in mm
Top view
Lateral view
B
B1
F F1
Amax.
B2
Amin.
**600 mm (24 in)
E
M
N
O
Max. reach posion of li arm
B3
Lmin
Lmax
C
D2
D
Max. reach posion of li arm
D1
**700 mm (28 in)
Note: The measurements are based on the li being equipped with standard sling bar and standard wheels. When changing to other liing accessories, or
other wheels, check that the li sll achieves desired liing height.
* Dierent measurements apply to Viking M li depending on the height-seng posion, see ”Assembly”, in the Instrucon Guide.
** Reference measurement according to Standard EN ISO 10535:2006.
Measurement in inch.
A max.* A min.* B B1 B2 B3***C D D2** E* F F1 Lmax* Lmin* M N O
max. min. max. min.
79.5
77.6
75.6
56.7
54.7
52.8
48.4 34.3 26.0
25.6
25.6
23.4
43.3 27.2 38.2 22.0 7.7
43.3
41.4
39.4
4.2 1.2
70.5
68.5
66.5
20.5
18.5
16.5
15.2 8.7 19.5
The device is intended for use indoors
Type B, in accordance with the electrical shock protecon class.
Class II equipment.

Service Manual Viking™ M mobile lift • 3EN370401 Rev. 21 7 www.liko.com lwww.hill-rom.com
1.4 Technical Data Viking™ M mobile li, 2040045
Maximum load: 205 kg (450 lbs.)
Material: Aluminium
Total weight: 30 kg (66 Ibs.) excl baery
Weight of
heaviest part: 15.2 kg (33.5 Ibs.)
Wheels: Front: 75 mm (3 inch) twin wheels
Rear: 75 mm (3 inch) twin wheels with
brake.
Turning diameter: 1400 mm (55.2 inch)
Emergency
lowering device: Mechanical and electrical
Liing interval: 1270 mm (50.0 inch)
Liing speed (no load) 36 mm/s (1.4 inch/s)
Sound level: 46 dB(A)
Protecon class: IP X4
Operang Forces
of Controls: Handcontrol: 5 N
Electrical data: 24 V
Intermient
power:
Int. Op 10/90, acve operaon max 2
min. Only 10% of a given length of me
may be acve, but no more than 2 min.
The device is intended for use indoors
Type B, in accordance with the electrical shock protecon class.
Class II equipment.
Note: The measurements are based on the li being equipped with standard sling bar. When changing to other liing accessories, check that the li sll
achieves desired liing height.
* Dierent measurements apply to Viking M li depending on the height-seng posion, see “Assembly”.
** Reference measurement according to Standard EN ISO 10535:2006.
Viking M Measurements: mm / inch
Top view
Lateral view
B
B1
F F1
Amax.
B2
Amin.
**600 mm (24 in)
E
M
N
O
Max. reach posion of li arm
B3
Lmin
Lmax
C
D2
D
Max. reach posion of li arm
D1
**700 mm (28 in)
Amax.* Amin.* B B1 B2 B3***C D D2** E* F F1 Lmax* Lmin* M N O
max. min. max. min.
2020
1970
1920
1440
1390
1340
1230 870 660
650
650
595
1110 690 970 560 195
1100
1050
1000
105 30
1790
1740
1690
520
470
420
385 220 495
79.5
77.6
75.6
56.7
54.7
52.8
48.4 34.3 26.0
25.6
25.6
23.4
43.3 27.2 38.2 22.0 7.7
43.3
41.4
39.4
4.2 1.2
70.5
68.5
66.5
20.5
18.5
16.5
15.2 8.7 19.5
Baeries: Lead-acid gel, valve-regulated baery
- 24 V, 2.9 Ah Prod. No. 2006106
Weight 2.8 kg (6.2 lbs.).
Li-ION baery
- 25.6 V, 2.25 Ah Prod. No. 2006109
Weight 1 kg (2.2 lbs).
Baery charger: Internal charger,, 100-240 V AC, 50-60
Hz, max 400 mA.
Li motor: Permanent magnet motor with
mechanical safety mechanism
24 V, 10.5 A
Motor for base-width
adjustment:
Permanent magnet motor
24 V, 6 A
Surrounding
funconal
environment:
Temperature: +10°C to +40°C,
Humidity: 20% to 90% at 30°C non-
condensing, Air pressure: 800HPa to
1060HPa, Altude: max. 2000m.

Service Manual Viking™ M mobile lift • 3EN370401 Rev. 21 8 www.liko.com lwww.hill-rom.com
2.1 Troubleshoong Viking™ M mobile li, 2040005
1. Check that the emergency stop buon is not pushed in.
2. Check that the cables are connected correctly.
3. Cgheck that the charging cable is not connected to the wall socket.
4. Check that the baery is charged.
5. Check that the contact plates on the baery pack are not defected
or broken.
5. If the li sll does not work sasfactorily, contact Hill-Rom.
1. Check that the emergency stop buon is not pushed in.
2. Check that the contact plates on the baery pack are not defected
or broken.
3. If the li sll does not work sasfactorily, contact Hill-Rom.
1. Check that the emergency stop buon is not pushed in.
2. Use the electrical emergency lowering to safely lower the paent.
3. Use the mechanical emergency lowering device (marked) to safely
lower the paent.
4. Check that the baery is charged.
5. If the li sll does not work sasfactorily, contact Hill-Rom.
Contact Hill-Rom.
The li do not work up/down.
The base-width adjustment does not
work (in/out).
Baery charging does not work.
The li stops in the elevated posion.
If you hear unusual sound from the li.

Service Manual Viking™ M mobile lift • 3EN370401 Rev. 21 9 www.liko.com lwww.hill-rom.com
2.2 Troublesshoong Viking™ M mobile li, 2040015
1. Make sure that the emergency stop is not engaged.
2. If the li has not been used for 24 hours, enable the system.
3. Check that the HandControl IR is enabled.
4. Check that the charger cable is not connected to an electric outlet.
5. HandControl IR indicates baery change.
6. If the li works via the operaon panel,
change the HandControl IR.
7. If the problem persists, please contact Hill-Rom.
1. Make sure that the emergency stop is not engaged.
2. Make sure that the cables to the control box are connected
correctly.
3. Check that the charger cable is not connected to an electric outlet.
4. Check the baery capacity.
5. Check that the baery’s contact plates are not defecve or broken.
6. If the problem persists, please contact Hill-Rom.
1. Make sure that the emergency stop is not engaged.
2. Check that the charging cable is correctly connected
3. Make sure that the baery is properly aached.
4. Check that the baery’s contact plates are not defecve or broken.
5. If the problem persists, please contact Hill-Rom.
1. Make sure that the emergency stop is not engaged.
2. Check the baery capacity.
3. HandControl IR indicates baery change.
4. Use the electrical emergency lowering device to lower
the paent onto a rm surface.
5. Use the manual emergency lowering device to lower
the paent onto a rm surface.
6. If the problem persists, please contact Hill-Rom.
Contact Hill-Rom.
The li do not work up/down with the
Hand Control IR
The base-width adjustment doesn’t
work (in/out) with the Hand Control IR.
The li does not work up/down with
the operaon panel.
The base-width adjustment doesn’t
work (in/out) with the operaon panel.
The charger doesn’t work.
The li is stuck in the high posion.
If you hear unusual sound from the li.

Service Manual Viking™ M mobile lift • 3EN370401 Rev. 21 10 www.liko.com lwww.hill-rom.com
2.3 Troubleshoong Viking™ M mobile li, 2040035
The li doesn’t work up/down with
Hand Control.
The base-width adjustment doesn’t
work (in/out) with the Hand Control.
The li does not work up/down with
the operaon panel.
The base-width adjustment doesn’t
work (in/out) with
the operaon panel.
The charger doesn’t work.
The li is stuck in the high posion.
If you hear unusual sounds.
1. Check that the emergency stop buon has not been pressed.
2. Check the baery capacity.
3. Check that the charger cable is not connected to an electric outlet.
4. Check that the hand control cable is correctly connected.
5. If the li works via the operaon panel, change the Hand Control.
6. If the problem persists, please contact Hill-Rom.
1. Check that the emergency stop buon has not been pressed.
2. Check that the cables to the control box are connected correctly.
3. Check that the charger cable is not connected to an electric outlet.
4. Check the baery capacity.
5. If the problem persists, please contact Hill-Rom.
1. Check that the emergency stop buon has not been pressed.
2. Check that the charger cables are connected correctly.
3. Make sure that the baery is properly aached.
4. If the problem persists, please contact Hill-Rom.
1. Check that the emergency stop buon has not been pressed.
2. Check the baery capacity.
3. Check that the hand control cable is connected correctly.
4. Electrical emergency lowering, use the operaon panel to lower the
paent onto a rm surface.
5. Use the mechanical emergency lowering device to lower the paent
onto a rm surface.
6. If the problem persists, please contact Hill-Rom.
Contact Hill-Rom.

Service Manual Viking™ M mobile lift • 3EN370401 Rev. 21 11 www.liko.com lwww.hill-rom.com
2.4 Troubleshoong Viking™ M mobile li, 2040045
The charger doesn’t work.
The li is stuck in the high posion.
If you hear unusual sound from the li.
1. Check that the charger cables are connected correctly.
2. Make sure that the baery is properly seated in the control box.
3. Try an alternave mains outlet.
4. If the problem persists, please contact Hill-Rom.
1. Make sure that the emergency stop buon has not been
acvated (shall not be pressed in).
2. Make sure that the baery is properly seated in the control box.
3. Check the baery capacity.
Check if the Li-ION baery has been set in to sleep mode, see
chapter "Operaon".
4. Check that the handcontrol cable is connected correctly.
5. Electrical emergency lowering, use the operaon panel to lower
the paent onto a rm surface, see chapter; Operaon.
6. Use the mechanical emergency lowering device to lower the
paent onto a rm surface, see chapter; Operaon.
7. If the problem persists, please contact Hill-Rom.
Contact Hill-Rom.
The li do not work up/down
with Hand Control.
The base-width adjustment
doesn’t work (in/out) with the
Hand Control.
1. Make sure that the emergency stop buon has not been acvated
(shall not be pressed in).
2. Check the baery capacity.
Check if the Li-ION baery has been set in to sleep mode, see
chapter "Operaon".
3. Make sure that the baery is properly seated in the control box.
4. Check that the charger cable is not connected to an electric outlet.
5. Check that the handcontrol cable is correctly connected to the
control box.
6. Check that the li arm actuator cable is correctly connected to the
control box.
7. Check that the base widht actuator cable is correctly connected to
the control box.
8. If the problem persists, please contact Hill-Rom.

Service Manual Viking™ M mobile lift • 3EN370401 Rev. 21 12 www.liko.com lwww.hill-rom.com
Trouble Shooting for CBL20
3EN902101-01
Customers FAQ:
- The liftarms up/down function or base width in/out function doesn´t work?
a) Change position on actuator and base motor cables.
b) Perform step 2 and see if fault is on output channel or motors.
- The control panel function´s on controlbox is ok, but the hand control has no function?
a) Check to ensure that battery contact plates in the hand control are not defective or broken.
- There´s no charging function?
a) Verify contact between control box and battery. Perform step 4.
b) Check charging function. Perform step 5.
Note! Begin with Simple trouble shooting from Service manual for the
actual product. If problem remains continue as described below.
Tools Required
Multimeter
123
Instructions regarding the check points for
Lift type: Serial No: Prod. Year: Contract No:
Name:
Address:
(Zip Code)
Viking M
www.liko.com
14
Tools required
Ah 140 280 420 560 700
Check:
8 Battery
Battery capacity
Check battery capacity by pressing the i button (1).
The following information is displayed:
2 – Green light: More than 50% of battery capacity remaining.
3 – Yellow light: 25% -50% of battery capacity remaining.
4 – Yellow light: 0% -25% of battery capacity remaining.
The indicator lamps light for about 30 seconds before switching off.
Battery capacity is also displayed during lift operation.
Maximum charge is reached after about 5 hours. When the batteries are fully charged, the charger switches
automatically to maintenance charging.
The lamps blink alternately (yellow/yellow/green) during charging. A blinking green lamp indicates that charging
is complete. When operating time is noticeably shorter than normal, the batteries should probably be replaced.
Discontinue charging and replace the batteries with 2006107 Extra battery box.
1
4
3
2
Prod. No.
2006107 Extra battery box
Replace:
2
123
1
Instructions regarding the check points for
Lift type: Serial No: Prod. Year: Contract No:
Name:
Address:
(Zip Code)
Viking M
www.liko.com
14
Tools required
Ah 140 280 420 560 700
Check:
8 Battery
Battery capacity
Check battery capacity by pressing the i button (1).
The following information is displayed:
2 – Green light: More than 50% of battery capacity remaining.
3 – Yellow light: 25% -50% of battery capacity remaining.
4 – Yellow light: 0% -25% of battery capacity remaining.
The indicator lamps light for about 30 seconds before switching off.
Battery capacity is also displayed during lift operation.
Maximum charge is reached after about 5 hours. When the batteries are fully charged, the charger switches
automatically to maintenance charging.
The lamps blink alternately (yellow/yellow/green) during charging. A blinking green lamp indicates that charging
is complete. When operating time is noticeably shorter than normal, the batteries should probably be replaced.
Discontinue charging and replace the batteries with 2006107 Extra battery box.
1
4
3
2
Prod. No.
2006107 Extra battery box
Replace:
3
green, LED
yellow, LED
5
4
1. Make sure that:
- the emergency stop 1 is not activated.
- the battery is assembled correctly.
- the charging cable is not connected to mains.
2. Check operation panel function´s for actuator and base motor
Push control buttons on operation panel 2 at control box
- If both actuator and base motor functions response, continue to step 5.
- If no function, continue to step 3.
- If only one of either the actuator or base motor function response:
change position on actuator and base motor cables then check control
function of operation panel, to see if fault is on output channels or the
motors. If control box function is ok! Continue to step 5.
If control box is faulty. Replace the control box.
3. Check battery capacity
3a) Push in the battery capacity button 3 :
- If any of the three LED´s on the battery start´s the battery is OK, continue
to step 4.
- If not, continue to step 3b.
3b) Measure battery voltage: release battery, 4 measure on contact 1 and 3:
- If voltage over 0V the battery is ok! Continue to step 4.
4. Verify contact between control box and battery.
4a) Remove the battery and wait for green LED to turn off.
4b) Put back the battery and see if green LED start automatically.
- If green LED starts, battery contact is ok!
- If not, try to ensure that the battery´s contact plates are not defective
or broken and try to bend them out carefully, then repeat step 4.
- If still no contact, continue to step 5.
5. Check charging function
5a) Connect the charging cable to mains
- If charging starts within 1 minute, charge and then continue to step 6.
- If charging doesn´t start, continue to step 5b.
5b) Measure output voltage on the control box 5 on contact 1 and 3.
- If voltage is 3-4V charging is OK! Replace the battery, continue to step 6.
- If voltage is 0V when the charging cable is connected to mains the control
box needs to be replaced! Replace the control box.
6. Charge the battery until green LED is ashing, on the battery.
- Check that all function´s on the control box is ok!
If not , Replace control box.
Check point:
2.5 Trouble Shoong CBL 20

Service Manual Viking™ M mobile lift • 3EN370401 Rev. 21 13 www.liko.com lwww.hill-rom.com
3.0 Spare Parts Assembly Informaon
Assembly Instrucons to Liko™ spare parts are aached with the products.
The assembly instrucons are also available in Agile and on the Partner Web.
Document number to spare parts assembly instrucons can be found in the spare parts list.
Liko technical documentaon can be found under “My informaon” - “Documents” on the Partnerweb:
hps://partner.liko.com/ If you don’t have access, contact Ann-Chrisn Sundström for registraon:
E-mail: ann-chris[e-mail], Tel: +46 (0)920 - 47 47 10
NOTE
- Always make sure the spare part is mounted according to the assembly instrucon.
- Check all funcons related to the changed spare part.
- Repairs and maintenance may only be performed by personnel authorized by Hill-Rom
and using original Liko™ spare parts.
Cable for handcontrol LR 242S, ES
Assembly Instrucon
Product No. 31290070
3EN650203 Rev. 5
ENGLISH
Tools required:
Contains: Qty:
Hand control cabel 1
Fits: Prod. No.
Hand Control 242 ES 2 Buon 3126034
Hand Control LR 242 ES-4MS 3126035
Hand Control LR 242 ES 4 Buon 3126036
Hand Control LR 242 ES 6-Buon 3126038
Hand Control Ultra Twist 21090053
Hand Control Ultra Control Unit 21090059
www.hill-rom.com
l
www.liko.com
NOTE
- Make sure the spare part is mounted according to the assembly instrucon.
- Check all funcons related to the changed spare part.
- Repairs and maintenance may only be performed by personnel authorized by Hill-Rom and using original Liko™ spare parts.
© Copyright Liko R&D AB 2016
Print this document in colour!
Cable colour
1 Green
2 Pink
3 White
4 Red
5 Blue
6 Yellow
7 Brown
8 Grey
1 2 3 4 5 6 7 8
Document Number
INFORMATION

Service Manual Viking™ M mobile lift • 3EN370401 Rev. 21 14 www.liko.com lwww.hill-rom.com
4.1 Spare Parts List, Viking™ M mobile li, 2040005
Spare Parts List • Liko™ Mobile Lifts 3EN800804 Rev. 2 94 www.hill-rom.com lwww.liko.com
PROD. NO. PRODUCT
Spare Parts Posions Viking™ M mobile li
307
22
23
24
28
160
263
196
418
292
55
139
19
268
266
328
285
460
410
284
159
485
486
199
439
548
331
197
308
461
490
264
311
293
2040005 Viking M (Disconnued 2013)
(S/N 7 100 101 - 7 200 200)
There are four models of Viking™ M mobile li;
Prod. No. 2040005, 2040015, 2040035 and 2040045.
One spare parts list for each model. Make sure to
order correct spare part.

Service Manual Viking™ M mobile lift • 3EN370401 Rev. 21 15 www.liko.com lwww.hill-rom.com
4.1 Spare Parts List, Viking™ M mobile li, 2040005
Spare Parts List • Liko™ Mobile Lifts 3EN800804 Rev. 2 95 www.hill-rom.com lwww.liko.com
Spare Parts
PROD. NO. POS. NO. NAME UNIT ASSEMBLY INSTR.
Viking™ M mobile li, 2040005
20490013
20490013US
268
268
Control Box Viking M
S/N 7100101-7200200
Control Box Viking M , US
S/N 7100101-7200200
only for the US-market
pce 3SE630223
20090023 19 Aachment for Control Box pce 3EN630238
20090026 22 Cable for charging EU pce 3EN630237
20090027 23 Cable for charging UK pce
20090028 24 Cable for charging US pce
20190017 55 Hand control EE 4 buons pce 3SE630204
2006106 139 Extra Baery pce 3EN630224
20390006 159 Fork Cover pair 183916
21090001 160 Extension Cable pce 3EN630225
20490007 196 Li Arm Plasc Cover
to S/N 7106200
set 3SE630240
20490008 197 Restoraon set Overhead beam
to S/N 7106200
set 3SE630228
20490010 199 Locking handle Viking XL pair 3SE630244
20090050 248 Cable for Charging AU/NZ pce 3EN630237
21090011 263 Extension Cable US pce 3EN630218
31590011 264 Latch Universal SlingBar pair 3SE630229

Service Manual Viking™ M mobile lift • 3EN370401 Rev. 21 16 www.liko.com lwww.hill-rom.com
4.1 Spare Parts List, Viking™ M mobile li, 2040005
Spare Parts List • Liko™ Mobile Lifts 3EN800804 Rev. 2 96 www.hill-rom.com lwww.liko.com
Spare Parts
PROD. NO. POS. NO. NAME UNIT ASSEMBLY INSTR.
Viking™ M mobile li, 2040005
20490011 266 Base Motor Viking M, L
(Viking M 2040005 up to S/N 7107499 also need spare
part 20490028, Pos 328)
pce 3EN630296
20490014 284 Front Wheel 75 mm Standard
from S/N 7102064
pce 182904
20490015 285 Rear Wheel 75 mm Standard
from S/N 7102064
pce 182903
20090058 292 Hook for Hand control 2,4,6 pce 3SE630210
20090066 293 End Cover Handle/Arm Support grey, 4 pce set 3SE630271
20490023 307 Li Arm Plasc Cover
from S/N 7106201
set 3EN630250
20490024 308 Overhead Beam Rest. set
from S/N 7106201
set x2
x6
x3
x6
x2
3EN630251
31590014 311 Latch, composite
Fits Universal SlingBar from S/N 1299511
pair 3SE640242
20490028 328 Restoraon set motor aachment set
X
Y
Z
x2
3SE640258
20490030 331 Outer Tube set 3SE640260

Service Manual Viking™ M mobile lift • 3EN370401 Rev. 21 17 www.liko.com lwww.hill-rom.com
4.1 Spare Parts List, Viking™ M mobile li, 2040005
Spare Parts List • Liko™ Mobile Lifts 3EN800804 Rev. 2 97 www.hill-rom.com lwww.liko.com
Spare Parts
PROD. NO. POS. NO. NAME UNIT ASSEMBLY INSTR.
Viking™ M mobile li, 2040005
20490036 410 Viking M Legs
from S/N 7100308
pair 3SE650259
20490038 418 Mast Viking M
including handle and motor aachment
set 3EN650269
20490040 439 Bracket Cover set 3SE650273
20490048 460 Leg Cover set 3EN650294
20490049 461 Flexlink set 3SE650295
20090080 485 Fork locking aachment, 4 pair set 3SE690208
20090081 486 Wheel Fork pair 3SE690209
20490052 490 SlingBar Assembly set set 3SE690210
20490064 548 Actuator LA34 CBJ pce 3EN690277

Service Manual Viking™ M mobile lift • 3EN370401 Rev. 21 18 www.liko.com lwww.hill-rom.com
4.2 Spare Parts List, Viking™ M mobile li, 2040015
Spare Parts List • Liko™ Mobile Lifts 3EN800804 Rev. 2 98 www.hill-rom.com lwww.liko.com
PROD. NO. PRODUCT
Service Tool
Liko™ Service System
Spare Parts Posions Viking™ M mobile li
22
23
24
28
348
349
20
353
307
511
354
352
351
333
418
293
422
350
336
334
199
266
328
285
284
159
485
486
460
410
439
347
331
308
461
490
264
311
2040015 Viking M (CBL control box) (Disconnued 2016)
(S/N 7 500 401 - 7 600 500)
There are four models of Viking™ M mobile li;
Prod. No. 2040005, 2040015, 2040035 and 2040045.
One spare parts list for each model. Make sure to
order correct spare part.

Service Manual Viking™ M mobile lift • 3EN370401 Rev. 21 19 www.liko.com lwww.hill-rom.com
4.2 Spare Parts List, Viking™ M mobile li, 2040015
Spare Parts List • Liko™ Mobile Lifts 3EN800804 Rev. 2 99 www.hill-rom.com lwww.liko.com
Spare Parts
PROD. NO. POS. NO. NAME UNIT ASSEMBLY INSTR.
Viking™ M mobile li, 2040015
Liko™ Service System
20490032 334 Control Unit CBL, Viking M
Before use; requires Soware and, needs to be
programmed with Liko™ Service System,
Prod. No. 21090024
pce 3SE640299
20490039 336 Control Unit CBL, by S/N
Can only be ordered if S/N (serial number) can be
provided to Liko™ Customer Service.
Will be programmed at Liko™ before delivery.
2 weeks delivery me from
Hill-Rom/Liko™ Alvik, Sweden
pce 3SE650270
20090026 22 Cable for charging EU pce 3EN630237
20090027 23 Cable for charging UK pce
20090028 24 Cable for charging US pce
20390006 159 Fork Cover pair 183916
20490010 199 Locking handle Viking XL pair 3SE630244
20090050 248 Cable for Charging AU/NZ pce 3EN630237
20490011 266 Base Motor Viking M, L
(Viking M 2040005 up to S/N 7107499 also need spare
part 20490028, Pos 328)
pce 3EN630296
20490014 284 Front Wheel 75 mm Standard
from S/N 7102064
pce 182904
20490015 285 Rear Wheel 75 mm Standard
from S/N 7102064
pce 182903

Service Manual Viking™ M mobile lift • 3EN370401 Rev. 21 20 www.liko.com lwww.hill-rom.com
4.2 Spare Parts List, Viking™ M mobile li, 2040015
Spare Parts List • Liko™ Mobile Lifts 3EN800804 Rev. 2 100 www.hill-rom.com lwww.liko.com
Spare Parts
PROD. NO. POS. NO. NAME UNIT ASSEMBLY INSTR.
Viking™ M mobile li, 2040015
20090066 293 End Cover Handle/Arm Support grey, 4 pce set 3SE630271
20490023 307 Li Arm Plasc Cover
from S/N 7106201
set 3EN630250
20490024 308 Overhead Beam Rest. set
from S/N 7106201
set x2
x6
x3
x6
x2
3EN630251
31590014 311 Latch, composite
Fits Universal SlingBar from S/N 1299511
pair 3SE640242
20490028 328 Restoraon set motor aachment set
X
Y
Z
x2
3SE640258
20490030 331 Outer Tube set 3SE640260
20490031 333 Wireless hand control HBL20 set 3SE640298
20490033 347 Actuator Vi M pce
X
Y
Z
3EN650214
21090018 348 Extension cable CBL20 pce 3SE650216
21090019 349 Extension cable CBL 20 US, pce 3SE650216
2006107 350 Extra baery box pce 7EN137106
Instrucon Guide
