HIOS JUKUREN BLG-BC2 series User manual

ET-A011-BC2 19A
Operation Manual
(2019.7)
Built-in screwdriver & Pulse system
BLG-BC2 Series
BLG-4000BC2 / BLG-4000BC2-LT
BLG-5000BC2 / BLG-5000BC2-15 /BLG-5000BC2-18 / BLG-5000BC2-HT
BLG-7000BC2

02
03 Important Safety Instructions
05 Checking Supplied Accessories
06 Setting Up the Device
Connecting the Cord
Attaching a Bit
Changing the Start Mode (for BLG-5000BC2
Series /BLG-7000BC2)
BLG-5000BC2 Series
BLG-7000BC2
10 Parts and Their Functions
BLG-4000BC2 Series
BLG-5000BC2 Series
BLG-7000BC2
Operation Panel
13 Basic Operations
How to Change Rotation Speed
14 Setting the Torque
BLG-4000BC2 Series
Output Torque Guide (HI Input)
How to Change to Smaller Torque
BLG-5000BC2 Series /BLG-7000BC2
Output Torque Guide (HI Input)
17 Setting the Pass / Fail Criteria
Setting by Direct Teaching
Setting by Manual Procedure
20 Setting Screw Counter
22 Setting Menu List
How to Operate Setup Mode
<Counter>
<Screw Counter>
<Minimum Pulse>
<Maximum Pulse>
<Work Reset Timer>
<Count Timer for Reverse Rotation>
<System>
<Pulse Detection>
<Total Torque-ups (count)>
<Inactive Time of Torque-up>
26 Connecting the Special Cable (Option)
Checking Supplied the Cable Accessories
BLG-BC2-3010 (BLG-4000BC2/BLG-
5000BC2 Series)
BLG-BC2-3012 (for BLG-4000BC2-LT /
BLG-7000BC2)
Connecting to Screwdriver (BLG-4000BC2/
BLG-5000BC2 Series)
Connecting to Screwdriver (BLG-7000BC2)
31 Saving Screw Fastening Data
System Requirements
Screen of Connection
Connecting to Screwdriver
Sending Command
Work Monitor
Screen of Administration
Specications of Communication by Special
Cable
Message Format
Communication Command / List of
Messages
43 Troubleshooting
Common Problems
When the Messages Below Are Displayed
Want to See the Device Version
45 Maintenance
46 Specications
BLG-4000BC2 Series
BLG-5000BC2Series
BLG-7000BC2
49 Notice
Table of Contents

03
Please read this manual and the power supply unit manual carefully before use to ensure proper operation. In
addition, do not use the product in the way not described in this manual. Please note that we are not
responsible for any problems caused by using the product in a manner that does not conform to the contents
of this manual, using it improperly, or repairing / modifying by a third party except by us or someone specied
by us.
Important Safety Instructions
Installation
◦Do not install the device at the places described
below. Otherwise, it may cause a re or a failure.
・A place of high humidity or with a lot of dust
・A place where it becomes high temperatures
・A place of re
・A place of direct sunshine
・A place containing corrosive gas in the air
・Unstable place
◦Do not use the device where the ambient
temperatures are out of the range of 5 to 40 °C.
Power Supply
◦Be sure to install an earth leakage breaker and a
safety breaker on the commercial power source
before using it.
◦Connect the earth wire to the earth wire terminal
of the outlet. You may have an electric shock
without the earth wire connection in case of an
electric leakage.
◦Avoid the octopus foot wiring and use of an
extension cord. Otherwise, it may cause a re or an
electric shock.
◦Do not connect anything other than specied to
the connection part of this device. Otherwise, it
may cause an electric shock or a failure.
Handling
◦Do not wear clothes with ippers on the cus,
gloves, neckties etc. Otherwise, they may get
caught in the rotating screwdriver and cause an
injury or a failure.
◦Wear suitable clothing and protective eye-wear for
work. Cover long hair with a hat etc. so that you
can work safely.
◦Turn o power when you leave the workplace, or
when you attach / remove a bit / an optional item.
◦If static electricity is charged, you need to
neutralize it before use.
◦Avoid an unstable place or an unreasonable
posture for work. Otherwise, it may cause an
injury.
◦Long-time work or some types of work may cause
strain on your hands, neck, arms or waist, causing
an injury. Avoid long-time work and take a break
regularly.
◦We recommend use of a balancer to prevent the
device from falling and to protect cords / wires.
◦Hold the plug when you attach / remove the
power cord, screwdriver and so on.
◦Protect cords / wires by not giving damages to
them; not remodeling them; not pulling them; not
bending them forcibly; etc. Also, do not place
heavy items on the power cord. Otherwise, it may
cause a re or an electric shock.
◦If you detect an uneven rotation, strange noises,
overheating or activation of a breaker, etc., stop
using the device immediately and have it repaired.

04
However, note that the device may be overheated
depending on the frequency of the workpiece or
screw types. As a countermeasure, prepare spare
screwdrivers of the same model to extend the tact
time and use them alternately, or review the
selection of screwdriver models.
◦Do not overload the device so much that it cannot
clutch. Otherwise, it may cause a failure of the
motor.
◦Do not touch the screwdriver while it is rotating.
Otherwise, it may cause an injury or a failure.
◦Keep your hands and face away from the rotating
section while in use. Otherwise, it may cause an
injury.
◦Remove the bit from the screwdriver when you are
not working.
◦If you cannot attach / remove the bit in the way
described in this document, please make contact
with our service section.
◦Fix the workpiece with jig / clump while in
working.
◦Do not use the switch lever as a hanger. Otherwise,
it may cause an accident or an injury.
◦Do not give a strong impact or excessive force.
Otherwise, it may cause a failure.
◦Do not operate the screwdriver with wet or oiled
hands.
◦Do not operate the FOR / REV switch before the
screwdriver completely stops. Otherwise, it may
cause a failure.
◦Do not disassemble / remodel this device.
Otherwise, it may cause a failure.
Maintenance and Inspections
◦Turn o power and remove the power plug from
the outlet when the device is not in use for a long
time.
◦Remove the accessories from the screwdriver and
store them in the package box when it is not in use
them for a long time.
◦Inspect the device regularly to conrm there are
no damages. If you use it with damages, it may
cause a re or an electric shock.
◦When you clean the device, turn o the power and
remove the power plug from the outlet.
Otherwise, it may cause a re or an electric shock.
◦Use dry cloth to wipe of dust or stains. The dust
may absorb moisture to allow current to ow,
causing a re.
◦Store the device in a place where the appropriate
temperatures and humidity are controlled.
◦Do not store the device in an unstable place or a
place with vibrations. Otherwise, it may cause a
failure.
◦Keep the device out of reach of anyone but people
involved in the workpiece.
◦We recommend genuine HIOS parts for
replacement.

05
Checking Supplied Accessories
Adjustment spring for low torque
(BLG-4000BC2/BLG-4000BC2-LT Only)
Instruction manual
Screwdriver cord: 2 m (6P)
One bit for each socket
BLG-4000BC2-LT BLG-4000BC2 BLG-5000BC2
BLG-5000BC2-15
BLG-5000BC2-18
BLG-5000BC2-HT
BLG-7000BC2
Bit Drive
H4
+#0 (Ø2.0×40mm)
+#0 (Ø2.5×40mm)
+#0 (Ø2.5×40mm)
+#1 (Ø4.0×40mm)
+#1 (Ø4.0×40mm)
+#2 (Ø4.0×40mm) –
Bit Drive
H5 – – +#1 (Ø5.0×60mm)
+#2 (Ø5.0×60mm)
+#1 (Ø5.0×60mm)
+#2 (Ø5.0×60mm)
Bit Drive
1/4 HEX –
+#1 (Ø5.0×50mm)
+#2 (Ø5.0×50mm)
– (Ø5.0×50mm)
Hexagon L-shaped wrench: 5 mm across ats
(BLG-5000BC2 Series/BLG-7000BC2 Only)

06
Setting Up the Device

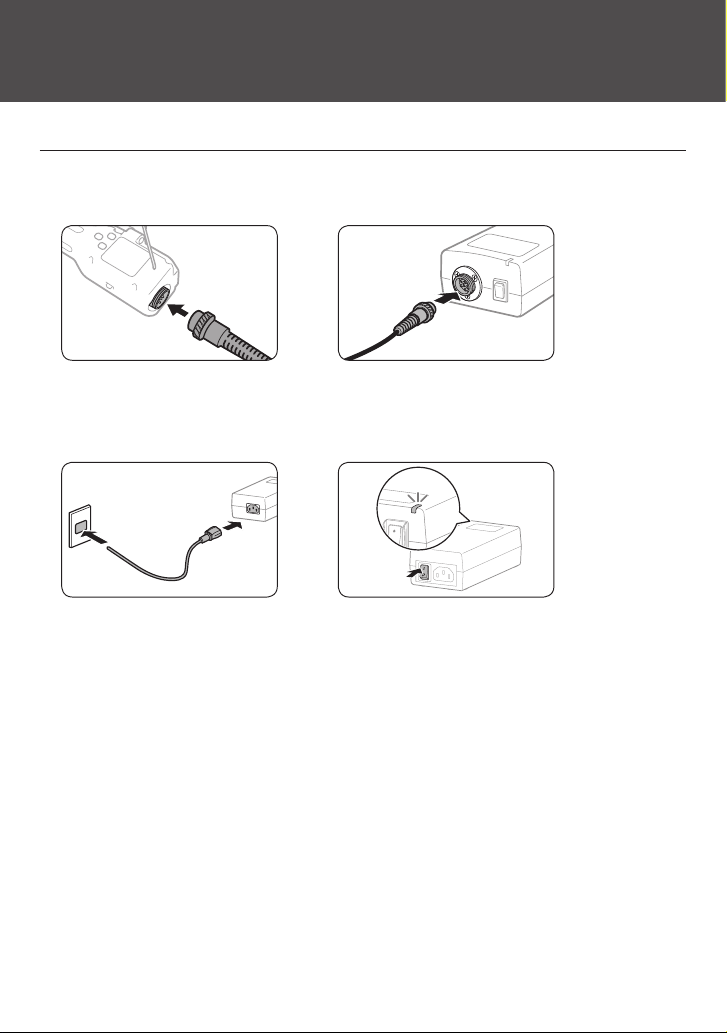

Connecting the Cord
1Connect the screwdriver cord to the power unit and the screwdriver.
◦Use the joint ring for xing to prevent the cord from coming o.
▶
2Connect the power unit cord to the power unit and the outlet and turn
on the switch.
◦The indicator on the power unit turns on.
▶

07

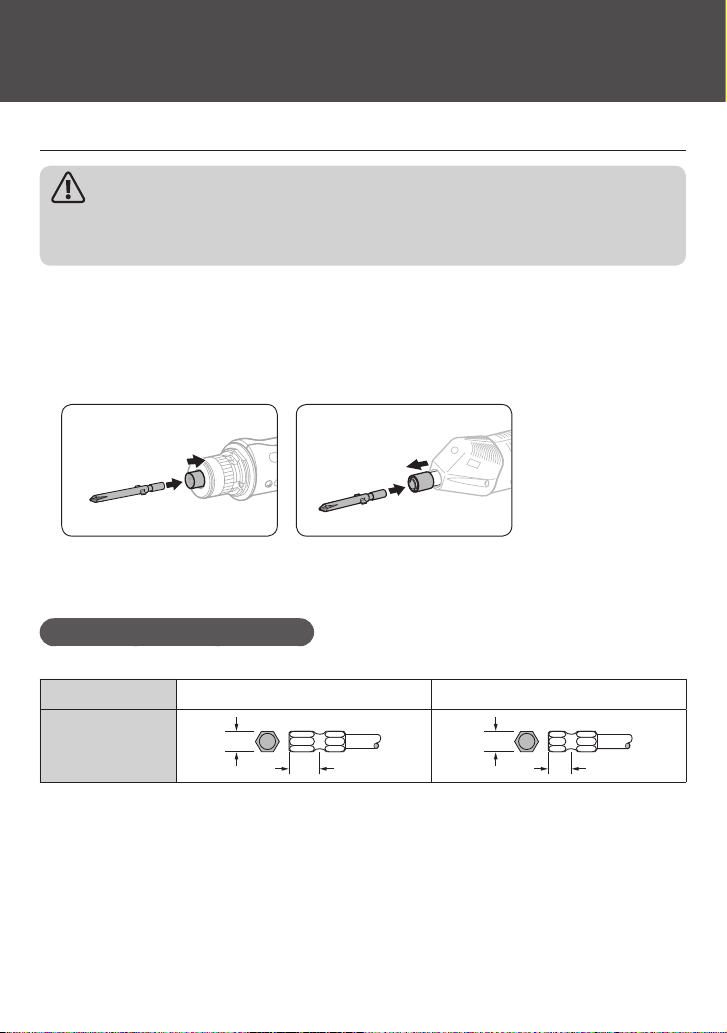

Attaching a Bit
Caution
Do not attach / remove the bit while power is on. Otherwise, it may cause an unexpected
accident.
1Insert the bit into the joint shaft collar.
◦BLG-4000BC2 / BLG-4000BC2-LT: Attach the bit while pushing the joint shaft collar into the
screwdriver.
◦BLG-5000BC2 Series / BLG-7000BC2: Attach the bit while pulling out the joint shaft collar from the
screwdriver.
BLG-4000BC2/BLG-4000BC2-LT
BLG-5000BC2/BLG-7000BC2
2Conrm the bit has been attached rmly by pulling it light.
Precaution for Use of Hexagonal Bit
You cannot use a double head bit with double grooves. Prepare suitable sockets for those bits.
Bit Socket 5HEX (5 mm across ats) 1/4HEX (6.35 mm across ats)
Type 5
14.0
6.35
9.0

08
Changing the Start Mode (for BLG-5000BC2 Series /BLG-7000BC2)
You can change the mode to push start for BLG-5000BC2 Series and BLG-7000BC2. In the push
start mode, the screwdriver starts rotation when you press it into an object.

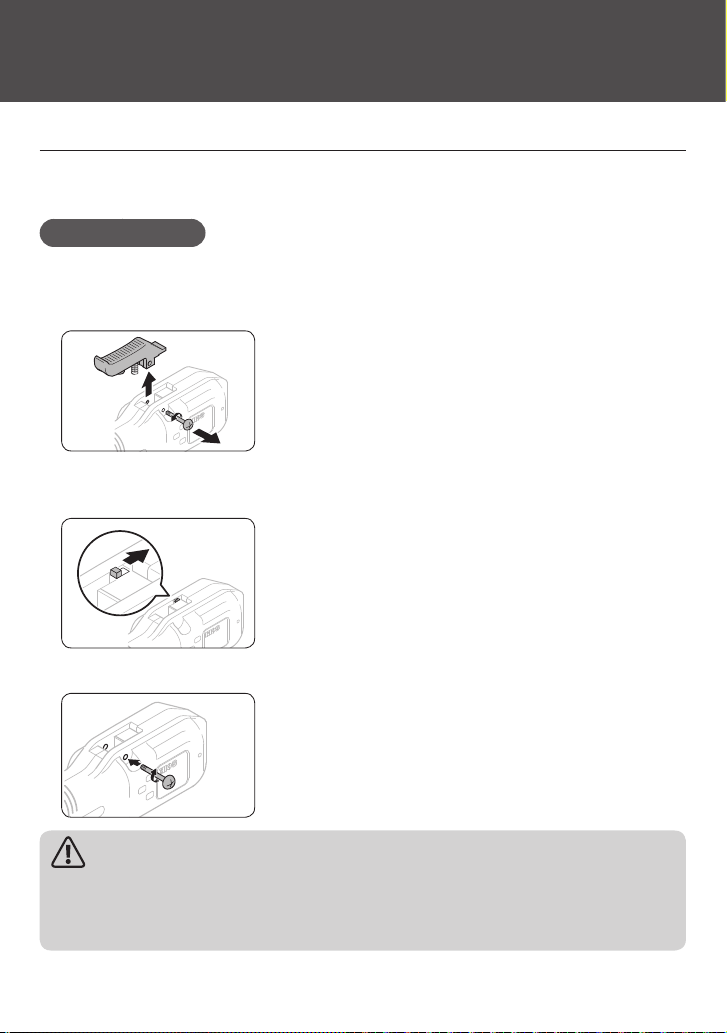

BLG-5000BC2 Series
1Remove the switch lever.
◦Remove the shaft screw.
◦Be careful not to lose the lever spring.
2Change the start mode.
◦Use something pointy such as a pen.
3Re-attach the shaft screw.
Caution
◦Do not give a strong impact to the start mode switch. Otherwise, it may cause a failure.
◦Do not use the screwdriver while the shaft screw is not fixed. Otherwise, it may cause a
failure.

09
BLG-7000BC2
1Remove the switch lever.
◦Remove the shaft screw.
◦Be careful not to lose the lever spring.
2Turn over the switch lever and attach it.
3Re-attach the shaft screw.

10
BLG-4000BC2 Series
REV
0
FOR
BC2
COUNT CONTROL
PASSFail M
8
6
4
2
❶ ❷ ❸ ❹ ❺❻ ❼
❽❾❿⓫
BLG-5000BC2 Series
❶ ❸ ❹ ❺❻ ❼
❽⓬❿ ❾
REV
0
FOR
3
1
57
BC2
COUNT CONTROL
Fail PASS M
BLG-7000BC2
BC2
COUNT CONTROL
Fail PASS M
3
1
57
9
REV
0
FOR
❶ ❸
❹
❺❻ ❼
❽❿ ❾
Parts and Their Functions

11
❶Joint shaft collar
This is to be used to attach the bit or remove it.
❷Protection cover of torque adjustment nut
This can be removed by turning it counterclockwise.
❸Switch lever
This is used to start the screwdriver.
For 7000BC2, if you attach the lever upside down, you can use the push start.
❹External I/O port
Send / receive the data via this port with the special cable (option). You can change the set values of
the screwdriver from an external device (e.g. PC, PLC, etc.) and send out screw fastening data.
❺Joint ring
This is to prevent the screwdriver cord from coming off unexpectedly.
❻Screwdriver cord
This is to connect the screwdriver to the power unit. The plug on one end is the same as that on the
other end.
❼Hanger
This is used to hang the screwdriver from the balancer.
❽FOR/REV switch
You can change the rotational direction with this switch.
◦FOR: Clockwise
◦0: Neutral
◦REV: Counterclockwise
❾Adjustment scale of torque
This is used as a guide for output torque adjustment. For details, refer to“Setting the Torque”(P. 14).
❿Torque adjustment nut
This is used for output torque adjustment.
⓫Nut fixing ring (BLG-4000BC2-LT Only)
This prevents the torque adjustment nut from moving improperly. Fit it closely with the torque
adjustment nut.
⓬Start mode change switch
This is used to change the start mode.
◦L: Lever start
◦P: Push start
For details, refer to “Changing the Start Mode (for BLG-5000BC2 Series /BLG-7000BC2)”(P. 08).

12

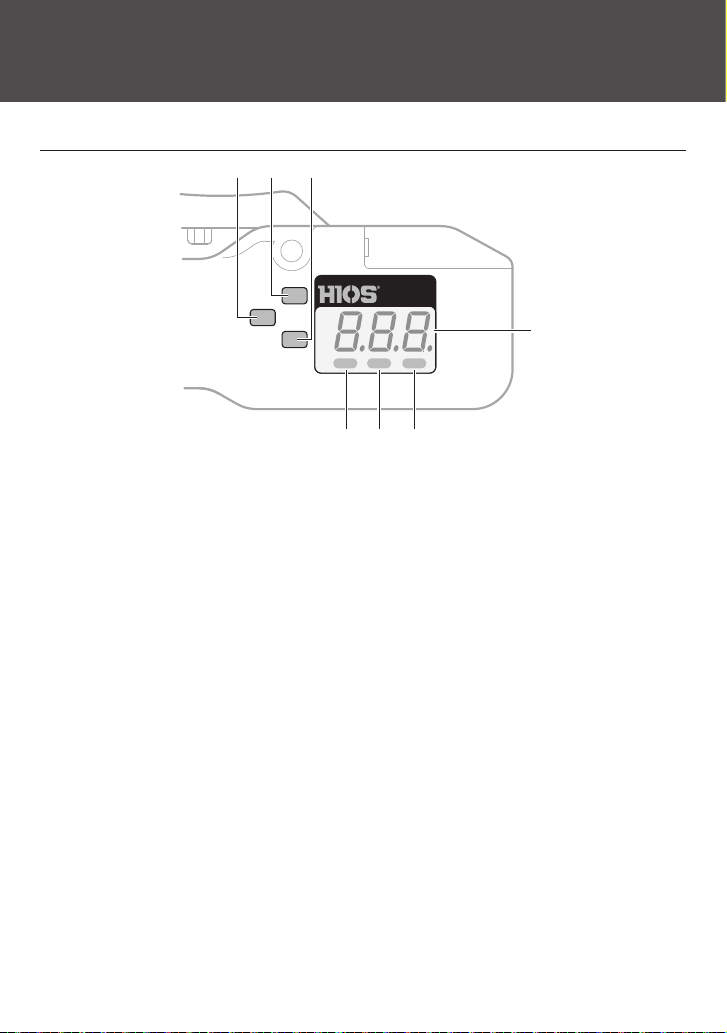

Operation Panel
PASSFail M
BC2
COUNT CONTROL
❶ ❷ ❸
❹
❺❻❼
❶F1 button
This is used to change the mode to setting or change the setting items.
❷F2 button
This is used to change the mode to direct teaching or change the digit of the setting.
❸F3 button
This is used to change the setting.
❹Display
This displays the number of pulses, the operational conditions of the screw counter, error conditions
and etc. In addition, you follow the instructions on the display during setup.
❺M indicator
This turns on when operations on the button are inactive. In addition, it blinks in the mode of
temporary fastening (option).
❻PASS indicator
This turns on when the result of fastening a screw is accepted.
❼Fail indicator
This turns on when the result of fastening a screw is not accepted.

13
Basic Operations
1Set the FOR / REV switch to <FOR>.
0
REV
FOR
◦When you change the rotational direction, turn the switch to 0 to stop the screwdriver.
2Start the screwdriver.
◦In the lever mode, pull the switch lever for start.
◦In the push mode, push the screwdriver in the direction of the bit.
3
1
57
◦When the screwdriver starts, the pulse is counted, and PASS / Fail is indicated by the sound and
the indicator.
PASSFail M
▶
PASSFail
M
◦In case of over 1000 pulses, <–––> is displayed. For details of how to set pass / fail, refer to“Setting
the Pass / Fail Criteria”(P. 17).
◦When a screw is seated, the clutch is activated to stop rotation.
◦If you restart the screwdriver, the PASS / Fail indicator turns o.
How to Change Rotation Speed
When you want to change the rotation speed, use the switch for voltage output setting on the
power unit.
◦2: HI (30V)
◦1: LOW (20V)

14
Setting the Torque
The torque can be adjusted by pushing the torque adjustment spring with pressure. If you turn
the torque adjustment nut clockwise, the torque becomes large, and you turn it
counterclockwise, it becomes small.
Caution
“Output Torque Guide”and the torque adjustment scale should be considered as a guide; they
do not guarantee actual torques. Use the torque meter by HIOS to check the torque precisely.
BLG-4000BC2 Series
1Remove the protection cover of the torque adjustment nut.
2Turn the torque adjustment nut to set the fastening torque.
◦Adjust the edge face of the torque adjustment nut to come right above the scale.
◦For BLG-4000BC2-LT, adjust the edge face of the nut xing ring to come right above the scale.
When the nut xing ring’s position is determined, align the torque adjustment nut just to t to the
ring.
3Re-attach the protection cover of torque adjustment nut.
4000BC2-LT4000BC2

15

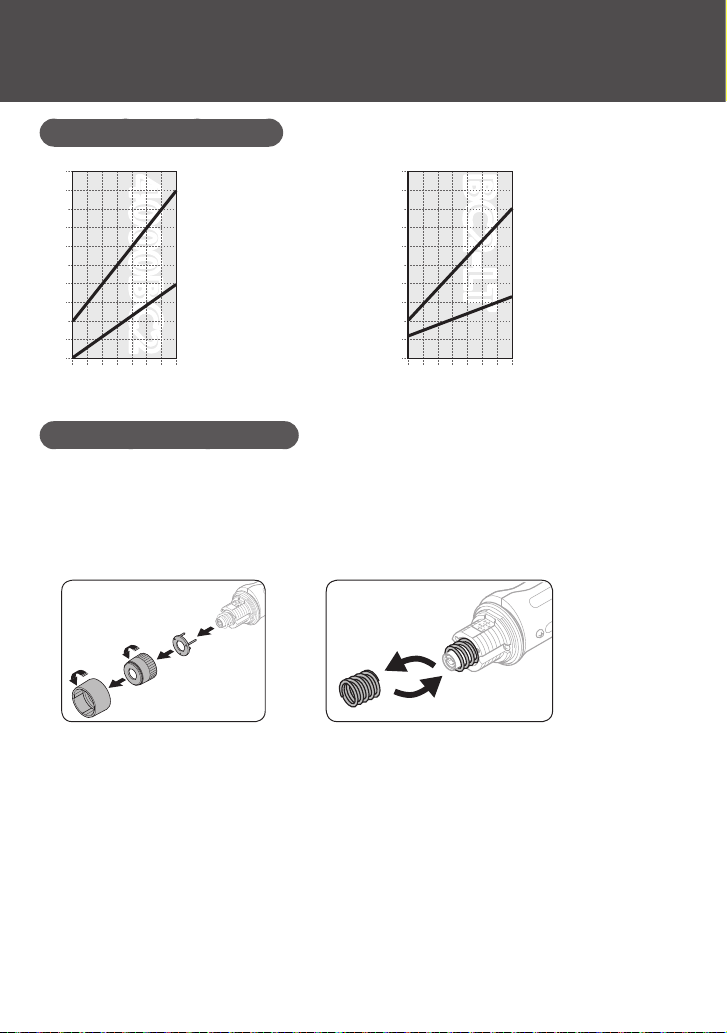

Output Torque Guide (HI Input)
Spring on the device
Spring in the accessories
4000BC24000BC2
Torquescale
1
0.1
0.3
0.2
0.5
0.4
0.6N·m
2345678
0.05
0.03
0.15
BC2-LTBC2-LT
Torquescale
1
0.10
0.20
N·m
2345678
Spring on the device
Spring in the accessories
How to Change to Smaller Torque
If you use the torque adjustment spring in the accessories, you can change the torque value
smaller. Change the spring depending on the work conditions.
1Remove the torque adjustment nut and the spring holder and replace
the torque adjustment spring.
▶
2Re-attach the torque adjustment nut and the spring holder.
◦Attach the spring holder along the notch.

16
BLG-5000BC2 Series /BLG-7000BC2
1Use the hexagon L-shaped wrench in the accessories to turn the torque
adjustment nut for setting the fastening torque.
◦Adjust the edge face of the torque adjustment nut to align with the scale.
Output Torque Guide (HI Input)
BC2-15BC2-15 BC2-18BC2-18 BC2-HTBC2-HT 5000BC25000BC2
Torquescale
1
0.2
0.6
0.4
1.0
0.8
1.2 N·m N·m N·m N·m
2345678
7000BC27000BC2
Torquescale
0.7
1.5
1.1
2.3
1.9
2.7
2.8
N·m
Torquescale
1
0.5
0.7
1.1
1.3
0.9
1.5
2345678
Torquescale
1
0.5
0.7
0.9
1.1
1.3
1.5
1.7
1.9
2.0
2345678
Torquescale
1
0.3
0.4
0.6
0.8
1.0
2345678
2345678910

17
Setting the Pass / Fail Criteria
This section describes how to set the pass / fail criteria. There are two ways of setting, direct
teaching and manual setting.
Setting by Direct Teaching
Direct teaching uses real screws and workpieces. It measures the pulses of motor rotation from
when the screwdriver starts turning to when it reaches the torque-up. The maximum and the
minimum measurements of pulses are set as the thresholds for pass / fail. Considering the
measurement errors, you can set allowable ranges on thresholds.
〜90 91〜131
99〜119
132〜
Allowablerange:-10% Allowablerange:+10%
Thenumberofpulsesduringteaching
FailPASSFail
Pulse
Pass / fail range
Example: Minimum pulse = 100, Maximum pulse = 120, Allowable range = +/-10%
Caution
◦Do not use the conditions (i.e. screws, workpieces, etc.) for teaching different from those of
real operation. Otherwise, it may cause larger errors.
◦Before teaching you need to define the home position by fastening a screw.
1Press and hold the F2 button.
◦The Fail and PASS indicators start blinking.
PASS
Fail
M
▶
PASSFail M

18
2Fasten a screw to a workpiece.
◦The pulse is counted until the screw is seated.
◦Repeat this teaching process at least three times.
▶
PASSFail M
3Press and hold the F3 button to set the allowable range of the
threshold.
PASSFail M
◦Every time you press the F3 button, the allowable range changes.
±0% ▶±5% ▶±10% ▶±15% ▶±20% ▶±0% ▶…
4Press the F1 button to conrm the allowable range.
◦The number of pulses is changed to the one with the tolerance factor calculated on both
thresholds.
PASSFail M
▶
PASSFail M
5Press and hold the F2 button.
PASSFail M
◦The buzzer starts to indicate setting is finished.
◦The number of screws to be fastened is displayed.

19
Setting by Manual Procedure
Input the number of pulses directly to set the criteria.
Caution
If you set the criteria manually, the factor of allowable range has no effect. Then, you need to
set the number of pulses considering the variances of screws and workpieces.
1Press and hold the F1 button.
PASS
Fail
M
▶
PASSFail M
2
Press the F1 button to select <Minimum Pulse> and enter your target number.
PASSFail M
◦If you press the F3 button, the number of the selected digit is changed.
◦
If you press the F2 button, you can move to another digit. The third digit is displayed by scrolling
on the screen.
3
Press the F1 button to select <Maximum Pulse> and enter your target number.
PASSFail M
◦If you press the F3 button, the number of the selected digit is changed.
◦
If you press the F2 button, you can move to another digit. The third digit is displayed by scrolling
on the screen.
4Press and hold the F1 button.
◦The buzzer starts to indicate when the setting is finished.
◦The number of screws to be fastened is displayed.

20

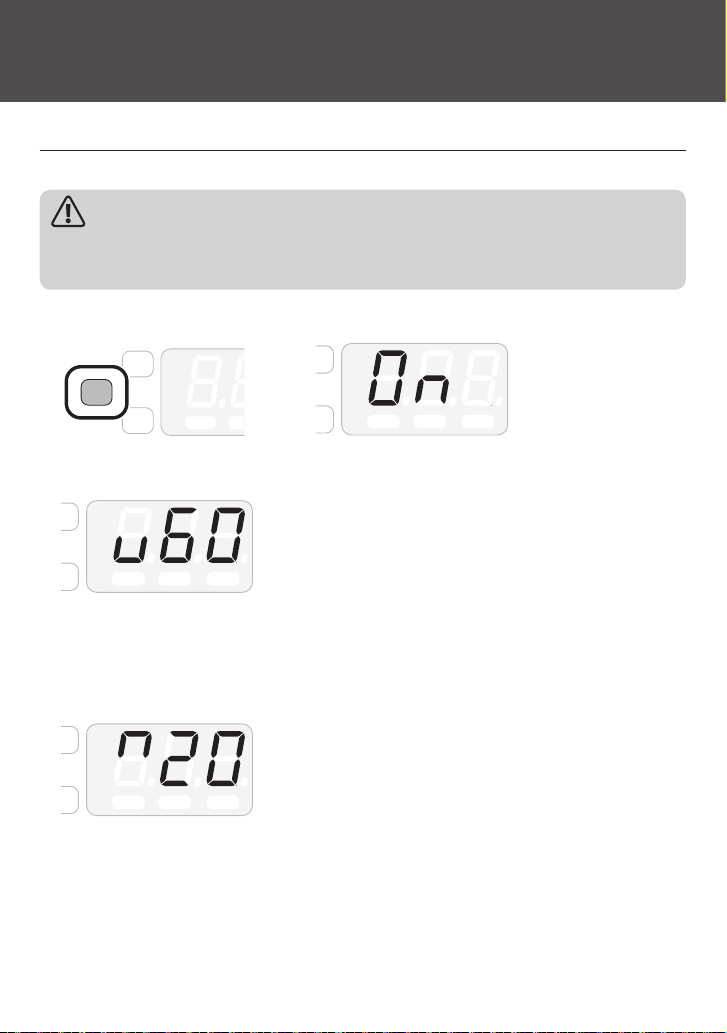

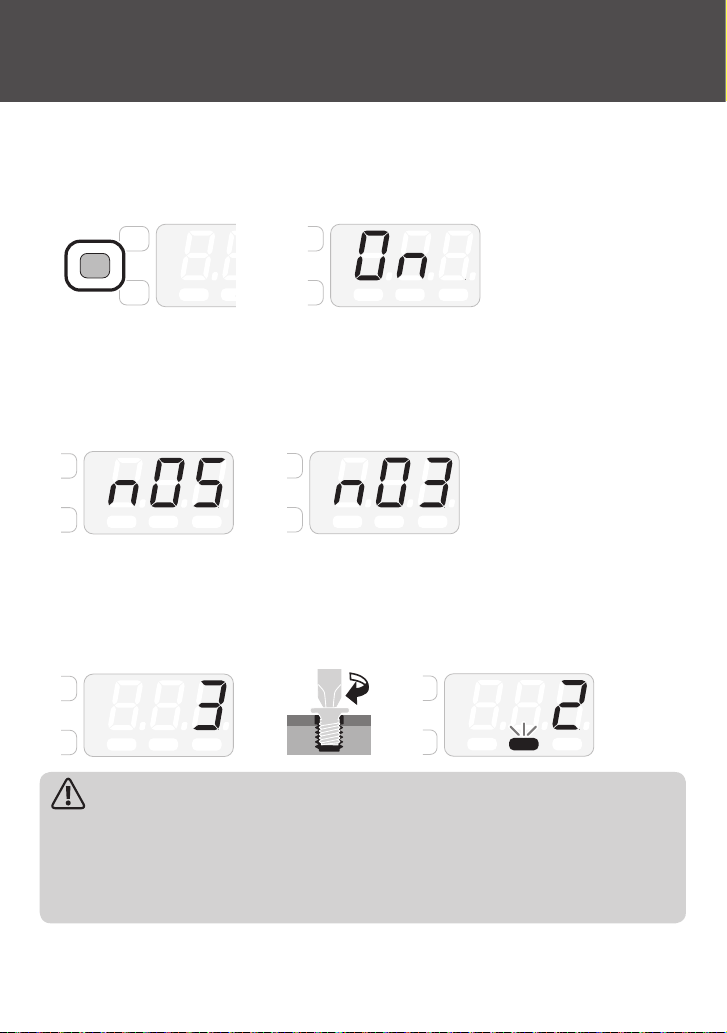

Setting Screw Counter
Every time a screw is fastened correctly, the number of screws to be fastened on the display
decreases (counting down). If the result is <Fail>, there is no counting down.
1Press and hold the F1 button.
PASS
Fail
M
▶
PASSFail M
2Press the F1 button to select <Screw Count> and enter your target
number of screws.
◦If you press the F3 button, the number of the selected digit is changed.
◦If you press the F2 button, you can move to another digit.
◦Enter a quantity from 1 to 99.
PASSFail M
▶
PASSFail M
3Press and hold the F1 button.
◦The buzzer starts to indicate when the setting is finished.
4Fasten a screw to a workpiece.
◦If the result is <PASS>, the number of screws to be fastened decreases (counting down).
PASSFail M
▶ ▶
Fail M
PASS
Caution
◦If you turn off the power while counting down, the device is reset to the set values.
◦If you select the setup mode while counting down, the device is reset to the set values.
◦If you use an external screw counter with this device, the screw counter does not
synchronize. You can turn off the external screw counter and use it just as a power source.
