RS20/RS30
Release 2.0 03/06 Technical support [email protected]
User Manual
Installation
Industrial ETHERNET Rail Switch
RS20/RS30 Family
RS20
LS DA
RM
+24V(P1) 0V 0V
FAULT
+24V(P2)
Stand by
Aufkleber MAC-Adresse
IP-ADDRESS
3
5
7
9
11
13
15
17
2
LS DA
1
4
6
8
10
12
14
16
18
19
21
23
20
22
24
V.24
USB
P
Stand by
FAULT
RM
ON
RS20
LS DA
RM
+24V(P1) 0V 0V
FAULT
+24V(P2)
Stand by
Aufkleber MAC-Adresse
IP-ADDRESS
2
LS DA
1
3
5
7
4
6
8
V.24
USB
P
Stand by
FAULT
RM
ON
RS20
RM
0V 0V
FAULT
+24V
(P2)
Stand by
Aufkleber MAC-Adresse
IP-ADDRESS
V.24
USB
P
Stand by
FAULT
RM
ON
LS
1
DA
LS
2
DA
LS
3
DA
LS
4
DA
+24V
(P1)

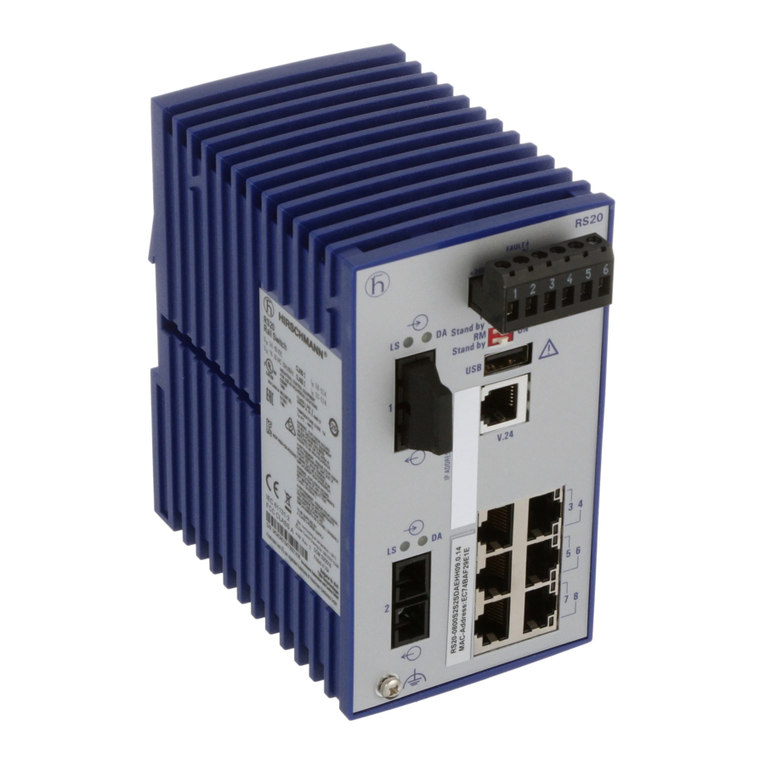

RS20 with 8 ports

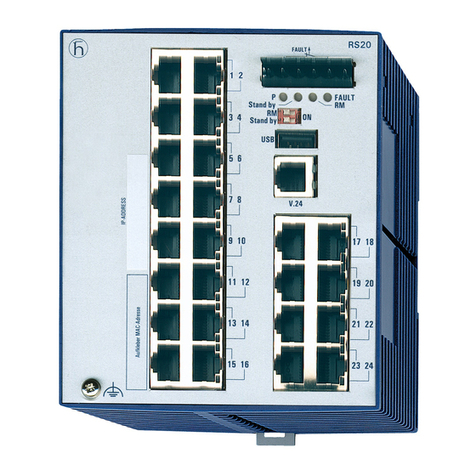

RS20 with 24 ports RS20 with 4 ports

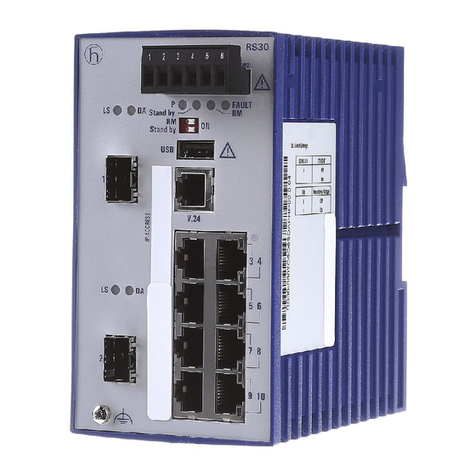

RS30 with 10 ports
RS30
RM
+24V(P1) 0V 0V
FAULT
+24V(P2)
Stand by
Aufkleber MAC-Adresse
IP-ADDRESS
3
5
7
9
4
6
8
10
V.24
USB
P
Stand by
FAULT
RM
ON
LS
2
DA
LS
1
DA
RS30
RM
+24V(P1) 0V 0V
FAULT
+24V(P2)
Stand by
Aufkleber MAC-Adresse
IP-ADDRESS
3
5
7
9
11
13
15
17
4
6
8
10
12
14
16
18
19
21
23
25
20
22
24
26
V.24
USB
P
Stand by
FAULT
RM
ON
RS30 with 26 ports
2
LS
DA
1
LS
DA
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Thenamingofcopyrightedtrademarksinthismanual,evenwhennotspeciallyindicated,should
not be taken to mean that these names may be considered as free in the sense of the trademark
and tradename protection law and hence that they may be freely used by anyone.
© 2006 Hirschmann Automation and Control GmbH
Manualsandsoftwareare protectedbycopyright.All rightsreserved.Thecopying,reproduction,
translation, conversion into any electronic medium or machine scannable form is not permitted,
either in whole or in part. An exception is the preparation of a backup copy of the software for
your own use.
The performance features described here are binding only if they have been expressly
guaranteed in the contract. This publication has been created by Hirschmann Automation and
Control GmbH according to the best of our knowledge. Hirschmann reserves the right to change
the contents of this manual without prior notice. Hirschmann can give no guarantee in respect
of the correctness or accuracy of the details in this publication.
Hirschmann can accept no responsibility for damages, resulting from the use of the network
components or the associated operating software. In addition, we refer to the conditions of use
specified in the license contract.
Printed in Germany (20.3.06)
Hirschmann Automation and Control GmbH
Stuttgarter Straße 45-51
72654 Neckartenzlingen
Tel. [phone] 524-001-02-0306
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

RS20/RS30
Release 2.0 03/06 3
Content
Safety instructions 4
About this manual 8
Legend 8
1Device description 9
1.1 Description of the device variants 10
1.1.1 RS20/RS30 combination options 11
1.1.2 RS20-... number of ports and media 12
1.1.3 RS30-... number of ports and media 14
2Assembly and startup procedure 16
2.1 Device installation 16
2.1.1 Unpacking and checking 16
2.1.2 Filling out the labeling field 16
2.1.3 Adjusting the DIP switch settings 17
2.1.4 Connecting the terminal block for supply voltage and
signal contact 17
2.1.5 Fitting the device on the ISO/DIN rail, grounding 18
2.1.6 Fitting the terminal block, startup procedure 19
2.1.7 Connecting the data lines 19
2.2 Displays 21
2.3 Carrying out basic settings 22
2.4 Disassembling the device 24
3Technical data 25
General data 25
EMV and stability 26
Network size 27
Power consumption/power output 28
Scope of delivery 28
Order numbers/product name 28
Accessories 29
Based specifications and standards 29
Certifications 30
4Further support 31
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

4RS20/RS30
Release 2.0 03/06
Safety instructions
This manual contains instructions which must be observed to ensure your
own personal safety and to avoid damage to devices and machinery.
UCertified usage
Please observe the following: The device may only be employed for the
purposes described in the catalog and technical description, and only in
conjunction with external devices and components recommended or
approved by Hirschmann. The product can only be operated correctly
and safely if it is transported, stored, installed and assembled properly
and correctly. Furthermore, it must be operated and serviced carefully.
USupply voltage
The devices are designed for operation with a safety extra-low
voltage.Thus, they may only be connected to the supply voltage connec-
tions and to the signal contact with PELV circuits or alternatively SELV
circuits with the voltage restrictions in accordance with IEC/EN 60950.
The supply voltage is electrically isolated from the housing.
VUse only undamaged parts!
VRelevant for North America:
The subject unit is to be suppplied by a Class 2 power source comp-
lyingwiththerequirementsoftheNationalElectricalCode,table 11(b).
If power is redundant supplied (two individual power sources) the po-
wer sources together should comply with the requirements of the Na-
tional Electrical Code, table 11 (b).
VRelevant for North America:
Use 60/75°C or 75°C copper(CU)wire only.
VRelevant for North America
for devices certified for hazardous locations:
Power, input and output (I/O) wiring must be in accordance with Class
I, Division 2 wiring methods [Article 501-4(b) of the National Electrical
Code, NFPA 70] and in accordance with the authority having
jurisdiction.
UShielding ground
The shielding ground of the connectable twisted pairs lines is connected
to the front panel as a conductor.
VBeware of possible short circuits when connecting a cable section
with conductive shielding braiding.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

RS20/RS30
Release 2.0 03/06 5
UHousing
Only technicians authorized by Hirschmann are permitted to open the
housing.
The device is grounded via the separated ground screw. It is located on
the left under the front panel.
VMake sure that the electrical installation meets local or nationally ap-
plicable safety regulations.
VThe ventilation slits must not be covered to ensure free air circulation.
VThe distance to the ventilation slots of the housing has to be a mini-
mum of 10 cm.
VNever insert pointed objects (thin screwdrivers, wires, etc.) into the in-
side of the subrack! Failure to observe this point may result in injuries
caused by electric shocks.
VThe device has to be mounted in an upright position.
VIf installed in a living area or office environment, the device must be
operated exclusively in switch cabinets with fire protection characteri-
stics according to EN 60950.
UEnvironment
The device may only be operated in the listed maximum surrounding air
temperature range at the listed relative air humidity range (non-conden-
sing).
VThe installation location is to be selected so as to ensure compliance
with the climatic limits listed in the Technical Data.
VTo be used in a Pollution Degree listed in the Technical Data.
UQualification requirements for personnel
Qualified personnel as understood in this manual and the warning signs,
are persons who are familiar with the setup, assembly, startup, and ope-
ration of this product and are appropriately qualified for their job. This
includes, for example, those persons who have been:
Dtrained or directed or authorized to switch on and off, to ground and to
labelpower circuitsanddevices orsystems inaccordance withcurrent
safety engineering standards;
Dtrainedor directed in thecareand use of appropriate safetyequipment
in accordance with the current standards of safety engineering;
Dtrained in providing first aid.
UGeneral Safety Instructions
This device is electrically operated. Adhere strictly to the safety require-
ments relating to voltages applied to the device as described in the ope-
rating instructions!
Failure to observe the information given in the warnings could result in
serious injury and/or major damage.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

6RS20/RS30
Release 2.0 03/06
VOnly personnel that have received appropriate training should operate
this device or work in its immediate vicinity. The personnel must be ful-
ly familiar with all of the warnings and maintenance measures in these
operating instructions.
VCorrect transport, storage, and assembly as well as careful operation
and maintenance are essential in ensuring safe and reliable operation
of this device.
VOnly use umdamaged parts!
VThese products are only to be used in the manner indicated in this ver-
sion of the manual.
VAny work that may have to be performed on the electrical installation
should be performed by fully qualified technicians only.
Warning!
LED- or LASER components according to IEC 60825-1 (2001):
CLASS 1 LASER PRODUCT.
LIGHT EMITTING DIODE - CLASS 1 LED PRODUCT.
Warning
LED LIGHT
DO NOT STARE INTO THE BEAM OR VIEW DIRECTLY
WITH OPTICAL INSTRUMENTS (e.g. lens, microscope).
Failure to observe this warning within a distance of 100 mm
can endanger your eyes. Light is emitted from the optical connections or
from the ends of the optical fibers that are connected to them. Light Emit-
ting Diode CLASS 2M, Wave length 650 nm, Power <2 mW, according to
IEC/CEI 60825-1:2003-10.
UNational and international safety regulations
VMake sure that the electrical installation meets local or nationally ap-
plicable safety regulations.
UNote on the CE marking
The devices comply with the regulations contained in the following Euro-
pean directives:
89/336/EEC
Directive of the council for standardizing the regulations of member
states on electromagnetic compatibility (changed by RL 91/263/EEC, 92/
31/EEC and 93/68/EEC).
In accordance with the above-named EU directives, the EU conformity
declaration will be at the disposal of the relevant authorities at the follo-
wing address:
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

RS20/RS30
Release 2.0 03/06 7
Hirschmann Automation and Control GmbH
Stuttgarter Straße 45-51
D-72654 Neckartenzlingen
Germany
Phone ++49 7127 14 1480
The product can be used in living areas (living area, place of business,
small business) and in industrial areas.
DInterference immunity: EN 61000-6-2:2001
DEmitted interference: EN 55022:1998 + A1 2000 + A2 2003, Class A
Warning!
This is a class A device. This device can cause interference in living
areas, and in this case the operator may be required to take appropriate
measures.
The assembly guidelines provided in these instructions must be strictly
adhered to in order to observe the EMC value limits.
UFCC note:
Appropriate testing has established that this device fulfills the require-
ments of a class A digital device in line with part 15 of the FCC regulati-
ons.
These requirements are designed to provide sufficient protection against
interference where the device is being used in a business environment.
The device creates and uses high frequencies and can radiate same,
and if it is not installed and used in accordance with this operating
manual, it can cause radio transmission interference. The use of this
device in a living area can also cause interference, and in this case the
user is obliged to cover the costs of removing the interference.
URecycling note:
After usage, this product must be disposed of properly as electronic
waste in accordance with the current disposal regulations of your county
/ state / country.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

8RS20/RS30
Release 2.0 03/06
About this manual
The following manuals are included as PDF files on the enclosed CD ROM:
DUser manual „Installation“
DUser manual „Basic configuration“
DUser manual „Redundancy configuration“
DReference manual „Web-based Interface“ and
DReference manual „Command Line Interface“
If you use Network Management Software HiVision you have further
opportunities to:
Dhave an event logbook.
Dconfigure the „System Location“ and „System Name“.
Dconfigure the network address range and SNMP parameters.
Dsave the configuration on the Switch.
Dsimultaneous configuration of several Switches.
Dconfigure the relevant ports to be displayed red if there is no link state.
Legend
The commendations used in this manual have the following meanings:
DListing
VWork step
USubheading
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

RS20/RS30
Release 2.0 03/06 9
1 Device description
The Open Rail Family RS20/RS30 offers you a variety of more than 450
switch models. You set up your own switch according to your requirements
regarding the number of ports, transmission speed, media type, connector
type, temperature range, certifications and software variant.
The RS20/RS30 devices are designed for the special requirements of
industrial automation. They meet the relevant industry standards, provide
very high operational reliability, even under extreme conditions, and also
long-term reliability and flexibility. The devices operate without fans and
have a redundant voltage supply. The switches are very quickly mounted
by snapping them onto a hat rail.
The HIPER-Ring redundancy concept enables you to quickly carry out a
reconfiguration, and also a simple configuration with only one additional
connection. The diagnosis display and the display of the operating
parameters and IP address information field provide a quick overview.
It can be easily managed via a Web browser, via Telnet, with a management
software product (such as F) or locally on the switch (V.24 interface).
The RS20/RS30 allows you to construct switched industrial ETHERNET
networks that conform to the IEEE 802.3 and 802.3u standards using
copper wires or optical fibers in a bus or ring topology. You can connect
terminaldevicesand other infrastructure componentsviatwisted paircables,
multi-mode LWL and single-mode LWL. The twisted pair ports support
autocrossing, autonegotiation and autopolarity.
Depending on the software you choose, the devices provide you with a large
range of functions:
DRedundancy functions
(Rapid Spanning Tree, Redundant Ring Structure, HIPER-Ring,
Redundant Coupling, Link Aggregation, Redundant Power Supply)
DProtection from unauthorized access
DSynchronized system time in the network
DNetwork load control
DFunction diagnosis
DDiagnostics (hardware self-testing)
DReset
DPriority
DVLAN
DTopology recognition
DWeb-based interface
DCommand Line Interface - CLI
DSNMP
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

10 RS20/RS30
Release 2.0 03/06
D802.1x port authentication
DReal Time Clock (Professional software variant)
Theaddition,totheRS20/RS30OpenRailrange,oftheMICErangeofswitches,
the MACH range of backbone switches, the BAT wireless transmission system,
the EAGLE security system, and products for the LION control room, provides
continuous communication across all levels of the company.
1.1 Description of the device variants
The devices differ with regard to the range of software functions, the number
of interfaces, and the media type for connecting segments.
DThe RS20-... device variants are rail switches with 4, 8, 16 or 24 *
10/100 Mbit Ethernet ports. You can choose the media for ports 1 and 2.
The other 2, 6, 14 or 22 ports are 10/100 Mbit Ethernet ports with twisted
pair connections via RJ45 connectors.
DIn the RS30-... device variants, ports 1 and 2 are gigabit ports (1000 Mbit
Ethernet, FX or TX). You can choose the media for ports 1 and 2.
The other 8, 16 or 24 ports are 10/100 Mbit Ethernet ports with twisted
pair connections with RJ45 connectors.
The devices also provide you with the following options for selecting the
variant you desire:
DTemperature range:
DStandard (0 °C to 60 °C) or
DExtended (-40 °C to +70 °C) without conformal coating
DExtended (-40 °C to +70 °C) with conformal coating
DCertifications:
DCE, UL
DCE, UL, German Lloyd (GL), IEC 61850 Declaration (Sub Station),
IEEE 1613 (Sub Station), EN 50121-4 Railway (along track)
DCE, UL, German Lloyd (GL), IEC 61850 Declaration (Sub Station),
IEEE 1613 (Sub Station), EN 50121-4 Railway (along track), EN
50155 Declaration (Railway) and ATEX 100a (Hazardous Location)
DSoftware variant: Enhanced or Professional
The devices comply with the specifications of the standards:
ISO/IEC 8802-3u 100BASE-TX/-1000BASE-T,
ISO/IEC 8802-3 100BASE-FX and
ISO/IEC 8802-3 1000BASE-SX/LX.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

RS20/RS30
Release 2.0 03/06 11
1.1.1 RS20/RS30 combination options
The product designation of your device is made from combining the desired
product characteristics in accordance with the following table. The short
designation is in column 3.
Position Attribute Ident. Feature
1 to 4 Product RS20 Rail switch without gigabit ports
RS30 Rail Switch with gigabit ports
5- (hyphen) -
6 to 7 Number of 10/100 04 4 * 10/100 Mbit Ethernet
Mbit ports 08 8 * 10/100 Mbit Ethernet
16 16 * 10/100 Mbit Ethernet
24 24 * 10/100 Mbit Ethernet
8 and 9 Number of 1000 00 0 * 1000 Mbit Ethernet
Mbit ports 02 2 * 1000 Mbit Ethernet (without 4 port devices)
10 and 11 Port 1 (ring port) T1 Twisted pair TX, RJ45
M2 Multimode FX, DSC, 10/100 Mbit
M4 Multimode FX, ST, 10/100 Mbit
S2 Singlemode FX, DSC, 10/100 Mbit
L2 Singlemode longhaul, DSC, 10/100 Mbit
O6 SFP slot, 1000 Mbit
12 and 13 Port 2 (ring port) T1 Twisted pair TX, RJ45
M2 Multimode FX, DSC, 10/100 Mbit
M4 Multimode FX, ST, 10/100 Mbit
S2 Singlemode FX, DSC, 10/100 Mbit
L2 Singlemode longhaul, DSC, 10/100 Mbit
O6 SFP slot, 1000 Mbit
14 Temperature range SStandard 0 °C to +60 °C
TExtended -40 °C to +70 °C
EExtended -40 °C to +70 °C, conformal coating
15 Voltage range D9,6 VDC to 60 VDC or 18 VAC to 30 VAC
16 Specifications ACE, UL
HCE, UL, GL, railway (along track), sub station
BCE, UL, GL, railway (along track), sub station,
hazardous location (ATEX), railway (train)
17 Software variant EEnhanced
PProfessional
Table 1: Combination options of the RS20/RS30 device version
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

12 RS20/RS30
Release 2.0 03/06
UExample: RS30-0802O6T1SDAE
1.1.2 RS20-... number of ports and media
Fig. 1: Models with 4 * 10/100 MBit ports (RS20-0400...)
RS30- 08 02 O6 T1 S D A E
RS30-: Rail Switch with gigabit ports
08: 8 x 100 Mbit Ethernet ports
02: 2 x 1000 Mbit Ethernet ports
O6: Port 1 = SFP slot, 1000 Mbit
T1: Port 2 = twisted pair TX, RJ45 connector, 1000 Mbit
S: Temperature range standard (0°C to 60°C)
D: Voltage range 9,6 VDC to 60 VDC or 18 VAC to 30 VAC
A: Specifications CE and UL
E: Software version enhanced
RS20
RM
0V 0V
FAULT
+24V
(P2)
Stand by
Aufkleber MAC-Adresse
IP-ADDRESS
V.24
USB
P
Stand by
FAULT
RM
ON
+24V
(P1)
RS20-0400T1T1
6-pin pluggable
terminal block
LED display elements
V.24 access
external management
2-pin DIP switch
MAC address field
IP address field
USB interface
Ports in line with
10/100BASE-T(X)
(RJ45 connectors)
Port 1 + port 2,
connection (at your own option)
T1: twisted pair TX, RJ45, 10/100 Mbit
M2: multimode FX, DSC, 100 Mbit
M4: multimode FX, ST, 100 Mbit
S2: singlemode FX, DSC, 100 Mbit
L2: SM longhaul, FX, DSC, 100 Mbit
RS20
RM
0V 0V
FAULT
+24V
(P2)
Stand by
Aufkleber MAC-Adresse
IP-ADDRESS
V.24
USB
P
Stand by
FAULT
RM
ON
+24V
(P1)
RS20
RM
0V 0V
FAULT
+24V
(P2)
Stand by
Aufkleber MAC-Adresse
IP-ADDRESS
V.24
USB
P
Stand by
FAULT
RM
ON
+24V
(P1)
1 1
2
RS20-0400M2T1 RS20-0400M2M2
LS
1
DA
LS
2
DA
LS
3
DA
LS
4
DA
LS
1
DA
LS
2
DA
LS
3
DA
LS
4
DA
LS
1
DA
LS
2
DA
LS
3
DA
LS
4
DA
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

RS20/RS30
Release 2.0 03/06 13
Fig. 2: Models with 8 * 10/100 MBit ports (RS20-0800...)
Fig. 3: Models with 16 * 10/100 MBit ports (RS20-1600...)
RS20
LS DA
RM
+24V(P1) 0V 0V
FAULT
+24V(P2)
Stand by
Aufkleber MAC-Adresse
IP-ADDRESS
2
LS DA
1
3
5
7
4
6
8
V.24
USB
P
Stand by
FAULT
RM
ON
RS20-0800M2M2
steckbarer
Klemmblock
6polig
LED Anzeigeelemente
V.24-Zugang
externes Management
2poliger DIP-Schalter
MAC-Adressfeld
IP-Adressfeld
USB Schnittstelle
Ports nach 10/100BASE-T(X)
(RJ45-Anschlüsse)
RS20
RM
+24V(P1) 0V 0V
FAULT
+24V(P2)
Stand by
Aufkleber MAC-Adresse
IP-ADDRESS
1
3
5
7
2
4
6
8
V.2 4
USB
P
Stand by
FAULT
RM
ON
RS20-0800T1T1 RS20-0800M2T1
RS20
RM
+24V(P1) 0V 0V
FAULT
+24V(P2)
Stand by
Aufkleber MAC-Adresse
IP-ADDRESS
LS DA
1
3
5
7
4
6
8
V.2 4
USB
P
Stand by
FAULT
RM
ON
LS
2
DA
Port 1 + Port 2, Anschluß nach Wahl
T1: Twisted Pair TX, RJ45, 10/100 Mbit
M2: Multimode FX, DSC, 100 Mbit
M4: Multimode FX, ST, 100 Mbit
S2: Singlemode FX, DSC, 100 Mbit
L2: SM Longhaul, FX, DSC, 100 Mbit
RS20
LS DA
RM
+24V(P1) 0V 0V
FAULT
+24V(P2)
Stand by
Aufkleber MAC-Adresse
IP-ADDRESS
2
LS DA
1
V.24
USB
P
Stand by
FAULT
RM
ON
3
5
7
9
4
6
8
10
11
13
15
12
14
16
RS20-1600M2M2
RS20
RM
+24V(P1) 0V 0V
FAULT
+24V(P2)
Stand by
Aufkleber MAC-Adresse
IP-ADDRESS
1
3
5
7
2
4
6
8
9
11
13
15
10
12
14
16
V.24
USB
P
Stand by
FAULT
RM
ON
RS20-1600T1T1
RS20
RM
+24V(P1) 0V 0V
FAULT
+24V(P2)
Stand by
Aufkleber MAC-Adresse
IP-ADDRESS
LS DA
1
V.24
USB
P
Stand by
FAULT
RM
ON
RS20-1600M2T1
3
5
7
9
4
6
8
10
11
13
15
12
14
16
2
LS
DA
Port 1 + port 2,
connection (at your own option)
T1: twisted pair TX, RJ45, 10/100 Mbit
M2: multimode FX, DSC, 100 Mbit
M4: multimode FX, ST, 100 Mbit
S2: singlemode FX, DSC, 100 Mbit
L2: SM longhaul, FX, DSC, 100 Mbit
6-pin pluggable
terminal block
LED display elements
V.24 access
external management
2-pin DIP switch
MAC address field
IP address field
USB interface
Ports in line with
10/100BASE-T(X)
(RJ45 connectors)
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

14 RS20/RS30
Release 2.0 03/06
Fig. 4: Models with 24 * 10/100 MBit ports (RS20-2400...)
1.1.3 RS30-... number of ports and media
Fig. 5: Models with 2 * 1000 Mbit ports and 8 * 10/100 MBit ports
(RS30-0802...)
RS20
LS DA
RM
+24V(P1) 0V 0V
FAULT
+24V(P2)
Stand by
Aufkleber MAC-Adresse
IP-ADDRESS
3
5
7
9
11
13
15
17
2
LS DA
1
4
6
8
10
12
14
16
18
19
21
23
20
22
24
V.24
USB
P
Stand by
FAULT
RM
ON
RS20-2400M2M2
RS20-2400T1T1 RS20-2400M2T1
RS20
RM
+24V(P1) 0V 0V
FAULT
+24V(P2)
Stand by
Aufkleber MAC-Adresse
IP-ADDRESS
1
3
5
7
9
11
13
15
2
4
6
8
10
12
14
16
17
19
21
23
18
20
22
24
V.24
USB
P
Stand by
FAULT
RM
ON
RS20
RM
+24V(P1) 0V 0V
FAULT
+24V(P2)
Stand by
Aufkleber MAC-Adresse
IP-ADDRESS
3
5
7
9
11
13
15
17
4
6
8
10
12
14
16
18
19
21
23
20
22
24
V.24
USB
P
Stand by
FAULT
RM
ON
LS DA
1
2
LS
DA
6-pin pluggable
terminal block
LED display elements
V.24 access
external management
2-pin DIP switch
MAC address field
IP address field
USB interface
Ports in line with
10/100BASE-T(X)
(RJ45 connectors)
Port 1 + port 2,
connection (at your own option)
T1: twisted pair TX, RJ45, 10/100 Mbit
M2: multimode FX, DSC, 100 Mbit
M4: multimode FX, ST, 100 Mbit
S2: singlemode FX, DSC, 100 Mbit
L2: SM longhaul, FX, DSC, 100 Mbit
RS30-0802T1T1
RS30
RM
+24V(P1) 0V 0V
FAULT
+24V(P2)
Stand by
Aufkleber MAC-Adresse
IP-ADDRESS
3
5
7
9
4
6
8
10
V.24
USB
P
Stand by
FAULT
RM
ON
LS
2
DA
LS
1
DA
RS30-0802O6T1 RS30-0802O6O6
RS30
RM
+24V(P1) 0V 0V
FAULT
+24V(P2)
Stand by
Aufkleber MAC-Adresse
IP-ADDRESS
LS DA
1
V.24
USB
P
Stand by
FAULT
RM
ON
RS30
RM
+24V(P1) 0V 0V
FAULT
+24V(P2)
Stand by
Aufkleber MAC-Adresse
IP-ADDRESS
V.24
USB
P
Stand by
FAULT
RM
ON
LS
2
DA
LS DA
1
LS DA
2
3
5
7
9
4
6
8
10
3
5
7
9
4
6
8
10
Port 1 + port 2,
connection (at your own option)
T1: twisted pair TX, RJ45, 10/100/1000 Mbit
O6: FX, SFP slot, 1000 Mbit
6-pin pluggable
terminal block
LED display elements
V.24 access
external management
2-pin DIP switch
MAC address field
IP address field
USB interface
Ports in line with
10/100BASE-T(X)
(RJ45 connectors)
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

RS20/RS30
Release 2.0 03/06 15
Fig. 6: Models with 2 * 1000 Mbit ports and 16 * 10/100 MBit ports
(RS30-1602...)
Fig. 7: Models with 2 * 1000 Mbit ports and 24 * 10/100 MBit ports
(RS30-2402...)
RS30
RM
+24V(P1) 0V 0V
FAULT
+24V(P2)
Stand by
Aufkleber MAC-Adresse
IP-ADDRESS
3
5
7
9
4
6
8
10
11
13
15
17
12
14
16
18
V.24
USB
P
Stand by
FAULT
RM
ON
RS30-1602T1T1
2
LS
DA
1
LS
DA
RS30-1602O6T1 RS30-1602O6O6
RS30
RM
+24V(P1) 0V 0V
FAULT
+24V(P2)
Stand by
AufkleberMAC-Adresse
IP-ADDRESS
V.24
USB
P
Stand by
FAULT
RM
ON
RS30
RM
+24V(P1) 0V 0V
FAULT
+24V(P2)
Stand by
AufkleberMAC-Adresse
IP-ADDRESS
V.24
USB
P
Stand by
FAULT
RM
ON
3
5
7
9
4
6
8
10
11
13
15
17
12
14
16
18
3
5
7
9
4
6
8
10
11
13
15
17
12
14
16
18
LS DA
1
LS DA
1
LS DA
2
2
LS
DA
6-pin pluggable
terminal block
LED display elements
V.24 access
external management
2-pin DIP switch
MAC address field
IP address field
USB interface
Ports in line with
10/100BASE-T(X)
(RJ45 connectors)
Port 1 + port 2,
connection (at your own option)
T1: twisted pair TX, RJ45, 10/100/1000 Mbit
O6: FX, SFP slot, 1000 Mbit
RS30
RM
+24V(P1) 0V 0V
FAULT
+24V(P2)
Stand by
Aufkleber MAC-Adresse
IP-ADDRESS
3
5
7
9
11
13
15
17
4
6
8
10
12
14
16
18
19
21
23
25
20
22
24
26
V.24
USB
P
Stand by
FAULT
RM
ON
RS30-2402T1T1 ...
2
LS
DA
1
LS
DA
RS30-2402O6T1 RS30-2402O6O6
RS30
RM
+24V(P1) 0V 0V
FAULT
+24V(P2)
Stand by
AufkleberMAC-Adresse
IP-ADDRESS
V.24
USB
P
Stand by
FAULT
RM
ON
RS30
RM
+24V(P1) 0V 0V
FAULT
+24V(P2)
Stand by
AufkleberMAC-Adresse
IP-ADDRESS
V.24
USB
P
Stand by
FAULT
RM
ON
3
5
7
9
11
13
15
17
4
6
8
10
12
14
16
18
19
21
23
25
20
22
24
26
3
5
7
9
11
13
15
17
4
6
8
10
12
14
16
18
19
21
23
25
20
22
24
26
LS DA
1
LS DA
1
LS DA
2
2
LS
DA
Port 1 + port 2,
connection (at your own option)
T1: twisted pair TX, RJ45, 10/100/1000 Mbit
O6: FX, SFP slot, 1000 Mbit
6-pin pluggable
terminal block
LED display elements
V.24 access
external management
2-pin DIP switch
MAC address field
IP address field
USB interface
Ports in line with
10/100BASE-T(X)
(RJ45 connectors)
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

16 RS20/RS30
Release 2.0 03/06
2 Assembly and startup procedure
The device has been developed for practical application in a harsh industrial
environment. Accordingly, the installation process has been kept simple.
On delivery, the device is ready for operation.
The following procedure is appropriate for assembly:
DUnpacking and checking
DFilling out the labeling field
DAdjusting the DIP switch settings
DConnecting the terminal block for supply voltage and signal contact
DFitting the device on the ISO/DIN rail, grounding
DFitting the terminal block, startup procedure
DConnecting the data lines
2.1 Device installation
2.1.1 Unpacking and checking
VCheck whether the package was delivered complete
see “Scope of delivery” on page 28.
VCheck the individual parts for transport damage.
2.1.2 Filling out the labeling field
The information field for the IP address on the front of the device helps you
to structure your network installation clearly.
Fig. 8: Labeling field for the IP address of the device
RS20
LS DA
RM
+24V(P1) 0V 0V
FAULT
+24V(P2)
Stand by
Aufkleber MAC-Adresse
IP-ADDRESS
3
5
7
9
11
13
15
17
2
LS DA
1
4
6
8
10
12
14
16
18
19
21
23
20
22
24
V.2 4
USB
P
Stand by
FAULT
RM
ON
RS20 with 24 ports
IP address of the device
(labeling field)
MAC address of the device
(label)
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

RS20/RS30
Release 2.0 03/06 17
2.1.3 Adjusting the DIP switch settings
The 2-pin DIP switch on the front panel of the device offers you the following
possibilities:
Fig. 9: 2-pin DIP switch
VCheck whether the switch default settings match your requirements
before starting the device.
2.1.4 Connecting the terminal block for supply voltage and
signal contact
Thesupplyvoltage andthesignalcontactsare connectedviaa6-pinterminal
block with snap locking.
USupply voltage
The supply voltage can be connected redundantly. Both inputs are
uncoupled. With redundant supply, the transformer supplies the device
alone with the higher output voltage. The supply voltage is electrically
isolated from the housing.
You can choose between DC or AC voltage when connecting the supply
voltage. You use the +24V and 0V pins to connect the AC voltage (see
Fig. 10).
.
Fig. 10: Connection of the supply voltage on the 6-pin terminal block
RM
switch Stand by switch Ring
redun-
dancy Ring
coupling Redun-
dancy
Manager Ring port Control
port Coupling port
OFF OFF on off off 1 + 2
ON OFF on off on 1 + 2
OFF ON on on off 1 + 2 3 4
ON ON off off off
RM
Stand by ON
FAULT
9,6...60 VDC9,6...60 VDC
+24V(P1) 0V 0V +24V(P2)
+-
-+
FAULT
G
18...30 VAC
G
18...30 VAC
+24V(P1) 0V 0V +24V(P2)
DC voltage AC voltage
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

18 RS20/RS30
Release 2.0 03/06
Note: Withnon-redundantsupplyof the mains voltage, the devicereports
a power failure. You can prevent this message by applying the supply
voltage over the two inputs or by changing the configuration via manage-
ment.
USignal contact
DThe signal contact ("FAULT", pin assignment of the terminal block see
Fig.“Connection of the supply voltage on the 6-pin terminal block” on
page 17) monitors proper functioning of the device, thus enabling
remote diagnostics. You can specify the type of function monitoring in
the Management.
DYou can also use the Management to switch the signal contact
manually and thus control external devices.
A break in contact is reported via the potential-free signal contact (relay
contact, closed circuit):
DThe failure of at least one of the two supply voltages (supply voltage 1
or 2 < 9,6 V).
DA continuous malfunction in the device (internal 3.3 VDC voltage).
DThe defective link status of at least one port. With the device, the indi-
cation of link status can be masked by the management for each port.
Link status is not monitored in the delivery condition.
DThe loss of Redundancy guarantee.
DError during self-test.
The following conditions are reported in stand-by mode
DControl cable disrupted
DControl cable shorted
DPartner device is in stand-by mode
The following conditions are reported in normal mode:
DControl cable shorted
DPartner device is in normal mode
The following condition is reported in RM mode additionally:
DRingredundancy guaranteed.Ring redundancyis notmonitored inthe
delivery condition.
VPull the terminal blocks off the device and connect the power supply
and signal lines.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

RS20/RS30
Release 2.0 03/06 19
2.1.5 Fitting the device on the ISO/DIN rail, grounding
VYou mount the device on a 35 mm hat rail according to DIN EN 60175.
Attach the upper snap-in guide of the device into the hat rail and press it
down against the hat rail until it snaps into place.
Note:Theshieldinggroundoftheconnectabletwistedpairlinesisconnected
to the front panel as a conductor.
Fig. 11: Assembly
UGround
The front panel of the device is grounded via a separate ground screw.
2.1.6 Fitting the terminal block, startup procedure
VMount the terminal block for the supply voltage and the signal contact on
the front of the device. Make sure that the snap lock snaps into place.
By connecting the supply voltage at the terminal block, you start the
operation of the device.
2.1.7 Connecting the data lines
You can connect terminal devices and other segments at the ports of the
device via twisted pair cables and LWL cables.
U10/100 Mbit/s twisted pair connection
10/100 Mbit/s ports (R45 socket) enable the connection of terminal
devices or independent network segments in compliance with the IEEE
802.3 100BASE-TX / 10BASE-T standards. These ports support:
Dautonegotiation
Dautopolarity
Dautocrossing (when autonegotiation is switched on)
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
