Hisense AP0522CR1W Technical manual

TABLE OF CONTENTS
Draining the Air Conditioner 16
IDENTIFICATION OF
PARTS 2
INSTALLATION REQUIREMENTS 4
Tools and Parts 4
Electrical Requirements 5
Location Requirements 5
INSTALLATION INSTRUCTIONS 6
Unpack the Air Conditioner 6
Window Vent Panel And Extensions 7
Install The Portable Air Conditioner 8

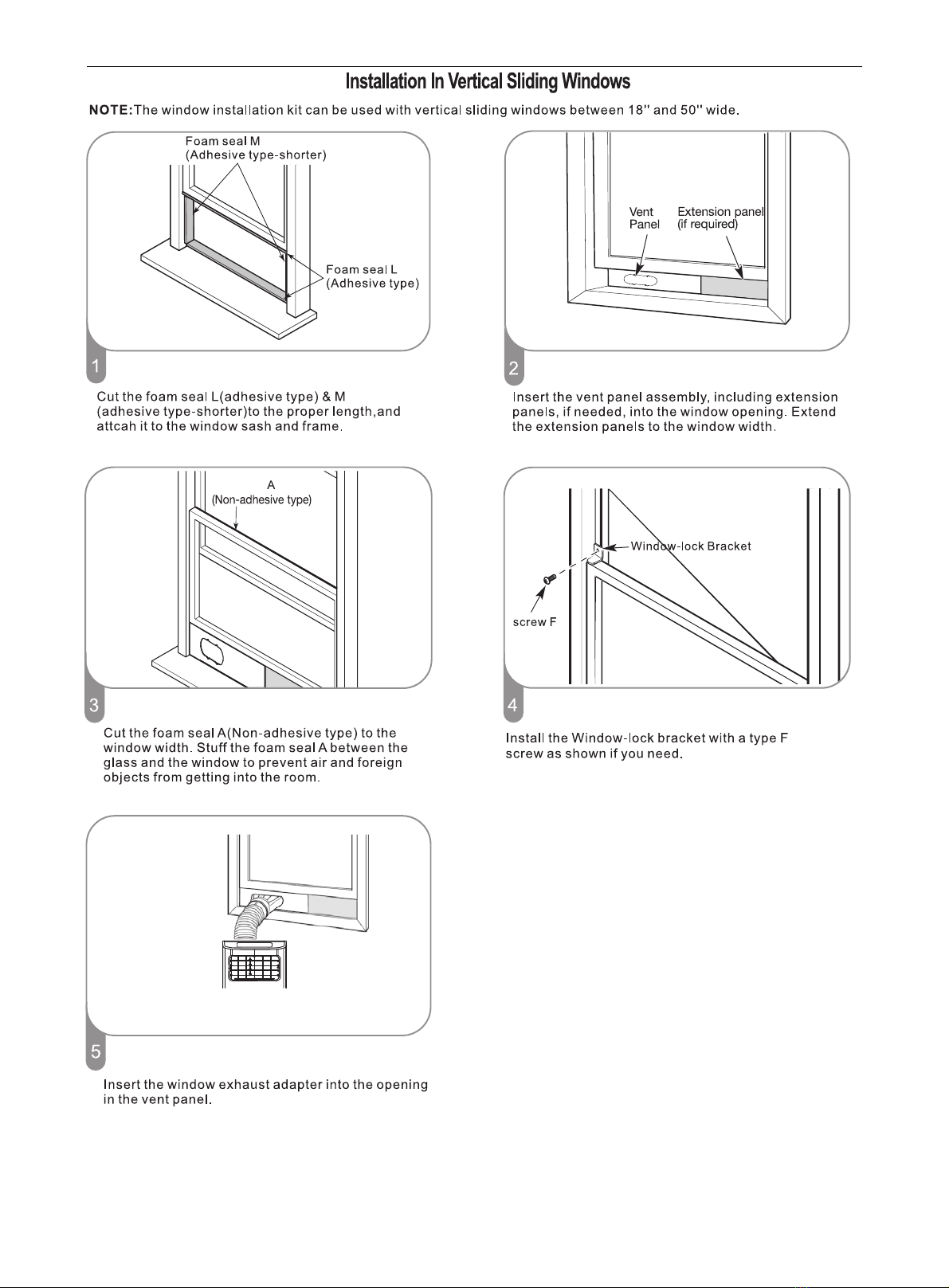

Installation In Vertical Sliding Windows 9
Installation In Horizontal Sliding Windows 10
Starting Your Portable Air Conditioner 12
PORTABLE AIR CONDITIONER USE 11

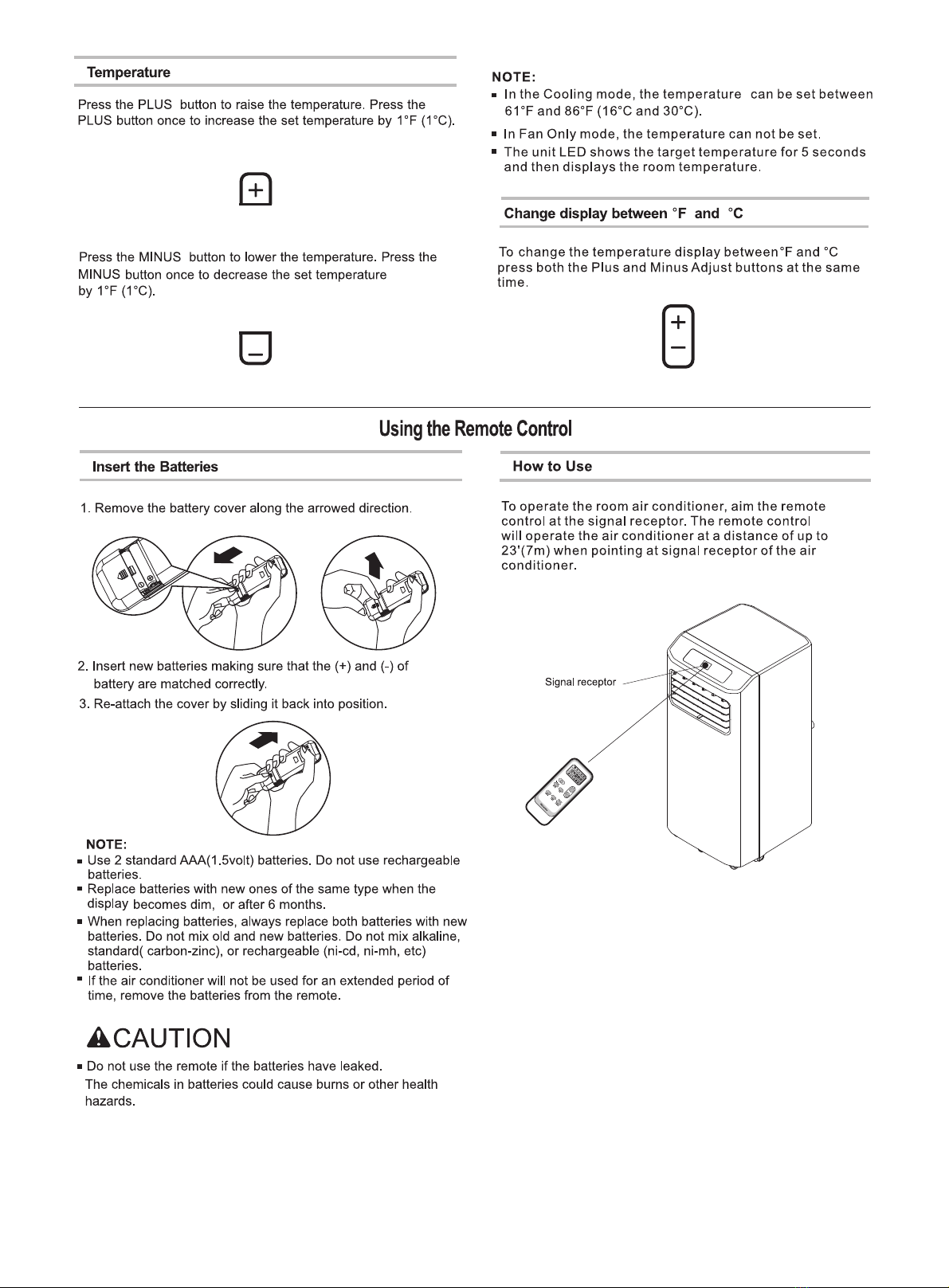

Using the Remote Control 13
Normal
Sounds 15
PORTABLE AIR CONDITIONER CARE 16
Cleaning the Air Filter 16
Storing After Use 16
TROUBLESHOOTING 17
Cleaning the Outside 16
AIR CONDITIONER SAFETY 3

IDENTIFICATION OF PARTS
FrontBackThe figures in this manual are based on the external view of a standard model. They may differ from that of the air conditioner you have selected.2
10
TESTRESET
(May differ from the one shown)

AIR CONDITIONER SAFETY
All safety messages will tell you what the potential hazard is and tell you how to reduce the chance of injury.We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.This is the safety alert symbol.This symbol alerts you to potential hazards that can kill or hurt you and others.All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."These words mean:DANGERWARNINGIMPORTANT SAFETY INSTRUCTIONSWARNING: To reduce the risk of fire, electrical shock or injury when using your air conditioner, follow these basic precautions: SAVE THESE INSTRUCTIONSUnplug air conditioner before servicing.Use two or more people to move and install air conditioner.Plug into a grounded 3 prong outlet.Do not remove ground prong.Do not use an electrical adapter.Do not use an extension cord.Your safety and the safety of others is very important.STORAGE AND DISPOSING OF THE UNIT Please recycle or dispose of the packaging material for product in an environmentally responsible manner. Never store or ship the air conditioner upside down or sideways to avoid damage to the compressor .The appliance is not intended for use by young children or impaired persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.A hazard that if not avoided will result in death or serious injury.A hazard that if not avoided could result in death or serious injury.Dispose of this appliance in accordance with Federal and Local regulations. Refrigerants must be evacuated before disposal.Do not use means to accelerate the defrosting processor to clean, other than those recommended by the manufacturer.The appliance shall be stored in a room without continuously operating ignition sources(for example: open flames, an operating gas appliance or an operating electric heater. Do not pierce or bum refrigerant tubing. Be aware that refrigerants may not contain an odor. Keep ventilation openings clear of obstruction. Do not drill holes in the unit. When handling, installing, and operating the appliance, care should be taken to avoid damage to therefrigerant tubing. Maintenance, cleaning, and service should only be performed by technicians properly trained and qualified in the use of flammable refrigerants. Dispose of air conditioner in accordance with Federal and Local Regulations. Flammable refrigerants require special disposal procedures. Contact your local authorities for the environmentally safe disposal of your air conditioner.
3

INSTALLATION REQUIREMENTS
Tools and Parts
Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.Tools neededParts suppliedCheck that all parts are included in parts package.■Phillips screwdriver■Pencil■Scissors■Cordless drill and ¹⁄₈" bit
Quantity1 pc1 pc1 pc1 pc4 pc4 pc2 pc1 pc1 pc1 pc1 pc1 pc2 pc2 pc2 pcDescriptionA. Foam sealB. CouplingC. Flexible exhaust hoseD. Window exhaust adapterE. RivetsF. ScrewsG. Window-lock bracket H. Outer slider section with ventI. Inner slider section-shortJ. inner slider sectionK. Outer slider sectionL. Foam seal-longM. Foam seal-shortN. Remote controlO. Standard AAA(1.5 volt) batteriesPart
Note
4

Location Requirements
Electrical Requirements
Electrical Shock HazardPlug into a grounded 3 prong outlet.Do not remove ground prong.Do not use an adapter.Do not use an extension cord.Failure to follow these instructions can result in death, WARNINGfire, or electrical shock.
NOTE:■ The flexible exhaust hose allows placement of the air conditioner at least 20" from window or door.■ Confirm you are using the correct size air conditioner for the space to be cooled, per sizing recommendations, below:NOTE: Match BTUs to room use and location:■ Shaded room reduce to next smaller size■ Sunny room increase to next larger size■ For kitchens, increase to next larger size
Recommended Grounding Method Wiring requirement
NOTE:
Your air conditioner’s device
may
differ from the one shown.
To test your power supply cord:
1.Plug power supply cord into a grounded 3prong outlet.2.Press RESET
(
on some devices
,
a
green
light
will turn on
).3.Press TEST (listen for click; Reset button will trip, and on some devices, a green light will turn off).4.Press and release RESET (listen for click; Reset button will latch, and on some devices, a green light will turn on). The power supply cord is ready for operation.NOTE:■The Reset button must be pushed in for proper operation.■
The
power
supply
cord must be
replaced
if it fails to
trip
when
the test button is pressed or fails to reset.■Do not use the power supply cord as an off/on switch. The power supply cord is designed as a protective device.■A damaged power supply cord must be replaced with a new power supply cord obtained from the product manufacturer and must not be repaired. ■The power supply cord contains no user serviceable parts. Opening the tamper-resistant case voids all warranty and performance claims.A.Test buttonB
.
Reset button
TEST
RESET
ABThis room air conditioner is equipped with a power supply cord required by UL. This power supply cord contains state-of-the-art electronics that sense leakage current. If the cord is crushed
,
the electronics detect leakage current and power will be disconnected in a fraction of a second.
To contact a qualified .electrical installerIt is the customer’s responsibility:To assure that the electrical installation is adequate and conforms to the Nation Electrical Code,ANSI/NFPA 70-last edition,and all local codes and ordinances. Copies of the standards listed may be obtained from: Nation Fire Protection Association 1 Batterymarch Park Quincy,Ma 02169-7471 www.nfpa.orgThis portable air conditioner is equipped with a power supply cord with a three-prong grounding plug. The cord must be plugged into a mating, grounded three-prong outlet, grounded in accordance with all local codes and ordinances. If a mating outlet is not available, it is the customer's responsibility to have a properly grounded three-prong outlet installed by a qualified electrical installer.portable air conditioner must be grounded. This
Power Supply Cord
Power supply
Model
Time-delay
f
use
(or circuit br
e
aker)
115V
103.5V min.
126.5V max.
10A
13A
5K BTU
6K BTU
5
$UHDWREHFRROHG
15VT.IW'2(&DSDFLW\NHHGHG%78V6000 Single Hose
5000 Single Hose
7000 Single Hose
8000 Single Hose
$UHDWREHFRROHG
'2(&DSDFLW\NHHGHG%78V10000 Dual Hose
10000 Single Hose
12000 Single Hose
8SWR-ft[15-ft room
8SWR-ft [ 2 5-ft room
25VT. IW
8SWR 5 -ft [ 20 -ft room
30VT. IW
8SWR-ft [ 3 5-ft room
35VT. IW
8SWR 5 -ft [ 30 -ft room
45VT. IW
8SWR-ft [ 5 5-ft room
55VT. IW
8SWR-ft [ 5 5-ft room
55VT. IW

WARNINGVertical Sliding WindowHorizontal Sliding WindowThe length of the exhaust hose is specially designed according to the specification of the product.Do not replace, extend, or otherwise modify the hose.20" (50 cm)20" (50 cm)20" (50 cm)20" (50 cm)NOTE:■ For best performance, allow at least 20 in of air space on all sides of the unit for good air circulation.■ Do not block the air outlet.■ Provide easy access to the grounded 3 prong outlet. ■ To ensure proper function, DO NOT overextend or bend the hose. Make sure that there is no obstacle around the air outlet of the exhaust hose in order to the exhaust system works properly. All the illustrations in this manual are for explanation purpose only. Your air conditioner may be slightly different. The actual shape shall prevail.
INSTALLATION INSTRUCTIONS
Unpack the Air Conditioner
Remove packaging materials■Remove and recycle packaging materials. Remove tape and glue residue from surfaces before turning on the air conditioner. Rub a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.■Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your air conditioner. ■■Handle the air conditioner gently.Keep unit upright at least 2 hours prior to use.WARNINGExcessive Weight HazardUse two or more people to move and install air conditioner.Failure to do so can result in back or other injury.Caution: Installation accessories are stored in the top of the carton, and are required for proper cooling performance. Please remove all accessories from packing materials before use.
6

Window Vent Panel And Extensions
The window installation kit allows you to install the air conditioner in most vertical-sliding windows 18'' to 50'' wide, orhorizontal sliding windows from 18'' to 50'' tall. 1.Please check your window size and choose the fit
from the above table.2.If your window size requires more than 2 panels, after adjusting the length, please secure the panels with rivets, E. Rivet EHKIJPanel Length18"18"18"91116
"Panel H (18")Panel J (18")Panel K (18")Panel I91116
"( )Panel HPanel HFor window openings from 19" to 26",use the window vent panel(Panel H) and aextension panel (Panel I).Panel HPanel IPanel HPanel IPanel HPanel HPanel JPanel JFor window openings from 27" to 34",use the window vent panel(Panel H) and aextension panel (Panel J).For window openings from 35" to 50", use thewindow vent panel and two extension panels(Panel K and Panel J).Panel HPanel KPanel JPanel HPanel JPanel K
Fig. "a"Fig. "c"Fig. "b"Fig. "d"
7

8

9

10

PORTABLE AIR CONDITIONER USE
Operating your portable air conditioner properly helps you to
obtain the best possible results. This section explains proper air conditioner operation.NOTE: In the event of a power failure, your air conditioner will operate at the previous settings when the power is restored.IMPORTANT:■Do not stay in direct airflow from the air conditioner for extended periods of time. Never use in tightly enclosed spaces. Always ensurethere is sufficient airflow of outside air entering the household especially when used in conjunction withcombustible devices such as gas stoves, fireplaces,furnaces, hot water heaters etc. Do not place the power cord or air conditioner near a heater, radiator, stoves or other apparatus(including amplifiers) that produce heat.This air conditioner is intended for household use asa residential appliance. Do not use it as a precision climate control for commercial use, or for precision equipment, food, pets, plants, artwork, etc.■■Do not block or obstruct the exhaust vent hose as itmay severely affect performance, or cause failure ofthe air conditioner.■The air conditioner display shows the current room temperature.■■When changing modes while the air conditioner is in operation, the compressor will stop for 3 to 5 minutes before restarting. If a button is pressed during this time,the compressor will not restart for another 3 to 5 minutes.In Cooling or Dry mode, the compressor and condenserfan will stop when the room temperature reaches the set temperature.■On Dry mode, the humidity level is automatically set, but is not able to be displayed.■SlotInsertScrew5Insert the window exhaust adapter into the opening in the vent panel.Insert the screw in the hole in
the window exhaust adapter toprevent the window exhaust adapter
from sliding out of the vent opening.

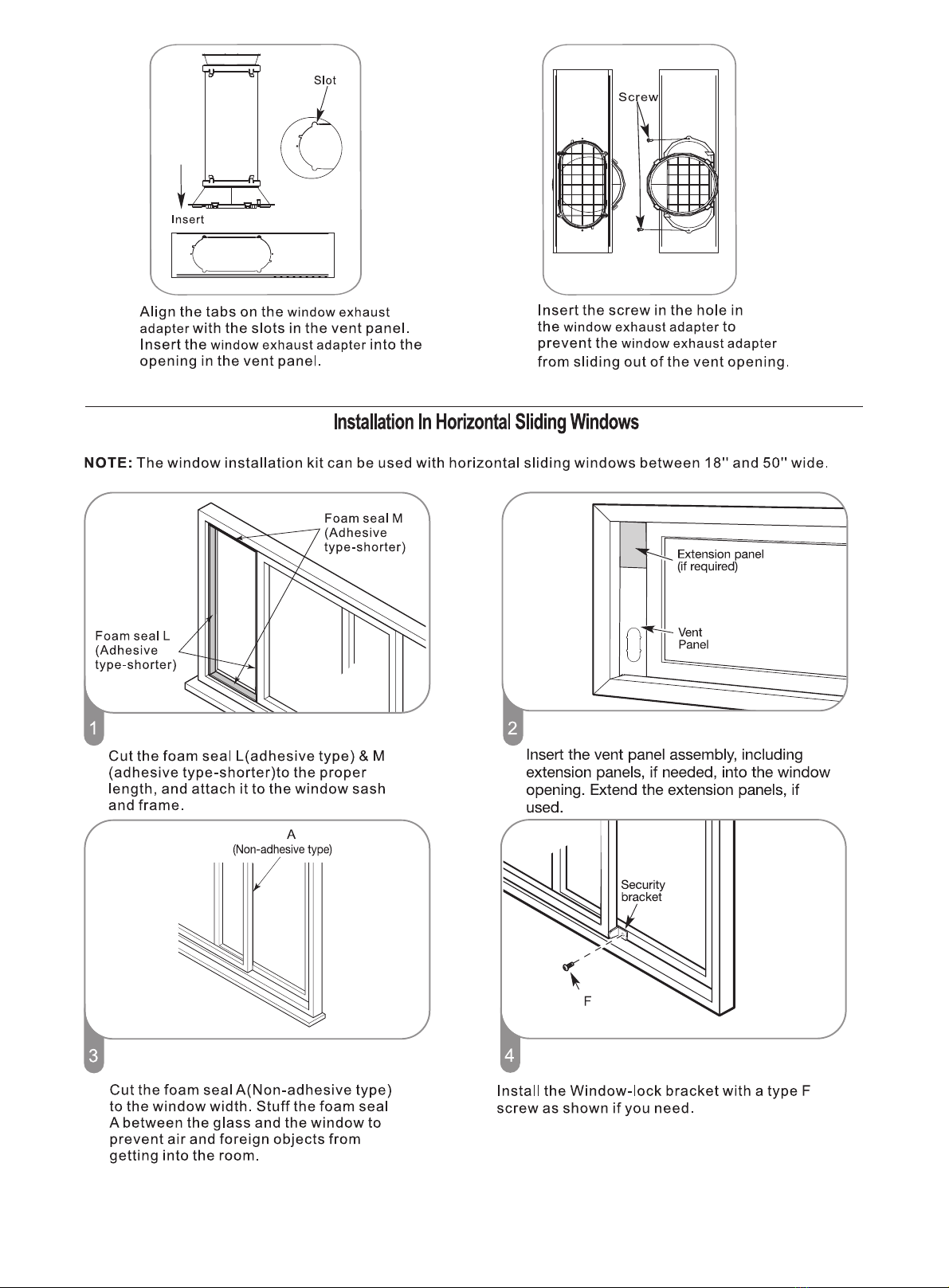

Align the tabs on the adapter with the slots in the vent panel.Insert the window exhaust adapter into the opening in the vent panel.window exhaust
