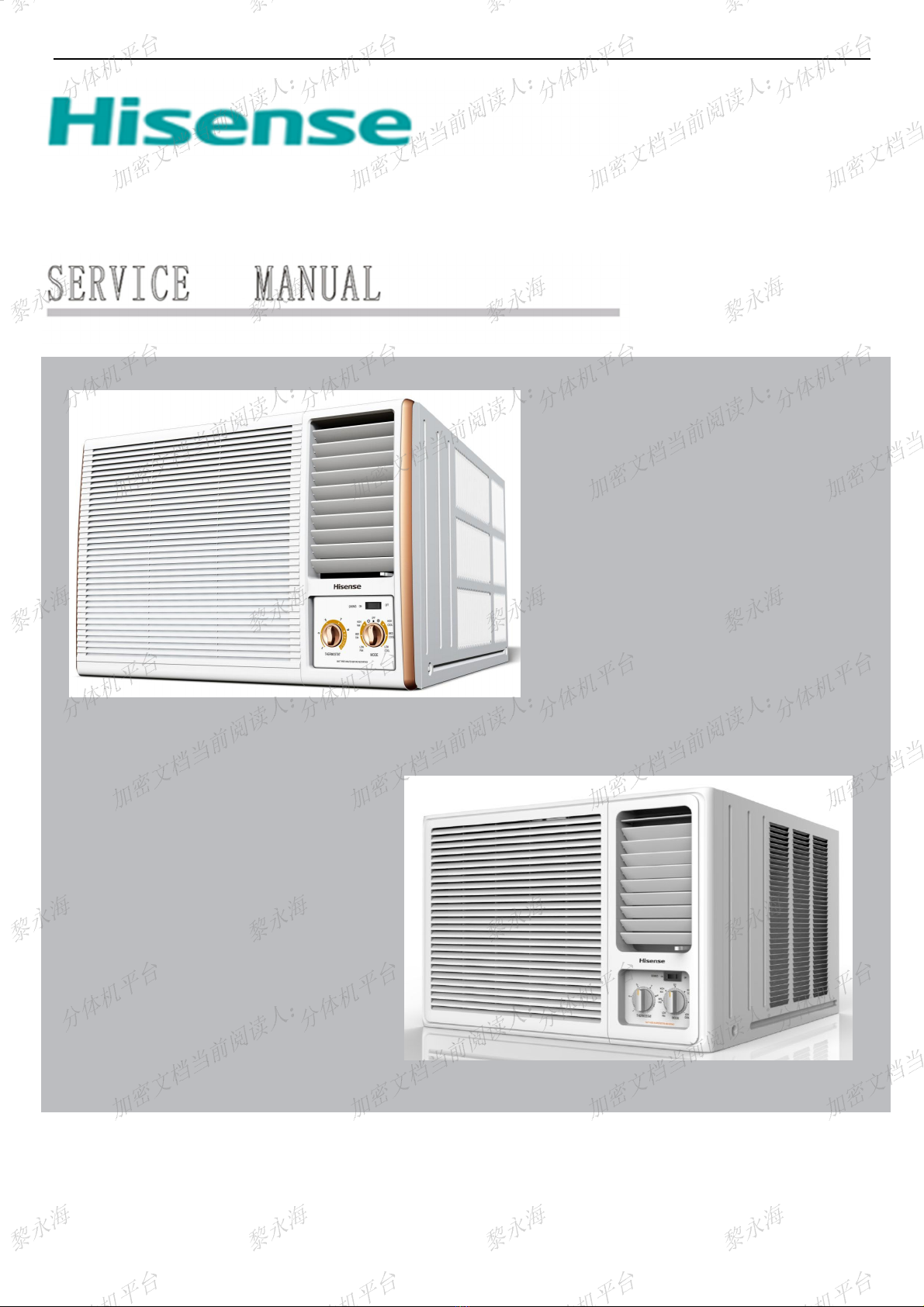

Hisense AW-08CW1RVFUE20 User manual

1
Version: 1.4
Window Air Conditioner
Hisense Corporation

2
MODEL:
AW-08CW1RVFUE20 AW-08DR1RVFU21 AW-12CW1RWFUE20
AW-08DR1RVFU20 AW-10CW1RVFUE20 AW-08CW1RVFUE21
AW-12DR3RYFU20 AW-18CW3RXFUE20 AW-12CW1RWFUE21
AW-14CW1RWFUE20 AW-08CW1RVGUE20 AW-18DR3RXFU20
AW-24CW3RDFUE20 AW-24DR3RDFU20

3
Contents
1. Safety Considerations ........................................................................................... 4
2. Product Specifications........................................................................................... 6
3. Product Picture and Drawing .............................................................................. 14
3-1. Product Pictures ......................................................................................... 14
3-2. Product dimensions .................................................................................... 16
4. Installation Instruction ......................................................................................... 1
4-1. Installation instruction ...................................................................................... 1
4-2. Electric Wiring Diagram .............................................................................. 19
4-3. Refrigerant Flow System ............................................................................ 20
4-4. Test Running .............................................................................................. 20
5. Function Operation ............................................................................................. 21
5-1. Operation Range (Cooling and Heater） .................................................... 21

4
1. Safety Considerations
IMPORTANT!
Please Read Before Starting
This air conditioning system meets strict safety and operating standards. As the installer or service
person, it is an important part of yo r job to install or service the system, so it operates safely and
efficiently.
For safe installation and trouble-free operation, ou must:
●
●●
● Caref lly read this instr ction booklet before beginning.
●
●●
● Follow each installation or repair step exactly as shown.
●
●●
● Observe all local, state, and national electrical codes.
●
●●
● Pay close attention to all warning and ca tion notices given in this man al.
This symbol refers to a hazard or nsafe practice which can res lt in severe
personal inj ry or death.
This symbol refers to a hazard or nsafe practice which can res lt in personal
inj ry or prod ct or property damage.
If Necessar , Get Help
These instr ctions are all yo need for most installation sites and maintenance conditions. If yo
req ire help for a special problem, contact o r sales/service o tlet or yo r certified dealer for
additional instr ctions.
In Case of Improper Installation
The man fact rer shall in no way be responsible for improper installation or maintenance service,
incl ding fail re to follow the instr ctions in this doc ment.
SPECIAL PRECAUTIONS
When Wiring
ELECTRICAL SHOCK CAN CAUSE SEVERE PERSONAL INJURY OR DEATH. ONLY A
QUALIFIED, EXPERIENCED ELECTRICIAN SHOULD ATTEMPT TO WIRE THIS SYSTEM.
●
●●
● Do not s pply power to the nit ntil all wiring and t bing are completed or reconnected and
checked.
●
●●
● Highly dangero s electrical voltages are sed in this system. Caref lly refer to the wiring diagram
and these instr ctions when wiring. Improper connections and inadeq ate gro nding can ca se
accidental inj ry or death.
●
●●
● Gro nd the nit following local electrical codes.
●
●●
● Connect all wiring tightly. Loose wiring may ca se overheating at connection points and a possible

5
fire hazard.
When Transporting
Be caref l when picking p and moving the indoor and o tdoor nits. Get a partner to help, and
bend yo r knees when lifting to red ce strain on yo r back. Sharp edges or thin al min m fins on
the air conditioner can c t yo r fingers.
When Servicing
△ T rn the power OFF at the main power box (mains) before opening the nit to check or repair
electrical parts and wiring.
△ Keep yo r fingers and clothing away from any moving parts.
△ Clean p the site after yo finish, remembering to check that no metal scraps or bits of wiring
have been left inside the nit being serviced.
Others
△ Ventilate any enclosed areas when installing or testing the refrigeration system. Escaped
refrigerant gas, on contact with fire or heat, can prod ce dangero sly toxic gas.
△ Confirm pon completing installation that no refrigerant gas is leaking. If escaped gas comes in
contact with a stove, gas water heater, electric room heater or other heat so rce, it can prod ce
dangero sly toxic gas.
NOTE:
The figure 、 size and parameter of the product may not be identical with the service manual, please
take the actual product as the standard.

6
2. Product Specifications
Model
AW-08DR1RVFU21
AW-08DR1RVFU20
AW-10CW1RVFU 20
Panel F F
Electric
parameter
Power supply nameplate V-p -Hz 115/1/60 115/1/60
Input nameplate W 710 870
Input current
nameplate A 6.1 7.7
Efficiency
Cooling
Energy Class —— ——
CEER BTU/W 10.90 11.40
Heating
(Average Season)
Energy Class N/A —— ——
COP W/W —— ——
Cooling
Capacity(T1)
Rated W 2345 2931
Rated Btu/ 8000 10000
Input Watts Rated W 710 870
Current Rated A 6.1 7.7
CEER Rated BTU/W 10.90 ——
de umidification amount Rated L/ (usgal/ ) 0.9 1.4
Heating
Capacity
Rated W 1172 ——
Rated Btu/ 4000 ——
Input Watts Rated W 1350 ——
Current Rated A 12.0 ——
COP Rated W/W —— ——
Compressor
Model — KSN66E12VBZC3 KSN82E11VBZ
Type — ROTARY ROTARY
Brand —
美芝 美芝
Indoor and
outdoor
units
Dimension WxHxD mm(inc ) 470×330×445 470×330×445
Packing WxHxD mm(inc ) 560×375×510 560×375×510
Weig t Net/Gross kg(lbs) 23/26.5 23/26.6
Air Volume （ indoor ）
Hi/Med/Lo m
3
/ 382/335/293 380/340/300
Hi/Med/Lo CFM 225/197/172 224/200/176
Noise Level(db)-indoor Hi/Med/Lo dB(A) 57/52/48 57/54/51
Noise Level(db)-outdoor Hi/Med/Lo dB(A) 63/60/58 64/60/56
Refrigerant
Type — R32 R32
Amount kg 0.29 0.36
Design pressure
● H/L Mpa 3.8/2.07 3.8/2.07
Electronic
Electronic YES YES
Digital
Time/Temp
Display
YES YES
Mode
COOL ， DRY 、 FAN 、
ENERGY SAVER 、 HEAT
COOL ， DRY 、 FAN 、 ENERGY SAVER
Fan Speeds -
Cool/Fan
3 3

7
On/Off Timer (24
Hour)
YES YES
Energy Saver YES YES
Auto Fan YES YES
De umidify
Function
YES YES
Sleep Mode YES YES
Infrared Remote
Control
YES YES
Mec anical
Mec anical — —
Control Panel
Design
— —
Fan Speeds -
Cool/Fan/Heat
— —
T ermostat — —
Control Panel
Design
— —
Filter Type dustproof dustproof
Filter Access Easy Access Easy Access
C assis Type Slide-out Fix
ot er function — — —
Room
temperature
setting temperature
range
Cooling
℃ 16-30 16-30
Heating
℃ 16-30 —
Operating Temperature
Range
Cooling
℃ (17~32)/(18~43) 16-43
Heating
℃ (0~27)/(-7~24) —
Note:
1 、 T is table just is for reference, w en relate parameters is different from actual specification, please use t e parameters
of t e actual specification w ic you can get from t e product manager.

8

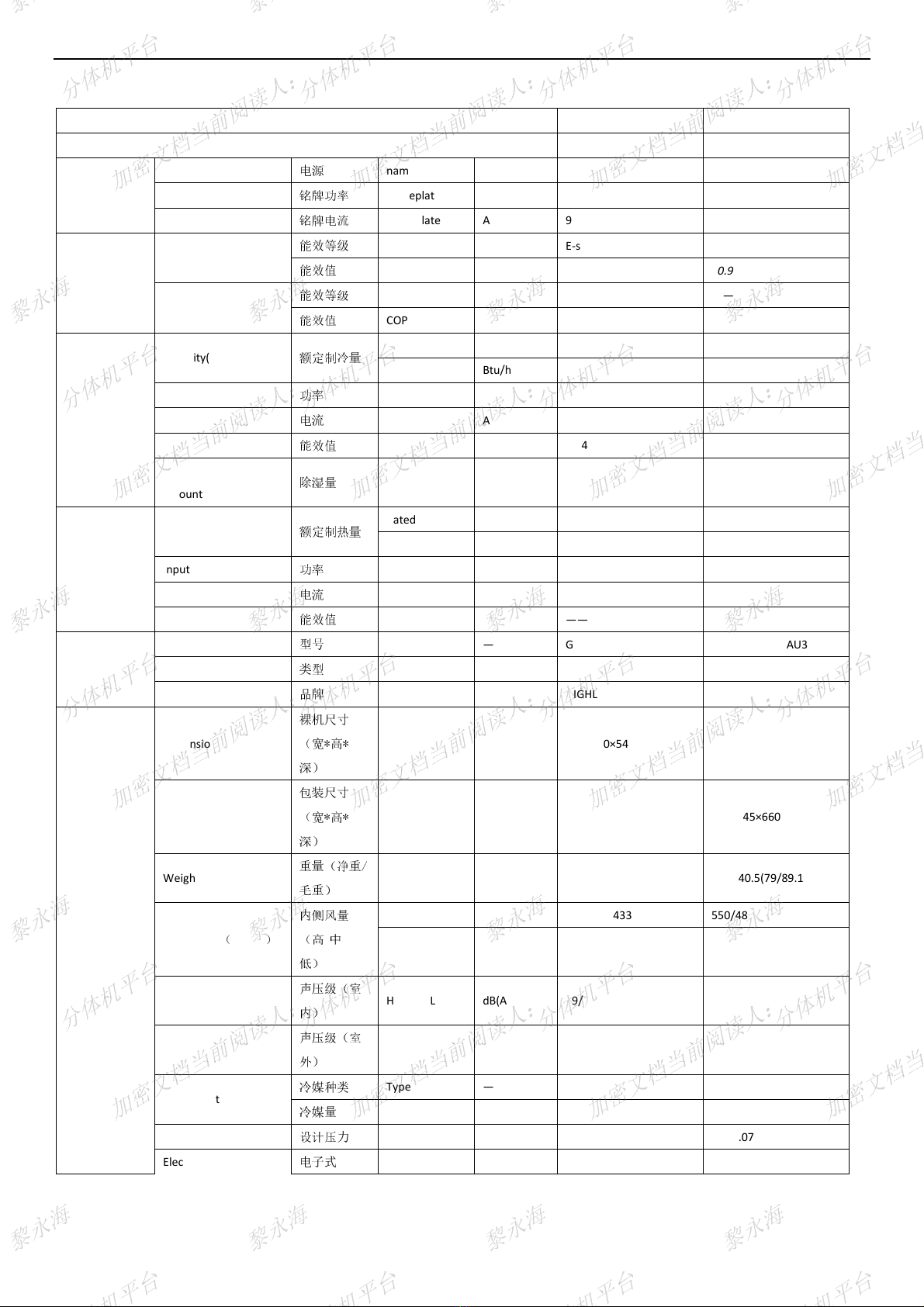

Model AW-12CW1RWFU 20 AW-12DR3RYFU20
Panel F F
Electric
parameter
Power supply
电源
nameplate V-p -Hz 115/1/60 208/230/60
Input
铭牌功率
nameplate W 1040 1020/1050
Input current
铭牌电流
nameplate A 9.4 5.1/4.7
Efficiency
Cooling
能效等级
Energy Class E-star ——
能效值
CEER BTU/W 12.0 10.9
Heating
(Average Season)
能效等级
Energy Class N/A —— ——
能效值
COP W/W —— ——
Cooling
Capacity(T1)
额定制冷量
Rated W 3517 3280/ 3370
Rated Btu/ 12000 11200/11500
Input Watts
功率
Rated W 1040 1020/1050
Current
电流
Rated A 9.4 5.1/4.7
EER
能效值
Rated BTU/W 11.4 10.9
de umidification
amount
除湿量
Rated L/ (usgal/ ) 1.5 1.6
Heating
Capacity
额定制热量
Rated W —— 2989/ 3136
Rated Btu/ —— 10200/ 10700
Input Watts
功率
Rated W —— ——
Current
电流
Rated A —— 16.0/15.0
COP
能效值
Rated W/W —— ——
Compressor
Model
型号
— GSD100UW-F6AU3 GSD100UW-F6AU3
Type
类型
— ROTARY ROTARY
Brand
牌
— HIGHLY HIGHLY
Indoor and
outdoor units
Dimension
裸机尺寸
（宽*高*
深）
WxHxD mm(inc ) 480×370×545 500×385×548
Packing
包装尺寸
（宽*高*
深）
WxHxD mm(inc ) 565×445×600 560×445×660
Weig t
重量（净重/
毛重）
Net/Gross kg(lbs) 27.2/31.5(59.8/69.3) 36.0/40.5(79/89.1)
Air Volume （ indoor ）
内侧风量
（高 / 中 /
低）
Hi/Med/Lo m
3
/ 571/508/433 550/489/423
Hi/Med/Lo CFM 336/299/255 323/288/249
Noise Level(db)
●-indoor
声压级（室
内）
Hi/Med/Lo dB(A) 59/56.2/53.6 60.3/57.5/54.6
Noise Level(db)-
outdoor
声压级（室
外）
Hi/Med/Lo dB(A) 65.9/62.6/58 66.1/63.4/59.1
Refrigerant
冷媒种类
Type — R32 R32
冷媒量
Amount kg 0.355 0.44
Design pressure
设计压力
H/L Mpa 3.8/2.07 3.8/2.07
Electronic
电子式
●
Electronic YES YES

9
时间 / 温度显
示
Digital
Time/Temp
Display
YES YES
模式
Mode
COOL ， DRY 、 FAN 、 ENERGY
SAVER
COOL ， DRY 、 FAN 、 ENERGY
SAVER
风扇转速
Fan Speeds -
Cool/Fan
3 3
24 定时开关
On/Off Timer
(24 Hour)
YES YES
节能模式
Energy Saver YES YES
自动风
Auto Fan YES YES
除湿功能
De umidify
Function
YES YES
睡眠模式
Sleep Mode YES YES
遥控器控制
Infrared
Remote
Control
YES YES
Mec anical
●
机械式
Mec anical — —
控制面板图
案
Control Panel
Design
— —
风速（制冷 /
送风 / 制热）
Fan Speeds -
Cool/Fan/Heat
— —
温控器型式
T ermostat — —
控制面板图
案
Control Panel
Design
— —
过滤网类型
Filter Type dustproof dustproof
过滤网可拆
卸
Filter Access Easy Access Easy Access
底座类型
C assis Type Fix Fix
ot er function
●
其他功能
— WIFI —
Room
temperature
setting temperature
range
制冷
Cooling
℃ 16-30 16-30
制热
Heating
℃ — 16-30
Operating
Temperature Range
制冷
Cooling
℃ (17-32)/(18-43) (17-32)/(18-43)
制热
Heating
℃ — (0-27)/(-7-24)
Note:
1 、 T is table just is for reference, w en relate parameters is different from actual specification, please use t e parameters
of t e actual specification w ic you can get from t e product manager.

10
Model AW-08CW1RVFUE20 AW-08CW1RVFUE21
Panel F F
Electric
parameter
Power supply nameplate V-ph-Hz 115/1/60 115/1/60
Input nameplate W 00 00
Input current
nameplate A 6.3 6.3
Efficiency
Cooling
Energy
Class
—— ——
CEER BTU/W 11.40 11.40
Heating
(Average Season)
Energy
Class
N/A —— ——
COP W/W —— ——
Cooling
Capacity(T1)
Rated W 2345 2345
Rated Btu/h 8000 8000
Input Watts Rated W 00 00
Current Rated A 6.3 6.3
EER Rated BTU/W 11.40 11.40
dehumidification amount Rated L/h(usgal/h) 0.9 0.9
Fan motor
Model — DG13S1-40 DG13S1-40
Type — AC AC
Brand —
大洋 大洋
Speed(Hi/Med/Lo) RPM 1480/1250/1120 1480/1250/1120
Compressor
●
Model — KSN66E12VBZC3 KSN66E12VBZC3
Type — ROTARY ROTARY
Brand —
美芝 美芝
Indoor and
outdoor units
Dimension WxHxD mm(inch) 4 0×330×445 4 0×330×445
Packing WxHxD mm(inch) 560×3 5×510 560×3 5×510
Weight Net/Gross kg(lbs) 21.2/24.5 21.2/24.5
Air Volume （ indoor ）
Hi/Med/Lo m
3
/h 392/345/303 3 5/325/280
Hi/Med/Lo CFM 230/202.6/1 8 220.5/191.2/164.
Noise Level(db)
●-indoor Hi/Med/Lo dB(A) 5 .2/53.6/50 5 /52/48
Noise Level(db)-outdoor Hi/Med/Lo dB(A) 5 .3/54.2/52.1 63/60/58
Refrigerant
Type — R32 R32
Amount kg 0.29 0.29
Design pressure H/L Mpa 3.6/2.0 3.8/2.0
Room
temperature
setting temperature
range
Cooling
℃ 16-30 16-30
Heating
℃ — —
Operating Temperature
Range
Cooling
℃ 16-43 16-43
Heating
℃ — —
Note:
1 、 T is table just is for reference, w en relate parameters is different from actual specification, please use t e parameters
of t e actual specification w ic you can get from t e product manager.

11
Model AW-12CW1RWFU 21 AW-14CW1RWFU 20
Panel F F
Electric parameter
Power supply nameplate V-p -Hz 115/1/60 115/1/60
Input nameplate W 1040 1235
Input current
nameplate A 9.4 11.2
Efficiency
Cooling
Energy Class E-star Energy-Star
CEER BTU/W 12.00 11.30
Heating
(Average Season)
Energy Class N/A —— ——
COP W/W —— ——
Cooling
Capacity(T1)
Rated W 3517 4103
Rated Btu/ 12000 14000
Input Watts Rated W 1040 1235
Current Rated A 9.4 11.2
EER Rated BTU/W 11.40 11.33
de umidification amount Rated L/ (usgal/ ) 1.5 1.9
Heating
Capacity
Rated W —— ——
Rated Btu/ —— ——
Input Watts Rated W —— ——
Current Rated A —— ——
COP Rated W/W —— ——
Fan motor
Model — DG13S1-38 DG13S1-38
Type — AC AC
Brand —
大洋 大洋
Speed(Hi/Med/Lo) RPM 1610/1440/1270 1600/1440/1270
Compressor
Model — KSM95E12UDZK KSM113E3UBZK
Type — AC AC
Brand —
大洋 大洋
Indoor and outdoor
units
Dimension WxHxD mm(inc ) 480×370×545 480×370×545
Packing WxHxD mm(inc ) 565×445×600 565×435×600
Weig t Net/Gross kg(lbs) 27.2/31.5(59.8/69.3) 30.7/33.6 (67.7/74.1)
Air Volume （ indoor ）
Hi/Med/Lo m
3
/ 571/508/433 571/508/433
Hi/Med/Lo CFM 336/299/255 336/299/255
Noise Level(db)
●-indoor Hi/Med/Lo dB(A) 59/56.2/53.6 59/56.2/53.6
Noise Level(db)-outdoor Hi/Med/Lo dB(A) 65.9/62.6/58 65.9/62.6/58
Refrigerant
Type — R32 R32
Amount kg 0.43 0.51
Room temperature
setting temperature
range
Cooling
℃ 16-30 16-30
Heating
℃ — —
Operating Temperature
Range
Cooling
℃ (17-32)/(18-43) 16-43
Heating
℃ — —
Note:
1 、 T is table just is for reference, w en relate parameters is different from actual specification, please use t e parameters
of t e actual specification w ic you can get from t e product manager.

12
Model AW-24CW3RDFU 20 AW-18CW3RXFU 20
Panel F F
Electric parameter
Power supply nameplate V-p -Hz 230/208/1/60 230/208/1/60
Input nameplate W —— ——
Input current
nameplate A 11.4/12.3 7.2/7.9
Efficiency
Cooling
Energy Class E-Star E-Star
CEER BTU/W 9.80 11.3/11.3
Heating
(Average Season)
Energy Class N/A —— ——
COP W/W —— ——
Cooling
Capacity(T1)
Rated W —— ——
Rated Btu/ 24600/24000 18000/17700
Input Watts Rated W 2490/2430 1580/1550
Current Rated A 11.4/12.3 7.2/7.9
EER Rated BTU/W 9.80 11.3/11.3
de umidification amount Rated L/ (usgal/ ) 3.7 2.7
Heating
Capacity
Rated W —— ——
Rated Btu/ —— ——
Input Watts Rated W —— ——
Current Rated A —— ——
COP Rated W/W —— ——
Fan motor
Model — DG13S3-03 DG13S3-02
Type — AC AC
Brand —
OCEAN 绿智
Speed(Hi/Med/Lo) RPM 1120/1020/920 1110/1015/900
Compressor
Model — GSH222UN-C8DQ KSF155N2VETB3
Type — AC ——
Brand —
OCEAN ——
Indoor and
outdoor units
Dimension WxHxD mm(inc ) 673×472×669 600×455×640
Packing WxHxD mm(inc ) 730×520×800 655×505×775
Weig t Net/Gross kg(lbs) 57/65 50/56
Air Volume （ indoor ）
Hi/Med/Lo m
3
/ 880/800/730 690/630/570
Hi/Med/Lo CFM 517/470/429 406/370/335
Noise Level(db)
●-indoor Hi/Med/Lo dB(A) 59/54/50 55/53/51
Noise Level(db)-outdoor Hi/Med/Lo dB(A) 65/64/61 62/60/58
Refrigerant
Type — R32 R32
Amount kg 0.81 0.63
Room temperature
setting temperature
range
Cooling
℃ 16*30 16-30
Heating
℃ — —
Operating Temperature
Range
Cooling
℃ 17-32/18-43 18-43
Heating
℃ — —
Note:
1 、 T is table just is for reference, w en relate parameters is different from actual specification, please use t e parameters
of t e actual specification w ic you can get from t e product manager.

13
Model AW-18DR3RXFU20 AW-24DR3RDFU20
Panel F F
Electric parameter
Power supply nameplate V-p -Hz 230/208/1/60 230/208/1/60
Input nameplate W —— ——
Input current
nameplate A 7.2/7.9 11.2/12.2
Efficiency
Cooling
Energy Class DOE DOE
CEER BTU/W 11.3/11.3 9.40
Heating
(Average Season)
Energy Class N/A —— ——
COP W/W —— ——
Cooling
Capacity(T1)
Rated W —— ——
Rated Btu/ 18000/17700 24000/23700
Input Watts Rated W 1580/1550 2520/2490
Current Rated A 7.2/7.9 11.2/12.2
EER Rated BTU/W 11.3/11.3 9.40
de umidification amount Rated L/ (usgal/ ) 2.7 3.5
Heating
Capacity
Rated W —— ——
Rated Btu/ 11000/10500 11000/10500
Input Watts Rated W —— ——
Current Rated A 15.0/16.0 15.0/16.0
COP Rated W/W —— ——
Fan motor
Model — DG1353-02 DG13S3-03
Type — AC AC
Brand — OCEAN OCEAN
Speed(Hi/Med/Lo) RPM 1110/1015/900 1120/1020/920
Compressor
Model — K5F1SSN2VETB3 GSH222UN-C8DQ
Type — ROTARY ROTARY
Brand —
GMCC
HIGHLY
Indoor and
outdoor units
Dimension WxHxD mm(inc ) 600x455x640 673x472x669
Packing WxHxD mm(inc ) 655x505x775 730x520x800
Weig t Net/Gross kg(lbs) 50/56 57/65
Air Volume （ indoor ）
Hi/Med/Lo m
3
/ 690/630/570 880/800/730
Hi/Med/Lo CFM 406/370/335 517 /470/429
Noise Level(db)
●-indoor Hi/Med/Lo dB(A) 55/53/51 59/54/50
Noise Level(db)-outdoor Hi/Med/Lo dB(A) 62/60/58 65/64/61
Refrigerant
Type — R32 R32
Amount kg 0.63 0.71
Room temperature
setting temperature
range
Cooling
℃ 16-30 16-30
Heating
℃ — 16-30
Operating Temperature
Range
Cooling
℃ 18-43 17-32/18-43
Heating
℃ — -7-30
Note:
1 、 T is table just is for reference, w en relate parameters is different from actual specification, please use t e parameters
of t e actual specification w ic you can get from t e product manager.

14
Model AW-08CW1RVGUE20
Panel G F
Electric
parameter
Power supply nameplate V-ph-Hz 115/1/60 115/1/60
Input nameplate W 00 00
Input current
nameplate A 6.3 6.3
Efficiency
Cooling
Energy
Class
—— ——
CEER BTU/W 11.40 11.40
Heating
(Average Season)
●
Energy
Class
N/A —— ——
COP W/W —— ——
Cooling
Capacity(T1)
Rated W 2345 2345
Rated Btu/h 8000 8000
Input Watts Rated W 00 00
Current Rated A 6.3 6.3
EER Rated BTU/W 11.40 11.40
dehumidification amount Rated L/h(usgal/h) 0.9 0.9
Fan motor
Model — DG13S1-40 DG13S1-40
Type — AC AC
Brand —
大洋 大洋
Speed(Hi/Med/Lo) RPM 1480/1250/1120 1480/1250/1120
Compressor
Model — KSN66E12VBZC3 KSN66E12VBZC3
Type — ROTARY ROTARY
Brand —
美芝 美芝
Indoor and
outdoor units
Dimension WxHxD mm(inch) 4 0×330×445 4 0×330×445
Packing WxHxD mm(inch) 560×3 5×510 560×3 5×510
Weight Net/Gross kg(lbs) 21.2/24.5 21.2/24.5
Air Volume （ indoor ）
Hi/Med/Lo m
3
/h 392/345/303 3 5/325/280
Hi/Med/Lo CFM 230/202.6/1 8 220.5/191.2/164.
Noise Level(db)
●-indoor Hi/Med/Lo dB(A) 5 .2/53.6/50 5 /52/48
Noise Level(db)-outdoor Hi/Med/Lo dB(A) 5 .3/54.2/52.1 63/60/58
Refrigerant
Type — R32 R32
Amount kg 0.29 0.29
Design pressure H/L Mpa 3.6/2.0 3.8/2.0
Room
temperature
setting temperature
range
Cooling
℃ 16-30 16-30
Heating
℃ — —
Operating Temperature
Range
Cooling
℃ 16-43 16-43
Heating
℃ — —
3. Product Picture and Drawing
3-1. Product Pictures
Indoor units:
Front Panel A

15
View
Front Panel B
View
Front Panel M
View
Front Panel Q
View
Front Panel F

16
View

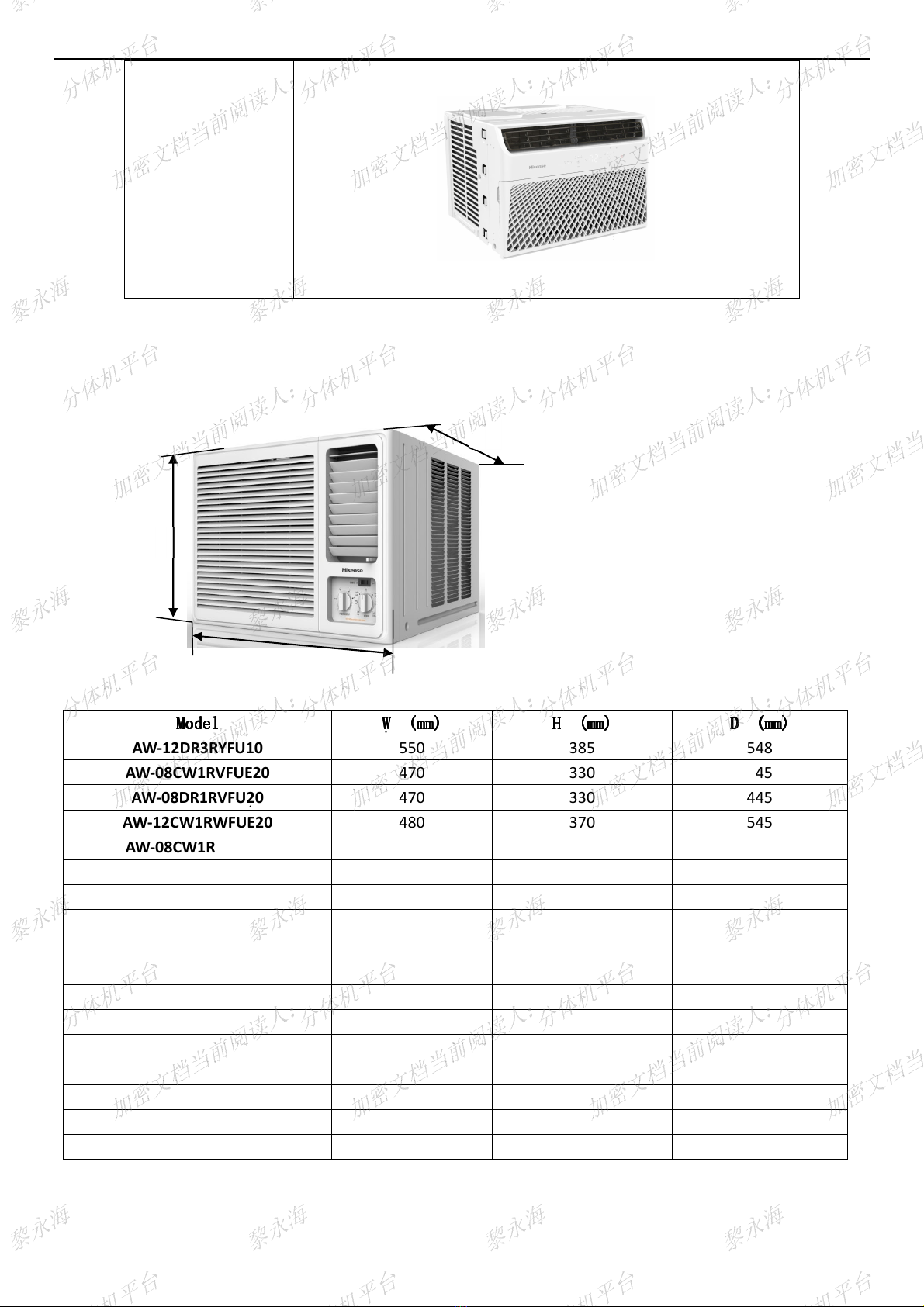

3-2. Product dimensions
Model
ModelModel
Model W (mm)
W (mm)W (mm)
W (mm)
●
H (mm)
H (mm)H (mm)
H (mm) D (mm)
D (mm)D (mm)
D (mm)
AW-12DR3RYFU10 550 385 548
AW-08CW1RVFU 20 470 330 445
AW-08DR1RVFU20
●
470 330 445
AW-12CW1RWFU 20 480 370 545
AW-08CW1RVFU 21 470 330 445
AW-08DR1RVFU21 470 330 445
AW-10CW1RVFU 20 470 330 445
AW-12DR3RYFU20 550 385 548
AW-18CW3RXFU 20 660 445 640
AW-12CW1RWFU 21 480 370 545
AW-18DR3RXFU20 660 445 640
AW-14CW1RWFU 20 480 370 545
AW-24CW3RDFU 20 673 472 669
AW-08CW1RVGU 20 470 330 445
AW-24DR3RDFU20 673 472 669
W
H
D

17
4. Installation Instruction
4-1. Installation instruction

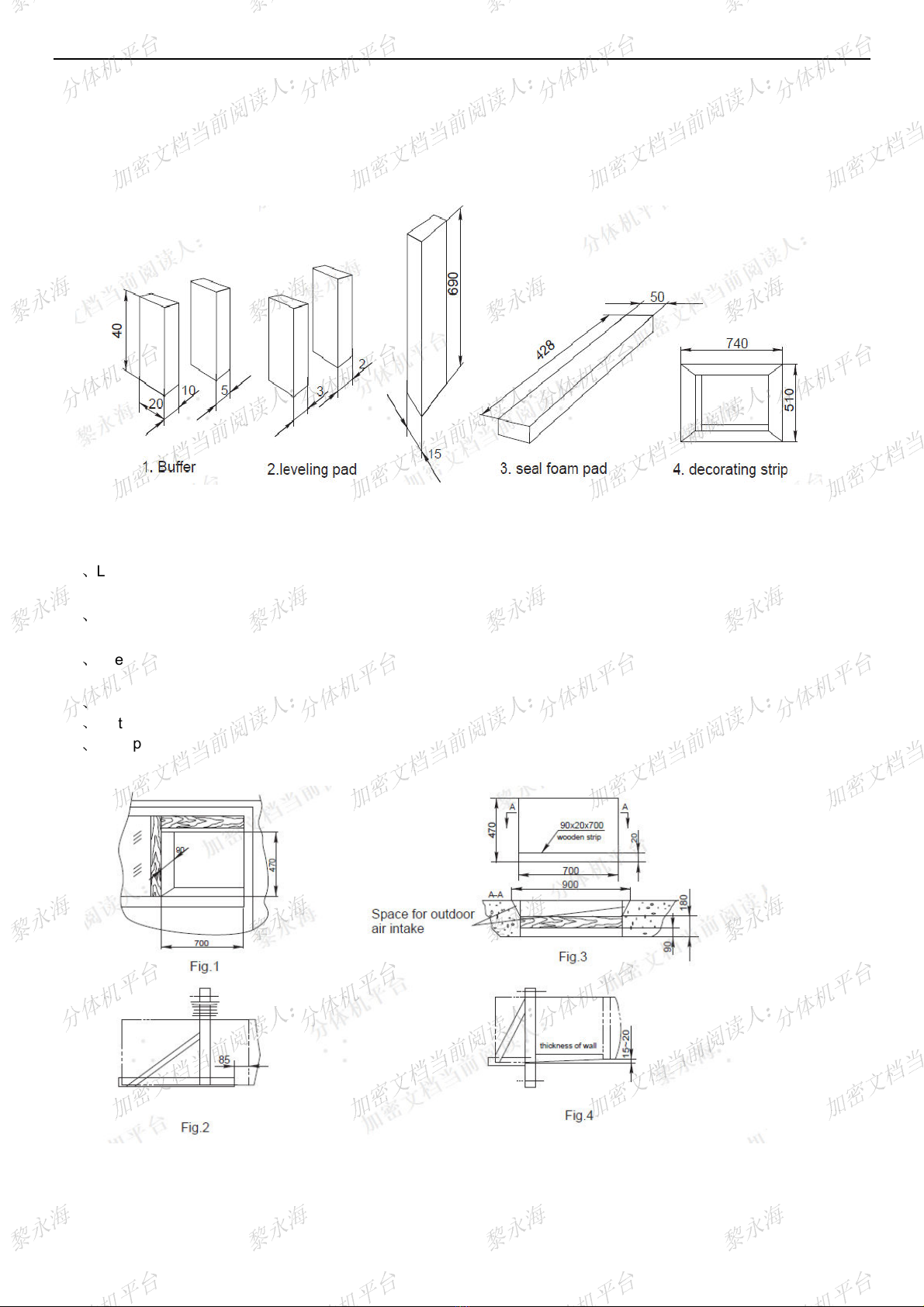

Installation accessories
Note: All above accessories are prepared or purchased by user
Installation requirements
1 、 Leave a space more than 100 cm at the rear of the appliance and ensure the outdoor air intake not
be blocked.
2 、 A wooden frame as shown in fig.1 is advisable if the appliance is installed through a window. The
installation bracket as shown in fig.2 should not be welded with the window sash.
3 、 The square hole should be smooth enough if the appliance is installed through a wall. A space as
shown in fig.3 for outdoor air intake should be prepared if the wall is too thick.
4 、 The metallic installation bracket should be constructed as fig.4.
●
5 、 All the installation structure should be strong enough.
6 、 For appliances with supplementary heaters, the minimum clearance from the appliance to combustible
surfaces (IEC 60335-2-40:2018)

18

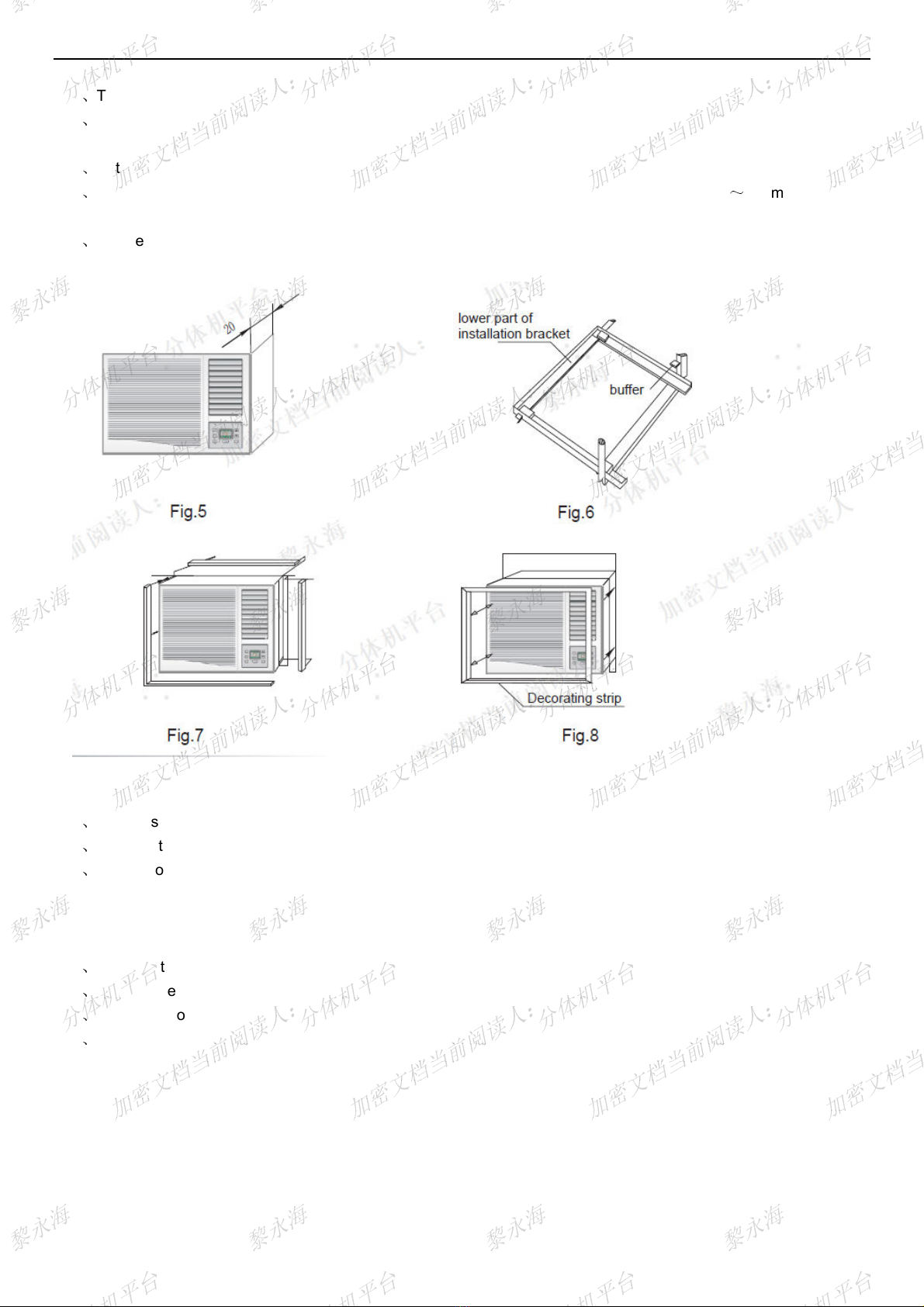

Installation steps
1 、 Test the appliance by plugging the power supply cord in a correct outlet of power source before installation.
2 、 A clearance of 20 mm is advisable between the appliance cabinet and the wall. Fix the indoor air intake
panel with the cabinet by employing two screws which packed in the packing bag as shown in Fig.5.
3 、 Put the buffers on the installation bracket as shown in Fig.6. Adjust the appliance as shown in Fig.4.
4 、 The leveling pads are employed to tilt the appliance in order that the indoor side is about (15 ～ 20) mm
higher than the outdoor side for fear the condensate overflow into the room.
●
5 、 The seal foam pads are employed to prevent outside air from leaking into the room (Fig. ) and the
decorating strip is presented for aesthetical appearance as Fig.8.
Drainage
1 、 Condensate will form during the cooling or dry operation, user can choose drainage or no
●
drainage.
2 、 Remove the drainage tip and fix the drainage hose when drainage is chosen.
3 、 On the contrary, the condensate is splashed to cool the condenser so that the cooling capacity and
energy conservation is improved with a little high noise when no drainage is chosen.
Fuse an groun ing
1 、 A proper time-delay fuse should be employed in the power supply circuit.
2 、 For your personal safety, this air conditioner must be grounded.
3 、 The extension of power supply cord is inadvisable.
4 、 Connect this air conditioner to its own individual wall receptacle to prevent itself and other appliances
or household lights from causing a overload that could cause a power outage.

19
4-2. Electric Wiring Diagram
Mo el Co e
AW-08CW1RVFUE20 2142719
AW-08DR1RVFU20 2142719
AW
●
-12CW1RWFUE20 2142719
AW-08CW1RVFUE21 2142719
AW-08DR1RVFU21 2142719
AW-10CW1RVFUE20 2142719
AW-12DR3RYFU20 2142719
AW-18CW3RXFUE20 2142719
AW-08CW1RVFUE20 2142719
AW-12CW1RWFUE21 2142719
AW-18DR3RXFU20 2142719
AW-14CW1RWFUE20 2142719
AW-24CW3RDFUE20 2142719
AW-08CW1RVGUE20 2142719
AW-24DR3RDFU20 2142719
2142719

20
4-3. Refrigerant Flow System
4-4. est Running
●
△
△△
△ Check after Installation
Items to be checked Possible malfunction
Has it been fixed firmly?
● The nit may drop, shake or emit noise.
Have yo done the refrigerant leakage test? It may ca se ins fficient
cooling(heating)capacity
Is heat ins lation s fficient? It may ca se condensation and dripping.
Is water drainage satisfactory? It may ca se condensation and dripping.
Is the voltage in accordance with the rated
voltage marked on the nameplate?
It may ca se electric malf nction or damage
the prod ct.
Is the electric wiring and piping connection
installed correctly and sec rely?
It may ca se electric malf nction or damage
the part.
Has the nit been connected to a sec re
earth connection? It may ca se electrical leakage.
Is the power cord specified? It may ca se electric malf nction or damage
the part.
Are the inlet and o tlet openings blocked? It may ca se ins fficient
cooling(heating)capacity.
Is the length of connection pipes and
refrigerant capacity been recorded? The refrigerant capacity is not acc rate.
