Hitachi HC-A16KNX User manual

PMML0193A - rev.2 - 06/2010 - Printed in Spain
HC-A16KNX - Operation and installation manual PMML0193A - rev.2 - 06/2010
HC-A16KNX
Installation and operation manual
Manual de instalación y funcionamiento
Installations- und Betriebshandbuch
Manuel d’installation et de fonctionnement
Manuale d’installazione e d’uso
Manual de instalaçäo e de funcionamento
Bruger- og monteringsvejledning
Installatie- en bedieningshandleiding
Handbok för installation och använding
Εγχειρίδιο εγκατάστασης kαι λειτουργίας
Do not perform installation work, without referring to this installation manual.
No realice la instalación de este equipo, sin antes consultar este manual de instalación.
Bei der Installation unbedingt die Hinweise in der Installationsanleitung beachten.
Consulter notre manuel avant de réaliser une quelconque installation.
Realizzare l’installazione, seguendo quanto indicato in questo manuale.
Nao inicie os trabalhos de montagem, sem consultar o nosso manual de montagem.
Udfor ikke installationsarbejder uden forst at donsultere vores vejledning.
Voer geen enkele handeling uit om de apparatuur alvorens deze hadleiding te hebben doorgelezen.
Utför inte nagra installationsarbeten utan att först läsa var installationsmanual
Μην ήσετε στην εγκατάσταση, χωρίς πριν να έχετε συμβουλευθεί αυτo το εγχειρίδιο εγκατάστασης

Specications in this manual are subject to change without notice in order that HITACHI may bring the latest innovations to their
customers.
Whilst every effort is made to ensure that all specications are correct, printing errors are beyond Hitachi’s control; Hitachi cannot be
held responsible for these errors.
Las especicaciones de este manual están sujetas a cambios sin previo aviso a n de que HITACHI pueda ofrecer las últimas
innovaciones a sus clientes.
A pesar de que se hacen todos los esfuerzos posibles para asegurarse de que las especicaciones sean correctas, los errores de
impresión están fuera del control de HITACHI, a quien no se hará responsable de ellos.
Bei den technischen Angaben in diesem Handbuch sind Änderungen vorbehalten, damit HITACHI seinen Kunden die jeweils
neuesten Innovationen präsentieren kann.
Sämtliche Anstrengungen wurden unternommen, um sicherzustellen, dass alle technischen Informationen ohne Fehler veröffentlicht
worden sind. Für Druckfehler kann HITACHI jedoch keine Verantwortung übernehmen, da sie außerhalb ihrer Kontrolle liegen.
Les caractéristiques publiées dans ce manuel peuvent être modiées sans préavis, HITACHI souhaitant pouvoir toujours offrir à ses
clients les dernières innovations.
Bien que tous les efforts sont faits pour assurer l’exactitude des caractéristiques, les erreurs d’impression sont hors du contrôle de
HITACHI qui ne pourrait en être tenu responsable.
Le speciche di questo manuale sono soggette a modica senza preavviso afnché HITACHI possa offrire ai propri clienti le ultime
novità.
Sebbene sia stata posta la massima cura nel garantire la correttezza dei dati, HITACHI non è responsabile per eventuali errori di
stampa che esulano dal proprio controllo.
As especicações apresentadas neste manual estão sujeitas a alterações sem aviso prévio, de modo a que a HITACHI possa
oferecer aos seus clientes, da forma mais expedita possível, as inovações mais recentes.
Apesar de serem feitos todos os esforços para assegurar que todas as especicações apresentadas são correctas, quaisquer erros
de impressão estão fora do controlo da HITACHI, que não pode ser responsabilizada por estes erros eventuais.
Specikationerne i denne vejledning kan ændres uden varsel, for at HITACHI kan bringe de nyeste innovationer ud til kunderne.
På trods af alle anstrengelser for at sikre at alle specikationerne er korrekte, har Hitachi ikke kontrol over trykfejl, og Hitachi kan
ikke holdes ansvarlig herfor.
De specicaties in deze handleiding kunnen worden gewijzigd zonder verdere kennisgeving zodat HITACHI zijn klanten kan
voorzien van de nieuwste innovaties.
Iedere poging wordt ondernomen om te zorgen dat alle specicaties juist zijn. Voorkomende drukfouten kunnen echter niet door
Hitachi worden gecontroleerd, waardoor Hitachi niet aansprakelijk kan worden gesteld voor deze fouten.
Specikationerna i den här handboken kan ändras utan föregående meddelande för att HITACHI ska kunna leverera de senaste
innovationerna till kunderna.
Vi på Hitachi gör allt vi kan för att se till att alla specikationer stämmer, men vi har ingen kontroll över tryckfel och kan därför inte
hållas ansvariga för den typen av fel.
Οι προδιαγραφές του εγχειριδίου μπορούν να αλλάξουν χωρίς προειδοποίηση, προκειμένου η HITACHI να παρέχει τις τελευταίες
καινοτομίες στους πελάτες της.
Αν και έχει γίνει κάθε προσπάθεια προκειμένου να εξασφαλιστεί ότι οι προδιαγραφές είναι σωστές, η Hitachi δεν μπορεί να ελέγξει τα
τυπογραφικά λάθη και, ως εκ τούτου, δεν φέρει καμία ευθύνη για αυτά τα λάθη.

¬ATTENTION:
This product shall not be mixed with general house waste at the end of its life and it shall be retired according to the
appropriated local or national regulations in a environmentally correct way.
Contact to the corresponding authorities for more information.
¬ATENCIÓN:
Éste producto no se debe eliminar con la basura doméstica al final de su vida útil y se debe desechar de manera
respetuosa con el medio ambiente de acuerdo con los reglamentos locales o nacionales aplicables.
Para obtener más información, póngase en contacto con las autoridades competentes.
¬ACHTUNG:
Dass Ihr Produkt am Ende seiner Betriebsdauer nicht in den allgemeinen Hausmüll geworfen werden darf, sondern
entsprechend den geltenden örtlichen und nationalen Bestimmungen auf umweltfreundliche Weise entsorgt werden muss.
Für weitere Informationen setzen Sie sich bitte mit den entsprechenden Behörden in Verbindung.
¬ATTENTION:
Ne doit pas être mélangé aux ordures ménagères ordinaires à la fin de sa vie utile et qu’il doit être éliminé conformément à
la réglementation locale ou nationale, dans le plus strict respect de l’environnement.
Pour de plus amples informations, contactez les autorités compétentes.
¬ATTENZIONE:
Indicazioni per il corretto smaltimento del prodotto ai sensi della Direttiva Europea 2002/96/EC e Dlgs 25 luglio 2005 n.151
Il simbolo del cassonetto barrato riportato sull' apparecchiatura indica che il prodotto alla fine della propria vita utile deve
essere raccolto separatamente dagli altri rifiuti.
L'utente dovrà, pertanto, conferire l'apparecchiatura giunta a fine vita agli idonei centri di raccolta differenziata dei rifiuti
elettronici ed elettrotecnici, oppure riconsegnarla al rivenditore al momento dell' acquisto di una nuova apparecchiatura di
tipo equivalente.
L'adeguata raccolta differenziata delle apparecchiature dismesse, per il loro avvio al riciclaggio, al trattamento ed allo
smaltimento ambientalmente compatibile, contribuisce ad evitare possibili effetti negativi sull' ambiente e sulla salute e
favorisce il riciclo dei materiali di cui è composta l' apparecchiatura.
Vogliate contattare l' installatore, il rivenditore, o le autorità locali per ulteriori informazioni.
Lo smaltimento abusivo del prodotto da parte dell’utente può comportare l’applicazione delle sanzioni amministrative di cui
all’articolo 50 e seguenti del D.Lgs. n. 22/1997.
¬ATENÇÃO:
O seu produto não deve ser misturado com os desperdícios domésticos de carácter geral no final da sua duração e que
deve ser eliminado de acordo com os regulamentos locais ou nacionais adequados de uma forma correcta para o meio
ambiente.
Contacte as autoridades correspondentes para obter mais informações.
¬BEMÆRK:
At produktet ikke må smides ud sammen med almindeligt husholdningsaffald, men skal bortskaffes i overensstemmelse
med de gældende lokale eller nationale regler på en miljømæssig korrekt måde.
Kontakt de pågældende myndigheder for at få yderligere oplysninger.
¬ATTENTIE:
Dit houdt in dat uw product niet wordt gemengd met gewoon huisvuil wanneer u het weg doet en dat het wordt gescheiden
op een milieuvriendelijke manier volgens de geldige plaatselijke en landelijke reguleringen.
Neem contact op met de betreffende overheidsdienst voor meer informatie.
¬OBS!:
Det innebär att produkten inte ska slängas tillsammans med vanligt hushållsavfall utan kasseras på ett miljövänligt sätt i
enlighet med gällande lokal eller nationell lagstiftning.
Ta kontakt med ansvarig myndighet om du vill ha mer information.
¬ȆȇȅȈȅȋǾ:
ȈȘȝĮȓȞİȚ ȩIJȚ IJȠ ʌȡȠȧȩȞ įİȞ șĮ ʌȡȑʌİȚ ȞĮ ĮȞĮȝȚȤșİȓ ȝİ IJĮ įȚȐijȠȡĮ ȠȚțȚĮțȐ ĮʌȠȡȡȓȝȝĮIJĮ ıIJȠ IJȑȜȠȢ IJȠȣ țȪțȜȠȣ ȗȦȒȢ IJȠȣ țĮȚ
șĮ ʌȡȑʌİȚ ȞĮ ĮʌȠıȣȡșİȓ ıȪȝijȦȞĮ ȝİ IJȠȣȢ țĮIJȐȜȜȘȜȠȣȢ IJȠʌȚțȠȪȢ ȒİșȞȚțȠȪȢ țĮȞȠȞȚıȝȠȪȢ țĮȚ ȝİ IJȡȩʌȠ ijȚȜȚțȩ ʌȡȠȢ IJȠ
ʌİȡȚȕȐȜȜȠȞ.
īȚĮ ʌİȡȚııȩIJİȡİȢ ȜİʌIJȠȝȑȡİȚİȢ, İʌȚțȠȚȞȦȞȒıIJİ ȝİ IJȚȢ ĮȞIJȓıIJȠȚȤİȢ ĮȡȤȑȢ.

DANGER – Immediate hazard which WILL result in severe injury or death.
PELIGRO – Riesgos inmediatos que PRODUCIRÁN lesiones personales graves e incluso la muerte.
GEFAHR – Unmittelbare Gefahrenquellen, die zu schweren Verletzungen oder zum Tod führen.
DANGER – Dangers instantanés de blessures corporelles sévères ou de mort.
PERICOLO – Pericolo immediato che PRODURRÀ ferite gravi o la morte.
PERIGO – Problemas imediatos que IRÃO resultar em graves ferimentos pessoais ou morte.
FARE – Overhængende fare, som VIL resultere i alvorlig personskade eller dødsfald.
GEVAAR – Onmiddellijke risico’s die ernstige persoonlijke verwondingen of de dood ten gevolge kunnen hebben.
FARA – Omedelbar risk som medför svår personskada eller död.
KINAYNO – Άμεσος κίνδυνος που ΘΑ έχει ως αποτέλεσμα σοβαρές σωματικές βλάβες ήθάνατο.
WARNING – Hazards or unsafe practices which COULD result in severe personal injuries or death.
AVISO – Riesgos o prácticas poco seguras que PODRÍAN producir lesiones personales e incluso la muerte.
WARNUNG – Gefährliche oder unsichere Anwendung, die zu schweren Körperverletzungen oder zum Tod führen
kann.
ATTENTION – Utilisation dangereuse ou sans garantie de sécurité qui PEUT provoquer de sévères
blessures personnelles ou la mort.
AVVISO – Pericoli o azioni pericolose che POTREBBERO avere come esito lesioni siche gravi o il decesso.
AVISO – Riesgos o prácticas poco seguras que PUEDEN producir lesiones personales e incluso la muerte
ADVARSEL – Farer eller farlig brug, som KAN resultere i alvorlig personskade eller dødsfald.
WAARSCHUWING – Gevaren of onveilige praktijken die ernstig persoonlijk letsel of de dood tot
gevolg KUNNEN hebben.
VARNING – Risker eller osäkra tillvägagångssätt som KAN leda till svåra personskador eller dödsfall.
ΠΡΟΕΙ∆ΟΠΟΙΗΣΗ – Κίνδυνοι ήεπικίνδυνες πρακτικές, οι οποίες ΜΠΟΡΕΙ να έχουν ως αποτέλεσμα σοβαρές
σωματικές βλάβες ήθάνατο.
CAUTION – Hazards or unsafe practices which COULD result in minor personal injury or product or property
damage.
PRECAUCIÓN – Riesgos o prácticas poco seguras que PODRÍAN provocar lesiones personales de menor
importancia o daños en el producto u otros bienes.
VORSICHT – Gefährliche oder unsichere Anwendung, die geringfügigen Personen-, Produkt- oder Sachschaden
verursachen kann.
PRECAUTION – Utilisation dangereuse ou sans garantie de sécurité qui PEUT provoquer des blessures mineures
ou des dommages au produit ou aux biens.
ATTENZIONE – Pericoli o azioni pericolose che POTREBBERO avere come esito lesioni siche minori o danni al
prodotto o ad altri beni.
CUIDADO – Perigos e procedimentos perigosos que PODERÃO PROVOCAR danos pessoais ligeiros ou danos em
produtos e bens.
FORSIGTIG – Farer eller farlig brug, som KAN resultere i mindre skade på personer, produkt eller ejendom.
LET OP – Gevaren of onveilige praktijken die licht persoonlijk letsel of beschadiging van het product
of eigendommen tot gevolg KUNNEN hebben.
VARSAMHET – Risker eller farliga tillvägagångssätt som KAN leda till mindre personskador eller skador på
produkten eller på egendom.
ΠΡΟΣΟΧΗ – Κίνδυνοι ήεπικίνδυνες πρακτικές, οι οποίες ΜΠΟΡΕΙ να έχουν ως αποτέλεσμα την πρόκληση
ελαφρών σωματικών βλαβών ήκαταστροφή περιουσίας.




5
PMML0193A rev.2 - 06/2010
Note:
This manual provides basic information for installing
and wiring HC-A16KNX.
Contents
1. General Data _____________________________________________________ 6
2. Installation _______________________________________________________ 7
2.1. Safety Summary _____________________________________________ 7
2.2. Dimensional data ____________________________________________ 7
2.3. Components list _____________________________________________ 8
2.4. Description of the parts ________________________________________ 8
2.5. Servicing space ______________________________________________ 9
2.6. Installation procedure _________________________________________ 9
2.7. Electrical wiring _____________________________________________ 10
3. Operation _______________________________________________________ 12
3.1. KNX Address _______________________________________________ 12
3.2. Data available ______________________________________________ 13
3.3. Configuration Method ________________________________________ 14
4. Troubleshooting __________________________________________________ 16
?

6
PMML0193A rev.2 - 06/2010
General Data
1. General Data
Hardware Specications
Item Specications
Power supply 1~230 V ±10% 50Hz
Consumption 25 W (maximum)
Outer dimensions Width: 143 mm, Depth: 302 mm, Height: 76 mm
Weight 1.75 kg
Assembling conditions Indoors (in a control panel or desktop)
Ambient temperature 0~40 °C
Humidity 20~85% (Without condensation)
H-LINK
Item Specications
Communication with HITACHI PACKAGED
Communication line Twisted pair shielded cable, non polarity
Communications system Half-duplex
Communication method Asynchronous
Speed of transmission 9600 Bauds
Length of wiring 1000 m maximum (total length of HLINK I/O bus)
Maximum number of
HC-A16KNX
8 HC-A16KNX/H-LINK SYSTEM (PACKAGED)

7
PMML0193A rev.2 - 06/2010
Installation
2. Installation
2.1. Safety Summary
&Caution
Do not connect voltage input to the control system before
installation is correctly done.
Read this manual carefully before performing installation
work.
 ReadthismanualinordertoconguretheHC-A16KNX
$Attention
Do not install HC-A16KNX in places... :
– with vapour, oil or dispersed liquids.
– with heat sources nearby (sulphuric surroundings).
– whereaccumulation,generationorleaksofinammable
gases has been detected.
– that are near the sea, in saline, acid or alkaline
surroundings.
$Attention
Install HC-A16KNX away from possible sources of
electromagnetic waves.
Respect local electrical standards.
Use a power circuit that is not subject to peak demands.
Ensure that there is enough free space around the HC-
A16KNX(seegure)sothattheheatmaydissipate
adequately (refer to “Installation
Work”).
If you install the HC-A16KNX in
vertical position, install the power
supply in the lower part and the
temperature control outputs in the
upper part
$Caution:
This appliance must be used only by adult and capable people, having received the technical information or instructions to
handle properly and safely this appliance.
Children should be supervised to ensure that they do not play with the appliance.

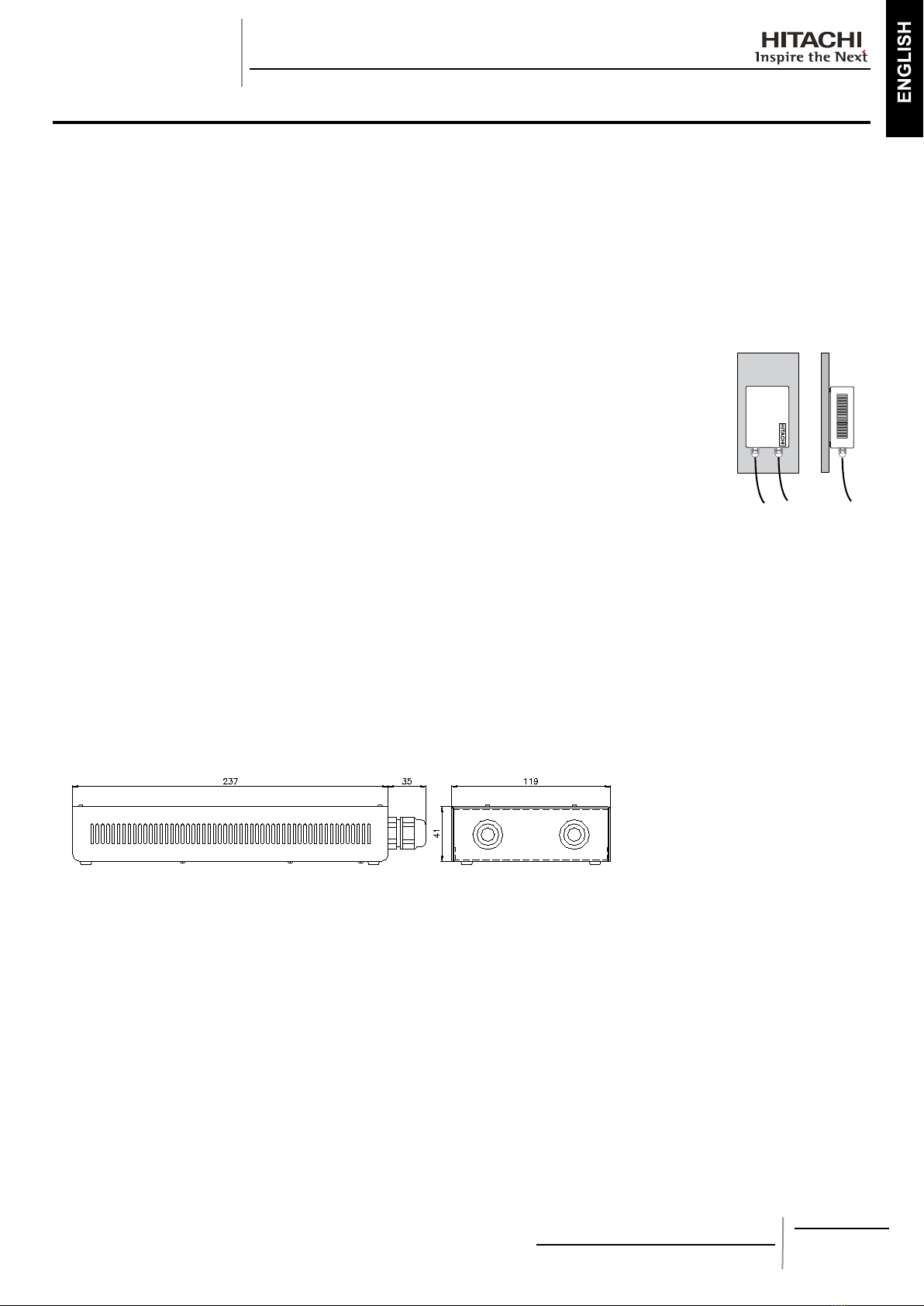

2.2. Dimensional data
When unpacking the HC-A16KNX, check that it has not suffered damage during transport.

8
PMML0193A rev.2 - 06/2010
Installation
2.3. Components list
Check the content and number of accessories in the package. This package contains the following parts:
Name Quant. Comments
1 HC-A16KNX controls the system operation
using this KNX gateway.
2.4. Description of the parts

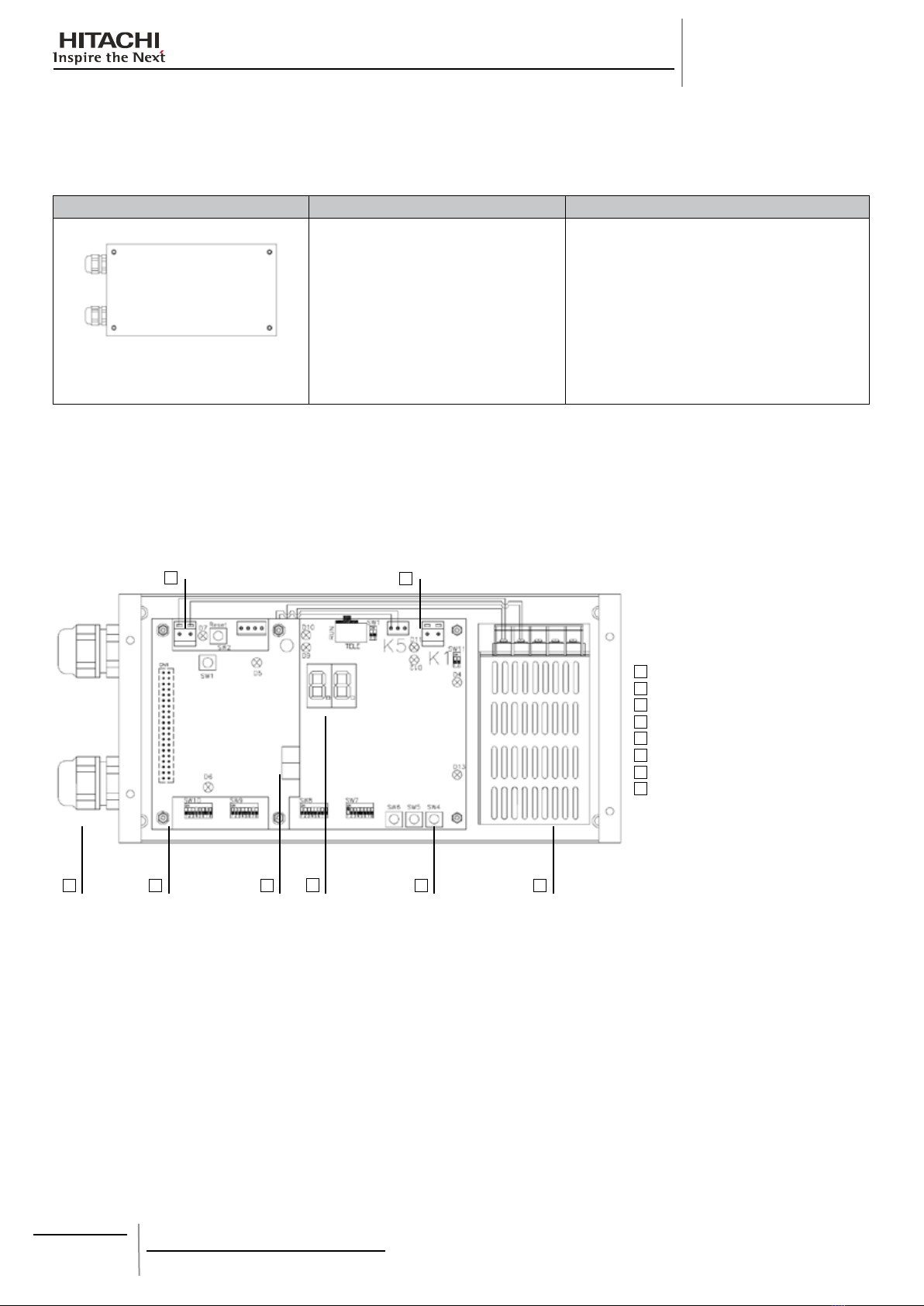

The gure shows the names of the HC-A16KNX components
1 K1: H-LINK Connector
2 KNX port
3 K3: +5V DC Power connection
4 Power source: 230V AC / 5V DC
5 H-LINK PCB
6 KNX PCB
7 Packing glands (2)
8 7-segments
1
2
3
456
78

9
PMML0193A rev.2 - 06/2010
Installation
2.6. Installation procedure
Perform the following procedure:
1 Remove the rubber supports
2 Unscrew the 4 screws from the top cover and remove it
3 Attach the box to the rear vertical board from the inside with M4 screws (not provided) and place 3 mm washers on the outside to
separate the box from the wall.
4 Reinstall the top cover. Be careful to position it correctly.
&Caution:
- The signals’ cables should be as
short as possible. Keep a distance
of more than 150 mm from other
power cables. Don’t wire them
together (although they may
intersect). If they must necessarily
be installed together, take the
following measures to avoid noise:
- Protect the signal cable with a
metal tube which is earthed at
one end.
- For communications, use
shielded wire which is earthed at
one end.
%Danger:
- Always disconnect the power
supply for HC-A16KNX when
handling the machine, in order to
avoid eletrical discharges.
- Do not connect the interface to the
power supply until the installation
has been completed.
- Comply strictly with local security
codes and regulations when
connecting the machine to the
electric network.
- You will need a three-wire cable
(two cores and earth) with a
suitable plug at one end.
$Attention:
- Before applying power and turning
on HC-A16KNX you must ensure
that:
1. All circuits to be connected are
correctly applied.
2. All H-Link connections have
been set up.
3. Follow the local regulations for
the electrical installation of HC-
A16KNX and associated circuits.
Any unit that is not connected or is
not under power when turning on
HC-A16KNX, will not be recognised
andwillhavetobeconguredlater.
2.5. Servicing space
Keep free grated area for ventilation and cable connection.

10
PMML0193A rev.2 - 06/2010
Installation
Field supplied Protections:
CB/EF: 5A
ELB: 2/40A/30mA
CB: Circuit Breaker
EF: Electric Fuse
ELB: Earth Leakage Breaker

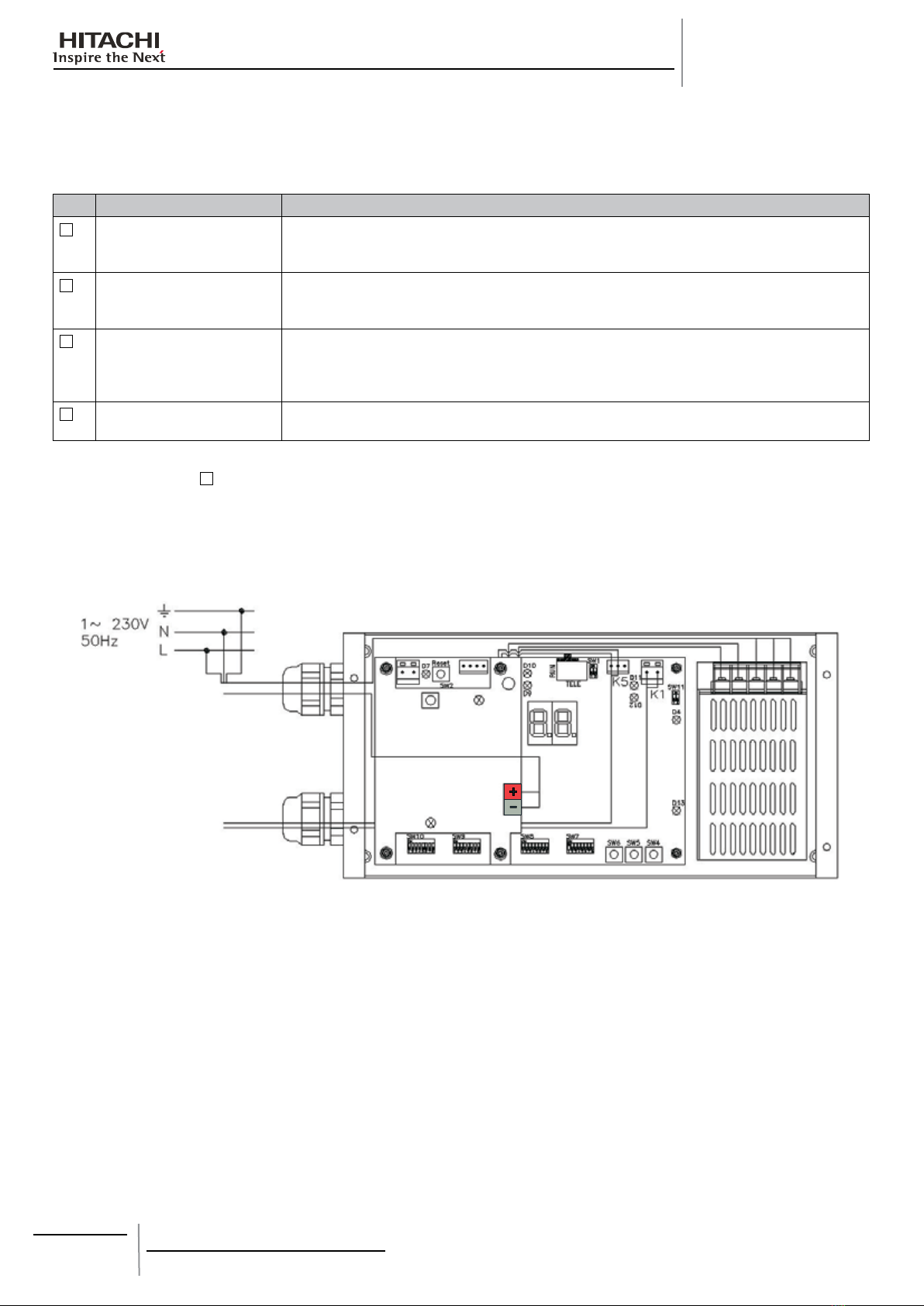

2.7. Electrical wiring
In order to run, HC-A16KNX must be connected to the corresponding input and output signals, power supply cables and H-LINK.
No. Connection Cable Specications
1Power supply circuit
1~ 230V 50Hz 25W
(With protection circuit)
Select wires accordiong local regulatrions
(recommended minimum 1.5 mm² H05RN-F)
2KNX 2 cables harness 0.75 mm² (H05RN-F type). Use different colour for each cable. (KNX Port)
Bus KNX in: red color.
Bus KNX out: black color.
3H-LINK Communication cables for the connection of HC-A16KNX to an Hitachi installation, via
CSNET WEB or any Hitachi unit using same H-LINK terminals.
Twisted pair shielded cable 0.75 mm² (H05RN-F TYPE).
Shield must be grounded in one side only.
4PCBs Power supply
+5V DC. Imax.= 5 A DC
Pair cable 0.75 mm² (H05RN-F TYPE)
?Note:
All cables, except 4 areeldsupplied

11
PMML0193A rev.2 - 06/2010
Installation
Name Function Factory setting Description
SW1-KNX PCB Reset KNX PCB Reset button. To be used in case of KNX communication has been locked.
SW1-H-LINK
PCB
Not avaliable All in off (no function)
SW2 Reset Reset button. To be used in case of program has been locked
SW3
(TELE)
Not available Factory purposes. Never change it
SW4 Conguration Setting functions
SW5 Conguration Setting functions
SW6 Conguration Setting functions
SW7 Options 2 Conguration as MASTER HC-A16KNX: SW7-1=ON.
Only one HC-A16KNX can be set as a MASTER HC-A16KNX. Setting by default.
Conguration as SLAVE HC-A16KNX: SW7-1= OFF.
It should be 1 HC-A16KNX congured as MASTER, all the rest of HC-
A16KNX must be congured as SLAVE
SW8 Options 1
(Application type)
All in off (no function)
SW9 Not available All in off (no function)
SW10 HC-A16KNX
address
HC-A16KNX address from 0 to 31 by pins 1 to 5
SW11 H-LINK DSW SW11-1: H-LINK end resistance
SW11-2: Not used
D4, D11 H-LINK H-LINK transmission
D5 Not used
D6 Units conguration
alarm
ON- No alarms
OFF- Units not congured
D7 Power Power supply ON/OFF
D9/D10 Not used -
D12 KNX Internal communication between the KNX PCB and the H-LINK PCB.
D13 Operation Normal software operation
nDIP switch setting

12
PMML0193A rev.2 - 06/2010
Installation

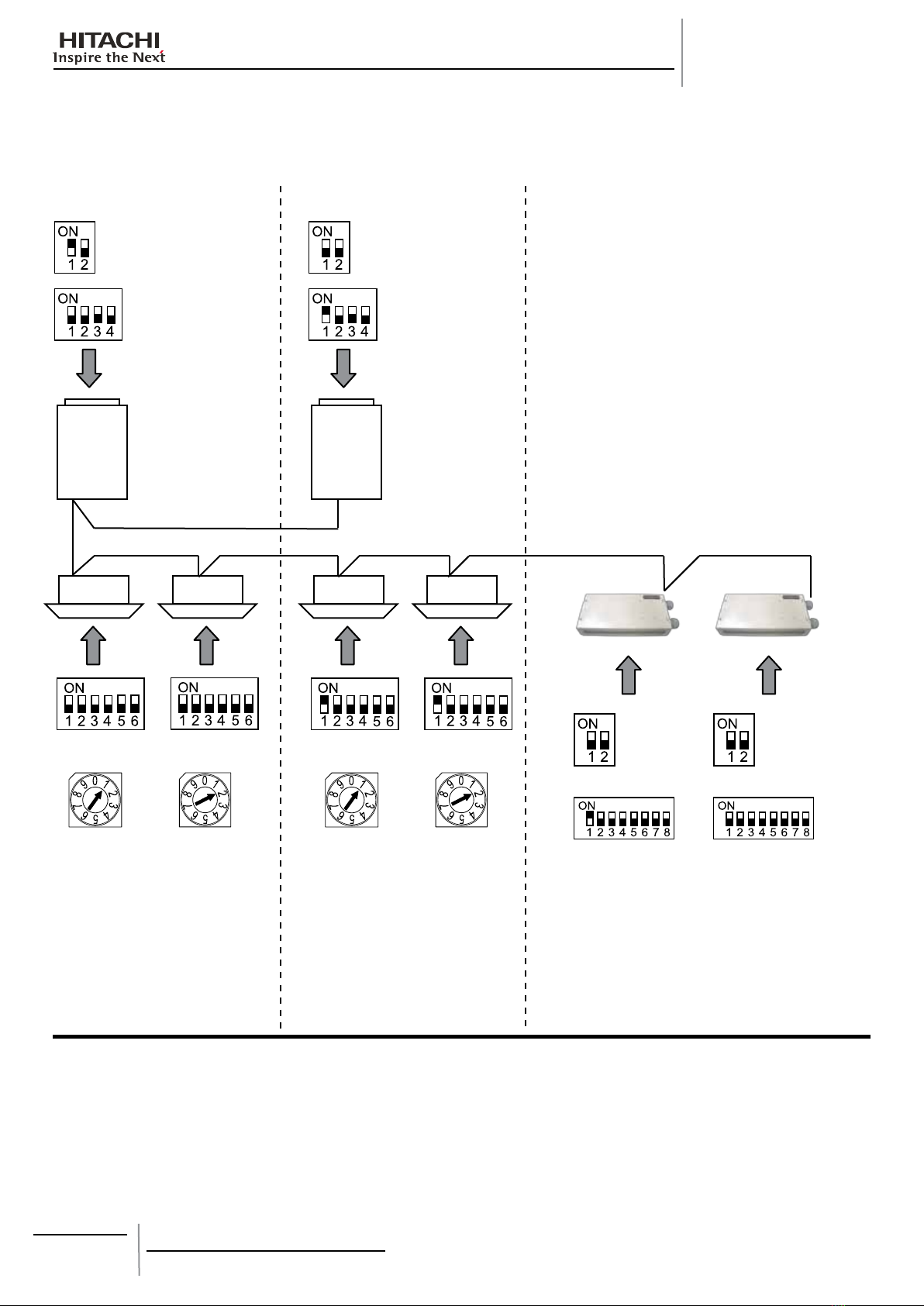

nExample
Cycle 0
Setting before
shipment
Cycle 1
Cancellation
SW11
SW7
Cancellation
SW11
SW7
Cancellation
M S
(0) (0) (1) (1)
(1) (2) (1) (2)
3. Operation
3.1. KNX Address
KNX Default address for this device is 1.1.1, it could be later modied by using ETS software from KNX Association.

13
PMML0193A rev.2 - 06/2010
Installation
3.2. Data available
The maximum numbers of units that can be controlled using HC-A16KNX are 16. Each unit has 15 communication objects. These
objects are explained as follows:
Address Name Length Description Values
0Unit-N On/Off 1 bit ON / OFF order. 0-On
1-Off
1Unit-N Mode 1 byte Mode setting order. 0 = Auto
1 = Heat
2 = Dry
3 = Fan
4 = Cool
2 Unit-N Fan 1 byte Fan setting order. 0~30%= Low
31~60%= Medium
61~100%= High
3Unit-N Louver Scale 1 byte Louver position setting. 0~15% = Pos0
16~30% = Pos1
31~45% =Pos2
46~60% = Pos3
61~75% =Pos4
76~90% = Pos5
91~100% = Pos6
4 Unit-N Louver Auto 1 bit Automatic Louver Setting. 1 = Louver Automatic active
5Unit-N Set Temperature 2 bytes Setting temperature. 17~30ºC
6 Unit-N Ambient Temperature 2 bytes Intel Air Ambient Temperature 17~30ºC
7Unit-N Alarm 1 bit Alarm notication. 1 = alarm on unit N
8Unit-N Alarm Code 1 byte Alarm code. See errors table from
HC-A16KNX
9Unit-N Mode Cool 1 bit Cool mode order. 1 = Mode Cool Active
10 Unit-N Mode Dry 1 bit Dry mode order. 1 = Mode Dry Active
11 Unit-N Mode Fan 1 bit Fan mode order. 1 = Mode Fan Active
12 Unit-N Mode Heat 1 bit Heat mode order. 1 = Mode Heat Active
13 Unit-N Mode Auto 1 bit Auto mode order. 1 = Mode Auto Active
14 Unit-N Prohibit 1 bit On Yes works only with KNX orders, on
No, the unit could receive local orders
and from KNX too.
0 = No
1 = Yes
?Note:
Offset position is (N*15) + Address. Where N is the Indoor Unit position in the address table (0~15) and address is the position
of the register as shown in the table.
Address from 9 to 13 will work together. They are used to set the function mode. Only one of them could be activated at the
same time. When one of these bits will be set as 1, the rest will be changed at 0.
nGlobal objects:
Address Name Length Description Values
1~16 Unit-1~16 1 bit per unit Shows if HC-A16KNX used the communication with the
H-LINK PCB for unit N where N is the address to read.
1=Communication
works
240 Communication
Alarm
1 bit With value is 1 means that is not possible to communicate
with the H-LINK PCB. On 0, communication is working
properly.
1=Communication
Alarm.
nError code list:
Code (in Hexadecimal) Description
0No Error
1~98 See Hitachi documentation
99 Unit not congured

14
PMML0193A rev.2 - 06/2010
Installation
3.3. Conguration Method
Every HC-A16KNX can control up to 16 I.U, considering that in the same H-LINK can be connected up to 160 IU, it must be set
which indoor units are selected for each HC-A16KNX.
Setting concept consist in an “id” table listing up to 16 numbers for the assignation of each OU+IU addresses as shows the following
example.
?NOTE:
– It can be selected for 1 HC-A16KNX up to 16 I.U from 16 different refrigerant cycles or 16 I.U from the same refrigerant cycle.
ThoseI.U.mustbeassignedtoaBMSidfrom0to15,from16to31mustbewithoutanyconguration.
&CAUTION:
– Be sure not to set same Indoor Unit to more than one HC-A16KNX. This error is undetectable and can cause undesired
operations.
– Addresses over id 15 are not used because they cannot be controlled with HC-A16KNX. Using them could create some
problemswiththeconguredunitsbetween0and15.
Id Rerigerant cycle address Indoor unit address
00 00 00
01 00 01
02 00 02
03 00 03
04 00 04
05 00 05
06 00 06
07 00 07
08 00 08
09 00 09
10 00 10
11 00 11
12 00 12
13 00 13
14 00 14
15 00 15

15
PMML0193A rev.2 - 06/2010
Installation
Step
number Action 7 segments (display) Remarks
1Press SW4 for 3 seconds id Conguration mode selected
2 Press SW4 OO Id selection (IU No.) from 0 to 15 by pushing
SW5 ▲ or SW6 ▼
3Press SW4 oU Refrigerant cycle address
4 Press SW4 --00 Refrigerant cycle address selection from 0 to 15 (e.g. 00)
(by pushing SW5 ▲ & SW6 ▼)
5Press SW4 iU Indoor unit address
6 Press SW4 --00 Indoor unit address selection from 0 to 15 (e.g. 00)
(by pushing SW5 ▲ & SW6 ▼)
For “id” 01 repeat steps 1 to 6
7Press SW4 for 3 seconds id Conguration mode selected
8Press SW4 OO01 Id selection (IU No.) from 0 to 15 by pushing
SW5 ▲ or SW6 ▼
9Press SW4 oU Refrigerant cycle address
10 Press SW4 --00 Refrigerant cycle address selection from 0 to 15 (e.g. 00)
(by pushing SW5 ▲ & SW6 ▼)
11 Press SW4 iU Indoor unit address
12 Press SW4 --01 Indoor unit address selection from 0 to 15 (e.g. 01; push
SW5 once)
(by pushing SW5 ▲ & SW6 ▼)
... Repeat steps 1 to 6 for all the rest “Id”
91 Press SW4 for 3 seconds id Conguration mode selected
92 Press SW4 OO31 Id selection (IU No.) from 0 to 15 by pushing
SW5 ▲ or SW6 ▼
93 Press SW4 oU Refrigerant cycle address
94 Press SW4 --01 Refrigerant cycle address selection from 0 to 15 (e.g. 01;
push SW5 once))
(by pushing SW5 ▲ & SW6 ▼)
95 Press SW4 iU Indoor unit address
96 Press SW4 --15 Indoor unit address selection from 0 to 15 (e.g. 15; push
SW6 once)
(by pushing SW5 ▲ & SW6 ▼)
97 Press SW4 for 3 seconds Nothing displayed Exit from conguration mode

16
PMML0193A rev.2 - 06/2010
Troubleshooting
4. Troubleshooting
Nº ALARM CODE DESCRIPTION COUNTERMEASURE
1→61 Indoor Units have not communicated
with HC-A16KNX for more than 10
min.
1. Ensure that H-LINK connection is correctly done in
HARC (K1) and also Indoor Units
2. Ensure that Power are supplied to Air Conditioners
2→63 Indoor Units have never
communicated with HC-A16KNX
1. Ensure that H-LINK connection is correctly done in
HARC (K1) and also in Indoor Units
2. Ensure that Power are supplied to Air Conditioners
3D7 is always OFF No LED is ickering on PCB and 7
segments are OFF
1. Ensure that 230 are supplied to Power Source
2. Ensure that +5V DC is supplied to K3
?Notes:
- Power source output DC signal has a rotary switch
that must be correctly set to get +5V DC.
- D7 must be in ON
4 D12 is never ickering HC-A16KNX is not reading/sending
data (D12 is never ickering)
1. Check connection between MODBUS devices and
K5
5D13 is ickering HC-A16KNX is not operating
(D13 is ickering)
Check that KNX is connected and KNX power supply is
ON.
6D4 & D11 are not
ickering
There is no H-LINK communication
from HC-A16KNX
1. D4 is ickering but D11 is not ickering.
  See line Nº6, countermeasure 1
2. D4 neither D11 are not ickering.
 See line Nº1, countermeasure 1

17
PMML0193A rev.2 - 06/2010
?Nota:
Este manual proporciona información básica para la
instalación y cableado de la HC-A16KNX.
Contenido
1. Especificaciones _________________________________________________ 18
2. Instalación ______________________________________________________ 19
2.1 Resumen de seguridad _______________________________________ 19
2.2. Datos de dimensiones ________________________________________ 19
2.3. Nombres de las piezas _______________________________________ 20
2.4. Nombres de los componentes _________________________________ 20
2.5. Servicio de reparaciones ______________________________________ 21
2.6. Instalación _________________________________________________ 21
2.7. Cableado eléctrico __________________________________________ 22
3. Funcionamiento __________________________________________________ 24
3.1. Dirección KNX ______________________________________________ 24
3.2. Datos disponibles ___________________________________________ 25
3.3. Método de configuración ______________________________________ 26
4. Resolución de problemas __________________________________________ 28

18
PMML0193A rev.2 - 06/2010
Especicaciones
1. Especicaciones
Especicaciones del hardware
Elemento Especicaciones
Fuente de alimentación 1 fase, 230 V ±10%, 50 Hz
Consumo 25 W (máximo)
Dimensiones exteriores Ancho: 143 mm, fondo: 302 mm, altura: 76 mm
Peso 1,75 kg
Condiciones de montaje En interiores (en un panel de control o sobremesa)
Temperatura ambiente 0~40 °C
Humedad 20~85% (sin condensación)
H-LINK
Elemento Especicaciones
Comunicación con HITACHI PACKAGED
Línea de comunicación Cable de par trenzado blindado, sin polaridad
Sistema de comunicaciones Semidúplex
Método de comunicación Asíncrono
Velocidad de transmisión 9600 baudios
Longitud del cableado 1000 m máximo (longitud total del bus HLINK I/O)
Número máximo de
HC-A16KNX
8 HC-A16KNX/H-LINK SYSTEM (PACKAGED)
