Hitachi RAS-S18CDT User manual

– 1 –
INDOOR UNIT/OUTDOOR UNIT
OUTDOOR UNIT
INDOOR UNIT
RAS-S18CDT
MODEL
RAS-S18CDT/RAC-S18CDT
Instruction manual Page 1~22
To obtain the best performance, please read this instruction manual completely.
คู่มือการใช้งาน หน้า 23-44
เพื่อได้รับการทํางานที่ดีที่สุด โปรดอ่านคู่มืออย่างละเอียด
SPLIT TYPE
RAC-S18CDT
EN1 RAS-RAC-S18CDT 1EN1 RAS-RAC-S18CDT 1 1/6/14 4:25 PM1/6/14 4:25 PM

– 2 –
!

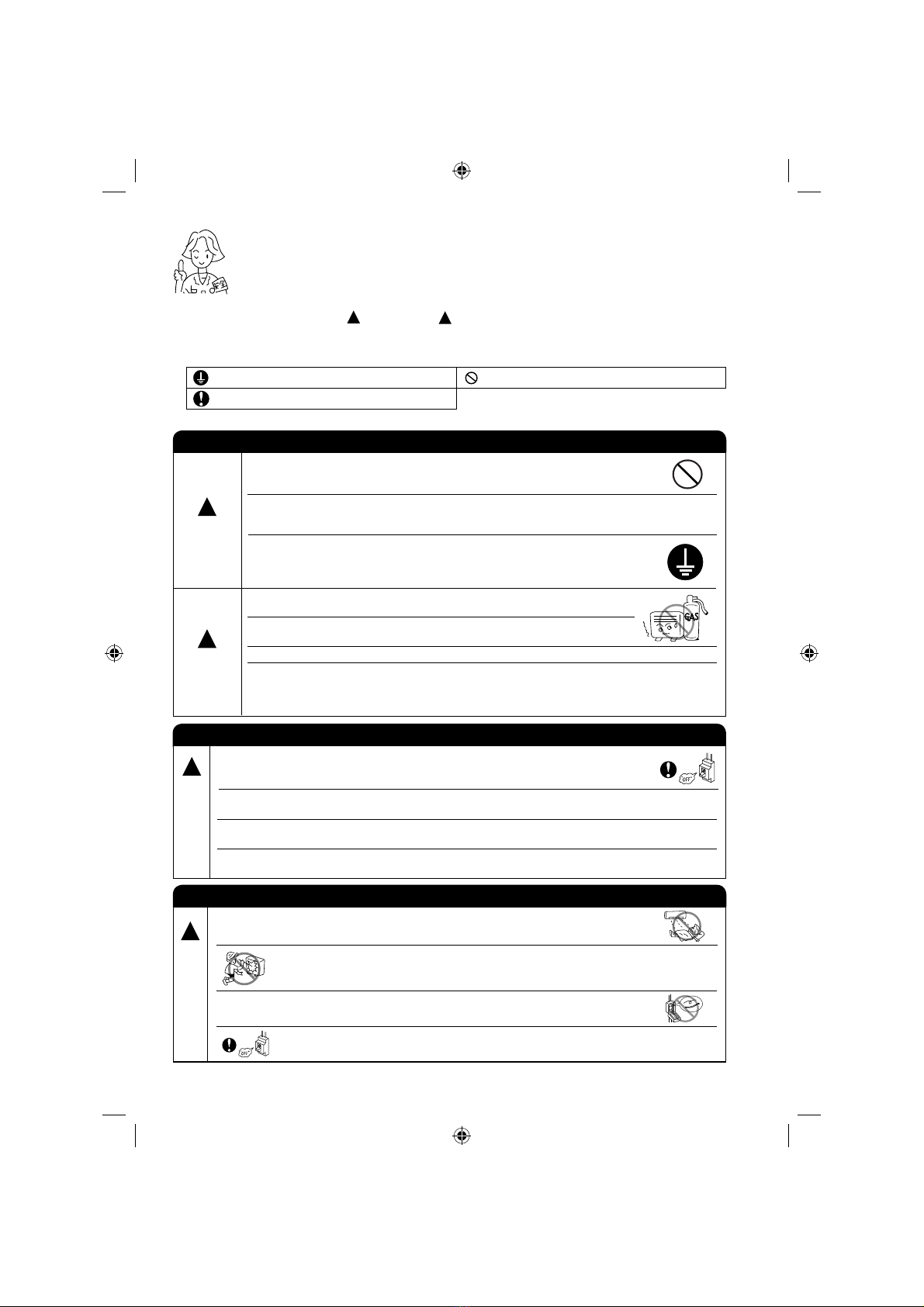

SAFETY PRECAUTION
● Please read the “Safety Precaution” carefully before operating the unit to ensure correct usage of the unit.
● Pay special attention to signs of “ Warning” and “ Caution”. The “Warning” section contains matters which,
if not observed strictly, may cause death or serious injury. The “Caution” section contains matters which may result
in serious consequences if not observed properly. Please observe all instructions strictly to ensure safety.
● The sign indicate the following meanings.
● Please keep this manual after reading.
WARNING
PRECAUTIONS DURING INSTALLATION
●Do not reconstruct the unit.
Water leakage, fault, short circuit or fire may occur if you reconstruct the
unit by yourself.
●Please ask your sales agent or qualified technician for the installation of
your unit. Water leakage, short circuit or fire may occur if you install the
unit by yourself.
●Please use earth line.
Do not place the earth line near water or gas pipes, lightning-conductor, or
the earth line of telephone. Improper installation of earth line may cause
electric shock.
●A circuit breaker should be installed depending on the mounting site of the
unit. Without a circuit breaker, the danger of electric shock exists.
●Do not install the unit near a location where there is flammable gas. The
outdoor unit may catch fire if flammable gas leaks around it.
●Please ensure smooth flow of water when installing the drain hose.
● Do not install the indoor unit in a machine shop or kitchen where vapor
from oil or its mist flows to the indoor unit. The oil will deposit on the heat
exchanger, thereby reducing the indoor unit performance and may deform
and in the worst case, breake the plastic parts of the indoor unit.
CAUTION
!
!
!
Make sure to connect earth line.
Indicates the instructions that must be followed.
The sign in the figure indicates prohibition.
PRECAUTIONS DURING OPERATION
●Avoid an extended period of direct air flow for your health.
W
A
R
N
I
N
G
!
●Do not insert a finger, a rod or other objects into the air outlet or inlet. As
the fan is rotating at a high speed, it will cause injury. Before cleaning, be
sure to stop the operation and turn the breaker OFF.
●During thunder storm, disconnect and turn off the circuit breaker.
●Do not use any conductor as fuse wire, this could cause fatal accident.
PRECAUTIONS DURING SHIFTING OR MAINTENANCE
●Should abnormal situation arises (like burning smell), please stop operating the unit and
turn off the circuit breaker. Contact your agent. Fault, short circuit or fire may occur if you
continue to operate the unit under abnormal situation.
●Please contact your agent for maintenance. Improper self maintenance may cause
electric shock and fire.
●Please contact your agent if you need to remove and reinstall the unit. Electric shock
or fire may occur if you remove and reinstall the unit yourself improperly.
●If the supply cord is damaged, it must be replaced by the special cord obtainable
at authorized service/parts centers.
W
A
R
N
I
N
G
!
EN1 RAS-RAC-S18CDT 2EN1 RAS-RAC-S18CDT 2 1/6/14 4:25 PM1/6/14 4:25 PM

– 3 –

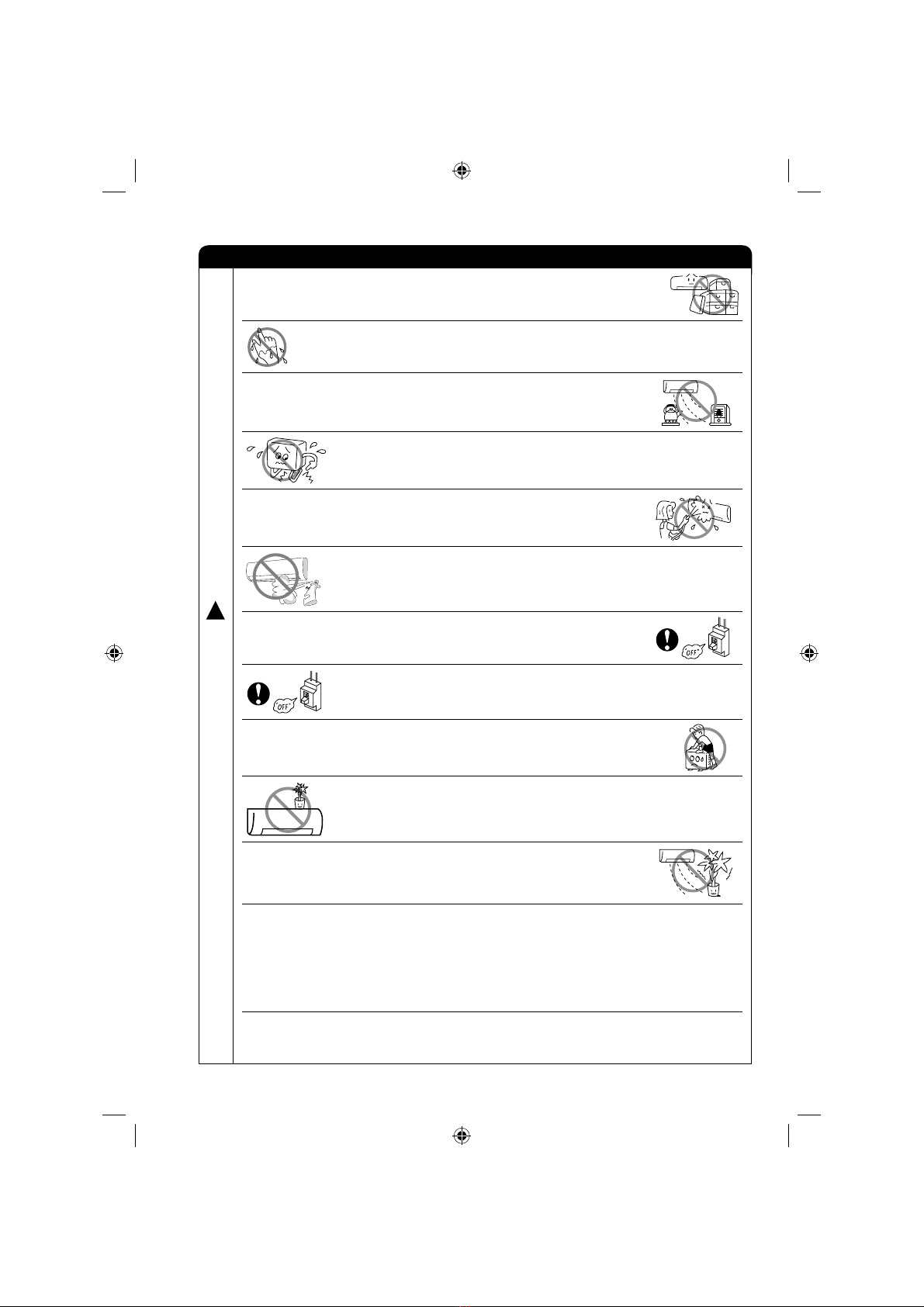

PRECAUTIONS DURING OPERATION
●Do not attempt to operate the unit with wet hands, this could cause fatal
accident.

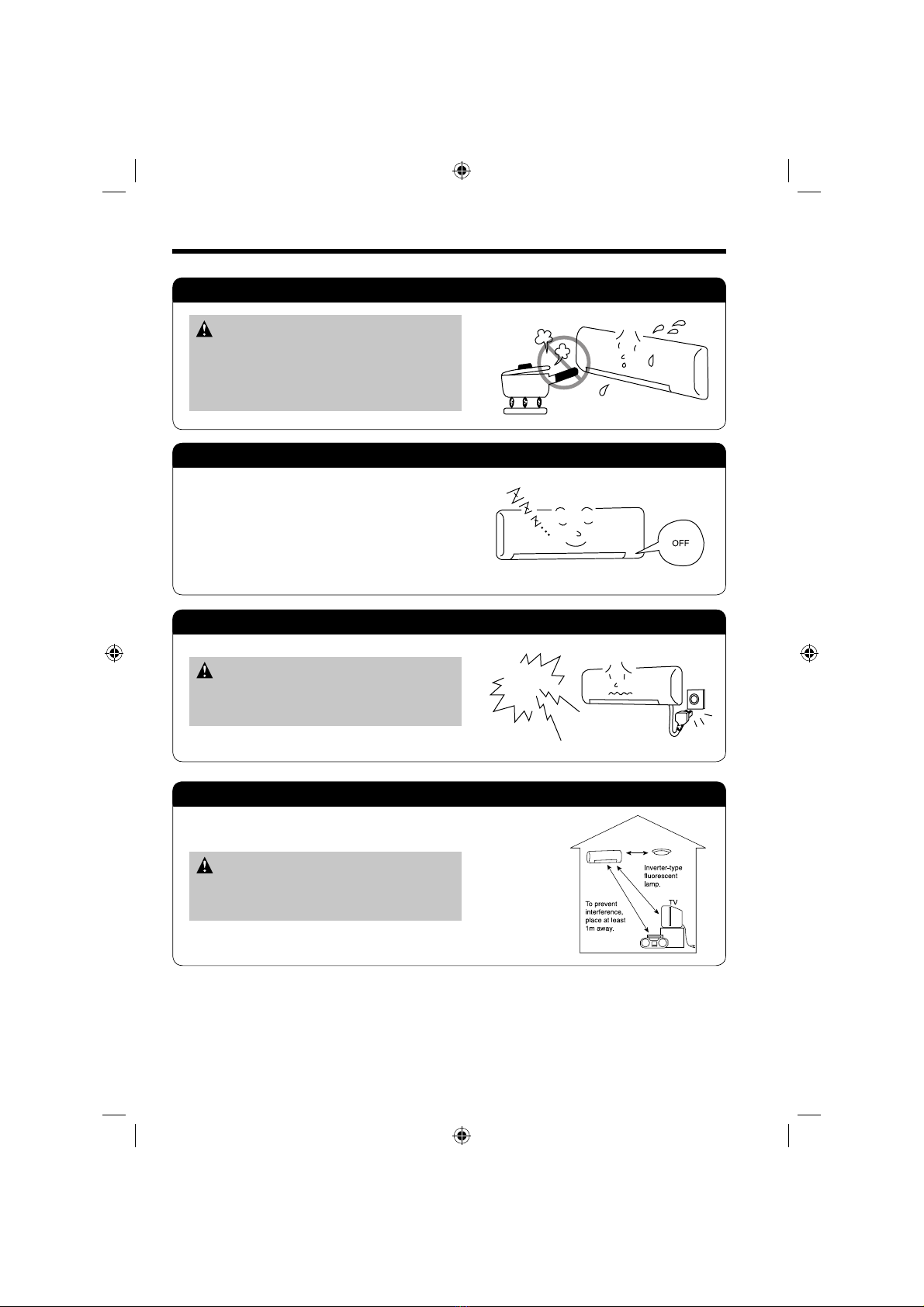

●Do not direct the cool air coming out from the air-conditioner panel to face
household heating apparatus as this may affect the working of apparatus
such as the electric kettle, oven etc.
●Do not place plants directly under the air flow as it is bad for the plants.
●Please ensure that outdoor mounting frame is always stable, firm and
without defect. If not, the outdoor unit may collapse and cause danger.
●Do not splash or direct water to the body of the unit when cleaning it as
this may cause short circuit.
●When operating the unit with the door and windows opened, (the room humidity is always above
80%) and with the air deflector facing down or moving automatically for a long period of time,
water will condense on the air deflector and drips down occasionally. This will wet your furniture.
Therefore, do not operate under such condition for a long time.
●If the amount of heat in the room is above the cooling capability of the unit (for example: more
people entering the room, using heating equipments and etc.), the preset room temperature
cannot be achieved.
●This appliance is not intended for use by young children unless they have been adequately
supervised by a responsible person to ensure that they can use the appliance safely.
●Young children should be supervised to ensure that they do not play with the appliance.
●Do not climb on the outdoor unit or put objects on it.
●Please switch off the unit and turn off the circuit breaker during cleaning,
the high-speed fan inside the unit may cause danger.
●Turn off the circuit breaker if the unit is not to be operated for a long period.
C
A
U
T
I
O
N
!
●The product shall be operated under the manufacturer specification and
not for any other intended use.
●Do not put water container (like vase) on the indoor unit to avoid water
dripping into the unit. Dripping water will damage the insulator inside the
unit and causes short-circuit.
●Do not use any aerosol or hair sprays near the indoor unit. This chemical
can adhere on heat exchanger fin and blocked the evaporation water
flow to drain pan. The water will drop on tangential fan and cause water
splashing out from indoor unit.
EN1 RAS-RAC-S18CDT 3EN1 RAS-RAC-S18CDT 3 1/6/14 4:25 PM1/6/14 4:25 PM

– 4 –
OUTDOOR UNIT
WIDTH (mm)
1150
850
MODEL
RAS-S18CDT
RAC-S18CDT
HEIGHT (mm)
333
650
DEPTH (mm)
245
298

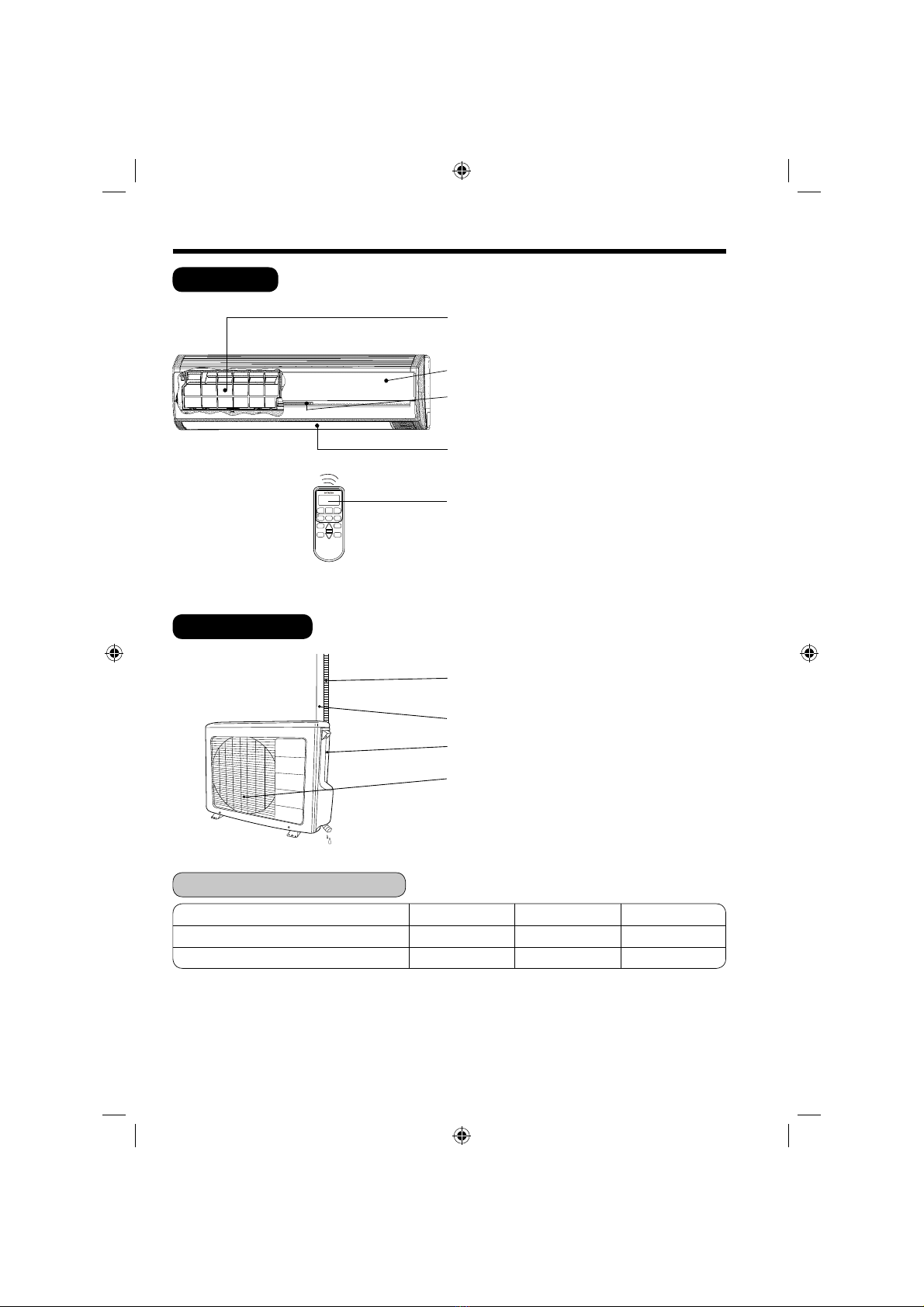

MODEL NAME AND DIMENSIONS
●
INDOOR UNIT
NAMES AND FUNCTIONS OF EACH PART
Pre-filter
To prevent dust from coming into the indoor unit.
(Refer page 18)
Front panel
Indoor unit indicators
Light indicator showing the operating condition.
(Refer page 5)
Horizontal deflector ●Vertical deflector
(Air Outlet)
(Refer page 13)
Remote controller
Send out operation signal to the indoor unit. So as
to operate the whole unit.
(Refer page 6)
Drain pipe
Condensed water drain to outside.
Connecting cord and insulation pipe for piping
Air inlet (Back, Left side)
Air outlet
EN1 RAS-RAC-S18CDT 4EN1 RAS-RAC-S18CDT 4 1/6/14 4:25 PM1/6/14 4:25 PM

– 5 –
INDOOR UNIT INDICATORS
TEMPORARY SWITCH
Use this switch to start and stop when the remote
controller does not work. [Use non-conductor stick
(example toothpick)]
●By pressing the temporary switch, the operation is
done in previously set operation mode.
●When the operation is done using the temporary
switch after the power source is turned off and turn
on again, the operation is done in automatic mode.
OPERATION INDICATOR
TIMER LAMP
This lamp lights when the timer is working.
OPERATION LAMP
This lamp lights during operation.
FILTER LAMP
When the device is operated for a total of about 200
hours, the FILTER lamp lights to indicate that it is
time to clean the filter. The lamp goes out when the
“ (AUTO SWING)” button is pressed while the
device is on “STANDBY MODE”.
EN1 RAS-RAC-S18CDT 5EN1 RAS-RAC-S18CDT 5 1/6/14 4:25 PM1/6/14 4:25 PM

– 6 –

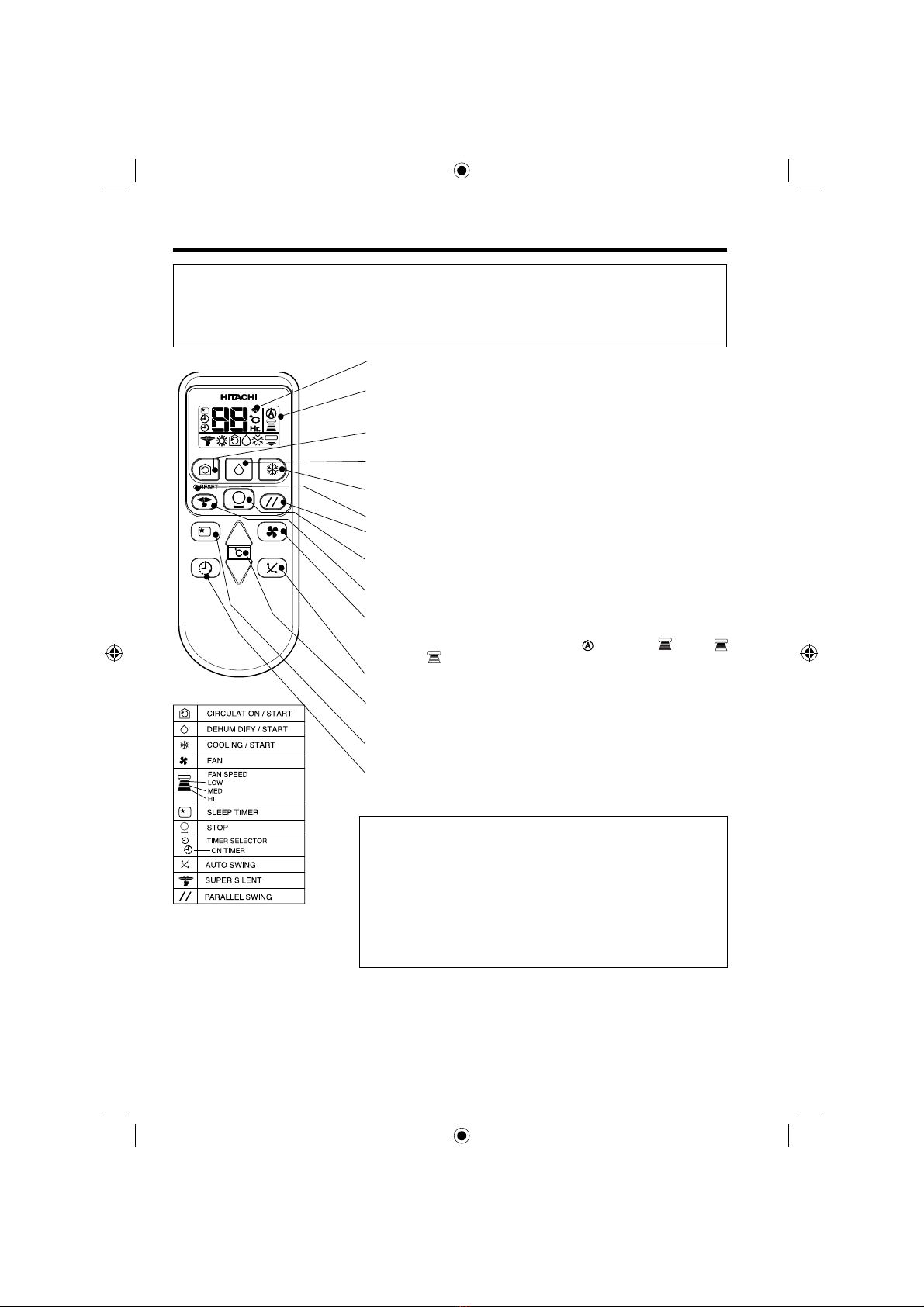

NAMES AND FUNCTIONS OF REMOTE CONTROL UNIT
REMOTE CONTROLLER
This controls the operation of the indoor unit. Signal range to reach indoor unit is about 7 meters. If
inverter lamp is used, the range of control may be shorter.
This unit can be fixed on a wall using the fixture provided. Before fixing it, make sure the indoor unit
can be controlled from the remote controller.
●Transmission sign
The transmission sign blinks when a signal is sent.
●Display
This indicates the room temperature selected, timer status, function
and intensity of circulation selected.
●CIRCULATION button
Use this button to set air circulation in the room or start operation.
●DEHUMIDIFYING button
Use this button to dehumidify the room or start operation.
●COOLING button
Use this button to set cooling mode in the room or start operation.
●RESET button
●PARALLEL SWING buttonA
Controls the angle of the vertical air deflectors to parallel.
●STOP button
Press this button to stop operation only.
●SUPER SILENT button
Use this button to set silent condition.
●FAN SPEED selector
This determines the fan speed. Every time you press this button, the
intensity of circulation will change from (AUTO) to (HI) to
(MED) to (LOW).
●AUTO SWING button
Controls the angle of the horizontal air deflector.
●TEMPERATURE button
Use this button to raise or lower the temperature setting. (Keep
pressed, and the value will change more quickly.)
●SLEEP button
Use this button to set the sleep mode.
●ON-TIMER button Select to turn ON time.
Precautions for Use
●Do not put the remote controller in the following places.
●In direct sunlight.
●In the vicinity of a heater.
●Handle the remote controller carefully. Do not drop it on the
floor, and protect it from water.
●Once the outdoor unit stops, it will not restart for about 3
minutes (unless you turn the power switch off and on or unplug
the power cord and plug it in again).
This is to protect the device and does not indicate a failure.
EN2 RAS-RAC-S18CDT 6EN2 RAS-RAC-S18CDT 6 1/6/14 4:54 PM1/6/14 4:54 PM

– 7 –
COOLING OPERATION
Use the device for cooling when the outdoor temperature is 21~ 43°C.
If indoor humidity is very high (over 80%), some dew may form on the air outlet grille of the indoor unit.

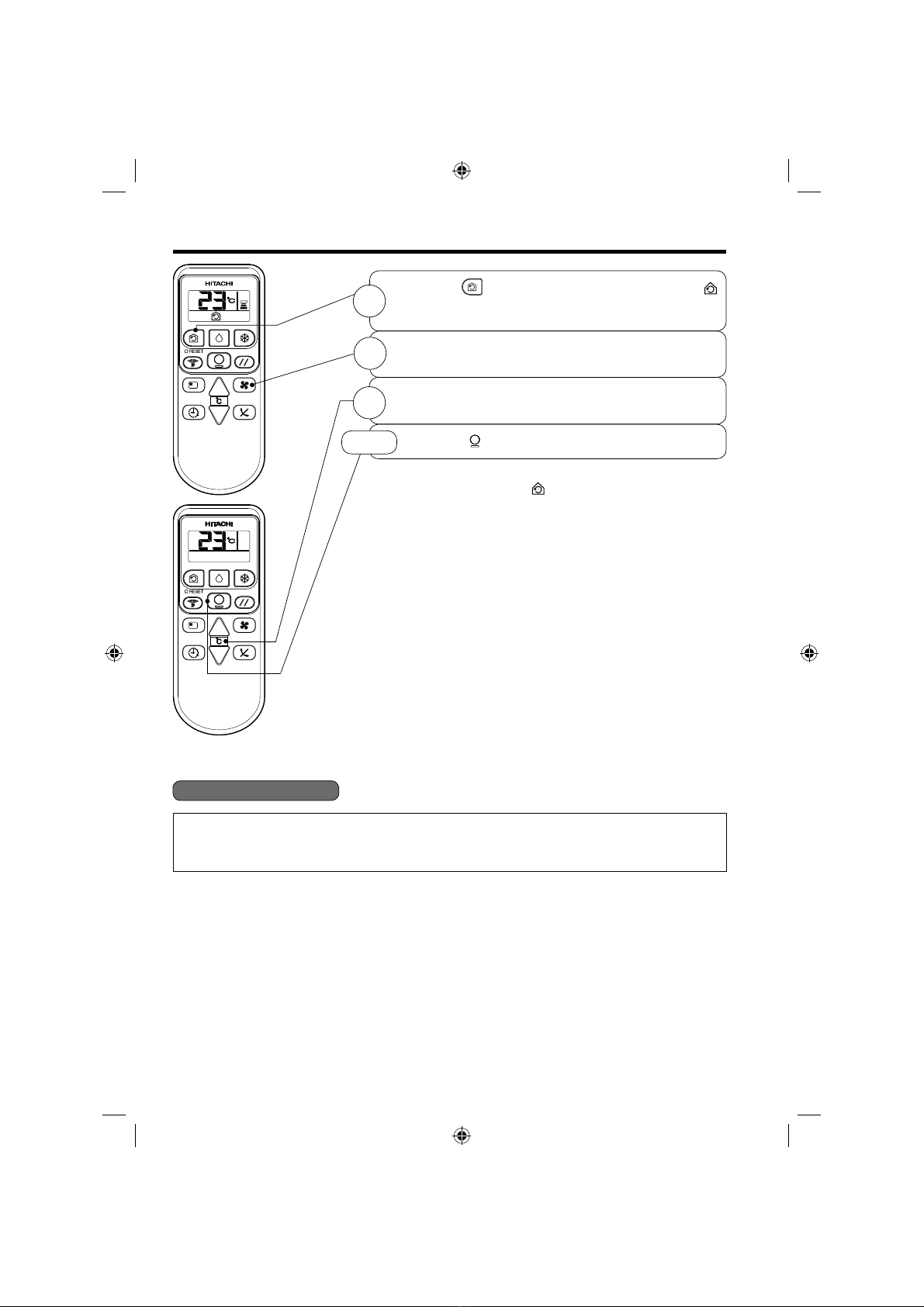

Press the button so that the display indicates
(COOL).
Cooling operation starts with a beep.
The cooling function does not start if the temperature setting
is higher than the current room temperature (even though the
(OPERATION) lamp lights). The cooling function will start
as soon as you set the temperature below the current room
temperature.
Set the desired FAN SPEED with the (FAN SPEED) button
(the display indicates the setting).
(AUTO) : The FAN SPEED is HI at first and varies to
MED or LOW automatically when the preset
temperature has been reached.
(HI) : Economical as the room will become cool
quickly.
(MED) : Fan speed slow.
(LOW) : Fan speed slower.
Set the desired room temperature with the TEMPERATURE
button (the display indicates the setting).
The range of 25 ~ 28°C is recommended as
the room temperature for cooling.
If the temperature setting is 27°C, the room
temperature will be controlled at around 27°C.
The temperature setting and the actual room temperature may
vary somewhat depending on conditions.
Press the (STOP) button to stop operation.
■As the settings are stored in memory in the remote controller, you
only have to press the (COOLING) button next time.
STOP
1
2
3
EN2 RAS-RAC-S18CDT 7EN2 RAS-RAC-S18CDT 7 1/6/14 4:54 PM1/6/14 4:54 PM

– 8 –

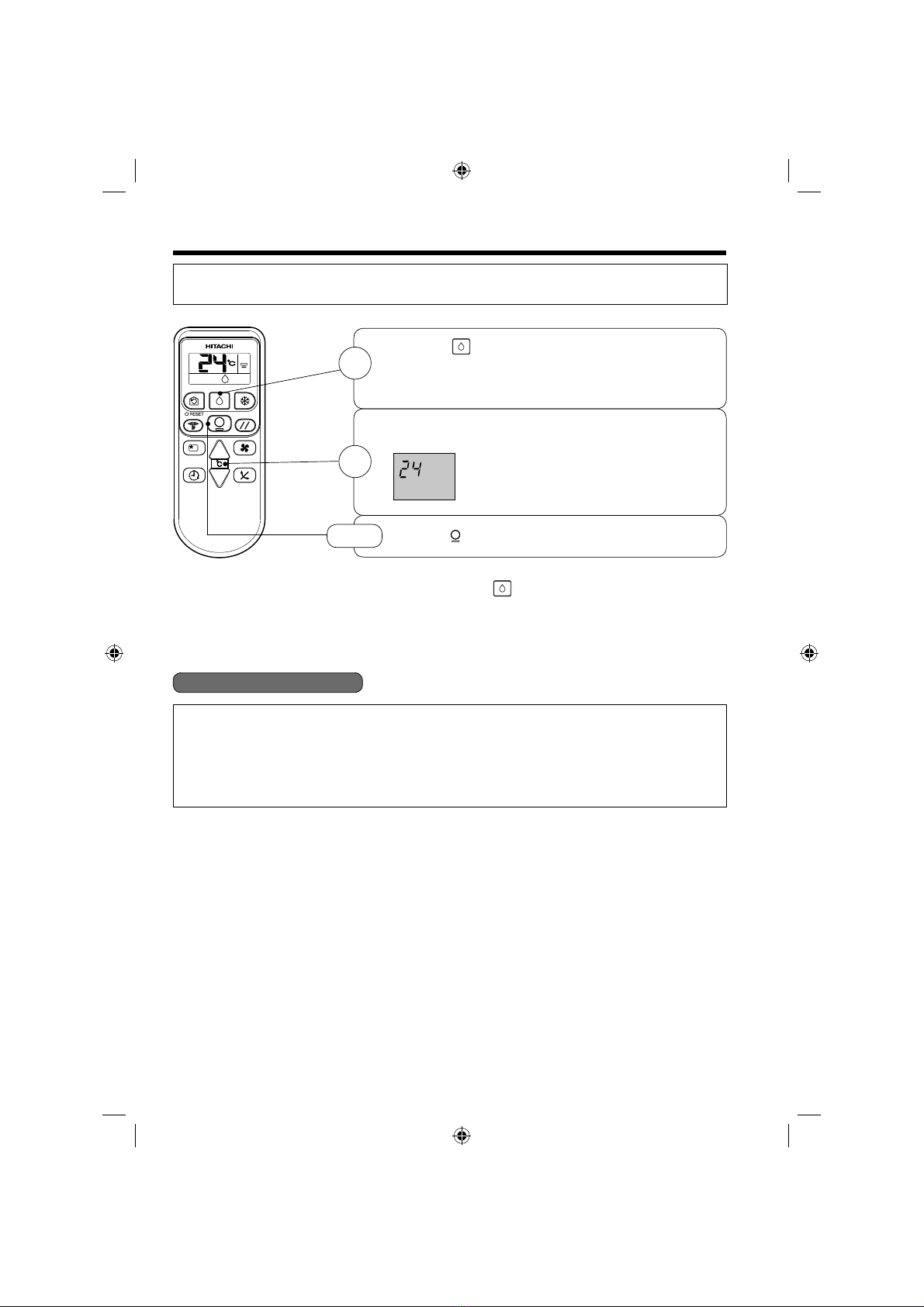

DEHUMIDIFYING OPERATION
Use the device for dehumidifying when the room temperature is over 16°C.
When it is under 15°C, the dehumidifying function will not work.
■Dehumidifying Function
When the room temperature is higher than the temperature setting: The device will dehumidify the room,
and reducing the room temperature to the preset level.
When the room temperature is lower than the temperature setting: Dehumidifying will be performed at
the temperature setting slightly lower than the current room temperature, regardless of the temperature
setting. The function will stop (the indoor unit will stop emitting air) as soon as the room temperature
becomes lower than the setting temperature.
■As the settings are stored in memory in the remote controller, you
only have to press the (DEHUMIDIFY) button next time.
Set the desired room temperature with the TEMPERATURE
button (the display indicates the setting).
The range of 20 ~ 26˚C is recommended as
the room temperature for dehumidifying.
2
Press the (DEHUMIDIFY) button.
Dehumidifying operation starts with a beep.
The FAN SPEED is set at LOW automatically.
The FAN SPEED button does not work.
1
Press the (STOP) button to stop operation.
STOP
°C
EN2 RAS-RAC-S18CDT 8EN2 RAS-RAC-S18CDT 8 1/6/14 4:54 PM1/6/14 4:54 PM

– 9 –

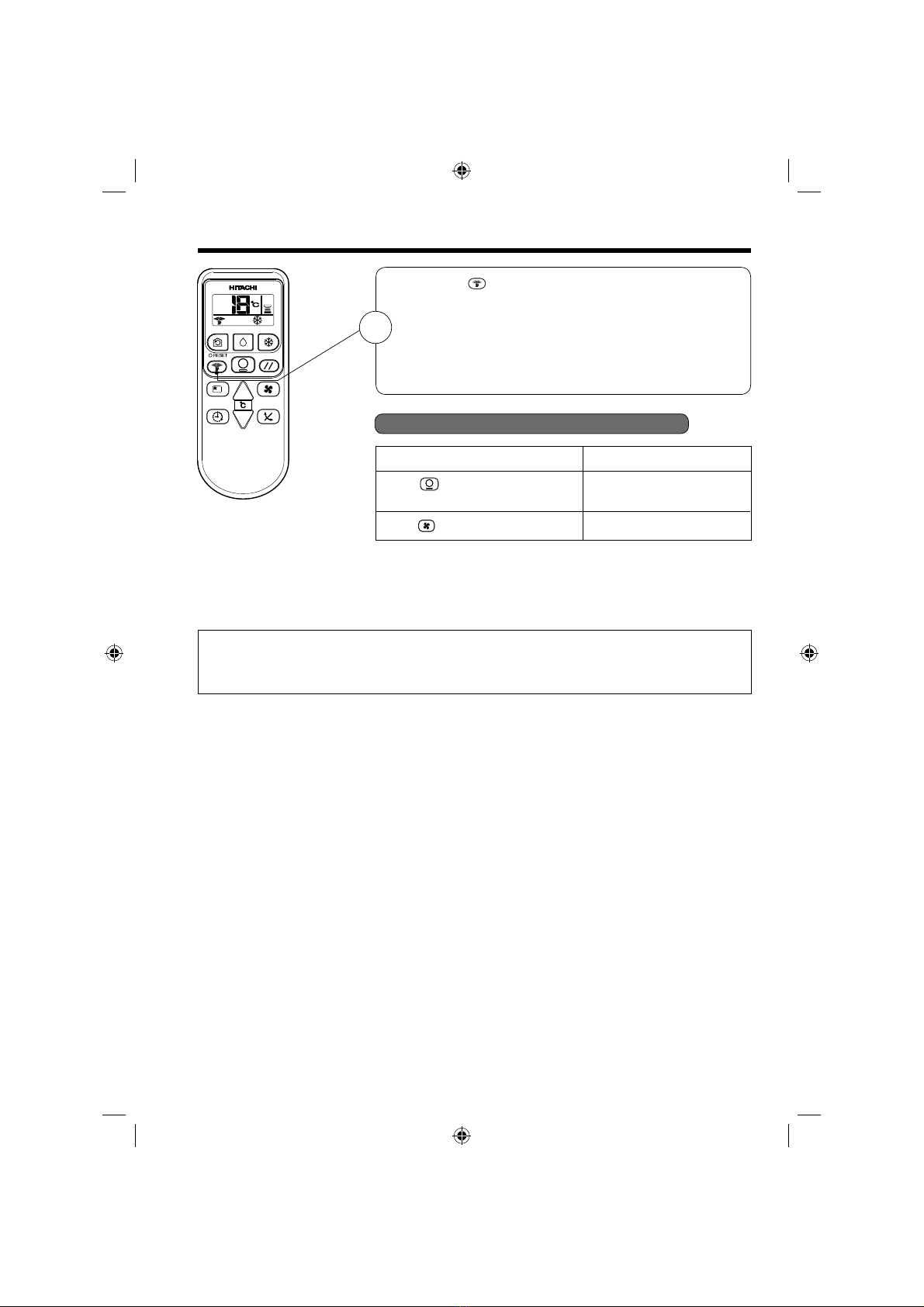

SUPER SILENT
Press the button.
●Operation start with a signal received sound “beep”.
●Unit will be forced operate in any operation mode as before
with SUPER SILENT fan speed. The indication of operation
mode, temperature setting, fan speed and timer value on
remote controller will remain no change.
CANCELLATION of SUPER SILENT Operation
Cancel Condition Operation mode after cancel
Press button.
Sleeping timer time is up Stop operation
Press button Next fan speed operation
NOTE:
Under SUPER SILENT operation and quiet environment, phenomena like flowing noise of refrigerant
in the refrigerating cycle may occur, but this is normal for the operation.
1
EN2 RAS-RAC-S18CDT 9EN2 RAS-RAC-S18CDT 9 1/6/14 4:54 PM1/6/14 4:54 PM

– 10 –
CIRCULATION OPERATION
Press the button so that the display indicates
(CIRCULATE).
Circulating operation starts with a beep.
Press the FAN SPEED button and select the desired FAN
SPEED (the display indicates your choice).
Press the temperature control button to set to the desired
temperature.
■As the settings are stored in memory in the remote controller,
you only have to press the (CIRCULATION) button next time.
Press the (STOP) button to stop operation.
STOP
■Circulation Function
●During circulation operation, compressor will not be running and there is no cooling operation with only
indoor fan running.
●When the setting temperature is higher than room temperature, indoor fan will stop running.
1
2
3
EN2 RAS-RAC-S18CDT 10EN2 RAS-RAC-S18CDT 10 1/6/14 4:54 PM1/6/14 4:54 PM
