Hitachi RAS-30CP1R User manual

SPLIT TYPE
INDOOR UNIT/OUTDOOR UNIT
MODEL
RAS-30CP1R/RAC-30CVP1

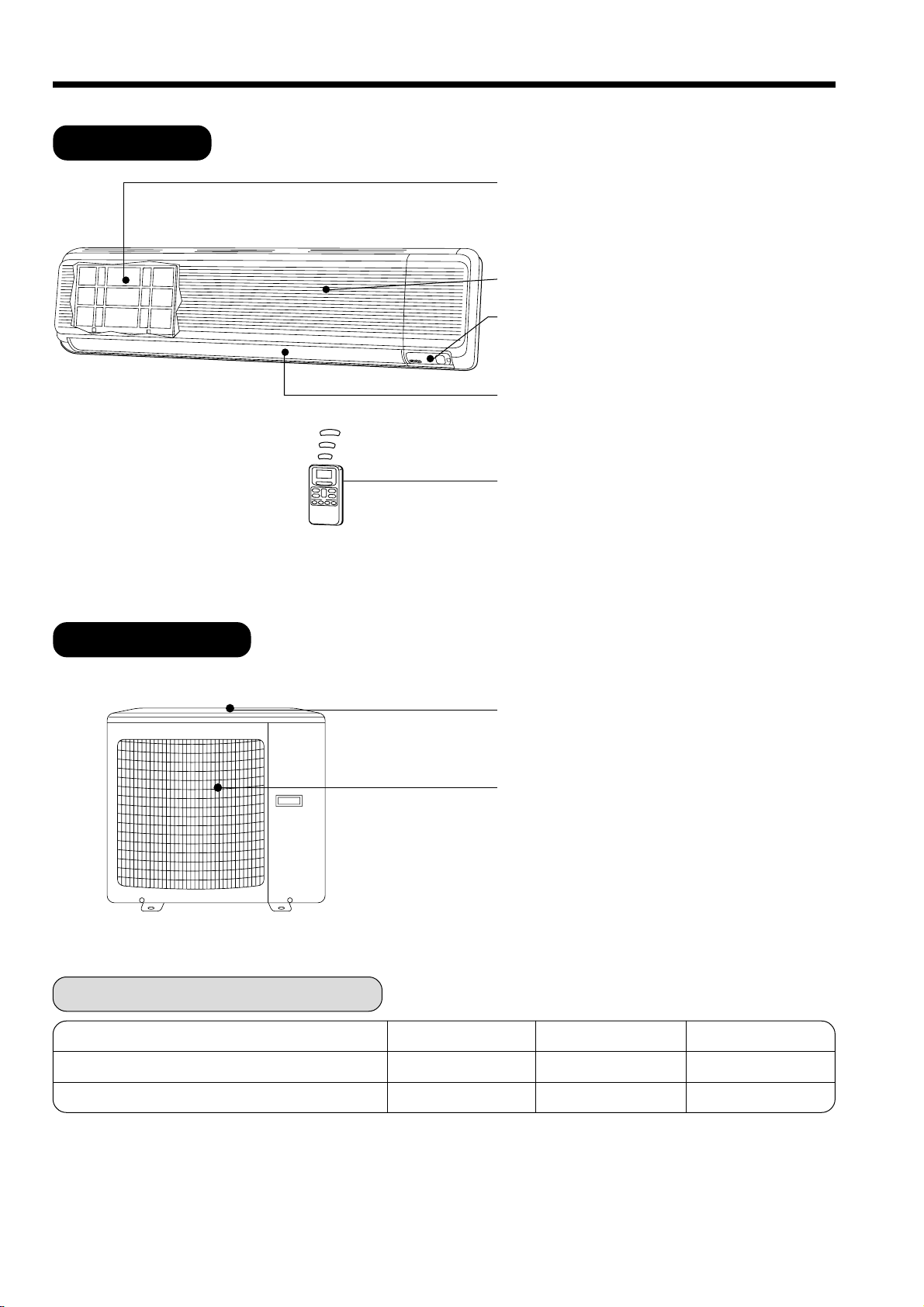

INDOOR UNIT
OUTDOOR UNIT
RAC-30CVP1
RAS-30CP1R
Instruction manual Page 1~19
To obtain the best performance and ensure years
of trouble free use, please read this instruction
manual completely.

– 2 –
!
SAFETY PRECAUTION
●
Please read the “Safety Precaution” carefully before operating the unit to ensure correct usage of the unit.
●
Pay special attention to signs of “ Warning” and “ Caution”. The “Warning” section contains matters which,
if not observed strictly, may cause death or serious injury. The “Caution” section contains matters which may
result in serious consequences if not observed properly. Please observe all instructions strictly to ensure safety.
●
The sign indicate the following meanings.
●
Please keep this manual after reading.
WARNING
PRECAUTIONS DURING INSTALLATION
●Do not reconstruct the unit.
Water leakage, fault, short circuit or fire may occur if you reconstruct
the unit by yourself.
●Please ask your sales agent or qualified technician for the installation
of your unit. Water leakage, short circuit or fire may occur if you install
the unit by yourself.
●Please use earth line.
Do not place the earth line near water or gas pipes, lightning-conductor,
or the earth line of telephone. Improper installation of earth line may
cause electric shock.
●A circuit breaker should be installed depending on the mounting site of
the unit. Without a circuit breaker, the danger of electric shock exists.
●Do not install near location where there is flammable gas. The outdoor
unit may catch fire if flammable gas leaks around it.
●Please ensure smooth flow of water when installing the drain hose.
CAUTION
!
!
PRECAUTIONS DURING SHIFTING OR MAINTENANCE
PRECAUTIONS DURING OPERATION
●Avoid an extended period of direct air flow for your health.
W
A
R
N
I
N
G
!
●Should abnormal situation arises (like burning smell), please stop operating the unit
and turn off the circuit breaker. Contact your agent. Fault, short circuit or fire may
occur if you continue to operate the unit under abnormal situation.
●Please contact your agent for maintenance. Improper self maintenance may cause
electric shock and fire.
●Please contact your agent if you need to remove and reinstall the unit. Electric
shock or fire may occur if you remove and reinstall the unit yourself improperly.
●Do not put objects like thin rods into the panel of blower and suction side
because the high-speed fan inside may cause danger.
●During thunder storm, disconnect and turn off the circuit breaker.
●Do not use any conductor as fuse wire, this could cause fatal accident.
!
Make sure to connect earth line.
Indicates the instructions that must be followed.
The sign in the figure indicates prohibition.
W
A
R
N
I
N
G
!

ENGLISH
– 3 –
PRECAUTIONS DURING OPERATION
●Do not attempt to operate the unit with wet hands, this could cause fatal
accident.
●When operating the unit with burning equipments, regularly ventilate the
room to avoid oxygen insufficiency.
●Do not direct the cool air coming out from the air-conditioner panel to face
household heating apparatus as this may affect the working of apparatus
such as the electric kettle, oven etc.
●Do not place plants directly under the air flow as it is bad for the plants.
●Please ensure that outdoor mounting frame is always stable, firm and
without defect. If not, the outdoor unit may collapse and cause danger.
●Do not splash or direct water to the body of the unit when cleaning it as this
may cause short circuit.
●When operating the unit with the door and windows opened, (the room humidity is always above
80%) and with the air deflector facing down or moving automatically for a long period of time,
water will condense on the air deflector and drips down occasionally. This will wet your furniture.
Therefore, do not operate under such condition for a long time.
●If the amount of heat in the room is above the cooling or heating capability of the unit (for
example: more people entering the room, using heating equipments and etc.), the preset room
temperature cannot be achieved.
●Do not climb on the outdoor unit or put objects on it.
●Please switch off the unit and turn off the circuit breaker during cleaning, the
high-speed fan inside the unit may cause danger.
●Turn off the circuit breaker if the unit is not to be operated for a long period.
C
A
U
T
I
O
N
!
●The product shall be operated under the manufacturer specification and
not for any other intended use.
●Do not put water container (like vase) on the indoor unit to avoid water
dripping into the unit. Dripping water will damage the insulator inside the unit
and causes short-circuit.

– 4 –
INDOOR UNIT
OUTDOOR UNIT
NAMES AND FUNCTIONS OF EACH PART
AIR FILTER
To prevent dust from coming into the indoor
unit.
(Refer page 14)
SUCTION GRILL (AIR INLET).
INDOOR UNIT INDICATORS
Light indicator showing the operating condition.
(Refer page 5)
HORIZONTAL DEFLECTOR ●VERTICAL
DEFLECTOR (AIR OUTLET)
(Refer page 12)
REMOTE CONTROLLER
Send out operation signal to the indoor unit.
So as to operate the whole unit.
(Refer page 6)
AIR INLET (BACK, LEFT SIDE)
AIR OUTLET
Blow out warm air.
●
WIDTH (mm)
1400
925
MODEL
RAS-30CP1R
RAC-30CVP1
HEIGHT (mm)
360
875
DEPTH (mm)
225
315
MODEL NAME AND DIMENSIONS

ENGLISH
– 5 –
about 7mm
about 7mm
Press
Press
Temporary Switch
emporary Switch
Non-conductor Stick
Non-conductor Stick

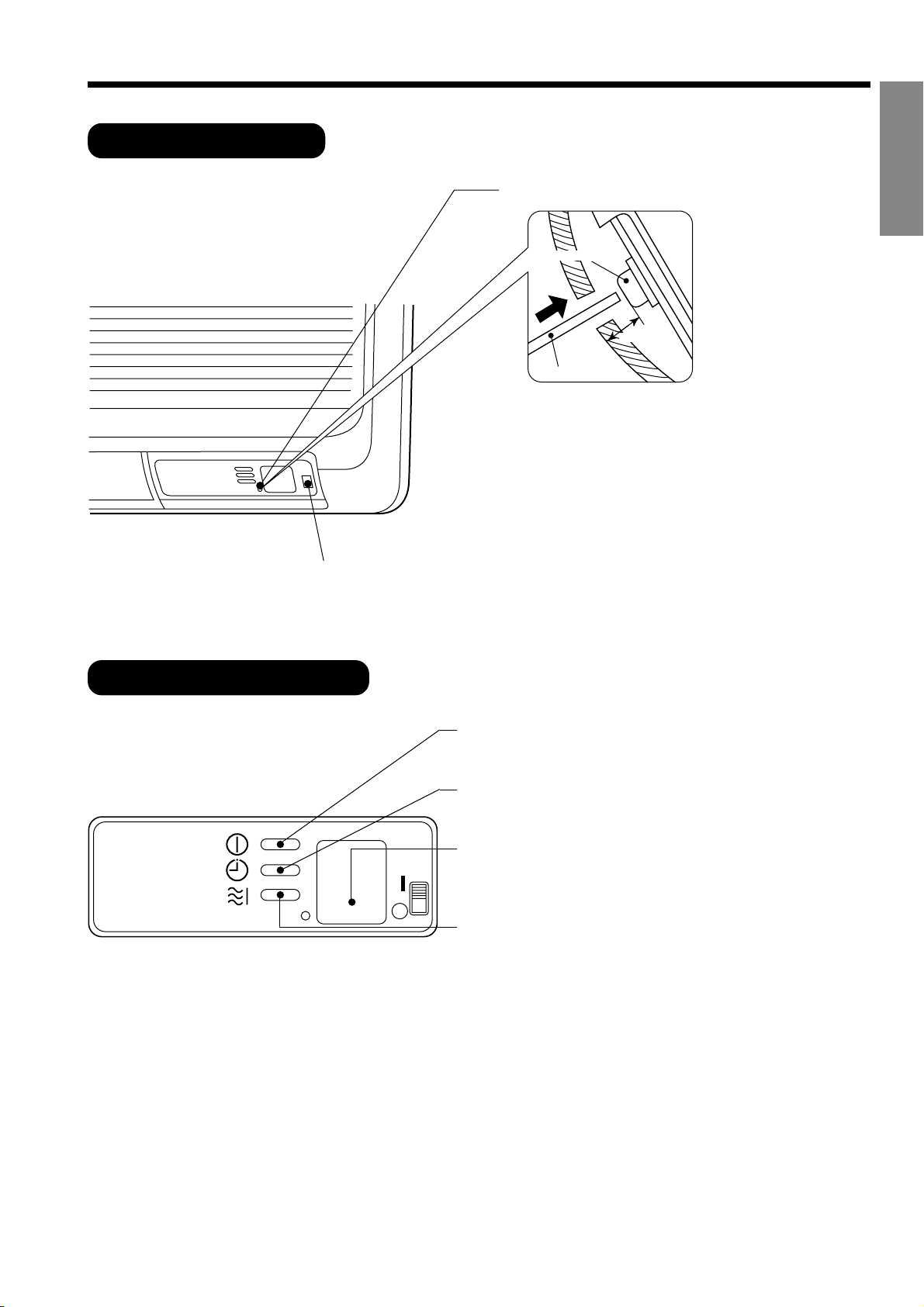

INDOOR UNIT INDICATORS
TEMPORARY SWITCH
Use this switch to start and stop when the remote
controller does not work. [Use non-conductor stick
(example toothpick)]
●By pressing the temporary switch, the operation is
done in previously set operation mode.
●When the operation is done using the temporary switch
after the power source is turned off and turn on again,
the operation is done in automatic mode.
OPERATION INDICATOR
OPERATION LAMP
This lamp lights during operation.
TIMER LAMP
This lamp lights when the timer is working.
SIGNAL RECEIVER
There will be a beep sound when this receiver receive
signal from remote controller.
DRY LAMP
This lamp lights during dehumidifying operation.
POWER SWITCH

– 6 –
C
˚
Hr.
HITACHI
°C
ON/OFF Button
Press this button to start operation.
Press it again to stop operation.
FUNCTION Button
Select the operation mode.
(Page 10)
SLEEP Button
Use this button to set the sleep
timer. (Page 8)
Reserve Button
Timer setting reservation.
OFF TIMER Button
Select the turn OFF time.
ON TIMER Button
Select the turn ON time.
Transmission Sign
The transmission sign blinks
when a signal has been send.
TEMPERATURE Button
Room temperuture setting.
Value will change quicker when
keep pressing.
(Page 7)
FAN SPEED Button
Select the fan speed for
cooling and circulation mode.
(Page 10)
AUTO SWING Button
Control the angle of the
horizontal air deflector.
( Page 12)
CANCEL Button
Cancel timer reservation.
Signal Transmission
NAMES AND FUNCTIONS OF REMOTE CONTROLLER
■This controls the operation function and timer setting of the room air conditioner. The range of
control is about 4 meters. If indoor lighting is controlled electronically, the range of control may be
shorter.
Precautions for Use
●Do not put the remote controller under
direct sunlight and high temperature.
●Do not drop it on the floor, and protect
it from water.
●If you press the FUNCTION selector
button during operation, the air
conditioner may stop for about 3 minutes
for protection before you can start it
again. (unless you turn off and on again
the power source)
You can use the remote controller by fixing it on the
wall with the accessory parts.
●Before fixing it,
make sure the
unit can be
controlled by the
remote control
unit at the fixing
position.
REMOTE
CONTROLLER
HOLDER

–7 –
ENGLISH

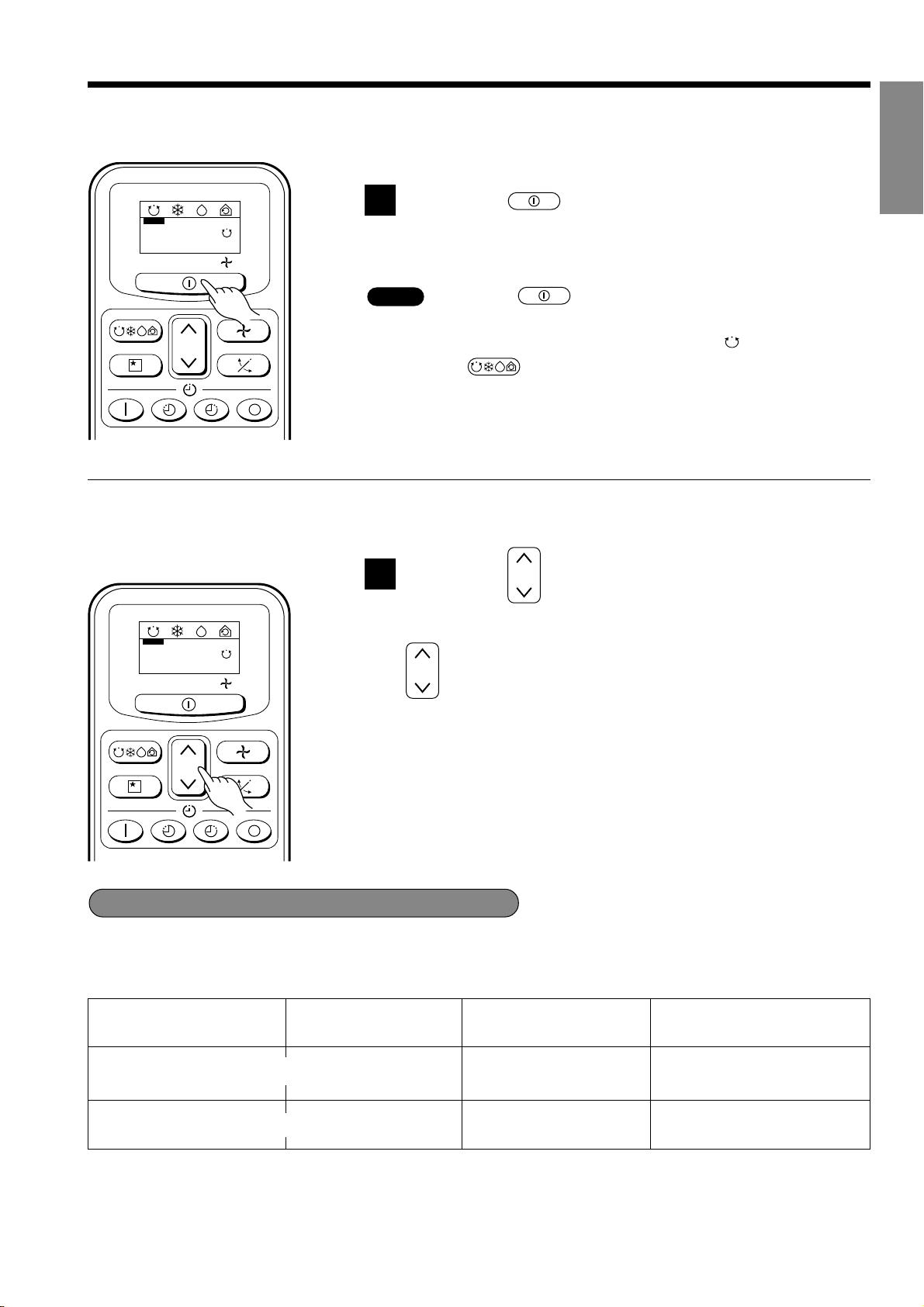

AUTOMATIC OPERATION
■The device will automatically determine the operation mode either COOL or DEHUMIDIFY, depending
on the initial room temperature.
1
Press the (START/STOP) button
●Operation start with a “beep”.
Press the (START/STOP) button
●Please make sure you have been selected the (Automatic) mode
by use the (FUNCTION) Button.
●The fan speed selector does not work at this operation.
STOP
Press the (ROOM TEMPERATURE) button
●Temperature setting change by 1°C for each 1 time press.
Up
Down
●You can raise or lower the temperature setting by a maximum of
3°C.
●The display does not indicate the preset temperature in the Automatic
mode. Device will receive the setting by a “beep”.
■You can slightly adjust the room temperature.
1
°C
°C
▲ ▲
■CONDITION OF AUTOMATIC OPERATION
●The selected mode of operation will not change during the operation even though the room
temperature change.
Over 27°C COOL
16 ~ 27°C
FUNCTION
27°C
Slightly lower than the
room temperature QUIET
FAN SPEED
HIGH at start, LOW after
the preset temperature is
reached
-
DEHUMIDIFY
-
INITIAL ROOM
TEMPERATURE (APPROX.)
TEMPERATURE
SETTING
HITACHI
°C
HITACHI
°C

–8 –

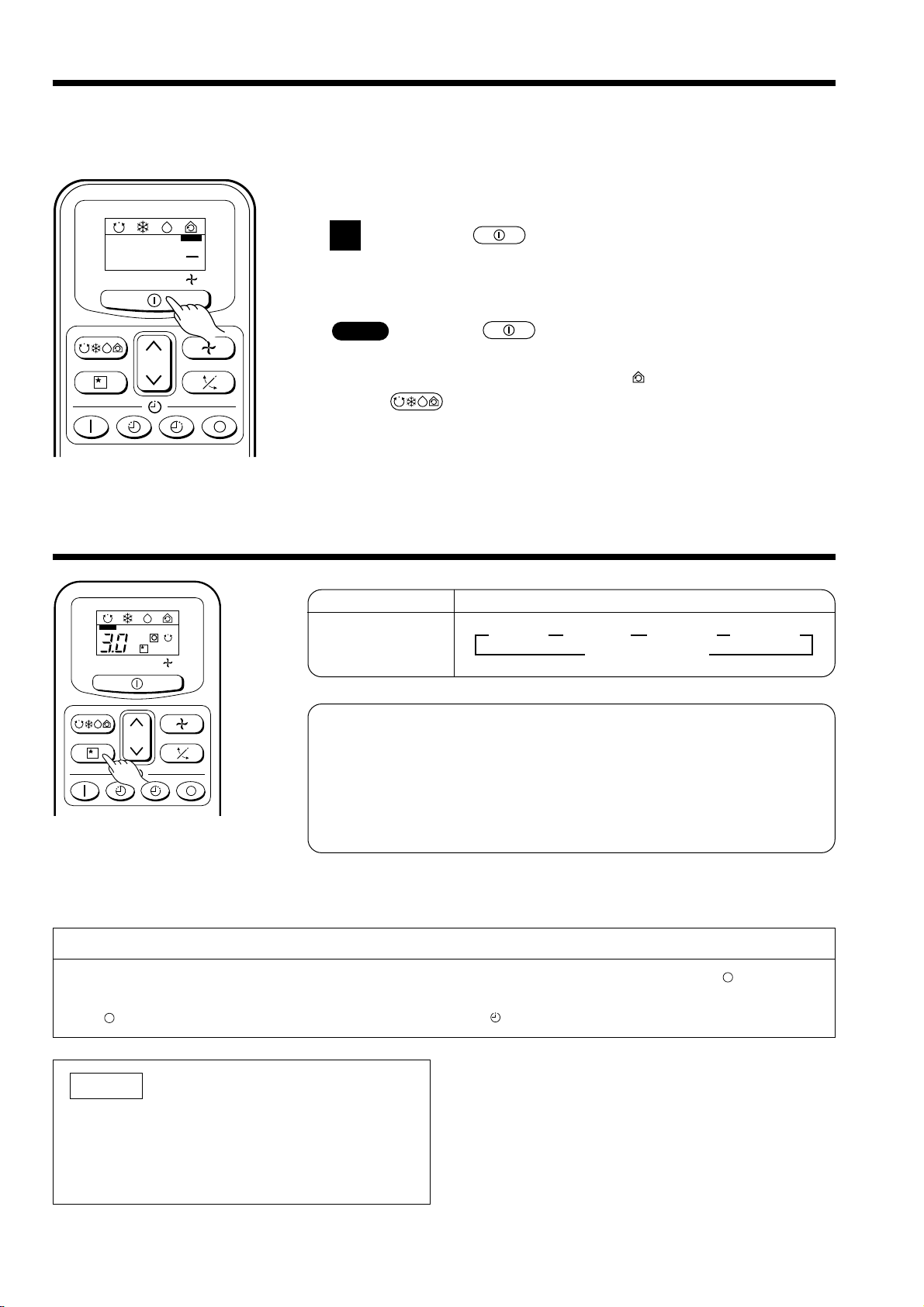

HOW TO SET THE SLEEP TIMER
Mode
Sleep timer
Indication
1 hour 2 hours 3 hours 7 hours
Sleep timer off
44 44
1
Sleep Timer: The device will continue working for the designated
number of hours and then turn off.
Point the signal window of the remote controller toward the indoor
unit, and press the SLEEP button.
The timer information will be displayed on the remote controller.
The TIMER lamp lights with a beep from the indoor unit.
How to Cancel Reservation
Point the signal window of the remote controller toward the indoor unit, and press the (CANCEL)
button.
The (RESERVED) sign goes out with a beep and the (TIMER) lamp turns off on the indoor unit.
NOTE
If you set the sleep timer when the off-timer or
on/off-timer has been set earlier, the sleep timer
becomes effective instead of the off- or on/off-
timer set earlier.
Example: Setting 3 hours
sleep time.
Hr.
HITACHI
°C
CIRCULATION OPERATION
■When the room temperature is higher than the thermostat set temperature, only the fan operates to
circulate the upper hotter air downwards. This makes temperature distribution of the room evenly at
heating.
1
Press the (START/STOP) button
●Operation start with a signal received sound “beep”.
Press the (START/STOP) button
●Make sure you have been select the (Circulate) mode by using
the (FUNCTION) Button.
●You can select the fan speed and desired temperature.
●This operation is useful in winter when using other heating equipment.
STOP
HITACHI
°C

–9 –
ENGLISH
Cooling
“”
and
dehumidifying
“”
The settings of room temperature and circulation are not varied.
The FAN SPEED will be set to
LOW immediately.
Fan
“”
The room temperature is kept
at about 25–28°C.
Sleep
timer set
30 minutes later 3 hours later
7 hours later
2 hours
later
6 hours
later
Explanation of the sleep timer
The device will control the FAN SPEED and room temperature automatically
so as to be quiet and good for people’s health.
You can set the sleep timer to turn off after 1, 2, 3 or 7 hours. The FAN
SPEED and room temperature will be controlled as shown below.
Function Operation
Operation with the sleep timer

–10 –
}

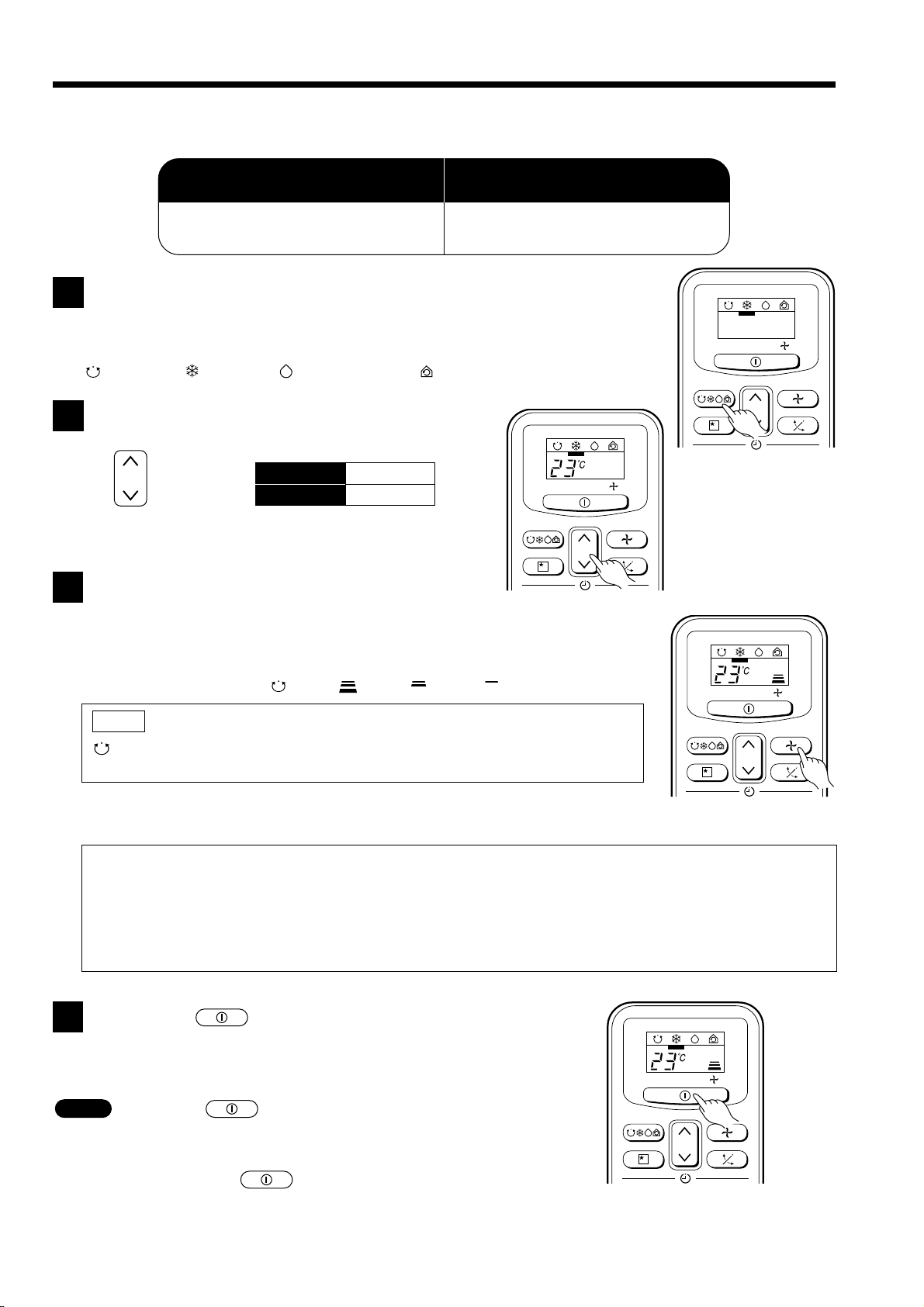

FAN SPEED SETTING
●Every time you press the button, fan speed will change as the below sequence.
●COOLING : AUTO [HIGH [MED [LOW
CIRCULATION : ( [[[)
NOTE
(Auto) : The FAN SPEED is HIGH at first and varies to MED or LOW
automatically when the preset temperature is reached.
●DEHUMIDIFYING : LOW (FIXED)
: ( — )
When the room temperature is higher than the temperature setting: The device will dehumidify the room,
reducing the room temperature to the preset level.
When the room temperature is lower than the temperature setting: Dehumidifying will be performed at
the temperature setting slightly lower than the current room temperature, regardless of the temperature
setting. The function will stop (the indoor unit will stop emitting air) as soon as the room temperature
becomes lower than the setting temperature.
MANUAL OPERATION [Cooling ●Dehumidify ●Circulation]
■Please use below condition when you want to set the function mode, room temperature and fan
speed by manually.
DEHUMIDIFYING
Room Temperature 16°C above
COOLING
Outdoor Temperature 22-42°C
1
OPERATION MODE SELECTION
●Every time you press the button, the mode will change as the below sequence
(Auto) [(Cool) [(Dehumidify) [(Circulation)
2
ROOM TEMPERATURE SETTING
Up
Down
●The cooling operation does not start if the temperature
setting is higher than the current room temperature.
°C
Dehumidify 16~26°C
Cooling 25~28°C
■Recommend Temperature
▲ ▲
4
Press the (START/STOP) button
●Operation start with a signal received sound “beep”.
Press the (START/STOP) button
●As the settings are stored in memory in the remote control unit, you
only have to press the (Start/Stop) button next time.
STOP
HITACHI
°C
HITACHI
°C
HITACHI
°C
HITACHI
°C
3

–11 –
ENGLISH
TIMER RESERVATION
■ON Timer and OFF Timer are available.
1
OFF TIME setting
●Select the OFF TIME by pressing the (OFF)
Button.
●Setting time will change according to the below
sequence when you press the button.
●The value change quicker if you keep pressing the
button.
OFF Timer Reservation
■Operation stop at setting time
2
Press the (Reserve) button
●OFF TIMER reserved with a signal received sound
“beep”.
●The (OFF) Mark starts lighting instead of blinking.
0.5 1.0 1.5 9.5 10 11 12
0.5 hour interval 1 hour interval
1
ON TIME setting
●Select the ON TIMER by pressing the (ON)
Button.
●At the beginning of setting, time 6 hours was set.
●Setting time will change according to the below
sequence.
●The value change quicker if you keep pressing the
button.
ON Timer Reservation
0.5 1.0 1.5 9.5 10 11 12
0.5 hour interval 1 hour interval
1
Press the (Cancel) button
●As the time settings are stored in remote controller
memory, you only have to press the (Reserve)
button in order to use the same setting next time.
CANCELLATION of Timer Reservation
2
Press the (Reserve) button
●ON TIMER reserved with a signal received sound
“beep”.
●The (ON) Mark starts lighting instead of blinking.
o
■Operation will start for setting
temperature at setting time (The starting
time may different depend on the room
temperature and set temperature).
Hr.
HITACHI
°C
Hr.
Hr.
HITACHI
°C
Hr.
HITACHI
°C
Hr.
HITACHI
°C
Hr.

– 12 –

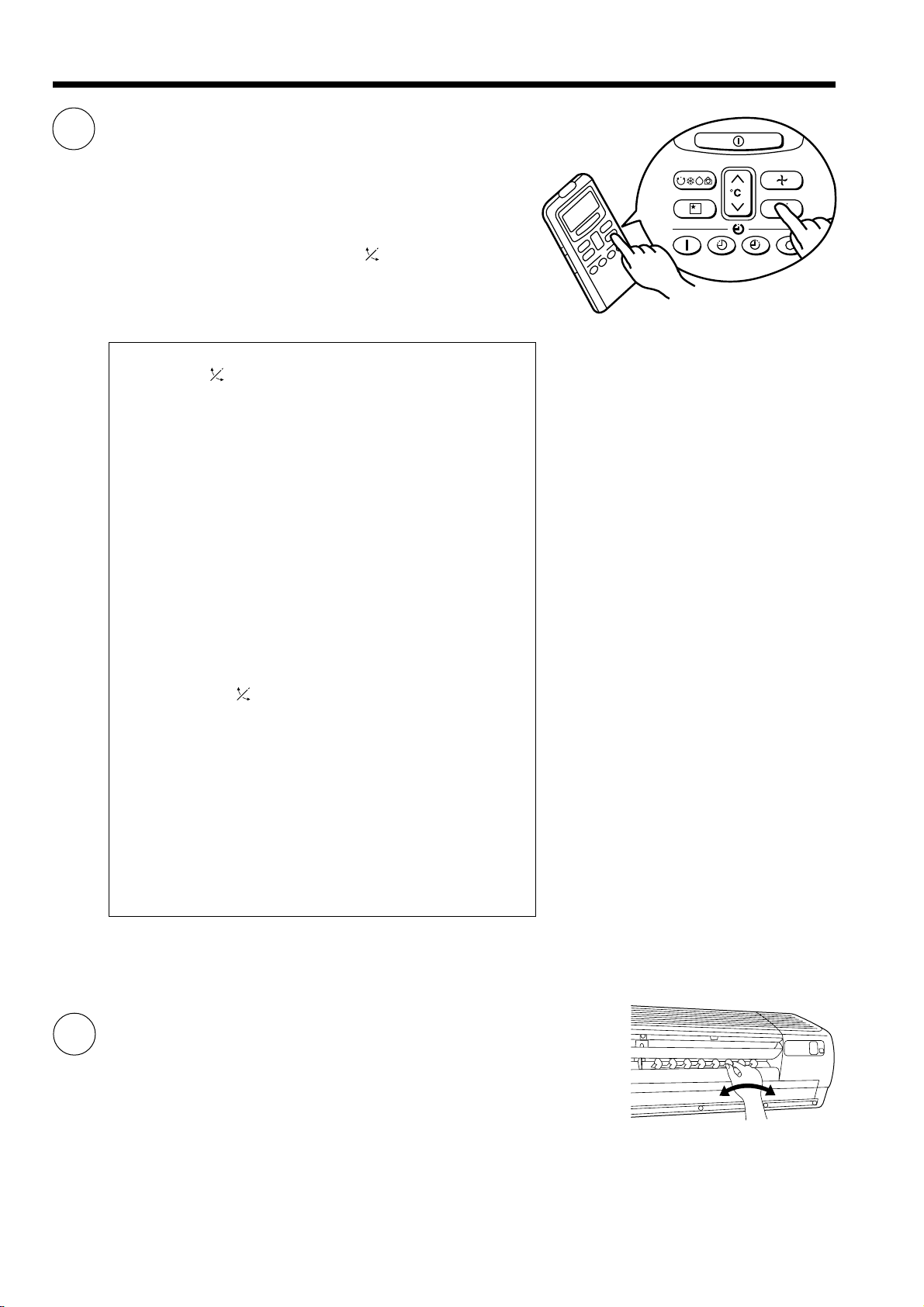

Adjustment of the conditioned air in the upward and
downward directions.
According to “Dehumidifying” or “Cooling” operation,
the horizontal air deflector is automatically set to
the proper angle suitable for each operation. The
deflector can be swung up and down and also set
to the desired angle using the “ (AUTO SWING)”
button. (If the angle of the deflector is changed, it
will not return to the auto-set position after operations
start unless the operation mode is switched.)
ADJUSTING THE AIR DEFLECTORS
●If the “ (AUTO SWING)” button is pressed
once, the horizontal air deflector swings up and
down. If the button is pressed again, the
deflector stops in its current position. Several
seconds (about 12 seconds) may be required
before the deflector starts to move.
●Swinging the air deflector is effective to reduce
unevenness of the temperature in the room.
●In “Cooling” operation, do not keep the
horizontal air deflector swinging for a long time.
Some dew may form on the horizontal air
deflector and some dew may drop from it.
●When the “ (AUTO SWING)” button is pressed
while the operation is stopped, the horizontal air
deflector moves and stops at the position where
the air outlet closes.
●When the auto swing operation is performed, if
the horizontal air deflector is moved manually,
the swinging range may drift. However, it will
return to the original operation range after a
short time.
1
2
Adjustment of the conditioned air to the left and
right.
Hold the vertical air deflector as shown in the figure
and adjust the conditioned air to the left and right.

ENGLISH
– 13 –

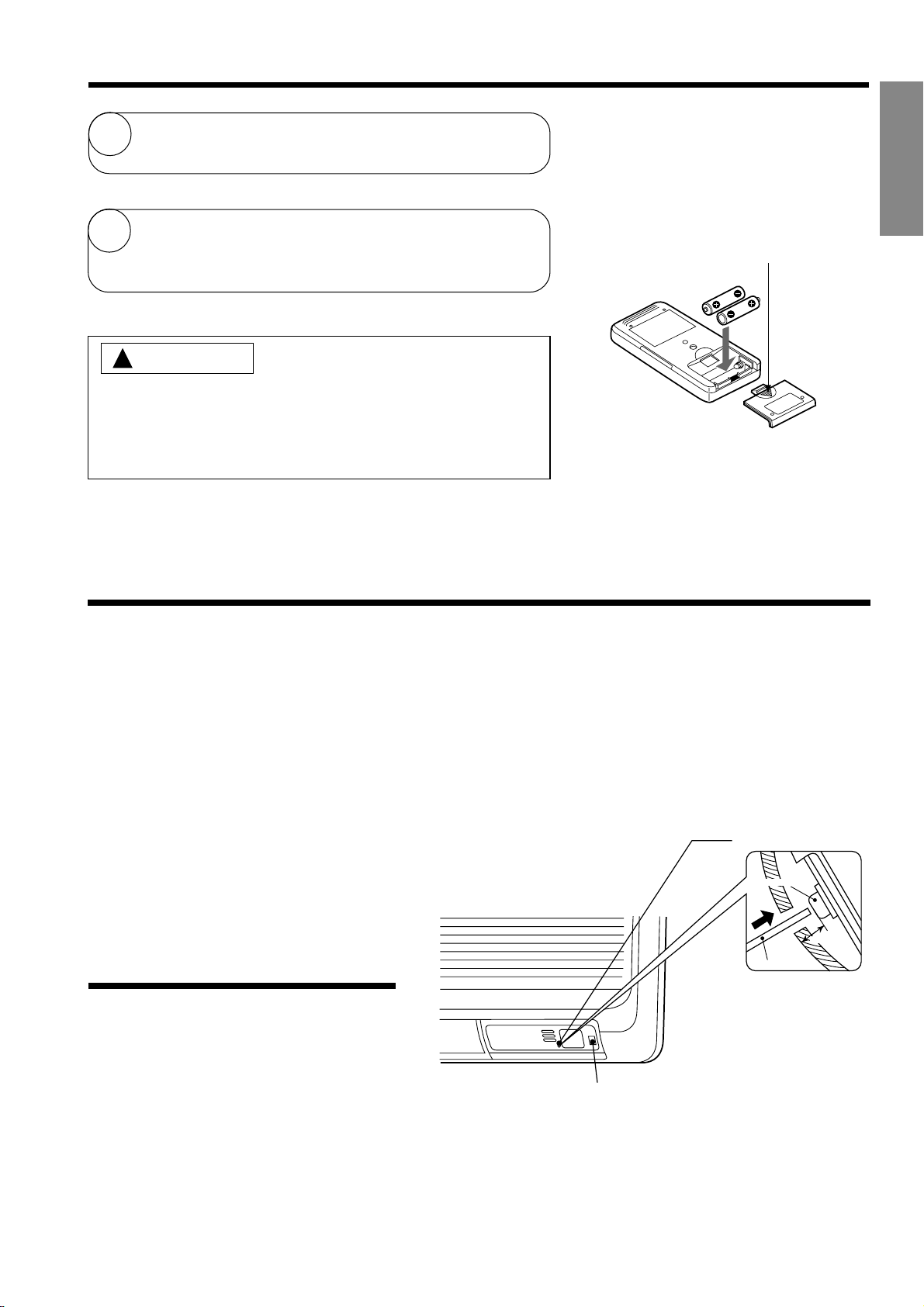

HOW TO EXCHANGE THE BATTERIES IN THE REMOTE CONTROLLER
1
Remove the cover as shown in the figure
and take out the old batteries.
2
Install the new batteries.
The direction of the batteries should match
the marks in the case.
1. Do not use new and old batteries, or different
kinds of batteries together.
2. Take out the batteries when you do not use
the remote controller for 2 or 3 months.
=
!
CAUTION
TEMPORARY SWITCH
Use the temporary switch when operation can not be
done with the remote controller.
1. By pressing the temporary switch, the operation is
done in previously set operation mode.
When the operation is done using the temporary
switch after the power source is turned off and is
turned on again, the operation is done in automatic
mode.
2. When the operation is stopped or when the
operation is done with the remote controller again,
press the temporary switch once again.
POWER SWITCH
When you do not use the room air
conditioner, set the power switch to
“OFF”.
Push and pull to the
direction of arrow
about 7mm
about 7mm
Press
Press
Temporary Switch
emporary Switch
TEMPORAR
TEMPORAR
YSWITCH
SWITCH
POWER SWITCH
POWER SWITCH
Non-conductor Stick
Non-conductor Stick

–14 –
MAINTENANCE
Before the cleaning, stop operation and disconnect the power supply.
1. AIR FILTER
Clean the air filter, as it removes dust inside the room. In case the air filter is full of dust, the air
flow will decrease and the cooling capacity will be reduced. Further, noise may occur. Be sure to
clean the filter following the procedure below.
2. CLEANING OF FRONT COVER, ETC.
●Never use hot water (above 40°C),
benzine, gasoline, acid, thinner or
a brush, because they will damage
the plastic surface and the coating.
CAUTION
●Wipe it with a soft dry cloth.
●When it is excessively dirty, wipe
with a soft cloth soaked in
lukewarm water or neutral
detergent. Then wipe thoroughly
with a soft dry cloth.
●Wipe the remote controller
thoroughly with a soft dry cloth.
Set the filter with “FRONT”mark
facing front, and slot in them to the
original state.
●Do not wash with hot water at more than 40°C.
The filter may shrink.
●When washing it, shake off moisture completely
and dry it in the shade; do not expose it directly
to the sun. The filter may shrink.
●Do not operate the air conditioner with the filter
removed. Dust may enter the air conditioner and
cause trouble.
1. Remove dust from the filter using a vacuum
cleaner.
If there is too much dust, use neutral detergent.
After using neutral detergent, wash with clean
water and dry in the shade.
2. Install the filters.
(Set them with “FRONT”
mark facing front.)
Slot in the filter to the original state.
METHOD REMOVE
1. Press the “(AUTO SWING)”
button, let the deflector facing
downward.
2. Remove the filter from the lower side
as shown by the arrow.
METHOD INSTALL
CAUTION
B
E
N
Z
I
N
E
A
C
I
D
T
H
I
N
N
E
R
!
PROCEDURE
CAUTION
!
!

ENGLISH
–15 –
3. MAINTENANCE AT BEGINNING OF LONG OFF PERIOD
●Run the unit by setting the operation mode to
(FAN) and the fan speed to HI for about half a day
on a fine day, to dry the whole unit.
●Disconnect the power plug.
1
2
3
REGULAR INSPECTION
PLEASE CHECK THE FOLLOWING POINTS EVERY EITHER HALF YEARLY
OR YEARLY. CONTACT YOUR SALES AGENT SHOULD YOU NEED ANY
HELP.
Is the plug of power line firmly plugged into the socket?
(Please ensure no loose contact between them).
Is the earth line disconnected or broken?
Is the mounting frame seriously affected by rust and is the
outdoor unit tilted or unstable?
Air
Blow
Confirm

–16 –
THE IDEAL WAYS OF OPERATION
Suitable Room Temperature Install curtain or blinds
Ventilation Effective Usage Of Timer
Do Not Forget To Clean The Air Filter Please Adjust Suitable Temperature
For Baby And Children
Warning
Freezing temperature
is bad for health and a
waste of electric power.
!
It is possible to
reduce heat
entering the
room through
windows.
At night, please use the “sleep timer operation
mode”, together with your wake up time in the
morning. This will enable you to enjoy a
comfortable room temperature. Please use the
timer effectively.
Dusty air filter will reduce the air volume and
the cooling efficiency. To prevent from wasting
electric energy, please clean the filter every 2
weeks.
Please pay attention to the room temperature
and air flow direction when operating the unit
for baby, children and old folks who have
difficulty in movement.
Caution
Do not close the room for a long period of
time. Occasionally open the door and windows
to allow the
entrance of
fresh air.
!

ENGLISH
–17 –
FOR USER’S INFORMATION
The Air Conditioner And The Heat Source In The Room
After Power Failure
Not Operating For A Long Time
When Lightning Occurs
Caution
If the amount of heat in the room is above the cooling
capability of the air conditioner (for example: more
people entering the room, using heating equipments
and etc.), the preset room temperature cannot be
achieved.
!
When the power is resumed after a power failure,
the indoor unit will still remain “OFF”. To operate the
unit, please press the “ON/OFF”button again.
When the indoor unit is not to be used for a long
period of time, please switch off the power from the
mains. If the power from mains remains “ON”, the
indoor unit still consumes about 15W in the operation
control circuit even if it is in “OFF”mode.
Warning
To protect the whole unit during lightning, please
stop operating the unit and remove the plug from the
socket.
!
Operate
After power
failure
OFF

–18 –
This product conforms with the protection requirements of council directives 89/336/EEC relating to
electromagnetic compatibility and 73/23/EEC relating to electrical equipment designed for use whithin
certain voltage limits.
Please note:
On switching on the equipment, particularly when the room light is dimmed, a slight brightness fluctuation
may occur. This is of no consequence.
The conditions of the local Power Supply Companies are to be observed.
AFTER SALE SERVICE AND WARRANTY
1WHEN ASKING FOR SERVICE, CHECK THE FOLLOWING POINTS.
When it does not operate ●Is the fuse all right?
●Is the voltage extremely high or low?
●Is the power switch “ON”?
●Is the air filter blocked with dust?
●Does sunlight fall directly on the outdoor unit?
●Is the air flow of the outdoor unit obstructed?
●Are the doors or windows opened, or is there any source of
heat in the room?
●Is the set temperature suitable?
CONDITION CHECK THE FOLLOWING POINTS
Notes
●In quiet operation or stopping the operation, the following phenomena
may occassionally occur, but they are not abnormal for the operation.
(1) Slight flowing noise of refrigerant in the refrigerating cycle.
(2) Slight rubbing noise from the fan casing which is cooled and
then gradually warmed as operation stops.
●The odor will possibly be emitted from the room air conditioner because
the various odor, emitted by smoke, foodstuffs, cosmetics and so on,
sticks to it. So please clean the air filter and the evaporator regularly
to reduce the odor.
●Please contact your sales agent immediately if the air conditioner still fails to operate normally after the above
inspections. Inform your agent of the model of your unit, production number, date of installation. Please also
inform him regarding the fault.
When it does not cool well
