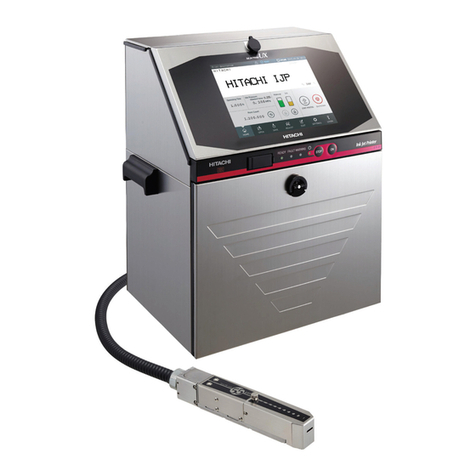

HITACHI Printer
Model UX2
Communication User's Manual
(OPC-UA)
●Before using the printer, thoroughly read this communication user's manual for
optimum printer use.
● After reading this communication user's manual, properly keep it for future
reference.

1
To export the product, check the export control-related
regulations, such as the Foreign Exchange and Foreign
Trade Law and the Export Administration Regulations, and
follow the necessary procedures.
If you have any questions, contact your Hitachi sales
representative.
August 2022 (rev.B)
● No part of this manual may be copied or reproduced without permission.
● The contents of this manual are subject to change without notice for
improvement.
All Right Reserved, Copyright © 2022, Hitachi Industrial Equipment Systems Co.,Ltd

2
Contents
1. Communication Specification ................................................................................................................... 3
1.1 OPC-UA Server Function.................................................................................................................... 3
1.1.1 OPC-UA Server Specifications..................................................................................................... 3
1.1.2 About Nodes ................................................................................................................................ 4
1.2 OPC-UA Function List......................................................................................................................... 5
1.3 Supported Services............................................................................................................................. 6
1.4 Operating Conditions.......................................................................................................................... 7
1.5 IJP Object Specifications .................................................................................................................... 8
(1) Index................................................................................................................................................ 8
(2) Message_management.................................................................................................................... 9
(3) Print_Format.................................................................................................................................. 10
(4) Print_Specifications ....................................................................................................................... 12
(5) Calender_Condition....................................................................................................................... 14
(6) Count_Condition............................................................................................................................ 18
(7) IJP_User_Pattern........................................................................................................................... 20
(8) IJP_Substitution_Rules.................................................................................................................. 21
(9) IJP_UnitInformation ....................................................................................................................... 23
(10) Various_Print_Setup.................................................................................................................... 24
(11) Operation_Management .............................................................................................................. 25
(12) Environment_Setup ..................................................................................................................... 26
(13) IJP_Operation.............................................................................................................................. 28
1.6 OPC-UA Server Node List................................................................................................................ 29
2. IJ Printer detail data ............................................................................................................................... 34
2.1 Dot Matrix Code................................................................................................................................ 34
2.2 Bar code........................................................................................................................................... 35
2.3 Communication_Environment_Setup Table...................................................................................... 36
2.4 External Communication Error.......................................................................................................... 37
2.5 Processing sequence........................................................................................................................ 49

3
1. Communication Specification
1.1 OPC-UA Server Function
1.1.1 OPC-UA Server Specifications
The OPC-UA server becomes the following specifications.
List of OPC-UA Server
Item
Detail
Server URL
opc.tcp://[IP Address]:4840
Editing of the node
Disable

4
1.1.2 About Nodes
The Variable node requires two, "Read Service" and "Write Service".
A node needs a NameSpace and ID for each function to execute.
Node structure
No.
Node Type
Service
Notes
1
Variable
Read Service
Get the value
Write Service
Set the value
2
Method
Call Service
Perform function
The node list of OPC-UA server is as follows.
List of node
Node configuration
Description
Root
└──
Objects
└──
Inkjet_Printer
IJP Node
├─
Index
Index function
├─
Message_management
Message_management
function
├─
Print_Format
Print_Format function
├─
Print_Specification
Print_Specification
function
├─
Calendar_Condition
Calendar_Condition
function
├─
Count_Condition
Count_Condition function
├─
IJP_User_Pattern
IJP_User_Pattern
function
├─
IJP_SubstitutionRules
IJP_substitutionRules
function
├─
Unit_Information
Unit_Information function
├─
Various_Print_Setup
Various_Print_Setup
function
├─
Operation_Management
Operation_Management
function
├─
Environment_Setup
Environment_Setup
function
└─
IJP_Operation
IJP_Operation function

5
1.2 OPC-UA Function List
The following is a list of functions that can be used with OPC-UA.
OPC-UA Function List
No.
Function
Description
1
Index function
OPC-UA communication function is management function.
2
Message_management
function
Register / delete print data and acquire and set the registration
information of registered print data.
3
Print_Format function
Acquires and sets print data format information such as character size
and print content.
4
Print_Specification
function
Acquires and sets print specifications such as character orientation and
continuous print settings.
5
Calendar_Condition
function
Acquires and sets calendar conditions for print contents.
6
Count_Condition function
Acquires / sets the count conditions for print contents.
7
IJP_User_Pattern
function
Acquires and sets (registers) user pattern data.
8
IJP_SubstitutionRules
function
Acquires and sets the registered name and registered contents of the
replacement rule.
9
Unit_Information function
Acquires device information such as device name and serial number.
10
Various_Print_Setup
function
Acquires and sets various print setting items.
11
Operation_Management
function
Acquires / sets operation management information such as operation
time and number of prints.
12
Environment_Setup
functio
Acquires / sets environment settings such as time setting and circulation
control setting.
13
IJP_Operation function
Acquires IJP operations such as remote operation and error / alarm
information.

6
1.3 Supported Services
The main services supported by the OPC-UA server are shown below.
List of supported main services
No.
Service
Notes
1
View Service Set
Browse Service
IJP Node information can be
acquired
2
Attribute Service Set
Read Service
IJP data acquisition is possible
3
Write Service
IJP data settings are possible
4
Method Service Set
Call Service
IJP functions can be executed
5
Discovery Service Set
GetEndpoints service
IJP OPC-UA server can be
detected by an external device
*For details of each service, refer to the OPC-UA protocol specification.Obtain the OPC-UA protocol
specifications from the OPC Foudation website.
1.3.1 Detection Service(GetEndpoints Service)
The IJP OPC-UA server can be detected by the external device.
1.3.2 Reference service(Browse Service)
Sends IJP node information to the external device.
1.3.3 Acquisition service(Read Service) When receiving
IJP data is sent to the external device according to the specifications of the received service.
1.3.4 Setting service(Write Service) When receiving
The IJP data will be changed according to the specified service.
1.3.5 Function execution service(Call Service) When receiving
The IJP status is controlled according to the specifications of the received service.

7
1.4 Operating Conditions
(1) Functional restrictions
List of function restrictions
No.
Item
Conditions
Notes
1
LAN communication
LAN function
"OPC-UA
communication"
OPC-UA Connection only.
2
Option
(Invalid)
Special communication (SOP-04)
Disabled
-
3
External signal (SOP-05)
Disabled
-
4
Barcode reader connection (SOP-08)
Disabled
-
5
Special features (SOP-15-nn)
Disabled
-
6
User pattern 500 characters (SOP-25)
Disabled
-
7
On-line / Off-line
On-line
When Off-line:
･Read only.
･Switchable between On-line and Off-line.
･OPC-UA server can be detected from
an external device.

8
1.5 IJP Object Specifications
(1) Index List of Index (1/1)
Node name
(Display name)
Data type
Access
(Node Class)
Data
Range
Notes
Item_No
UInt32
Read / Write
(Variable)
1 to 100
An initial value is "1".
Column_No
UInt32
Read / Write
(Variable)
1 to 100
An initial value is "1".
PrintMessage_No
UInt32
Read / Write
(Variable)
1 to 2000
An initial value is "1".
Data_Group_No
UInt32
Read / Write
(Variable)
1 to 99
An initial value is "1".
Substitution_Rules
UInt32
Read / Write
(Variable)
1 to 99
An initial value is "1".
Count_Block_No
UInt32
Read / Write
(Variable)
1 to 8
An initial value is "1".
Calendar_Block_No
UInt32
Read / Write
(Variable)
1 to 8
An initial value is "1".
Shift_Block_No
UInt32
Read / Write
(Variable)
1 to 48
An initial value is "1".
Error_No
UInt32
Read / Write
(Variable)
1 to 480
An initial value is "1".
Substitution_Content
_Item_No
UInt32
Read / Write
(Variable)
1 to 60
An initial value is "1".
When a state of IJP is an abnormal state* and carries out an acquisition function, IJP pays "999999999"
values.
*An abnormal state: For example, in the case of offline, when setting of the bar code uses
a necessary function, there is not bar code. The states that a setting item is abnormal.

9
(2) Message_management List of Message_management (1/1)
Node name
(Display name)
Data type
Access
(Node Class)
Data
Range
Notes
Call_Message
-
(Method)
1 to 2000
(1 to 300)
Select Print Data.
Set item number in "PrintMessage_No" of
index function.
(300: without Upgrade key)
Delete_Message
-
(Method)
1 to 2000
(1 to 300)
Delete Print Data.
Set item number in “PrintMessage_No" of
index function.
(300: without Upgrade key)
Delete_Group
-
(Method)
1 to 99
Group deletion.
Set item number in " Data_Group_No" of
index function.
Change_Group_
Number
UInt32
Write
(Variable)
1 to 99
Change group number
Set item number which you want to
change in " Data_Group_No" of index
function.
Input the new number you want to change
to in “value.”
Change_Message_
Number
*1
UInt32
Write
(Variable)
1 to 2000
(1 to 300)
Change message number
Set item number which you want to
change in " PrintMessage_No " of index
function.
Input the new number you want to change
to in “value.”
(300: without Upgrade key)
Save_Message
-
Sub class
node
-
This node contains 3 sub nodes.
- Save_MessageName
String
Write
(Variable)
Up to 12
words
Set message name when you want to
save message. Message name is up to
12 words.
- Save_GroupNumber
UInt32
Write
(Variable)
0 to 99
Set which group you want to save
message to. 0 means no group message.
- Save_Confirm
*1
-
(Method)
-
Run this method to confirm “Save
message”.
Special warning code of this function:
1: Save type is over range.
2: Group number is over range
3: The nickname length is overrange
6: User chooses to save as new
message, however there is already one
message with same name existing.
7: IJP already has messages to it max
limitation. (up to 1000 message)
8: IJP is over memory capacity.
*1:Only the node is displayed, and it is not currently supported.

10
(3) Print_Format List of Print_Format (1/2)
Node name
(Display name)
Data
type
Access
(Node Class)
Data
Range
Notes
Message_Name
String
Read
(Variable)
0 to 12
characters
(UTF-8)
Get Message Name.
Item_Count
UInt32
Read
(Variable)
1 to 100
Get number of items.
Column_Count
UInt32
Read
(Variable)
1 to 100
Get number of columns.
Insert_Column
-
(Method)
1 to 99
Insert column.
Set item number in "Column No" of index
function.
Delete_Column
-
(Method)
1 to 100
Delete column.
Set item number in "Column No" of index
function.
Add_Column
-
(Method)
-
Add a Column after the last Column.
Add_Item
-
(Method)
-
Add a column to the coordinate (0,0).
*Free layout only
Remove_Item
-
(Method)
1 to 100
Deletion of print items.
Set item number in "Item No" of index function.
*Free layout only
Format_Setup
UInt32
Read / Write
(Variable)
1 or 3
Format setup.
*Format Number
1 : Individual setup,
3 : Free layout
Line
UInt32
Read / Write
(Variable)
1 to 6
Getting of line count.
Set item number in "Column No" of index
function.
Line_Spacing
UInt32
Read / Write
(Variable)
0 to 9
Getting or Setting of line spacing
Set item number in "Column No" of index
function.
Dot_Matrix
UInt32
Read / Write
(Variable)
1 to 19
Getting or Setting of dot matrix.
Set item number in "Item No" of index function.
Please refer to "2.1 Dot matrix Code" for dot
matrix.
Inter-Char_Space
UInt32
Read / Write
(Variable)
0 to 28
Getting or Setting of Inter-character space.
Set item number in "Item No" of index function.
Bold
UInt32
Read / Write
(Variable)
1 to 9
Getting or Setting of character bold.
Set item number in "Item No" of index function.

11
List of Print_Format (2/2)
Node name
(Display name)
Data
type
Access
(Node Class)
Data
Range
Notes
Barcode
UInt32
Read / Write
(Variable)
0 to 34
Getting or Setting of bar code type.
Set item number in "Item No" of index function.
Please refer to "2.2 Bar code" for bar code.
Readable_Code
*1
UInt32
Read / Write
(Variable)
0 to 2
Getting or Setting of Readable code.
Set item number in "Item No" of index function.
*Readable code number
0 : No identification code
1 : Size 5 x 5
2 : Size 5 x 7
Prefix
*1
UInt32
Read / Write
(Variable)
0 to 99
Getting or Setting of Prefix Code.
Set item number in "Item No" of index function.
Print_Contents
String
Read / Write
(Variable)
Up to 1000
digits
(UTF-8)
Getting or Setting of print character string.
Set item number in "Item No" of index function.
Position_XY
UInt32
Read / Write
(Variable)
X:0 to 31999
Y:0 to 29
Getting or Setting of X/Y Coordinate
Set item number in "Item No" of index function.
*1:Only the node is displayed, and it is not currently supported.

12
(4) Print_Specifications
List of Print_Specifications (1/2)
Node name
(Display name)
Data type
Access
(Node Class)
Data
Range
Notes
Character Height
UInt32
Read / Write
(Variable)
0 to 99
Getting or Setting of character height.
Ink_Drop_Use
UInt32
Read / Write
(Variable)
1 to 16
Getting or Setting of Ink drop use.
High-Speed_Print
*1
UInt32
Read / Write
(Variable)
0 to 4
Getting or Setting of High-Speed print.
*High-Speed print mode
0:HM, 1:NM, 2:QM, 3:SM, 4:D1
Character_Width
UInt32
Read / Write
(Variable)
0 to 3999
Getting or Setting of character width.
Character_Orientation
UInt32
Read / Write
(Variable)
0 to 3
Getting or Setting of Character orientation
*Character orientation
0:Normal/Forward,
1:Normal/Reverse,
2:Inverted/Forward,
3:Inverted/Reverse
Print_Start_Delay
UInt32
Read / Write
(Variable)
0 to 9999
Getting or Setting of Print start delay count.
Reverse
UInt32
Read / Write
(Variable)
0 to 9999
Getting or Setting of Print start delay count.
Product_Speed_
Matching
UInt32
Read / Write
(Variable)
0 to 2
Getting or Setting of Product speed
matching.
*Product speed matching Mode
0:None, 1:Encoder, 2:Auto
Pulse_Rate_Div_Factor
UInt32
Read / Write
(Variable)
1 to 999
Getting or Setting of Pulse rate division
Factor.
Speed_Compensation
UInt32
Read / Write
(Variable)
0 to 1
Getting or Setting of Speed compensation.
Line_Speed
*1
UInt32
Read / Write
(Variable)
0 to 9999
Getting or Setting of Line Speed.
Distance
UInt32
Read / Write
(Variable)
0 to 99
Getting or Setting of distance between the
printing head and the object to be printed
on.
Print_Targert_Width
UInt32
Read / Write
(Variable)
0 to 9999
Getting or Setting of Print target width.
*1:Only the node is displayed, and it is not currently supported.

13
List of Print_Specifications (2/2)
Node name
(Display name)
Data type
Access
(Node Class)
Data
Range
Notes
Actual_Print_Width
UInt32
Read / Write
(Variable)
0 to 9999
Getting or Setting of actual print
width.
Repeat_Count
*1
UInt32
Read / Write
(Variable)
0 to 9999
Getting or Setting of repeat count.
Repeat_Intervals
*1
UInt32
Read / Write
(Variable)
0 to 99999
Getting or Setting of repeat intervals.
Target_Sensor_Timer
UInt32
Read / Write
(Variable)
0 to 999
Getting or Setting of target sensor
timer.
Target_Sensor_Filter_Value
UInt32
Read / Write
(Variable)
0 to 9999
Getting or Setting of target sensor
filter setting value.
Target_Sensor_Filter
UInt32
Read / Write
(Variable)
0 to 1
Getting or Setting of target sensor
filter.
*sensor filter
0:Time setup,
1:Until print complete
Ink_Drop_Charge_Rule
*1
UInt32
Read / Write
(Variable)
0 to 2
Getting or Setting of ink drop charge
rule.
*ink drop charge rule
0:Standard,
1:Mixed single scan and interlaced
2:Dot mixed
Speed_Compensation_Fine
_Control
Double
Read / Write
(Variable)
-50 to 50
Getting or Setting of print start
position adjustment value.
*1:Only the node is displayed, and it is not currently supported.

14
(5) Calendar_Condition
List of Calendar Condition (1/4)
Node name
(Display name)
Data
type
Access
(Node Class)
Data
Range
Notes
Block_Number_
In_Item
UInt32
Read
(Variable)
1 to 8
Getting of the top calendar block number of the
designated item.
Set item number in "Item No" of index function.
Block_Count_
In_Item
UInt32
Read
(Variable)
1 to 8
Getting of the number of calendar blocks of the
appointed item.
Set item number in "Item No" of index function.
Year_Zero_
Suppression
UInt32
Read / Write
(Variable)
0 to 2
Getting or Setting of Zero-suppression value
(Year)
Set item number in "Calendar Block No" of index
function.
*Mode No.
0 : Zero-suppression disabled
1 : Enable( space )
2 : Enable( character justification)
Month_Zero_
Suppression
UInt32
Read / Write
(Variable)
0 to 2
Getting or Setting of Zero-suppression value
(Month)
Set item number in "Calendar Block No" of index
function.
*Mode No.
0 : Zero-suppression disabled
1 : Enable( space )
2 : Enable( character justification)
Day_Zero_
Suppression
UInt32
Read / Write
(Variable)
0 to 2
Getting or Setting of Zero-suppression value
(Day)
Set item number in "Calendar Block No" of index
function.
*Mode No.
0 : Zero-suppression disabled
1 : Enable( space )
2 : Enable( character justification)
Hour_Zero_
Suppression
UInt32
Read / Write
(Variable)
0 to 2
Getting or Setting of Zero-suppression value
(Hour)
Set item number in "Calendar Block No" of index
function.
*Mode No.
0 : Zero-suppression disabled
1 : Enable( space )
2 : Enable( character justification)
Minute_Zero_
Suppression
UInt32
Read / Write
(Variable)
0 to 2
Getting or Setting of Zero-suppression value
(Minute)
Set item number in "Calendar Block No" of index
function.
*Mode No.
0 : Zero-suppression disabled
1 : Enable( space )
2 : Enable( character justification)

15
List of Calendar Condition (2/4)
Node name
(Display name)
Data
type
Access
(Node Class)
Data
Range
Notes
Week_Number_
Zero_Suppression
UInt32
Read / Write
(Variable)
0 to 2
Getting or Setting of Zero-suppression value
(Weeks)
Set item number in "Calendar Block No" of
index function.
*Mode No.
0 : Zero-suppression disabled
1 : Enable( space )
2 : Enable( character justification)
Day_Of_Week_
Zero_Suppression
UInt32
Read / Write
(Variable)
0 to 2
Getting or Setting of Zero-suppression value
(Day of Week)
Set item number in "Calendar Block No" of
index function.
*Mode No.
0 : Zero-suppression disabled
1 : Enable( space )
2 : Enable( character justification)
Year_Offset
UInt32
Read / Write
(Variable)
0 to 99
Getting or Setting of offset value(Year)
Set item number in "Calendar block" of index
function.
Month_Offset
UInt32
Read / Write
(Variable)
0 to 99
Getting or Setting of offset value(Month)
Set item number in "Calendar Block No" of
index function.
Day_Offset
UInt32
Read / Write
(Variable)
0 to 1999
Getting or Setting of offset value(Day)
Set item number in "Calendar Block No" of
index function.
Hour_Offset
Double
Read / Write
(Variable)
-23 to 99
Getting or Setting of offset value(Hour)
Set item number in "Calendar block" of index
function.
Minute_Offset
Double
Read / Write
(Variable)
-59 to 99
Getting or Setting of offset value(Minute)
Set item number in "Calendar Block No" of
index function.
Year_
Susbstitution_Rule
UInt32
Read / Write
(Variable)
0 to 1
Getting or Setting of Substitution rules (Year)
Set item number in "Calendar Block No" of
index function.
* Mode No.
0 : Disable, 1 : Enable
Month_
Susbstitution_Rule
UInt32
Read / Write
(Variable)
0 to 1
Getting or Setting of Substitution rules
(Month)
Set item number in "Calendar Block No" of
index function.
* Mode No.
0 : Disable, 1 : Enable

16
List of Calendar Condition (3/4)
Node name
(Display name)
Data
type
Access
(Node Class)
Data
Range
Notes
Day_
Susbstitution_Rule
UInt32
Read / Write
(Variable)
0 to 1
Getting or Setting of Substitution rules
(Day)
Set item number in "Calendar Block No" of index
function.
* Mode No.
0 : Disable, 1 : Enable
Hour_
Susbstitution_Rule
UInt32
Read / Write
(Variable)
0 to 1
Getting or Setting of Substitution rules
(Hour)
Set item number in "Calendar Block No" of index
function.
* Mode No.
0 : Disable, 1 : Enable
Minute_
Susbstitution_Rule
UInt32
Read / Write
(Variable)
0 to 1
Getting or Setting of Substitution rules
(Minute)
Set item number in "Calendar Block No" of index
function.
* Mode No.
0 : Disable, 1 : Enable
Week_Number_
Susbstitution_Rule
UInt32
Read / Write
(Variable)
0 to 1
Getting or Setting of Substitution rules
(Weeks)
Set item number in "Calendar Block No" of index
function.
* Mode No.
0 : Disable, 1 : Enable
Day_Of_Week_
Susbstitution_Rule
UInt32
Read / Write
(Variable)
0 to 1
Getting or Setting of Substitution rules
(Day of week)
Set item number in "Calendar Block No" of index
function.
* Mode No.
0 : Disable, 1 : Enable
Lower_Range_Clock
String
Read / Write
(Variable)
3 digits
(UTF-8)
Getting or Setting of start value of the range
Upper_Range_Clock
String
Read / Write
(Variable)
3 digits
(UTF-8)
Getting or Setting of end value of the range
Reset_Clock
String
Read / Write
(Variable)
3 digits
(UTF-8)
Getting or Setting of reset value
Reset_Time
UInt32
Read / Write
(Variable)
0 to 23
Getting or Setting of reset time value
Renewal_Period
UInt32
Read / Write
(Variable)
1 to 6
Getting or Setting of renewal period value.
* Renewal Period
1 : 5 minutes
2 : 6 minutes
3 : 10 minutes
4 : 15 minutes
5 : 20 minutes
6 : 30 minutes

17
List of Calendar Condition (4/4)
Node name
(Display name)
Data
type
Access
(Node Class)
Data
Range
Notes
Start_Hour_Time
UInt32
Read / Write
(Variable)
0 to 23
Getting or Setting of start time (Hour)
Set item number in "Shift Block No" of index
function.
Start_Minute_Time
UInt32
Read / Write
(Variable)
0 to 59
Getting or Setting of start time (Minute)
Set item number in "Shift Block No" of index
function.
End_Hour_Time
UInt32
Read
(Variable)
0 to 23
Getting or Setting of start time (Hour)
Set item number in "Shift Block No" of index
function.
End_Minute_Time
UInt32
Read
(Variable)
0 to 59
Getting or Setting of start time (Minute)
Set item number in "Shift Block No" of index
function.
Shift_String
String
Read / Write
(Variable)
10 digits
(UTF-8)
Getting or Setting of shift code.
Set item number in "Shift Block No" of index
function.
Item_Number_Of_
Calendar_Block
UInt32
Read
(Variable)
1 to 100
Getting of The item number the appointed
calendar block.
Set item number in "Calendar Block No" of
index function.
Char_Count_In_
Calendar_Block
UInt32
Read
(Variable)
1 to 20
Getting of the top position in the item of the
appointed calendar block.
Set item number in "Calendar Block No" of
index function.
First_Char_Position_
Of_Calendar_
Block
UInt32
Read
(Variable)
0 to 999
Getting of the top position in the item of the
appointed calendar block.
Set item number in "Calendar Block No" of
index function.
Enable_Calendar_
Block_Count
UInt32
Read
(Variable)
0 to 8
Getting of the number of enable calendar
blockings.
Enable_Shift_Count
UInt32
Read
(Variable)
0 to 48
Getting of the number of enable
shift count.

18
(6) Count_Condition List of Count_Condition (1/2)
Node name
(Display name)
Data
type
Access
(Node Class)
Data
Range
Notes
Block_Number_In_Item
UInt32
Read
(Variable)
1 to 8
Getting of the top count block number of the
designated item.
Set item number in "Item No" of index
function.
Block_Count_In_Item
UInt32
Read
(Variable)
1 to 8
Getting of the number of count blocks of the
appointed item.
Set item number in "Item No" of index
function.
Value
*2
String
Read / Write
(Variable)
1 to 20 digits
(UTF-8)
Getting or Setting of the initial value.
Set item number in "Count Block No" of index
function.
Lower_Range
String
Read / Write
(Variable)
1 to 20 digits
(UTF-8)
Getting or Setting of count condition lower
range.
Set item number in "Count Block No" of index
function.
Upper_Range
String
Read / Write
(Variable)
1 to 20 digits
(UTF-8)
Getting or Setting of count condition upper
range.
Set item number in "Count Block No" of index
function.
Update_In_Progress
UInt32
Read / Write
(Variable)
0 to 999998
Getting or Setting of update unit (Halfway).
Set item number in "Count Block No" of index
function.
Update_Unit
UInt32
Read / Write
(Variable)
1 to 999999
Getting or Setting of update unit (Unit).
Set item number in "Count Block No" of index
function.
Increment
UInt32
Read / Write
(Variable)
1 to 99
Getting or Setting of increment value.
Set item number in "Count Block No" of index
function.
Direction
UInt32
Read / Write
(Variable)
1 to 2
Getting or Setting of direction value.
Set item number in "Count Block No" of index
function.
* Setting value
1 : Up,
2 : Down
Jump_From
*2
String
Read / Write
(Variable)
1 to 20 digits
(UTF-8)
Getting or Setting of the value of jump from.
Set item number in "Count Block No" of index
function.
Jump_To
*2
String
Read / Write
(Variable)
1 to 20 digits
(UTF-8)
Getting or Setting of the value of jump to.
Set item number in "Count Block No" of index
function.
Reset_Count
*2
String
Read / Write
(Variable)
1 to 20 digits
(UTF-8)
Getting or Setting of reset value
Set item number in "Count Block No" of index
function.

19
List of Count_Condition (2/2)
Node name
(Display name)
Data type
Access
(Node Class)
Data
Range
Notes
Reset_Signal
UInt32
Read / Write
(Variable)
0 to 2
Getting or Setting of the type of reset signal
(Option).
Set item number in "Count Block No" of index
function.
* Signal value
0 : None, 1 : Signal 1, 2 : Signal 2
External_
Signal_Count
*2
UInt32
Read / Write
(Variable)
0 to 1
Getting or Setting of availability of external count
(Option).
Set item number in "Count Block No" of index
function.
*Setting Value
0 : Disable
1 : Enable
Zero_Suppress
UInt32
Read / Write
(Variable)
0 to 1
Getting or Setting of availability of Zero-
suppression.
Set item number in "Count Block No" of index
function.
*Setting Value
0 : Disable
1 : Enable
Multipilier
String
Read / Write
(Variable)
1 to 10
digits
(UTF-8)
Getting or Setting of the count multiplier.
Set item number in "Count Block No" of index
function.
Count_Skip
*1
String
Read / Write
(Variable)
1 to 5 digits
(UTF-8)
Getting or Setting of count skip.
Set item number in "Count Block No" of index
function.
Item_No_Of_
Count_Block
UInt32
Read
(Variable)
1 to 100
Getting of the item number the appointed count
block.
Set item number in "Count Block No" of index
function.
Char_Cnt_In_
Count_Block
UInt32
Read
(Variable)
1 to 20
Getting of the top position in the item of the
appointed count block.
Set item number in "Count Block No" of index
function.
First_char_
Position_of_
Count_Block
UInt32
Read
(Variable)
0 to 999
Getting of the top position in the item of the
appointed count block.
Set item number in "Count Block No" of index
function.
Enable_Count_
Block_Cnt
UInt32
Read
(Variable)
0 to 8
Getting of the number of enable count blockings.
*1:Count skip is not available.Only the node is displayed, and it is not currently supported.
*2:Only the node is displayed, and it is not currently supported.
