Thank you for purchasing a Hitachi Cordless Stick
Vacuum Cleaner.
This vacuum cleaner is designed for household and
indoor use only. Do not use for commercial, non-
cleaning related, and outdoor purpose.
To ensure proper use, read this manual carefully
before using the vacuum cleaner.
For future reference, keep this manual in an easily
accessible place.
To ensure proper use, read the safety
precautions (P.E-4 to E-8).
PV-XL300J_EN.indd 1PV-XL300J_EN.indd 1 2021/9/22 11:11:012021/9/22 11:11:01

E-2
Control buttons
(P.E-8)
Extension
pipe
Release
button
Handy brush (P.E-14)
Power head
(P.E-13, E-14)
Hand-held configuration Stick configuration
Indicator
(P.E-9)
Handle
Dust case (P.E-16 to E-20)
Inner cylinder filter
(P.E-19)
Maintenance
brush
Dust case lid
Sponge filter
Clean filter
Battery
Release button
Dust disposal
button
AC adapter
Cord
Connector
Plug
If you shake the power head, it might make a rattling noise. This is normal.

The fibers of the material might appear streaky in some of the black areas of the extension pipe, which is not abnormal.
When attaching the power head and extension pipe, you might not hear a click, which is not abnormal.
A protective film is attached to the control buttons and the model indicator label on the side of the vacuum cleaner.
Underside
Safety switch
Rotary brush
LED light
Dust case
release button
To detach the power head or
extension pipe, press the
release button and pull it out.
Inner
cylinder
tip
Vacuum cleaner
body
Part names and assembly
PV-XL300J_EN.indd 2PV-XL300J_EN.indd 2 2021/9/22 11:11:022021/9/22 11:11:02

E-3
Part names and
assembly
(P.E-10)
Base
Stand
Indent
Attachment
groove
Hook for the
stand
Broom brushCrevice nozzle
Base
Stand
Click
Overall view when housed
Extension
pipe
Broom brush
Power head
Crevice
nozzle
Vacuum cleaner stand
Insert the hook for the stand into
the attachment groove of the stand.
The crevice nozzle or broom brush can be
attached to the indent in the base.
With your thumbs pressed against the
lower part of the stand, hold the stand
with both hands, and push the stand into
the base until you hear a "click" sound.
Vacuum cleaner stand
Vacuum
cleaner
body
Attachments
Power head (1 pc.)
(D-DP22)
(P.E-13, E-14)
Extension pipe
(PVP-05)
(1 pc.)
AC adapter
(PVA-EX02-BS)
(1 pc.)
Vacuum cleaner stand
Base (1 pc.) Stand (1 pc.)
Attachment accessories
Maintenance brush (1 pc.)
(Attached to the back
side of the dust case)
Handy brush (1 pc.)
(P.E-14)
Crevice nozzle (1 pc.)
(P.E-15)
Broom brush (1 pc.)
(P.E-15)
PV-XL300J_EN.indd 3PV-XL300J_EN.indd 3 2021/9/22 11:11:022021/9/22 11:11:02

E-4
Safety precautions
Please follow these safety precautions.
This indicates warnings that, if ignored, could present imminent danger of
serious injury or death.
This indicates warnings that, if ignored, could result in serious injury or
death.
This indicates warnings that, if ignored, could result in minor injury or
property damage.
Warning symbols used in this manual
This indicates warnings or cautionary notes.
This indicates prohibited actions that must not be
performed.
This indicates instructions that must be followed.
Control buttons
Power head
Extension pipe
Vacuum cleaner
Terminal
Cord
AC adapter
Plug
Outlet
Connector
Terminal
Exhaust port
Terminal
AC220-
240V
DANGER
Do not repair or modify any part of the vacuum cleaner. Do not disassemble any part of the
vacuum cleaner unless instructed to in this manual.
Failure to heed this warning might cause leaking of the battery, the generation of heat, fire, or injury.
For repairs, please contact a Hitachi authorized service agent.
Keep the vacuum cleaner and AC adapter away from water and other liquids.
Failure to heed this warning might lead to rupturing of the battery, fire, malfunction, or electric shock.
Do not connect the terminals of the vacuum cleaner, extension pipe, and AC adapter with
metal objects such as a wire and pin.
Do not carry or store with metal necklaces, hairpins, etc.
Failure to heed this warning might cause the vacuum cleaner to malfunction or cause the battery to
short-circuit, resulting in leaking, the generation of heat, rupturing, or fire.
Do not throw into fires or apply heat.
Do not charge, use, or leave near sources of heat such as fire or a stove, under direct sun-
light or in cars exposed to the sun, etc.
Failure to heed this warning might cause the battery to leak, generate heat, rupture, smoke, fire, deform, or malfunction.
This section describes safety precautions that must be followed in order to prevent injury to the user or other
people, or damage to property. Please thoroughly read and follow the precautions in this manual.
The severity of injury or damage that might occur if these precautions are ignored or the vacuum cleaner
is used improperly is classied and explained below. Hitachi is not responsible for any injury or damage
that occurs as a result of ignoring these precautions.
DANGER
WARNING
CAUTION
PV-XL300J_EN.indd 4PV-XL300J_EN.indd 4 2021/9/22 11:11:022021/9/22 11:11:02

E-5
Safety precautions
WARNING
If the vacuum cleaner malfunctions or you notice any of the following
problems, stop using the vacuum cleaner immediately.

The vacuum cleaner does not turn on when you press a control button, even though the battery is fully charged.
The power turns on and off when the AC adapter, cord, or connector is moved.
The vacuum cleaner sometimes stops in operation.
The vacuum cleaner makes strange sounds in operation.
The vacuum cleaner or AC adapter is deformed or abnormally hot.
The cord is damaged or abnormally hot.
It smells like something is burning.
You notice some other problem or malfunction..
Continuing to use the vacuum cleaner under these conditions could result in smoke, fire, or electric shock.
Turn off the vacuum cleaner immediately and unplug the AC adapter from the outlet. Then,
contact a Hitachi authorized service agent to request an inspection and repair.
Outlet, plug, cord, and AC adapter
Use an AC220-240V outlet.
Do not use an extension cord, and do not plug the AC adapter in the same outlet as other appliances.
Periodically clean the plug of any dust and debris by using a dry cloth.
Insert the plug of the AC adapter all the way into the outlet.
Do not damage the cord.
(Do not damage or modify the cord. Do not forcefully bend, bundle, pull, or twist it, and do not put it
under heavy objects or pinch it between objects.)

Do not use the AC adapter if the cord or the plug or connector is damaged, and do not use a loose outlet.
Make sure the cord does not get caught in the rotary brush of the power head.

Do not handle the plug (insert the plug into an outlet or remove the plug from an outlet) with wet hands.
Do not touch the terminals on the AC adapter or vacuum cleaner.
To charge the vacuum cleaner, use the AC adapter that was provided with the vacuum
cleaner. Do not attempt to charge the vacuum cleaner by using other AC adapters.
Do not use the AC adapter that was provided with the vacuum cleaner to charge any oth-
er type of battery, even if the battery is a rechargeable battery.
Failure to heed this warning might cause fire or electric shock.
Power head (inlet)

Do not touch the safety switch or the rotary brush.
Failure to heed this warning might cause injury. Be careful es-
pecially around children.

Do not place the power head on parts of your body
(on top of your feet, etc.) when pulling the power head.
Failure to heed this warning might cause injury.
Rotary brush
Safety switch
Do not touch
Others

Do not use the vacuum cleaner near inflammable or combustible items or materials (kero-
sene, gasoline, paint thinner, benzine, toner, iron powder, detergents, large amounts of flour,
aerosol sprays, flammable gas, cigarette butts, etc.), or to clean up such items or materials.

Do not use the vacuum cleaner to clean up things with sharp points (thumbtacks, needles, toothpicks, hairpins, etc.).

Do not use the vacuum cleaner to clean up suds or foam from carpet cleaners or other types of detergents.
Do not use the vacuum cleaner outdoors.

Do not wash any part of the vacuum cleaner with water unless that part is listed as a
part that can be washed. Do not use the vacuum cleaner in the shower or bathtub.

Do not charge or store the vacuum cleaner in a location prone to high humidity.
Failure to heed this warning might cause eruption, fire, electric shock, or injury.
Do not lean the vacuum cleaner against a wall or other surface.
Make sure that the power head is attached when using the vacuum cleaner stand.
The vacuum cleaner might fall over, becoming damaged or causing injury or damage to the floor.
Foaming substances
such as carpet cleaners
Thumbtacks,
needles, toothpicks
Kerosene
Gasoline
Solvent
Combustible
gas
Toner, iron powder,
detergents, large
amounts of our, etc.
PV-XL300J_EN.indd 5PV-XL300J_EN.indd 5 2021/9/22 11:11:022021/9/22 11:11:02

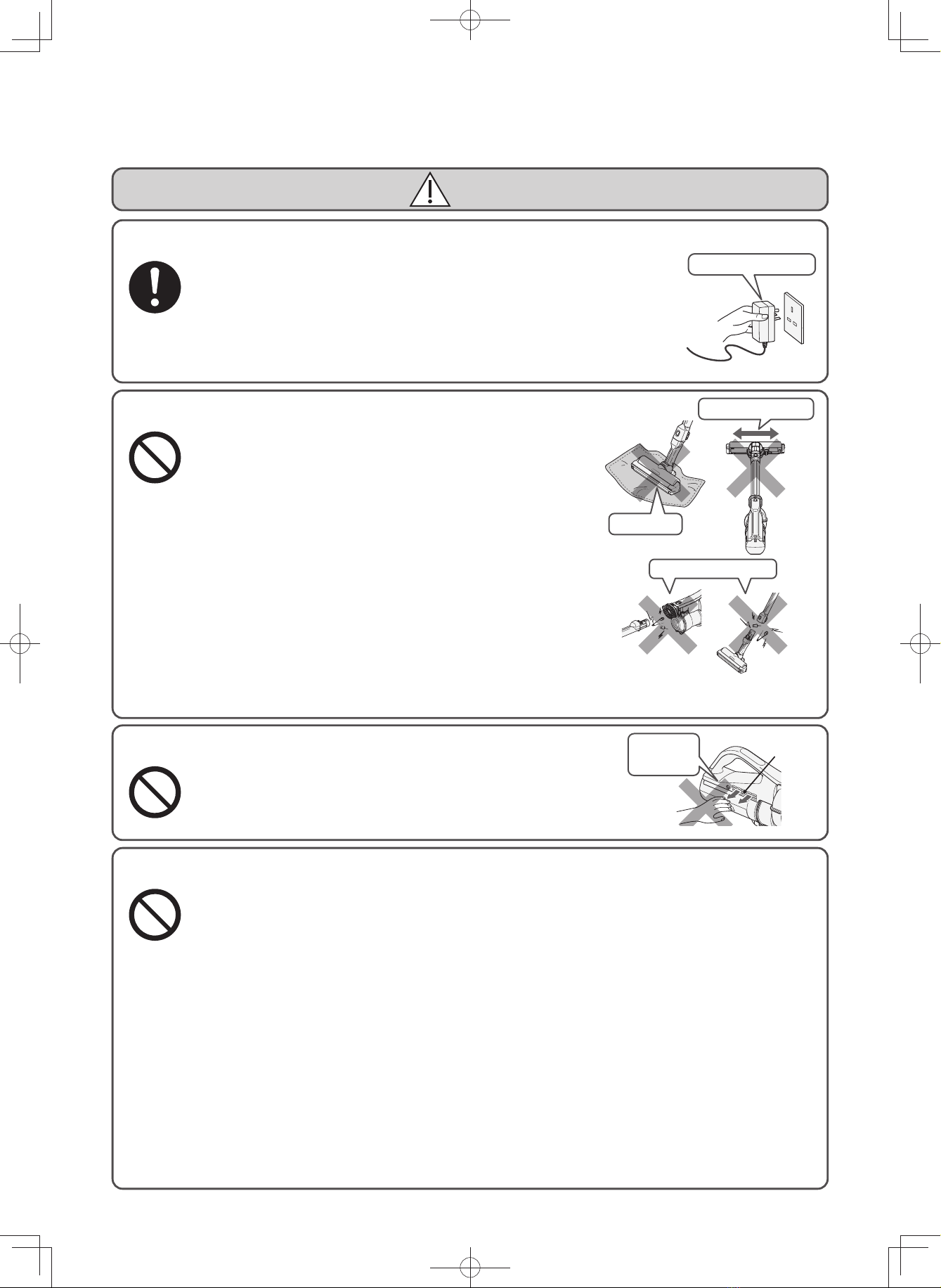

E-6
CAUTION
Socket, AC adapter, cord

When unplugging the AC adapter, hold and pull it not the cord
When unplugging the AC adapter connector from the vacuum clean-
er, hold and pull the tip of the connector, not the cord
Holding and pulling the plug by the cord might damage the cord or cause a
short circuit, which might result in an electric shock or fire.

If the cleaner is not used for a long period of time, be sure to unplug the AC adapter.
Failure to do so might cause the insulation to deteriorate, which might result
in an electric shock, short circuit, or fire.
Hold the AC adapter
Power head (inlet), extension pipe
Do not block.
Do not move it left and right
Do not stick pins

Do not let the vacuum cleaner run for an extended period of time with the inlet blocked.
Failure to heed this warning might cause overheating, leading to
fire or the deformation of the vacuum cleaner and power head.
Before performing maintenance on the vacuum cleaner,
remove the power head from the vacuum cleaner.
Failure to heed this warning might cause injury.

Do not attach the parts of this vacuum cleaner to other products,
or attach the power head of other products to this vacuum cleaner.
Failure to heed this warning might cause overheating, leading to fire or the deformation of the power head.

Do not clean using the tip of the extension pipe, and do not insert pins or
other items in the area joining the vacuum cleaner to the extension pipe.
Failure to heed this warning might cause short-circuiting, resulting in
electric shock, fire, or damage to the vacuum cleaner or to the floor.

Do not move the power head left and right while they are facing forward.
Failure to heed this warning might cause damage to the floor.

Do not use with foreign objects attached, such as sand or pebbles.
Failure to heed this warning might cause damage to the floor.

Do not use the vacuum cleaner under or in between blankets.
Failure to heed this warning might cause overheating, leading to fire or the deformation.
Exhaust port
Do not block the exhaust port.
Failure to heed this warning might cause overheating, leading to fire
or the deformation of the vacuum cleaner.

Do not expose your body to the air released from the exhaust port for long periods of time.
Failure to heed this warning might cause minor burns.
Exhaust
port
Do not expose
your body for long
periods of time
Others

When carrying the vacuum cleaner, do not hold the dust case.
The vacuum cleaner might fall and cause injury
or damage the floor.
Keep away from fire.
Failure to heed this warning might cause short-circuiting
due to vacuum cleaner deformation, resulting in fire.
If the vacuum cleaner is used near a flame, exhaust from the vac-
uum cleaner might cause the flame to grow into a conflagration.

Turn off the vacuum cleaner before performing maintenance.
Failure to heed this warning might cause injury.

Do not carry the vacuum cleaner around while
it is attached to the vacuum cleaner stand.
The vacuum cleaner might fall off, which could
cause an injury or damage the floor.
Do not clean using the tip of the vacuum
cleaner without the handy brush.
Failure to heed this warning might cause short-circuiting, resulting in
electric shock, fire, or damage to the vacuum cleaner or to the floor.
Do not drop the vacuum cleaner, power
head, extension pipe, AC adapter, vacuum
cleaner stand, or attachment accessories
from high places.
Failure to heed this warning might cause injury
or damage to the floor or dropped part.
Do not place the vacuum cleaner stand on
an unstable surface.
The vacuum cleaner might fall over, becoming
damaged or causing injury or damage to the floor.

Do not place the vacuum cleaner stand in
places with high condensation or humidity.
Failure to heed this warning might cause floor
discoloration.
Do not look directly at the LED light.
Failure to heed this warning might cause dam-
age to your eyes.
Safety precautions (Continued)
PV-XL300J_EN.indd 6PV-XL300J_EN.indd 6 2021/9/22 11:11:022021/9/22 11:11:02

E-7
Safety precautions
Battery (lithium-ion battery)
DANGER

Do not connect the battery to anything other than this vacuum cleaner. Do not disassemble, modi-
fy, or solder the battery. Do not charge the battery when it is not connected to the vacuum cleaner.
Replacement of the battery is to be performed by a trained service technician.
Do not remove the battery except when disposing of this vacuum cleaner.
Please consult with a Hitachi authorized service agent.
Do not touch the terminals or connect them by using metal items such as wires and pins.
Do not transport or store the battery in the same container as metal objects such as neck-
laces, hairpins, coins, or keys.
Do not subject the battery to strong physical shock. For example, do not put nails into the
battery, hit the battery with a hammer, step on the battery, or throw the battery.
Keep away from fire.
Do not leave the battery near sources of heat such as a fire or stove, under direct sunlight,
or in a car under the sun.
Do not use any battery other than the one specified for this vacuum cleaner.
Do not put the battery in a microwave or an oven.
Do not submerge the battery in water or other types of liquid, or expose it to water or other
types of liquid.
Failure to heed this warning might cause the battery to leak, generate heat, rupture, smoke, fire, electric shock, or injury.

If the liquid inside the battery enters your eyes, do not rub your eyes, but thoroughly wash them with
clean water immediately, and then consult a doctor.
Failure to do so might cause damage to your eyes.
WARNING
Do not use the battery if it is leaking or has an abnormal odor, discoloration, deformation, or dam-
age due to being dropped or you notice something unusual.
Failure to heed this warning might cause the generation of heat or smoke, rupturing, or fire. If liquid from the
battery leaks onto the floor, it might damage the floor.
If the battery is leaking, do not touch it with bare hands.
Failure to heed this warning might cause skin irritation.
Keep the battery away from infants and children.
Failure to heed this warning might cause electric shock or injury.
If liquid from the battery gets on your clothes, immediately wash them in clean water. If the liquid
gets on your skin, consult a doctor.
Failure to heed this warning might cause skin irritation.
Others
Children should be supervised to ensure that they do not play with the appliance.
This appliance is not intended for use by persons (including children) with reduced physi-
cal, sensory or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the appliance by a person respon-
sible for their safety.
Only allow children at least 8 years old to use the AC adapter. Give sufficient instruction so
that the child is able to use the AC adapter in a safe way and explain that it is not a toy and
must not be played with.
Instruct the child not to try and recharge non-rechargeable batteries because of the dan-
ger of eruption.
Cleaning and user maintenance shall not be made by children without supervision.
PV-XL300J_EN.indd 7PV-XL300J_EN.indd 7 2021/9/22 11:11:022021/9/22 11:11:02

E-8
CAUTION
When charging the battery, ensure that the ambient temperature is between 5˚C to 34˚C.
Charging the battery in temperatures outside of this range might prevent the battery from being fully
charged. As a result, the battery might take a long time to charge, or you might only be able to use the
vacuum cleaner for a short time. Failure to heed this warning might cause the battery to deteriorate.
If the battery is still charging longer than the specified charging time, unplug the AC adapter.
Do not touch the battery for a long period of time while charging or operating the vacuum cleaner.
Failure to heed this warning might cause minor burns.
Store the vacuum cleaner in a location with low humidity or little dust and debris.
Failure to heed this warning might cause the generation of heat or smoke, rupturing, or fire.
Usage notes
To prevent malfunction and other problems, be sure to follow these instructions.
Be sure to thoroughly read these instructions, as well as those indicated by Note in other
locations in this manual, and to use the vacuum cleaner in accordance with these instructions.

Do not subject the vacuum cleaner, the power head,
extension pipe, vacuum cleaner stand, AC adapter, or
attachment accessories to strong physical shock.
Failure to heed this warning might cause the deformation or damage.
Do not use the vacuum cleaner to clean up the fol-
lowing objects.
Failure to heed this warning might cause strange odors or malfunction.
- Water or other liquids, wet objects, or desiccants
-
Large amounts of sand or powder, long string or thread, or glass

Do not ride on the vacuum cleaner, the pow-
er head, vacuum cleaner stand, or attach-
ment accessories.
Doing so might cause malfunctions.

Wash the parts with water and air dry them
in the shade.
Failure to heed this warning might cause
strange odors or malfunction.
Safety precautions (Continued)
Controls and indicators
Control buttons
To operate
The LED light on the power head lights up.
(P.E-2)
Turbo:
Press "Standard/Turbo" button again
to active "Turbo".
For powerful cleaning in heavily dirty
areas (about 5 seconds)
(P.E-12)
Press the or button.
For carpet cleaning
For normal cleaning
Control button
To stop operation
Press the button.
PV-XL300J_EN.indd 8PV-XL300J_EN.indd 8 2021/9/22 11:11:022021/9/22 11:11:02

E-9
Safety precautions Usage notes
Indicator during charging
Battery
indicator
Battery indicator Charging status
On
The battery is charging.
Charge time is approx. 3.5 hours. Depending on the ambient
temperature, usage time, etc, if the battery's temperature is
very hot, charging may automatically go into standby until
the temperature lowers to an appropriate temperature for
charging, causing the charging time to increase.
(P.E-28)
Off
The battery is fully charged.
When the battery is fully charged, the battery
indicator turns off.
*
If the battery indicator blinks rapidly (about two times per second), this
indicates an abnormality with the AC adapter or the battery. (P.E-28)
* If you disconnect the AC adapter connector from the vacuum
cleaner after the battery indicator turns off, and then connect it
to the vacuum cleaner back, the battery indicator turns on, but
this does not indicate a problem with the vacuum cleaner.
WARNING
Do not touch the terminals on the AC adapter or vacuum cleaner.
Failure to heed this warning might cause electric shock or injury.
Indicators during use
Battery
indicator
Filter
indicator
Indicator Operating status
Off The remaining battery level is high.
Blinking
(about once per second)
The remaining battery level is low.
Charge the battery.
Blinking
(about once per second)
The filter needs to be cleaned (P. E- 18,
E- 19, E- 21, E- 22) .
* Depending on the environment in which the vacuum cleaner is to be
used, the battery indicator might start blinking earlier.
* If the battery indicator blinks rapidly (about two times per second),
this indicates an abnormality with the battery. (P.E-28)
* If the battery indicator blinks slowly (about once per four seconds),
this indicates that the vacuum cleaner might be running in safe
mode with reduced suction power in order to prevent overheating
of the vacuum cleaner's motor or battery. (P.E-25)
* The lter indicator does not blink while the vacuum cleaner is
being operated in the Standard setting.
CAUTION
If the filter indicator blinks, do not repeatedly start and stop operating the vacu-
um cleaner without cleaning the filter.
Failure to heed this warning might cause a malfunction.
If the filter indicator on the vacuum cleaner blinks while the vacuum cleaner is running:

Empty the dust case and remove any dust and debris attached to each of the filters. (P.E-16 to E-19)

If the filter indicator on the vacuum cleaner blinks while the vacuum cleaner is running, even though dust
and debris has already been removed from each filter, wash each filter with water. (P.E-21, E-22)
Controls and indicators
PV-XL300J_EN.indd 9PV-XL300J_EN.indd 9 2021/9/22 11:11:022021/9/22 11:11:02

E-10
Charging the vacuum cleaner
Charge the battery before using the vacuum cleaner. The battery is not fully charged at the time of purchase.
It generally takes about 3.5 hours to charge the battery. (It might take longer to charge the battery de-
pending on factors such as the ambient temperature and how long the vacuum cleaner was in use.)
1Plug the AC adapter into an outlet.
WARNING
Do not use an AC adapter other than the adapt-
er that was included with the vacuum cleaner.
Failure to heed this warning might cause
electric shock, injury, or malfunction.
OutletAC adapter
2Charging on the vacuum cleaner stand Direct Charging
Dock the vacuum cleaner on
the vacuum cleaner stand.
Insert the hook for the stand into the at-
tachment groove of the stand.
Insert the connector of the AC adapter
into the terminal on the vacuum cleaner.
Connector
AC adapter
Attachment groove
Stand
Hook for
the stand
Power head
Vacuum cleaner
stand
Battery
indicator
Terminal
WARNING
Risk of injury
Make sure that the power head is attached
when using the vacuum cleaner stand.
The vacuum cleaner might fall over,
becoming damaged or causing
injury or damage to the floor.
CAUTION
Risk of damage to the floor.
Place the vacuum cleaner
stand on a flat surface
such as the floor.

Do not drag the vacuum clean-
er stand or the vacuum cleaner
while it is resting on the floor or
any other flat, level surface.
Insert the connector of the AC adapter
into the terminal on the vacuum cleaner.
Battery indicator
Terminal
AC adapter
Connector
CAUTION
Risk of damage to the floor.

When inserting the
connector into the vacuum
cleaner to charge, place
the vacuum cleaner on a
flat surface e.g. floor.

Do not drag the vacuum
cleaner while it is resting
on a flat surface e.g. floor.
PV-XL300J_EN.indd 10PV-XL300J_EN.indd 10 2021/9/22 11:11:032021/9/22 11:11:03

E-11
Charging the vacuum cleaner
When it is used for the first time or when it is not used for several days,
The operating time might become shorter or the charging time might become longer.

We recommend that you replug the connector into the vacuum cleaner to recharge the battery before use.
When you insert the connector into the terminal of the vacuum cleaner, the battery indicator lights up.
If you disconnect the AC adapter from the vacuum cleaner after the battery indicator turns off (indicating
that the battery is fully charged), and then reconnect the AC adapter to the vacuum cleaner, the battery
indicator turns on (indicating that the battery is being charged), but this does not indicate a problem with
the vacuum cleaner.
While the vacuum cleaner is being charged, the vacuum cleaner or AC adapter might become hot, but
this does not indicate a problem with the vacuum cleaner.
The vacuum cleaner will not operate even if the control buttons is pressed while charging.
When charging the battery, make sure the ambient temperature is between 5˚C to 34˚C. Charging the
battery in temperatures outside of this range might prevent the battery from being fully charged. As
a result, the battery might take a long time to charge, or you might only be able to use the vacuum
cleaner for a short time.
If you charge the battery in a hot or cold area for 3 hours or more, the battery indicator will blink rap-
idly (estimated twice per second). In this case, recharge it in place with an ambient temperature be-
tween 5˚C to 34˚C.
If the battery indicator does not turn on, or it turns on briefly and then turns off, remove the connec-
tor of the AC adapter from the vacuum cleaner and then insert the connector back into the vacuum
cleaner.
Charging it near a radio might cause sound interference when the radio is in operation.
When charging the vacuum cleaner, plug the AC adapter into an outlet that is at least 2 meters away
from any radio equipment.
Note
To prolong battery life
Be sure to charge the vacuum cleaner after each use, even if you only used the vacuum cleaner for a
short period of time.
If the vacuum cleaner is not to be used for more than a month, please fully charge the battery before stor-
ing it. Charging it once a year if the vacuum cleaner is not in use will prolong the battery life. (Storing a
depleted battery will deteriorate the battery performance and battery life.)
If the vacuum cleaner stops in the middle of operation, because the battery has run out, you might still
be able to use the vacuum cleaner for a short while by pressing the control buttons. However, this type of
action is not recommended. Performing this type of action will shorten the battery life.
PV-XL300J_EN.indd 11PV-XL300J_EN.indd 11 2021/9/22 11:11:032021/9/22 11:11:03

E-12
1
Remove the connector of the AC adapter from the vacuum cleaner.
Hold the connector of the AC adapter and pull it out *direction as shown in the right diagram.
If you press the control buttons during charging, the cleaner will not operate.
CAUTION
When unplugging the connector, hold it. Do not pull
on the cord.
Pulling on the cord might damage the cord and cause short-circuiting,
resulting in electric shock or fire.
Do not subject the connector to excessive force.
Doing so might cause malfunctions.
Note
2Attach an attachment.
When replacing an attachment, remove it by pushing the release
button and pulling the attachment in the direction of the arrow. Release button
3Press the or button.
The continuous operating time of the vacuum cleaner is approximate-
ly 8 minutes if used on the High setting, approximately 30 minutes if
used with the power head on the Standard setting, and approximately
45 minutes if used without the power head on the Standard setting.
* The operation time may be shorter in cold places.
Press the same control button again
during operation.
Turbo: Operates for 5 seconds. Suction is higher than "High" setting.
Resume back to original setting after 5 seconds.
* To switch to the High or Standard setting while operating in the
Turbo setting, press the button to end operation, and then
press the or button again.
* To repeat Turbo operation, return to original setting and restart
Turbo setting.
*
Using the Turbo setting will shorten the continuous operation time.
To protect the vacuum cleaner motor, the Turbo setting may not be
available when the battery level is low or if the lter is clogged.
CAUTION
Risk of injury or damage to the floor.
Do not strongly press or hit the vacuum
cleaner against the floor.
The vacuum cleaner might be deformed
or the dust case might fall.
4To stop, press .
5Charge the vacuum cleaner after using it. (P.E-10)
To operate
Terminal
Connecto
r
PV-XL300J_EN.indd 12PV-XL300J_EN.indd 12 2021/9/22 11:11:032021/9/22 11:11:03

To operate Using the attachments
E-13
Using the attachments
CAUTION
Risk of damage to the floor
If you move the vacuum cleaner while protrusions such as the
vacuum cleaner or dust case are in contact with the floor surface,
the floor surface might be damaged. Protrusion
Power head
Use in accordance with the floor type
Vacuum efciently and thoroughly by moving the power head back and forth across oor.
Please use it by attaching it to the inlet of the vacuum cleaner or the extension pipe.
Carpet
Clean by moving back and forth. Dust and debris will be collected thoroughly
when pulling back.
When cleaning a new carpet for the first time, the cleaner might collect many loose threads.
Flooring/Tatami
To prevent damage to the floor, move along the grain of the flooring.
When cleaning a new tatami, its surface might become polished.

If dust and debris still remain on the floor after you move the vacuum cleaner toward you, lift the
power head and then move the vacuum cleaner away from you (back over the dust and debris).
WARNING
Risk of injury
Do not place the power head on parts of your body (on top of
your feet, etc.) when pulling the power head.
It might get your body parts caught in the rotary brush.
CAUTION
Risk of damage to the floor
Do not leave the power head in the same position
while the vacuum cleaner is running.
Do not firmly press the power head against the floor.
The floor might be damaged if it is easily damaged especially
such as cypress or padded flooring*.
*
Padded flooring is flooring where the surface is cushioned using
vinyl chloride, etc.
Firmly pressing the power head against uneven surfaces such
as thresholds might wear out the wheels and damage the floor.
If dust and debris gets tangled in the wheels, the wheels cannot
rotate, which might cause wear and tear and floor damage.
Perform periodic maintenance (about once a month). (P.E-23, E-24)

After extended use, the brushes, wheels, and rotary brush might
wear down. Using the power head while they are worn out might
damage the floor. You cannot replace the brushes or wheels by
yourself. Please contact a Hitachi authorized service agent to have
the brushes, wheels, and rotary brush replaced as a set. The rotary
brush can be purchased as a replacement part. (P.E-30)
Wheels
Brushes
Brushes
Rotary brushInlet
The vacuum cleaner might have difficulty vacuuming in Turbo mode depending on the floor type e.g.
carpets with long fibers. In such case, switch to "Standard" setting. In such case, switch to the "Stan-
dard" operation.
If the suction power becomes weak, there might be dust and debris blocking the power head inlet.
In this case, perform maintenance for (wash with water) each filter. (P.E-21, E-22)
Do not push the power head against the floor with excessive force, because the power head might
leave a mark on the floor.
If the power head leaves a mark on the floor, please refrain from using the vacuum cleaner in that area,
and remove the mark by using a soft cloth.
Note
PV-XL300J_EN.indd 13PV-XL300J_EN.indd 13 2021/9/22 11:11:032021/9/22 11:11:03

E-14
The safety switch of the power head
When you lift the power head from the floor, the safety switch activates and the rotary brush
stops rotating for your safety.
Stop
Rotate
Safety switch
For information on maintaining the safety switch, (P.E-23)
WARNING
Risk of injury
Do not touch the safety switch or the rotary
brush of the power head.
The rotary brush might rotate.
Be careful especially around children.
Multi angle head
Turning the handle changes the orientation of the power head.
Narrow places can be efciently vacuumed.
Rotate Rotate
Rotate to the left Rotate to the right
CAUTION
Risk of damage to the floor
Do not move the power head left and
right while they are facing forward.
Do not pull the power head backwards
while holding it aloft.
Risk of damage
Do not strongly hit the power head against a wall or
corner.
Do not press hard against the floor surface with the
power head facing left or right.
Handy brush
Attach to the vacuum cleaner before use.
Attachments can be applied while the handy brush is attached to the vacuum cleaner.
Attaching the handy brush
Match the position of the protrusion on the side of the
handy brush with the groove on the vacuum cleaner.
Press in the direction of the arrow.
Groove Protrusion
Detaching the handy brush
Press the grooved area of the handy brush and pull
in the direction of the arrow.
Grooved
area
CAUTION
Risk of electric shock, fire, malfunction or damage.
Do not clean using the tip of the vacuum cleaner without the handy brush.
Do not press against items that are particularly easy to be damaged, such as pianos.
It might be damaged if excessive force is applied.
If the handy brush is pressed down on floors with too much force, it might become damaged, crack, or damage to the floor.
The handy brush can be washed with water. After washing, dry it thoroughly in the shade before using.
Using it while it is still wet might result in malfunction.
Note
Using the attachments (continued)
PV-XL300J_EN.indd 14PV-XL300J_EN.indd 14 2021/9/22 11:11:032021/9/22 11:11:03

Using the attachments
E-15
Crevice nozzle
It is used to clean narrow spaces and corners. Please use it by screwing to the inlet of the vacuum cleaner or the extension pipe.
InletCrevice nozzle
Insert
Extension pipeCrevice nozzle
Insert
For vacuuming corners of room For vacuuming corners of a sofa
Broom brush
The combination of a broom-like brush and a thin tube is convenient for cleaning sash grooves. You can change the angle ac-
cording to the place you want to clean. Please use it by attaching it to the inlet of the vacuum cleaner or the extension pipe.
You can change the angle.
CAUTION
Risk of damage
Do not press against areas that are particularly easy to be damaged, such as pianos.
It might be damaged if excessive force is applied.
∙ Do not drop or apply too much force in the direction of the Aarrow.
∙ If the tube is pressed down on floors with too much force, it might become
damaged or cracked.
∙ When changing the angle, rotate the brush while holding the grooved area
part.
Do not strongly press the tube against the floor since it might leave a mark
on the floor. If the tube leaves a mark on the floor, refrain from using it at
that location, and remove the mark using soft cloths, etc.
The broom brush can be washed with water.
After washing, let the brush dry thoroughly in the shade, and use it.
If you use it while it is wet, it might cause an abnormal odor or malfunction.
If there is dust on the tip or inside the nozzle, the suction power will reduce,
so remove the dust using tools such as tweezers.
Grooved area
Tube
A
Note
When the brush part comes off from the base part (how to attach the brush part)
Hold the grooved area of the brush
part and align the groove of the
brush part with the protrusion of
the base part.
Press until it fits en-
tirely.
Rotate the brush side to
the state of the diagram.
BaseBrush
Groove Protrusion
PV-XL300J_EN.indd 15PV-XL300J_EN.indd 15 2021/9/22 11:11:032021/9/22 11:11:03

E-16
Emptying the dust case and cleaning the filters
Cyclonic vacuum cleaners have the advantage of not requiring paper filter bags. To
vacuum with strong suction power, we recommend that you remove dust every time
you use your cleaner and clean the filter frequently.
Empty the dust case before exceeding the "Max line" (guideline).
If dust rises above the "Max line", it might be difficult to remove the dust from
the dust case.
Dust might not rotate depending on the type of dust and how it accumulates.
This is normal.
Fine dust might disperse in the air when the dust case is emptied.
Empty the dust case in a well-ventilated environment such as outdoors, or wear a
mask and avoid breathing in the dust.
Note
Max
Dust
case
Checking the level of dust and debris in dust case
Check whether the dust and debris in the dust case has reached the max line.
Max
Max
Dust case
Max line

When dispose the dust and debris from the dust case, remove
the dust and debris adhered to the dust case and clean the lter.
(P.E-16 to E-18)
If dust and debris is wrapped around the inner
cylinder lter and cannot be removed, detach and
maintain the inner cylinder lter. (P.E-19)
Emptying the dust case [when attached to the vacuum cleaner]
1
Tilt the vacuum cleaner and position
the dust case to face the trash can.
Press the dust disposal
button.
Dust and debris might be hard to remove
depending on the type of dust and debris
and how it accumulates. Add vibration by
tapping the sides of the dust case or de-
taching the inner cylinder filter (P.E-19)
Note
2
Remove attached dust and debris.
Remove the dust and debris and ne dust
and debris using soft cloths, etc.
CAUTION
Risk of injury
You might have unintentionally vacuumed
sharp objects such as glass shards or pins.
Be careful when performing maintenance.
3Close the dust case lid. Close until you hear a "click" sound.
Click
Dust case lid
In order to maintain strong sucking
power, regularly perform frequent
maintenance of the filter.
(P.E-18, E-19, E-21, E-22)
Note
Dust disposal
button
PV-XL300J_EN.indd 16PV-XL300J_EN.indd 16 2021/9/22 11:11:032021/9/22 11:11:03

Emptying the dust case and cleaning the filters
E-17
Emptying the dust case [When removed]
1Remove the dust case.
Hold the dust case and pull down the
dust case release button.
Dustdisposal
Dust case
release button
Pull
down
Pull out the dust case in the arrow direc-
tion.
Dustdisposal
Pull out Dust case
Dust collection
inlet

Do not detach the dust case with the vacuum cleaner set down. Dust and debris might spill.

If dust and debris spills inside the vacuum cleaner, remove the dust and debris and attach the dust case as it was.

Do not turn the dust and debris collection inlet downward when holding the dust case or placing it.
Dust and debris might spill.
Note
2
Open the dust case lid and empty the dust case.
Make sure the dust case lid is facing down, and then press the dust and debris disposal button.
Dust and debris might be hard to remove depending
on the type of dust and debris and how it accumulates.
Add vibration by tapping the sides of the dust case or
detaching the inner cylinder filter. (P.E-19)
Note
3Remove attached dust and debris.
Detach the maintenance brush attached
to the back side of the dust case.
Remove the dust and debris and fine dust and debris
with the maintenance brush.
4Close the dust case lid. Close until you hear a "click" sound.
Dust case lid
Click
In order to maintain strong suck-
ing power, regularly perform fre-
quent maintenance of the filter.
(P.E-18, E-19, E-21, E-22)
Note
Dust case
lid
Trash can
Dust and debris
disposal button
Dust and
debris
Open
Maintenance
brush
CAUTION
Risk of injury
You might have unin-
tentionally vacuumed
sharp objects such as
glass shards or pins. Be
careful when perform-
ing maintenance.
PV-XL300J_EN.indd 17PV-XL300J_EN.indd 17 2021/9/22 11:11:042021/9/22 11:11:04

E-18
Cleaning the filters
Clean filter
1Open the clean filter.
Set the dust case on the
floor.
Dust case
Grab and hold the lower part of the dust case, lift up the knobs of the
clean filter, and open the cover in the direction indicated by the arrow.
Clean filter
Knobs
2
Remove dust and debris from the clean filter
Detach the clean filter.
Clean filter
Detach
Wash the sponge filter
with water if there is dirt
on the filter.
Note
Sponge
filter
(P.E-21)
Be sure to attach the sponge
filter after emptying the dust
case or cleaning the filters.
Remove attached dust and debris
by using the maintenance brush.
Maintenance brush

When removing dust and debris, do not slap the clean filter
onto the floor, etc. Failure to do so might cause damage.
To clean the clean filter, use the maintenance brush that
was provided with the vacuum cleaner.
Note
Perform maintenance (wash with water) when you are concerned about dirt or the
suction power is weak. (P.E-21)
3Attach the clean filter.
Attach the clean lter in the reverse order of
removal. Clean filter
Attach
4Close the clean filter.
Press rmly until you hear a "click" sound.
Make sure the sponge filter
is attached.
Note
Click
Clean filter
Emptying the dust case and cleaning the filters (continued)
PV-XL300J_EN.indd 18PV-XL300J_EN.indd 18 2021/9/22 11:11:042021/9/22 11:11:04

Emptying the dust case and cleaning the filters
E-19
Inner cylinder filter
1
Open the dust case lid (P.E-17) and remove the inner cylinder filter.
Turn the inner cylinder filter in the
Unlock direction as far as it will go.
Lift the inner cylinder filter straight up.
Inner cylinder filter
Dust and debris might spill when
you remove the inner cylinder filter.
To catch the dust and debris, spread
newspaper on the ground before
you remove the inner cylinder filter.
Note
2
Remove dust and debris from the inner cylinder filter.
You can easily remove dust and debris caught in the inner cylinder
lter by sliding the maintenance brush in the direction indicated by
the arrow.
3
Attach the inner cylinder filter and close the dust case lid. (P.E-17)
Match the inner cylinder filter with
the center of the dust case.
Push the inner cylinder filter down and turn the
inner cylinder filter in the Lock direction until
you hear a click.
Midsection
Inner cylinder filter
Dust case
Dust case lid
Inner cylinder filter
Inner cylinder filte
r
If the filter is not securely attached, it might fall when you empty the dust case. Similarly, if you use the
vacuum cleaner without securely attaching the filter, strange sounds might come from around the filter.
Note
4Attach the maintenance brush to the back side of the dust case.
Attach the maintenance brush to the
hook of the dust case.
Firmly attach the knob of the maintenance
brush until you hear a "click" sound.
If the vacuum cleaner is started without the maintenance brush attached to the back side of the dust case
equipped on the vacuum cleaner, the brush might become detached. Securely attach the maintenance
brush to the back side of the dust case.
Note
Maintenance brush
Inner cylinder filter
Maintenance
brush
Knob
Dust case
Hook
Attach
Push
Click
PV-XL300J_EN.indd 19PV-XL300J_EN.indd 19 2021/9/22 11:11:042021/9/22 11:11:04

E-20
Maintenance
To clean with high suction power, we recommend performing frequent maintenance.
Vacuum cleaner, attachments, attachment accessories
Perform maintenance when you are concerned about dirt.
Moisten a soft cloth and then wring it out thoroughly.
Do not use alcohol, cleansers, chemical dust and debris cloths, etc.
They might cause cracks or discoloration.
Note
Attaching the dust case
Attach the dust case
Hook the grooves (two places) of the dust
case on the protrusions (two places) of
the vacuum cleaner.
Dust case
ProtrusionDust case
Groove
Firmly attach the dust case until you hear a
"click" sound.
Hold the vacuum cleaner in the positions shown in the gure.
It might be difcult to install the vacuum cleaner if you
hold other parts of it.
Dustdisposal
Click
Dust case
Emptying the dust case and cleaning the filters (continued)
Terminals on the AC adapter
Disconnect the AC adapter from the outlet, and use a soft, dry
cloth to wipe the terminals of the connector.
AC adapter
Plug
Connector
Outlet
Terminal
CAUTION
Risk of injury
Before performing maintenance on the vacuum cleaner, make sure the vacuum cleaner is turned off.
WARNING
Risk of eruption, fire, electric shock, or injury.
When cleaning the vacuum cleaner and the AC adapter, disconnect the connector of the
AC adapter from the vacuum cleaner, and unplug the plug from the outlet.
When maintaining the vacuum cleaner, remove the connector from the vacuum cleaner.
Do not use flammable objects, combustibles (thinner, benzene), etc.
PV-XL300J_EN.indd 20PV-XL300J_EN.indd 20 2021/9/22 11:11:042021/9/22 11:11:04
