Chapter 1. Welcome
1-1 Our Invitation to HiTi Photo
Printer Family
It is our pleasure to have you onboard as the member of HiTi Photo Printer
family. We thank you for your patronage and hope this is just the beginning of
our long-term association. Through our printer, picture will be transformed into
masterpieces. HiTi Photo Printer offers tremendous creativity; digital age will
become full of wonderful memories and treasures.
Space Age Design with Ultra Slim Dimensions
Boxy and bulky will be words from your grandparent's dictionary. HiTi Photo
Printer gives you a brand new revolution on what printer is all about.
Distinctive color design and vertical body makes your desk bigger than it is.
The joy of darkroom will come alive again. It is the place where your memory
will last forever.

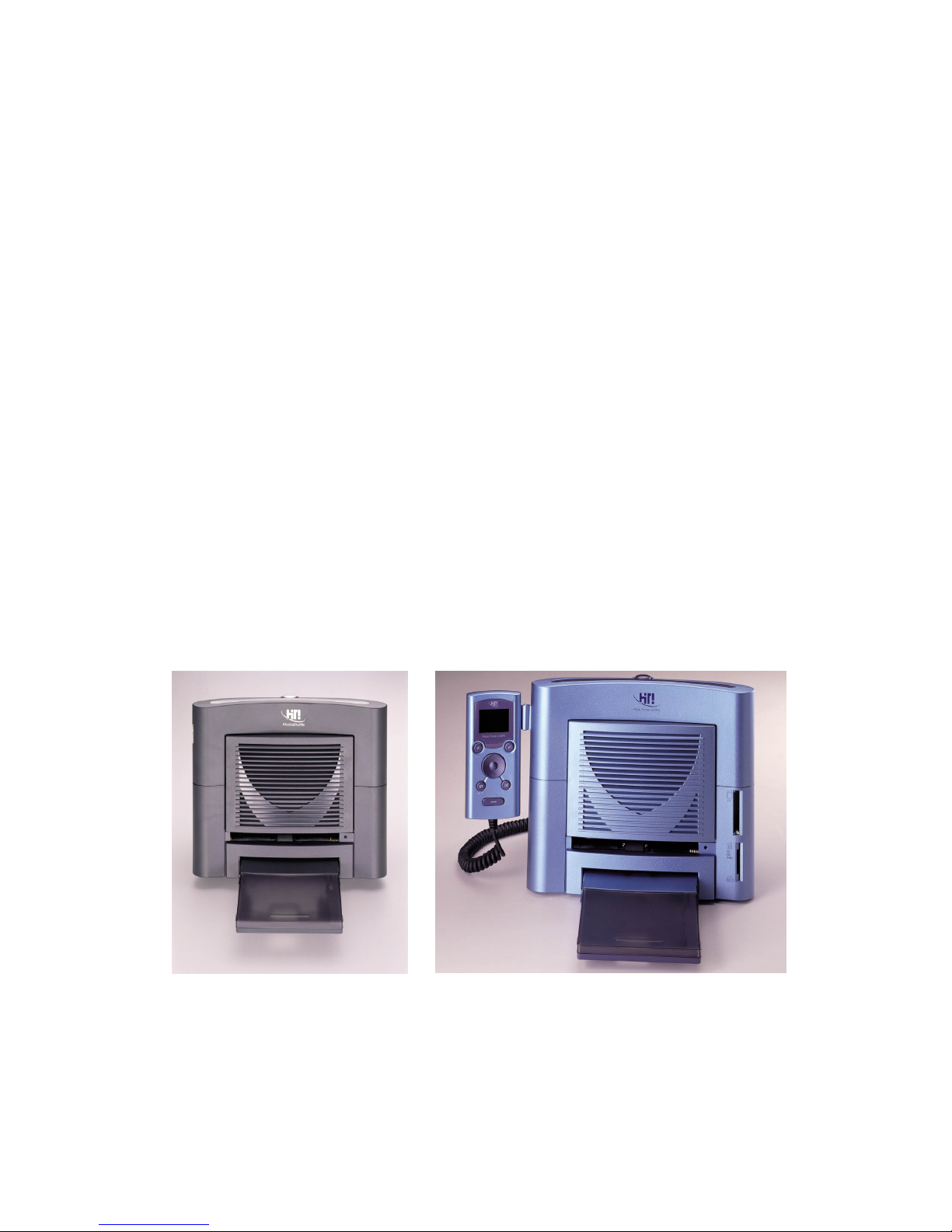

PhotoShuttle 640PS

5
USB Connection
USB connection allows you to connect your printer with any systems or
devices that support USB feature.
Titan of Software Program
Our Desiree is a perfect tool that will perpetuate your Photo Printer to its
optimal performance. Flexible in design, the software allows you to be creative
and innovative. Photo image, calendar, stickers, and many other features will
be just a finger away. The sky is the limit; color, gamma, brightness, tones, hue
and many more refinements are just a button away.
Eye Catching Photo Result
Our naked eyes are the most distinguish judge when it comes to resolution.
Images that are less than 300 dpi can be consider insufficient. With “Dye
Diffusion Thermal Transfer”, HiTi Photo Printer will give you picture with 16.77
million colors and 300 dpi quality to achieve photo quality result in the comfort
of your home. HiTi Photo Printer quality will stand-up with any other printers
that are in the market today.

6
1-2 Inside view of HiTi Photo
Printer
Led Light
Turn the power on. The printer will automatically start to initialize and LED
blinking green color about 5 seconds. Then LED turn to stable green color. If
not, please begin to check.
Paper Cassette
This is the paper holder for you to insert the paper into. Please slide the paper
all the way in and use caution when inserting the paper Cassette into the
Paper Cassette Slot. The paper will go back and forth between the cassette
cover and printer 4 times.

7
Ventilation Holes
Ventilation holes are located in the front and back of the printer. Please allow
adequate airflow by removing all matters from the surface of the ventilation
holes. These holes are designed to cool down the printer during operation.
ID Button
To replace used cartridge. Please firmly press down the push button on the top
of the printer.
Ribbon Cartridge Socket
Ribbon cartridge is to be inserted into the correct space. Please pay attention
to the orientation of the ribbon cartridge during installation process.
Paper Output Slot
Please keep clear of the output slot during printing process.

8
Power Switch
This is where printer can be turned.
Power Socket
Connect your power line here.
USB Connector
Please connect USB cable to the connector to your other device, such as PC
and other peripheral devices.
Specification Label
Printer specification and detail information.
Eject Button
Paper Out Slot
Spec Label
USB socket
Paper Tray
AC Power Switch
AC Power Socket

9
Chapter 2 Quick Installation
2-1 Standalone Installation (640PS)
1. Plug the controller cable into the slot in the rear of the printer
2. Please make sure the USB cable is not connected to PC
3. Turn on the power.
4. The main page of the LCD will appear, and ready for the further operation.
Note: If the USB cable is connected to PC, the printer will be in PC Mode
(Shown on the LCD), the controller function will be disable at
the same time.
2-2 Standalone Operation Flow (640PS)
1. Introduction of the Controller

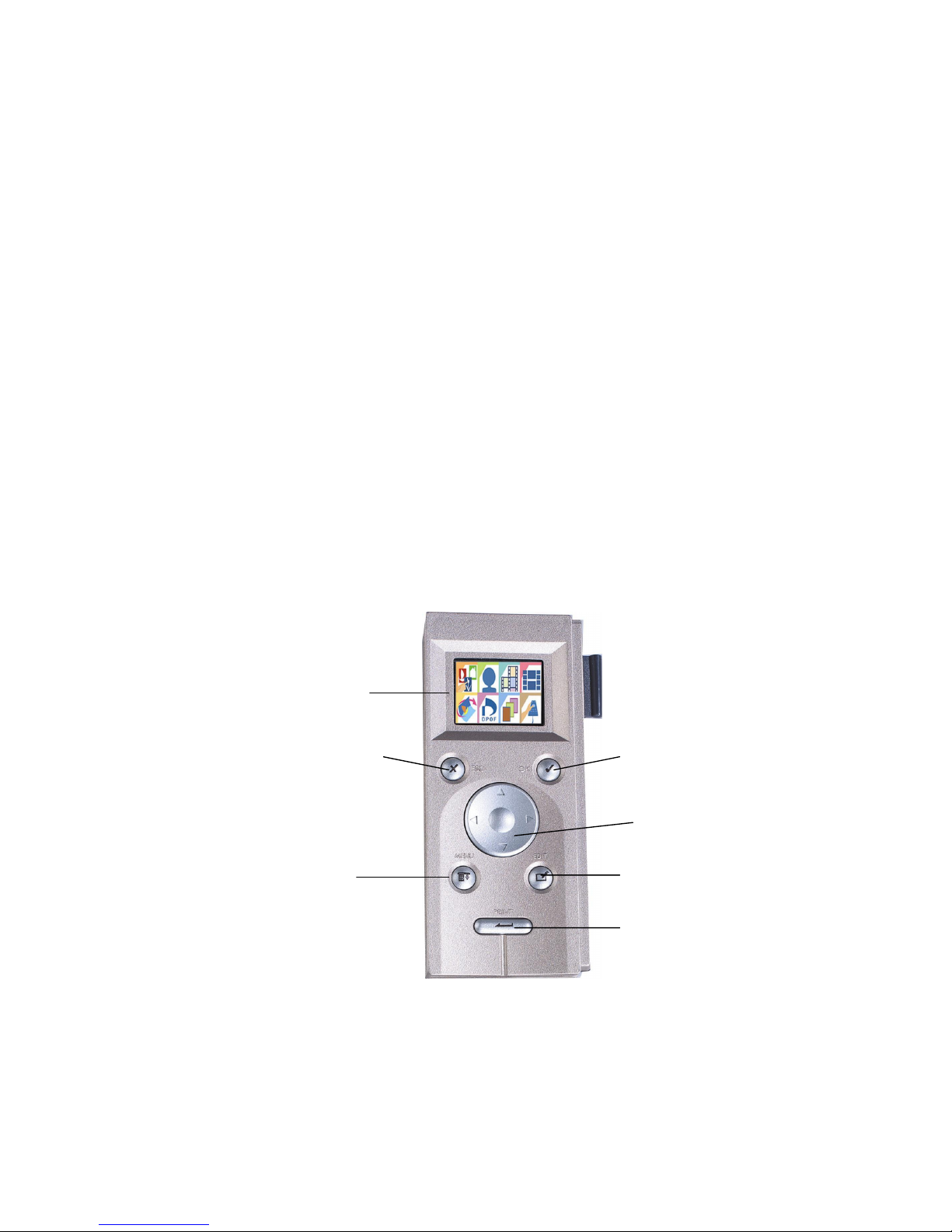

The HiTi Photo Printer 640PS Controller provide a full-function printing
interface, the details are as follows:
-1.6 inches TFT LCD: Totally 60K pixels and full color (24bit) performance on
the panel, all the images preview, editing and printing related information is
accessible through the OSD (On Screen Display) design.
LCD
ESC
MENU
OK
Arrow Key
EDIT
PRINT

10
-OK: Confirmation. Confirm the image chosen or the result of the image
editing.
-ESC: Escape to the upper layer or cancel the current job.
-Menu: The main page of the OSD. Note: All the jobs in process will be
aborted at the same time.
-Edit: Enter the Editing Page of the OSD, please refer to Photo Printing for
details.
-Print: Press this button and all the jobs have been chosen will be printed in
batch.
2. Main Page
-The Function List: Totally 8 functions, all the functions will be described
individually.
-Memory Status: Display the current active memory card (1: CF and
2:Multi-Slot). Please go to Setup page if you want to switch the cards manually.
1) Photo
Operation Flow:
Preview Page (4 images at a time)
Press the arrow keys, stop at the image you want to print or edit, press OK
Press the UP and Down arrow keys to select the copies you want to print
(Default setting is 1)
Press OK to confirm and back to the preview page
Continue choosing the images
Press Print Button to proceed the batch printing
Quick Photo
ID Photo Index
Sticker
DPOF Print All Setup

11
Press Print again to reconfirm and start printing
Note:
If two slots (CF/Micro Drive and SM/SD/MMC/MS) have been already
inserted, printer will only let the card inserted first active, if you want to
change the memory card status, please:
-Pull out the other card
-Enter the Setup page and run the card selection switch
Information for Preview Page:
The images in Preview Page are the thumbnail of all the images captured by
the digital cameras, all the EXIF files (supported by all the digital cameras in
the market) come along with the thumbnail files. There are some cases that
the Preview Page cannot show the thumbnail image properly:
-The thumbnail is damaged or the file doesn’t support thumbnail (not EXIF
format)
Note: The damage of the thumbnail doesn’t mean the image file is
damaged too
-The image file in memory card is damaged
-The total pixels of the image files are more than 8M pixels
-The size of the image file is larger 8M bytes.
Information for Editing Page:
In the Preview Page, you can press the Edit button anytime to proceed the
image editing, the functions include:
-Move: Press the arrow keys to make the movement in four directions.
-Rotate: Press the Left and Right keys to make the 90-degree rotation, right for
clockwise and left for counterclockwise).
-Resize: Press the Up ad Down keys to make image resizing, Up for
enlargement and Down for contraction.
-Copies: Set the copies to be printed between 1 and 99
-Enhance:

12
 Brightness: Right for increase and Left for decrease
 Contrast: Right increase and Left for decrease
 Color R/G: Right for more red tone and Left for more green tone
 Color B/Y: Right for more blue tone and Left for more yellow tone
 OK: Save the change in enhance and back to Image Editing Page
-OK: Save the change and back to Preview Page
Note:
It takes about 5 to 10 seconds to decode the image file when entering the
Editing Page, the actual time depends on the file size and total pixel of
the images.
2) ID Photo
Operation Flow:
Preview Page
Press the arrow keys, stop at the image to be printed and enter the ID Photo
Editing Page (Note)
Back to Preview Page
Continue choosing other images
Press Print to make the ID Photo batch printing
Press Print to reconfirm and start printing
Note:
The additional function in the ID Photo Editing Page is the ID format
selection, you can switch between following ID formats
2”x2” ID: Print 2 ID photo on 4x6 photo paper
50x50 mm ID: Print 6 ID photos on 4x6 photo paper
50x70 mm ID: Print 2 ID photos on 4x6 photo paper
45x65 mm ID: Print 4 ID photos on 4x6 photo paper
41x51 mm ID: Print 4 ID photos on 4x6 photo paper
40x50 mm ID: Print 6 ID photos on 4x6 photo paper
35x50 mm ID: Print 8 ID photos on 4x6 photo paper
35x45 mm ID: Print 8 ID photos on 4x6 photo paper
33x45 mm ID: Print 8 ID photos on 4x6 photo paper
30x40 mm ID: Print 9 ID photos on 4x6 photo paper
25x35 mm ID: Print 12 ID photos on 4x6 photo paper
25x30 mm ID: Print 15 ID photos on 4x6 photo paper

13
3) Index
Operation Flow:
Select the printing format of index (6x5, 8x7, 5x4), then press OK to confirm
Press Print to confirm and start printing
4) Sticker
Operation Flow:
Sticker format Selection (4x4, 4/2/4, 1x1)
Select (A-D) , the layout of your favorite, and press OK to enter the Preview
Page
Select the image you want to print, press OK to confirm
Note: It takes 5 to 10 seconds to decode the image file
Move to another position in A-D, and continue selecting the image to be
printed
Once the full page of sticker is occupied, press Print to print the sticker
Press Print to reconfirm and start printing
5) Quick Photo
Operation Flow:
Preview Page
Press the arrow keys to select image you want to print then press OK
Start printing
6) DPOF(Digital Printer Order Format)
Operation Flow:
Press Print to confirm and start printing
7) Print All:
Operation Flow:
Press Print to confirm and start printing
8) Setup
Operation Flow:
Select function
-Card Selection
Press Up and Down arrow keys to switch between CF and SM
Press Ok to save the change of the setting

14
-Firmware Update
Insert the memory card with the new firmware
Press OK to reconfirm and start updating
Note:
Please make sure your memory card is formatted and completely empty
before saving the new firmware into the card . Any related information
about new firmware, please go to www.hi-ti.com
-Printer Setting
Position calibration
 Put a 4x4 sticker into your paper cassette
 Press PRINT to get the Position Calibrating format on the sticker
 According to your print out, you must fill in the number of PART A and
PART B which match the sticker blade cutting line, in order to adjust the
horizontal and vertical margin.
Printout Setting
 Brightness: Right for increase and Left for decrease
 Contrast: Right increase and Left for decrease
 Color R/G: Right for more red tone and Left for more green tone
 Color B/Y: Right for more blue tone and Left for more yellow tone
 Default: Return to original factory setting
 OK: Save the change in Printout Setting and back to Printer Setting
Matte effect: Select to turn on/off the matte effect
Date print: Select to turn on/off the date printing on the photo (support on
EXIF file format)
OK: Save the change in Printer Setting and back to upper layer
-LCD Adjustment
Select functions between Brightness, Contrast, Color R/G, Color B/Y
Press Left and Right arrow keys to decrease or increase the value
Press Ok to save the setting and back to the upper layer
-Language
Press Up and Down arrow keys to select language for operation interface
-Clean Mode
Select clean mode to start cleaning process

15
-About
Controller version and Firmware version
2-3 Install Driver (Win98)
1. Please insert "Software CD" into CD-ROM drive.
2. If CD-ROM does not auto start, please double click My Computer Icon in
your Window and double click your CD-ROM drive.
3. Select "Install HiTi Photo Printer PhotoShuttle(640PS) Driver" and install.

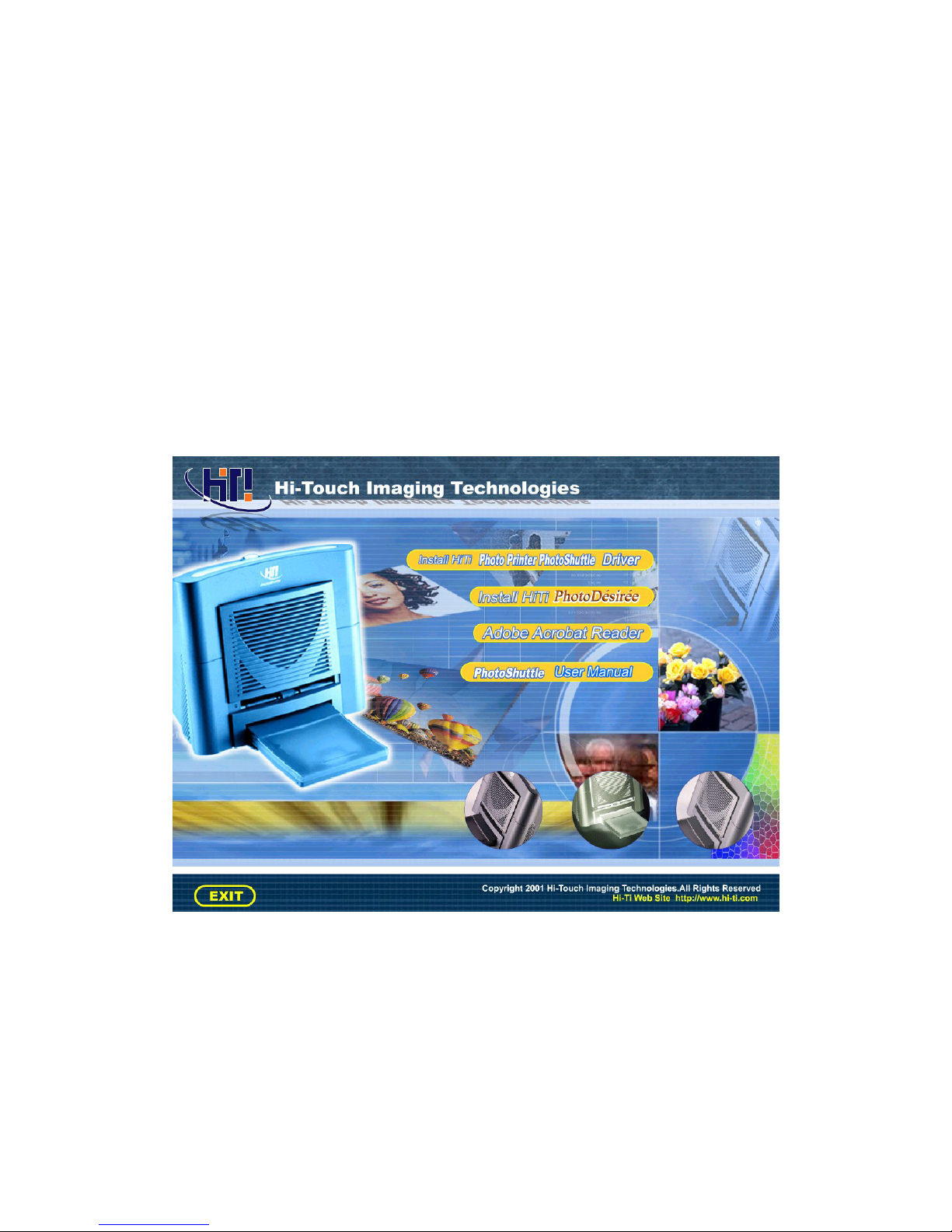

4. When you begin install you will see the following screen.

16
5. When finish, Install Program will ask you to make this printer as default or
not.
