Hobby King x200 User manual

X200 Instruction

X200 specific for your needs!

New Charger X200 Re-
leased
iM·OS
USB Port 32 bit processor All in one
A whole new OS system
for X200 profession-
al charger with high
efficiency
Output 5V 2.1V USB
port specially design for
iPhone and smart
phone charging.
High precision
dual-core 32-bit
ARM processor for
smoother operation
Entirely new design
adapter board more
beautiful, simpler and
safer.
Touch Screen charger
4.3-inch screen
480X272px
4.3-inch
The newly developed dedicated
charger operating system
USB output 5V 2A
Special custom for iPad
32 BIT processors New definition all in one
balance port
esagguane lpltiulM
customization
A whole new product
definition method
Multiple languages
customization
A whole new
product definition
method
Touch Screen
Operation
4.3 inch touch screen
make the operation more
convenient
4.3 inch display
screen
4.3 inch TFT display
screen, WQV-
GA(480*270),65 thou-
sand resolution

OS System
Type
Load
Current
Save
Cells
Uset
Mode
Start
X200 support more
than 6 type batteries
LiPo / Lilon / LiFe /
NiMh / NiCd / Pb
Loading Common
Use Battery
Setting
Input / Output
Current
Charging 0.1-10A
Discharging 0.1-3A
Save Common Use
Battery
Setting
LiXX 1-6S
NiXX 1-16S
Pb 1-10S
Advanced application
Settings
Fast Charging
Balance charging
Charging
Discharging
Circulating charge/
discharge
Charging/Discharging
Type
Load
Cells
Uset
Mode
Start
Current
Save

OS System
LiPo
LiIon
LiFe
NiMH
NiCd
Pb
Lipo Battery,Single Nominal Voltage: 3.7V,Charge cut-off voltage 4.2V,Dis-
charge cut-off voltage 3.0V
LiIon Battery,Single Nominal Voltage: 3.6V,Charge cut-off voltage 4.1V,-
Discharge cut-off voltage 2.5V
LiFe Battery,Single Nominal Voltage: 3.3V,Charge cut-off voltage 3.6is-
charge cut-off voltage 20.V
NiMH Battery,Single Nominal Voltage: 1.2V,Charge cut-off voltage 1.5V,-
Discharge cut-off voltage 1.0V
NiCd Battery,Single Nominal Voltage: 1.2V,Charge cut-off voltage 1.5V,-
Discharge cut-off voltage 0.85V
Pb Battery,Single Nominal Voltage: 2.0V,Charge cut-off voltage 2.5V,Dis-
charge cut-off voltage1.72V

Balance
Charge
Fast Charge
Storage
Discharge
Checker
Manual Charge
Cycle
Lipo balance charge use CC-CV charging way. The charger will balance the battery voltage
when charging, this only for LiPo battery. Please connecting the balance port when charging
and discharging. Support 2-6 cells.
Use CC-CV charging way. On the basis of Users setting current the charger will charge the
battery to the cut-off voltage. Warning: The voltage can not balance even connecting the
balance port when using LiPo battery.
Fast Charge. Almost same as the Charge Mode. The only difference is the current only 1/5
and the other setting only 1/10 of the setting current when finished charging.Warning: The
voltage can not balance even connecting the balance port when using LiPo battery.
Charging and discharging the battery voltage to a certain numerical for easy storage. This
function only for LiPo battery which need connecting the balance port. Support 2-6S.
Use CC-CV charging way. On the basis of Users setting current the charger will discharge the
battery to the cut-off voltage. Warning: Please connecting to the Balance port when use LiPo
battery.
Measuring Mode. The charger only collect battery primary port and balance port voltage,but can
not charge and discharge.
This function only for NiMH battery which same as The Charge mode.
This function only for NiMH battery. On the basis of Users setting current for MiNH battery cycle
charging and discharging.The Cycle times is 1-6.

X200 Fundamental Function
Touch Screen
DC IN
USB
IBP
No:201230484397.8
No:201230484396.3

Dean JST-XH
Balance port
Glow socket
JST/BEC
IBP
JR/FUXT60
EC3
Tamiye
All in one。
IBP
No:201230484397.8
No:201230484398.2
The socket name match with the plug,please make sure the right port before using
All in one.
Avoiding the switch wires making the balance cable and high current cable into one. It ran perfectly on the
very first try.
High heat proof material inserting port. With perfect better insulation,flame retardant and stability.
Due to the engineer testing the measurement data again and again make the IBP easier to use. IBP plug
connecting with the socket tightly and easily. Grooved design to prevent the misplug reduces time and
effort.The anti-slip design increase friction force and make it more beautiful.
IBP collection charge,balance,Signal transfer and temperature sense functions.

1
Preparing Connecting Using

Chapter 1 Preparing、Connecting、Using
1
X200 is a professional RC model battery charger,please view the manual before using. If
you are a fresh man please read this entire operating manual completely before using.
【Warning: 】The warning of charger operation and disclaimer, Please read and abide by
the following terms before operation.
1. This is a sophisticated hobby product. The person who operates the charger should
be professionals who master, professional knowledge about chargers.
2. Make sure the battery variety you using meets charger requirement. Any kinds of
damaged, aged and surface, damaged batteries are prohibited. Besides, choose the
suitable charging program or the charger and the battery will get damaged.
3. Considering of uneven physical property and various batteries never leave the work-
ing charger unsupervised, keep it away from inflammable materials and make sure
the fire-fighting equipment matched.
4. If the battery has suspicious reactions during charging or discharging, such as overheat-
ing, exhausting, leaking or inflating, immediately disconnect the battery and store it in a
safe location, away from people and inflammable materials.
5. HobbyKing will not be responsible for any personal injuries and fire disaster
caused by incorrect operation.
I have read this agreement carefully and give up all legal.

2
Chapter 1 Preparing、Connecting、Using

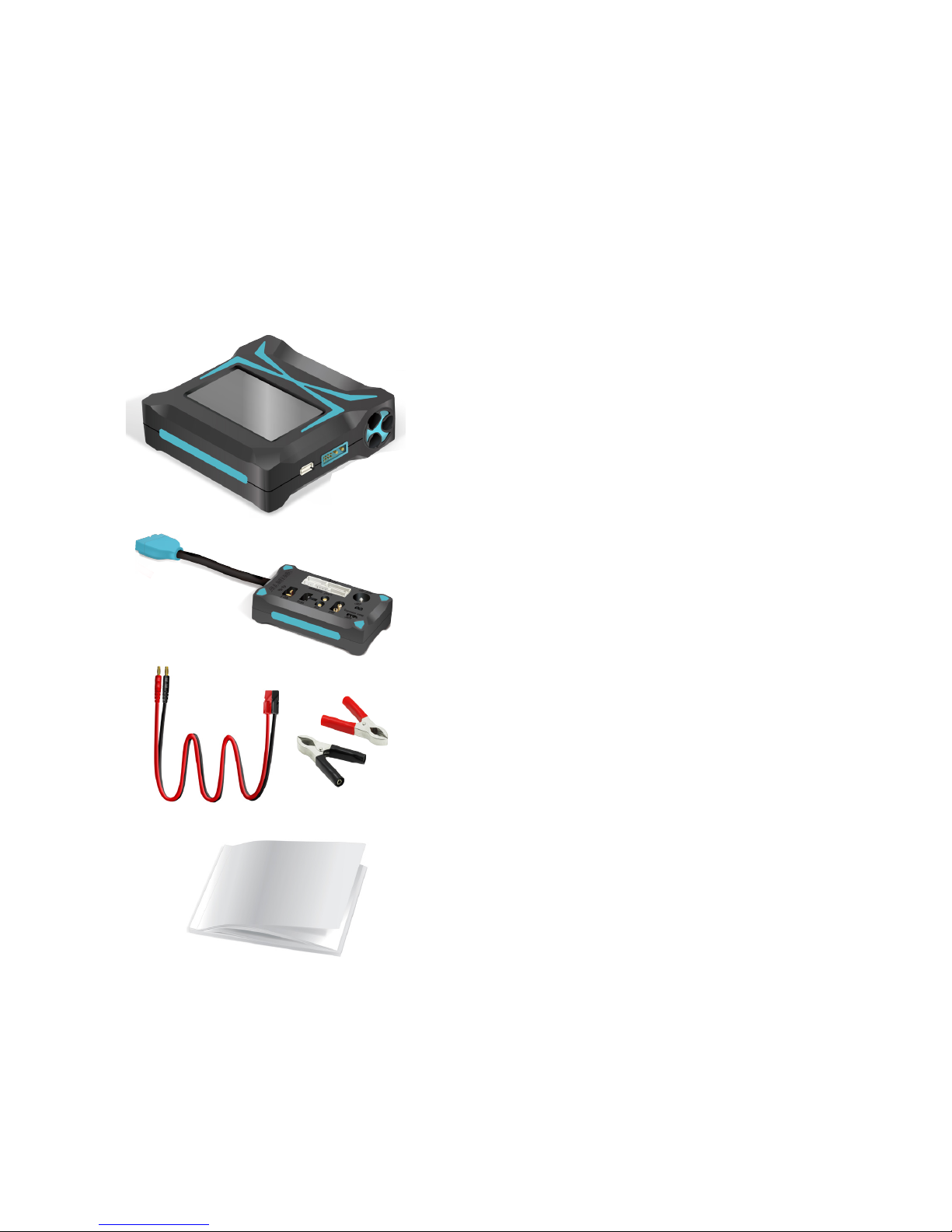

X200 included with 1pcs adapter board,1pcs connect cable and 1 pcs manual.
X200
All in one
Connect cable
Manual
Extras Including

3

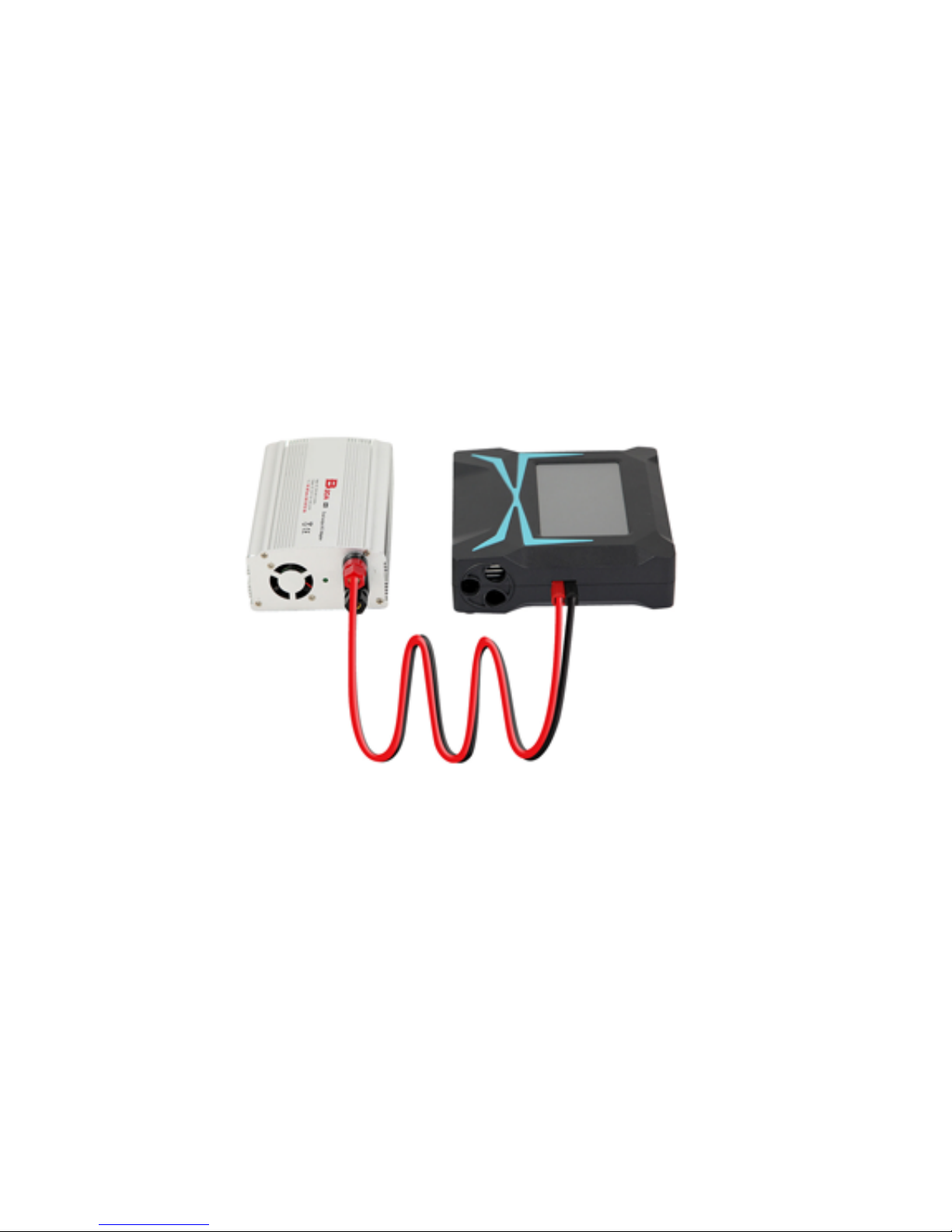

Please follow the below steps connecting:
1: Please connecting the cable to the adapter port and the X200 DC IN port, and
then plug the adapter power cord into the socket.
Connecting X200
Chapter 1 Preparing、Connecting、Using

4
2: Connecting the adapter board into the X200 IBP port.
【NOTE】 USB support 5V 2.1A charging voltage,and also use for iPad / iPod / iP-
hone / HTC and other intelligent electronic equipment. Both the USB and All in one get
charged simultaneously.
Chapter 1 Preparing、Connecting、Using

5
3: Please make sure the port connect with battery（Other ports are same as it）.
Chapter 1 Preparing、Connecting、Using

7
Image 4
Information Bar
Action Bar
Present
Setting
Type Cells
Mode
Load Save Uset Shart
Current
Battery Type:
LiPo
Mode:
Balance
Cells:
2Cells 7.4V
Current:
C 2.0A D 1.0A
6: Enter into main interface after accepting( Image 4 ). Start to charge and discharge
according to the different battery.
【NOTE】 Information bar can not get touched.
Chapter 1 Preparing、Connecting、Using

8
Sample 1:Choose a set of LiPo battery charging,please follow the below steps:
Image 5
Present
Setting
Type Cells
Mode
Load Save Uset Shart
Current
Battery Type:
LiPo
Mode:
Balance
Cells:
2Cells 7.4V
Current:
C 2.0A D 1.0A
Step 1: Touch Type( Image 5 ) Enter into the “Type interface”, and then Touch :LiPo (
Image 6 ) will Enter into main interface go on the next step.
Image 6
Chapter 1 Preparing、Connecting、Using

9
Image 7
Present
Setting
Type Cells
Mode
Load Save Uset Shart
Current
Battery Type:
LiPo
Mode:
Balance
Cells:
2Cells 7.4V
Current:
C 2.0A D 1.0A
Step 2: Touch ‘Mode’ icon( Image 7 ) to enter into Mode interface. Please choose
battery charge mode ( Image 8 ) and go back to main interface to continue setting.
Image 8
【Note】 There are six charge/discharge modes in Mode interface( Image 8 ), see
iM.OS System function for further details. please set charge/discharge mode according
to your requirement. Picture no.7 is showing Balance charge mode.
Chapter 1 Preparing、Connecting、Using

10
Image 9
Step 3: Touch Cells icon ( Image 9 ) to enter into Cells interface. Please set battery packs
by sliding ( Image 10 ). Touch OK to go back to main interface and continue setting.
Image 10
【Note】Please set according to suitable battery packs.
Chapter 1 Preparing、Connecting、Using

11
Image 11
Step 4: Touch Current icon ( Image 11 ) to enter into Current interface. Please set charge
current by sliding ( Image 12 ). Touch OK to go back to main interface and continue setting.
Image 12
【NOTE】 Set charge current in charge mode and discharge current in discharge
mode.
Chapter 1 Preparing、Connecting、Using

12
【NOTE】You could use this function after you have set Type/Mode/Cells and Current
correctly.
Image 13
Step 5: If you often use the same battery, please touch Save icon ( Image 13 ) to enter
into Save interface. Touch Unused icon to save the data and it will be easy for you to
charge next time. ( Image 14 )
Image 14
Chapter 1 Preparing、Connecting、Using
